Rear axel messurements

Forward Look Forum

  1. Glider

    Glider New Member

    Messages:
    38
    Likes Received:
    6
    Joined:
    Jul 18, 2021
    Location:
    Tollarp Sweden
    I've been looking at lists of dimentions of rear axels such as this one:
    MoPar RearAxleDim.PNG
    In this list the numbers looks more like metric but that don't seem right at all...
    & I don't understand it when I look at my messure tape.

    • Thanks! Thanks! x 1
  2. 71Polara383

    71Polara383 Kid with ballcap

    Messages:
    3,281
    Likes Received:
    5142
    Joined:
    Dec 10, 2016
    Location:
    Rockford,IL

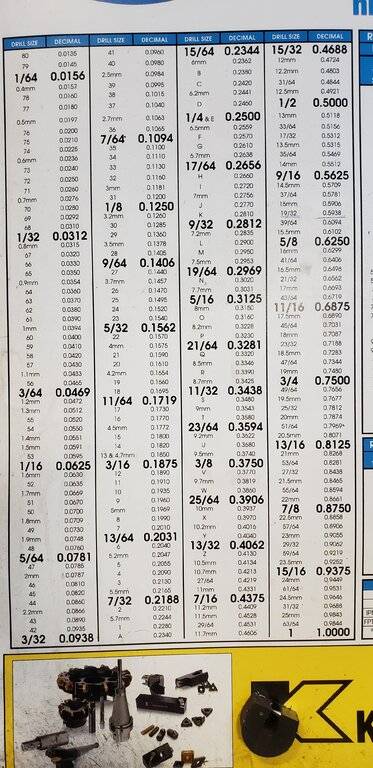

    Maybe this will help ya understand.

    Just because its got decimals doesn't mean it's metric.

  3. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    6,748
    Likes Received:
    1539
    Joined:
    Mar 27, 2011
    Not sure of the source of that chart, but I would trust what's in the Mopar Performance Race Manual, personally. Interesting that the particular chart does not have C-body 8.75 rear axles listed, only "others".

    The dimensions in the chart are not metric, but "inches". Do position them against the "rear track" measurements in the sales literature/FSMs for reference.

    The spring width dimension can be altered by a competent race chassis shop, usually. Just have to ensure that they get welded back on at the desired width AND to allow for the correct pinion angle.

    Enjoy!
    CBODY67

  4. Glider

    Glider New Member

    Messages:
    38
    Likes Received:
    6
    Joined:
    Jul 18, 2021
    Location:
    Tollarp Sweden
    What I mean is that if I messure for example 45,3/8 inches & I then try to compare that to the list I found & showed in the first post I just can't see that as inches too...

  5. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    6,748
    Likes Received:
    1539
    Joined:
    Mar 27, 2011
    What you do is convert the fraction part of the measurement into a decimal point figure. 3/8" is .375", for example, or to round it off a slight bit, .380" . Or divide 3 by 8, as the fraction would indicate.

  6. Glider

    Glider New Member

    Messages:
    38
    Likes Received:
    6
    Joined:
    Jul 18, 2021
    Location:
    Tollarp Sweden
    Okidoki now I got it. :thumbsup:
