Rear speaker(s) questions for Convertible

Early C Bodies - The Slab Side Years

  1. Dsertdog

    Dsertdog Active Member

    Messages:
    209
    Likes Received:
    199
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    Does anyone have photos of the factory rear speaker and how it's mounted?
    One of the previous owners appears to have cut a hole in the back panel behind the seat and also messed up the mesh in the seat back. It looks like there's a metal frame in front of the fiber board panel to mount a speaker. Does the factory speaker fire backwards into the top boot?

    Who ever did the installation tried to cover up the seat debacle with carpet and used duct tape to hold said carpet over mesh, along with using emblem to hold things in place. All that has failed.

    So if you convertible owners could either show me your setup or if someone has a parts manual break down, that would be very helpful!
    Thank you!

  2. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    3,884
    Likes Received:
    964
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    The usual speaker arrangement on a Mopar convertible is a single speaker at the top center of the rear seat. There will be a chromed or painted metal frame with mesh at that location. The speaker faces the front of the car. The speaker usually mounted in a heavy fiber or cardboard panel that ran along the top of the rear seat (Rear speaker mount panel) that was attached to the backside of the rear seat under the seat fabric. The FSM is not helpful in this regard as there is generally no photos of the speaker or mounting system. Someone is reproducing those panels but I do not remember who. Some other member might chime in. Type and year of the car is needed for parts reference.

    Dave

    • Thanks! Thanks! x 1
  3. 68 4spd Fury

    68 4spd Fury Well-Known Member

    Messages:
    655
    Likes Received:
    185
    Joined:
    Aug 17, 2014
    Location:
    Syracuse, NY

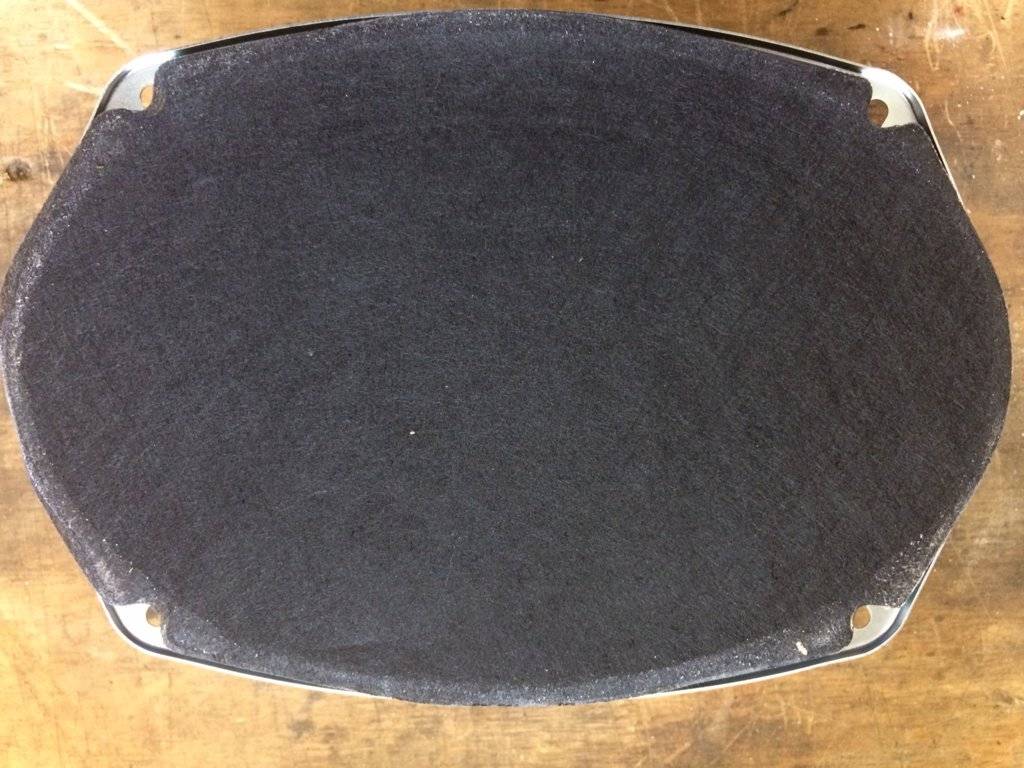

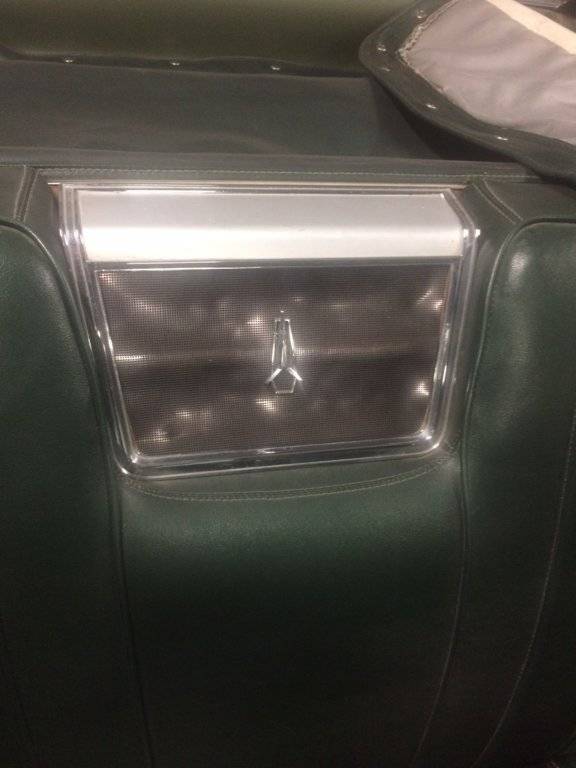

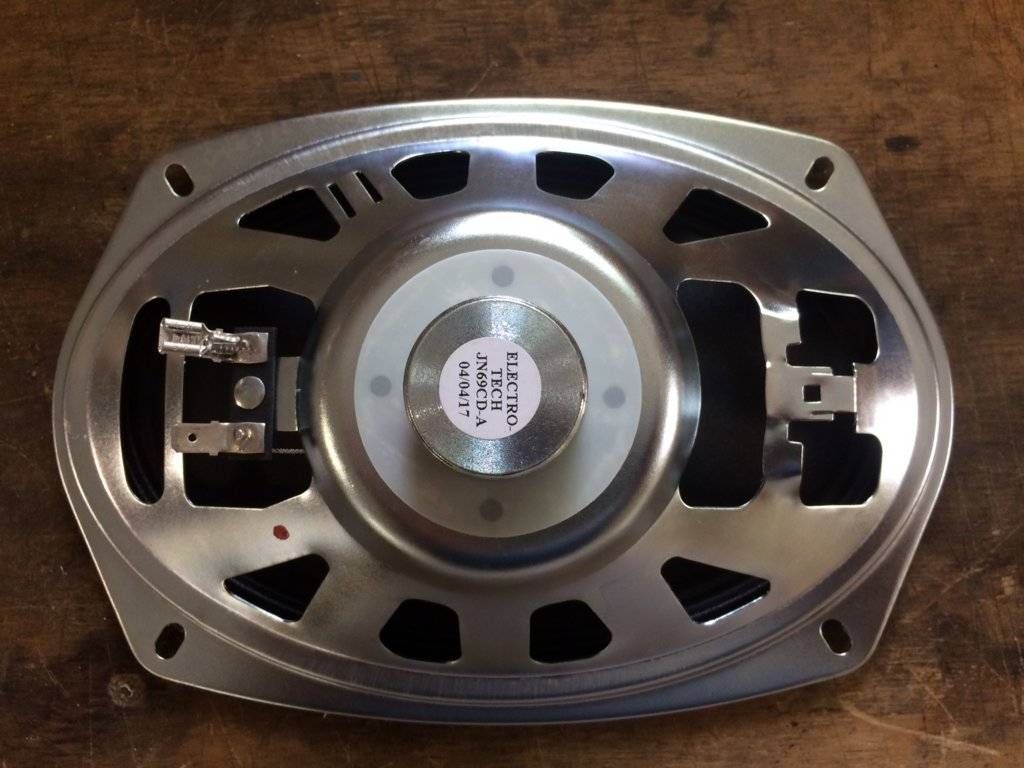

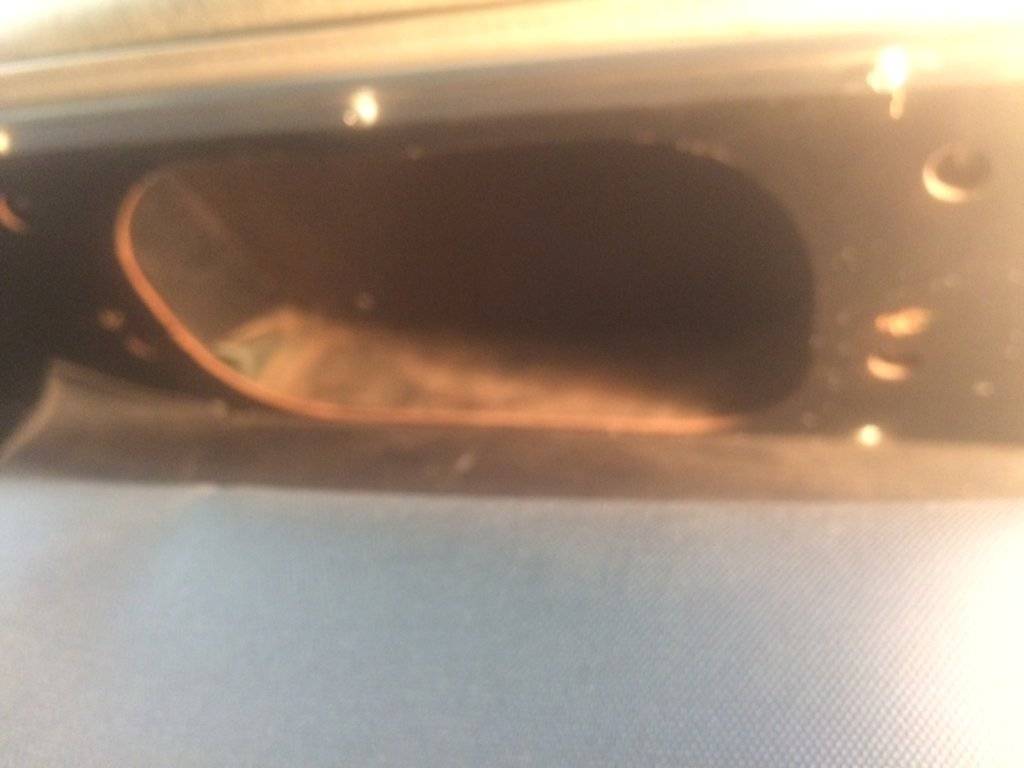

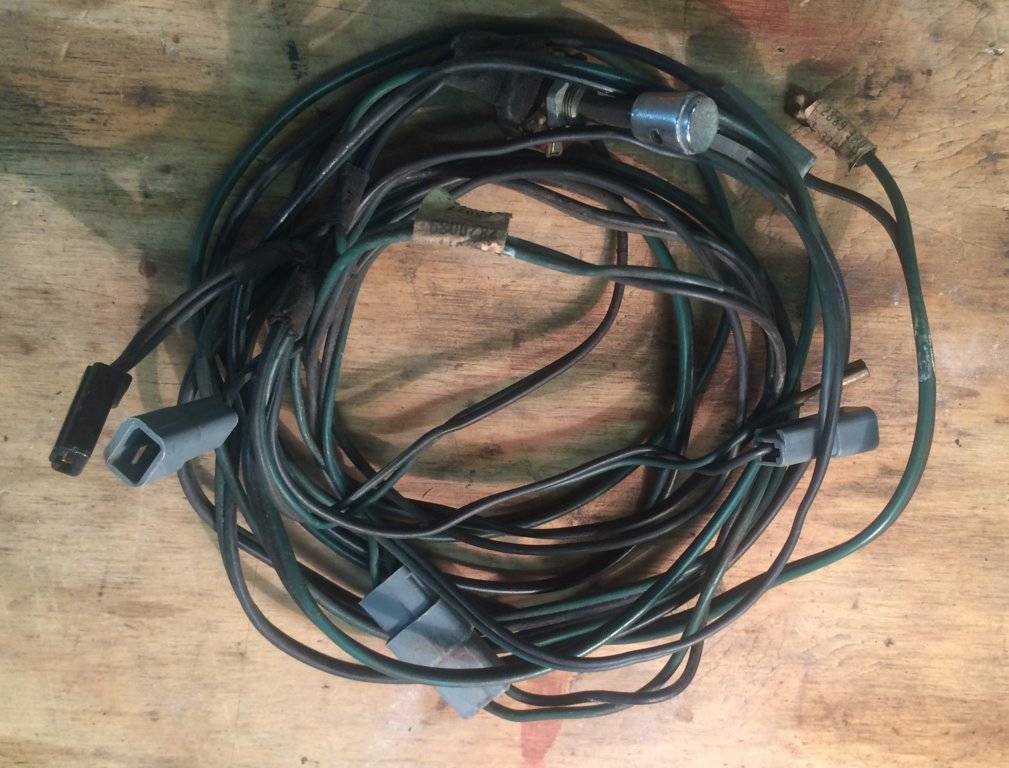

    In the opening the mounting holes for a standard 6x9 speaker should be there. Mine was open when I got it, not sure what, (if anything covered the whole when new). I used a reproduction speaker that gives decent sound, I have an OEM AM/FM that I found and it came with the factory dash fader switch and wiring harness. I bought a foam speaker baffle to cover the back of it. I can send pictures of the whole thing if you want. IMG_6015.JPG NewRearSpeaker 1.jpg NewRearSpeaker 2.jpg RrSpkrCntrl_1.JPG IMG_6016.JPG

    • Thanks! Thanks! x 1
  4. Dsertdog

    Dsertdog Active Member

    Messages:
    209
    Likes Received:
    199
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    It's a 1966 Polara 500.

    Anything that shows the completed assembly would be great. I'm trying to figure out how to get rid of this obnoxious hole. My car is factory with an AM radio and the front speaker.

    I can post a photo of my setup tomorrow.

  5. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    3,884
    Likes Received:
    964
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    www.mymopar.com has the parts manual in the tools reference section for free download.

    Dave

  6. Polara_500

    Polara_500 Senior Member FCBO Gold Member

    Messages:
    2,281
    Likes Received:
    939
    Joined:
    Apr 17, 2011
    Location:
    Up North, you betcha!

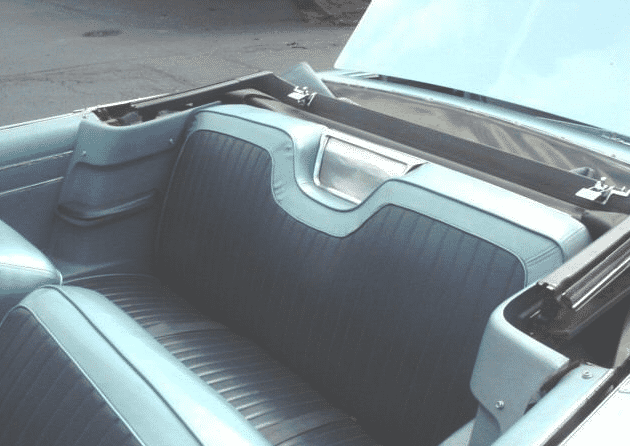

    This is a 65 Polara.

    • Like Like x 1
  7. Polara_500

    Polara_500 Senior Member FCBO Gold Member

    Messages:
    2,281
    Likes Received:
    939
    Joined:
    Apr 17, 2011
    Location:
    Up North, you betcha!
    This is a 65 Polara.

    • Thanks! Thanks! x 1
  8. Dsertdog

    Dsertdog Active Member

    Messages:
    209
    Likes Received:
    199
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    The front side isn't the issue. It's whatever is on the back side and in the boot area.

    Before I cause more confusion, I will take a photo of what is in the boot area.

  9. Welder guy

    Welder guy Senior Member FCBO Gold Member

    Messages:
    4,012
    Likes Received:
    5096
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

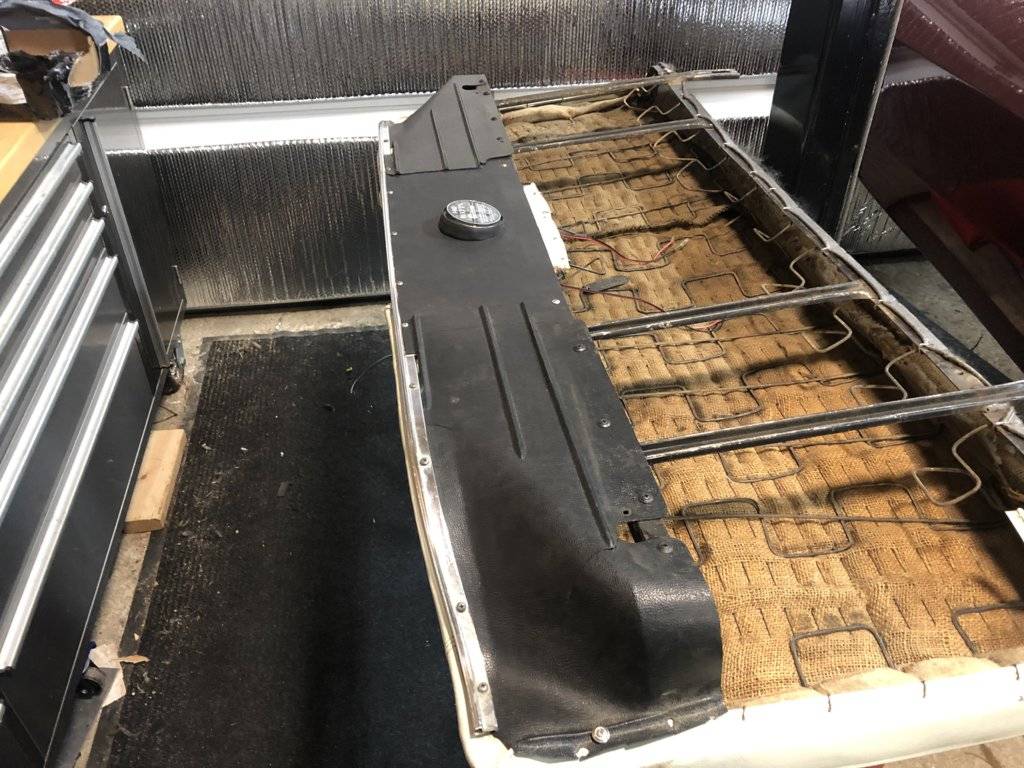

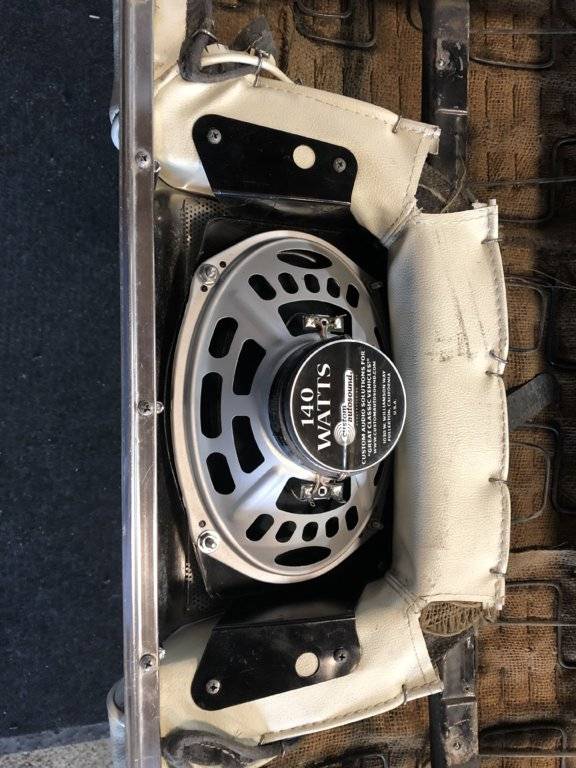

    Here’s a few pictures of my 69 fury convertible’s new rear speaker I installed. I used a press board to cover the back of the speaker with a hole in it so the speaker magnet could poke through because my original plastic part was brittle and broken up. I used weatherstripping to line the hole so the speaker did not vibrate on it. I know it’s not original but The Back of the speaker is never in view, when my top is up my boot covers it and when my top is down my boot Is covering the roof . I used a dual voice coil custom auto sound speaker so both sides of my stereo ( left and right ) go into one speaker . B30C2A90-7ADF-496B-8FEE-96E21CFBEAC6.jpeg 0493E61E-2353-4206-809D-BAD80C9646E8.jpeg FAB09F06-EBCF-496E-8843-C8061A186880.jpeg

    Last edited: Jul 12, 2019
    • Like Like x 2
  10. 68 4spd Fury

    68 4spd Fury Well-Known Member

    Messages:
    655
    Likes Received:
    185
    Joined:
    Aug 17, 2014
    Location:
    Syracuse, NY
    That's a nice looking cover, what material did you use?

  11. 68 4spd Fury

    68 4spd Fury Well-Known Member

    Messages:
    655
    Likes Received:
    185
    Joined:
    Aug 17, 2014
    Location:
    Syracuse, NY

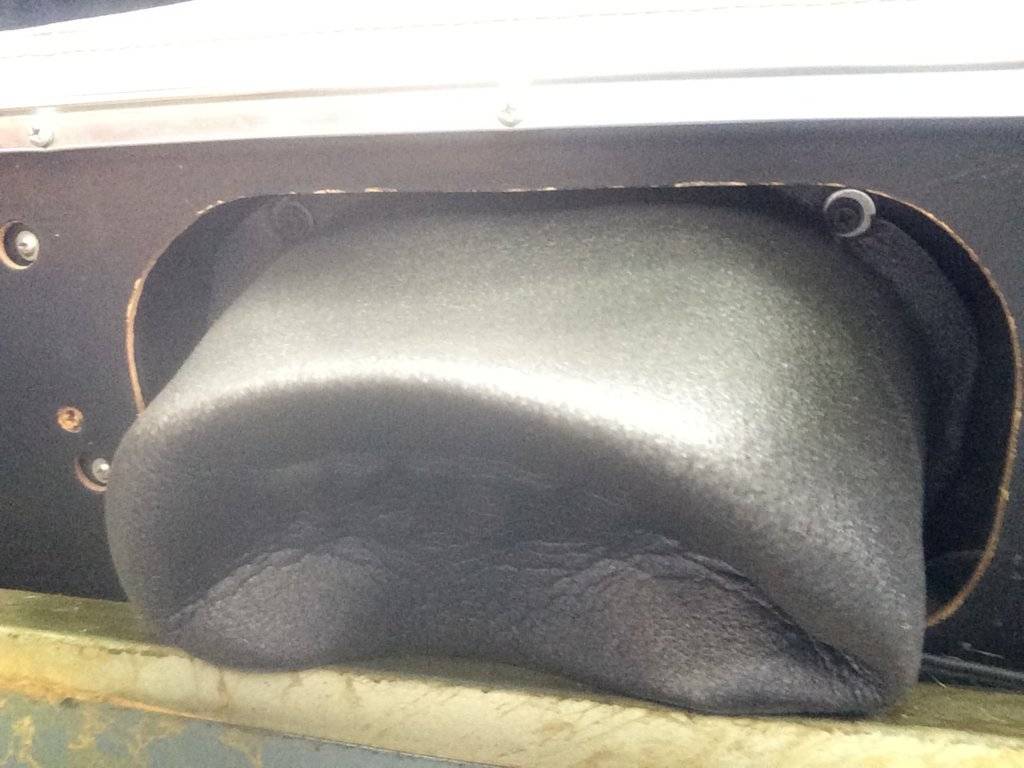

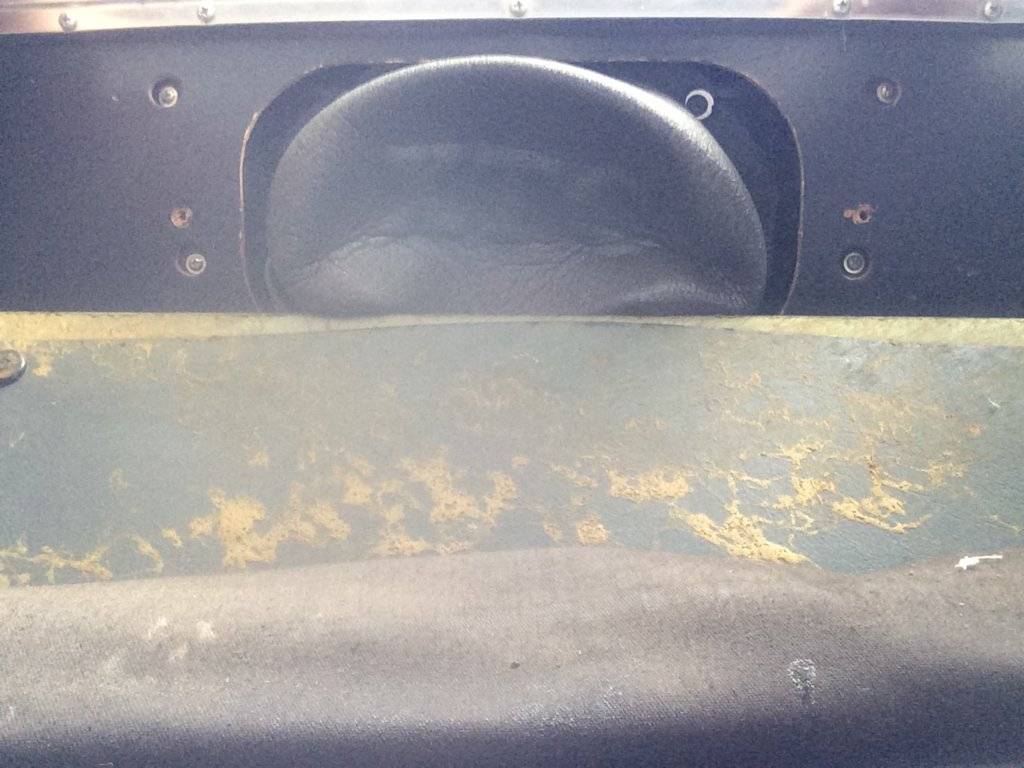

    This how mine ended up. Like I said, I never saw a picture of what they were from the factory, either with or without the speaker. IMG_5574.JPG IMG_5575.JPG

  12. Welder guy

    Welder guy Senior Member FCBO Gold Member

    Messages:
    4,012
    Likes Received:
    5096
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    I went to a arts and crafts store called Michaels and used a very stiff compacted cardboard, it’s the same stuff they use in a edging of a picture frame. It’s called Mat board. For my use it worked well. You can cut it with a box cutter knife or razor blade. ABC Moparts Makes the seat back for my back seat speaker area , maybe he makes one for your car .

  13. Welder guy

    Welder guy Senior Member FCBO Gold Member

    Messages:
    4,012
    Likes Received:
    5096
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

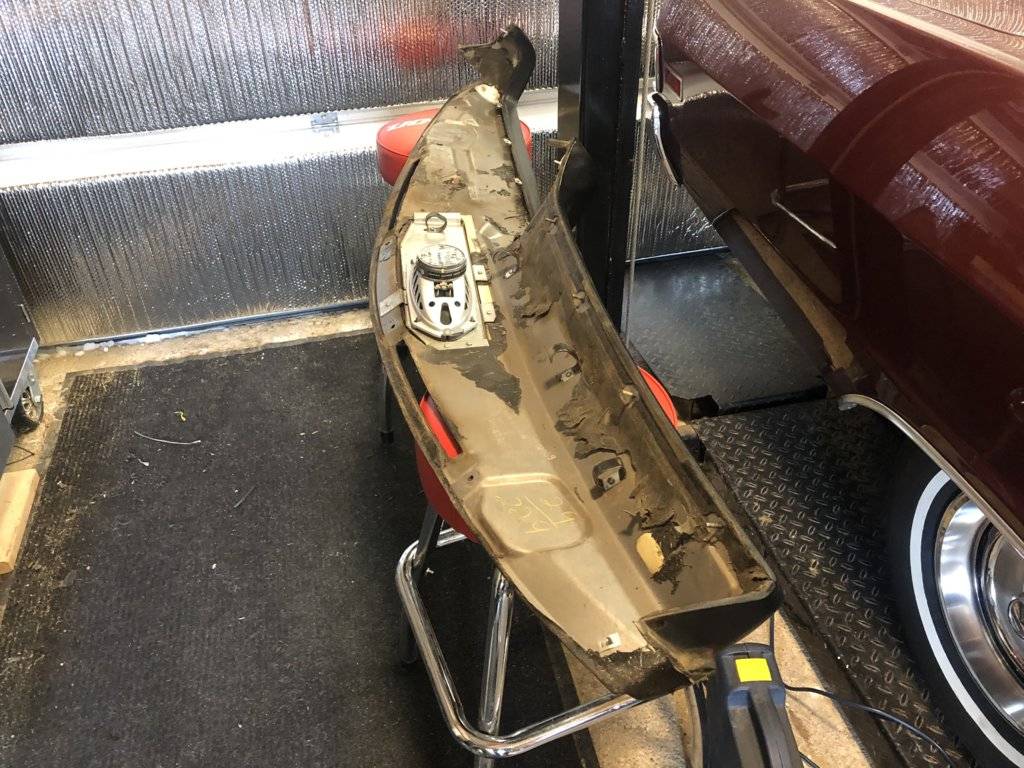

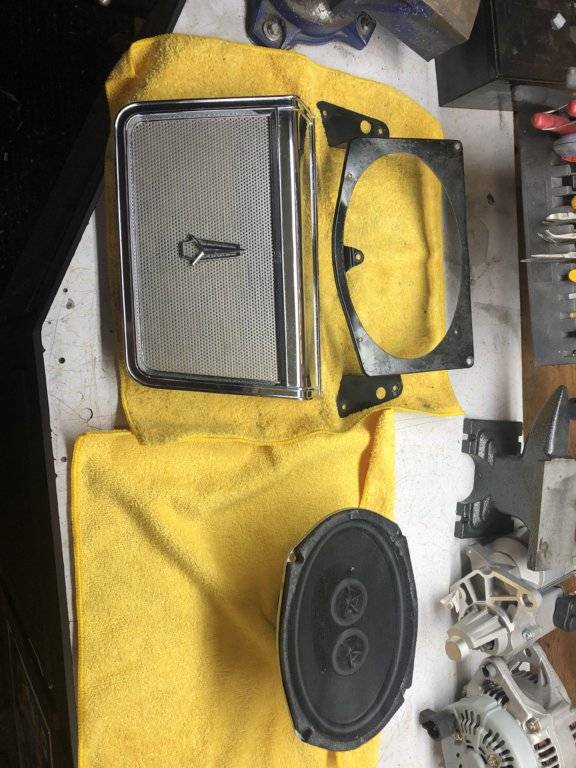

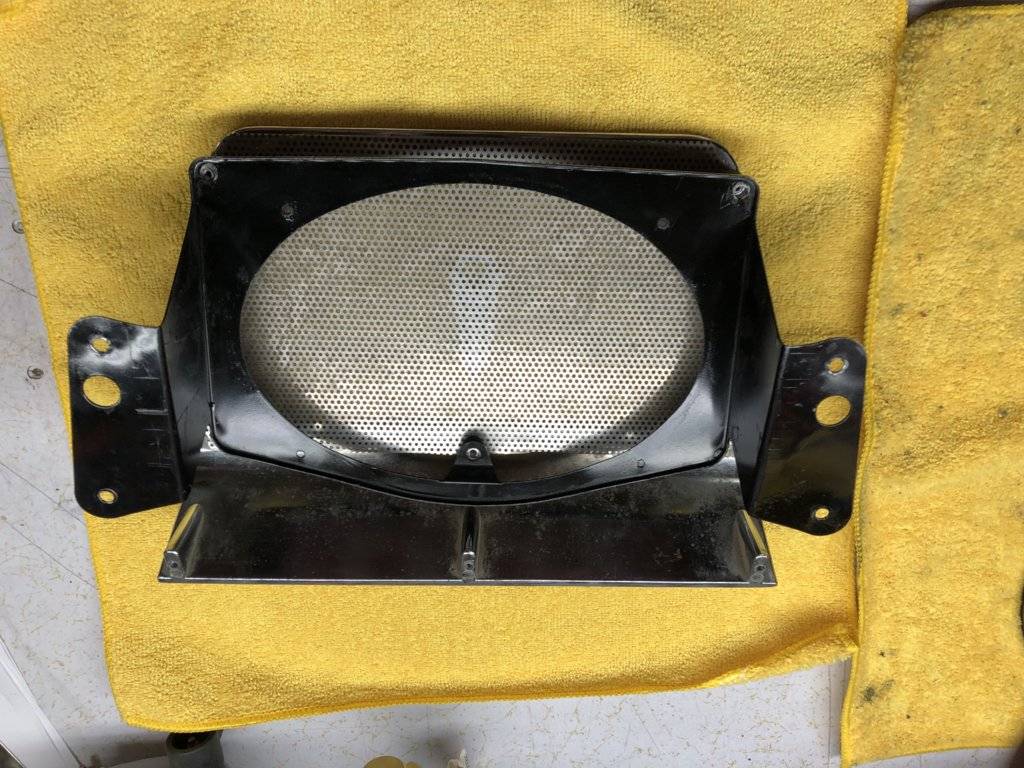

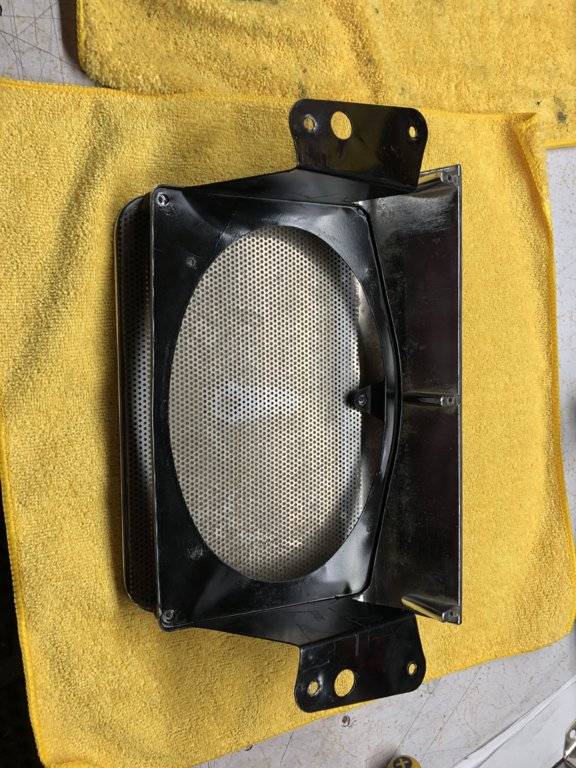

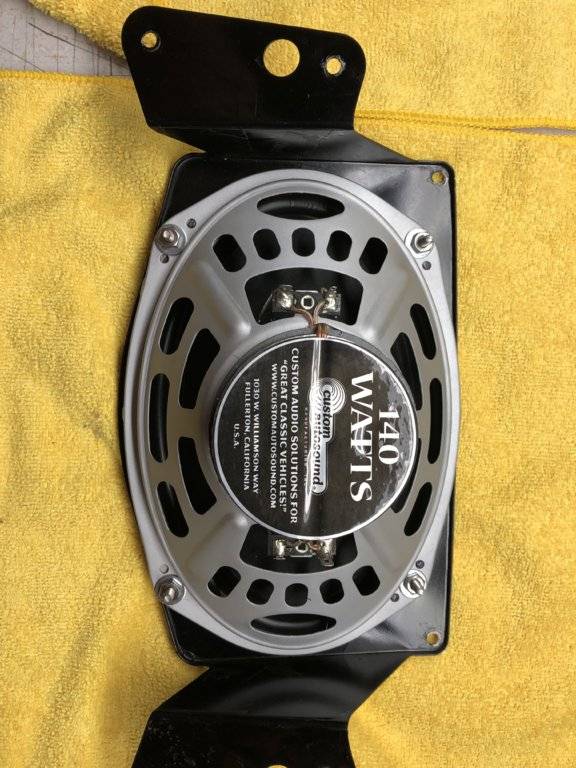

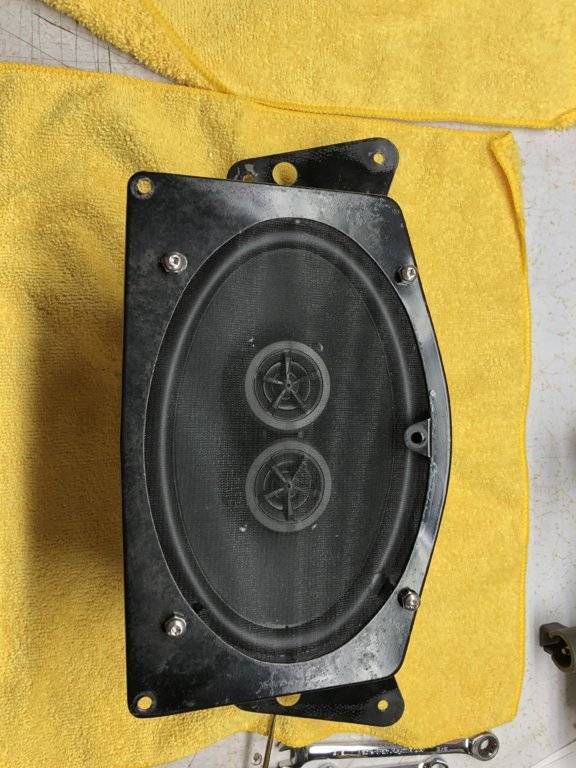

    Here are some pictures of my speaker trim and mount when I was working on it. I replaced the badly beat up aluminum cover with some new perforated stainless steel material that I picked up at local specialty metal shop and trimmed it to fit into the chrome trim. I left the stainless unpolished because I liked the way it looked in the chrome trim with the chrome Plymouth emblem on it. I then removed what was left of the argent paint from the trim for repaint but I liked the contrast of the the chrome against the stainless steel so much I decided to leave it that way. 4B49A9A0-A4DF-4586-9D0B-0CCEAAC081F9.jpeg 84DFD613-5900-43F4-B769-534244FD7C0A.jpeg 2E2DB476-019F-444E-9D9D-335497904A16.jpeg 87B3B01C-2E4E-4382-9A0B-14A7484FCD1F.jpeg D25C4C38-1754-4BFB-AA9F-E8AFA3B40408.jpeg 796228EE-1408-436E-94CD-4DBB4BD637F1.jpeg 9D004DB5-088D-4DA6-B7F1-35CE324938E8.jpeg 69219CFF-F823-472F-A66A-42D9362D7845.jpeg

  14. Welder guy

    Welder guy Senior Member FCBO Gold Member

    Messages:
    4,012
    Likes Received:
    5096
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    First pic no speaker, the next 2 pictures are of the final results. It just sparkles in the sun. CDB47108-46C3-4A9D-8288-B380A7E468F8.jpeg 84F63598-DCA6-4936-801D-B5F7A1DEAA9B.jpeg 19E36355-3DF7-40AE-AF3B-CFB1930BE53C.jpeg

    • Like Like x 1
  15. Welder guy

    Welder guy Senior Member FCBO Gold Member

    Messages:
    4,012
    Likes Received:
    5096
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

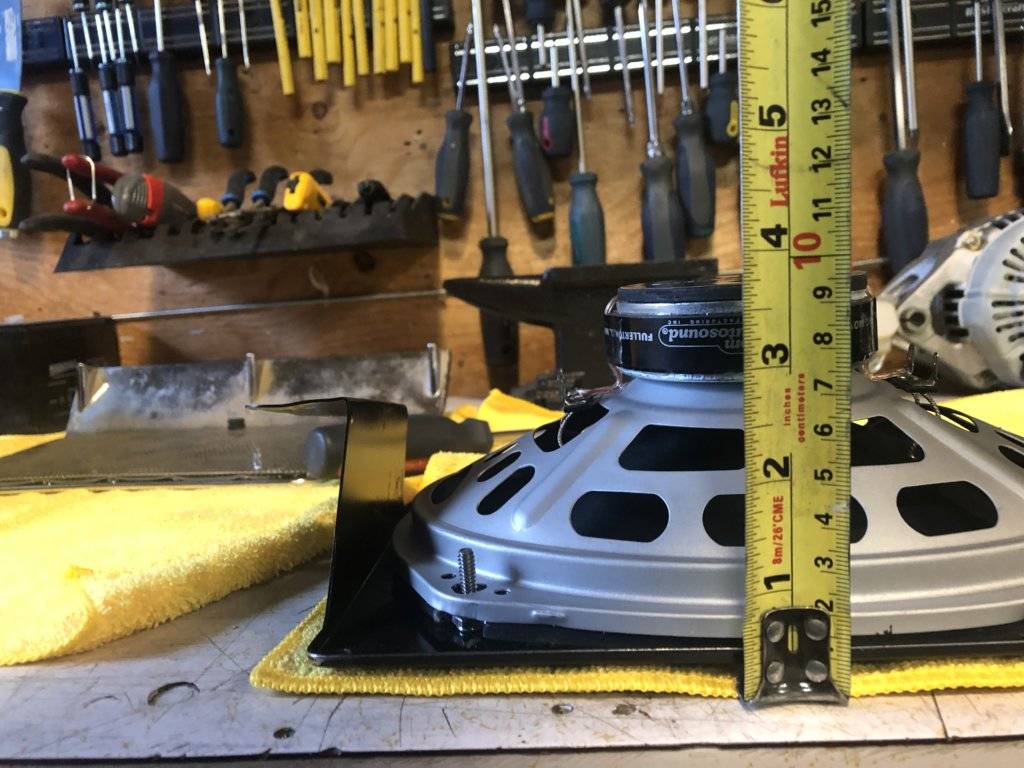

    Found another pic of the depth of my speaker E59E6EEB-DC33-4479-A566-2EC56B8E170E.jpeg

  16. Welder guy

    Welder guy Senior Member FCBO Gold Member

    Messages:
    4,012
    Likes Received:
    5096
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

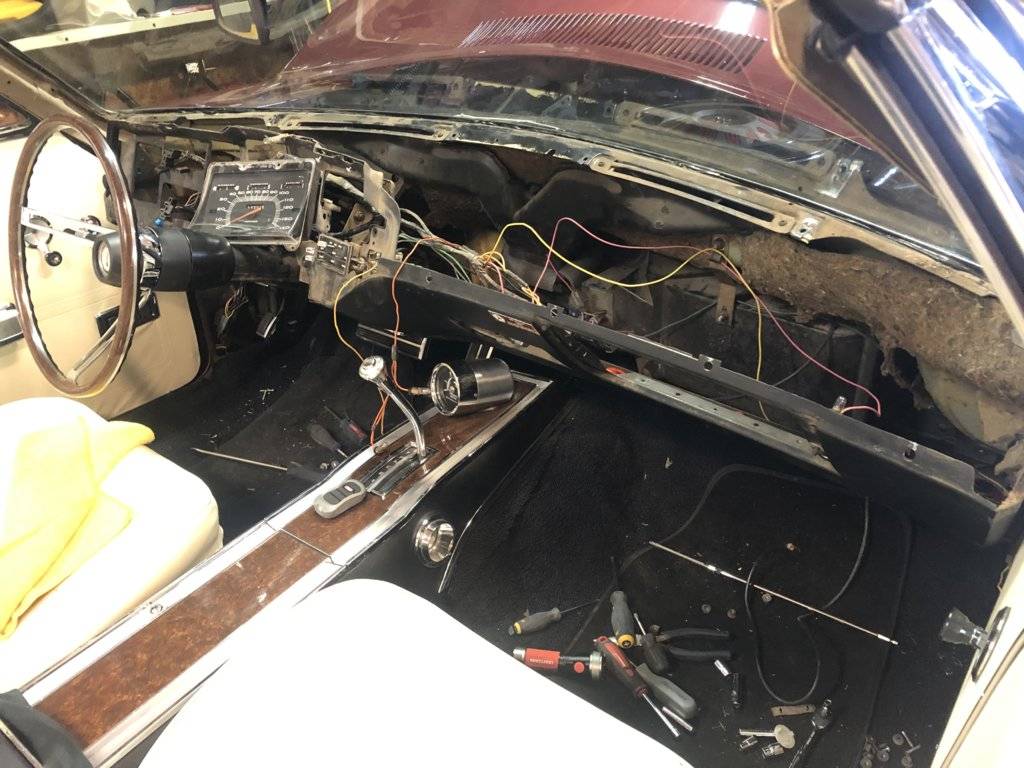

    When I had the dash pad off to fix a few things I mounted a new dual voice coil speaker in the dash as well . The old girl sings pretty good now 4F43B837-B61D-43B0-9CC7-520ED7B0D08D.jpeg 228BFE95-042E-4C92-AB90-3014A98E00C4.jpeg E1BF6D4C-8207-498D-A683-C8EBCE559661.jpeg

  17. Samplingman

    Samplingman Senior Member

    Messages:
    4,305
    Likes Received:
    2175
    Joined:
    Apr 18, 2012
    Location:
    South Jersey
    @Welder guy, the stock cover for the rear seat does have a bulge to accommodate the speaker, do you think the upgraded speaker you used would have fit?

  18. Welder guy

    Welder guy Senior Member FCBO Gold Member

    Messages:
    4,012
    Likes Received:
    5096
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    Yes no problem , the speaker would fit with plenty of room to spare. My bulge was broken off of mine so I just went flush because it was easier to do. You would have room to build a good speaker box just make sure any box you build doesn’t interfere with the roof mechanism when it’s down.

    • Thanks! Thanks! x 1
  19. Swefury

    Swefury New Member

    Messages:
    19
    Likes Received:
    22
    Joined:
    Aug 3, 2018
    Location:
    Kumla. Sweden

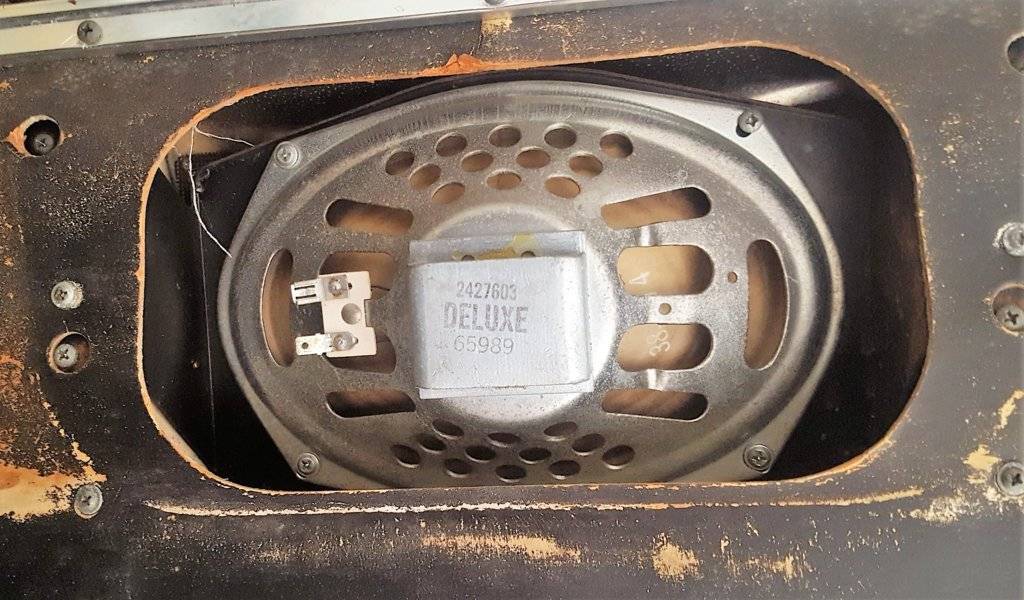

    Here is a picture of how it looks in my 68 Fury III convertible. I bought a speaker and fader kit (original) and mounted it as described in the manual. It was a cover over the speaker hole before of the same material as the back of the seat.
