Right tools for the job! Rebuilt my front upper and lower control arms.

BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA
It’s amazing how smooth a job can go when you research how to’s and get the right tools for the job. I cannot take credit for this process, it’s been shown around here before, but was successful in trying this method below. Tools purchased that helped me do the job was :

1.) harbor freight 12 ton press
2.) 1’ 3/8 tap ( for LCA inner bushing sleeve removal)
3.) steel pipe 1 1/4 x8 steel pipe with connector ( to press in pivot shaft)
4.) various grade 8 bolts to press components out with
5.) powerbuilt 648604 upper control arm service kit and buy one separate 1 5/8 socket with 3/4 drive
6.) angle grinder with cutoff wheel and some cold steel chisels ( for pivot pin inner bushing sleeve removal)
7.) custom made upper control arm mount to vise if not installing ball joints on the car.


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA

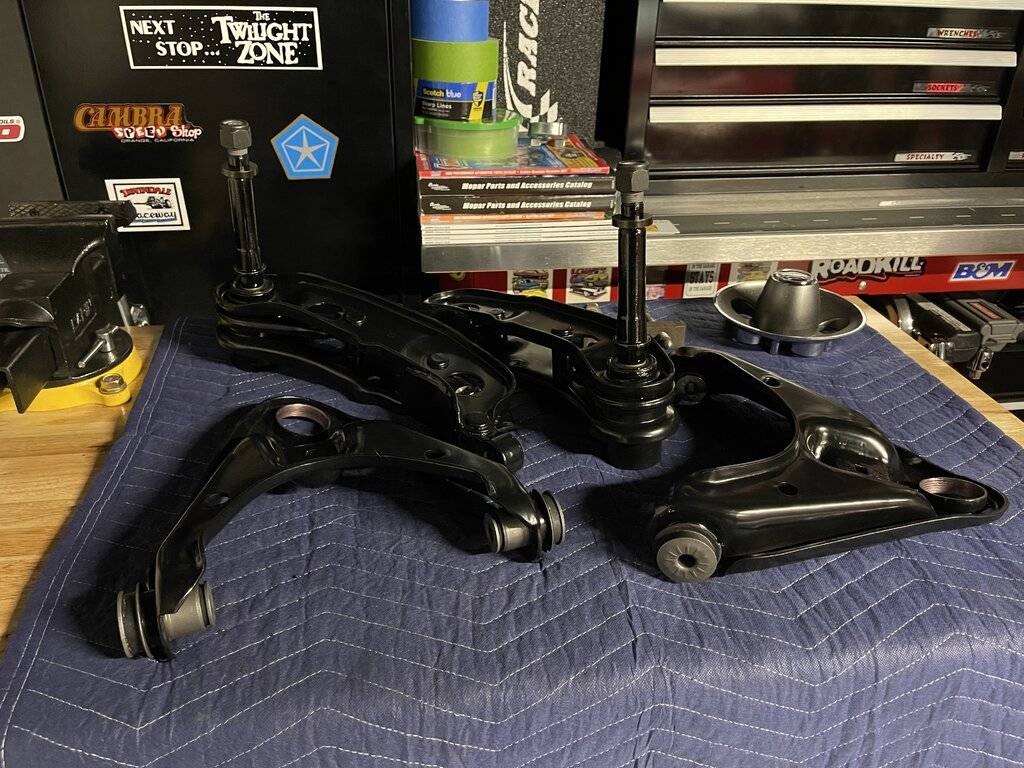

Here’s what I started with , bought a set of 1970 Chrysler Newport upper and lower control arms from desert valley auto/ Arizona

disassembled everything g and had all parts sand blasted and powered coated.


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA

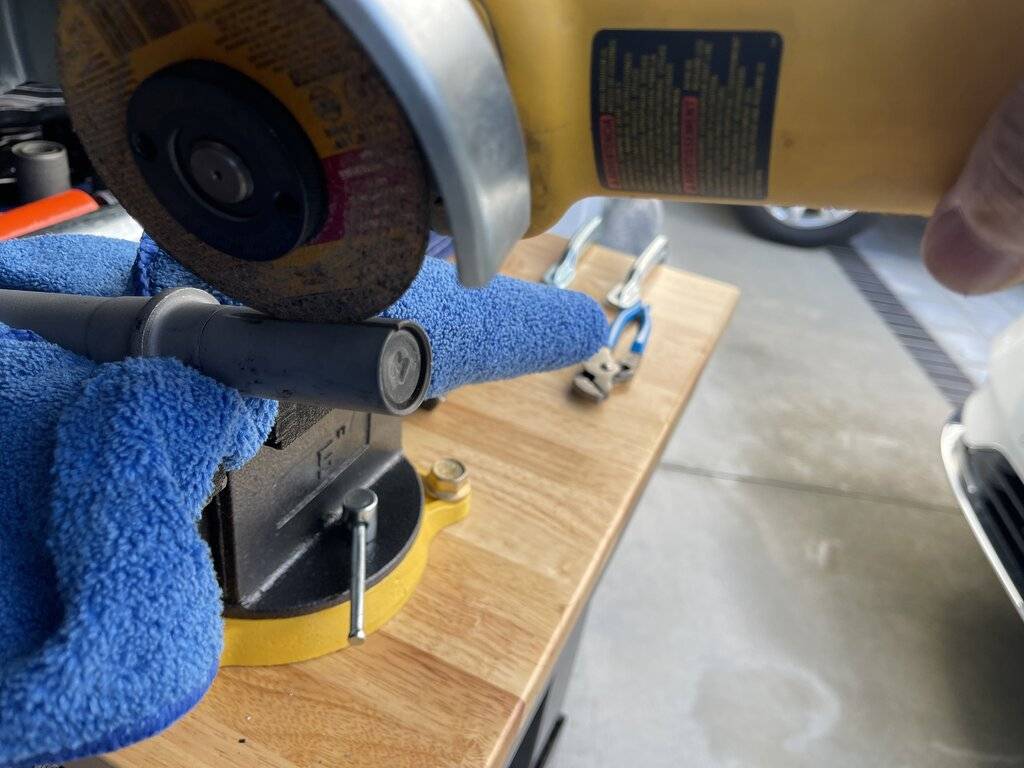

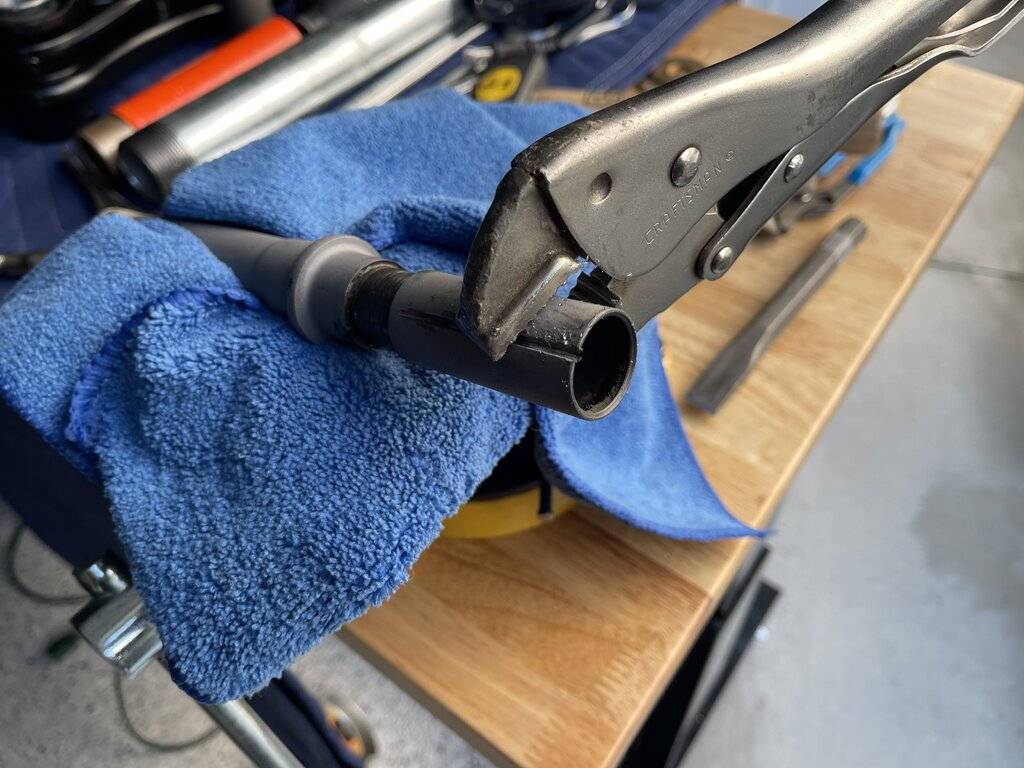

Once I got the parts back from powder coating , I pressed out the pivot shafts. Forgot to take a picture of this step but you basically take a bolt or steel pin and press out the pivot pin from the back of the lower control arm (torsion bar end). Then take the pivot pin to the vise to remove the inner sleeve from the pin. I used an angle grinder and slowly cut a groove horizontally on the inner sleeve , then chiseled it carefully till it split and it slides
right off.


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA

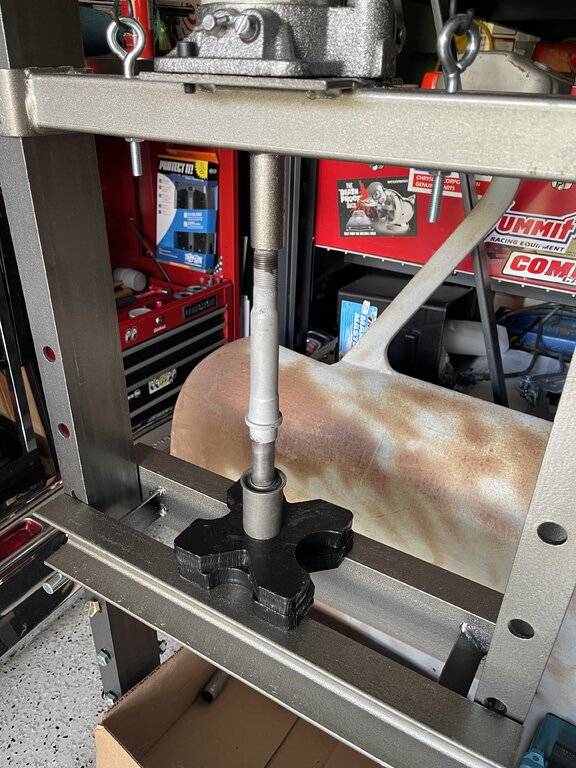

Now with the inner sleeves off I pressed the pivot pins into the new bushings. I used mcQuay-Norris from rare parts.


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA

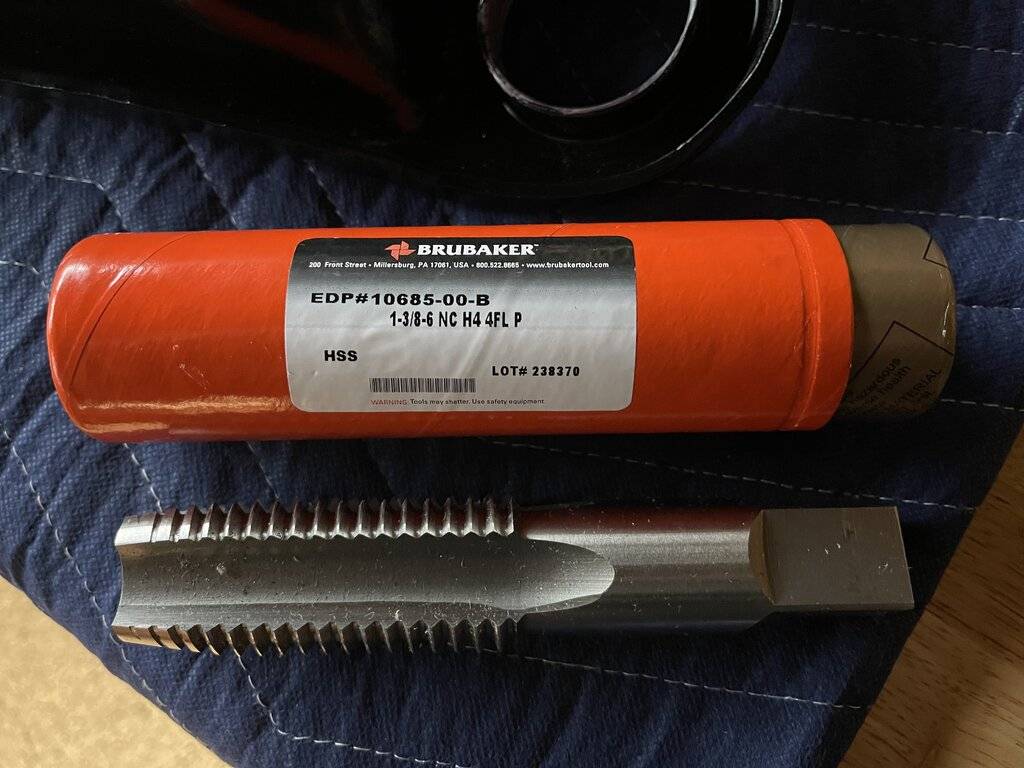

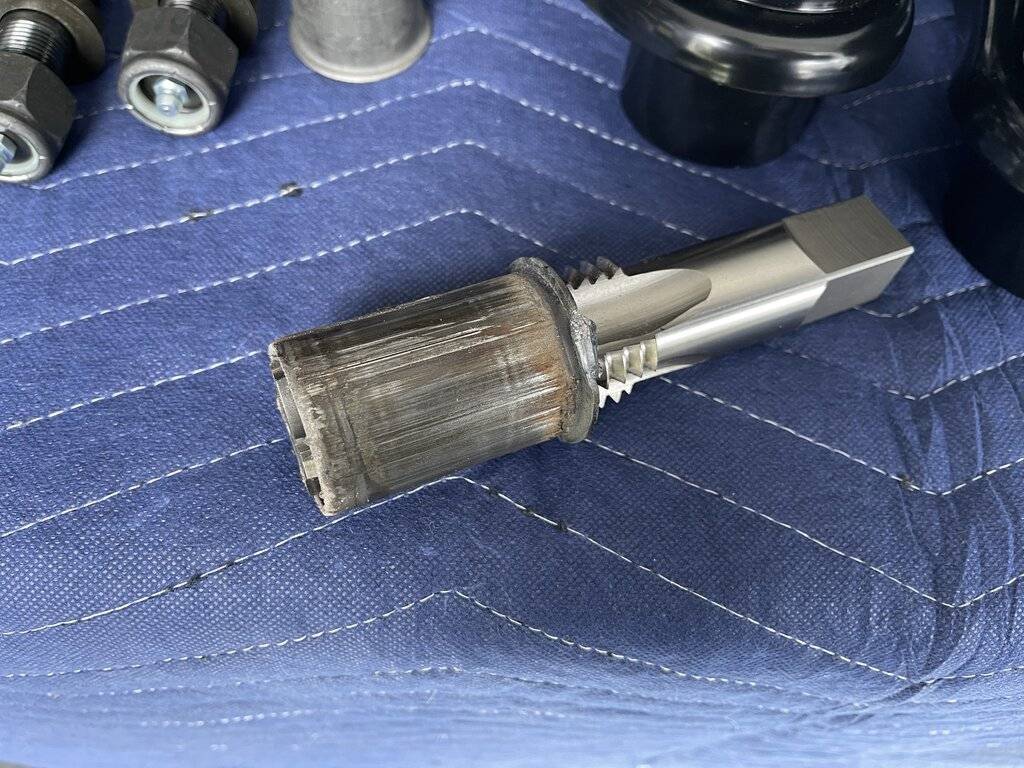

Next I attempted to remove the lower control arm outer sleeve. I tried the welded washer with no success, ( welds broke) so I went with the 1 3/8 tap route and bravo came out very easily.


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA

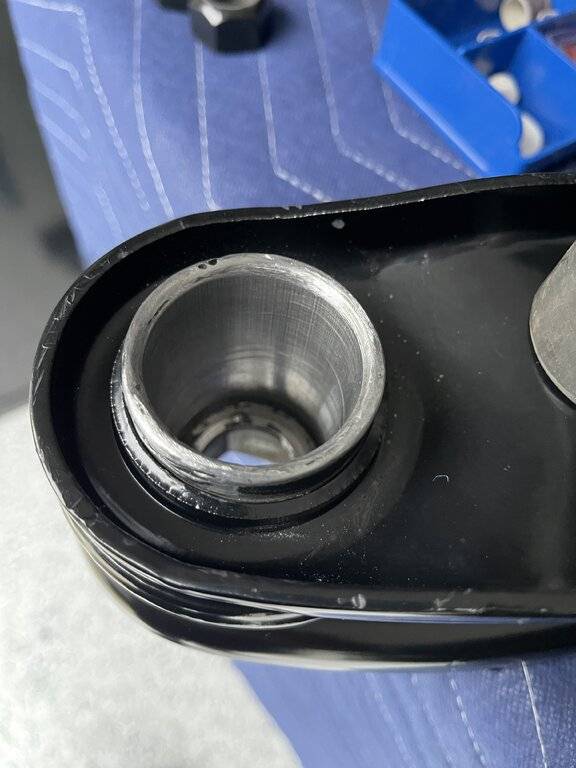

Now with the lower bushing sleeves completely out I cleaned up the bore with some scuff pads and my dermal to remove some previous guys butchery, was some deep scrapes inside the bore, so I smoothed them out with my dremel in preparation for the new bushings to be pressed in later.


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA

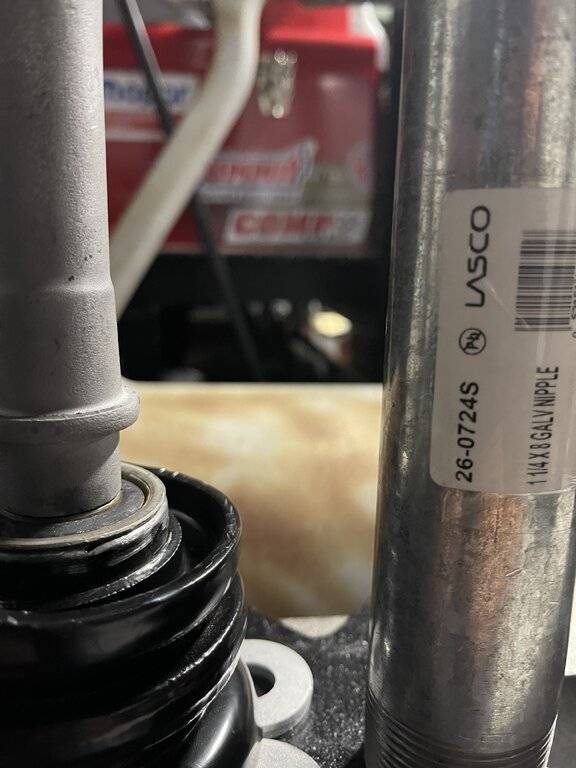

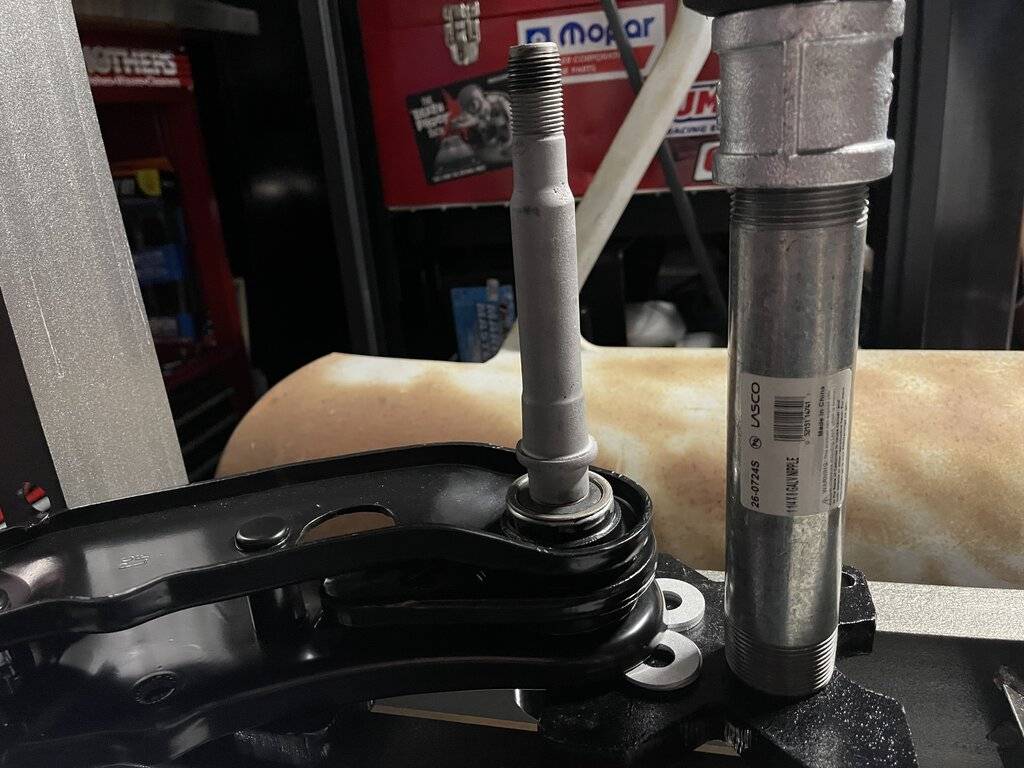

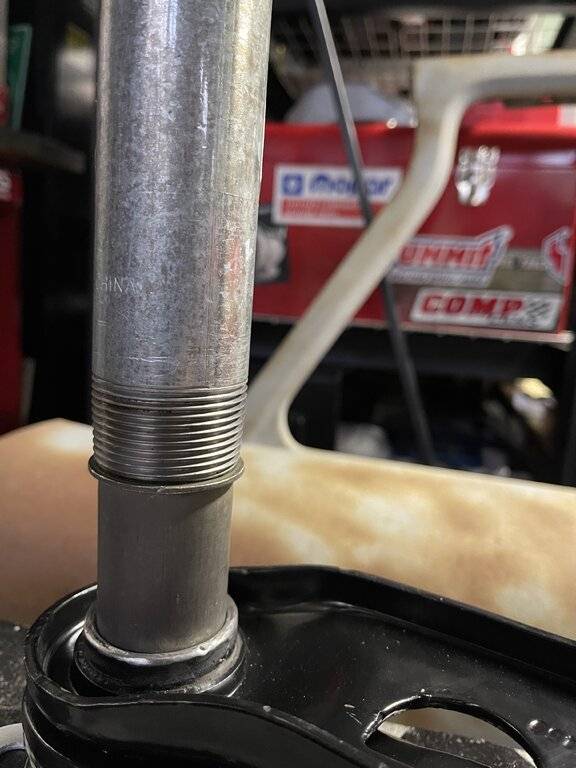

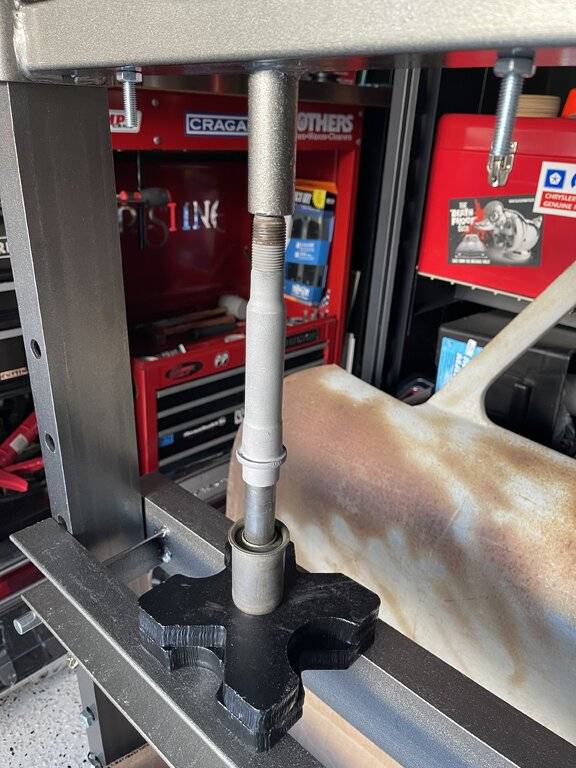

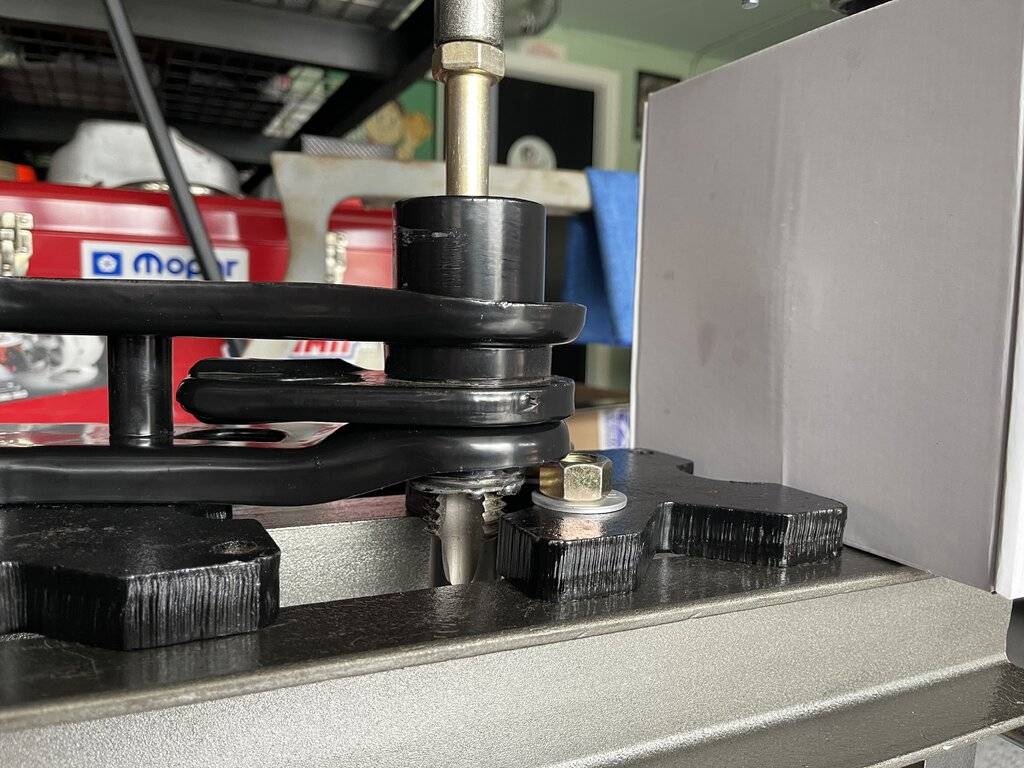

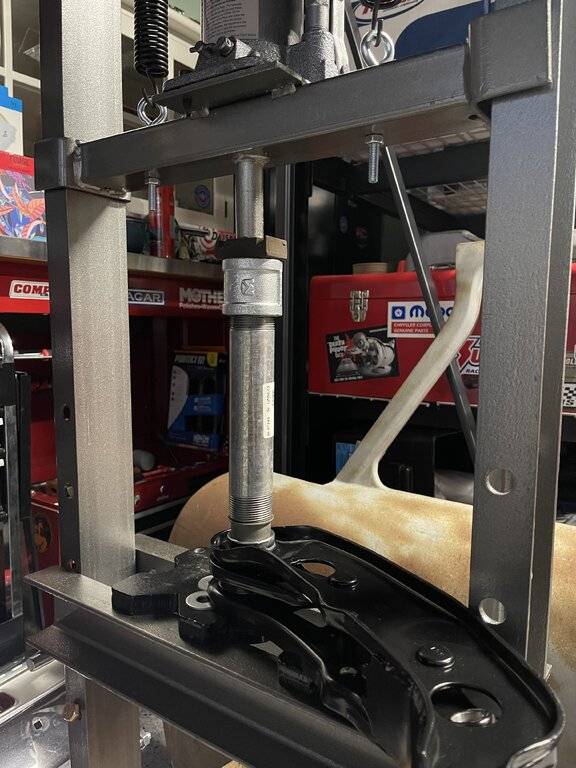

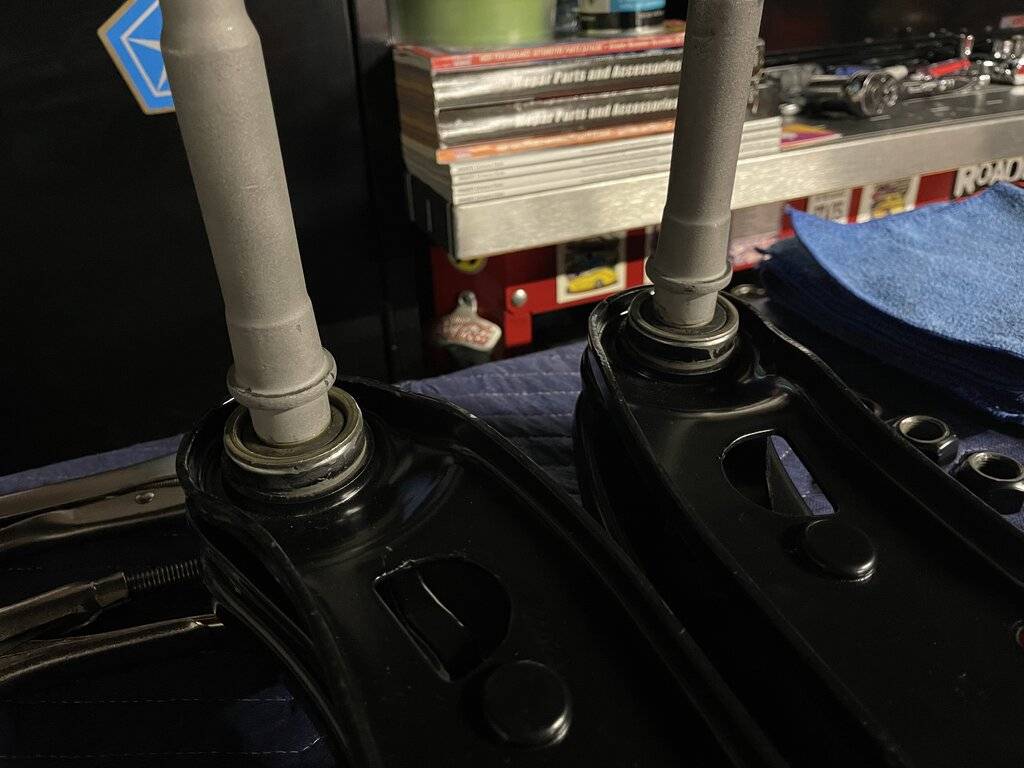

So now I’m ready to press in my pivot shafts into the lower control arms, was recommended in this order, press pivot shaft into bushing first, then pivot shafts with bushing already in it pressed into lower control arm. A 1 1/4x8 pipe with connector did the trick for me. On this step you need to press the lip of the outer bushing so it all goes in evenly together. I’ll let the pics do the talking.


Boydsdodge

Well-Known Member
FCBO Gold Member
Joined
May 26, 2020
Messages
681
Reaction score
884
Location
Toronto Canada
Nice work. I do the same. Last go around my 1 3/8" tap split on me. Thanks for reminder to find another. Where did you source your tap?


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA

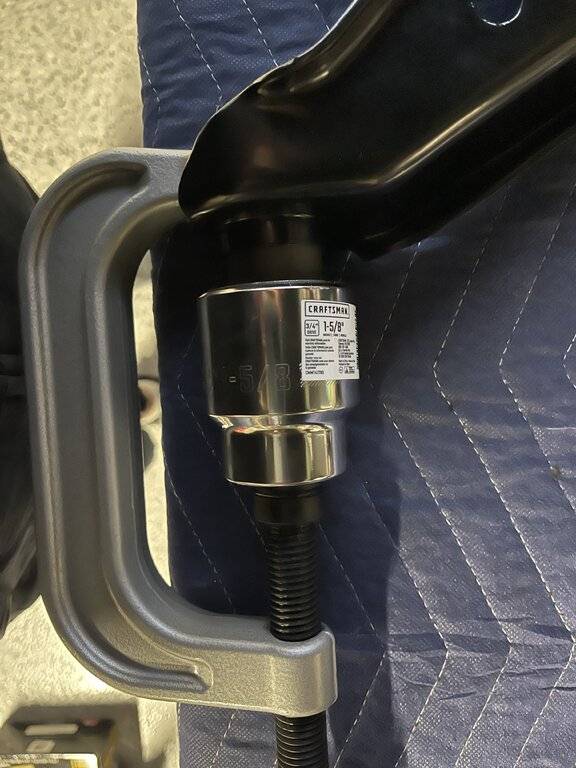

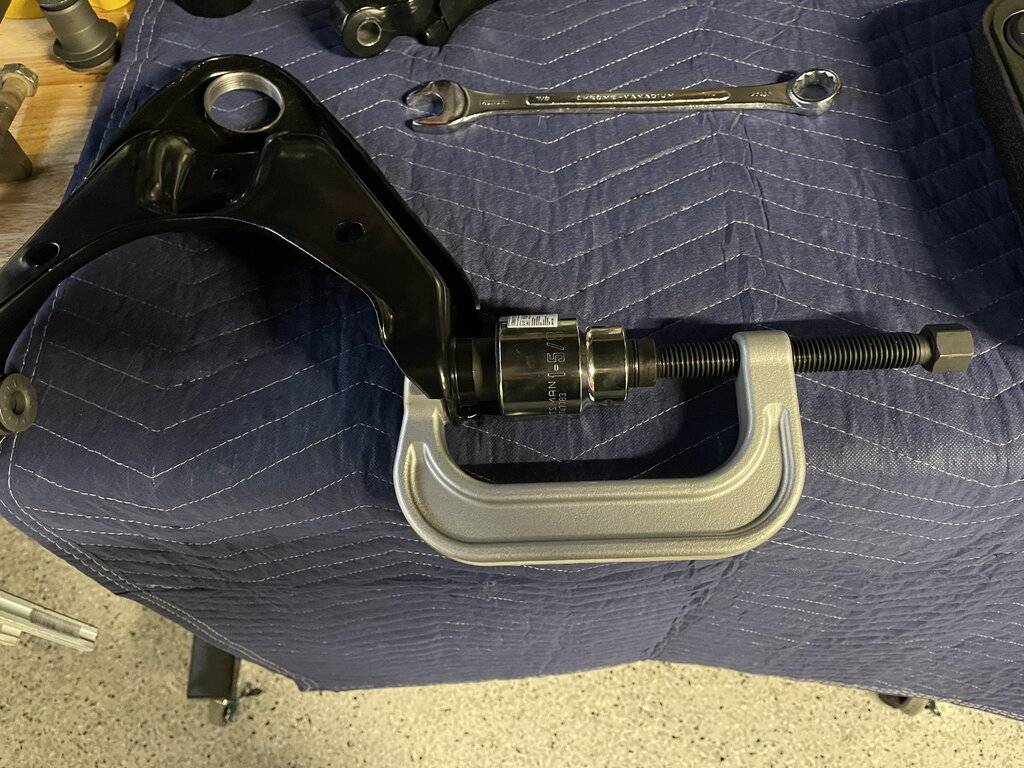

So now moving onto the upper control arms. I bought this kit and 1 5/8
socket and the job was a piece of cake. Here I’ll show installing my new moog bushings since I had already removed my old bushings.



Boydsdodge

Well-Known Member
FCBO Gold Member
Joined
May 26, 2020
Messages
681
Reaction score
884
Location
Toronto Canada
Nice work. Good tools go along way on a job.
Is that power built the same tool above? Craftsman?


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA

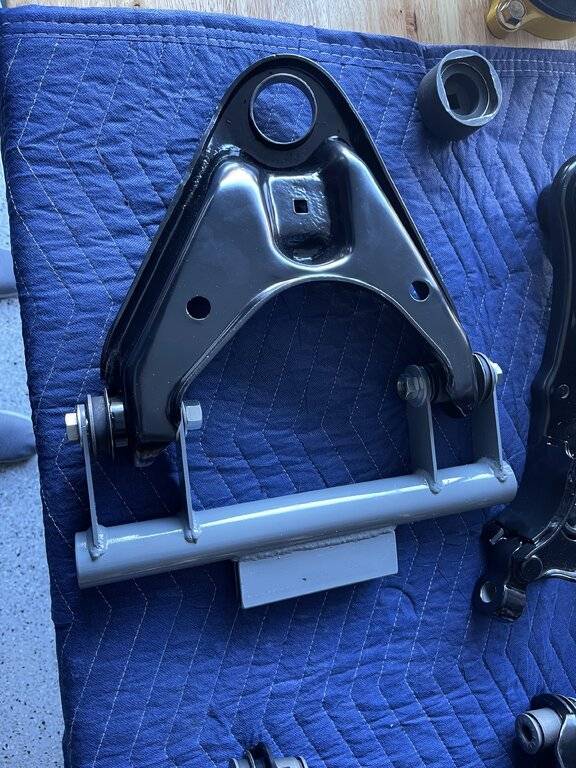

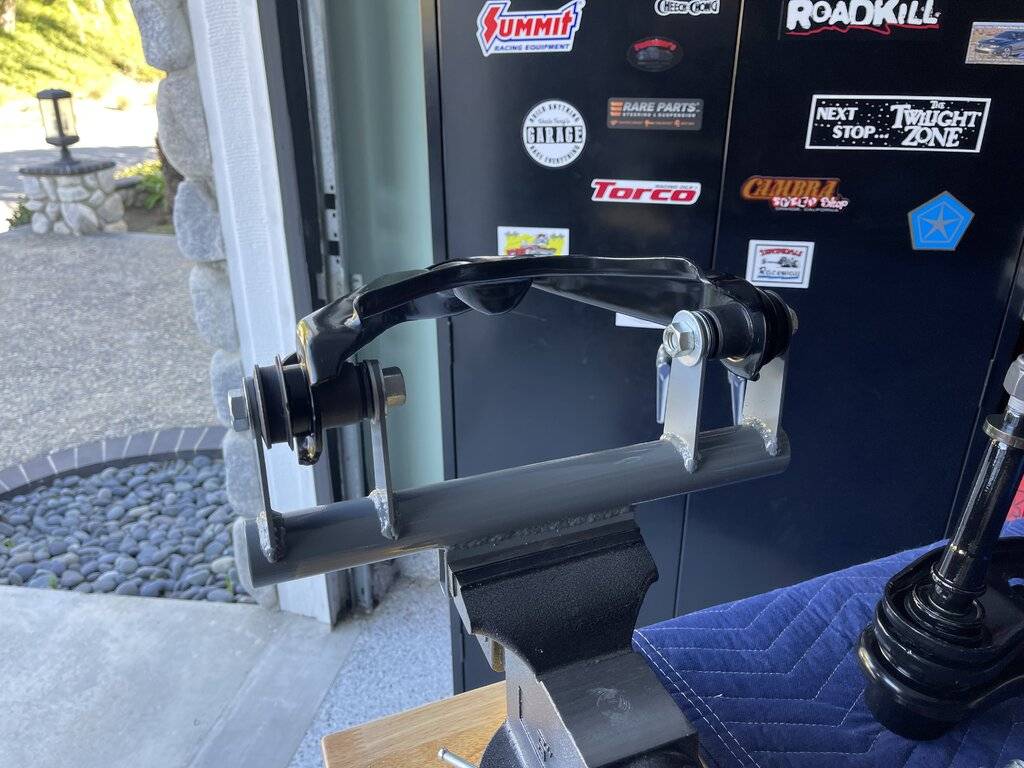

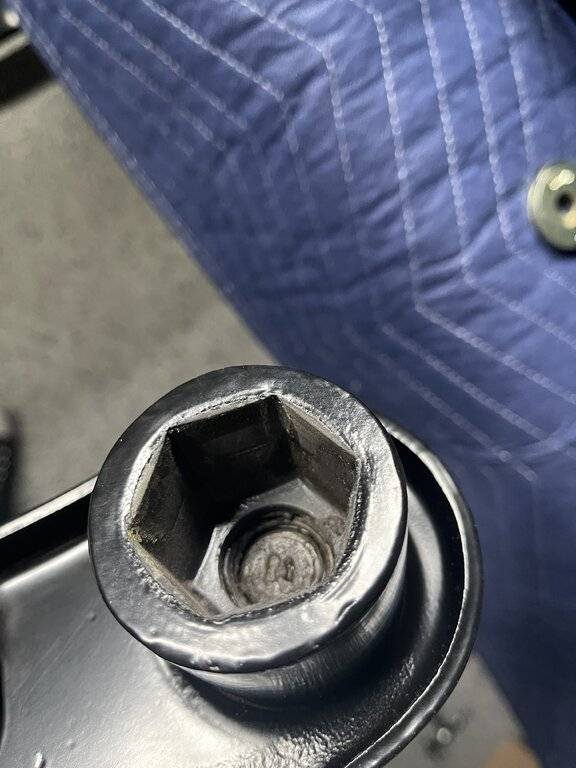

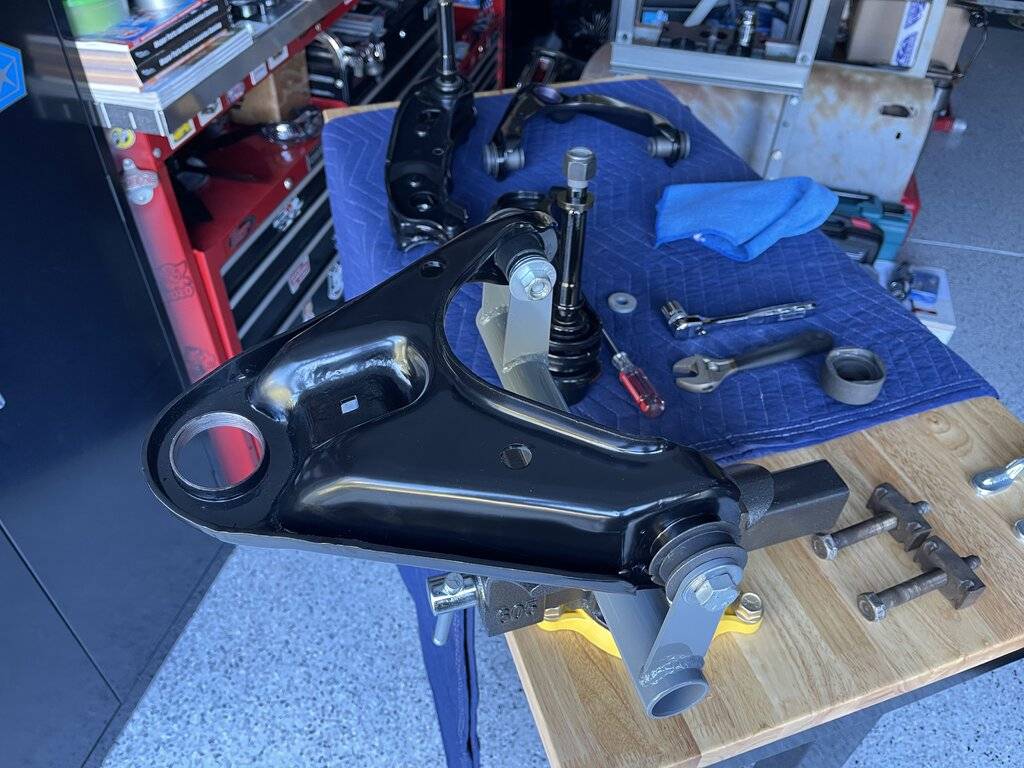

I’m now ready to install the upper ball joints. I bought the special socket and I’ll be threading these on off the car on a vise. So I had something fabricated to mount the control arm to and secure it to the vise. Should make the job easy.


413

Senior Member
Joined
Jan 28, 2019
Messages
1,315
Reaction score
1,415
Location
NW USA
Great work and photos, thanks.

FYI don’t paint the lower shafts, they need to be bare to seat firmly against the crossmember. The factory left them bare.


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA
Nice work. Good tools go along way on a job.
Is that power built the same tool above? Craftsman?
the Powerbuilt is the service kit only. The socket needs to be bought seperately from craftsman 1 5/8 (to cup the bushing lip to press into control arm)


BAD69FURY

Active Member
Joined
Feb 21, 2017
Messages
324
Reaction score
496
Location
ORANGE COUNTY CA
Great work and photos, thanks.

FYI don’t paint the lower shafts, they need to be bare to seat firmly against the crossmember. The factory left them bare.

oops already painted, if I have an issue I'll sandblast it off again.
