Roller, roller, roller, make that camshaft roller, Rawhide....

Engine, Transmission & Driveline

  1. carrman

    carrman Well-Known Member

    Messages:
    973
    Likes Received:
    533
    Joined:
    Jan 1, 2011
    Location:
    Medford, OR
    Well, I thought I had made enough of a sacrifice to the convertible when I bought the new steering wheel, but I was wrong. Took her out for a cruise and when I got off the freeway I could hear a tick and a miss. Checked it out and I have a couple valves that aren't being moved by the cam very much anymore. I ad made the choice to reuse the Comp XE268H that came form the dead 451 and before that the 383 the car came with. Well now, that was a dumbass move on my part, even with the new lifters that were put in this 440. So, the Mopar guru helping me with this advised me to go with a roller cam this time. Checked out the various cams, and decided I wasn't going with Comp this time around. The Whiplash and the Voodoo cams have a good reputation and I talked with the folks and Lunati and settled on a Voodoo.

    Old cam Comp XE268H

    Advertised Intake Duration: 268
    Advertised Exhaust Duration: 280
    Intake Duration at .050 Inch Lift: 224
    Exhaust Duration at .050 Inch Lift: 230
    Intake Valve Lift: 0.477
    Exhaust Valve Lift: 0.48
    Lobe Separation: 110
    Intake Centerline 106



    New Cam Lunati 20230711


    Advertised Intake Duration: 270
    Advertised Exhaust Duration: 278
    Intake Duration at .050 Inch Lift: 219
    Exhaust Duration at .050 Inch Lift: 227
    Intake Valve Lift: 0.515
    Exhaust Valve Lift: 0.530
    Lobe Separation: 110
    Intake Center line: 116

    Should have it this week. Already got matching Lunati springs and roller lifters. Bought a set of Isky ductile iron rockers and sent them to Rocker Arms Unlimited to be bushed and refurbished. They will come back with new chromed rockers shafts, new hold downs and spacers and shims to eliminate the spring spacers they came with. Still trying to figure out the front cover/cam button drama that roller cams require but I'm getting there. I'm hoping this cam will wake up the 440 a bit more.

    • Like Like x 5
  2. MEV

    MEV Active Member

    Messages:
    291
    Likes Received:
    273
    Joined:
    Mar 28, 2015
    Location:
    WA
    Search for my user name, i have made several reply posts to similar questions. I would recommend johnson lifters, i had problems with comp and morrel roller lifters. I currently have a custom straub cam, he ground using my cylinder flow data.

    • Agree Agree x 1
  3. mikedrini

    mikedrini Well-Known Member FCBO Gold Member

    Messages:
    572
    Likes Received:
    289
    Joined:
    Oct 9, 2017
    Location:
    Center Barnstead, NH
    @MEV I actually tried to PM you, but your inbox was full.

  4. MEV

    MEV Active Member

    Messages:
    291
    Likes Received:
    273
    Joined:
    Mar 28, 2015
    Location:
    WA
    oops, I did not know that was a thing. I just deleted a few items in that in-box. My setup is as follows.

    440 source 505/512 stroker kit ~ 10.25.1 ish to 10.5:1 ish compression.

    440 source CNC stealth heads with thier rockers and shafts, smith brothers custom pushrods.

    Custom Straub cam
    Intake Exhaust
    @.050 234 244
    Lift .573 .563

    Originally had a comp roller
    xr280hr

    4767 lbs

    Quick fuel SS 830, Edelbrock performer RPM, full TTI exhaust

    I had a .083 wall drive shaft with 1350 sized u-joints built at my local drivetrain shop, stock axle 3:23 ratio with detroit locker

    Transgo TF2 shift kit and 2800 stall made by A1 converters. I believe its an 11" it is un-noticible in street driving. I only use the trans cooler built in the radiator (it is a true 4 core radiator) no fan shroud, stock fan that came without a fan clutch.

    It has cal-tracs traction bars on stock springs

    • Like Like x 1
    • Thanks! Thanks! x 1
  5. mikedrini

    mikedrini Well-Known Member FCBO Gold Member

    Messages:
    572
    Likes Received:
    289
    Joined:
    Oct 9, 2017
    Location:
    Center Barnstead, NH
    Thanks @MEV, what did you end up going with as far as ignition setup? Pertronix Ignitor? HEI dizzy?

  6. MEV

    MEV Active Member

    Messages:
    291
    Likes Received:
    273
    Joined:
    Mar 28, 2015
    Location:
    WA
    I have ran the stock distributor with a pertronix HEI conversion
    I have run a 4-seconds flat stock style distributor and control box.
    Currently i have a billet distributor from them with their control box.

    • Thanks! Thanks! x 2
  7. carrman

    carrman Well-Known Member

    Messages:
    973
    Likes Received:
    533
    Joined:
    Jan 1, 2011
    Location:
    Medford, OR
    I'm running an FBO ignition myself.

  8. carrman

    carrman Well-Known Member

    Messages:
    973
    Likes Received:
    533
    Joined:
    Jan 1, 2011
    Location:
    Medford, OR

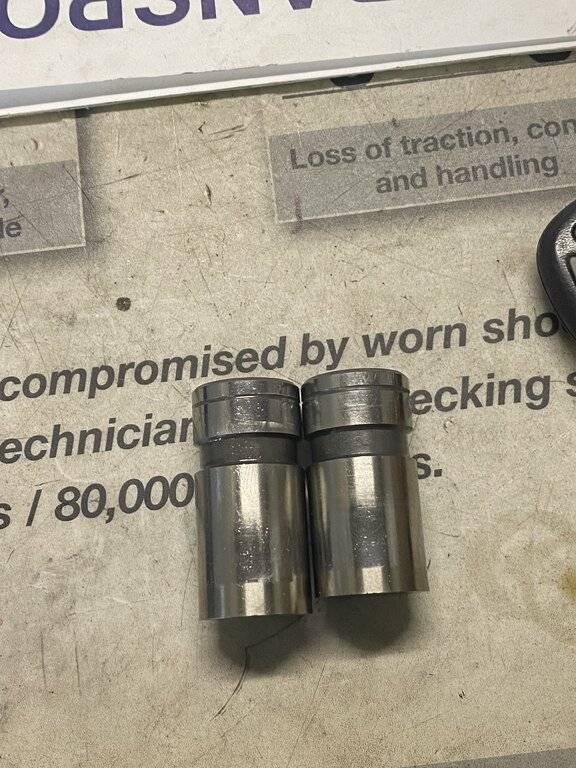

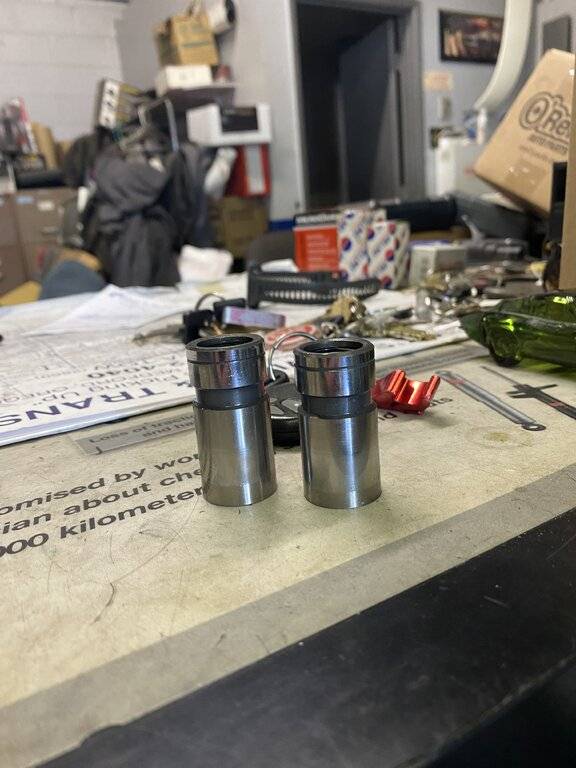

    IMG_0834[1].JPG IMG_0835[1].JPG

    Supposed to be the same length.

    • Agree Agree x 1
  9. carrman

    carrman Well-Known Member

    Messages:
    973
    Likes Received:
    533
    Joined:
    Jan 1, 2011
    Location:
    Medford, OR

    • Like Like x 3
  10. carrman

    carrman Well-Known Member

    Messages:
    973
    Likes Received:
    533
    Joined:
    Jan 1, 2011
    Location:
    Medford, OR

    • Like Like x 2
