Source for 1963 Chrysler Heater Core?

Early C Bodies - The Slab Side Years

  1. familee

    familee New Member

    Messages:
    11
    Likes Received:
    29
    Joined:
    Feb 25, 2018
    Location:
    Greensburg, IN
    Does anyone have a source for a heater core for a 63 Chrysler 300, non A/C? The APDI/PRO 9010342 {#2277023} sold on Rock Auto and Parts Geek doesn't fit. It's not even close. I'm cross posting this on both Early Cs and Forward Look since the 63 and 64 are not quite either of them.

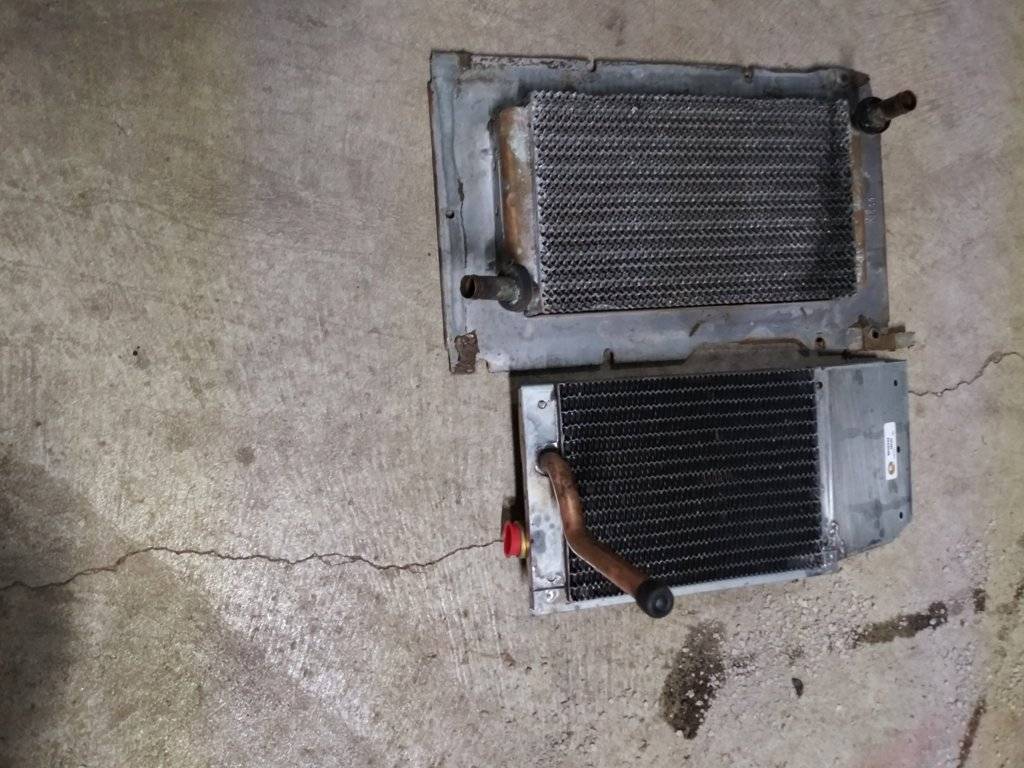

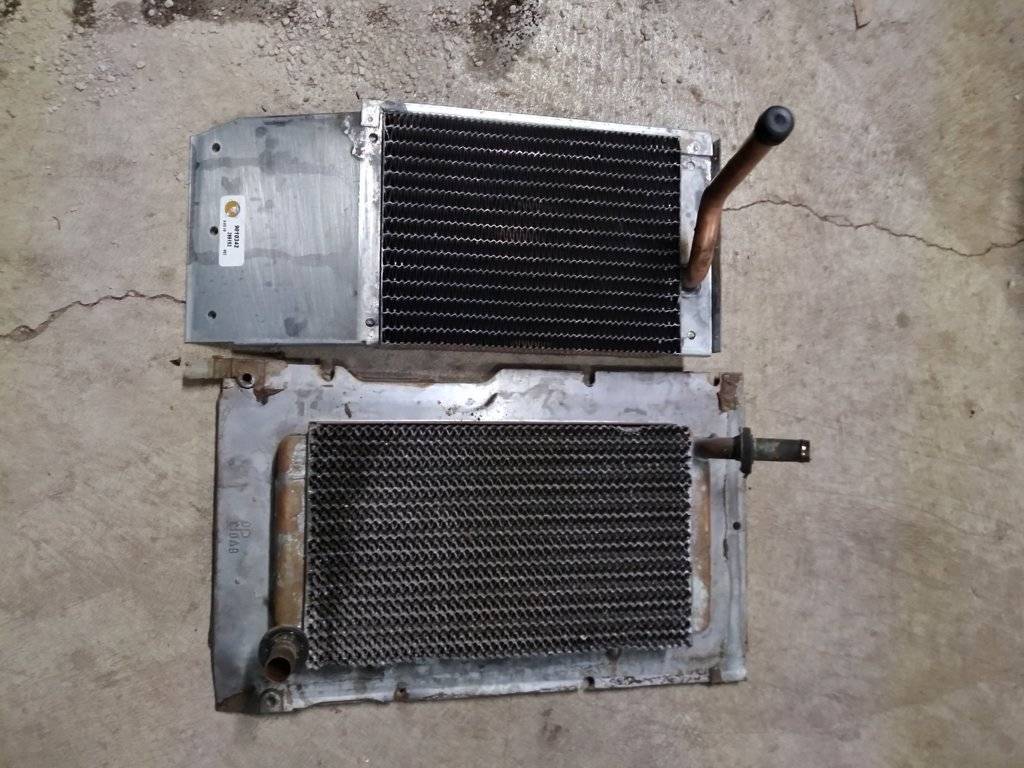

    Here are some side-by-side picts.
    20200118_151617_HDR.jpg 20200118_151651_HDR.jpg 20200118_151626_HDR.jpg

  2. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    6,684
    Likes Received:
    1765
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    The lower unit you have pictured is the one that should be correct for the standard model 750 heater assembly. Do you by chance have the recirculating heater in this car? If so, I do not know of a reproduction available, you may have to take your existing core to a radiator shop to see if it can be repaired.
    Mopar Part # 1885826 std heater
    Mopar part #2217577 recirculating heater

    Dave

  3. saforwardlook

    saforwardlook Old Man with a Hat FCBO Gold Member

    Messages:
    5,973
    Likes Received:
    4963
    Joined:
    Oct 8, 2011
    Location:
    California
    I don't believe there are any nos ones left, as I searched for one for my 300F recently. You will probably just have to take your old core and have a radiator shop fit a new core into your current mounting brackets/tubes. I did find an nos one for my F after searching deeper in my parts stash, otherwise I would have had to do what I am suggesting to you.

  4. live4theking

    live4theking Old Man with a Hat

    Messages:
    8,991
    Likes Received:
    2034
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    In another thread about evaporators and heater cores I contacted CCS Auto through ebay and they actually replied within two days. Here's their email through ebay ccsaut_iz6848odz@members.ebay.com If they don't have one that they are currently making maybe they could provide you with the needed parts to have a local shop repair yours.

    In the same thread Nation Moparts was suggested Heater Cores, C Body.
