Stripped the screw head..NOW what do I do?

Interior

  1. Deke

    Deke Member

    Messages:
    74
    Likes Received:
    46
    Joined:
    Jul 21, 2019
    Location:
    Tampa Bay Area
    This is on the sill plate on a 73 Fury 4 door. Penetrating liquid didnt budge it, and when I used my drill with Phillip's attachment, it just stripped out the head so I can't get anything in there. I'm thinking the Ziebart material cemented it in place, but the outer two came out with a little effort.

    Do I need to drill out the screw? I guess I can always put a new one in and epoxy it in place so it looks good....

    I really need to get to the seatbelt retractor.

  2. mopar440

    mopar440 Active Member

    Messages:
    477
    Likes Received:
    137
    Joined:
    Oct 17, 2018
    Location:
    St paul
    There's a 2 sided kit of bits for that, I know oriellys stocks them. One side drills, the other side grips, I'll try to find the name

  3. mopar440

    mopar440 Active Member

    Messages:
    477
    Likes Received:
    137
    Joined:
    Oct 17, 2018
    Location:
    St paul
    • Thanks! Thanks! x 1
  4. mr. fix it

    mr. fix it Old Man with a Hat

    Messages:
    7,327
    Likes Received:
    5315
    Joined:
    Aug 14, 2013
    Location:
    Habitating in Kingston, NS
    If it were me, I would slowly drill the screw head out enough to pop the sill plate off then tack weld if there's not enough left to grab with vise grips and spin out.
    the plate might be a bit distorted but you should be able to tap the opening back into shape.

    Just take your time.

    • Agree Agree x 2
  5. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    13,490
    Likes Received:
    8326
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Before using the screw extractor, take a phillips screwdriver bit and holding it firmly on the screw, smack it with a hammer a few times. Now use the extractor listed above... Or use a left hand drill.

    • Agree Agree x 5
    • Like Like x 1
    • Thanks! Thanks! x 1
  6. 1970cat

    1970cat Senior Member FCBO Gold Member

    Messages:
    3,228
    Likes Received:
    1387
    Joined:
    Dec 10, 2012
    Location:
    central ny
    if you have a dremel ,you can either try to cut a notch in it to use a flat head screw driver or grind the head off. be careful, the aluminum is very soft.

    • Like Like x 1
    • Thanks! Thanks! x 1
    • Agree Agree x 1
  7. bluefury361

    bluefury361 Old Man with a Hat

    Messages:
    13,134
    Likes Received:
    9597
    Joined:
    Mar 9, 2011
    Location:
    Alabama Gulf Coast

    I always use Johns method BEFORE I attempt to remove a stubborn screw. There is also a tool called an "impact driver" for that purpose.

    • Agree Agree x 7
    • Like Like x 2
  8. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    5,304
    Likes Received:
    1210
    Joined:
    Mar 27, 2011
    This is probably not an unusual situaiton. A "soft" screw not desiring to leave it's "residence". Plus a few dissimilar metals involved can make it a bit worse. Care and finnesse can be important.

    If you've now got an inverted cone where the screw head used to be, then re-imprinting it with the screwdriver (as mentioned) and using manual pressure and finesse might get it to break loose. Some of those screw heads can also have a serration on their back-side to keep them tight, too.

    Worst case might be to use the inverted cone's center as the guide to use a very small, then progressively-larger drill bits to reclaim the hole for a new screw of the correct dimensions and cosmetics.

    Just some thoughts,
    CBODY67

    • Thanks! Thanks! x 1
  9. cantflip

    cantflip Old Jagoff with a Hat FCBO Gold Member

    Messages:
    10,779
    Likes Received:
    5891
    Joined:
    Nov 1, 2015
    Location:
    Orlando, FL
    Good advice in here, but assuming that you can't get it out, drill... carefully drill the head, then in the unlikely event that there is enough screw left for pliers or vice grips.. give that a try... if not, file or carefully grind the remainder of the screw and carefully drill away whats left. By carefully, I mean slow drilling with a bit smaller than the hole you want to end up with... if the job is done cleanly, you should have a usable hole for the replacement screw. If you get really lucky, you might center the drill well enough to drill the screw hollow past the sheet metal sill, then carefully drill with a slightly larger drill to get the head to pop of and hopefully you can collapse whats left of the screw to drop into the sill.

    There is a reason professionals paid on flat rate buy overpriced tools and hate when a job like this goes sideways... now it will cost a couple quality drill bits and lots of patience to resolve.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  10. mopar440

    mopar440 Active Member

    Messages:
    477
    Likes Received:
    137
    Joined:
    Oct 17, 2018
    Location:
    St paul
    Of course there's the old cut a slot with a dremel and screw it out too

    • Agree Agree x 1
  11. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    13,490
    Likes Received:
    8326
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Me too. A older body man taught me to do that with any sheet metal screw that even might be stubborn. You used to be able to buy screwdrivers that had a metal shaft up through the handle that were perfect for the job. Now a bit from a power driver held with visegrips and smacked with my favorite brass hammer is my weapon of choice.

    • Thanks! Thanks! x 2
    • Agree Agree x 1
  12. 1970cat

    1970cat Senior Member FCBO Gold Member

    Messages:
    3,228
    Likes Received:
    1387
    Joined:
    Dec 10, 2012
    Location:
    central ny
    it helps if you try to tighten the screw a little before loosening it.

    • Agree Agree x 2
  13. rags

    rags Senior Member

    Messages:
    1,045
    Likes Received:
    607
    Joined:
    Dec 14, 2015
    Location:
    greater norwich metropolitan area

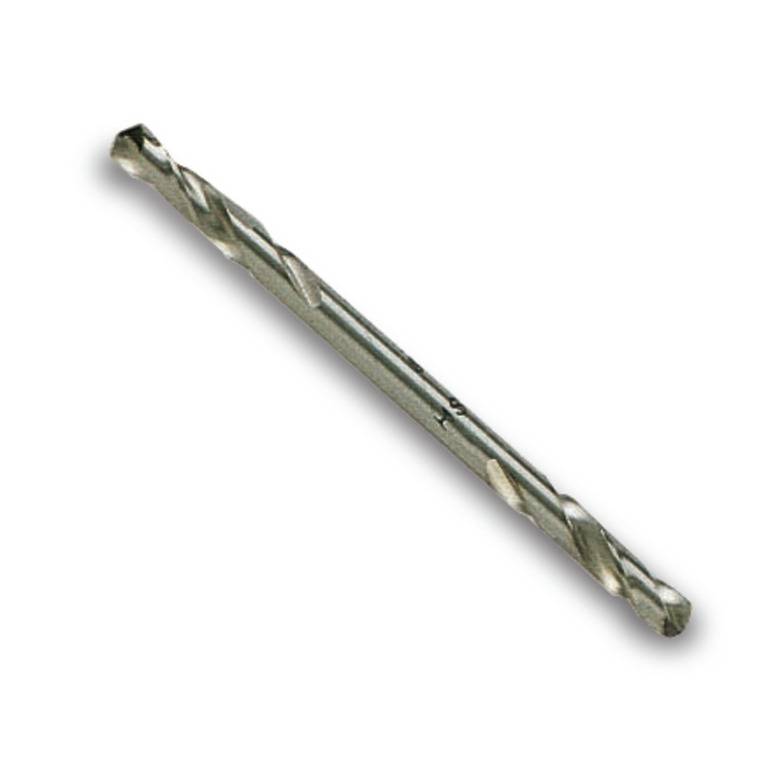

    why God gave us 10 packs of these: 6608DA.jpg

    • Like Like x 1
  14. Deke

    Deke Member

    Messages:
    74
    Likes Received:
    46
    Joined:
    Jul 21, 2019
    Location:
    Tampa Bay Area
    Tried that earlier...no-go. I think the screw is "cemented" in place! Guess I'll try drilling it out and when I replace the plate, just epoxy a replacement in place to look good...

  15. Deke

    Deke Member

    Messages:
    74
    Likes Received:
    46
    Joined:
    Jul 21, 2019
    Location:
    Tampa Bay Area
    Wouldn't move in either direction.....

  16. Deke

    Deke Member

    Messages:
    74
    Likes Received:
    46
    Joined:
    Jul 21, 2019
    Location:
    Tampa Bay Area
    I'm thinking the screw is firmly glued in place with the Ziebart material. Looks link my only choice is to drill it out....
