For Sale Tire Pressure Decal 3400479

[MrMoparCHP]

I needed a decal that wasn’t available so I had it made, printed a few extra while I was at it.

this was for my 1969 Polara 500 convertible with a 440. Decal tire size is 8.25-15.

The number is 79 that would be on the broadcast sheet.

Are they perfect? Layout is a 10, printing maybe a 9. They are on vinyl sticker material.

Limited supply and at no cost they will go quick (probably not)
Price $0.00

Alan



[marty mopar]

Well let's just see if you can sell them at a price of ZERO, which unfortunately
may be way too high.

Please explain 79 and the broadcast sheet.

Most of the part numbers on decals were never serviced. This eventually changed in the 1980s and was much more common
in late model cars and by the 2000 or so models they went overboard. The labels go on for pages...........

example below from 2008 PT Cruiser part book where they had labels on everything.

LABEL, Warning, Brake Fluid
04721892AA 1 27 [ABB] European Equipment
Group
1 44 [ABB] European Equipment
Group
2 LABEL, Master Cylinder Reservoir
52128784AA 1 44 [ABD] Middle East Equipment
Group
1 27 [ABD] Middle East Equipment
Group
3 LABEL, Air Conditioning System
05058593AA 1 27, 44
1 27
1 44
4 LABEL, Coolant System Cap
05058591AA 1 27, 44 [XLC] Chinese Mandarin
Language
1 27 [XLC] Chinese Mandarin
Language
1 44 [XLC] Chinese Mandarin
Language
5 LABEL, Battery Jump Start
05027901AB 1 27
1 44
6 LABEL, Battery
04606818AA 1 27 [BC5] 510 Amp Battery, [6EA]
China Specications
1 44 [BC5] 510 Amp Battery, [6EA]
China Specications
04671062 1 27, 44 [BC5] 510 Amp Battery, [XLR]
English And French Canadian
Language
04793062 1 27 [ABB] European Equipment
Group
1 44 [ABB] European Equipment
Group
05033244AA 1 27 EDJ [BCV] Maintenance Free Battery
1 44 EDJ [BCV] Maintenance Free Battery
04557480 1 27 [ABD] Middle East Equipment
Group
1 44 [ABD] Middle East Equipment
Group
LABEL, Headlamp Leveling
05288631AA 1 44 With [LMM] Or [LMW]
1 27 With [LMM] Or [LMW]
2 LABEL, Emission
68037771AA 1 27 EDZ [NAA] Federal Emissions With
[EDZ] Engine
68037772AA 1 27 EDZ [NAE] California Emissions
With [EDZ] Engine and [DD5]
Transmission
1 44 EDZ [NAE] California Emissions
With [EDZ] Engine and [DD5]
Transmission
1 44 EDZ [NAA] Federal Emissions With
[EDZ] Engine
68037773AA 1 44 EDZ [NAE] California Emissions
With [EDZ] Engine and [DFF]
Transmission
68037774AA 1 27 EDT [NAA] Federal Emissions With
[EDT] Engine
1 27 EDZ [NAE] California Emissions
With [EDZ] Engine and [DFF]
Transmission
68037775AA 1 27 EDT [NAE] California Emissions With
[EDT] Engine
1 44 EDT [NAE] California Emissions With
[EDT] Engine
1 44 EDT [NAA] Federal Emissions With
[EDT] Engine



[MrMoparCHP]

For those that may not know the broadcast sheet has the number for the tire pressure decal on it (along with the emission decal)

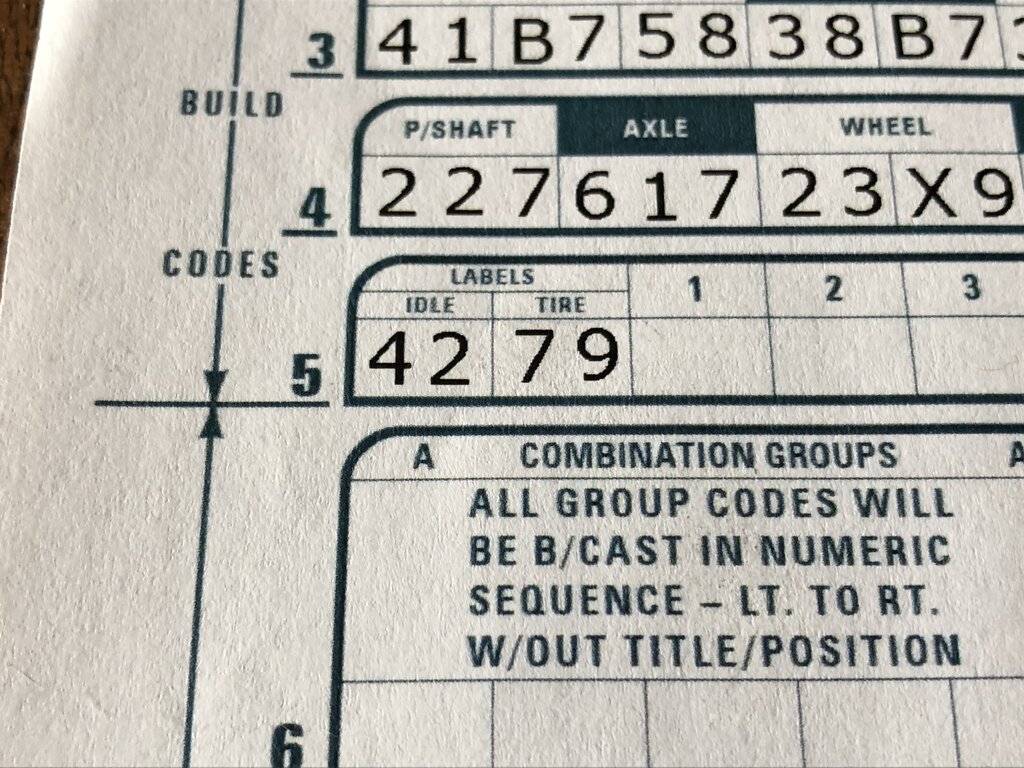

This is a recreation of the broadcast sheet for reference

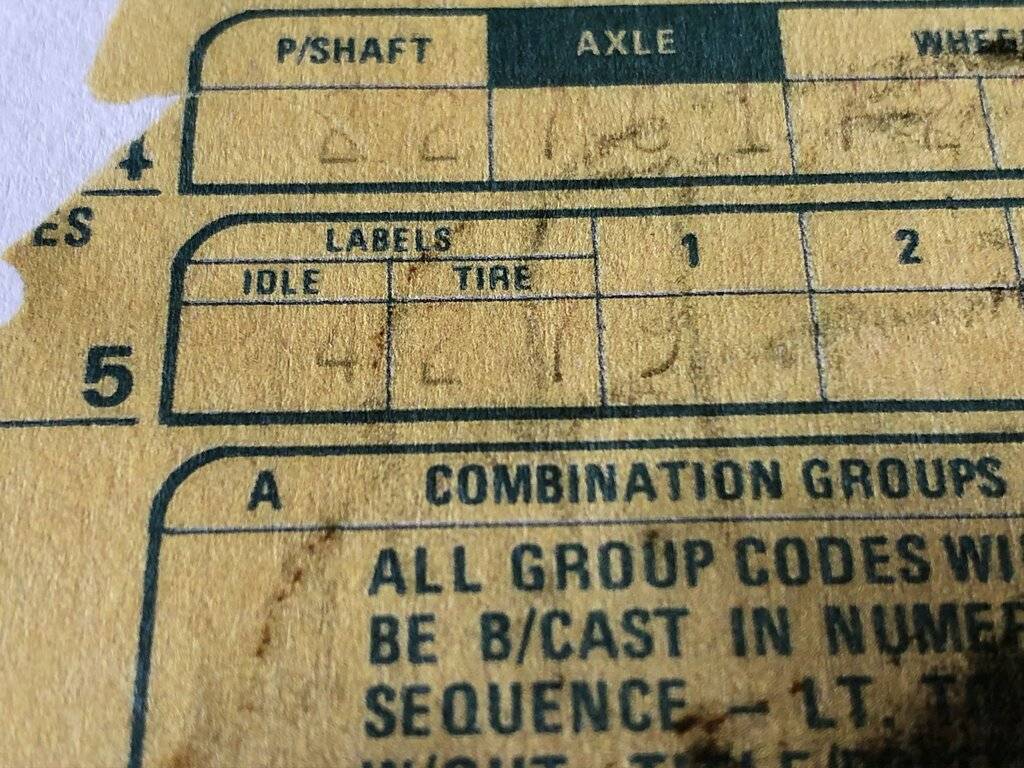

And the original, codes are off one digit, Idle 42 (emission) and tire 79

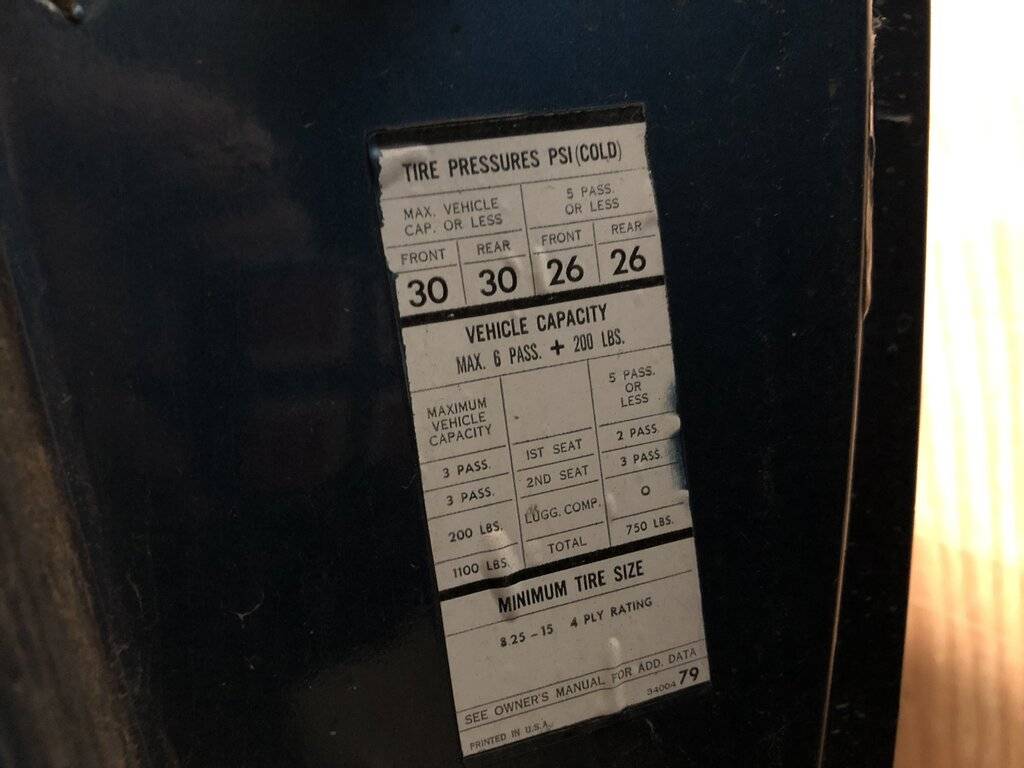

This is the original decal

Alan
