Torsion Bar Removal Tool--Make it yourself

Brakes, Suspension, Rims and Tires

  1. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,026
    Likes Received:
    580
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL

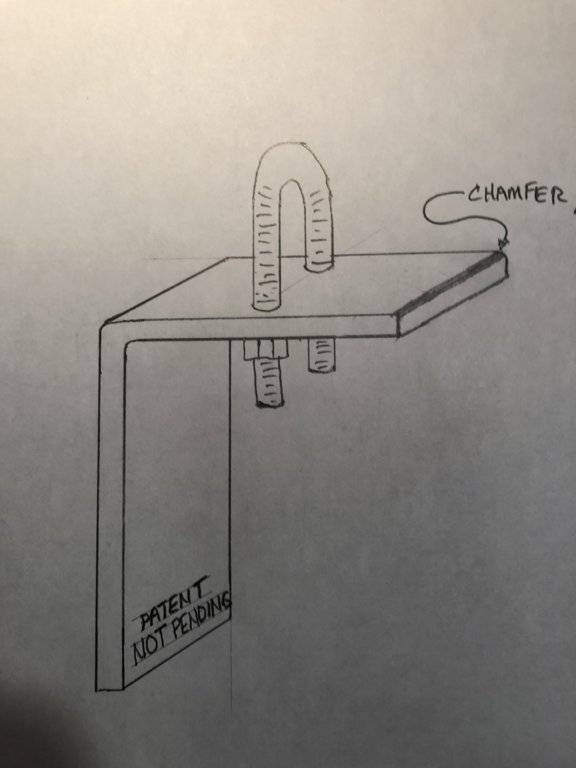

    A long time ago I made a tool very similar to what I've sketched here, using scrap I had around the garage. Some beefy bar stock, some all-thread or a muffler clamp, nuts and washers....and a method to bend that bar stock 90 degrees.

    The reason this cheap, shoddy, rickety tool works is that it's "self-tightening" when you hit it, instead of sliding down the torsion bar and annoying the bejeeebus out of you while cursing me for my stupid device. That self-tightening, leverage action is why you must chamfer that corner that touches the bar....that could be a gouge point.

    If you find that it does slide on you, shorten the horizontal leg towards the clamp to get more leverage when it's whacked.

    If you want to get fancier, add another U clamp. Can't hurt, might help. You're on your own.....



    • Like Like x 5
  2. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    11,808
    Likes Received:
    4871
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    That's better than my homemade one. I have since bought a factory style one

  3. PurpleBeeper

    PurpleBeeper Member

    Messages:
    105
    Likes Received:
    17
    Joined:
    Dec 25, 2017
    Location:
    United States of America
    That's more high-tech than a pair of vise grips and a hammer...… and cheap to build too. Nice!

  4. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,026
    Likes Received:
    580
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL

    High-tech? Wow...you're easily impressed my friend!


    I'm thinking "ultra-low-tech". :rofl:

    • Like Like x 1
  5. BigblueC

    BigblueC Well-Known Member

    Messages:
    974
    Likes Received:
    524
    Joined:
    Sep 25, 2015
    Location:
    Lexington, NC
    My favorite detail:thumbsup:

    • Like Like x 3
    • Agree Agree x 3
    • Thanks! Thanks! x 1
  6. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    6,007
    Likes Received:
    7200
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    Hey that’s a great design! I’ll make one at work

  7. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,026
    Likes Received:
    580
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    I suspect your skill level is way too high to properly make this crude shadetree tool. :D But maybe you want to make lots of 'em and sell them to the Mopar world.

    You should have seen how spectacularly ugly the one I made was. I was in a panic to get my newly bent control arm and pivot removed (an off road excursion in my late teens in my 68 Dart) so I could slap new parts in and get to work. Necessity was clearly the mother of my invention and I was a looooong way from getting a Miller tool.

    The most expensive part was the OxyAcy used to heat and bend the bar stock. I didn't even use all-thread....I took a muffler clamp, reshaped it accordingly, and had to run a die up each leg to get enough threads for it to tighten on the T-bar. I guess I used it 10 times on my Dart and cuda over the years and it DIDN'T fall apart. Amazing.

    I kept that damn thing until about 5 years ago, when I never thought I'd own an old Mopar again.

  8. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    2,632
    Likes Received:
    796
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    I like it! I'd suggest running some rubber hose over the clamp and a pad on the bar stock to avoid gouging from those areas too.

    • Agree Agree x 6
  9. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,026
    Likes Received:
    580
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    You could, but the forces here would probably cut that hose or cause the whole thing to slip (just my guess). Maybe some aluminum sheet here and there, but the hardness of the T-bar is greater than the bar stock and the soft all-thread, whereas the teeth of [non-junk HF knockoff] Grips are pretty hard. And sharp.

    But yeah, you're right to worry about damaging that bar, however my crude tool never made a mark on my bars.

    • Like Like x 2
  10. 68PK21 440.6bbl

    68PK21 440.6bbl Senior Member

    Messages:
    4,523
    Likes Received:
    2478
    Joined:
    Nov 29, 2017
    Location:
    Self Isolation
    Yea I'd think the length of ACE Hardware threaded rod may just dig into the bar.
    I would still wrap the area with some aluminum or brass.
    I think when ever I did a removal I used the worse worn out jaws on the oldest pair of ViceGrip pliers I had. Ya know the ones you would use for welding purpose only.

    • Like Like x 1
  11. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,026
    Likes Received:
    580
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Can't hurt, but all-thread is pretty soft.

    And love that line about "the old, worn out, welding only" Grips. :D

  12. 68PK21 440.6bbl

    68PK21 440.6bbl Senior Member

    Messages:
    4,523
    Likes Received:
    2478
    Joined:
    Nov 29, 2017
    Location:
    Self Isolation
    Yea ya know ya got some experienced years under your belt when you got some vicegrips where the jaw teeth are all flattened out, and maybe a little twisted & misaligned from over tightening on the real stubborn stuff.

    :lol:

    • Like Like x 2
  13. PurpleBeeper

    PurpleBeeper Member

    Messages:
    105
    Likes Received:
    17
    Joined:
    Dec 25, 2017
    Location:
    United States of America
    Dude...you ARE high-tech. I was just going to cut a short piece of angle iron with a dull hack saw :lol:

    • Like Like x 1
  14. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,026
    Likes Received:
    580
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    That caused a real, audible LOL with me. :p

  15. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,177
    Likes Received:
    7184
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    My previous life as a Tool & Diemaker is loving the simplicity of the tool. Thanks for sharing.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  16. mrfury68

    mrfury68 Well-Known Member

    Messages:
    968
    Likes Received:
    362
    Joined:
    Jul 15, 2015
    Location:
    Bethel Park PA
    Great job by you! Thanks for sharing.

  17. GJS

    GJS Senior Member FCBO Gold Member

    Messages:
    4,393
    Likes Received:
    2353
    Joined:
    Aug 10, 2016
    Location:
    Connecticut
    Oh, damn. Seeing this at work was bad. Now I'm gonna spend my lunch in the fab department as a torsion bar change is in my immediate future.

    Thanks!

    • Like Like x 1
  18. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,026
    Likes Received:
    580
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Oh....it's simple all right. Pathetically so!

    In my previous life as a pretty good draftsman with a defense firm while I was in college, I must also note how pathetic my sketches are!

  19. Trace 300 Hurst

    Trace 300 Hurst Professional Tinkerer FCBO Gold Member

    Messages:
    1,026
    Likes Received:
    580
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Make a bunch and sell 'em back to us!

    • Like Like x 2
  20. GJS

    GJS Senior Member FCBO Gold Member

    Messages:
    4,393
    Likes Received:
    2353
    Joined:
    Aug 10, 2016
    Location:
    Connecticut
    hmmm. I never should've taken this desk job. It was so much easier to make fun stuff.
