Trans cooler lines to radiator

Heating, Cooling & AC

  1. Knebel

    Knebel Senior Member

    Messages:
    1,320
    Likes Received:
    261
    Joined:
    Mar 21, 2013
    Location:
    Beaverton, Oregon
    So, I just got my American eagle 2 row radiator with 1" tubes. The radiator is a bit slimmer than the standard and it looks like the lines for the trans cooling will be 1" or so too short. How would you guys cheaply extend this without having a flare tool?

  2. tbm3fan

    tbm3fan Old Man with a Hat

    Messages:
    5,010
    Likes Received:
    1537
    Joined:
    Jan 22, 2012
    Location:
    Pleasant Hill, CA
    You could cut off the ends of your lines a bit and then add rubber hose line to connect both ends. While my older cars connect to the radiator with flared ends some of my newer cars stop the metal line several inches before connecting with the radiator outlets. Rubber hose and clamps are used for the last 6-12" depending on line. Now my F100 has an oil cooler so I have rubber lines running between cooler, radiator and back to the transmission. The metal lines were missing, other than stubs, when I got the truck so I simply changed out the lines and then ran them through larger hose as a form of protection as they ran back to the tranny along the frame.

  3. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    15,035
    Likes Received:
    9494
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Buy a piece of 5/16" brake/fuel line at your local parts store. The kind with the double flares pre-made. Get a short length.

    Get two 5/16" compression unions.

    Cut the double flares off your old lines and maybe back a couple inches. Cut the new line in half and transfer the nuts from the old line. Use compression fittings to join new line to old line.

    You can also just use rubber hose, but you will need to buy hose that won't break down from the trans fluid. The stuff they sell for fuel line will break down... I've seen it... It swells and gets soft. Then it fails at the worst possible time.. Been there.. done that.. So I like to use steel.

  4. Knebel

    Knebel Senior Member

    Messages:
    1,320
    Likes Received:
    261
    Joined:
    Mar 21, 2013
    Location:
    Beaverton, Oregon
    Hmmm yeah, maybe using 1/8 not barbed fittings in the radiator and then connecting with some hose seems to be a simple swap.

    Edit: I have some 5/16 steel line still, do you mean cut off the flare end from the original line, attach that to the radiator,then piece a line in from there to the transmission line with compression fittings? So: radiator flare - comp fitting - steel line -comp fitting- original trans line

  5. Knebel

    Knebel Senior Member

    Messages:
    1,320
    Likes Received:
    261
    Joined:
    Mar 21, 2013
    Location:
    Beaverton, Oregon
    Ohhh NVM, I see what you are saying big John.

  6. MrMoparCHP

    MrMoparCHP Senior Member

    Messages:
    4,827
    Likes Received:
    2837
    Joined:
    Aug 9, 2013
    Location:
    Lompoc, CA
    The factory lines had a loop that could be extended to make up 1"


    Alan

    • Agree Agree x 2
    • Thanks! Thanks! x 1
  7. tbm3fan

    tbm3fan Old Man with a Hat

    Messages:
    5,010
    Likes Received:
    1537
    Joined:
    Jan 22, 2012
    Location:
    Pleasant Hill, CA
    Just to let you know the lines in the F100 have been there since 2008 and are in fine condition. I see them every week as it is. The rubber lines in the Mazdas and Sable are also fine.

    However, your idea to cut the lines and then use compression fittings to join the two halves in excellent!

  8. Knebel

    Knebel Senior Member

    Messages:
    1,320
    Likes Received:
    261
    Joined:
    Mar 21, 2013
    Location:
    Beaverton, Oregon
    Where would that loop be located? By the transmission?

  9. commando1

    commando1 One Sick Puppy FCBO Gold Member

    Messages:
    35,830
    Likes Received:
    20130
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    Non-metal tubing and fittings for the AT lines?? NEVER.
    100% hard plumbed with flare or compression fittings or nothing,

    • Agree Agree x 1
  10. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    15,035
    Likes Received:
    9494
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Thanks.

    The Cordobas I had years ago had factory rubber hose in the trans lines... and it's great as long as it's replaced with the correct hose. The issue is getting the right hose and most of the knuckleheads at Auto Zone will just sell you the wrong stuff... If they even have the right hose to begin with.

    One of the Cordobas had the original lines and they were fine for years. The other.... well, someone replaced them before I got the car. They swelled up and dumped all the trans fluid out one day... Worst possible time... Very sick kid in the car headed to the docs and in the middle of winter. It got worse from there... So.. I really like steel line LOL.

  11. Knebel

    Knebel Senior Member

    Messages:
    1,320
    Likes Received:
    261
    Joined:
    Mar 21, 2013
    Location:
    Beaverton, Oregon
    I'm hesitant to put rubber there too. Would rather keep the steel.

  12. tbm3fan

    tbm3fan Old Man with a Hat

    Messages:
    5,010
    Likes Received:
    1537
    Joined:
    Jan 22, 2012
    Location:
    Pleasant Hill, CA
    What does your new car use? I have seen many a car from this century using rubber hoses for the transmission lines. Called saving pennies like always.

  13. commando1

    commando1 One Sick Puppy FCBO Gold Member

    Messages:
    35,830
    Likes Received:
    20130
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    They also have PLASTIC intake manifolds now. That does not make it "better".
    I'm also told my new car doesn't have spark plugs. I wouldn't know. Coming up on 1 year now and I have yet to pop the hood. I don't want to know,

    • Like Like x 1
  14. traintech55

    traintech55 Senior Member

    Messages:
    4,200
    Likes Received:
    2454
    Joined:
    Jul 23, 2015
    Location:
    Hammond, IN.
    Use metal lines, trans fluid can start one hell of a fire when it hits a hot exhaust pipe.

  15. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    15,035
    Likes Received:
    9494
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    It can be done that way. The way I suggested uses the pre-flared line so it's radiator flare-new steel line-comp fitting-old steel line. Just one compression fitting per line.

  16. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    15,035
    Likes Received:
    9494
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    The new line line looks like this:
    [​IMG]

    Cut that in half. Just be sure to take the nuts off the old line and swap them to the new line BEFORE you tighten the compression fitting.

    • Like Like x 1
    • Thanks! Thanks! x 1
  17. Knebel

    Knebel Senior Member

    Messages:
    1,320
    Likes Received:
    261
    Joined:
    Mar 21, 2013
    Location:
    Beaverton, Oregon
    Fantastic! If I don't have some wiggle room to attach the lines how they are, I'll do it that way!

  18. Buster Hyman

    Buster Hyman New Member

    Messages:
    42
    Likes Received:
    11
    Joined:
    Mar 31, 2017
    Location:
    Welcome NC
    IMHO beg ,borrow,or steal a flaring tool,practice using it on some scrap line you will use it again and again.It is one of the satisfying things to put a nice flare on.The less joints you have the less chance you have for a leak.$13.00 bucks at China freight might save ya $20 in atf

  19. Buster Hyman

    Buster Hyman New Member

    Messages:
    42
    Likes Received:
    11
    Joined:
    Mar 31, 2017
    Location:
    Welcome NC
    P.S.Don't forget to put the nuts on first learn from my mistakes.

  20. MrMoparCHP

    MrMoparCHP Senior Member

    Messages:
    4,827
    Likes Received:
    2837
    Joined:
    Aug 9, 2013
    Location:
    Lompoc, CA

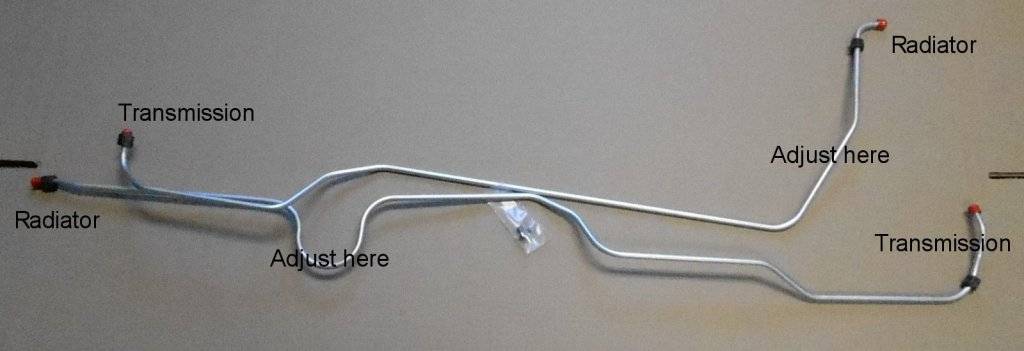

    These are for some other Mopar but all Mopars have the same basic shape, if all you need is one inch you should be able to get it in those spots.


    Alan

    • Thanks! Thanks! x 1
