Trying to identify this late 50s Chrysler distributor...

Forward Look Forum

  1. odcics2

    odcics2 Well-Known Member

    Messages:
    563
    Likes Received:
    206
    Joined:
    May 14, 2014
    Location:
    utica, mi
    Found it in the garage, digging around the other day, looking for something else!
    Cast iron dual point, vac advance, part number is 1779936. NOT a Prestolite, but Autolite!

    Any ideas of the application? What engine?

    Thanks.

    Last edited: May 6, 2018
  2. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,847
    Likes Received:
    7871
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    1957?

  3. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    6,793
    Likes Received:
    1799
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    There were dual point distributors offered for 392 hemi, 350 and 361 big block, 383, 413, and other older hemi engines. Quite a few to choose from. Dual points were mostly used on engines in the high performance area with dual carbs. I no longer have a distributor book that goes back that far. The one I have goes back to 1958 and judging by the dist number, yours is older than that. I am thinking a mid '50's hemi.

    Dave

    Last edited: May 6, 2018
  4. 4spd300J

    4spd300J Member

    Messages:
    101
    Likes Received:
    55
    Joined:
    Jun 7, 2017
    Location:
    Aztec, New Mexico
    That part number doesn't appear in the 55 thru 58 parts manual. What is the Autolite number on the tag?

  5. LeBaron1973

    LeBaron1973 Senior Member FCBO Gold Member

    Messages:
    4,868
    Likes Received:
    704
    Joined:
    Sep 13, 2015
    Location:
    Harewood, Christchurch, Canterbury, NZ
  6. halifaxhops

    halifaxhops Senior Member FCBO Gold Member

    Messages:
    1,232
    Likes Received:
    315
    Joined:
    Mar 10, 2017
    Location:
    HALIFAX PA
    Probably a solar spark, have the IB?/ IAG? number prob have it in a book to help you and a pic also.

  7. odcics2

    odcics2 Well-Known Member

    Messages:
    563
    Likes Received:
    206
    Joined:
    May 14, 2014
    Location:
    utica, mi
    Yes, it's a "Solar Spark"
    IBS-4005

    Any help appreciated, guys.

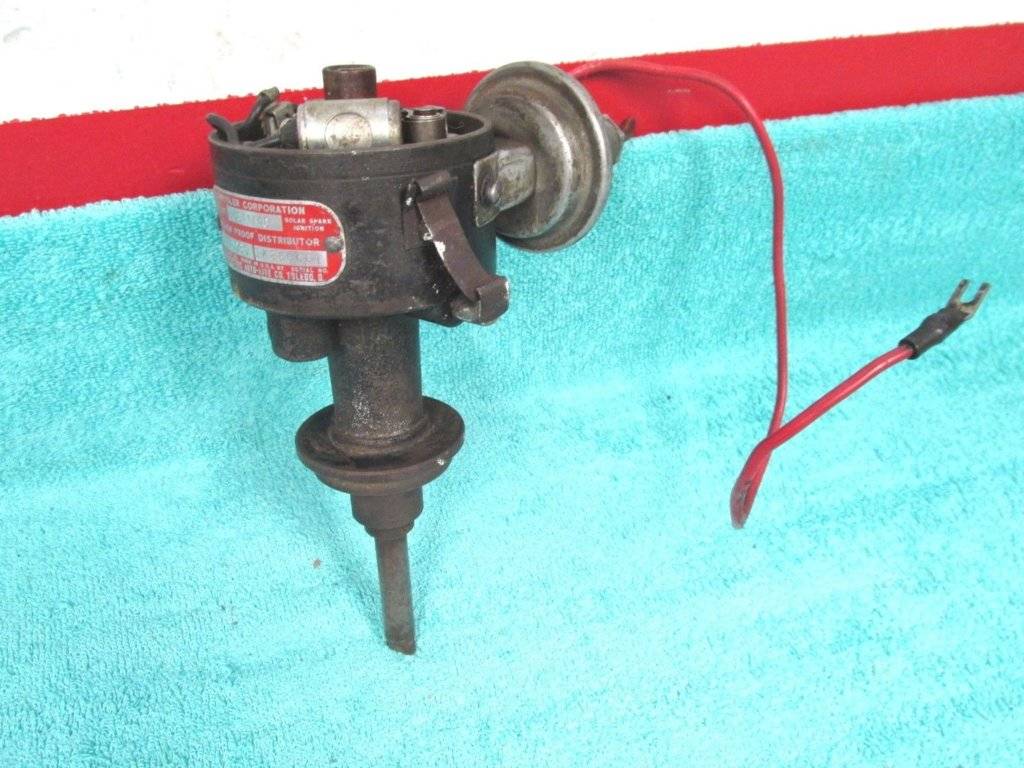

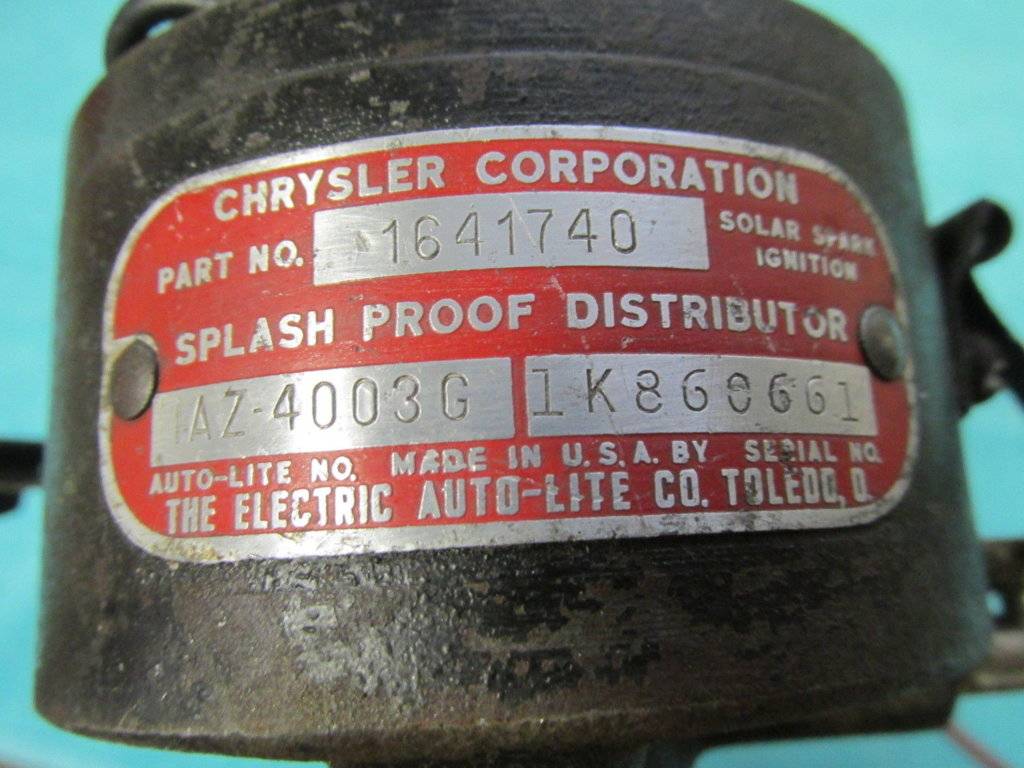

    Here's a few pics from a similar looking dist. off ebay. Mine has the same red-silver tag. Same vac advance and side oiler.
    s-l160 0.jpg s-l1600.jpg

    Last edited: May 7, 2018
  8. Furyman

    Furyman Active Member

    Messages:
    224
    Likes Received:
    124
    Joined:
    Apr 22, 2011
    Location:
    coboconk ontario
  9. Furyman

    Furyman Active Member

    Messages:
    224
    Likes Received:
    124
    Joined:
    Apr 22, 2011
    Location:
    coboconk ontario
    This one is a 56 Plymouth P-27 and Dodge D55-1 & D-55-2

  10. odcics2

    odcics2 Well-Known Member

    Messages:
    563
    Likes Received:
    206
    Joined:
    May 14, 2014
    Location:
    utica, mi
    What's it worth? (Need $$ for my car resto)
    Spins freely, has surface rust on the housing.
    I can post pics tomorrow.

  11. odcics2

    odcics2 Well-Known Member

    Messages:
    563
    Likes Received:
    206
    Joined:
    May 14, 2014
    Location:
    utica, mi
    So, being a dual point, is it for a dual quad engine?
    What size?

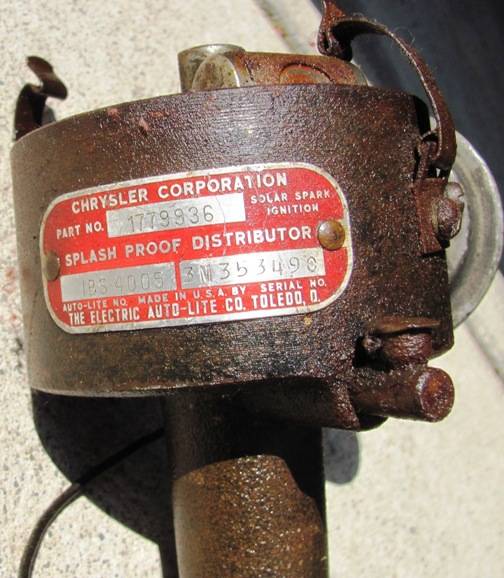

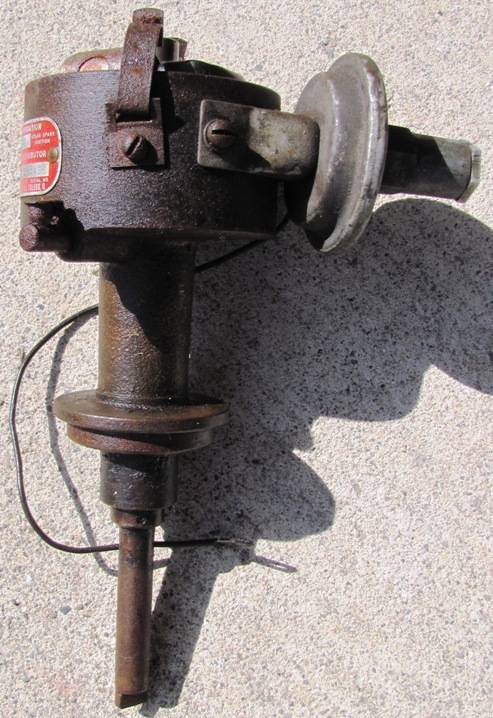

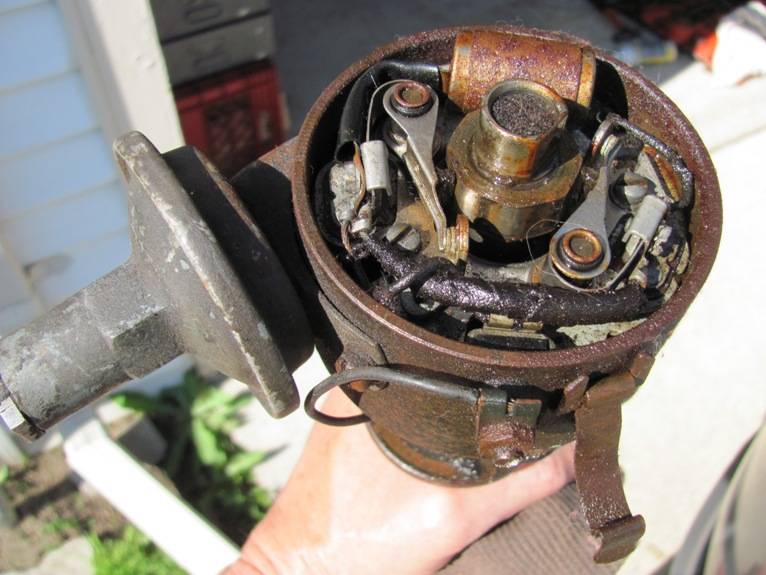

    Here's a few pics.
    1779936 mopar distributor.JPG 1779936 dual point mopar distributor.JPG 1779936 mopar distributor made by aurolite.JPG

    Last edited: May 8, 2018
  12. halifaxhops

    halifaxhops Senior Member FCBO Gold Member

    Messages:
    1,232
    Likes Received:
    315
    Joined:
    Mar 10, 2017
    Location:
    HALIFAX PA
    He nailed it small block

  13. odcics2

    odcics2 Well-Known Member

    Messages:
    563
    Likes Received:
    206
    Joined:
    May 14, 2014
    Location:
    utica, mi
    Value? What c.i. engines?
    As you can see, I know NOTHING about MoPars before I was born!
    Plan to put on the local craigslist at a fair price.

    THANKS!

  14. Furyman

    Furyman Active Member

    Messages:
    224
    Likes Received:
    124
    Joined:
    Apr 22, 2011
    Location:
    coboconk ontario
    Best thing is to e bay the D500 distributor....worth lots to the right guy. The standard 57 Dodge performance engine was the 325 poly with a 4 bbl. The dual quad was a 325 Hemi...pretty rare. Craigslist would be a waste of time.....try the Forward Look website.

    • Agree Agree x 1
  15. halifaxhops

    halifaxhops Senior Member FCBO Gold Member

    Messages:
    1,232
    Likes Received:
    315
    Joined:
    Mar 10, 2017
    Location:
    HALIFAX PA
    I would put it on there for 75 and see what happens I ask 175 for them rebuilt and parts suck to find. Forward look guys have their parts from my expieriances with them.

  16. halifaxhops

    halifaxhops Senior Member FCBO Gold Member

    Messages:
    1,232
    Likes Received:
    315
    Joined:
    Mar 10, 2017
    Location:
    HALIFAX PA
    Looking at it to rebuild at a minimum two inside leads, a new advance plate grounding strap, points/cond and you never know if you can free up the advance plate ball bearings so that gives you a idea of the condition.

  17. halifaxhops

    halifaxhops Senior Member FCBO Gold Member

    Messages:
    1,232
    Likes Received:
    315
    Joined:
    Mar 10, 2017
    Location:
    HALIFAX PA
  18. Furyman

    Furyman Active Member

    Messages:
    224
    Likes Received:
    124
    Joined:
    Apr 22, 2011
    Location:
    coboconk ontario
    I would think $100 or less is a gift for a 57 D500 Hemi. Fair would be $200 to $250, bend over would be $400 to $500. Second gen 426 Hemi dual point cores are running $400 to $500. I would buy dual point cores all day long for $75 !

  19. odcics2

    odcics2 Well-Known Member

    Messages:
    563
    Likes Received:
    206
    Joined:
    May 14, 2014
    Location:
    utica, mi
    But what is mine worth? (Chrysler #1779936)
    Is it for a D-500?

  20. marty mopar

    marty mopar Well-Known Member

    Messages:
    762
    Likes Received:
    181
    Joined:
    Nov 12, 2010
    Location:
    tempe az

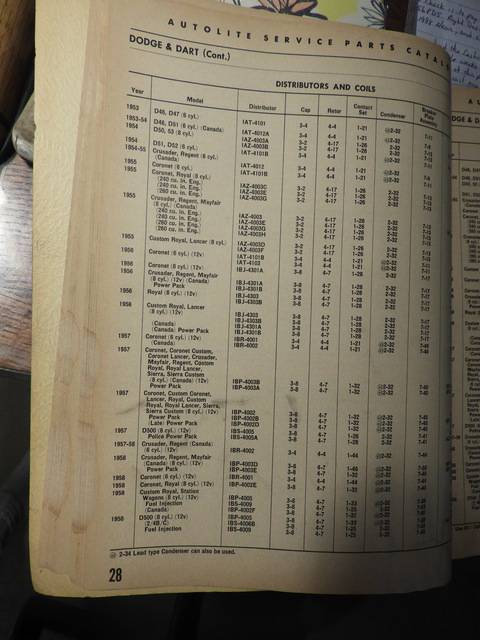

    IBS 4005 does appear in my Autolite parts catalog dated 1960

    1957 D500


    that is the ONLY application shown for it


    I have MOPAR parts books from 1929 to 2012 car/truck
    and Autolite plus other vendor books that include Mopar parts
    plus superseded # Mopar part books for cross reference. About 500 pounds
    of part books....a small nightmare indeed!

    • Thanks! Thanks! x 1
