WANTED - 69 IMP TAIL LAMP WIRING DIAGRAM

Ross Wooldridge

Old Man with a Hat
FCBO Gold Member
Joined
Apr 25, 2016
Messages
5,630
Reaction score
5,195
Location
Scotland, Ontario, Canada
Hi all,

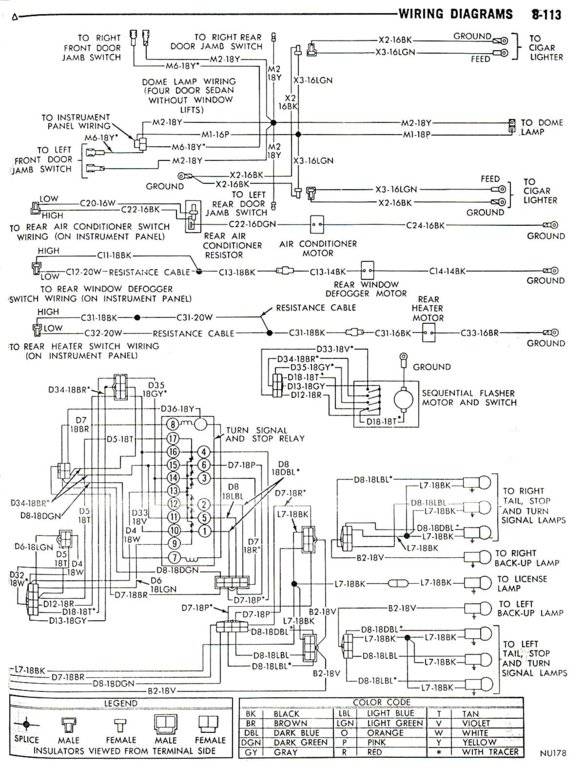

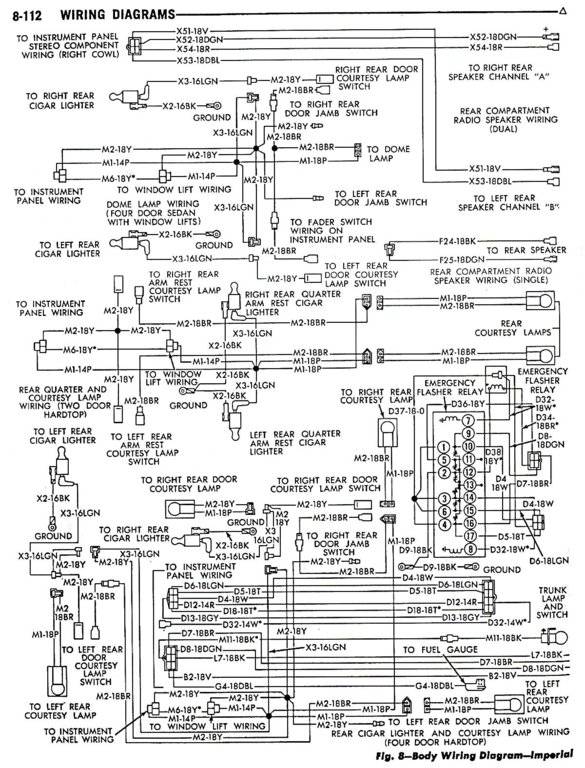

Can anyone send me or link me a 69 Imperial sequential turn signal and tail lamp wiring diagram from the 69 Imp service manual?

I just recently picked up an unmolested sequential turn signal contoller array.

Thanks in advance!

Hello Ross,
Here,1969 (Chrysler) Imperial Home Page, technical section.

Regards,
Mika

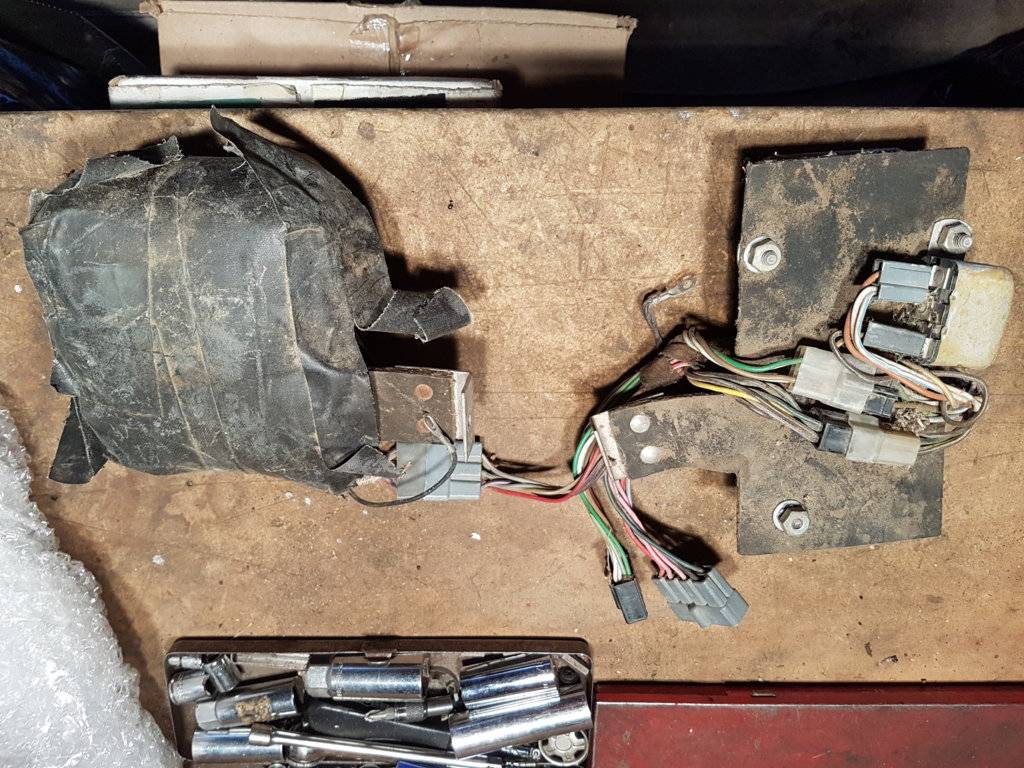

Here's the assembly as delivered. I want to figure it all out wiring-wise, then dissassemble and clean up all the connections etc and see if it works.


Last edited:
