WANTED Wanted: Dodge Chrysler Plymouth Mopar Engine Mount cable

Status
Not open for further replies.

Rainy Day

New Member
Feedback: 0 / 0 / 0
Joined
Mar 28, 2021
Messages
36
Reaction score
18
Location
Nowhere Usa
Contact seller
I am looking for the motor mount cable Chrysler installed on big blocks to avoid mount separation. I've seen the bolt on mods, and would like this original cable setup. I can be reached via Pm.



gyknot

Active Member
Feedback: 0 / 0 / 0
Joined
Nov 20, 2018
Messages
210
Reaction score
221
Location
Deer Park, Wa.
No doubt I do not know what I'm talking about, but in many years, I have never seen such a thing? Was it ever factory available?


Boydsdodge

Senior Member
FCBO Gold Member
Feedback: 0 / 0 / 0
Joined
May 26, 2020
Messages
1,360
Reaction score
1,780
Location
Toronto Canada

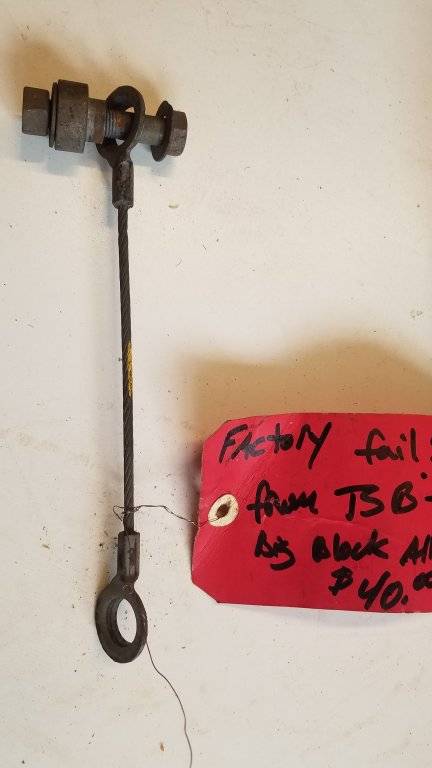

Yes factory. I think it was a cop car part. I have a at least one from my old cop cars. I have been meaning to see about getting some made up.
Later, like 73/74 the engine mounts came with two opposing cups that would stop engine lift if mount separated. Engine restrictor, roll restraint is what it is called in parts book.



Justin Plant

Active Member
Feedback: 1 / 0 / 0
Joined
Nov 11, 2021
Messages
433
Reaction score
445
Location
Moneta, VA
GM used a similar set up starting in the mid 60's. Apparently they changed the compound of either the glue or the paint on the steel bits, the cable worked better than the mount did. I've seen plenty of broken mounts, never a broken cable.


CBODY67

Old Man with a Hat
Feedback: 0 / 0 / 0
Joined
Mar 27, 2011
Messages
8,567
Reaction score
5,616
GM used a similar set up starting in the mid 60's. Apparently they changed the compound of either the glue or the paint on the steel bits, the cable worked better than the mount did. I've seen plenty of broken mounts, never a broken cable.
The GM (Chevrolet-specifically) add-on kits for their cars and pickups, starting with the middle 1960s cars, until about the 1970 model year, as I recall. What was in the kit varied with engine and model of vehicle. So although they all had a cable it them, the other items were model-specific. As the '69 C-10 350-4bbl pickup we have needed some extra bracketry, which then put the power steering belt in a slight mis-alignment situation.

Chevrolet issued a TSB on the kits, with part numbers and applications. When I bought the obsolete parts invenetory of a smaller Chevy dealer, I received about 50 of those kits in the mix. Quite interesting! Several different part numbers. I hauled a representative group to the Pate Swap meet the next year. Many people had heard of those kits, but never had seen them. Including a Camaro vendor from the Carolina region, who bought what I had on display and then his jaw dropped when I told him I had more. So he came to my shadetree shop in a rented Mercury Tracer and filled the whole back seat with all that I had. He remarked to his friend that if his father had told him that he'd be on his hands and knees digging through a pile of those kits, he would have told his father "You're crazy". But there he was, doing just that, years later. LOL

On the vehicles which used solid throttle linkages, any engine deflection/rotation could cause the rods to hang-up, which could cause some dangerous situations. When the throttles were changed to cables, that situation was greatly decreased. BUT the engine could rotate enough to hit the inner hood structure, by observation of when the lh mount deteriorated/failed on our '66 Newport 383 2bbl car.

Chevrolet then re-designed their mounts to have the "fail-safe" feature, so no need for the kits in later times. Those mounts were direct replacements for the earlier ones, which were discontinued and replaced by the newer style.

Some people complained that the cables would rattle in the engine compartment. Who then had the option of not getting the kits installed on their vehicles. The mount failures usually happened years after the cars were new, so if the were getting ready to trade cars, no big deal to them . . . let somebody else replace the mounts.

Some serious drag racers got some heavy bolts, washers, and a section of "log chain" and made their own restraints, too. The sound of their engines and valve train usually over-rode the rattles of the chain. Plus a heavy chain, rather than a "measly little cable" had a positive visual affect, too.

Ross's incognito fix is a definite option, too.

Just some recollections,
CBODY67


MrMoparCHP

Old Man with a Hat
Feedback: 1 / 0 / 0
Joined
Aug 9, 2013
Messages
5,488
Reaction score
5,249
Location
Lompoc, CA
I think it might have been associated with the Sure-Grip rear option. The other Polara I had (not the CHP one) that had a 318 had the cable as well, that car had the Sure-Grip rear.

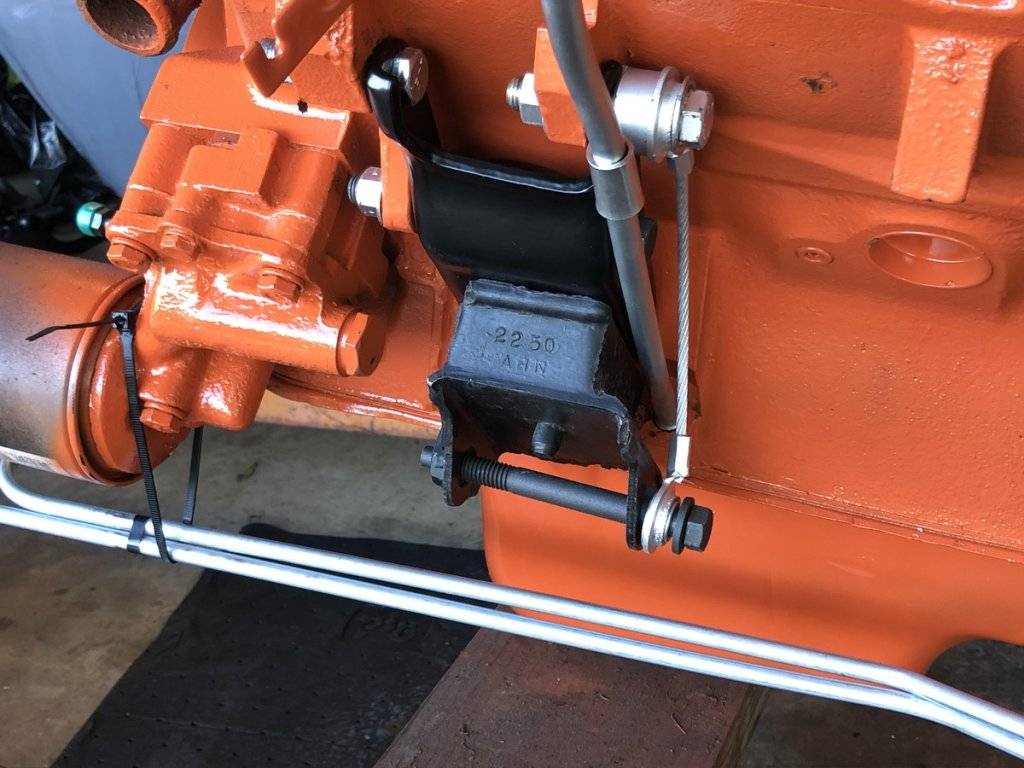

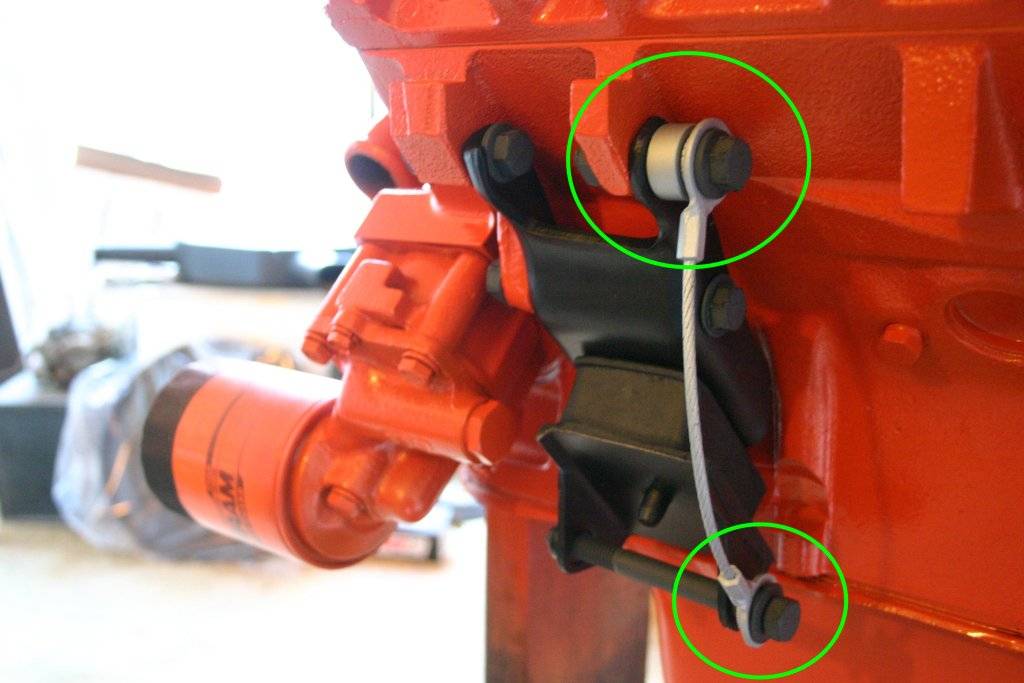

There are special bushings and spacers, the spacer at the top is stepped and goes in the ring ie a bushing. There is a bushing in the lower one as well.



Alan

Last edited:

c-barge

Well-Known Member
FCBO Gold Member
Feedback: 1 / 0 / 0
Joined
Nov 9, 2010
Messages
513
Reaction score
1,230
Location
Orange County N.Y.
Been a few years now but Im pretty certain my old '69 300 convertible had one. But it was a base 440/open diff 2.76 car.


Justin Plant

Active Member
Feedback: 1 / 0 / 0
Joined
Nov 11, 2021
Messages
433
Reaction score
445
Location
Moneta, VA
The GM (Chevrolet-specifically) add-on kits for their cars and pickups, starting with the middle 1960s cars, until about the 1970 model year, as I recall. What was in the kit varied with engine and model of vehicle. So although they all had a cable it them, the other items were model-specific. As the '69 C-10 350-4bbl pickup we have needed some extra bracketry, which then put the power steering belt in a slight mis-alignment situation.

Chevrolet issued a TSB on the kits, with part numbers and applications. When I bought the obsolete parts invenetory of a smaller Chevy dealer, I received about 50 of those kits in the mix. Quite interesting! Several different part numbers. I hauled a representative group to the Pate Swap meet the next year. Many people had heard of those kits, but never had seen them. Including a Camaro vendor from the Carolina region, who bought what I had on display and then his jaw dropped when I told him I had more. So he came to my shadetree shop in a rented Mercury Tracer and filled the whole back seat with all that I had. He remarked to his friend that if his father had told him that he'd be on his hands and knees digging through a pile of those kits, he would have told his father "You're crazy". But there he was, doing just that, years later. LOL

On the vehicles which used solid throttle linkages, any engine deflection/rotation could cause the rods to hang-up, which could cause some dangerous situations. When the throttles were changed to cables, that situation was greatly decreased. BUT the engine could rotate enough to hit the inner hood structure, by observation of when the lh mount deteriorated/failed on our '66 Newport 383 2bbl car.

Chevrolet then re-designed their mounts to have the "fail-safe" feature, so no need for the kits in later times. Those mounts were direct replacements for the earlier ones, which were discontinued and replaced by the newer style.

Some people complained that the cables would rattle in the engine compartment. Who then had the option of not getting the kits installed on their vehicles. The mount failures usually happened years after the cars were new, so if the were getting ready to trade cars, no big deal to them . . . let somebody else replace the mounts.

Some serious drag racers got some heavy bolts, washers, and a section of "log chain" and made their own restraints, too. The sound of their engines and valve train usually over-rode the rattles of the chain. Plus a heavy chain, rather than a "measly little cable" had a positive visual affect, too.

Ross's incognito fix is a definite option, too.

Just some recollections,
CBODY67
I went to high school with a guy that snapped the mount on his 65 Mustang. The throttle went wide open and he parked the car under an 83 one ton Chevy. The look on his face was priceless as he sailed across the parking lot. He got pretty beat up, one more Mustang gone to youth's stupidity. The truck was no worse for ware, the Reese hitch took the brunt of the impact.


Fury Pursuit

Senior Member
Feedback: 1 / 0 / 0
Joined
Jun 28, 2014
Messages
1,906
Reaction score
3,999
Location
.
My 69 Fury Pursuit has one..factory part…if I can help let me know.

I’ve always assumed they were a “fleet” HP part and that non HP or civilian vehicles didn’t get them. But there is much more to learn!


billyfury

Member
FCBO Gold Member
Feedback: 1 / 0 / 0
Joined
Dec 1, 2010
Messages
141
Reaction score
300
I had a 72 Polara Illinois State Patrol that had one.


Rainy Day

New Member
Feedback: 0 / 0 / 0
Joined
Mar 28, 2021
Messages
36
Reaction score
18
Location
Nowhere Usa
My 69 Fury Pursuit has one..factory part…if I can help let me know.

I’ve always assumed they were a “fleet” HP part and that non HP or civilian vehicles didn’t get them. But there is much more to learn!
Tried to send you a pm, says your box is full.


MrMoparCHP

Old Man with a Hat
Feedback: 1 / 0 / 0
Joined
Aug 9, 2013
Messages
5,488
Reaction score
5,249
Location
Lompoc, CA
I don't have a better picture of the other bushing.
Take some measurements and see if you can find something at McMaster




Alan
