What are these disc brakes from?

JimmyRich

Member
Joined
May 25, 2019
Messages
78
Reaction score
140
Location
Kerrville, TX

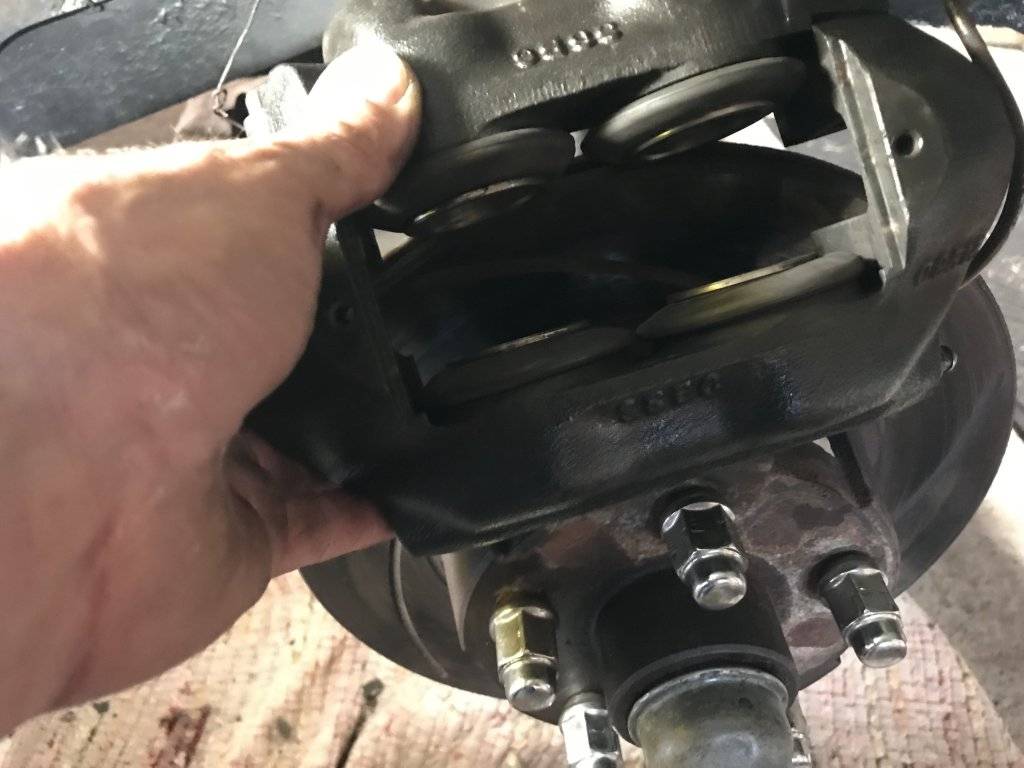

I’m replacing front disc brake pads on 1966 sport fury but they aren’t original. I bought pads for 1973 fury but look nothing alike. Please help! Thanks





PH27L7

Well-Known Member
Joined
Mar 10, 2020
Messages
619
Reaction score
891
Location
Pittsburgh, PA
Definitely not Budds, they are huge in comparison. The caliper shown appears to be a Kelsey Hayes 4-piston, used on A-body through 1969 or so.


mobileparts

Senior Member
Joined
Jul 24, 2011
Messages
1,103
Reaction score
786

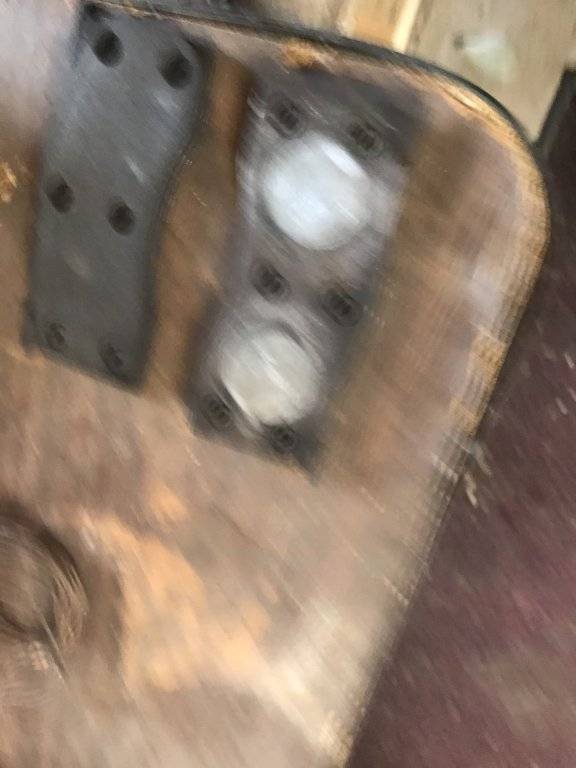

Photo is blurry --- but that sure looks like the 1965 - 1972 Keley Hayes " A " body
Disc Brake Pad....
And, yes, I -- DO HAVE SOME -- in *** N.O.S. *** Asbestos *** ....

Talk about CRITICAL!!! --- you must have *** N.O.S. *** ASBESTOS *** to have that little brake system STOP a " C "Body !!!


JimmyRich

Member
Joined
May 25, 2019
Messages
78
Reaction score
140
Location
Kerrville, TX
If they are factory 66 Budd style disc brakes, what is a part # for replacement pads? I’m getting nowhere. Are there replacement pads available at any box parts stores? ( autozone, Napa, o Reilly s)


mobileparts

Senior Member
Joined
Jul 24, 2011
Messages
1,103
Reaction score
786
For anyone reading this thread,
I have sold 9 sets of the BUDD DISC BRAKE PADS in the last 8 or 9 months ---
And, after being down to three (3) sets, I am now up to FIVE (5) SETS !!!!
(I guess we will see how many sets I have after Chryslers @ Carlisle in 6 weeks...

I still need to have a handsome contest between Detmatt and Ross to see whom is to become my T V spokesman !!! (LO L )

Yours, Craig....


mobileparts

Senior Member
Joined
Jul 24, 2011
Messages
1,103
Reaction score
786
Hey Ross,
If you are as handsome as your cars, you definitely have a shot, EH ??
(That" EH ?? " was for you !!! )

Yours, Craig.....


detmatt

Old Man with a Hat
FCBO Gold Member
Joined
Nov 14, 2010
Messages
27,091
Reaction score
24,562
As has already been established those ain’t Budds!


JimmyRich

Member
Joined
May 25, 2019
Messages
78
Reaction score
140
Location
Kerrville, TX
Sure ain't! How are they mounted on a C body?!?
If you can show us a picture of the fender tag of your car, we can tell you whether discs were installed on that car originally.
Regardless, Craig @mobileparts will have the right pads for your calipers.

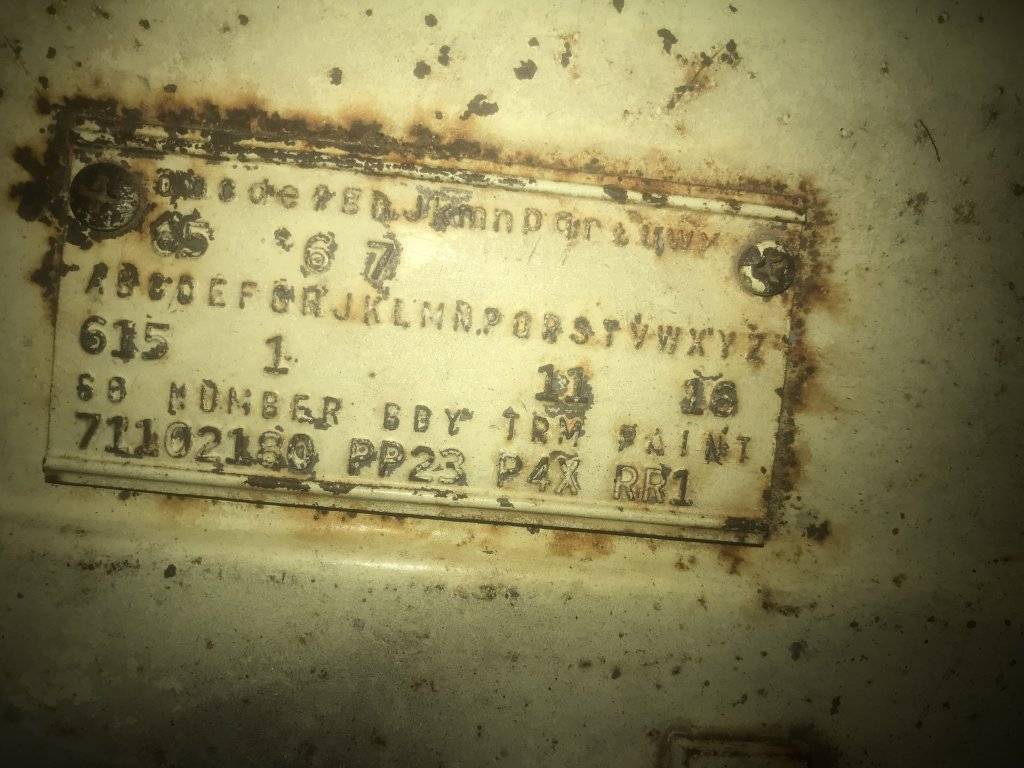

Fender tag on my 1966 Plymouth sport fury. Are disc brakes factory on my car??

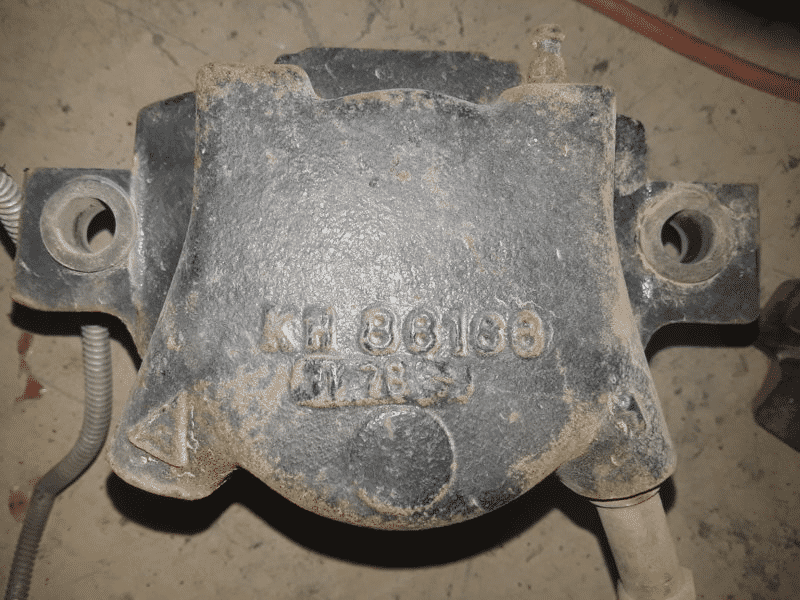

I come to think they are Kelsey Hayes 4 piston, 2 piece caliper style


detmatt

Old Man with a Hat
FCBO Gold Member
Joined
Nov 14, 2010
Messages
27,091
Reaction score
24,562
Looks like whatever brakes came standard as there’s no number under the “D” so I’m guessing drum brakes originally.
