    Good Afternoon FCBO,

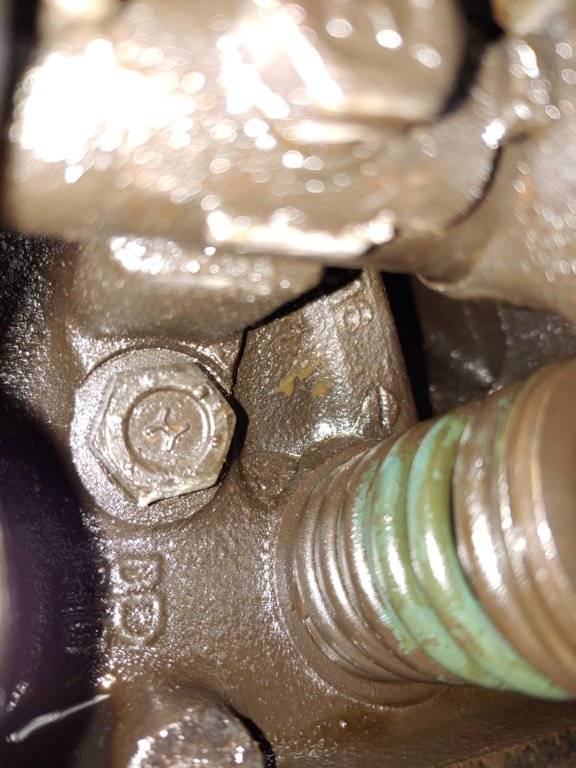

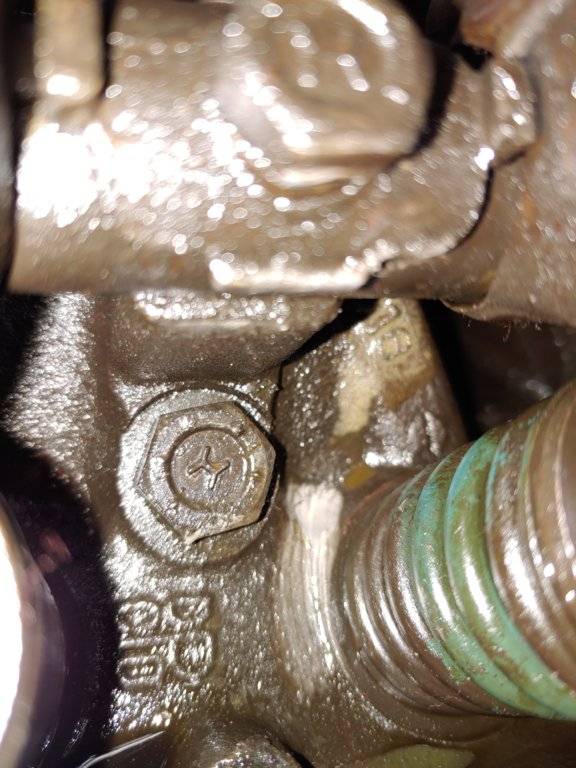

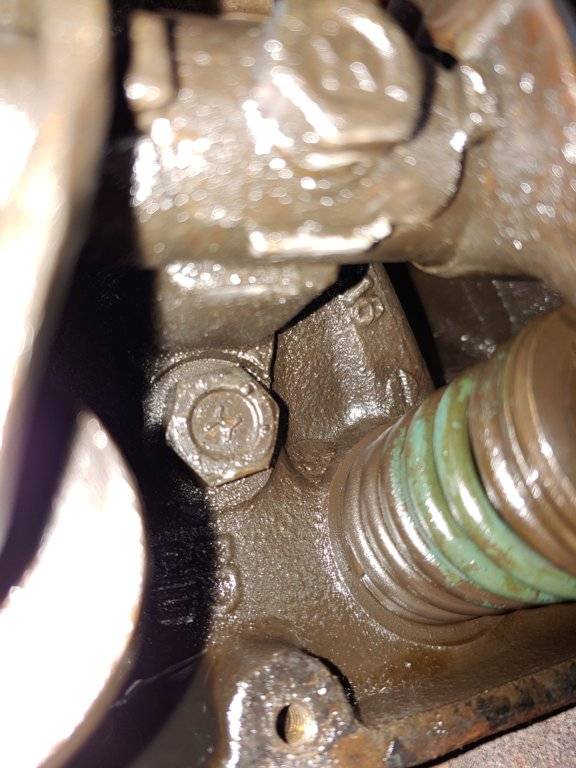

    I was replacing my radiator in my 67' 300 today and I decided to pull off a valve cover and see what the casting numbers on my heads were. I was hoping for the 915 closed chamber heads but that is not what I found.

    Instead I found the numbers 2406518. I had never seen those numbers before so I had to look them up. Well after extensive research I found out that the heads are from a 426 Max Wedge. Apparently they are the later stage 3 castings. They have all the correct markings and rocker towers.

    So I went to Ebay to see if I could find a pair for sale and I couldn't find any.

    Can any of the guru's on here give me an idea of what these things are worth? I don't believe they have any cracks in them and they are in good shape.

    Thanks for looking.

  2. 69CoronetRT

    69CoronetRT Senior Member

    Messages:
    1,698
    Likes Received:
    1024
    Joined:
    Feb 3, 2013
    Easy enough to determine...

    1. Confirm the casting is in fact 518 and not the expected 516.

    2. Measure the exhaust valves. 518 = 1.88. 516 = 1.6

    3. Check the casting dates on the heads.

    4. Proceed from there......

  3. MightyMats

    MightyMats Member

    Messages:
    60
    Likes Received:
    21
    Joined:
    Jul 28, 2018
    Location:
    Mass
    They are most definitely 518 castings

  4. 69CoronetRT

    69CoronetRT Senior Member

    Messages:
    1,698
    Likes Received:
    1024
    Joined:
    Feb 3, 2013
    Ok. Casting date?

  5. MightyMats

    MightyMats Member

    Messages:
    60
    Likes Received:
    21
    Joined:
    Jul 28, 2018
    Location:
    Mass
    I guess this may seem like a stupid question but where is the casting date located? There is the number "11295" screwed into the head on the intake side on a plate but that doesnt seem like a date code to me.

    Edit: I'll check the front of the head but i'll have to get all the grime off it.

  6. MightyMats

    MightyMats Member

    Messages:
    60
    Likes Received:
    21
    Joined:
    Jul 28, 2018
    Location:
    Mass

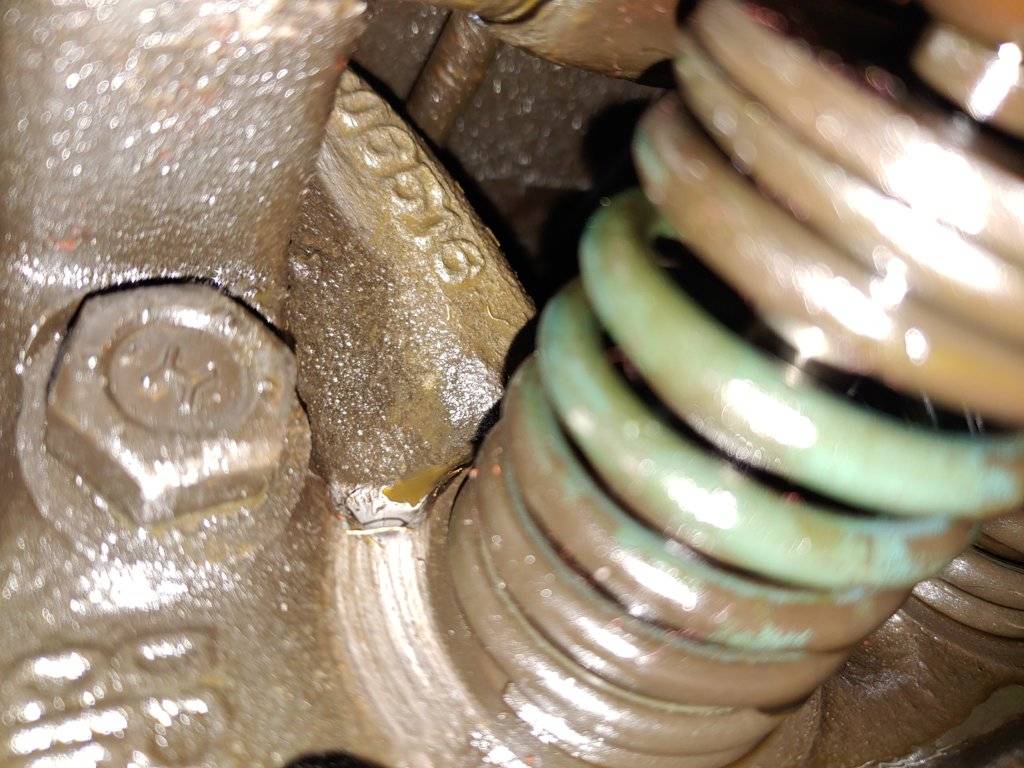

    I might have to eat my words. The more i look at it, the more is looks like a 6. I dont know why someone would put 518 heads on a chrysler 300. I kind of resembles an "8" but i think i have my doubts.





    • Agree Agree x 1
  7. stubs300

    stubs300 Senior Member

    Messages:
    1,564
    Likes Received:
    591
    Joined:
    Oct 30, 2011
    Location:
    Free America
    That's a 6!

    • Agree Agree x 1
  8. Lefty71

    Lefty71 Member

    Messages:
    77
    Likes Received:
    28
    Joined:
    Mar 17, 2018
    Location:
    Ohio
    It's a 6, and those are mighty wimpy springs for a '518 head. Now how am I gonna get my blood pressure back down?? :eek:

    The easiest way to know is if the rockers appear straight, like plain rockers.... a '518 head would have offset rockers, with pushrods moved over to clear those enormous ports.

  9. MightyMats

    MightyMats Member

    Messages:
    60
    Likes Received:
    21
    Joined:
    Jul 28, 2018
    Location:
    Mass
    Beer?

    • Agree Agree x 1
  10. Lefty71

    Lefty71 Member

    Messages:
    77
    Likes Received:
    28
    Joined:
    Mar 17, 2018
    Location:
    Ohio
    Someone put "J" heads on a 300, and that's even more rare than a '518 head, so who ever knows???

    Thx, I'll take 2

  11. CBODY67

    CBODY67 Senior Member

    Messages:
    3,594
    Likes Received:
    795
    Joined:
    Mar 27, 2011
    Sometimes, casting numbers can be a bit "soft", so "6" might be an "8", or similar. Sometimes, have to look closer or even get a tracing. In this case, other things would have had to have been present for it to have been an "8".

    It was fun while it lasted!

    CBODY67

  12. MightyMats

    MightyMats Member

    Messages:
    60
    Likes Received:
    21
    Joined:
    Jul 28, 2018
    Location:
    Mass
    It also has the heat cross over, apparently the 518s didnt.

    So back to my previous question. How much are 518 heads worth.

  13. Lefty71

    Lefty71 Member

    Messages:
    77
    Likes Received:
    28
    Joined:
    Mar 17, 2018
    Location:
    Ohio
    I think this is the last set we saw come up, that were likely real.
    FOR SALE - MAX WEDGE INTAKE & HEADS ORIGINAL

    Pity he doesn't have the rockers and shafts on it, so you can see what I mean by offset.

  14. MightyMats

    MightyMats Member

    Messages:
    60
    Likes Received:
    21
    Joined:
    Jul 28, 2018
    Location:
    Mass
    Thats a lot of money for heads. thanks for sharing those are super cool

  15. MarPar

    MarPar FA1 FCBO Gold Member

    Messages:
    4,750
    Likes Received:
    4584
    Joined:
    Apr 22, 2015
    Location:
    Still in Dry Dock
    jaw hitting floor.gif

    • Like Like x 1
    • Thanks! Thanks! x 1
  16. jbooth35

    jbooth35 New Member

    Messages:
    23
    Likes Received:
    2
    Joined:
    Jul 20, 2014
    Location:
    Eighty Four, PA
    If anyone is looking I have a set of Stage III heads. I also have the intake with the carb linkage, but without carbs. I brought them out to Carlisle last year, but never got them out of the car to sale.
