Which vacuum line into the time delay relay?

furious70

Senior Member
Joined
Aug 18, 2018
Messages
2,236
Reaction score
2,158
Location
Chitown

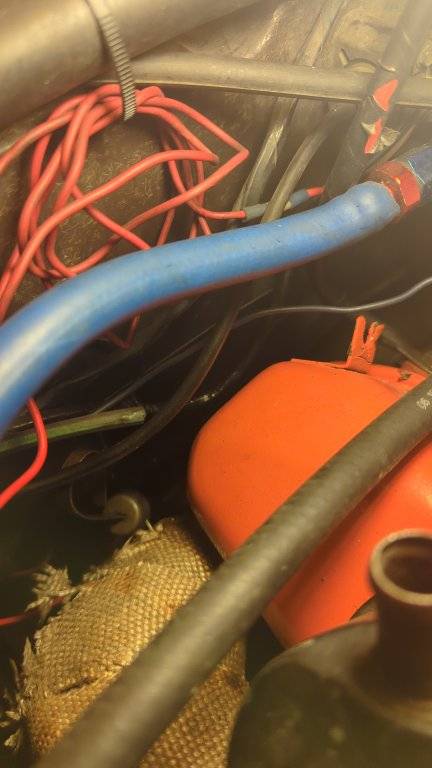

On my 70 fury, I knocked off a couple of the vacuum lines and one was cracked that I cut and plugged on last year's catl drive.
There's a white striped one and a green striped one.
FSM doesn't seem to detail which hose goes where that I can find.
It looks like the white stripe goes into the relay. And it looks like the green is the vacuum supply from the engine, is that correct?


The FSM should have the proper diagram, somewhere

There's a diagram that shows which hoses have vacuum during which HVAC operation but I don't see one that labels them like a wiring diagram
Would love a page number

Here is a thread on a 71. Looks like it might be in the ac section.
