So far I've added Bilstein shocks, big sway bars, firm feel torsion bars, v rated tires on larger wheels, etc. Replaced entire brake system and am now doing some custom stuff like machined hub centric wheel spacers, longer and larger wheel studs and more.

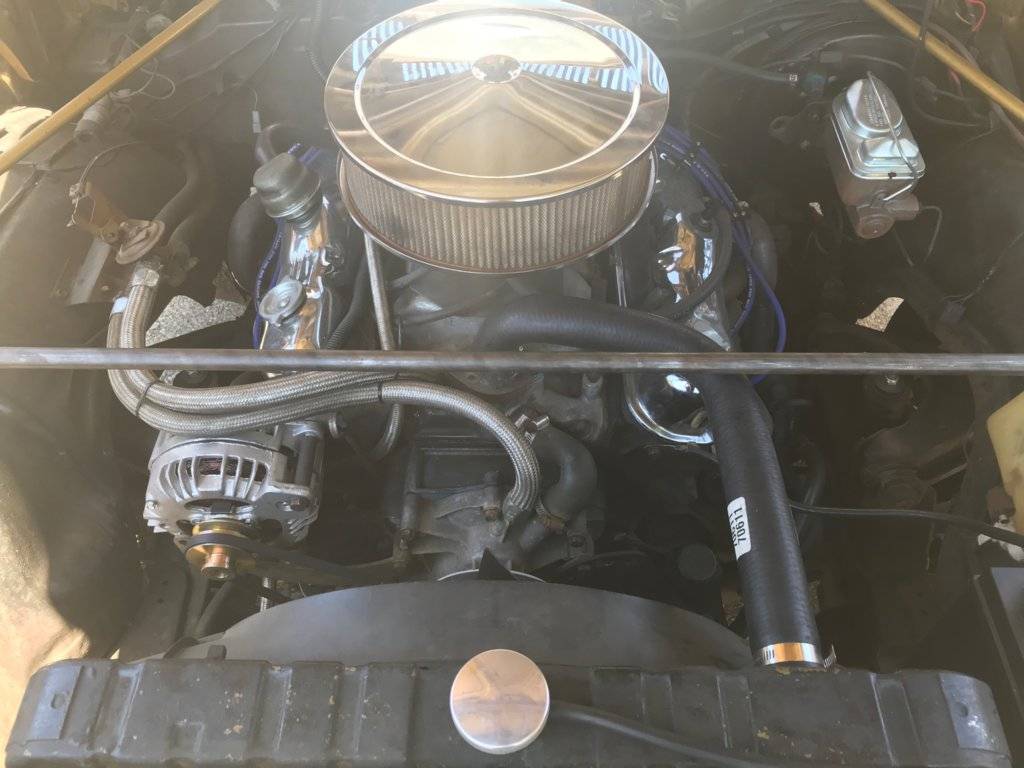

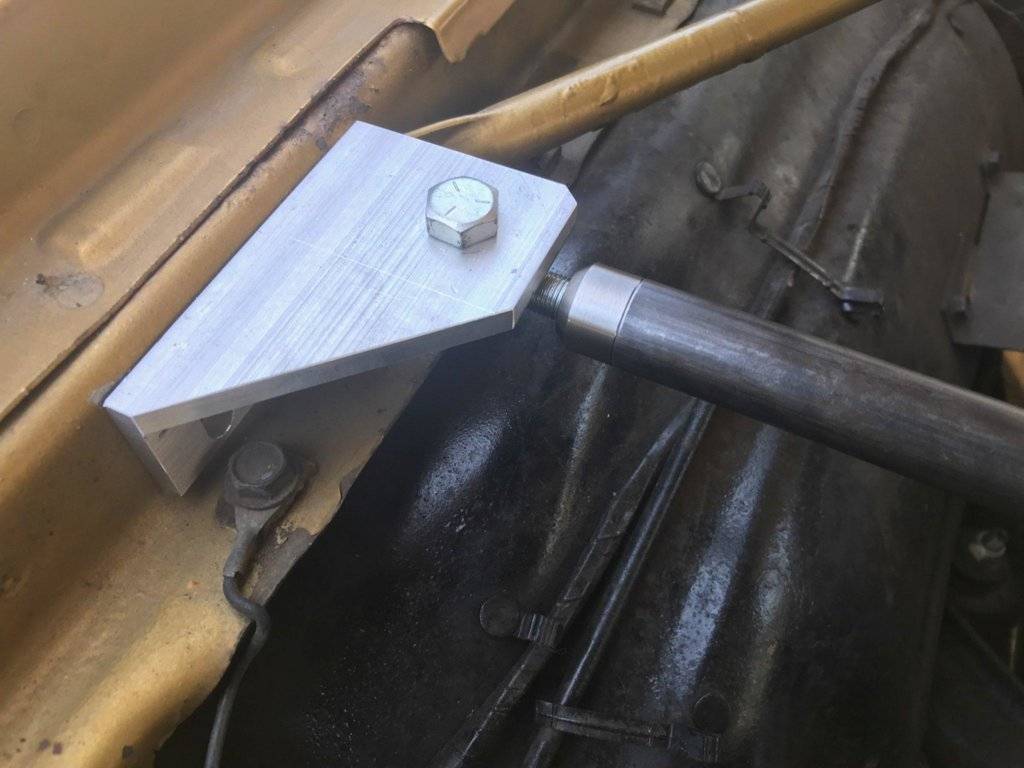

I'm in with you but I don't know what the fender brace is going to do. I think you'd get more out of tying the subframe to the stub frame. Then maybe a hoop from one side of the stub frame to the other, over the front of the engine.

I agree, it may help with the fenders flopping around and triangulate the fenders,cowl,etc. Won't actually do too much, but looks cool!
I have a plan for the stuff you mentioned as well.

In comparison to the way my '70 Monaco DH43 is constructed in comparison to my '77 Camaro, the DH43 is light years ahead of how the extensions of the front (what I'm going to term "sub-frame", correct of not, for comparison purposes) sub-frame actually go farther back on the floorpan, much closer to the start of the rear suspension "frame", than the Camaro does. A much stronger situation, it appears to me. One of the first things you do with the GM F-bodies is to attach the two "frames" together. They are in a more linear relationship than on the Chrysler C-body floorpan, so it's easier. The rear of the GM F-body sub-frame connectors is the rear spring eye bracket attachment.

Your front body supports might help with the movement of the fenders on a rough road, BUT I'm not sure that will have any benefit in auto-cross-style handling.

On the GM F-bodies, one of the other things that is usually changed is the sub-frame mounting rubber insulators. Usually replaced with hard urethane plastic. On the Aspen/Volare chassis police cars, and the R-cars, there were steel pucks to mount the front sub-frame to the body, replacing the large rubber insulators which came on these cars from the factory.

To me, much of what you've already done or plan to do with the additional bracing and such can tend to be more "show" than "go". Rather than those fancy wheel hubs, put some additional bracing in the rocker panels, front to rear. In addition to any sub-frame connectors you might jig-up.

On the GM F-cars, there were some later braces which connected from the rear mount of the lower control arm to the sub-frame itself. When I put them on my '77 Camaro, I could tell a difference in how solid the front of the car felt. On other cars, they have some braces which go from the front of the frame to the center of the "crossmember", one on each side, splayed as necessary.

ONE thing about station wagons, compared to similar sedans, is that while the C-body sedans were usually 55/45 f/r weight distribution, the additional weight of the wagon body, over the rear axle area, should put it closer to 50/50, I suspect. That can have some dynamics on the ultimate "tuning" of things.

For the '66 Chrysler wagons, they spec'd the front tire pressure at something like 22psi rather than the normal 24psi base pressure. On the rear of the wagons, it was more "load-carrying" with almost 30psi. What that means is that the front tires would slide well before the rear tires would, ensuring a strong understeering vehicle. On the sedans, starting with the base 24psi, adding 4psi for "freeway driving", that puts things at 28psi. But with 28psi in all four tires, with more weight on the front tires, they will still slip sooner than the rear tires would, so I increased the front tire pressure 2psi to compensate for the additional weight on the front tires (30/28, f/r). This increased steering response a good bit, as now each axle's tires were supporting an equal amount of weight with their inflation pressure, relatively-speaking. Rear tires wore evenly across the tread, rather than more in the center. Same with the front tires. It just worked better and didn't cost one cent to make happen!\\

Now, why would anybody deliberately want their cars to understeer in a turn? "Safety" is a significant issue! When the front end starts to slide, the driver will usually slow down. That saves lives and sheet metal, usually.

NOW, remember too that any car platform is designed to have "flex" in it. Making certain areas stiffer will mean that "removed flex" will end up somewhere else in the platform it was not designed to be in. This can cause undesired "stress cracks", by observation. Typically where two panels meet and are welded/soldered together. On a Chrysler UniBody platform, these joints can be hidden by a thick coat of "seam sealer" that's painted over as the body is built.

When you remove compliance from the front suspension, with urethane bushings and body mounts, you transfer all of that "flex" into the floorpan itself. You might experience sharper handling, while feeling and hearing more of the road at the same time. One of the main load-bearing areas of the floorpan area are the rocker panels, so I'd consider a stiffening "pipe" in that area, front to rear.

On the rear suspension, using a urethane front eye bushing for the rear leaf springs can help a good bit for more accurate rear axle positioning. OR at least a harder rubber bushing. On the GM F-cars, there are urethane insulators for the rear leaf spring mounts to the rear axle, to replace the factory rubber items. On the Gen 2 Z/28s, there was also a harder rear shackle bushing. I put those on my car and it made the rear end feel more solid with less side-sway. On the stock bushings, I could squeeze them together with my finders, closing the center hole, but the Z/28-spec items were stiffer (higher durometer rating) that I could only get the hold half-closed, for example.

Dig up the Chrysler MasterTech course on front suspension alignment from either www.mymopar.com or www.onlineimperialclub. It'll graphically display how the outer wheel goes into negative camber in a turn, as the inner wheel goes into positive camber, leaving the front wheels more vertical to the road surface as the car body leans in the corner. With decreased body lean and much wider tire tread/rim width, you can easily end up with just the outside tread ribs doing all of the work, rather than the full tread width. Wouldn't matter nearly as much with a typical GM car, but due to the Chrysler geometry, it can.

Going to a Z-rated tire is a good move. Generally stiffer sidewalls and tread. Plus a much better tread compound. Look for "auto-cross-specific" tires as their rubber has to "start working" in by the first turn of the course. As in the old Yokohama A008s, the outside tread rib is pretty solid, too.

Although You've already done a good bit, I'd highly suggest you seek out the region's SCCA
"Solo I" Autocross competitions/track days. Usually at a school parking lot or older airport runway. Watch the cars as they go through the course. How some cars slide as others seem to be on "invisible rails". Generally, the courses are designed from shorter-wheelbase cars, as you'll quickly see. Anything longer than about 110" can be difficult to get through the course, by observation.

You might also want to put some extra thickness in the rear crossmember which is the upper rear shock mounts. PLUS make sure the upper shock bolts will remain tight, so they won't loosen and wallow-out those mounting bolt holes!

AND . . . don't forget about brake upgrades, too!!!

Just some thoughts,
CBODY67

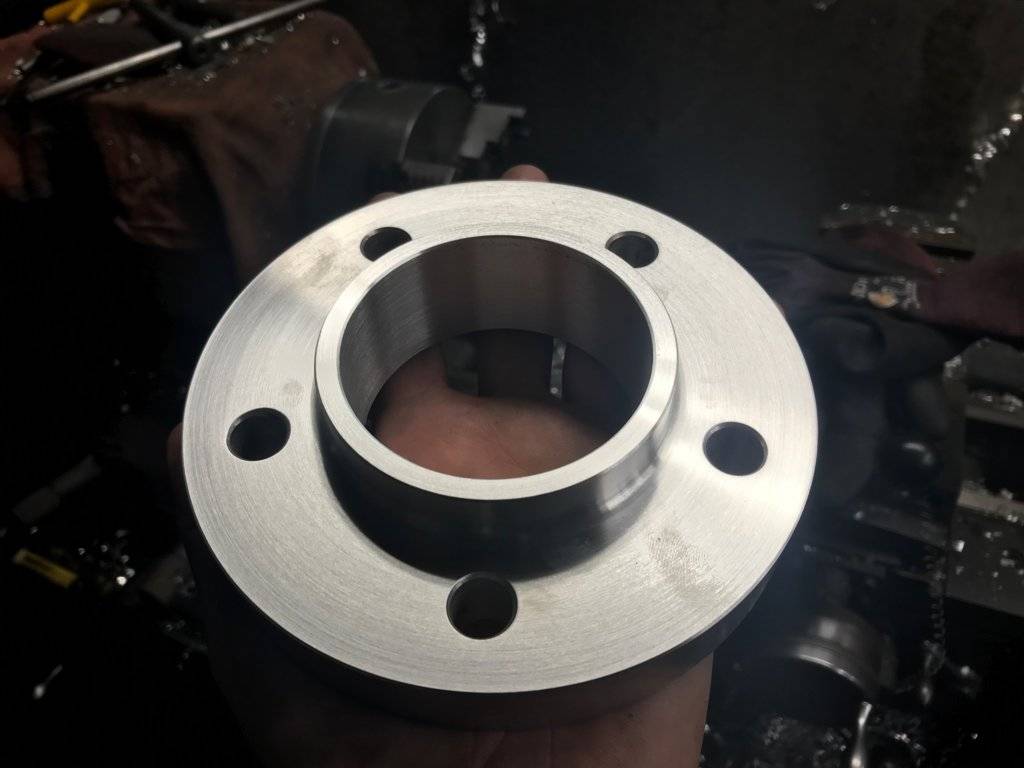

Some good points, CBODY67. So far, I've just completely replaced the factory disc components. I'll be running proper pads and Motul fluid. I should have probably mentioned that I've been road racing on and off for over thirty years(most recently at Laguna Seca with the LuckyDog Race series). I have a B/P Corvette, a C/P 911 and some other stuff. I can't stand cars that don't handle very well. I realize that the Fury wagon is a strange vehicle to modify, but I like it and it creates a stir when I drive it to sports car events and Cars and Coffee. It is much better after what I've done so far. Chassis stiffening is probably a good idea. I had the wheel spacers machined so that the larger wheels would be positioned better as the alloy wheels 17" wheels didn't quite have the same offset as factory.

Where did you get your wagon? It looks like the one I used to own that I sold a long time ago.

Bill

You've been hanging around @Xenon too much! :poke:

The wagon is a different one to play with, but I like that. Who would guess? Fender bracing looks pretty, but chassis stiffening is the way to go. Frame connectors, sway bars, as a racer you know what to do.
Yeah, I realize the brace is mostly cosmetic, but, why not? Big sway bars already installed.

I purchased it in San Diego, Ca. It ran, but not well. I've been getting it road worthy.

Your wagon as a twin, but with a/c and a roof rack last known to be in Connecticut. The guy I sold it to added the same hood scoops to it and swapped in bucket seats and swapped the road wheels for some aftermarket wheels the last time I saw it, which may be 10 years ago.

Left side.jpg

As far as the front sway bar, did you use the 1 1/4 or 1 1/8? Also, did you upgrade the torsion bars?Since you have a history of turning corners, I'll be watching this thread intently as I plan on modifying the suspension on my 1970 Suburban (Evelyn) to improve her highway brawler skills. Thanks in advance! **also, I would like to see more pictures of your long roof. Especially from the side with the new upgraded wheels and rubber installed


As far as the front sway bar, did you use the 1 1/4 or 1 1/8? Also, did you upgrade the torsion bars?Since you have a history of turning corners, I'll be watching this thread intently as I plan on modifying the suspension on my 1970 Suburban (Evelyn) to improve her highway brawler skills. Thanks in advance! **also, I would like to see more pictures of your long roof. Especially from the side with the new upgraded wheels and rubber installed

View attachment 207336
Hi there, I used the PST big torsion bars, 1 1/4 bar and a rear bar. Bigger wheel studs and the custom hub centric spacers. Pics soon.
