Wyatt convinced me to destroy my 71...

Member's Projects & Restorations

  1. sixpkrt

    sixpkrt Senior Member FCBO Gold Member

    Messages:
    1,331
    Likes Received:
    2538
    Joined:
    Jan 18, 2013
    I don't second guess Xenon's knowledge when it comes to this stuff.
    When doing the low air pressure test, he had me replace my air hose blower nozzel with a nozzel with a rubber tip, so that there is no damage caused to the metal surface and so that there is a better seal when the air hose test was done. It makes a lot of sense once you see it being done, but little things like this not only helps with my understanding, it also assures me the trans will perform as it should when back together.

    Last edited: Dec 2, 2019
    • Like Like x 1
    • Agree Agree x 1
  2. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    12,428
    Likes Received:
    5268
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    I was always taught to do burnouts in low gear as to help keep the shock off the sprag with the application of low/reverse band. Yes, shifting to second before it catches is important also.
    Never do burnouts in drive/breakaway as all the shock is directed at the sprag if it hooks.

  3. polara71

    polara71 Old Man with a Hat

    Messages:
    42,358
    Likes Received:
    9505
    Joined:
    Nov 16, 2010
    Location:
    Here & There
    That explains all the transmissions I went through when I was 17/18

    • Like Like x 5
    • Agree Agree x 1
  4. david hill

    david hill Well-Known Member FCBO Gold Member

    Messages:
    681
    Likes Received:
    763
    Joined:
    Jul 17, 2017
    Location:
    indianapolis 46226
    Did you replace all the support bushings during you rebuild. What overhaul kit did you use and did the kick down band come with it. It appears your kick down band is the heavy duty option.

  5. sixpkrt

    sixpkrt Senior Member FCBO Gold Member

    Messages:
    1,331
    Likes Received:
    2538
    Joined:
    Jan 18, 2013
    When the transmission was apart, the bushing looked fine and we all felt the need to replace them was not necessary. The overhaul kit was purchased though A&A Transmission in Camby, IN, just outside of Indy.
    I went with the red clutches and the red racing bands when the ordered was place for the kit, but after Xenon and I had the trans apart, it was evident the transmission must have been rebuilt recently, and the bands looked new. As seen in a previous post, the discs were burnt.
    When I placed the order with A&A, the kit I was after would give the feel of the shift when driving the car as it goes through the gears. Not too harsh, but definitely not a real smooth shift.
    I want to feel the shift when driving the car, and IMO there'd be no pleasure in driving an HP car that feels like a Sunday driver.
    When the kit arrived with the red racing bands, they only had 1 groove, and the kit came with 6 red driving discs and 6 clutch plates. (the factory set up had 5 of each)
    The bands that were already in the trans is what went back in cause they did look to be heavy duty, had been replaced recently, and had more grooves for better fluid passage. The single groove red racing bands may have been too much for what I was looking for, and the hard shift in a heavy car probably would wear them out sooner than expected.
    The red driving discs and new clutch plates did get used, as was a thicker snap ring (also in the kit) to make everything fit within the recommended tolerances in the FSM.
    With luck, it will have the feel I am looking for once back together and on the road.

    Also note, if ordering from A&A (maybe other places too) there is a core charge for the bands. When retuning your core, A&A told me if it can't be rebuilt, there's no refund....FYI

    • Like Like x 3
    • Thanks! Thanks! x 1
  6. sixpkrt

    sixpkrt Senior Member FCBO Gold Member

    Messages:
    1,331
    Likes Received:
    2538
    Joined:
    Jan 18, 2013

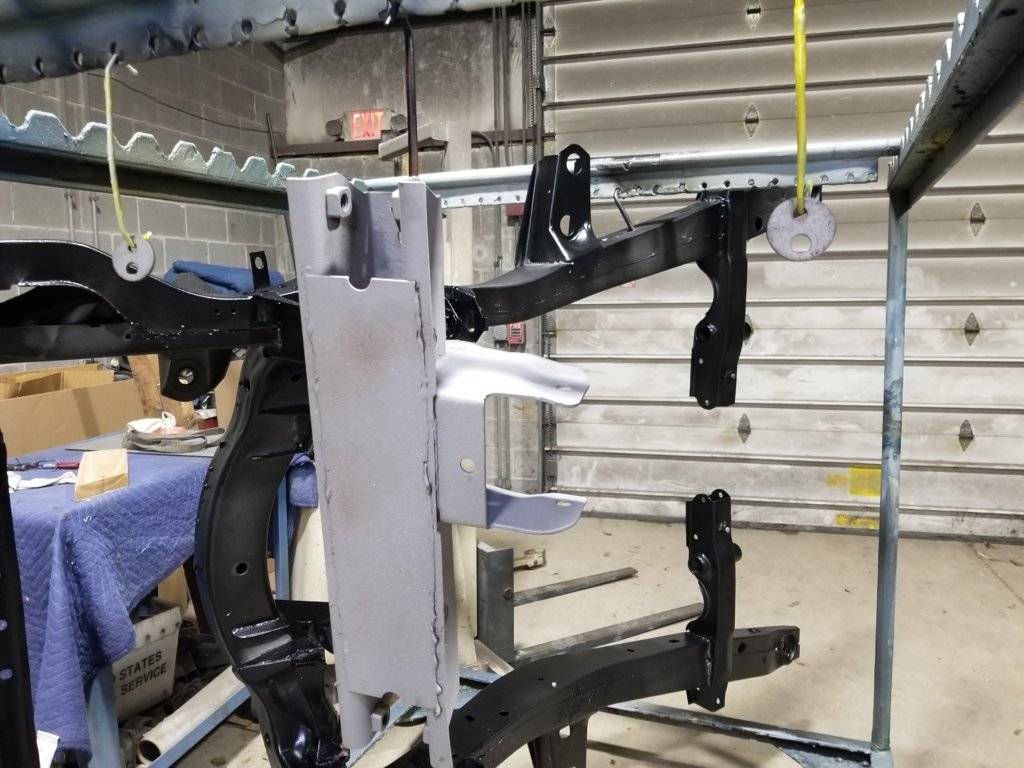

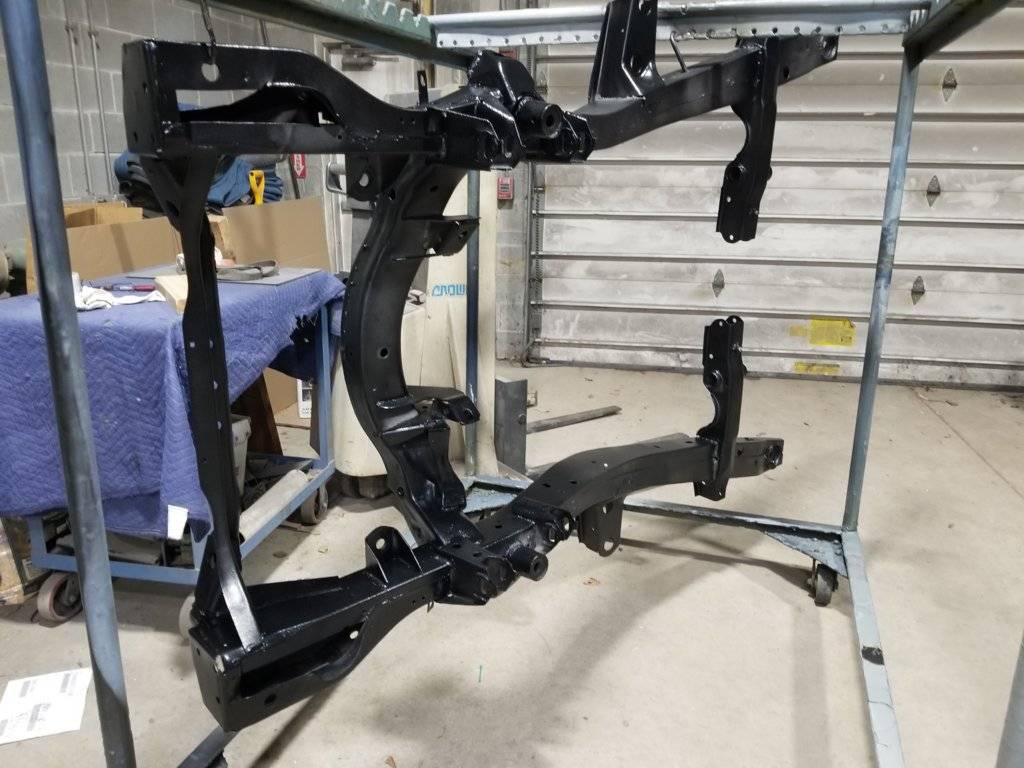

    Stopped over by the powder coating company this morning and liked what I saw.
    The pics are just the first coat, with two more to come.
    powdercoat1.jpg powdercoat2.jpg powdercoat3.jpg

    • Like Like x 9
  7. live4theking

    live4theking Old Man with a Hat

    Messages:
    9,927
    Likes Received:
    2837
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    Just curious, are they applying multiple coats of the same black powder?

  8. 75LandYacht

    75LandYacht Yank Tank FCBO Gold Member

    Messages:
    4,320
    Likes Received:
    2195
    Joined:
    Oct 1, 2015
    Location:
    Westchester NY
    • Thanks! Thanks! x 1
    • Agree Agree x 1
  9. 75LandYacht

    75LandYacht Yank Tank FCBO Gold Member

    Messages:
    4,320
    Likes Received:
    2195
    Joined:
    Oct 1, 2015
    Location:
    Westchester NY
    Don’t mean to be nosy, but can you give us a ballpark cost of the build as you go? Powder coating, parts, engine build etc? Thank you sir.

  10. sixpkrt

    sixpkrt Senior Member FCBO Gold Member

    Messages:
    1,331
    Likes Received:
    2538
    Joined:
    Jan 18, 2013
    Bob at the powder coater mentioned after the sand blasting, the first bake would allow them to clean up any burrs/welds and then sand for the 2nd bake. The 3rd time is for the finish. As far as I know, all 3 bakes will be done with ti same black satin color.
    His shop does alot of car parts and stubs occassionally. He said the Camaro guys always want this done to their cars, but added "they're much smaller and easier to work with".
    In any case he and his guys do seem to pay attention to the details and seems to a good guy to work with for this end of the resto.

    Last edited: Dec 10, 2019
    • Like Like x 4
    • Thanks! Thanks! x 1
  11. live4theking

    live4theking Old Man with a Hat

    Messages:
    9,927
    Likes Received:
    2837
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    From our experience you have to pay attention to detail and prep if applying more than one layer of powder.

  12. CudaChick1968

    CudaChick1968 The Mistress of Metal FCBO Vendor

    Messages:
    96
    Likes Received:
    139
    Joined:
    Jan 15, 2012
    Location:
    Greenfield, Tennessee
    With all due respect, you have to pay attention to detail regardless of how many layers it gets.

    I'd personally be more concerned with over-curing the base coat which can make it brittle, more susceptible to chipping later and contribute to complete delamination eventually. Moreover, on large pieces like a frame, thinner sections will heat up faster and present challenges on heating uniformity.

    Most shops just shoot a single base coat of epoxy primer on steel (and sand it out) rather than multiple layers of color.

    I truly hope the O.P. gets the results he seeks.

    • Like Like x 2
    • Thanks! Thanks! x 2
  13. sixpkrt

    sixpkrt Senior Member FCBO Gold Member

    Messages:
    1,331
    Likes Received:
    2538
    Joined:
    Jan 18, 2013

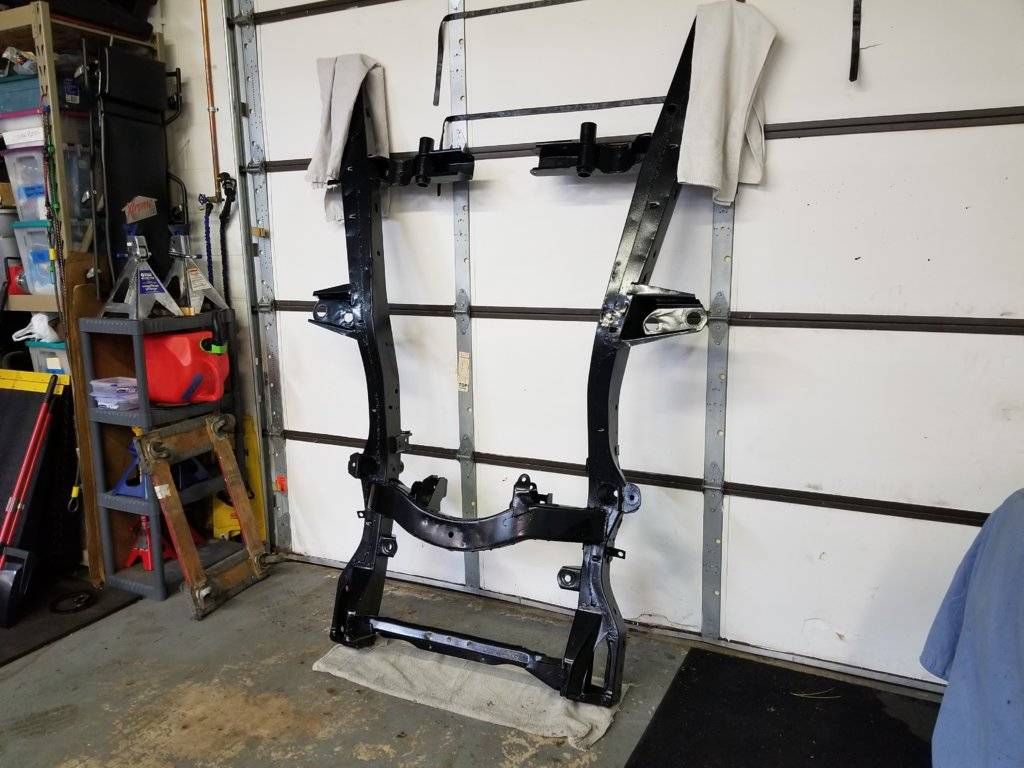

    The stub frame was delivered today, and am pleased with the results. I didn't mention in the previous post but they did apply primer to the frame before it went into the oven.
    stubframe undercoated del 12_10_19.jpg

    • Like Like x 8
  14. 75LandYacht

    75LandYacht Yank Tank FCBO Gold Member

    Messages:
    4,320
    Likes Received:
    2195
    Joined:
    Oct 1, 2015
    Location:
    Westchester NY
    That’s sweet..

  15. live4theking

    live4theking Old Man with a Hat

    Messages:
    9,927
    Likes Received:
    2837
    Joined:
    Nov 24, 2014
    Location:
    Rockland; Venango County Pennsylvania
    Agreed. Attention to detail and prep is the key to a good job whether powder or liquid paint.

    Where it work we've taken to applying a zinc rich primer before color powder for all steel pieces that will be exposed to the elements.

    • Like Like x 1
    • Agree Agree x 1
  16. John Kelly

    John Kelly New Member

    Messages:
    34
    Likes Received:
    211
    Joined:
    Jun 24, 2018
    Location:
    Berwyn IL
    Wow. I just read this thread from start to finish. Way to go guys. I gotta get over there and see this thing soon.

  17. sixpkrt

    sixpkrt Senior Member FCBO Gold Member

    Messages:
    1,331
    Likes Received:
    2538
    Joined:
    Jan 18, 2013
    Last week the valve body for my NYer was done, but didn't get any pics to speak of. This weekend Wyatt had the classroom time with Xenon, showing him the "how to's", and rebuilt his 727 valve body at the shop. Are we havin fun yet?
    After thoroughly cleaning all the moving parts, the reassembly will begin.
    Xenon's patience with the both of us and availability to take the time to show us the steps for the rebuild is greatly appreciated.
    Pssst…Wyatt...X-mas is around the corner. (for er...uh..:poke:for the teacher)
    Trans 6.jpg Trans 5.jpg Trans 2.jpg Trans 4.jpg Trans 7.jpg Trans 3.jpg

    • Like Like x 13
  18. MarPar

    MarPar Meat Man with a Hat FCBO Gold Member

    Messages:
    6,296
    Likes Received:
    6839
    Joined:
    Apr 22, 2015
    Location:
    Still in Dry Dock
    So the pressing question iz... @71Polara383 did ya have mcnuggets wif yer drink?

    • Like Like x 2
    • Disagree Disagree x 1
  19. LocuMob

    LocuMob Fluid Technician with a hat FCBO Gold Member

    Messages:
    11,945
    Likes Received:
    7788
    Joined:
    Oct 31, 2013
    Location:
    Blue Earth Mn
    Royale with Cheese.

    • Like Like x 2
  20. MarPar

    MarPar Meat Man with a Hat FCBO Gold Member

    Messages:
    6,296
    Likes Received:
    6839
    Joined:
    Apr 22, 2015
    Location:
    Still in Dry Dock

    • Thanks! Thanks! x 2
