Your fuel line pump to carb has to be better than mine. Any pics to help me design it better?

Engine, Transmission & Driveline

  1. James Romano

    James Romano Member

    Messages:
    64
    Likes Received:
    53
    Joined:
    Sep 28, 2019
    Location:
    Long Island, NY
    Title says it all... Lol.

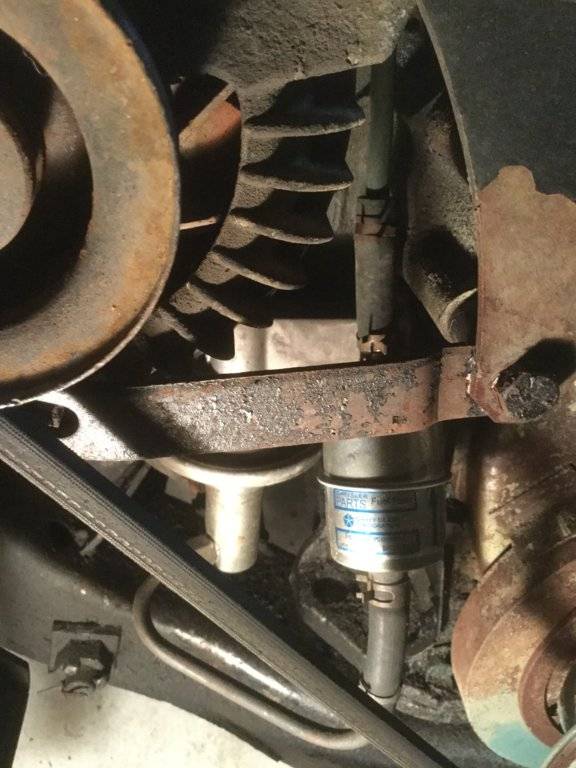

    1965 Fury, mostly stock. Not looking for any Hi-Po stuff. I just want it to looks better than this setup. It's an eyesore.

    Thanks!

    JR



  2. Joseph James

    Joseph James Well-Known Member

    Messages:
    792
    Likes Received:
    396
    Joined:
    Jul 21, 2018
    Location:
    Asheville, NC
    Is yours stock style? I have same engine in a 68 but my fuel filter is beside the water pump. Wondering if mine is incorrect.

  3. 300rag

    300rag Grumpy Old Man With a Hat FCBO Gold Member

    Messages:
    10,892
    Likes Received:
    11094
    Joined:
    Dec 4, 2010
    Location:
    Calgary, Alberta, Canada

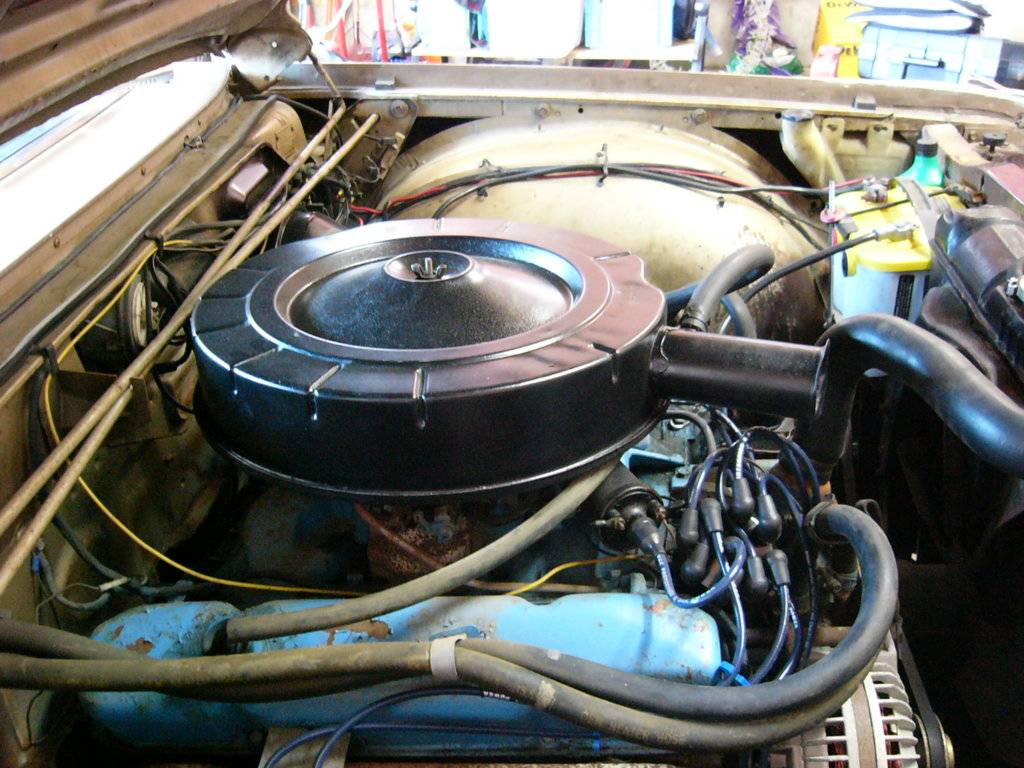

    This was my 65 NY...

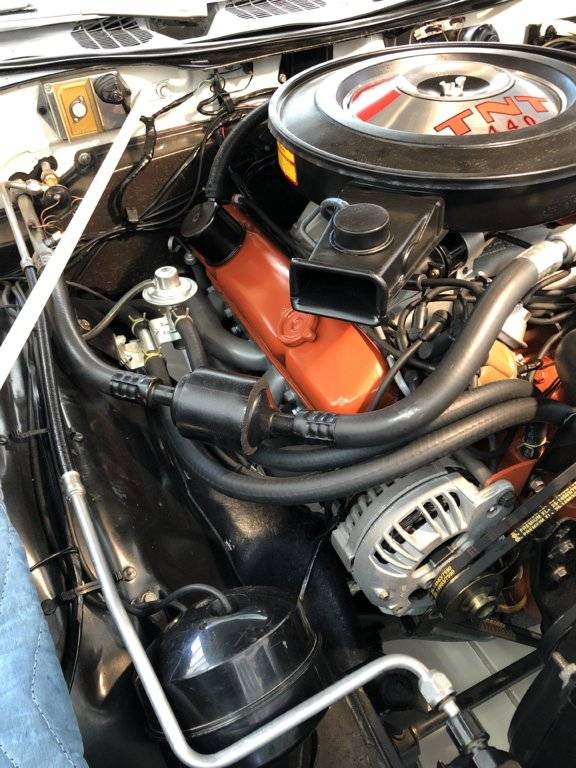

    My 65 300 when I got it...




    • Like Like x 1
  4. Trace 300 Hurst

    Trace 300 Hurst Well-Known Member

    Messages:
    799
    Likes Received:
    436
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Fuel filters often ended up on top of the engine after 50+ years of service, because it's a PITA do to them correctly.

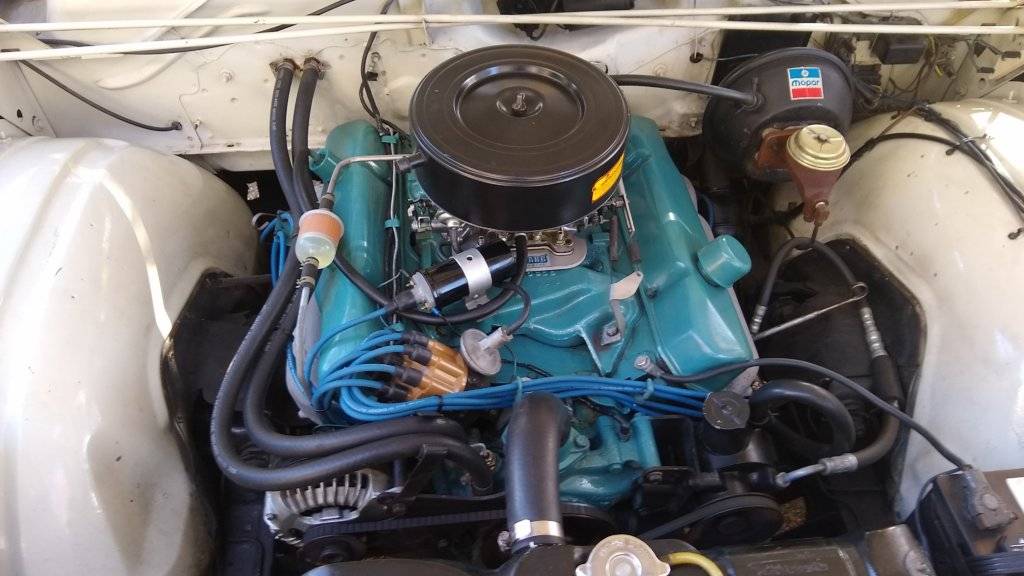

    1968-71 Plymouth B-Body 440CID 4bbl Carter AVS 5/16
    This kit is for the fuel pump that the outlet points towards the right front corner of the car.


    • Like Like x 3
    • Agree Agree x 3
  5. stubs300

    stubs300 Senior Member

    Messages:
    1,814
    Likes Received:
    695
    Joined:
    Oct 30, 2011
    Location:
    Free America

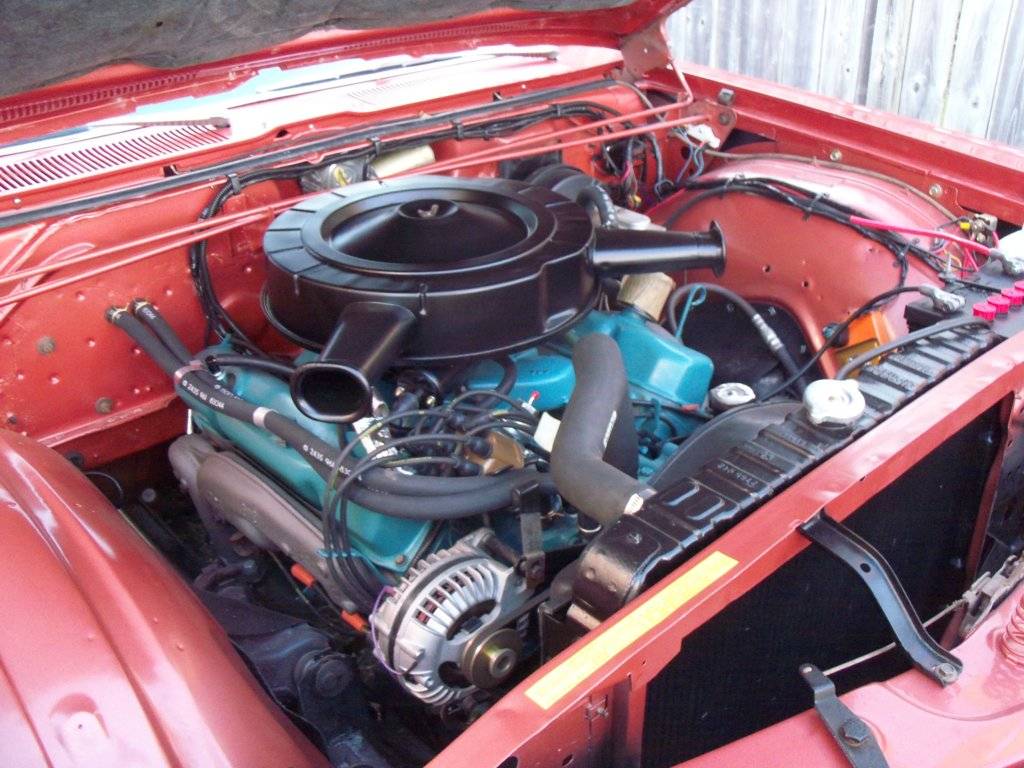

    This is how it should look! Yours looks correct except for the person that cut and installed the filter by the carb. Good Luck

    • Disagree Disagree x 2
    • Agree Agree x 1
  6. Trace 300 Hurst

    Trace 300 Hurst Well-Known Member

    Messages:
    799
    Likes Received:
    436
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Also, if you're looking around the Inline website, you have to be clever to figure what OTHER car might have your particular setup.

    The kit I posted above is NOT listed for a 1970 Chrysler 300 w/440. It's for a RRunner with a 440......same difference.

  7. James Romano

    James Romano Member

    Messages:
    64
    Likes Received:
    53
    Joined:
    Sep 28, 2019
    Location:
    Long Island, NY
    That 300 is what I'm looking for. Clean and tight. I have to cut back my heater hoses and look up the fuel line and filter placement you have. Looks great!

  8. Trace 300 Hurst

    Trace 300 Hurst Well-Known Member

    Messages:
    799
    Likes Received:
    436
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL

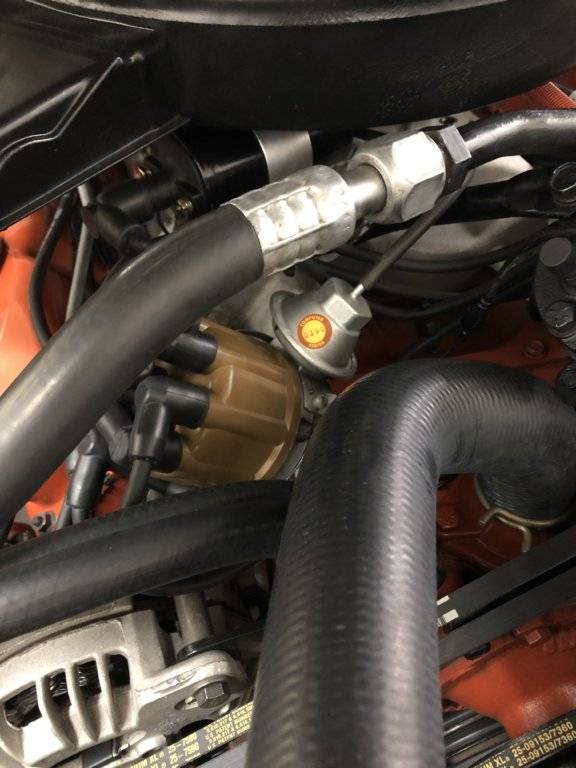

    And if I may be unkind for a brief moment....that Mopar sticker on the booster has GOT to go. It's out of synch (decade-wise) with your otherwise very nice underhood.


  9. 68PK21 440.6bbl

    68PK21 440.6bbl Senior Member

    Messages:
    4,035
    Likes Received:
    2117
    Joined:
    Nov 29, 2017
    Location:
    Hepland FL.
    Remember, a metal or for that matter rubber fuel line should never touch any part of the engine not only because of the heat transfer but due to vibration over time can lead to a hole in the line.

    Another fire safety tip brought to you by Fire Marshall Bill!




    • Like Like x 1
    • Agree Agree x 1
  10. Trace 300 Hurst

    Trace 300 Hurst Well-Known Member

    Messages:
    799
    Likes Received:
    436
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Yep, which is why I put a piece of split fuel hose over top of the actual fuel hose and/or steel line where it simply INSISTS on touching the engine no matter how much you fiddle with it during assembly.

  11. Trace 300 Hurst

    Trace 300 Hurst Well-Known Member

    Messages:
    799
    Likes Received:
    436
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Friggin' hilarious....

  12. James Romano

    James Romano Member

    Messages:
    64
    Likes Received:
    53
    Joined:
    Sep 28, 2019
    Location:
    Long Island, NY
    Thank you!

    Sure... I appreciate that! I was wondering how accurate that sticker was. Should there be any at all? My setup is not back to historic accuracy, but I'd like to get the things right that I can.

  13. Trace 300 Hurst

    Trace 300 Hurst Well-Known Member

    Messages:
    799
    Likes Received:
    436
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Yeah, the Mopar sticker is like totally 70's, dude! :D

    Only thing I've ever seen on a booster is a decal or a blob of yellow or orange paint, depending on a lot of "what ifs". I'm thinking "nothing at all" is the better option unless someone knows exactly what should be there.

    ECS Automotive Concepts - POWER BRAKE BOOSTER DECAL I don't think this is remotely correct for your car, but you get the idea.

    I purchased maybe 15 of the various ECS decals and wiring harness tags when I was finishing up my car. It was a fun "finishing touch", even if a part number WAS for a Hemi Cuda harness.


    Last edited: Nov 9, 2019
  14. Trace 300 Hurst

    Trace 300 Hurst Well-Known Member

    Messages:
    799
    Likes Received:
    436
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    Another tiny detail that I cared about is this common filter decal. I decided to keep the old decal in place with it's 49 (?) year old "patina" scuff mark instead of using the new one I got with the pie tin kit.

    Oh, and the Mopar valve covers and all other non-OEM stuff are long gone. August 2019.  Done.JPG

    • Like Like x 1
  15. cbarge

    cbarge Senior Member FCBO Gold Member

    Messages:
    2,064
    Likes Received:
    2639
    Joined:
    Nov 22, 2010
    Location:
    Kingston Ontario Eh?
    boab 2018 005.JPG

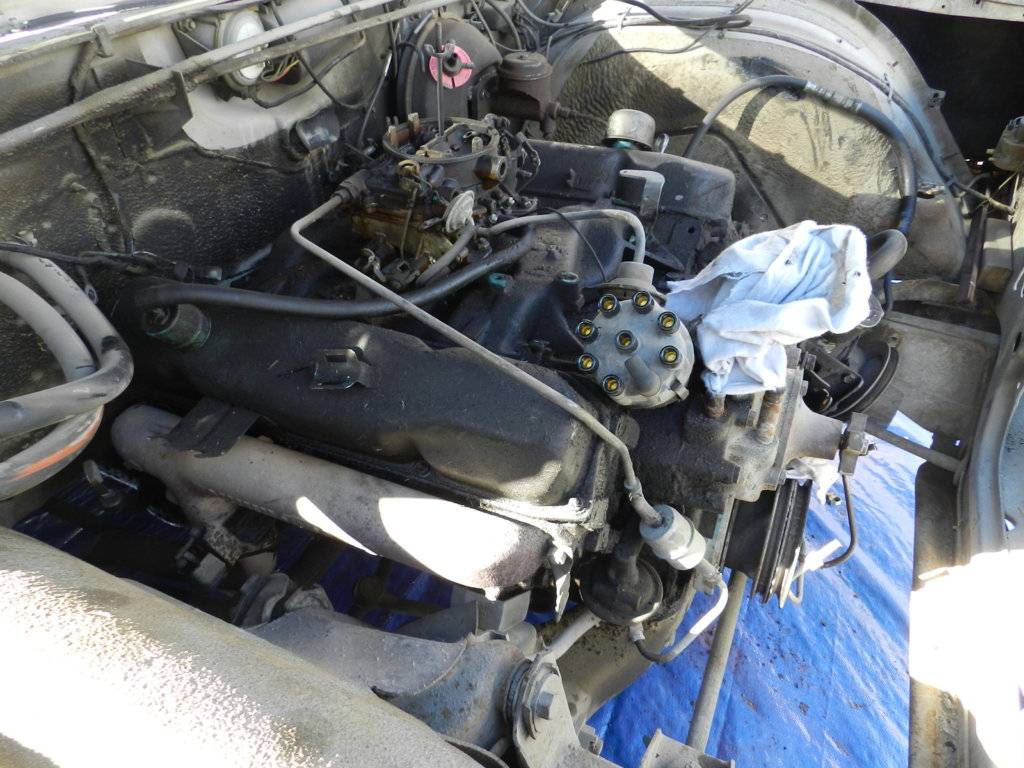

    I did my line as per factory. Plus used a sheathing to eliminate any percolation.
    From a service point of a view a real pain in the ass where removing the alternator to access the fuel filter...which explains why your filter is conveniently located.

    • Agree Agree x 1
  16. Trace 300 Hurst

    Trace 300 Hurst Well-Known Member

    Messages:
    799
    Likes Received:
    436
    Joined:
    May 27, 2018
    Location:
    Ponte Vedra Beach, FL
    • Thanks! Thanks! x 1
  17. James Romano

    James Romano Member

    Messages:
    64
    Likes Received:
    53
    Joined:
    Sep 28, 2019
    Location:
    Long Island, NY
    .

    No definitely not. Your location is actually correct. Whoever owned my car before I bought it (I'm the 3rd owner) changed a few things. Some made sense, but not factory correct. The fuel line hanging out there makes sense for maintenance and keeping the fuel cool/avoiding vapor lock, but looks ridiculous. If you see there is also a plate under the carb to reduce vapor lock as well.

    My power steering hose uses the brake master cylinder line as a support??

    I'm going to clean all of this up and get it right. So far so good. I'll run the fuel line like the 300 has it, and see what I can do with the rest.

    The MC is going to be changed to a dual, and I'm also changing out the Booster as I have no idea how old it is. It's fairly rusted underneath. Might as well knock it out when I do the conversion along with all new brake lines

    The goal is to get as close to a factory look, but very functional and safe. She's not a trailer queen, and I want to drive her a lot more that just shows.

    Some great pics you guys are posting!! Thanks a lot!

    JR

    Last edited: Nov 9, 2019
  18. rapidtrans

    rapidtrans Senior Member FCBO Gold Member

    Messages:
    2,587
    Likes Received:
    1365
    Joined:
    Jun 8, 2016
    Location:
    rochester hills, mi.

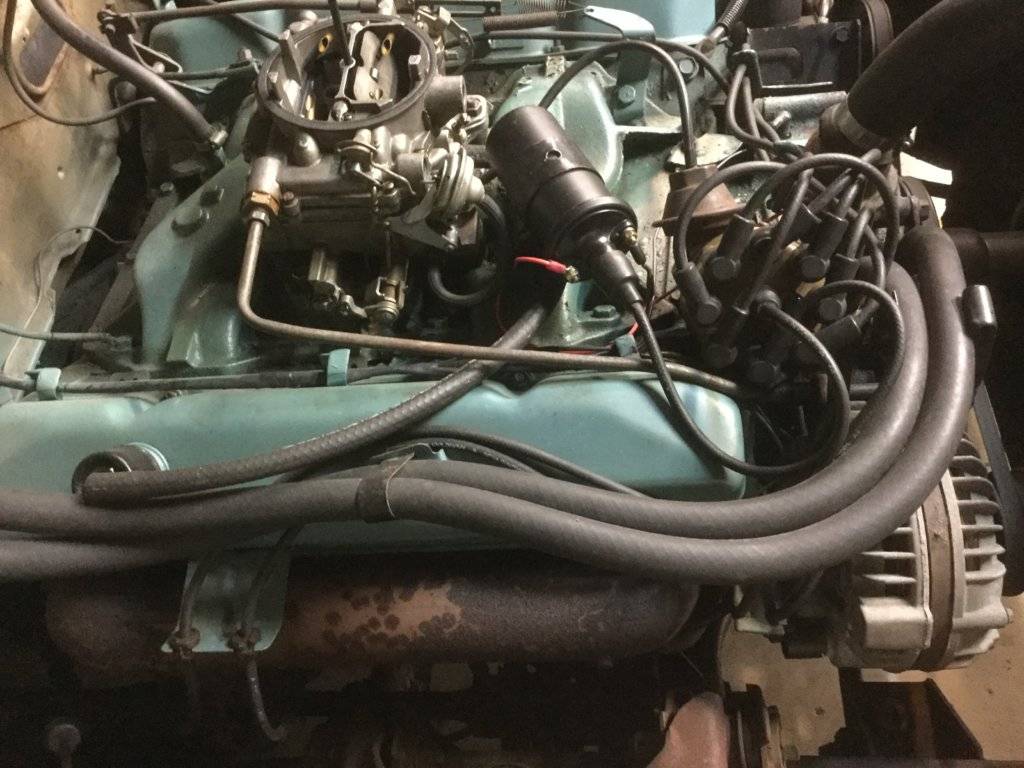

    Here is the factory original fuel line from filter to carb on my 65 Monaco w/AFB 4 bbl.


    And the original location for fuel filter after the pump.
    I prefer this to rubber fuel connections on top of engine.
    Replacement of pump, rod and filter is duo-able without yanking alt.
    Biggest problem was getting some light back there to see everthing.

    • Like Like x 2
    • Agree Agree x 1
  19. 300rag

    300rag Grumpy Old Man With a Hat FCBO Gold Member

    Messages:
    10,892
    Likes Received:
    11094
    Joined:
    Dec 4, 2010
    Location:
    Calgary, Alberta, Canada
    :thumbsup::thumbsup:

  20. James Romano

    James Romano Member

    Messages:
    64
    Likes Received:
    53
    Joined:
    Sep 28, 2019
    Location:
    Long Island, NY
    Looks great!

    That setup is it. I have a Carter AFB 4bbl as well. I'll buy the right line per spec and place it all as it should be.

    Thank you!
