Found ‘65/‘66 4-groove drive pulley #2465747

[haywire 440]

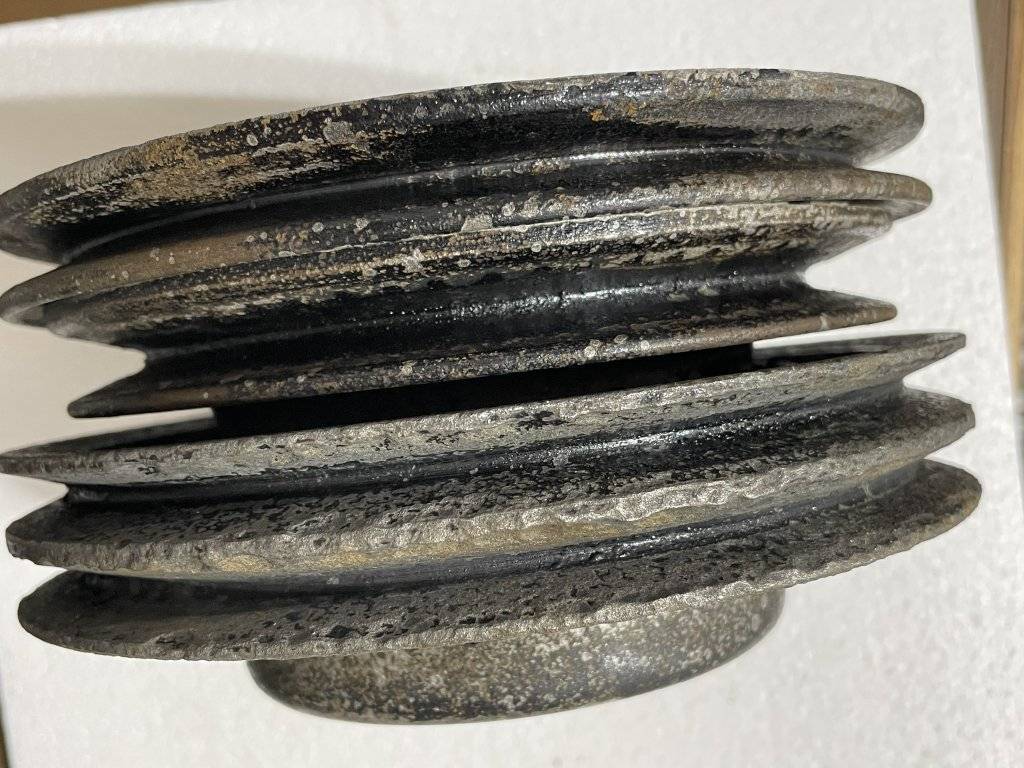

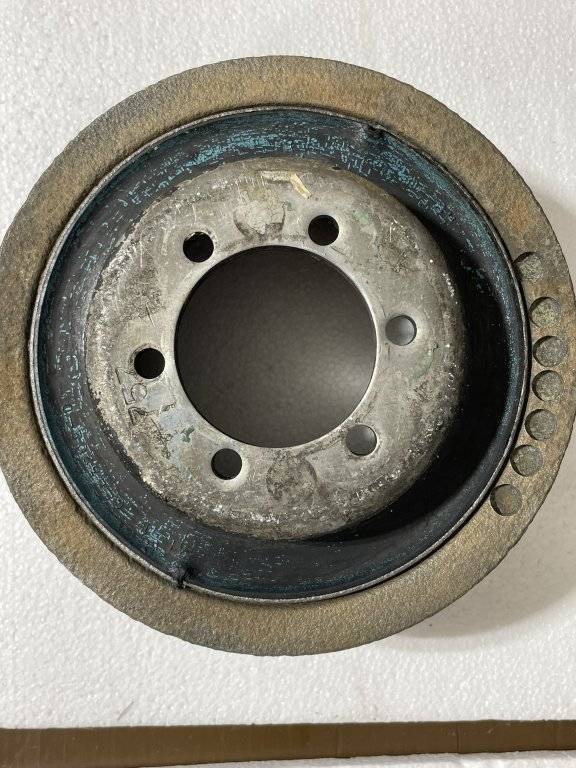

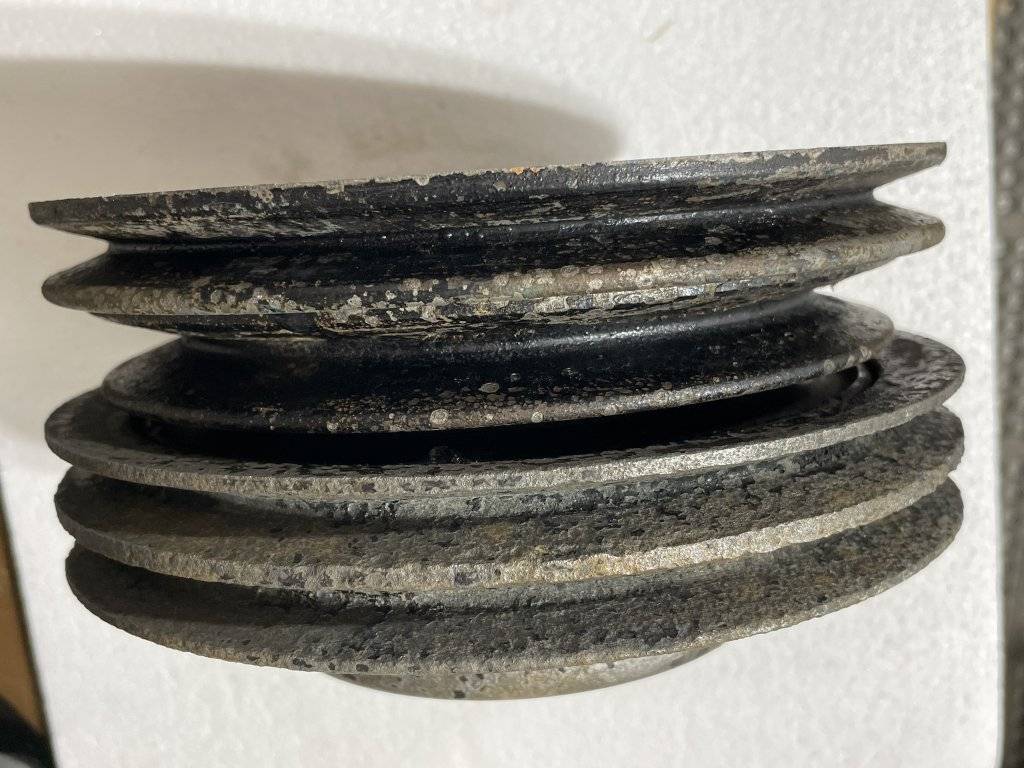

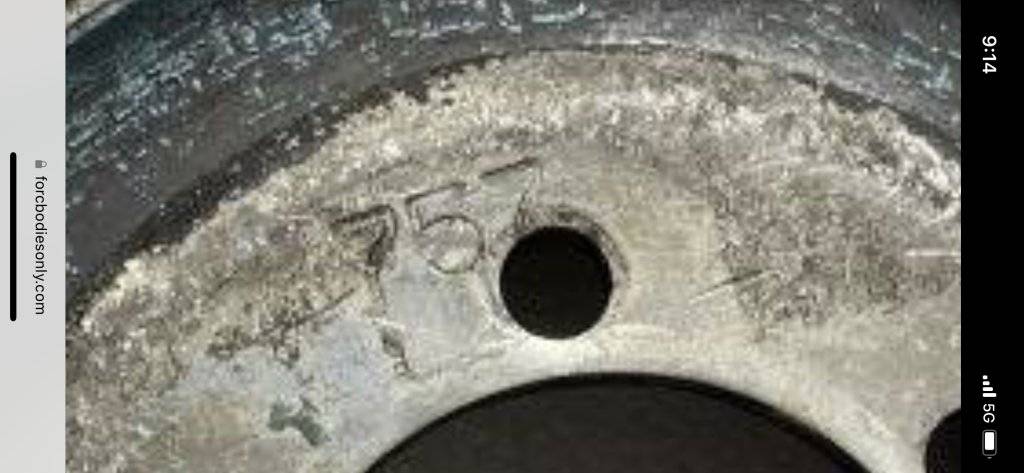

The pulley I’m looking for is as pictured below and has 757 stamped on it. It looks like 3 equal size grooves with one smaller one in between.



[LocuMob]

Can you take measurements off that? I wonder how similar the pulleys are between the 440 and 383. The belt arrangement is the same, curious if the diameters are different.



[haywire 440]

Can you take measurements off that? I wonder how similar the pulleys are between the 440 and 383. The belt arrangement is the same, curious if the diameters are different.

Good thinking, I’ll do it tomorrow.



[detmatt]

Good thinking, I’ll do it tomorrow.

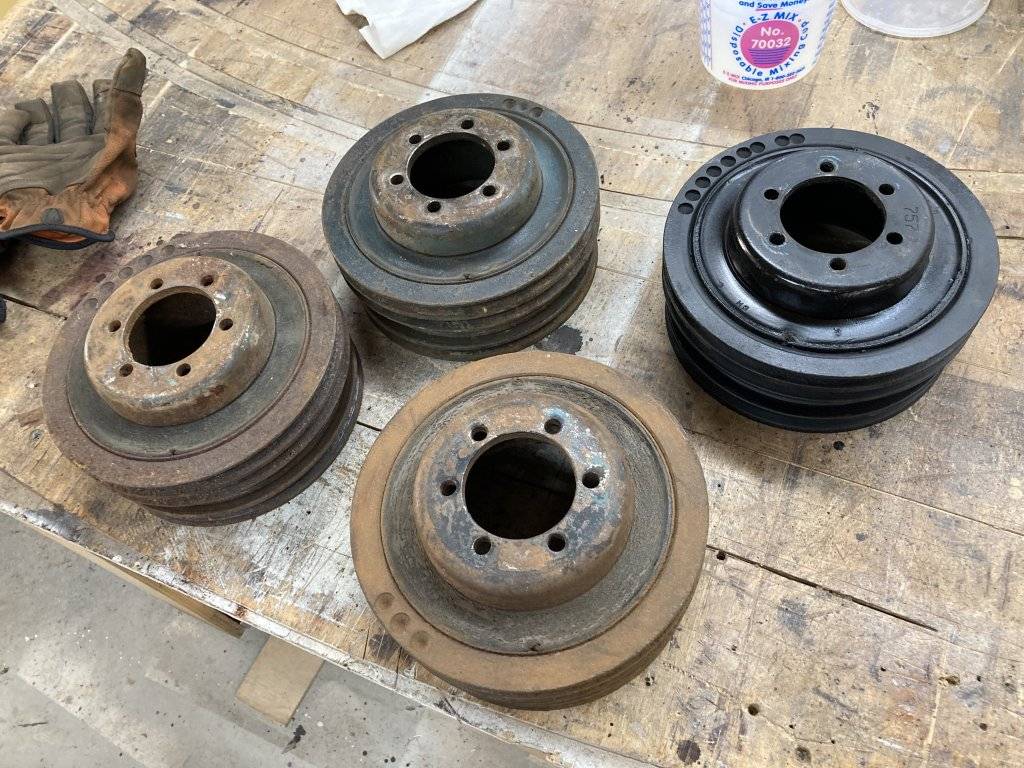

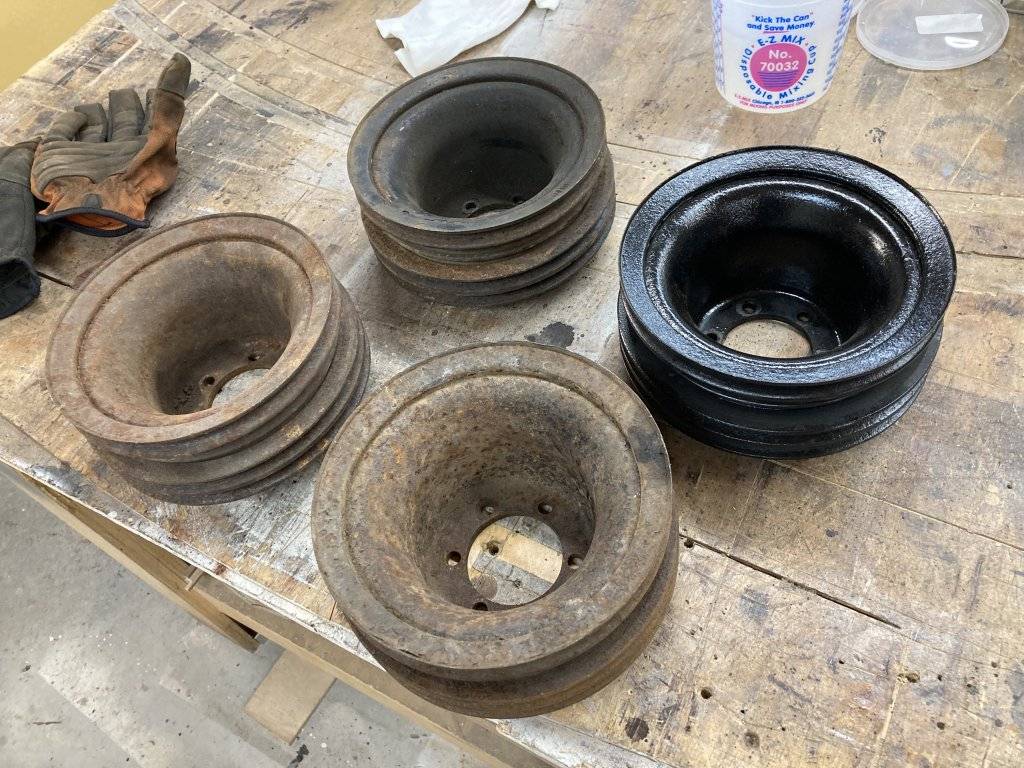

I have several of these.



[haywire 440]

The measurements for the 757 stamped pulley are:

1st. Front groove is 7 1/8” diameter.
2nd. Small groove is 6 1/2” “”
3rd & 4th grooves are 7 3/8” “”
It is 3 3/4” tall

@detmatt I see that the black painted pulley is stamped 757 are all of those 757’s. I will pm you.



[detmatt]

The measurements for the 757 stamped pulley are:

1st. Front groove is 7 1/8” diameter.
2nd. Small groove is 6 1/2” “”
3rd & 4th grooves are 7 3/8” “”
It is 3 3/4” tall

@detmatt I see that the black painted pulley is stamped 757 are all of those 757’s. I will pm you.

All are 757’s.
