1971 Fury GT, Gold, Promo Car

[1970FuryConv]

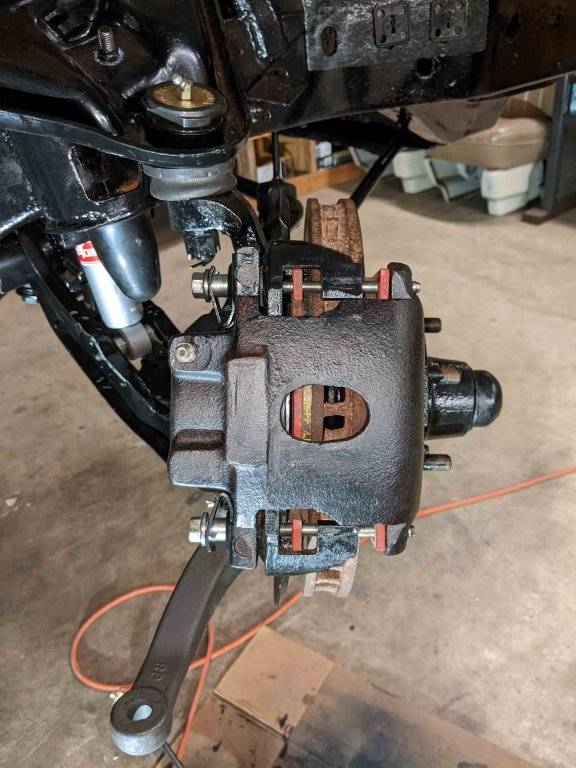

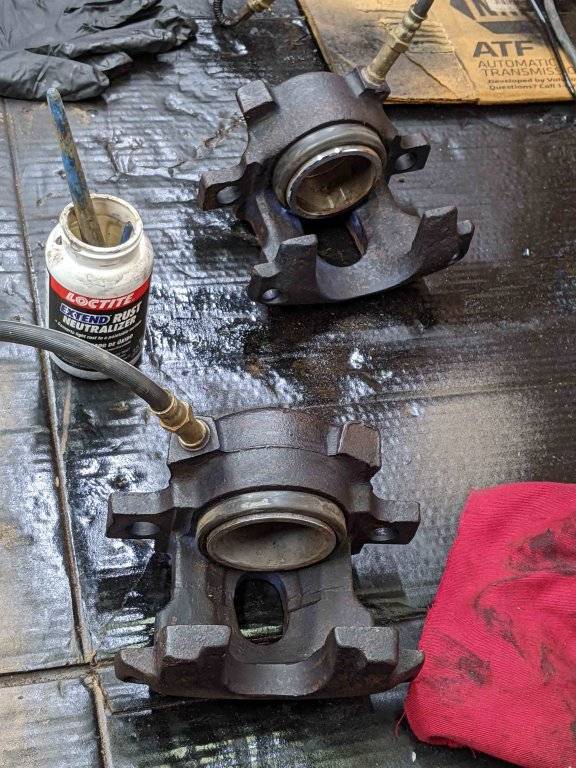

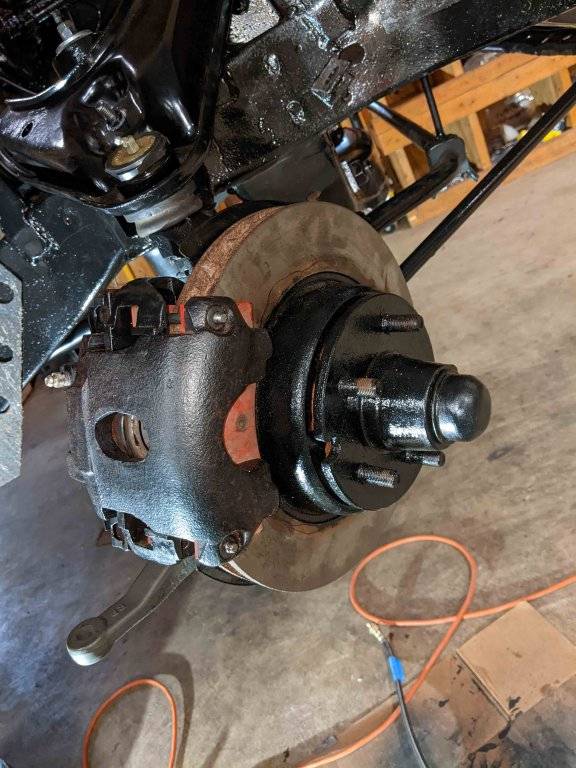

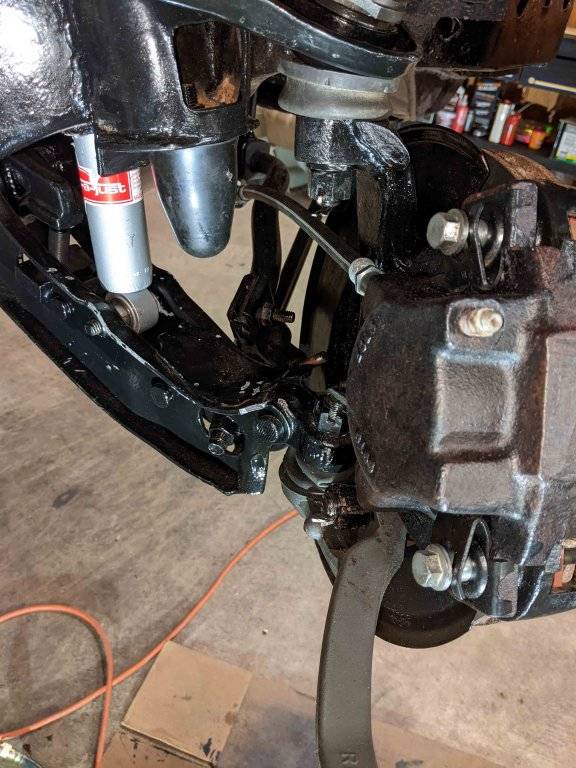

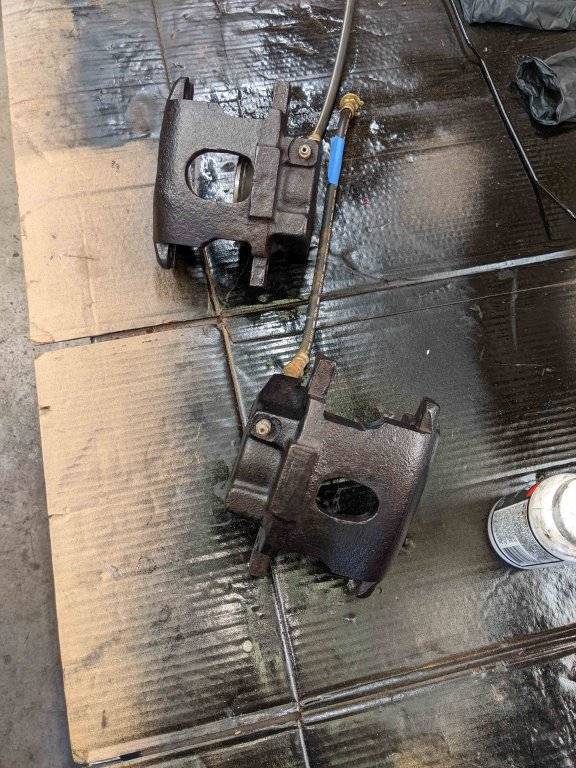

Calipers

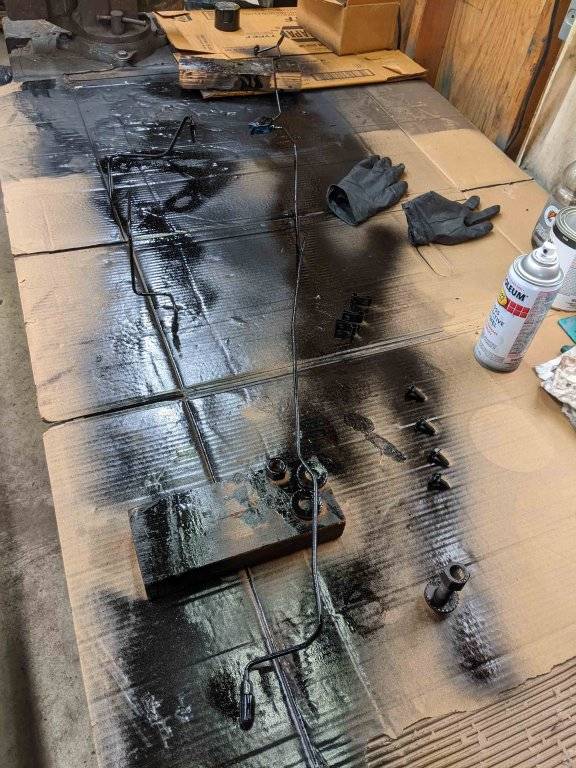

Rust neutralizer

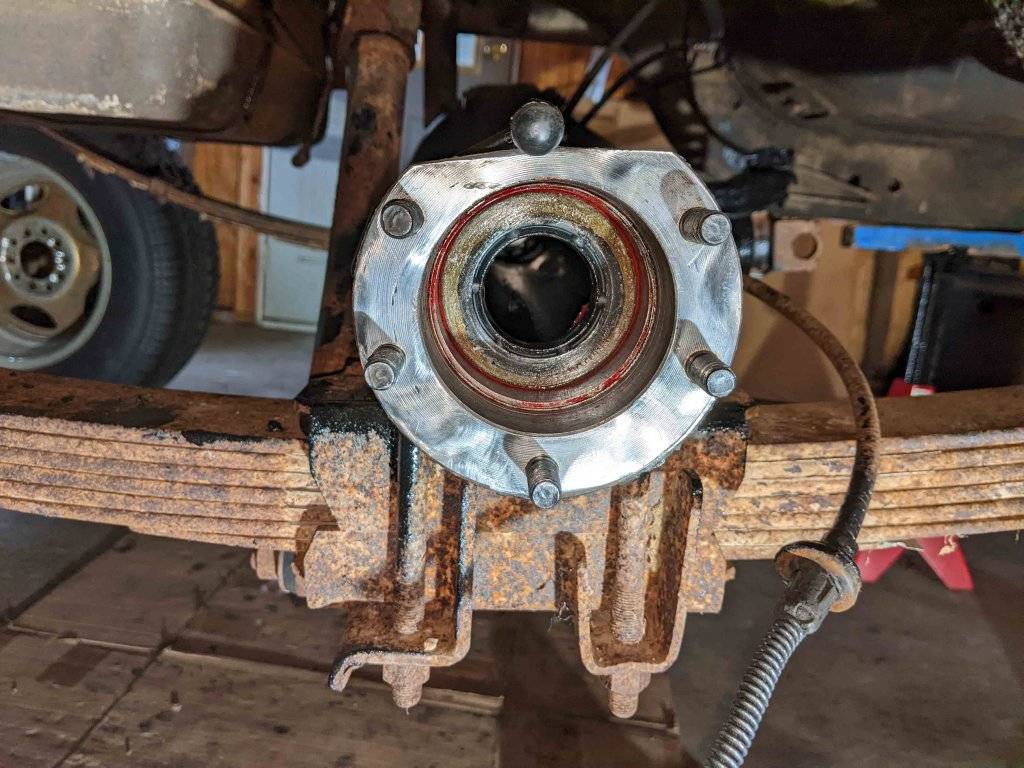

Right side installed

LS



[ayilar]

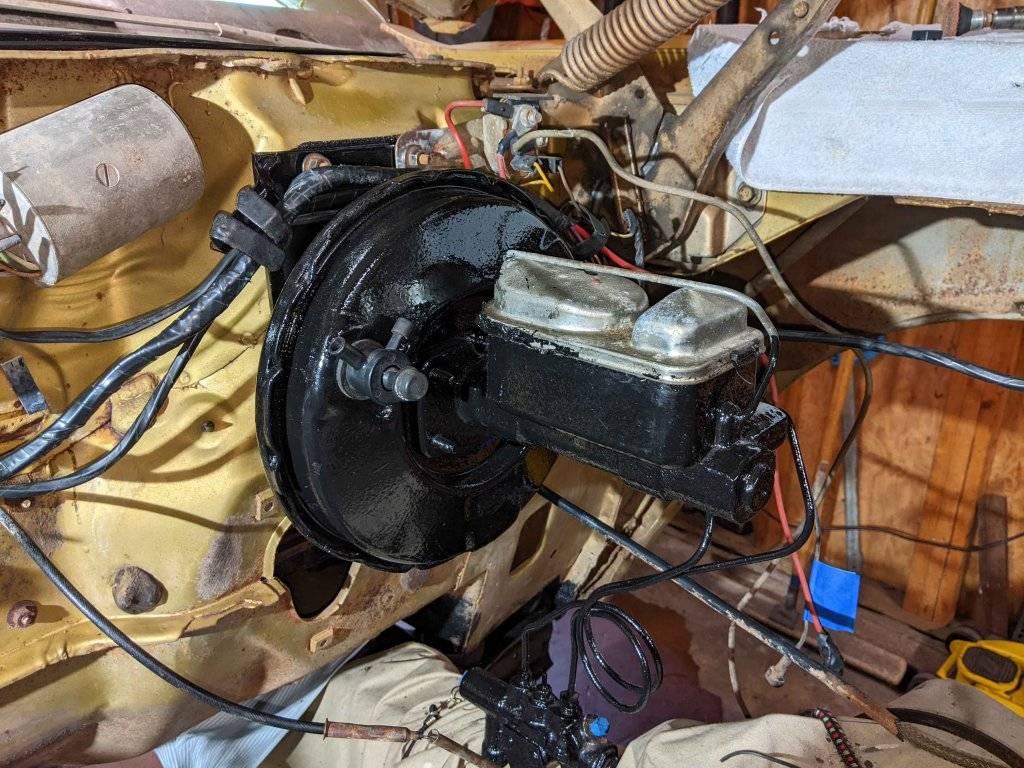

Master Cylinder
View attachment 643839

I thought your car had power brakes?



[1970FuryConv]

Rear Brakes:

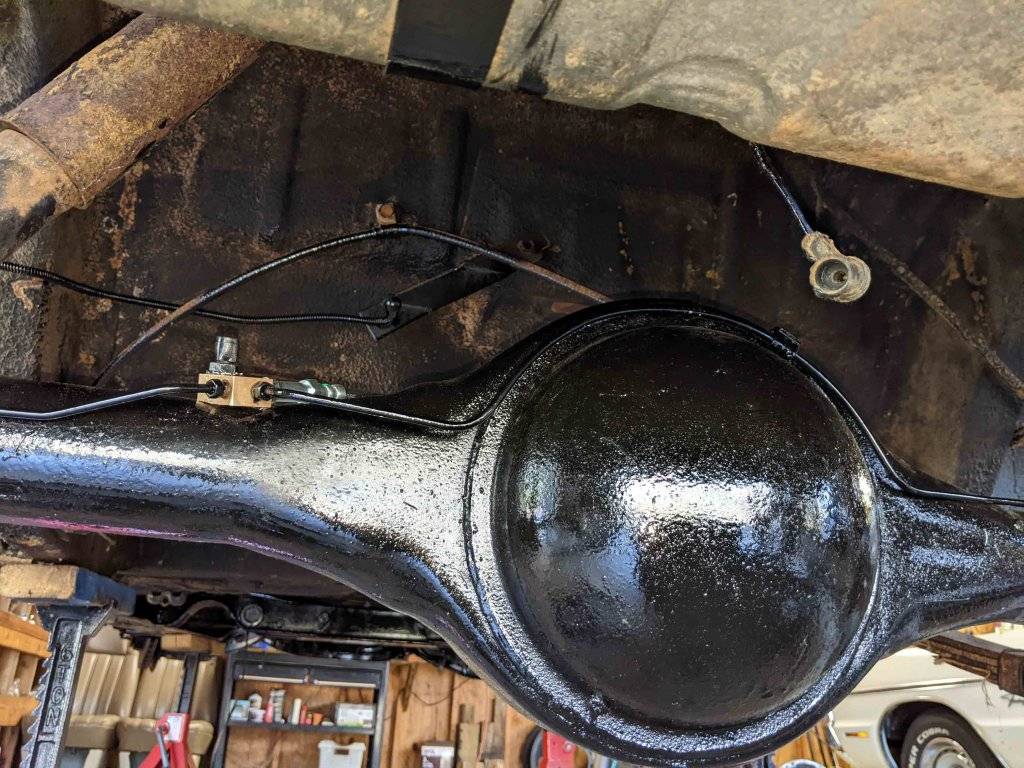

Intermediate Line to rear axle

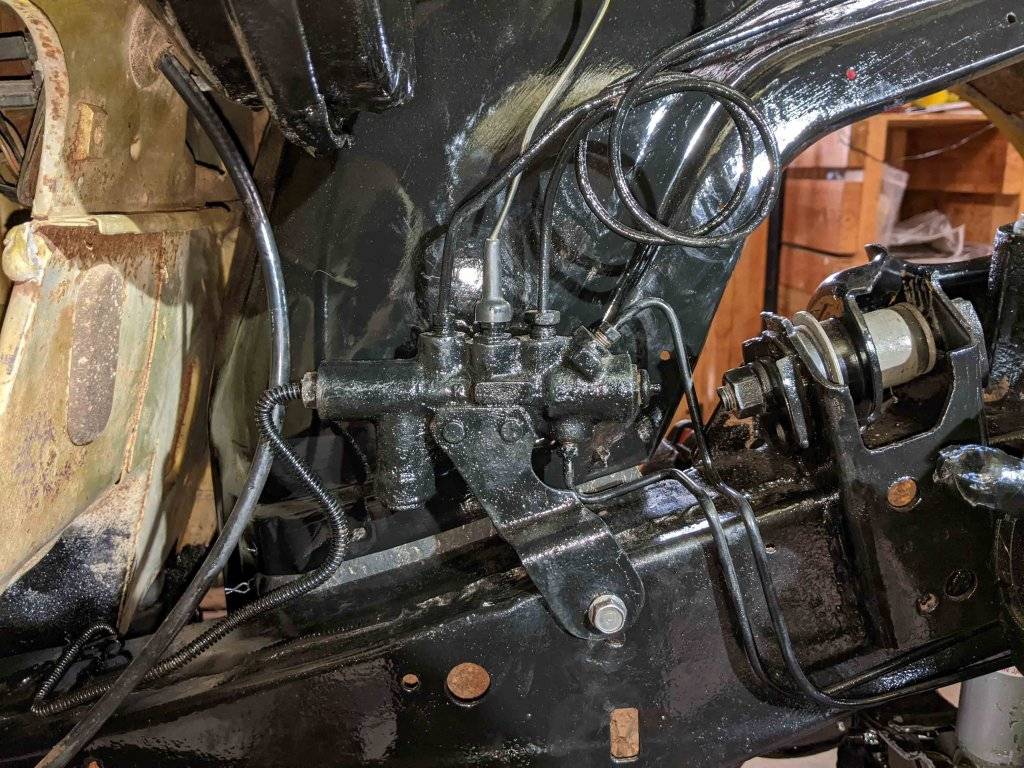

Install at Proportioning Valve

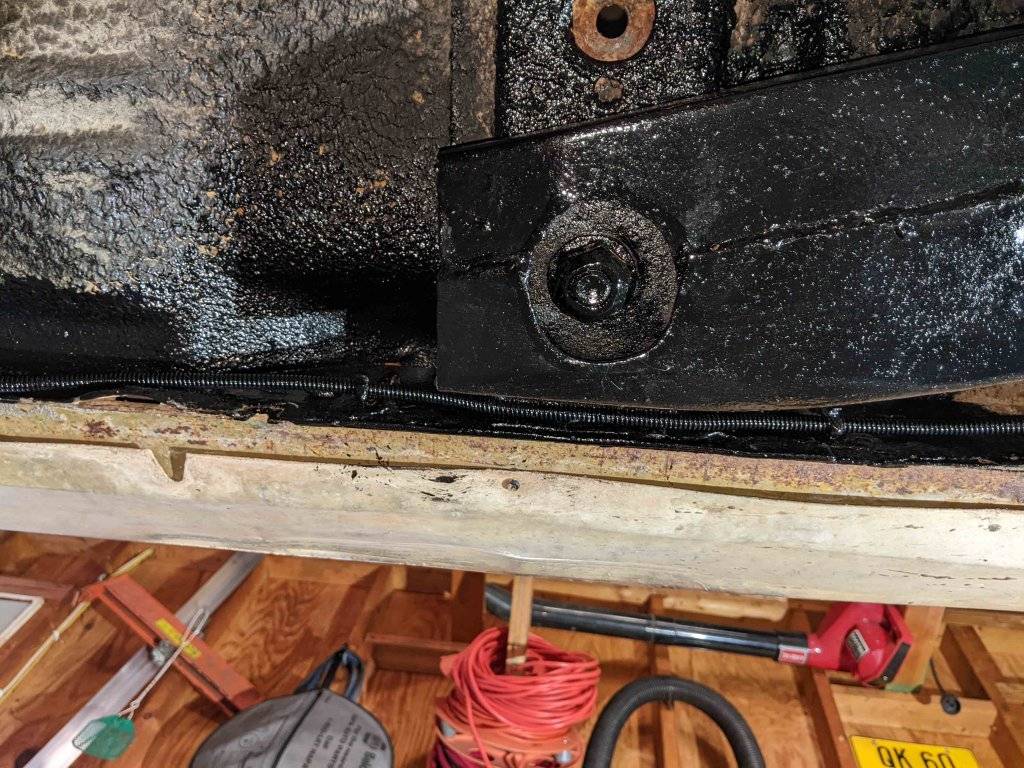

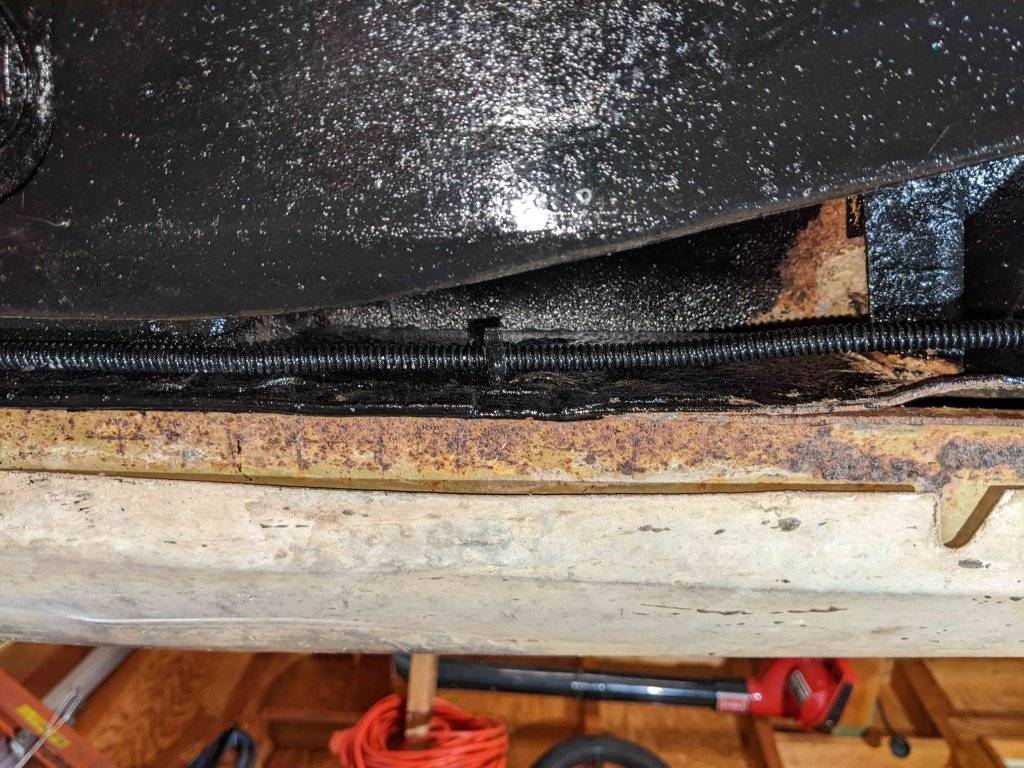

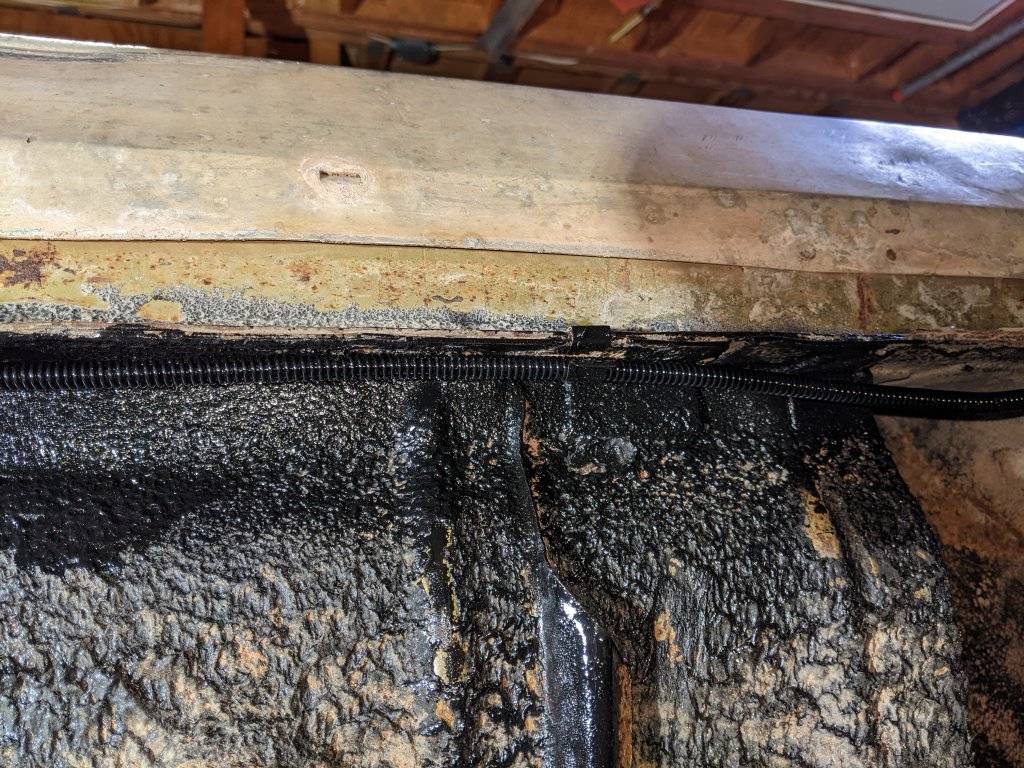

Clips along rocker, front to back

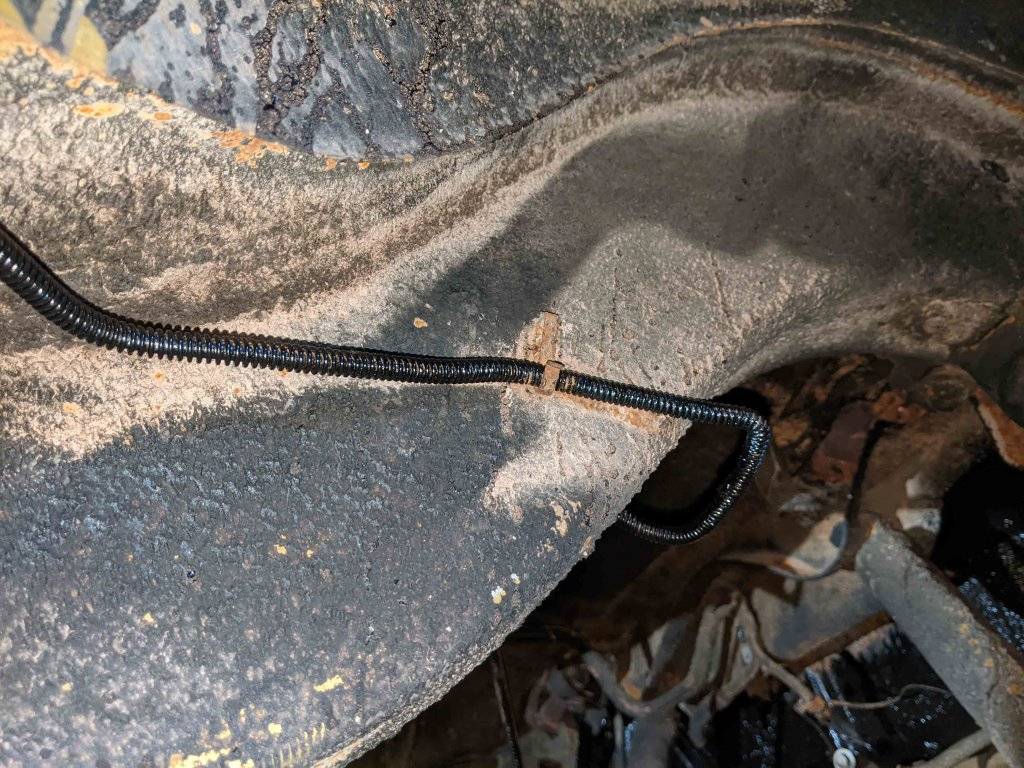

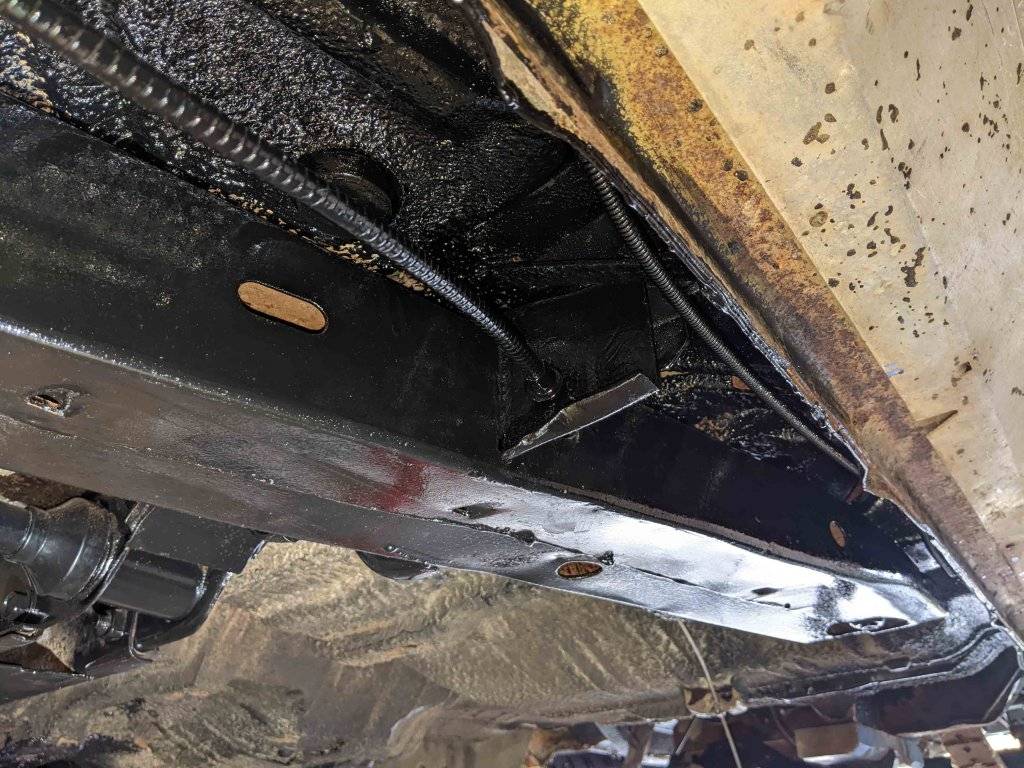

Rear subframe

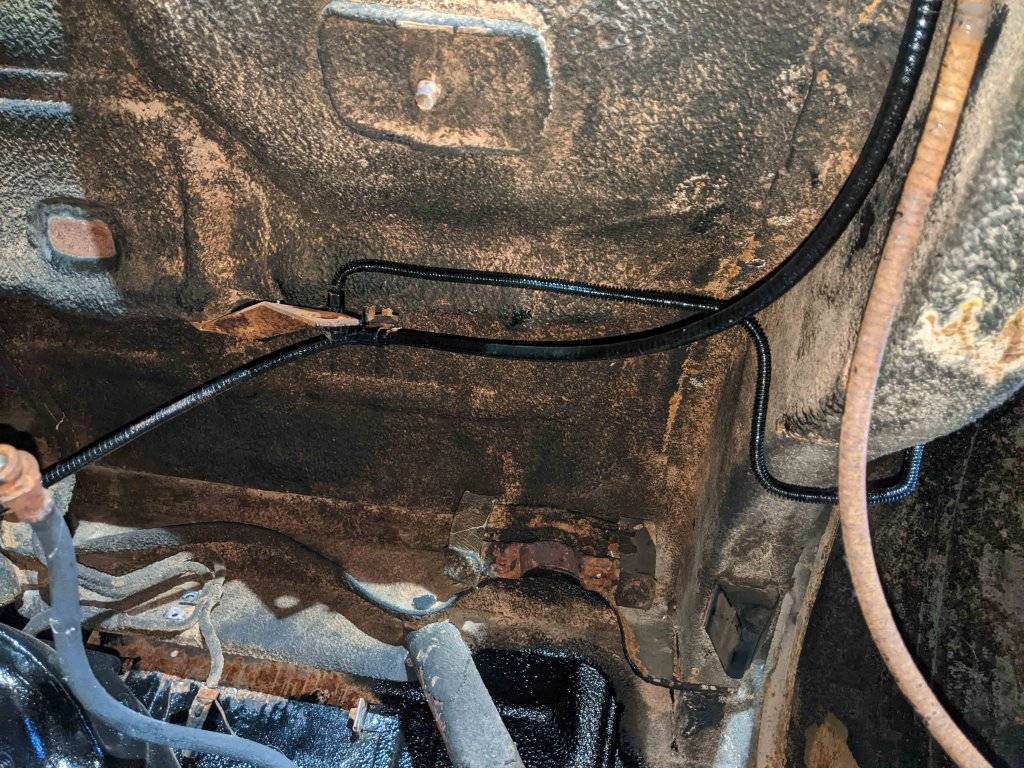

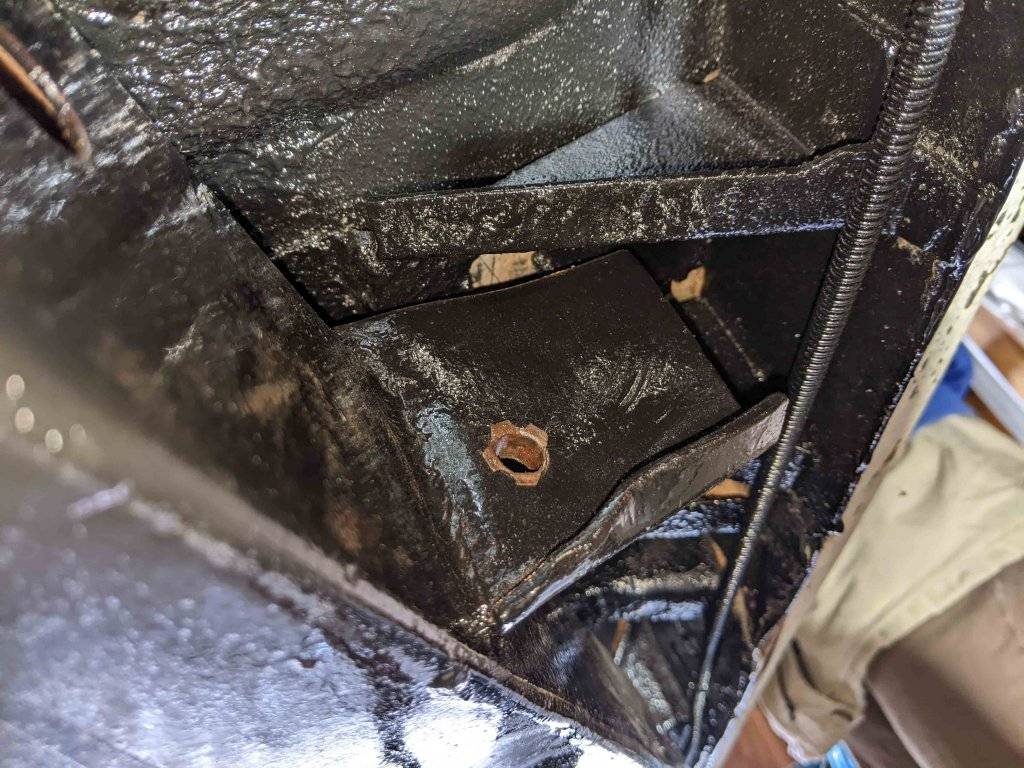

Rear axle hose bracket



[1970FuryConv]

I thought your car had power brakes?

It does. Brake booster is between master cylinder and firewall



[FURYGT]

I like that you are making progress. Some day, we need to talk about door panels.



[1970FuryConv]

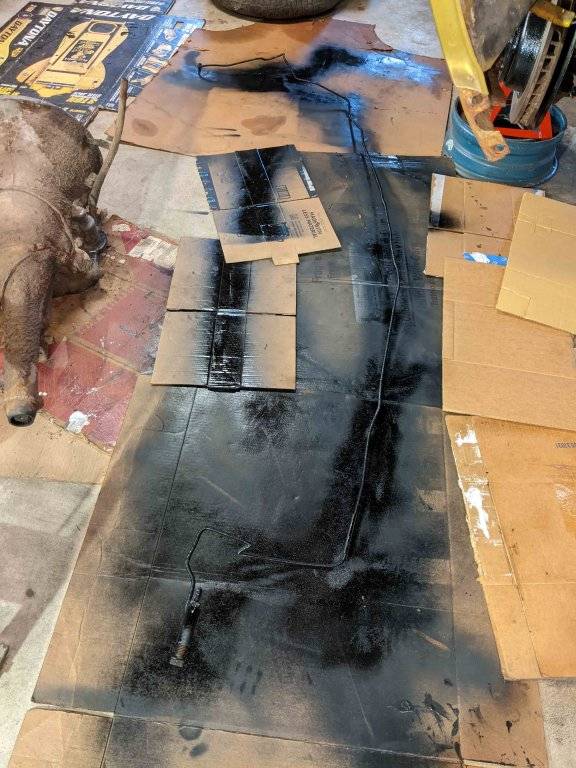

Rear brake lines

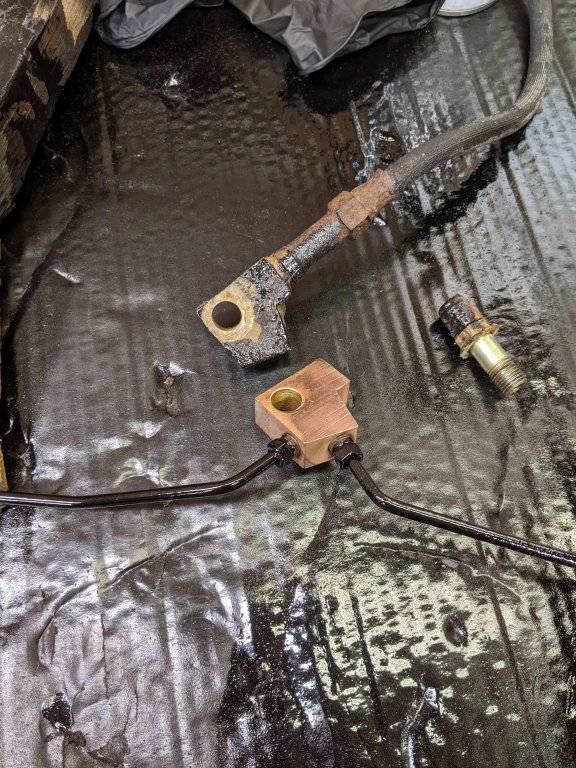

Hose junction

Installed

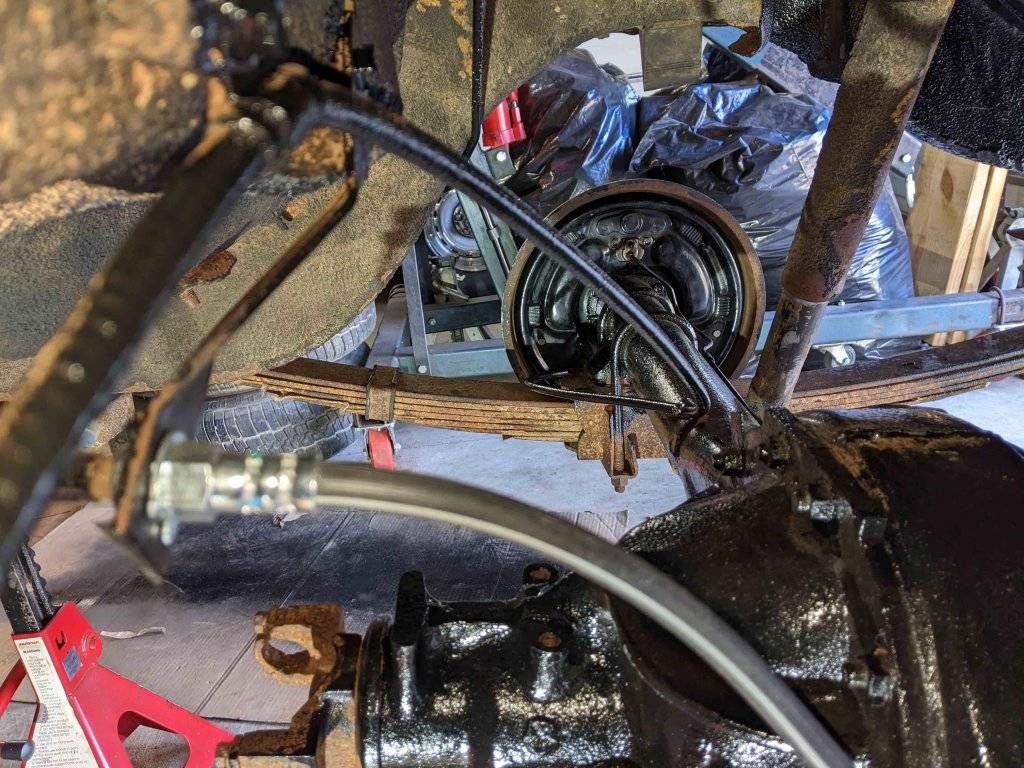

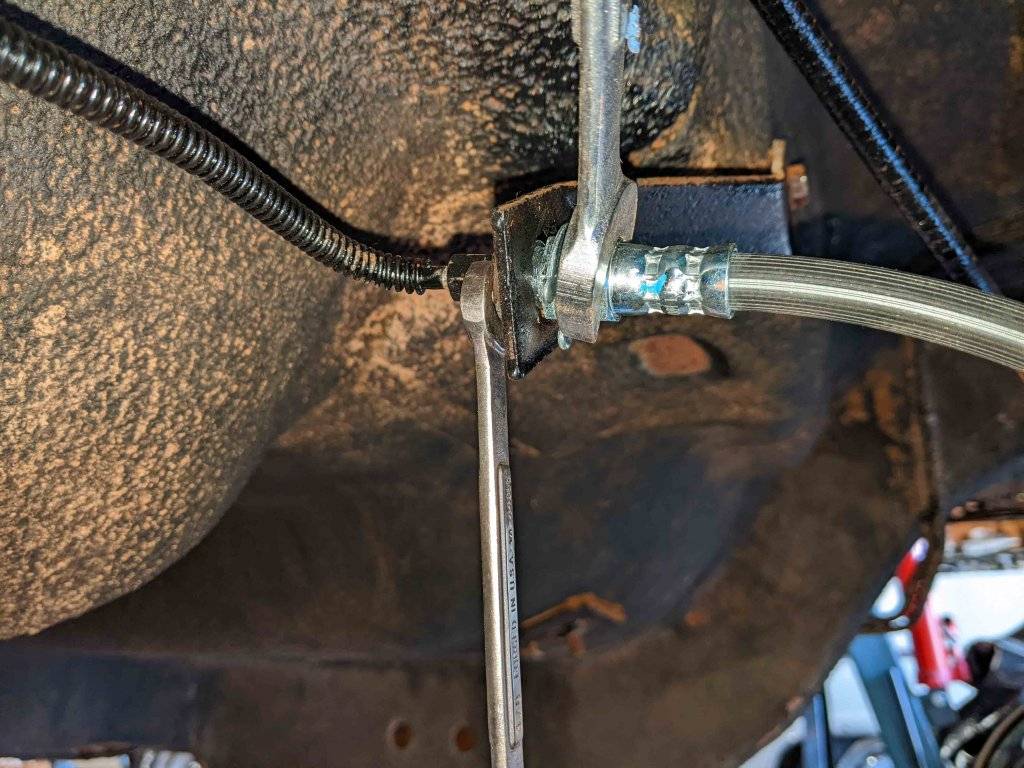

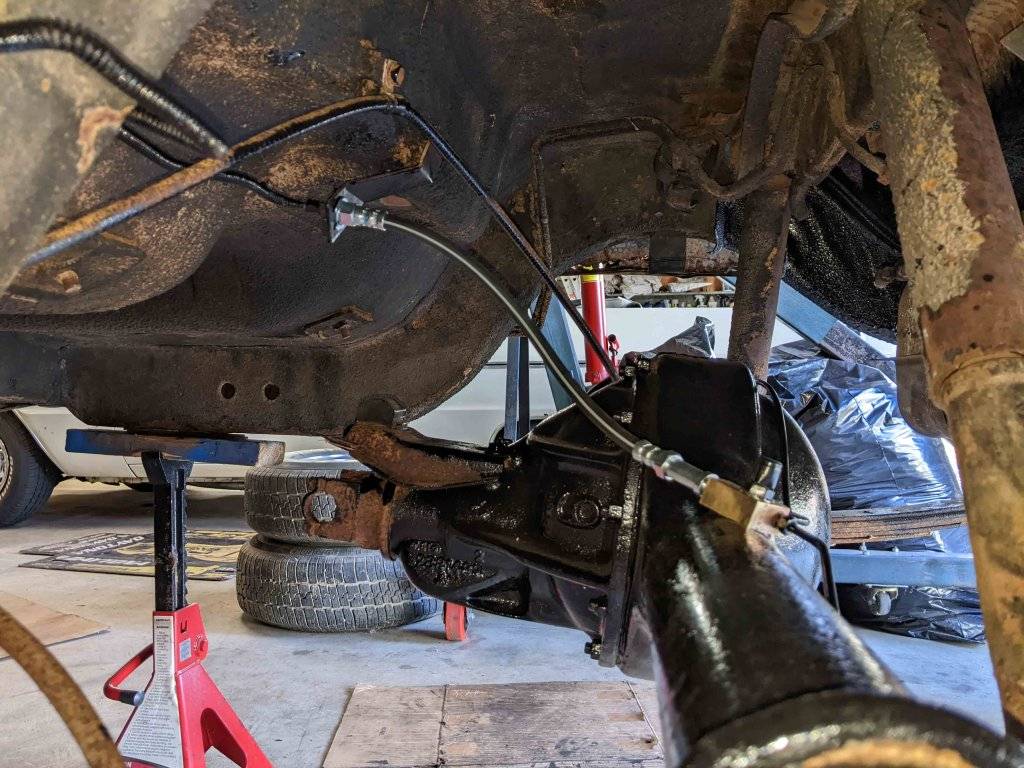

Hose at intermediate line

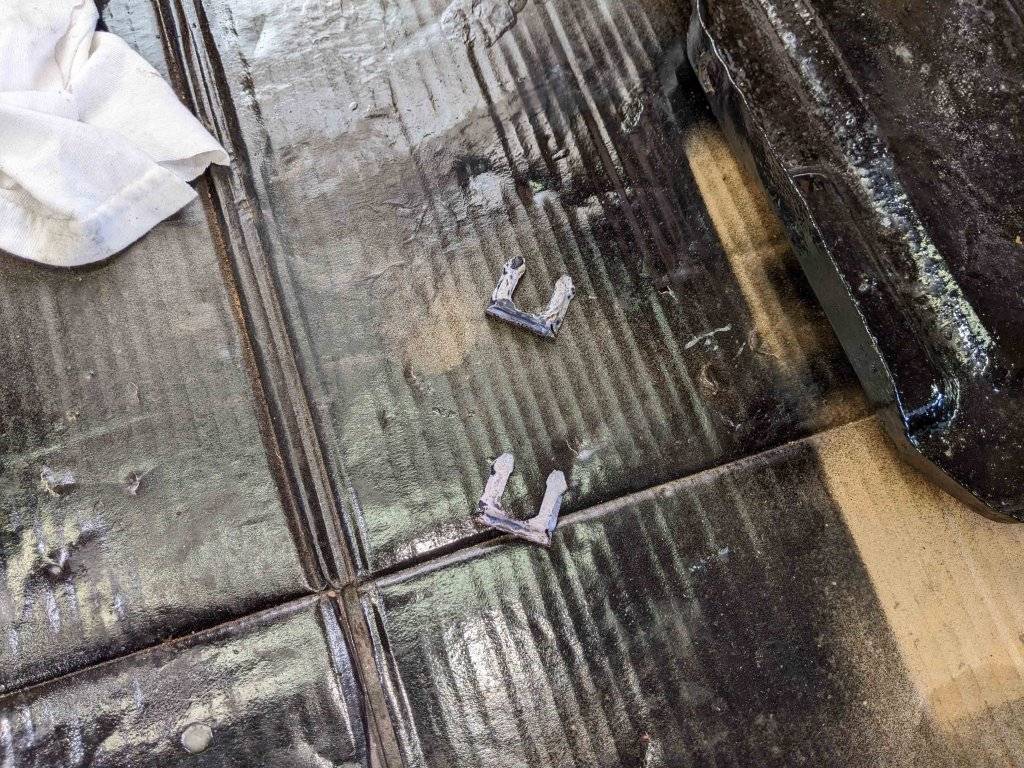

Hose clips

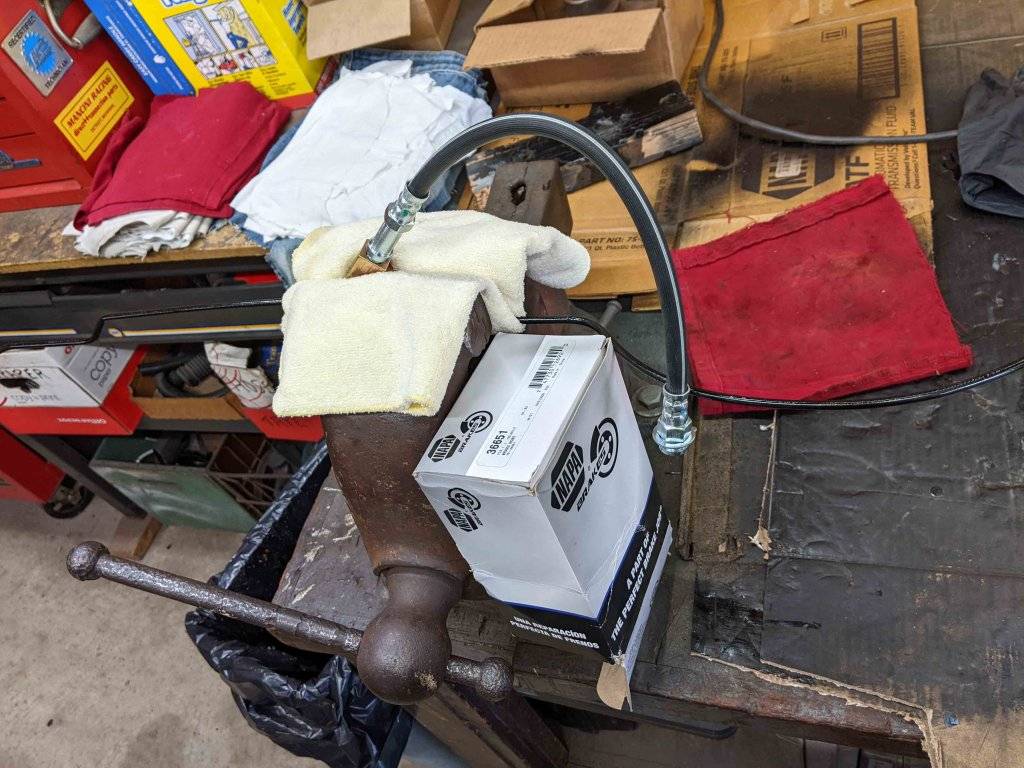

Rear brake hose



[1970FuryConv]

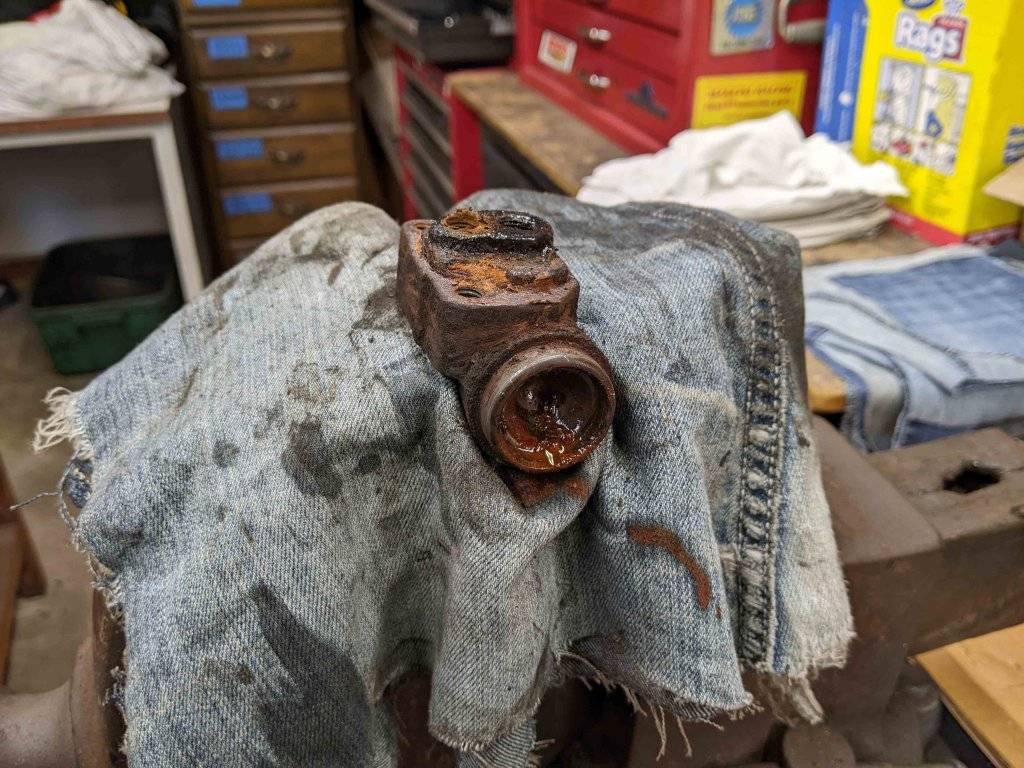

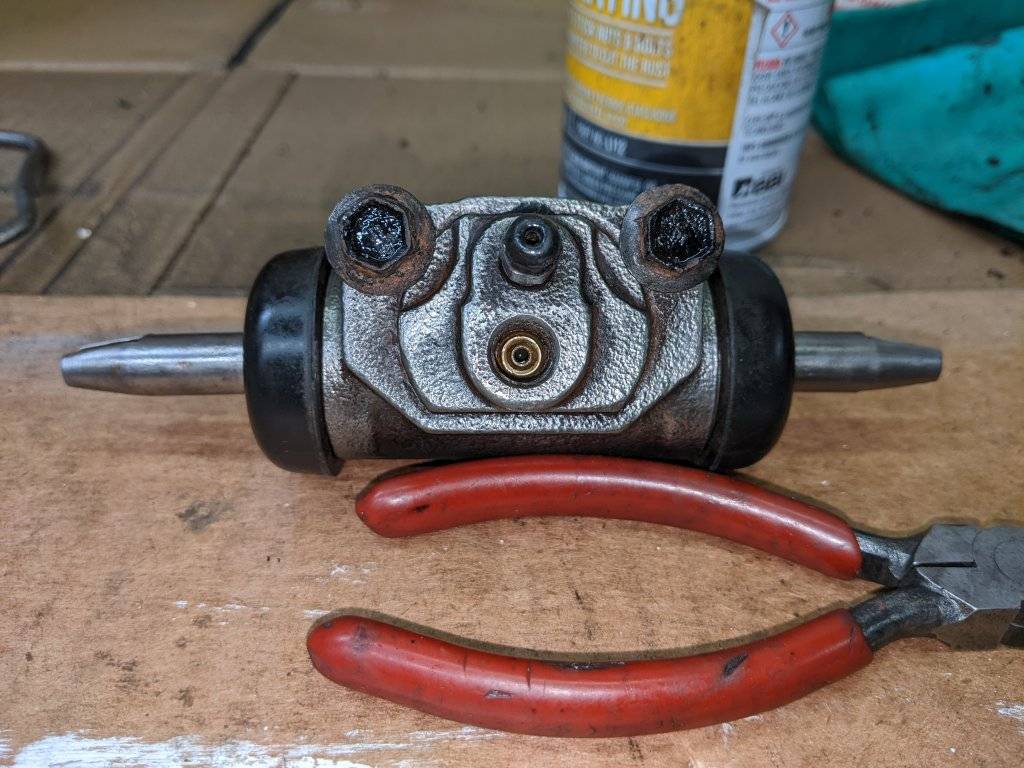

Wheel cylinders
I rebuilt both.

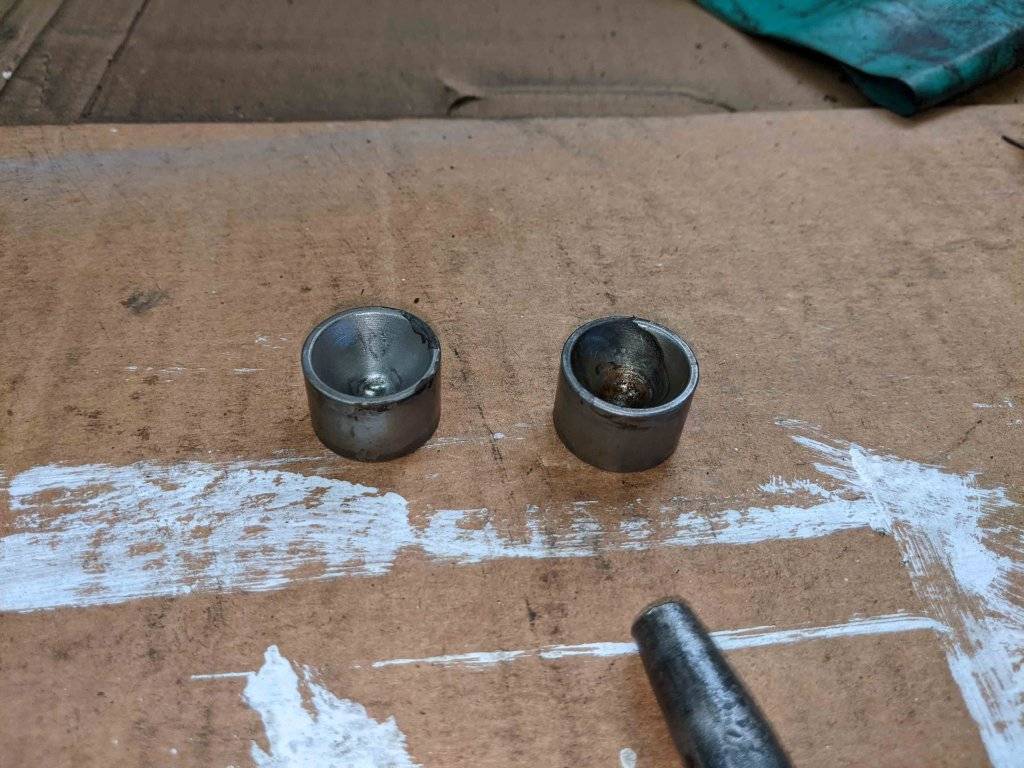

Pistons

Disassembled

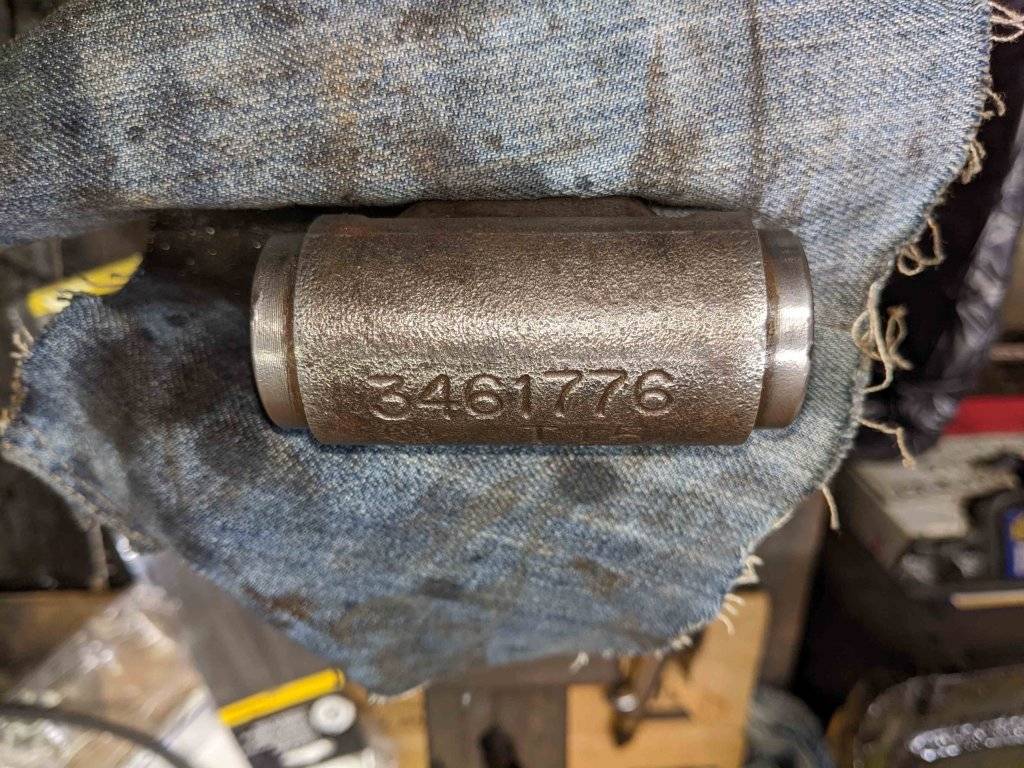

Original casting #

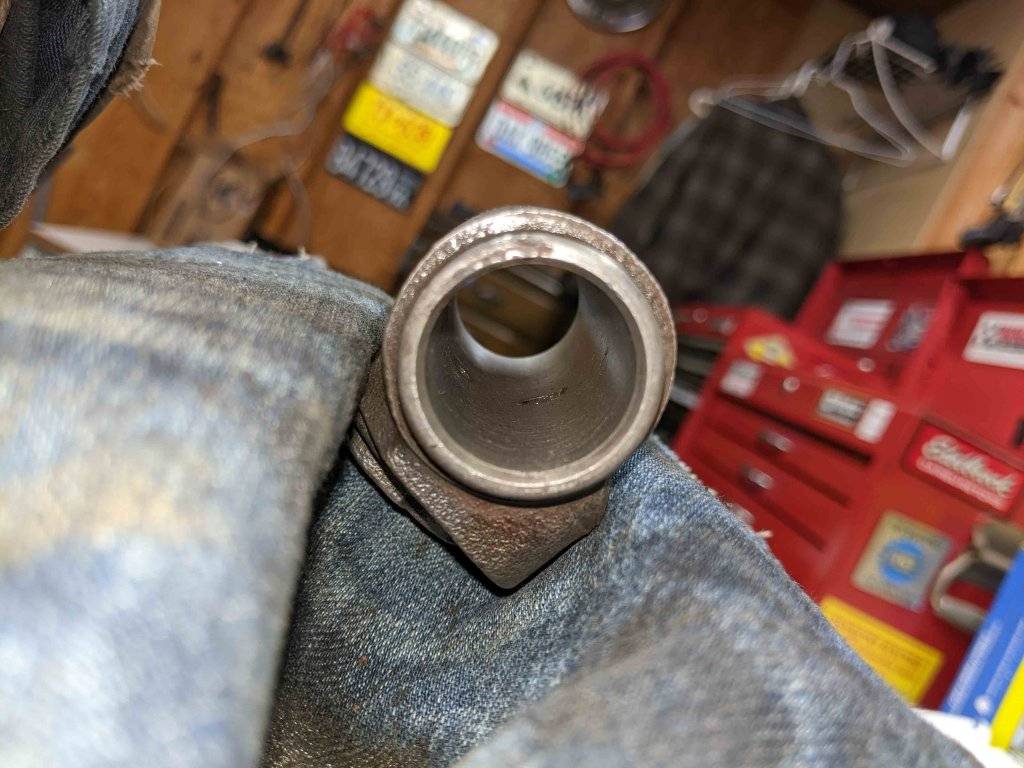

Bore

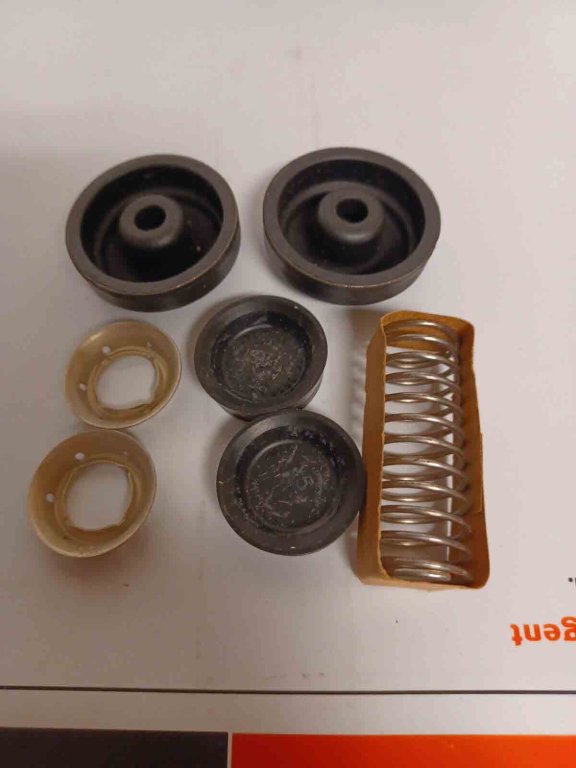

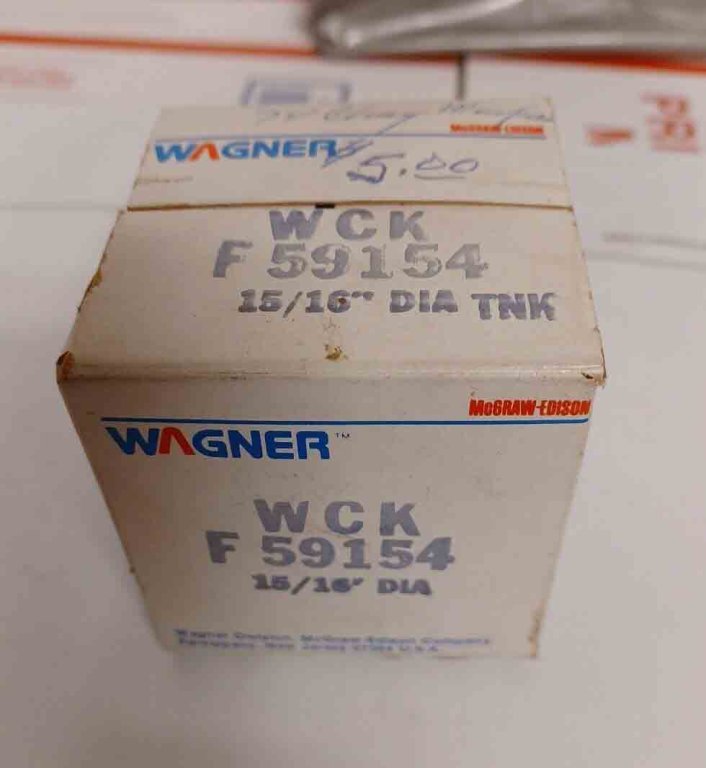

I tried Carquest kit, but did not like the quality. Used Wagner

Kit. Brass rings are for a different 15/16 bore application. Recycle them

Lube bore with fluid, springs, then rubber cups, pistons, rubber end caps, arms



[1970FuryConv]

Back up a step

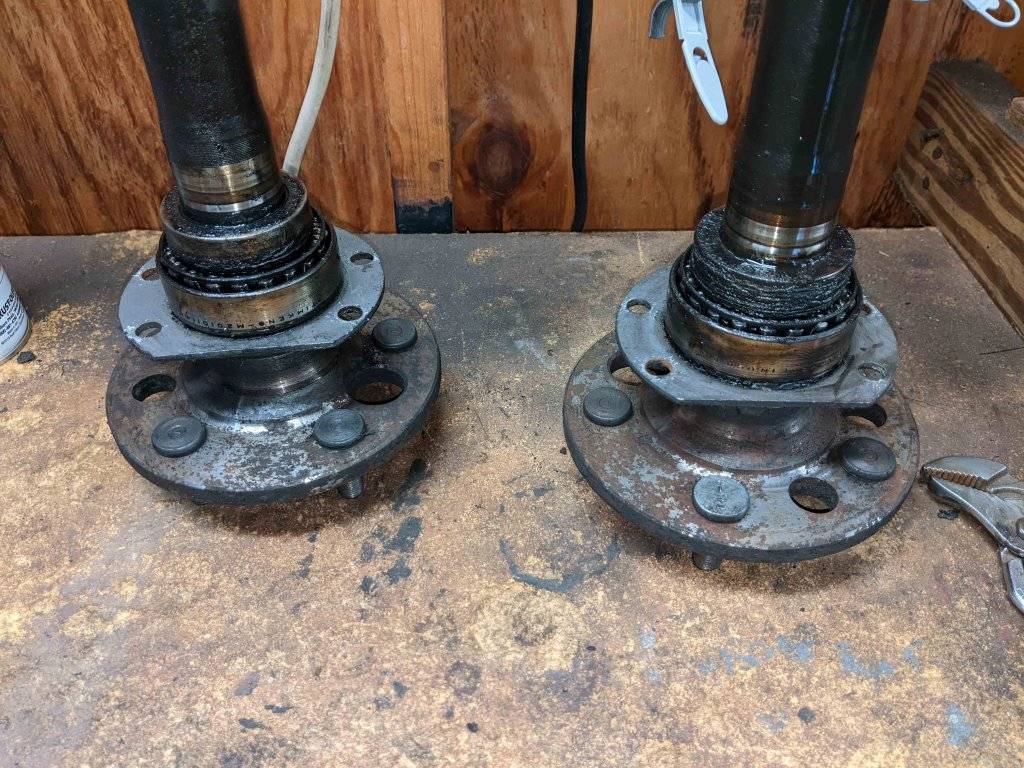

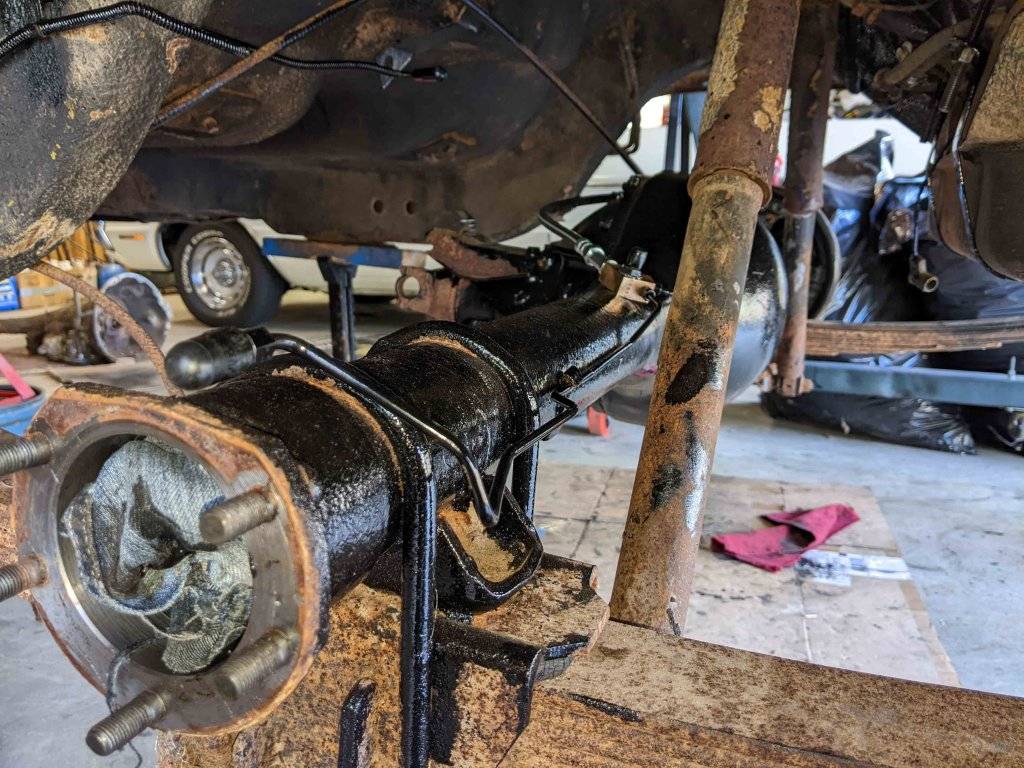

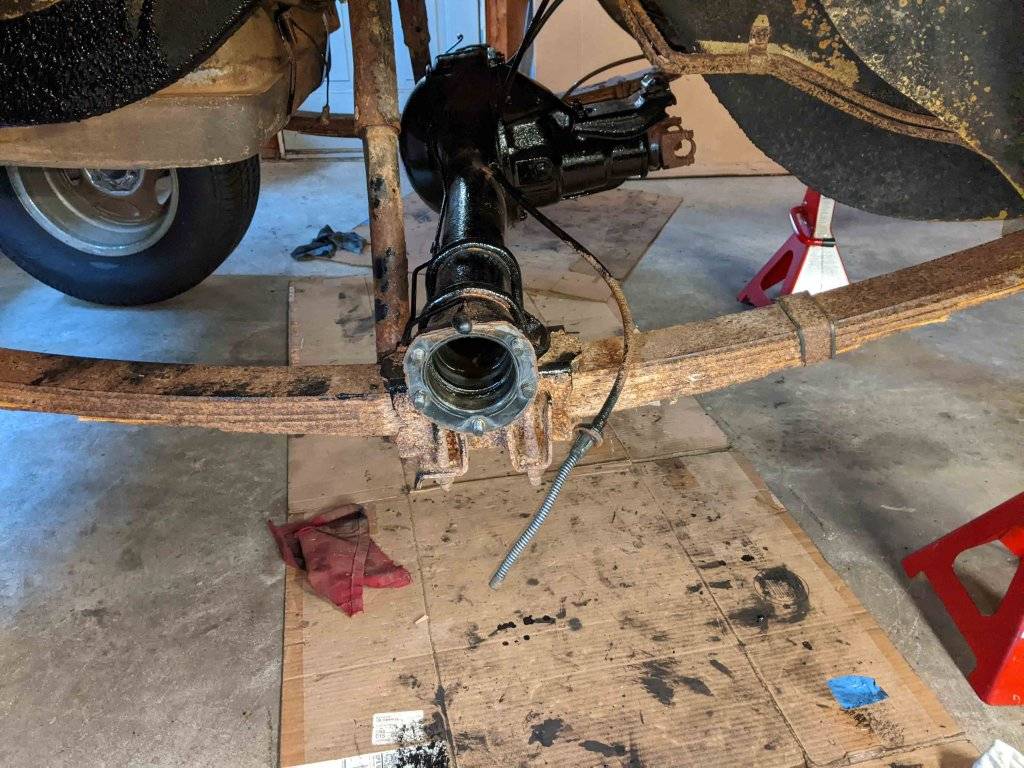

Axle shafts

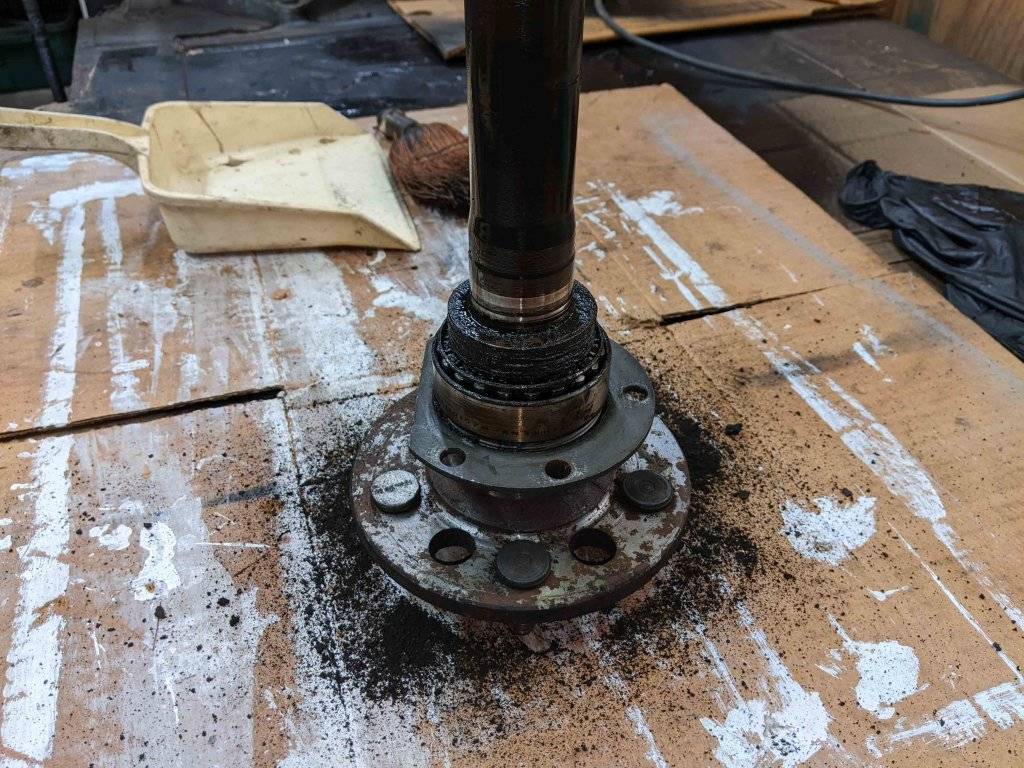

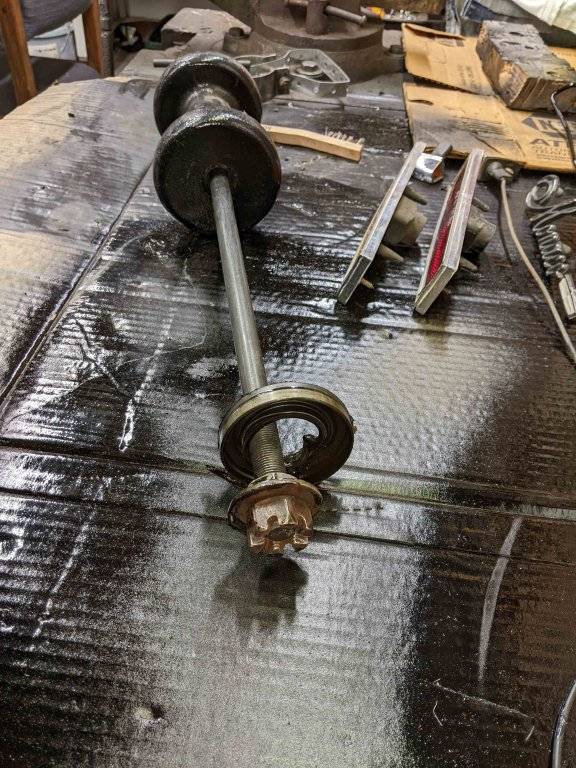

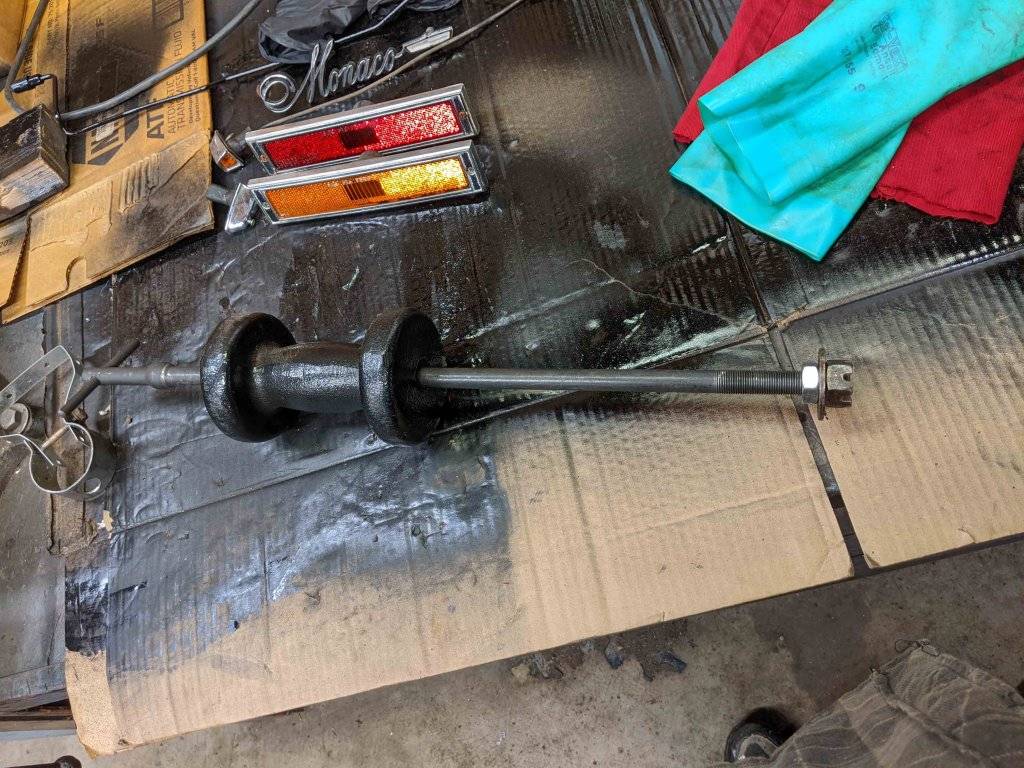

Remove inner seal

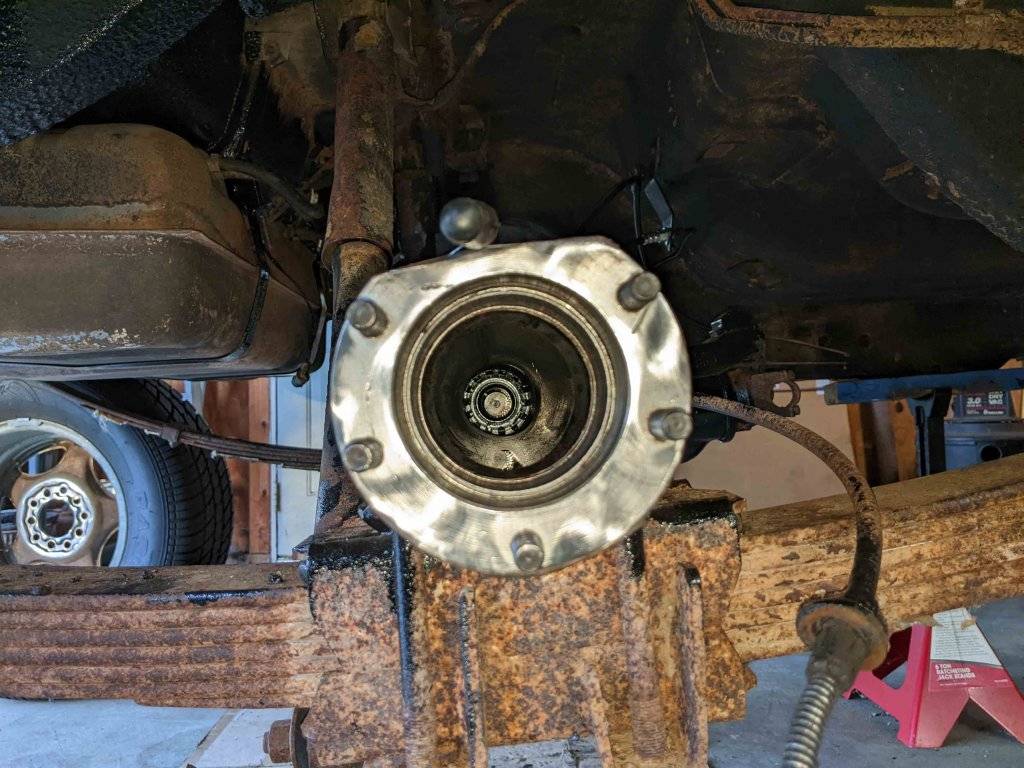

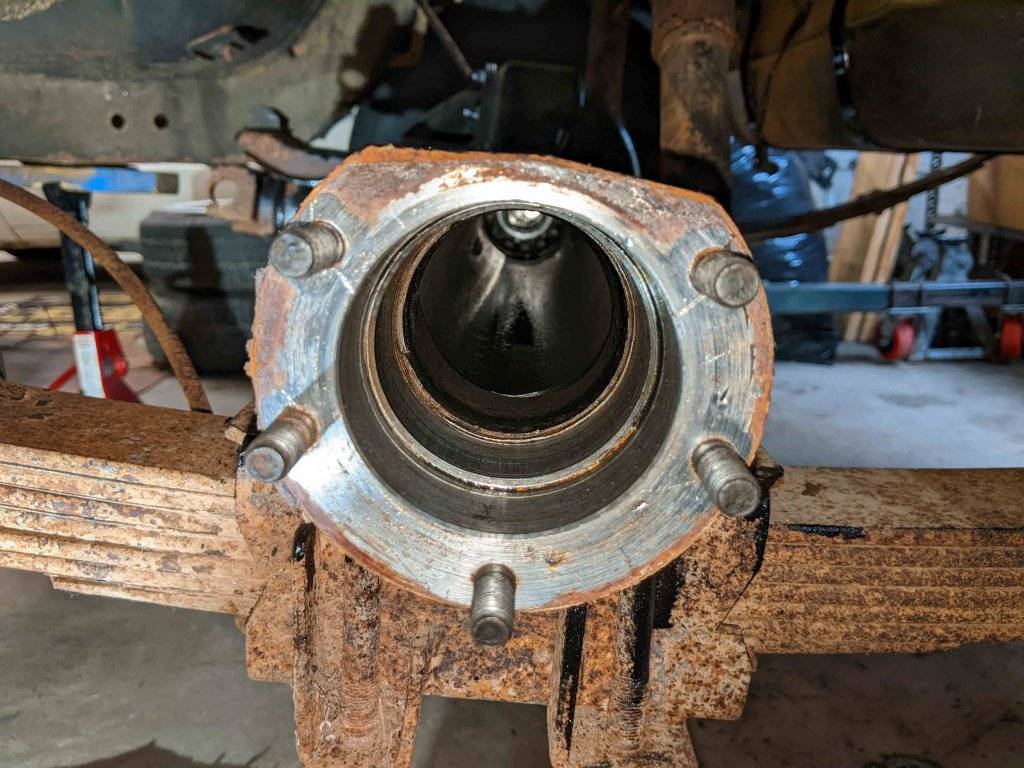

LS bore and race

RS

Bearings felt OK. Car was only on the road for 6-7 years

Cleaning

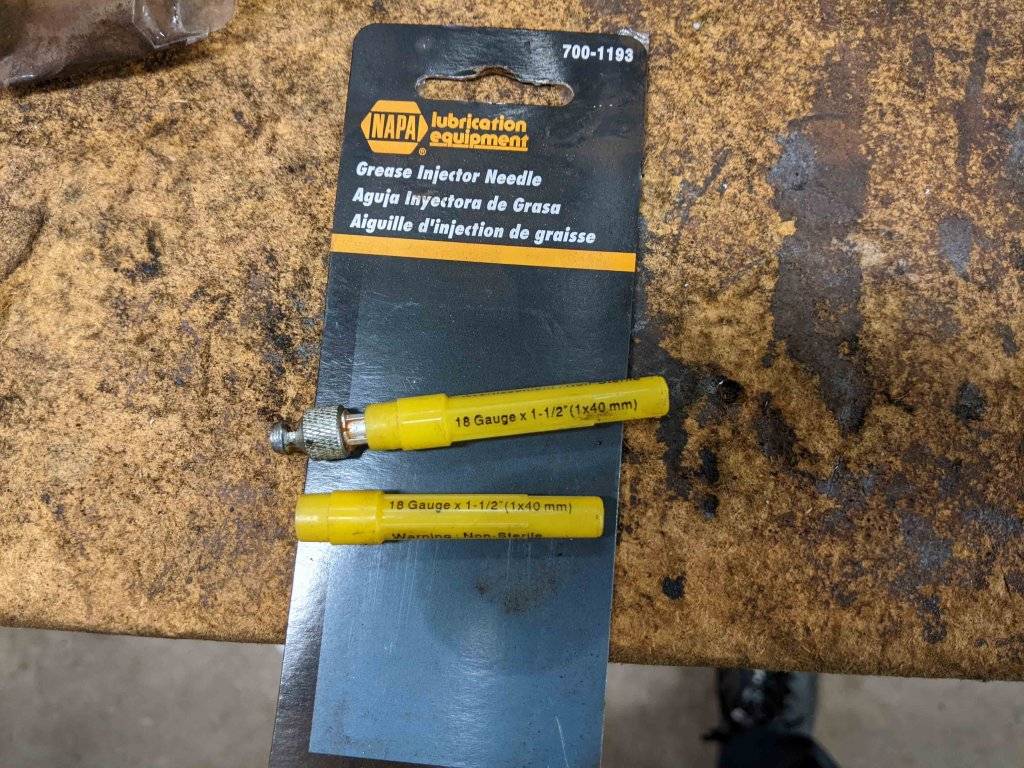

Grease: needle on gun

Needle set



[1970FuryConv]

Axles shafts continued

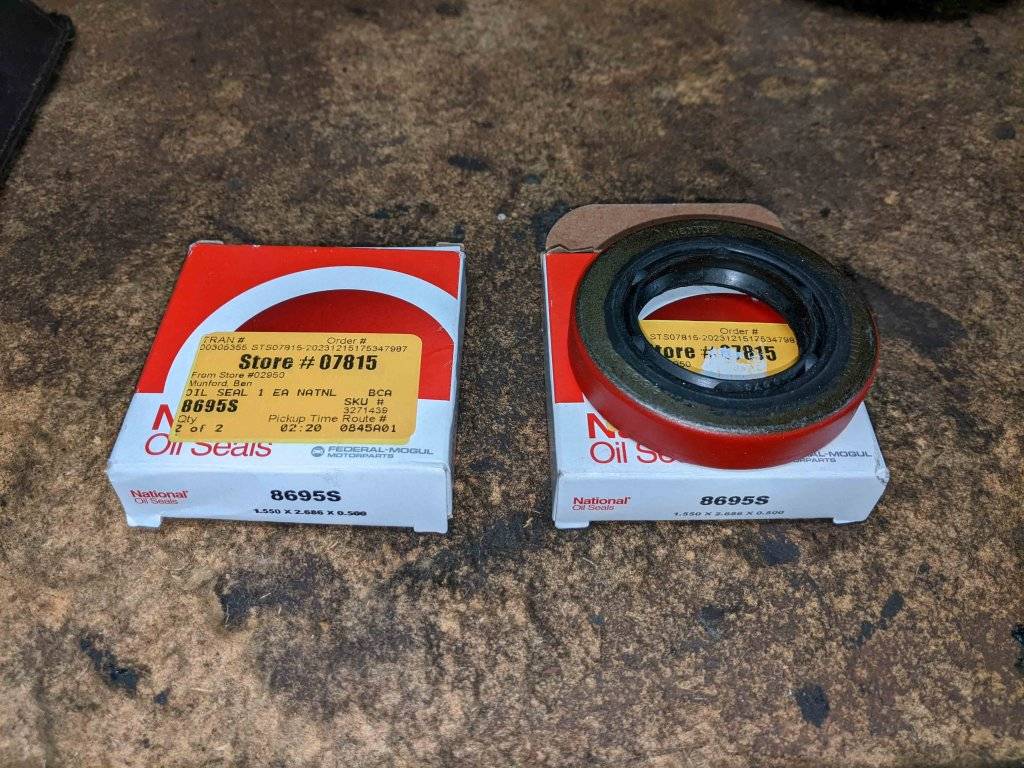

New inner housing seals

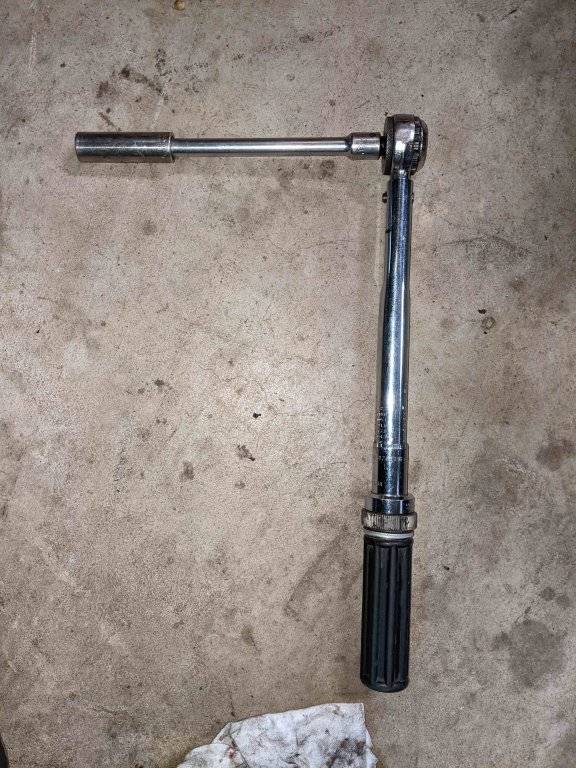

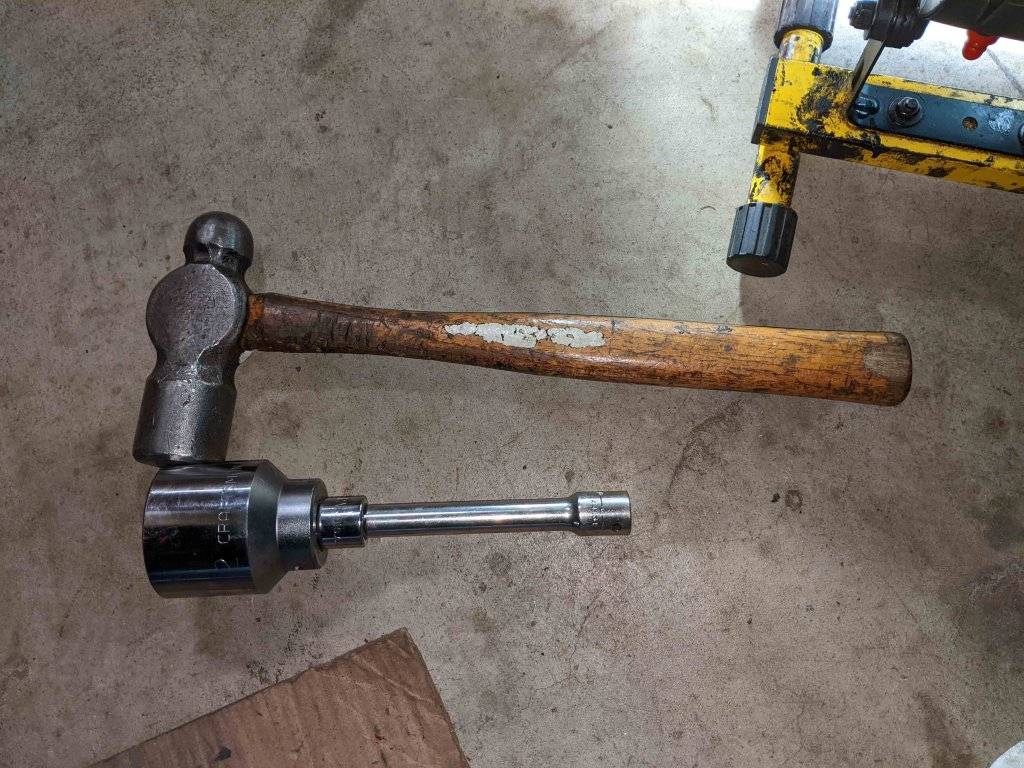

Install tools

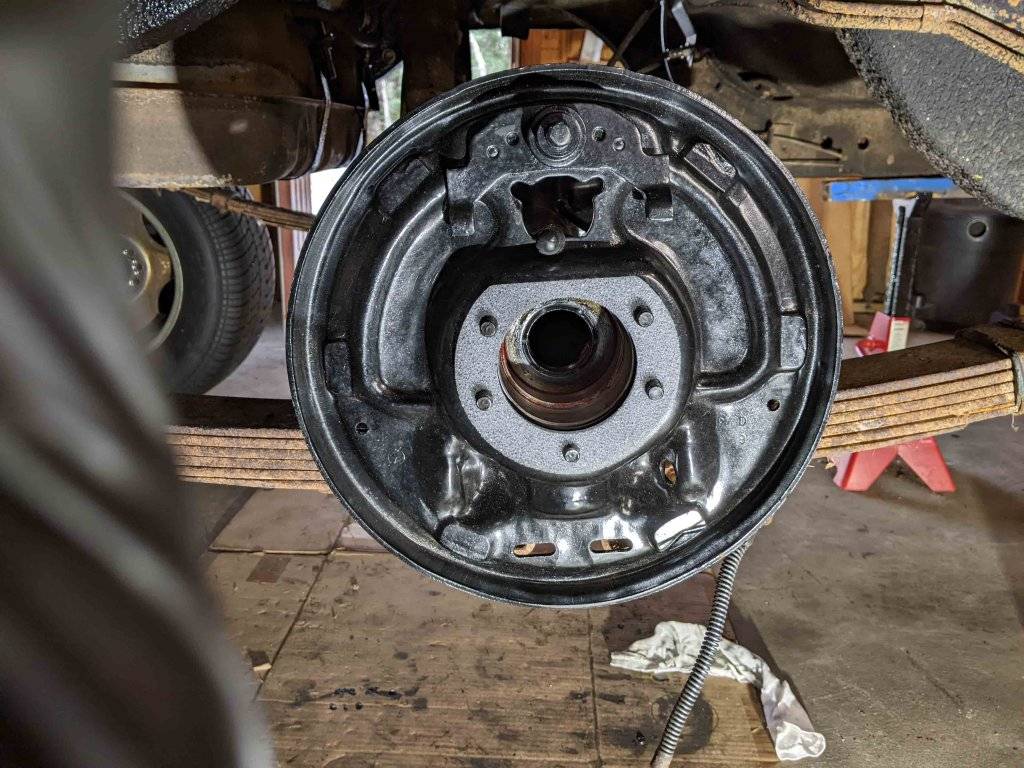

RS installed

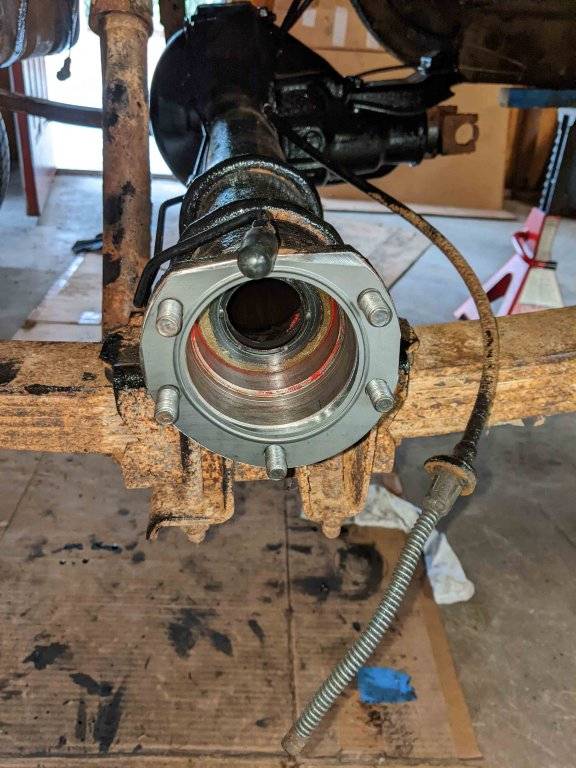

metal gasket

metal gasket

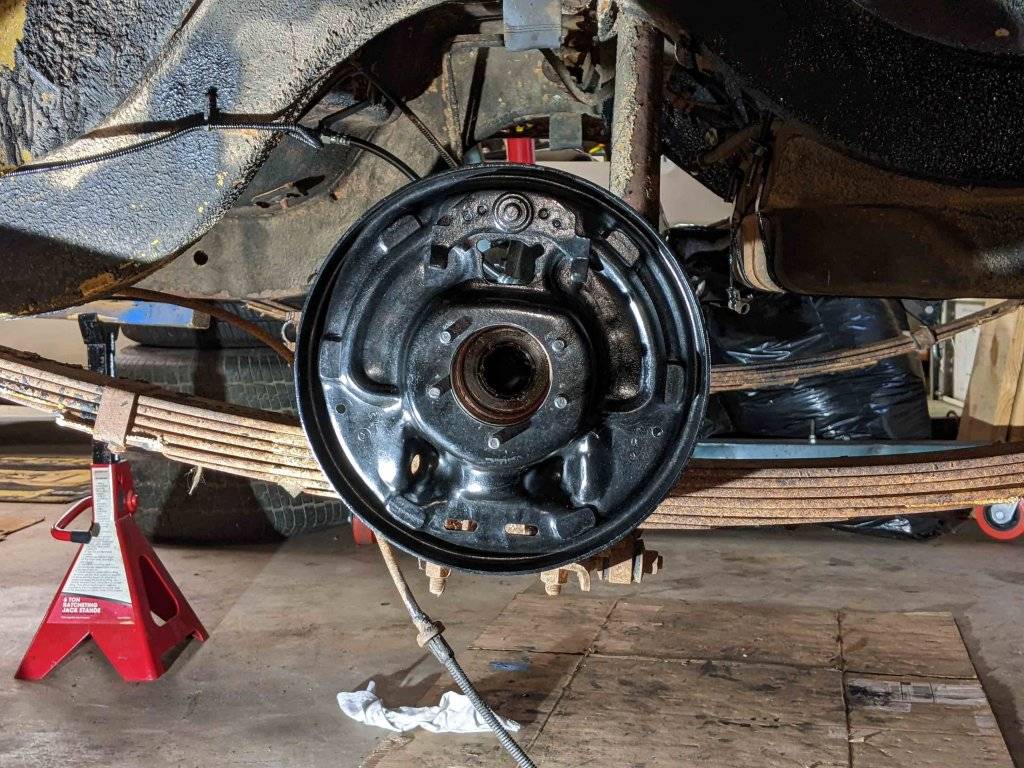

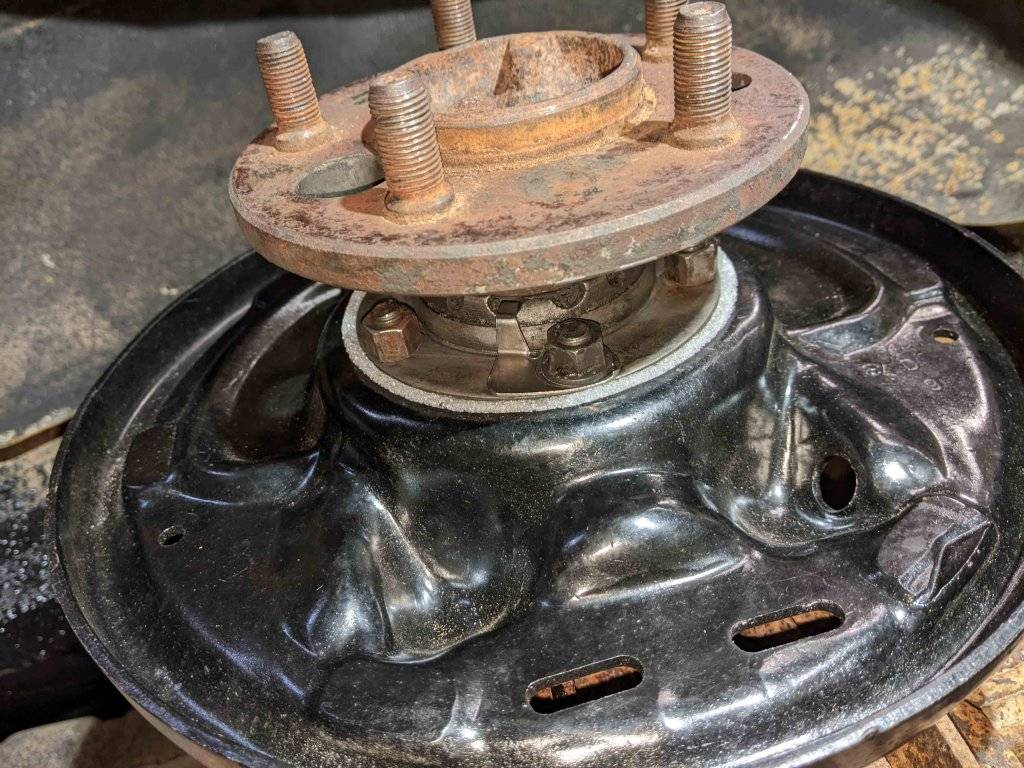

Brake backing plate installs against metal gasket

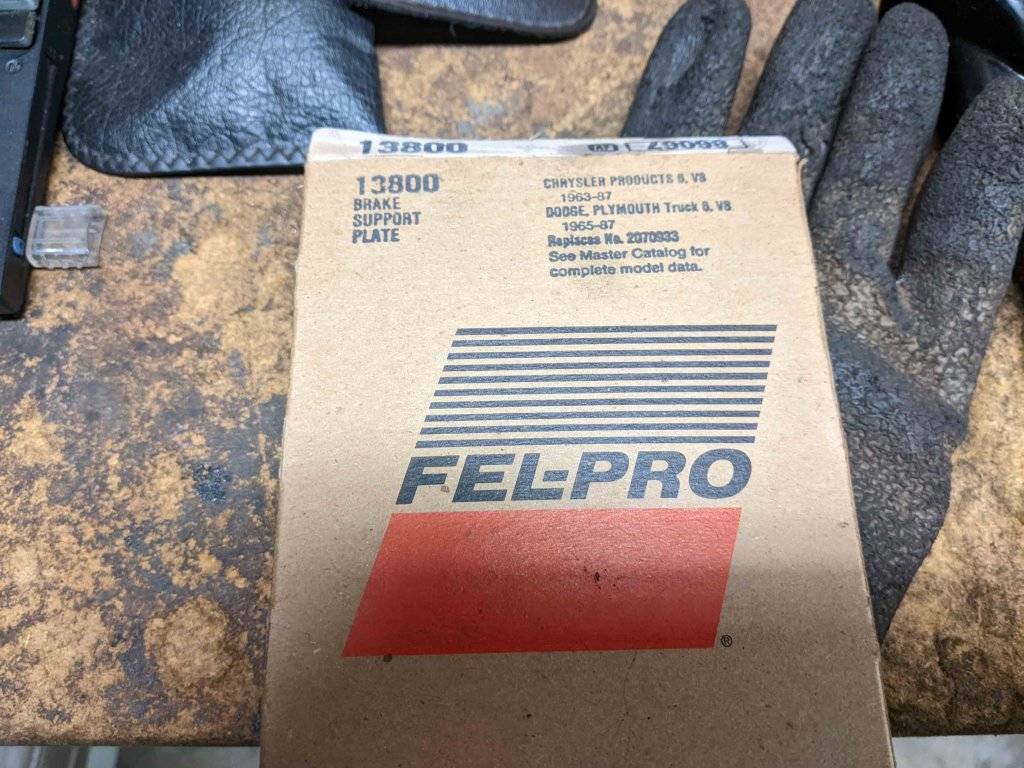

Foam gasket for axle bearing flange



[1970FuryConv]

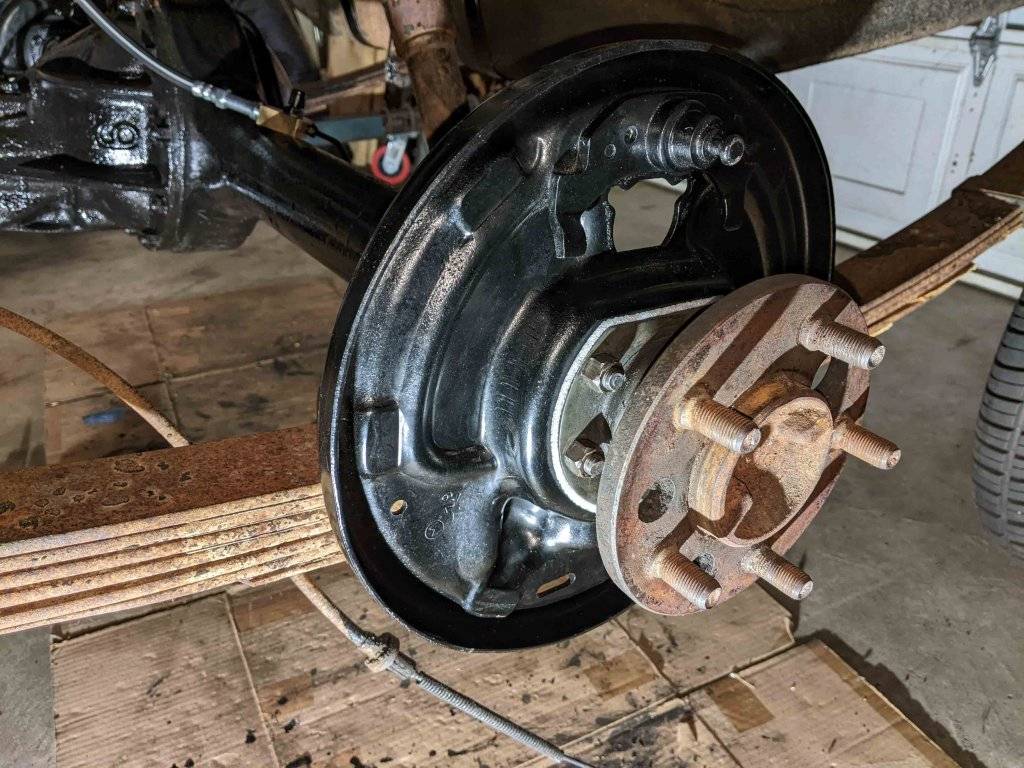

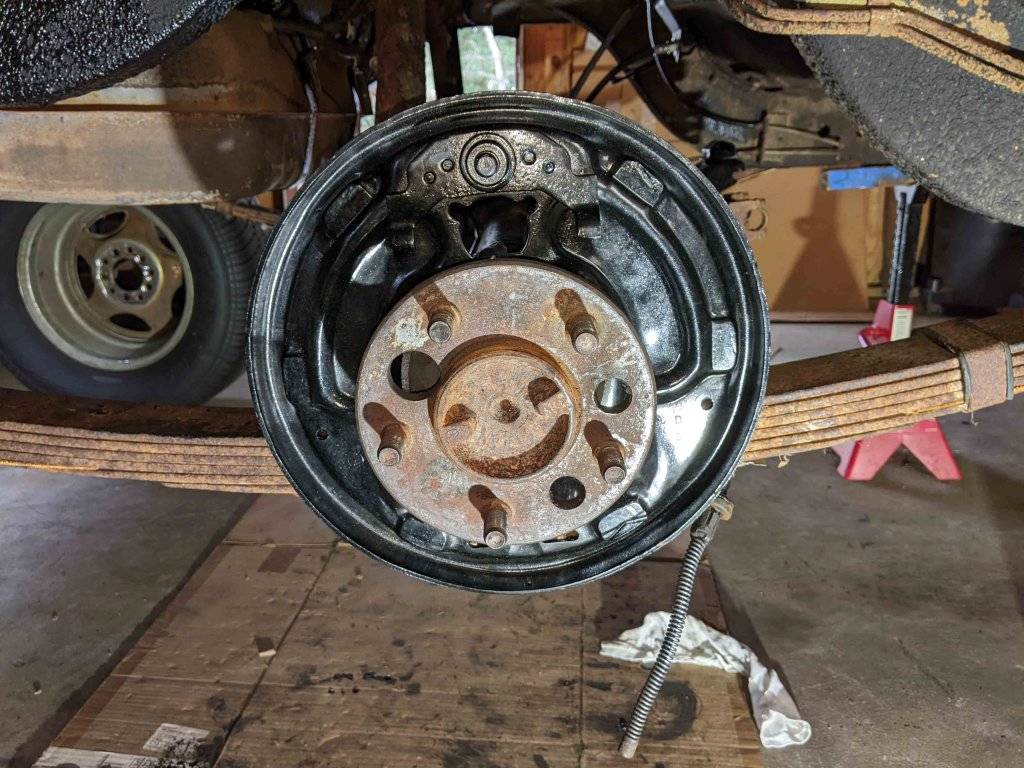

Axle shafts continued. Install

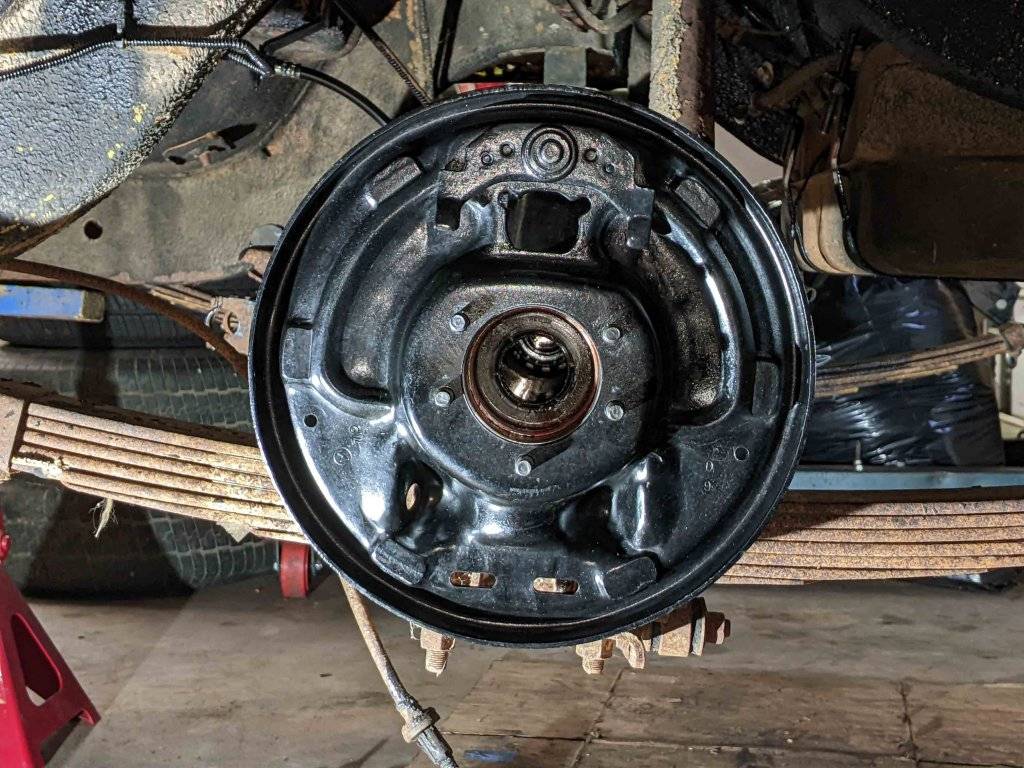

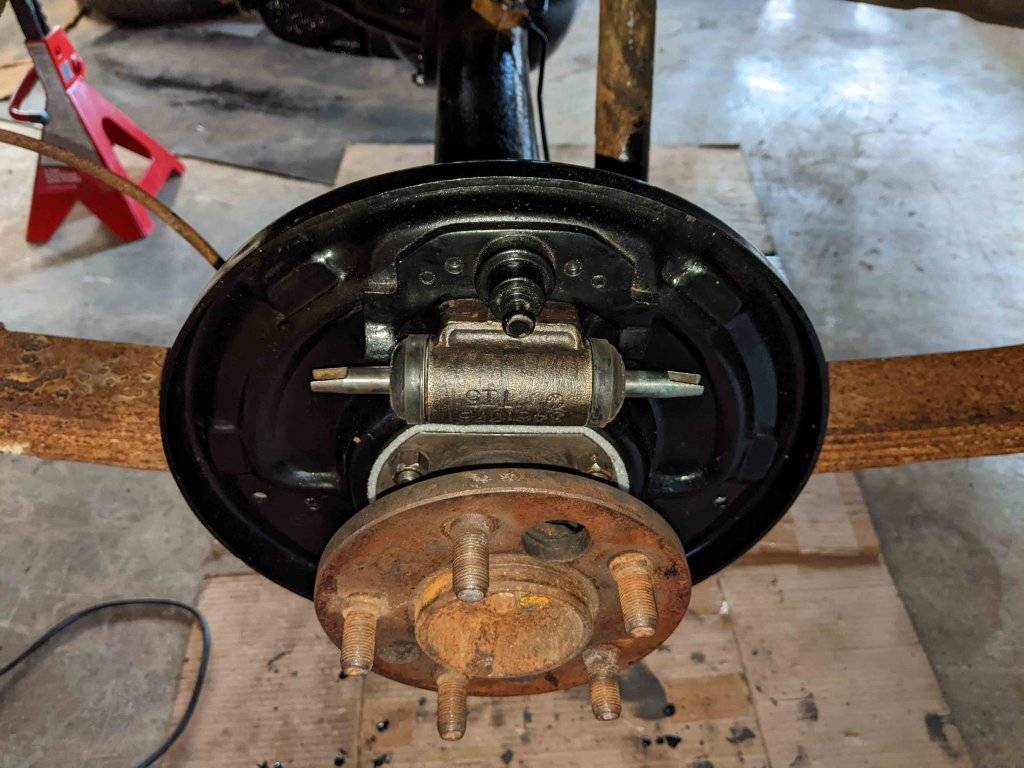

LS

RS

end play adjusted and set. I use a tiny amount and call it good.

2.76 open rear. 489 case. Don't know if original. Car was picked at over the 41 years off the road before I bought it in 2019.



[1970FuryConv]

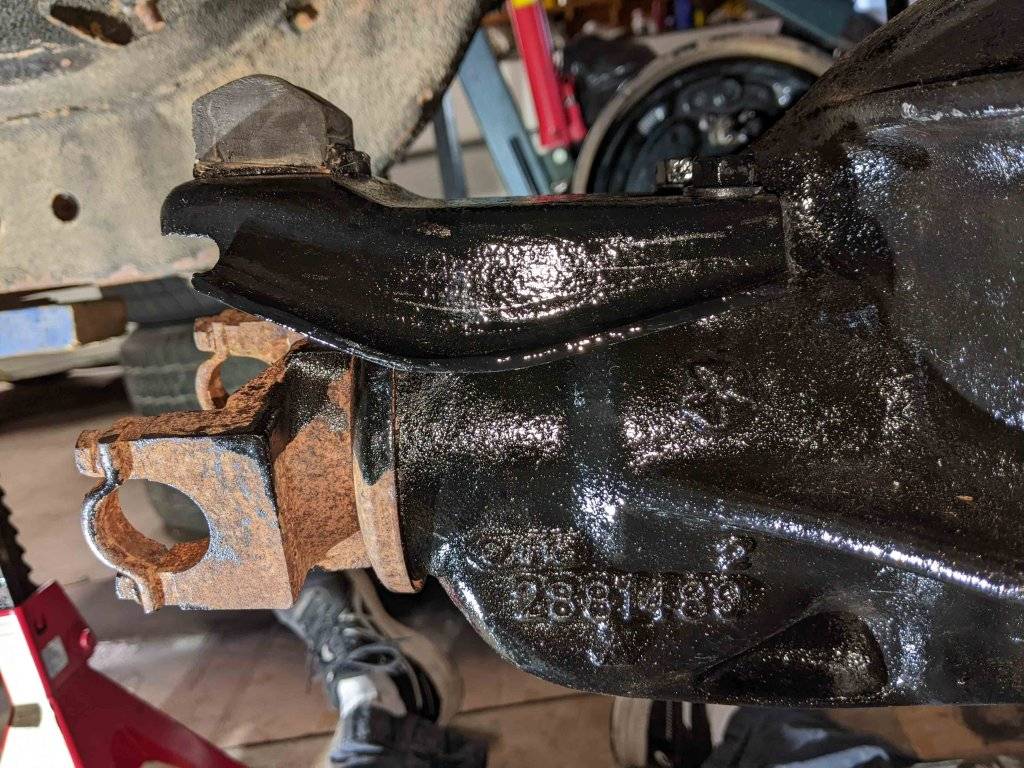

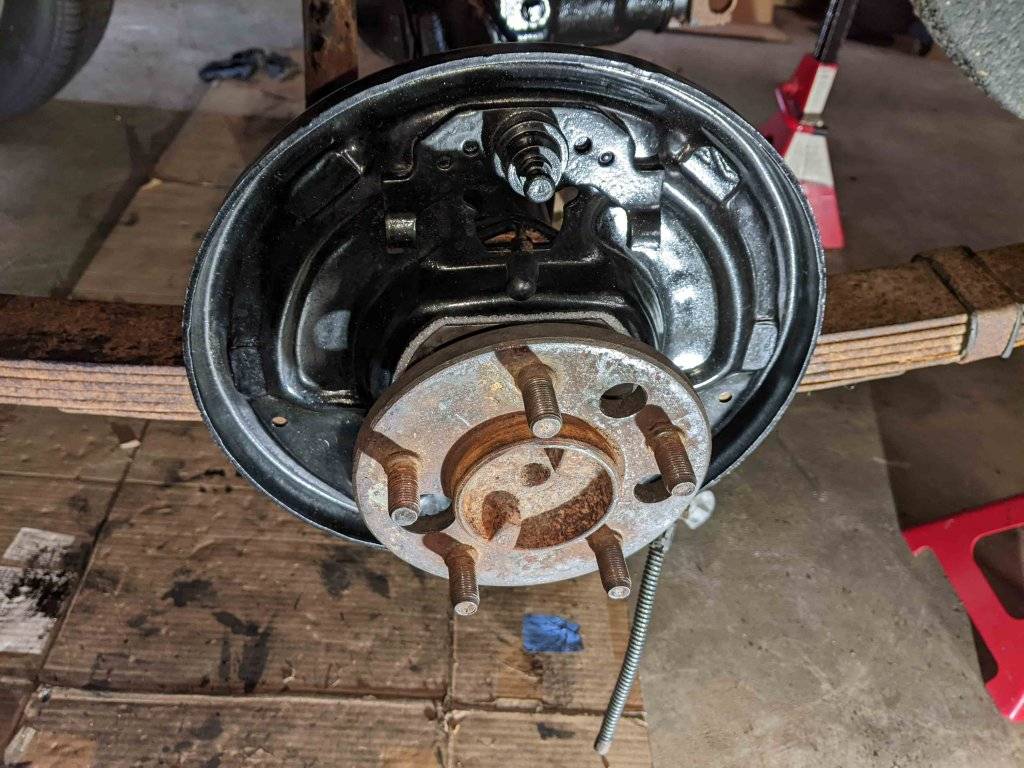

Back to Rear Brakes

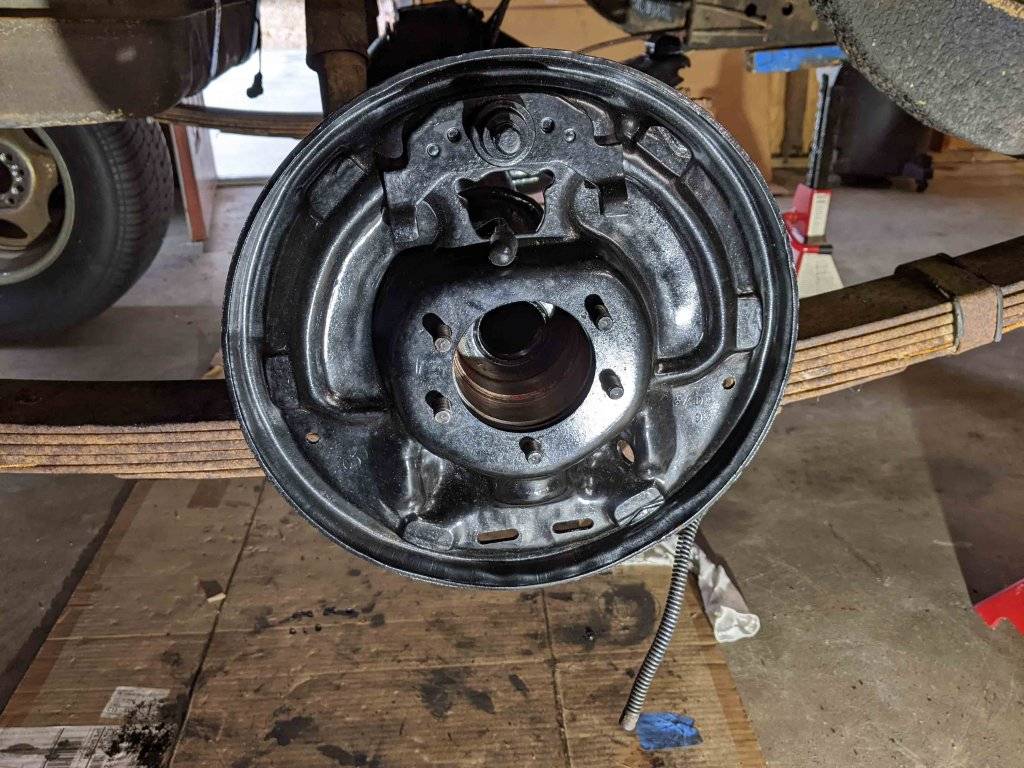

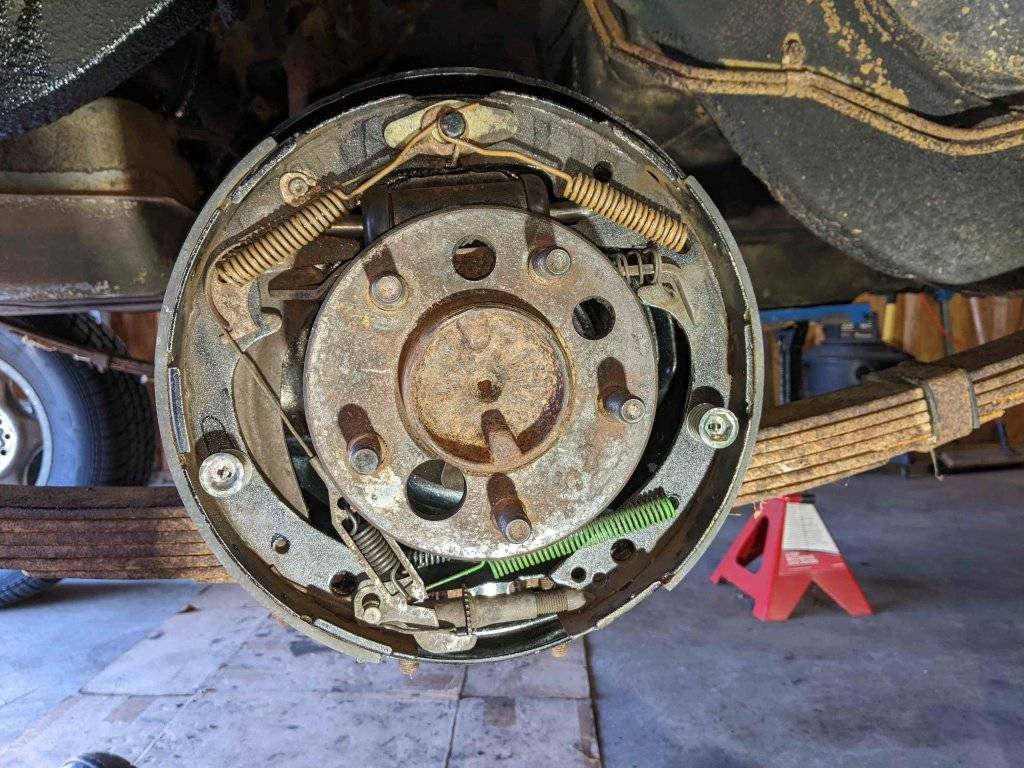

RS

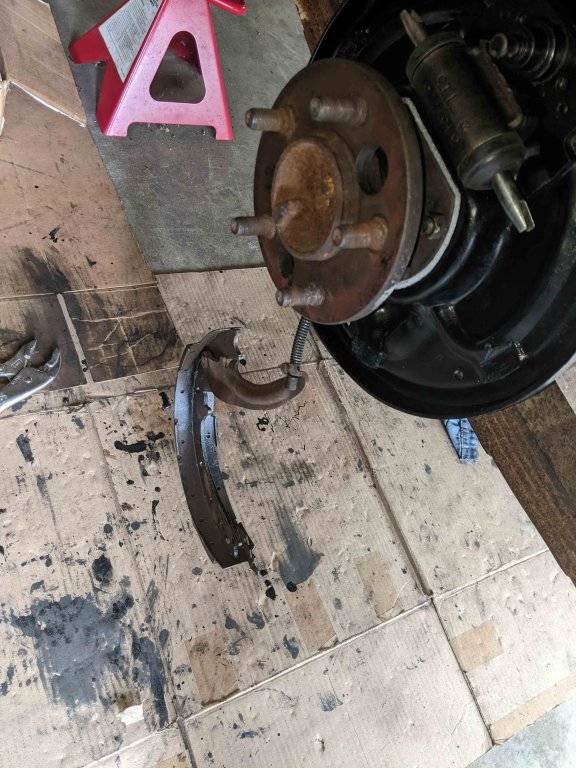

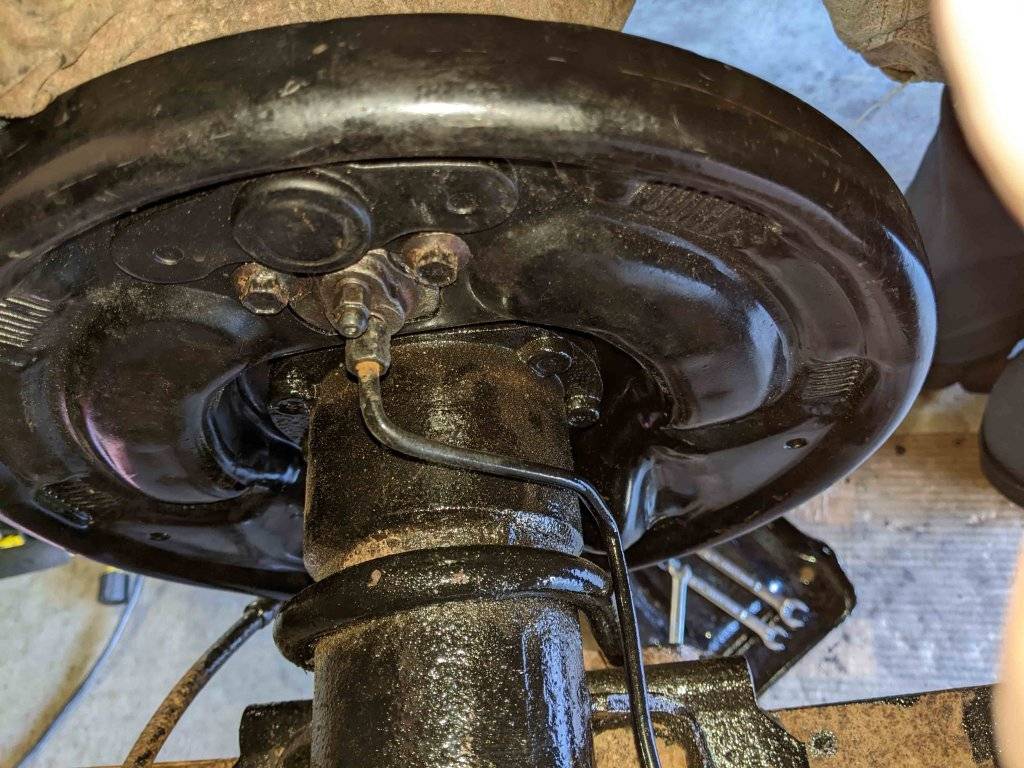

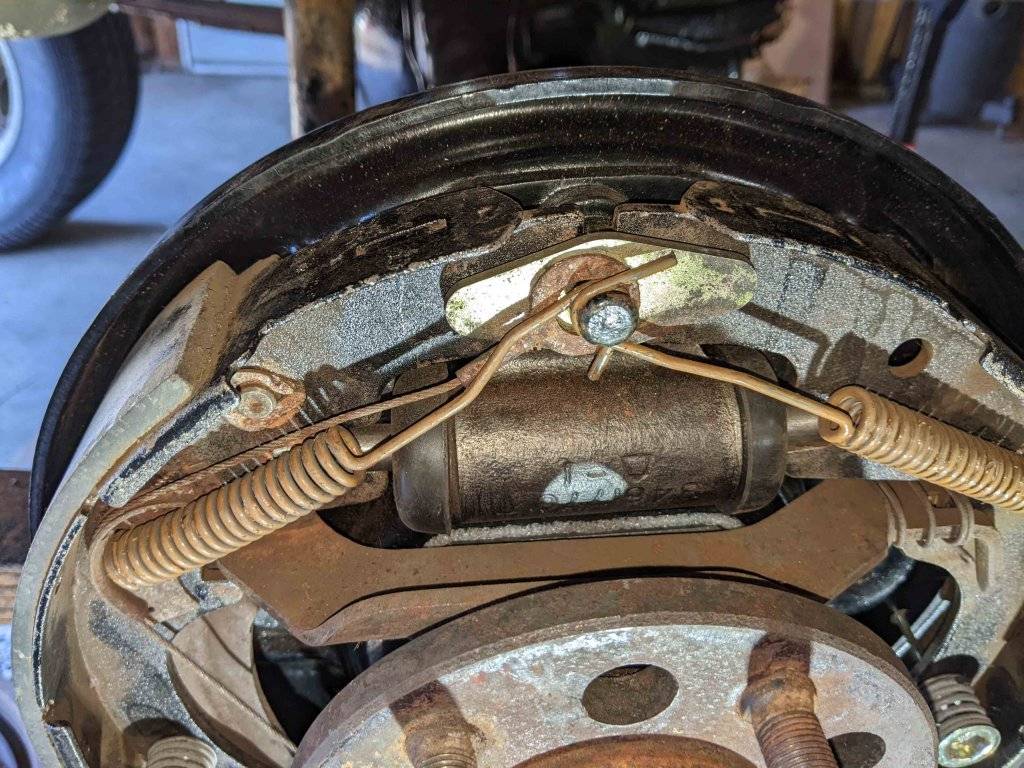

Line attached at wheel cylinder

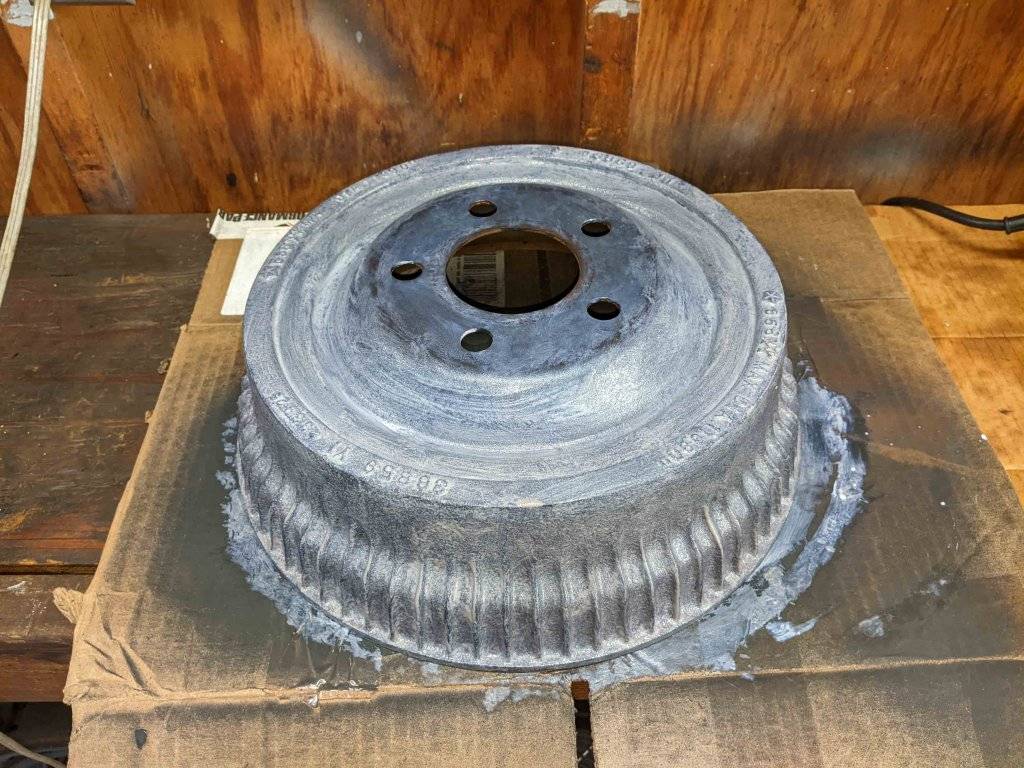

Loctite Rust neutralizer: wet



[1970FuryConv]

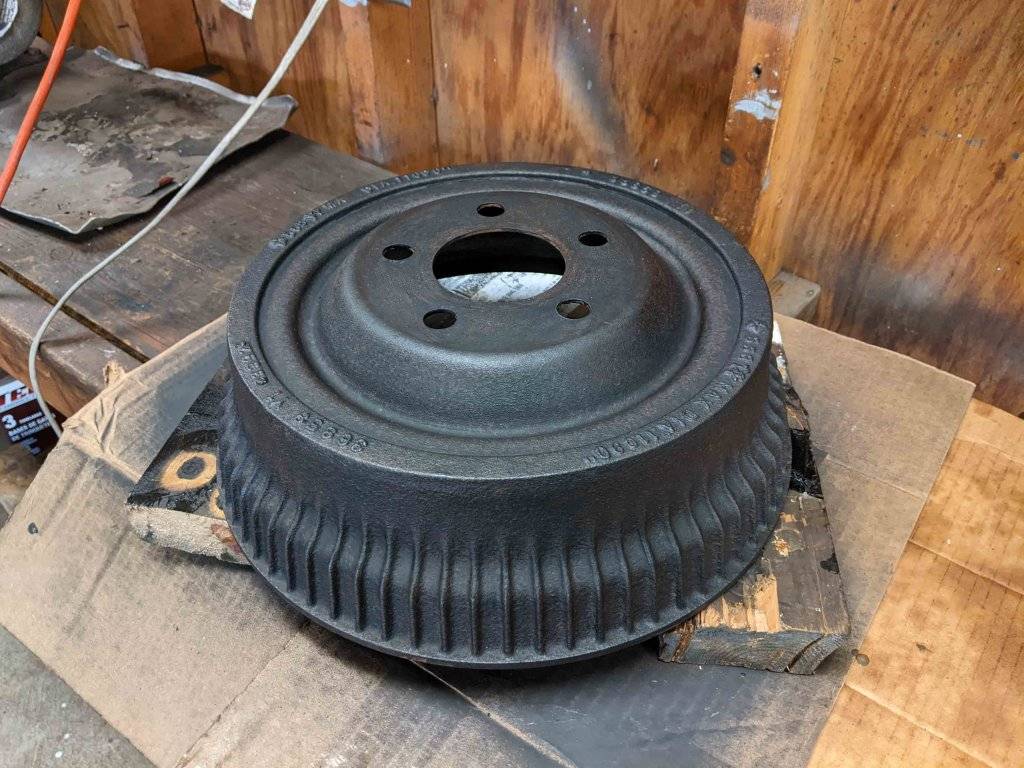

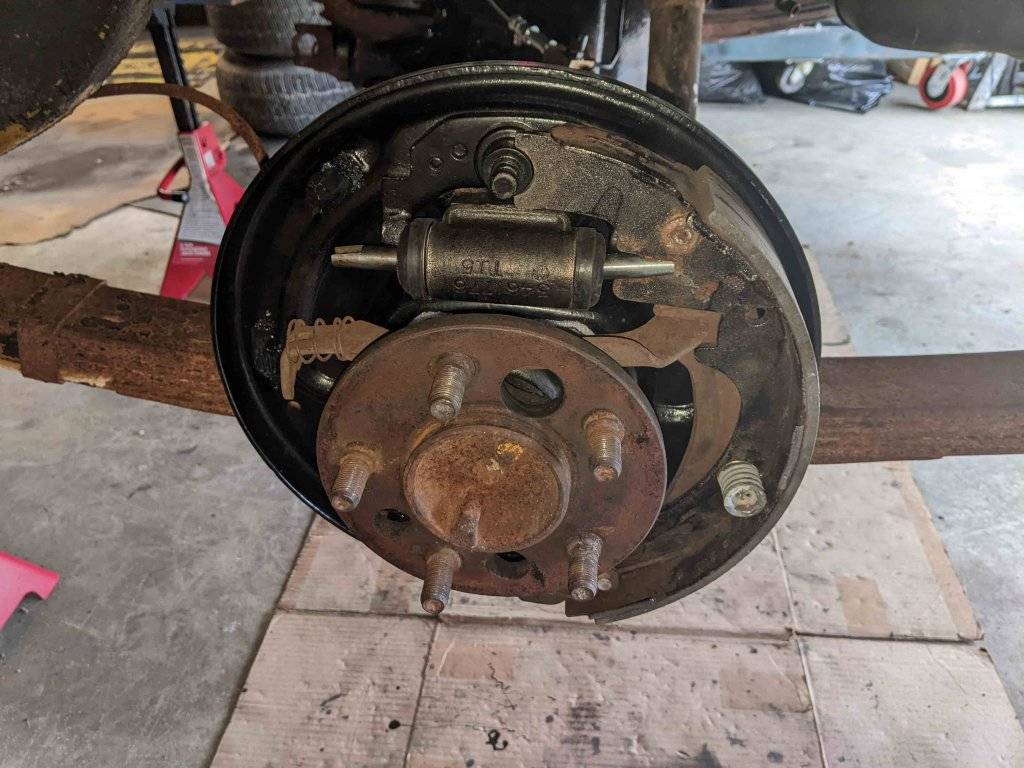

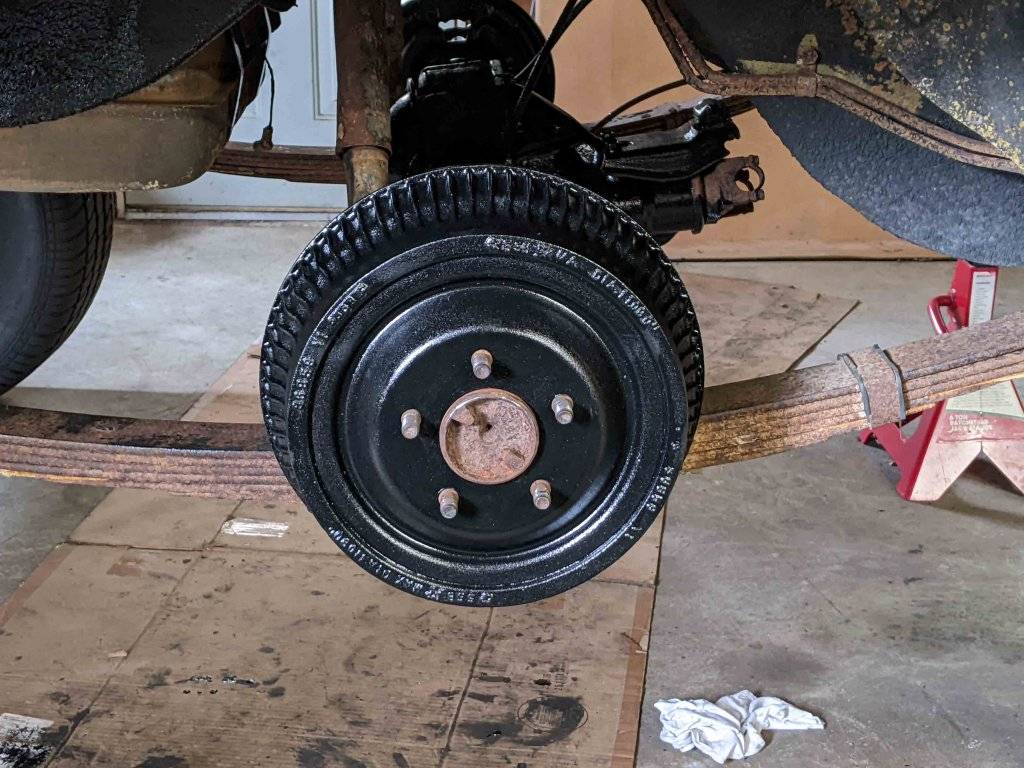

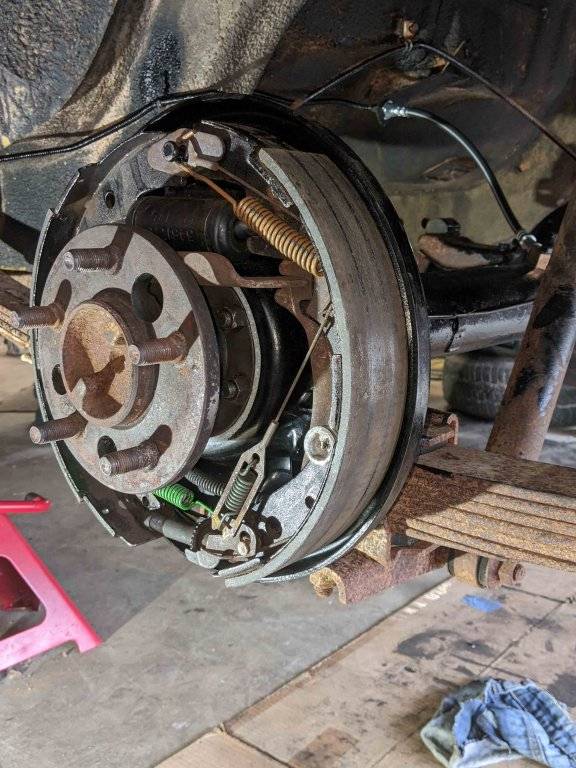

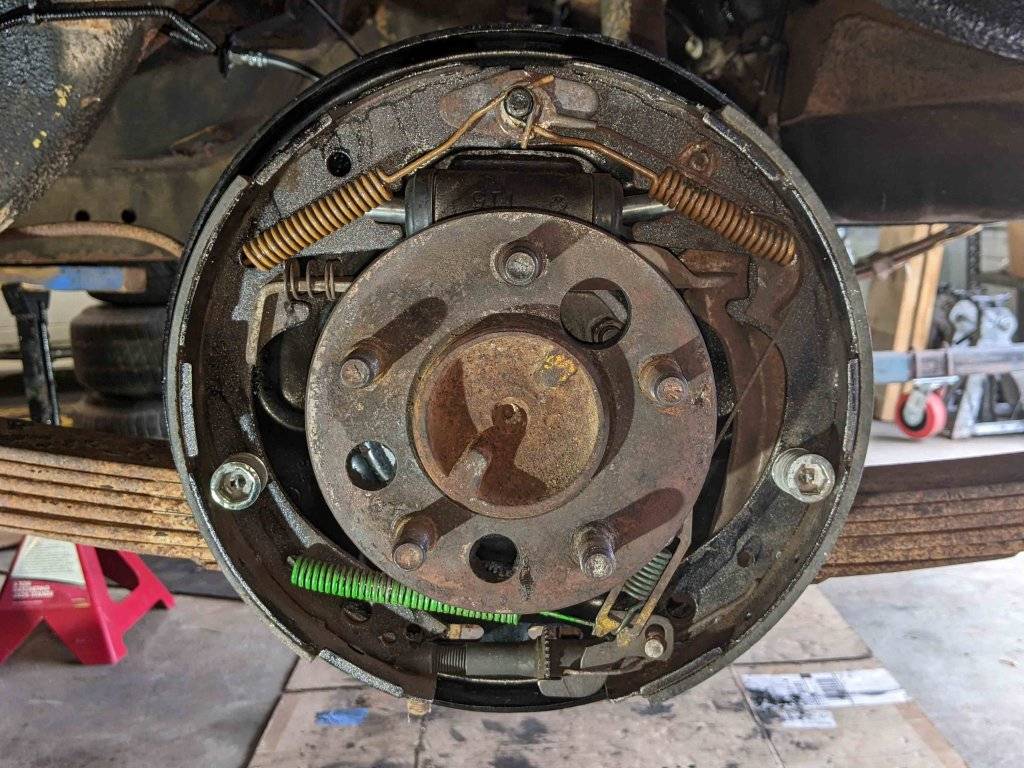

Rear Brakes

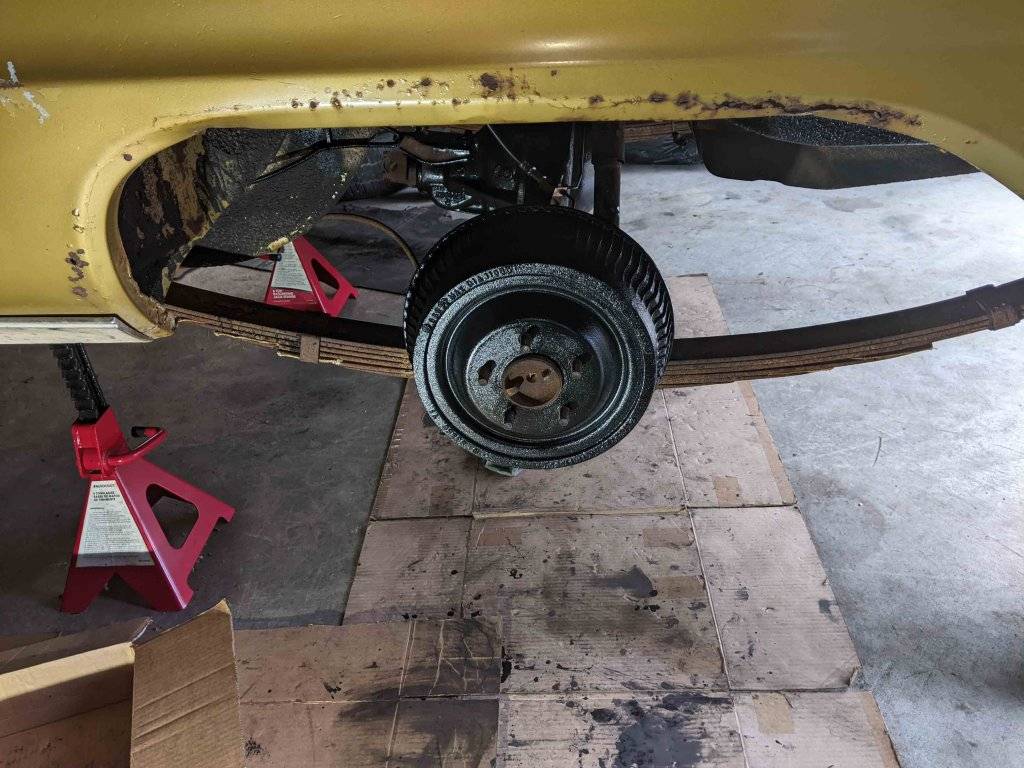

LS

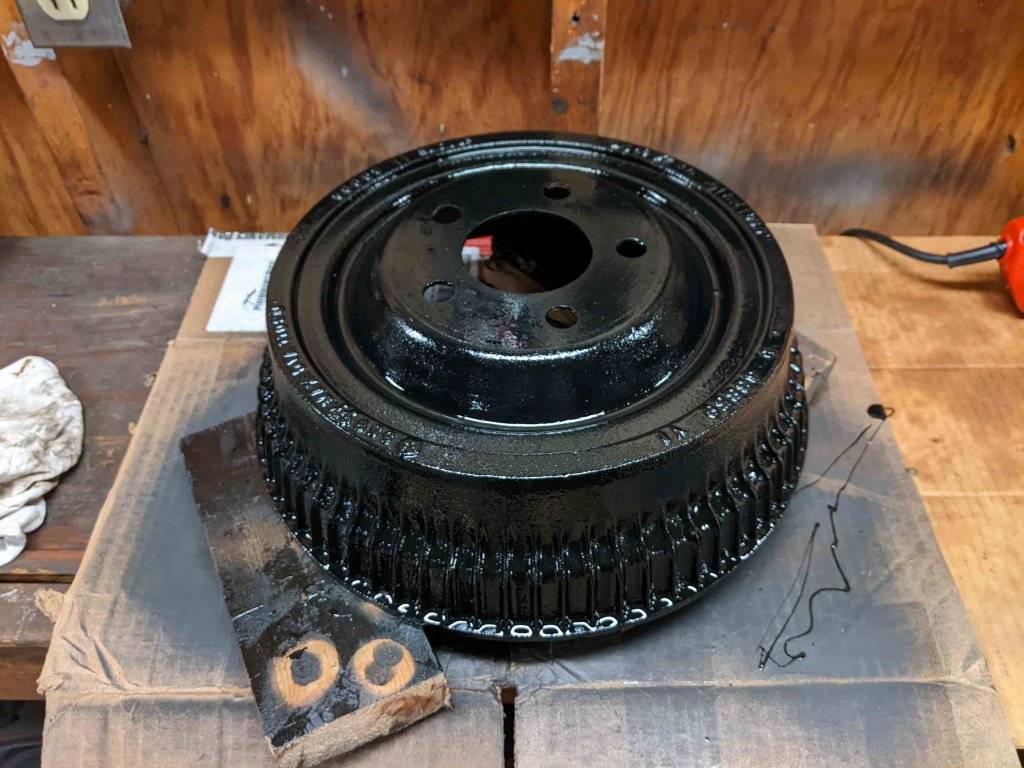

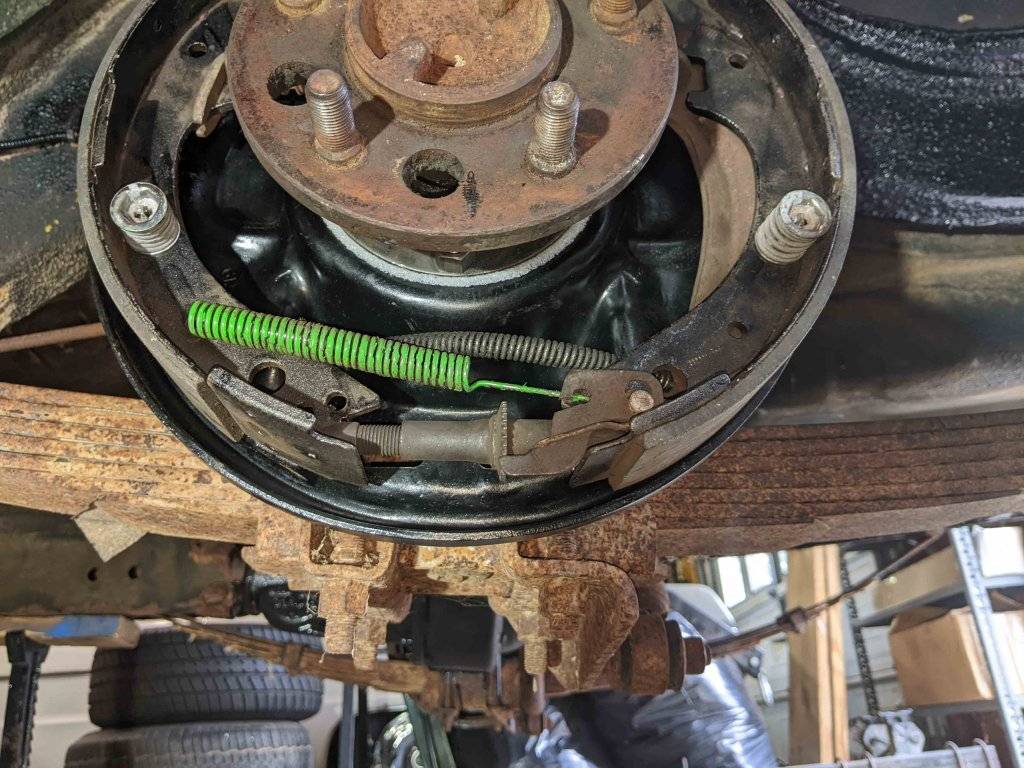

Adjuster slot plugs installed both sides after final adjust rear brakes



[1970FuryConv]

Parking Brakes

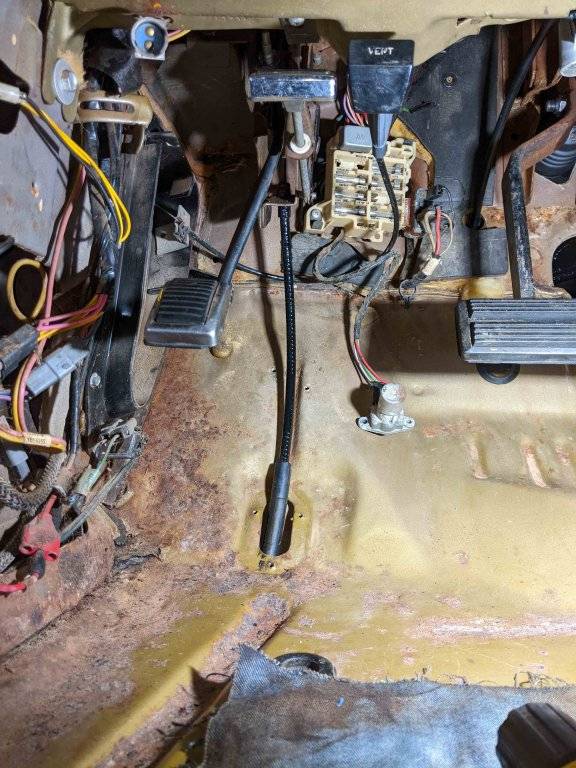

I used 1973 pedal assembly. Same as 71, except I transferred the 1971 release handle

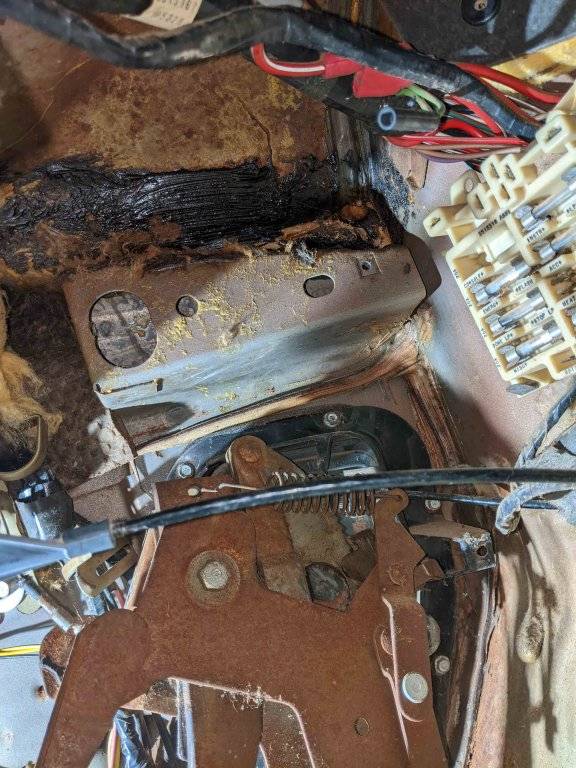

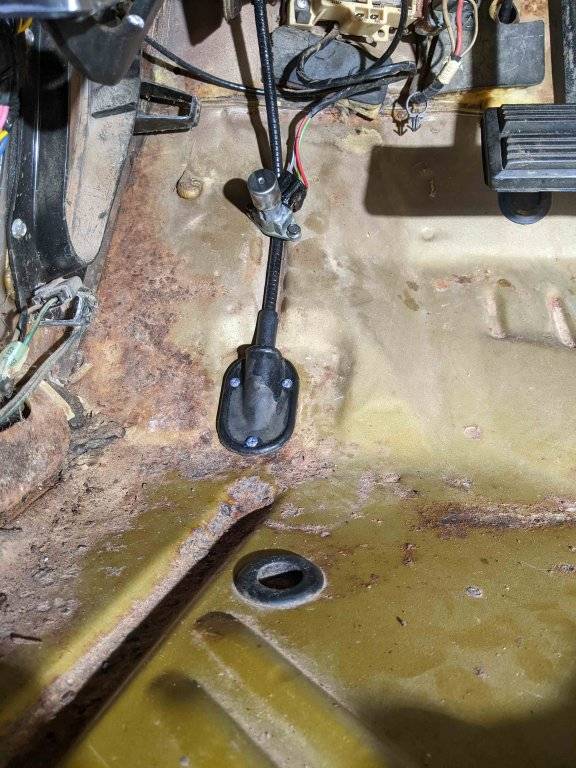

Mounting bracket. 2 more bolt holes face driver

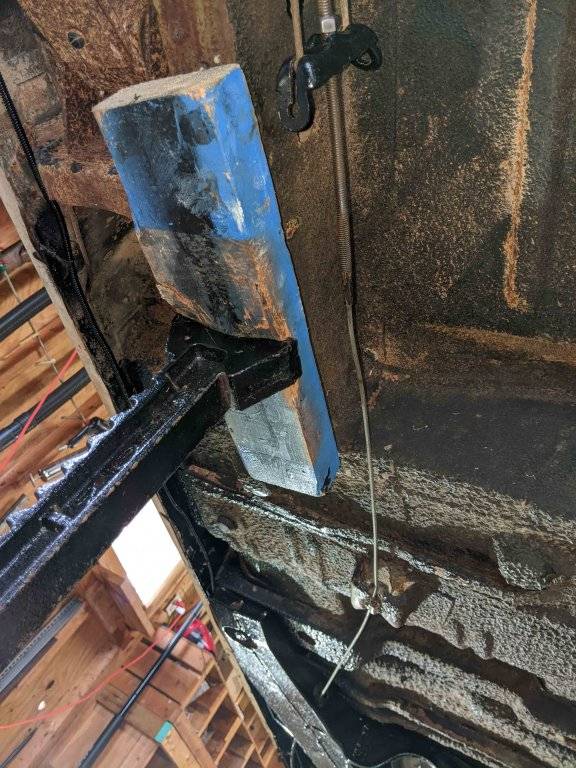

Clamp at outside of front subframe

Cable guard installs in circular clamp

Cable comes out at inside of subframe

Front cable meets rear cables

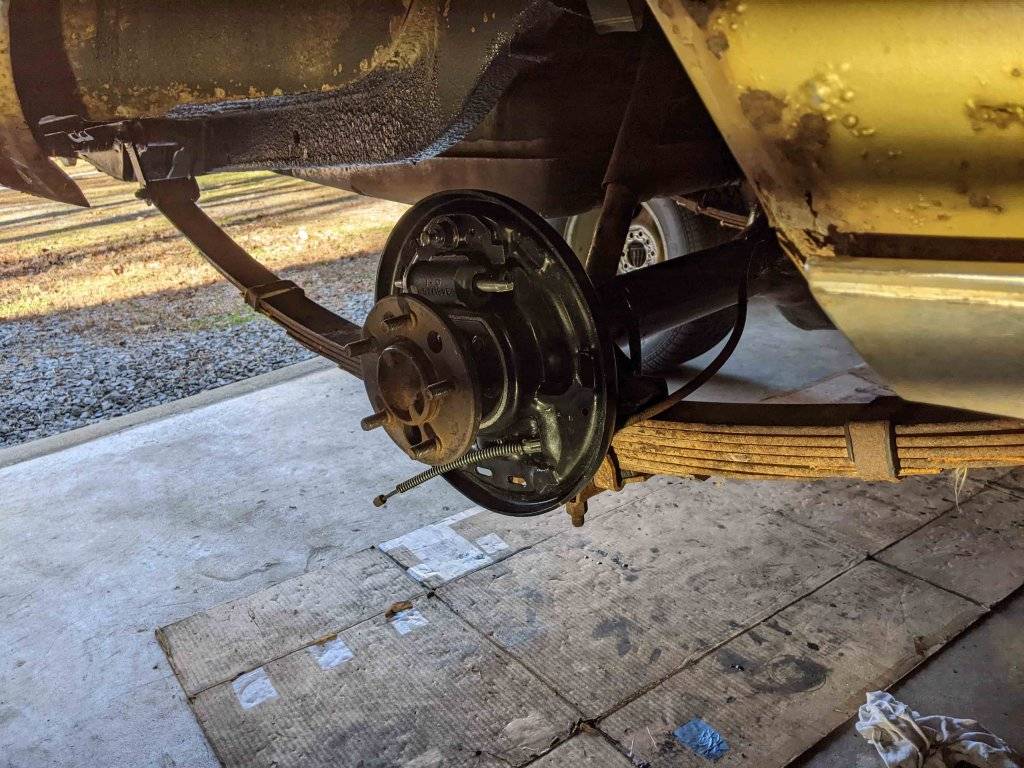

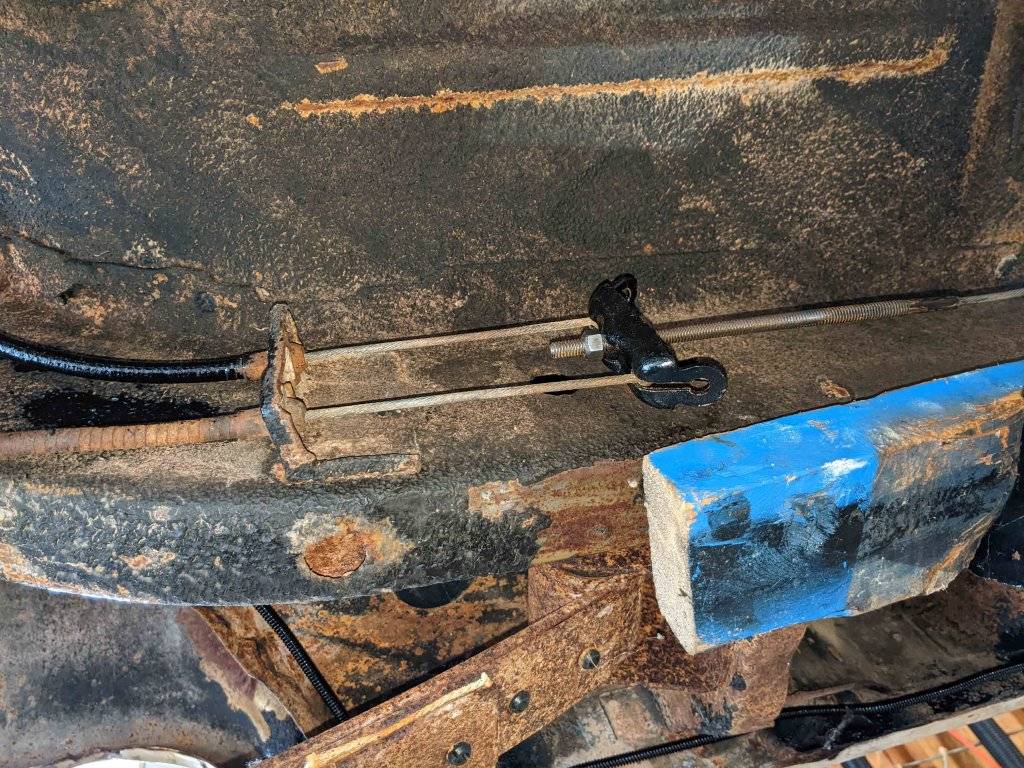

Cables to brake backing plates

Long and Short: car has been off the road for 45 years. It now has brakes.



[3175375]

Good work!



[The Rum Cove]

Nice progress Ben, keep on pushing.....



[fury fan]

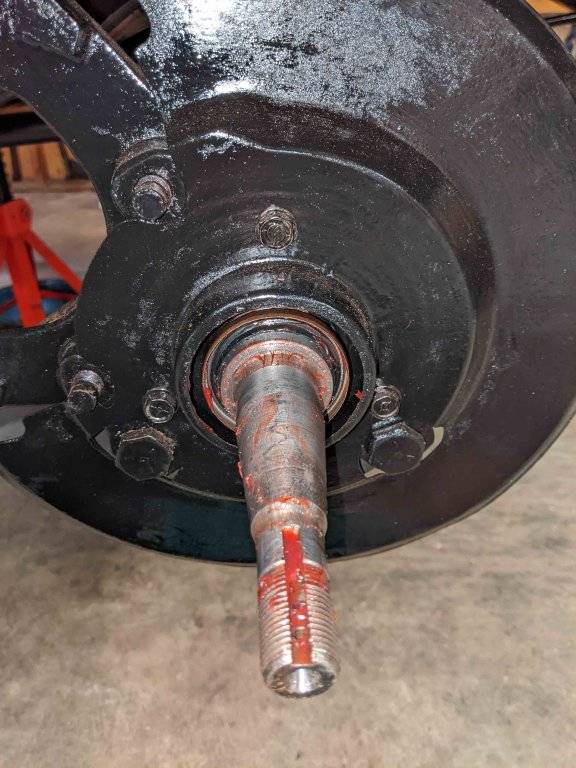

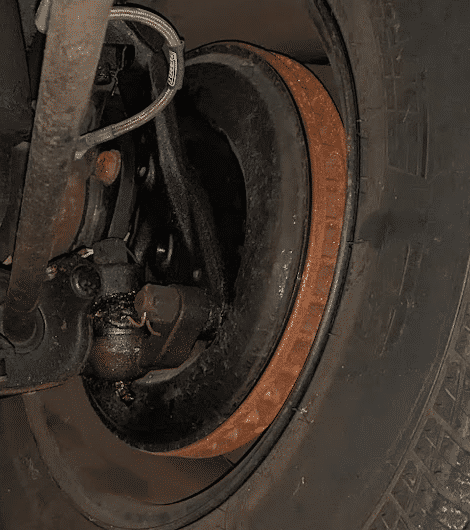

Your disc brake dust shields are on backward?



[1970FuryConv]

Your disc brake dust shields are on backward?

I don't think so. The indent goes inside the rotor. I couldn't install the rotor if I had the concave side facing out. Maybe show me a pic of what you are talking about.



[Samplingman]

I don't think so. The indent goes inside the rotor. I couldn't install the rotor if I had the concave side facing out. Maybe show me a pic of what you are talking about.
View attachment 644262

Looks exactly the way it should be. Here is a pic of mine.



[fury fan]

I knew I had seen numerous pics with shields indented toward the rotor.
And that is a more sensible design, for what is shown above would act as a funnel toward small pebbles. The 'tight' version would prevent that but still allow water to sling off.

The 70 Chry-Imp service manual shows what you guys have.
But I take that with a grain of salt as they use 'representative' pictures from years before, such as 66-older wheels that take the larger-size dogdish hubcaps.
So not fully trustworthy.

My 65 SF that I converted to discs in the early 1990s have shields you guys have. It was converted with 71 Polara/Monaco parts I pulled at a JY.
My 68 Fury that I converted to discs in the early 2000s, with 73 spindles, and it has shields with a tight gap on the rotor. I don't remember where I got these parts, though.
All the spare shields I have are what is shown on the below pic from my 68 Fury.
I now wonder if they are from truck/van, as I have a buddy that had a lot of that stuff and would give parts to me sometimes.

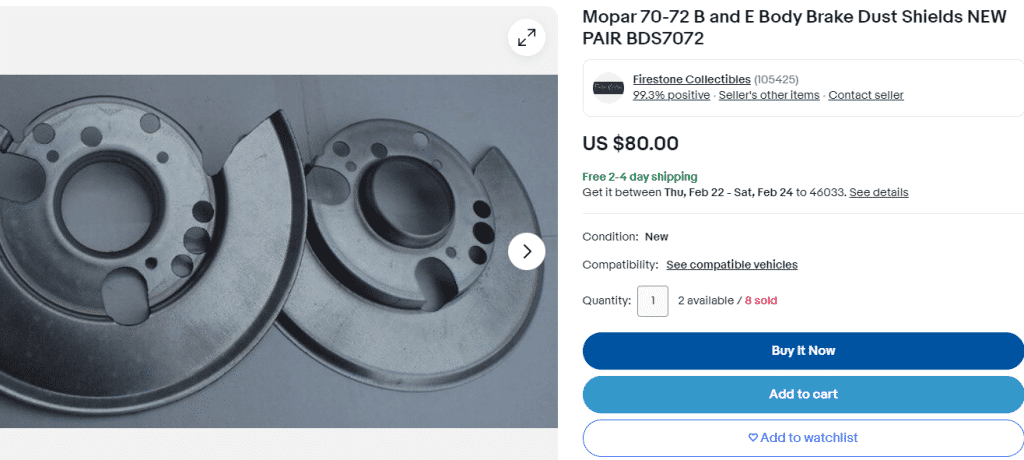

The ebay pic shows that style, but 70-72 would be for a 10.75" rotor.
It's possible I have 75-77 B-body, or R-body shields, as those have the same rotor dia as a C-body. Or maybe 74-78 C-body.

I don't know what's what on this.
Continue on without me!
