1967 Plymouth Sport Fury conv. part recognition?

[jippek]

Hello.

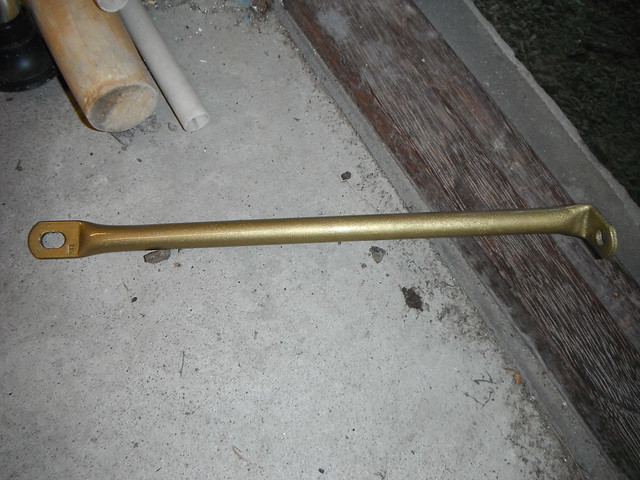

Can someone tell me where is this part from?
It was taken apart by someone else and I don't have a clue where to
put it back



[greasemonkeyman]

It looks like the brace for the back of the AC compressor to the intake manifold. I'll try to get some pics later on.



[jippek]

Don't have AC, so cannot be that. This is about 14 inch in size.



[greasemonkeyman]

Then possibly the brace that goes from the firewall to the steering column support?



[polara71]

On a fuselage that would go from firewall to fender



[jippek]

On a fuselage that would go from firewall to fender

I agree, that is where I would have put it but in these earlier models it was not yet existing.



[polara71]

Really? Then I will be watching to see where



[jippek]

Then possibly the brace that goes from the firewall to the steering column support?

That could be it. Let's see if we can find any pictures, I'll check the FSM at least.



[Bryan]

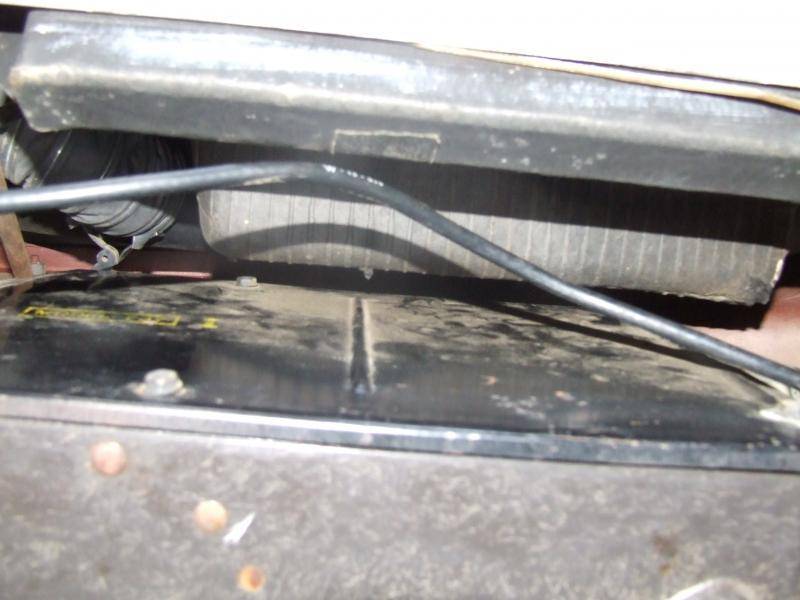

It might be the brace that goes from the firewall near the heater box to the lower inside edge of the dash. I'll try to get a better picture of mine tonight, but you can see the top of it in the left side of the picture I posted



[jippek]

It might be the brace that goes from the firewall near the heater box to the lower inside edge of the dash. I'll try to get a better picture of mine tonight, but you can see the top of it in the left side of the picture I postedView attachment 31842

This was my first suspicion before I started to put the car back together, but that
support is a bit smaller and thinner and is already in its place.

I could not find a picture in FSM about the steering column support. Would someone have a picture
if such support exists for steering column?



[patrick66]

That looks like the fender-to-firewall support bracket, as suggested earlier. BUT, the one end is nearly 90*, which would be wrong for that application.



[Samplingman]

Was it always body color? I would look around the inner wheel wells, under the car as opposed to the engine compartment.

Is there a possibility it does not belong to your car?

1970 Fury:



[rexus31]

It might be the brace that goes from the firewall near the heater box to the lower inside edge of the dash. I'll try to get a better picture of mine tonight, but you can see the top of it in the left side of the picture I postedView attachment 31842

Bryan is right. That's exactly what it is.



[Wollfen]

Bryan is right. That's exactly what it is.

I think he has already discounted that since his is already in place and is smaller than the unit he has spare.



[rexus31]

I think he has already discounted that since his is already in place and is smaller than the unit he has spare.

My car had two. One short and one long. Then again, my car is a '65.



[greasemonkeyman]

I've gotten my 67 NYer torn down to a basic bare shell and the only thing that looks familiar with would be the AC rear brace or an underdash brace.There is nothing else on my car that even comes close to that,but his is a 67 SF so they may have done something different(my guess would be under the dash since engine compartment is the same).Or like stated above,maybe it's a part from another car that just somehow got slipped into the pile.



[John A]

I took a picture of how it is installed in my 67 Fury with my phone / camera. I can send it from my phone to someone else so they can add it to this post. ( i am not very good with a computer ). John.



[jippek]

John, PM sent.

Posted via Topify using iPhone/iPad



[jippek]

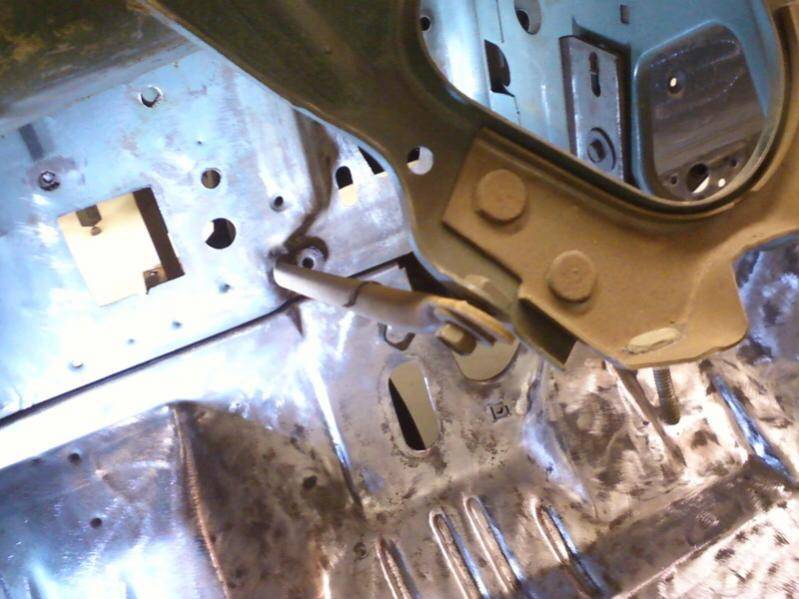

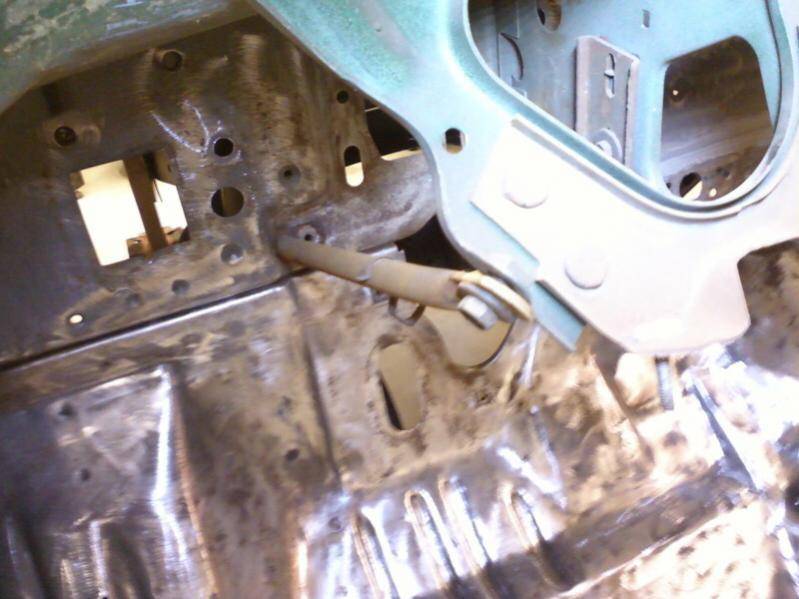

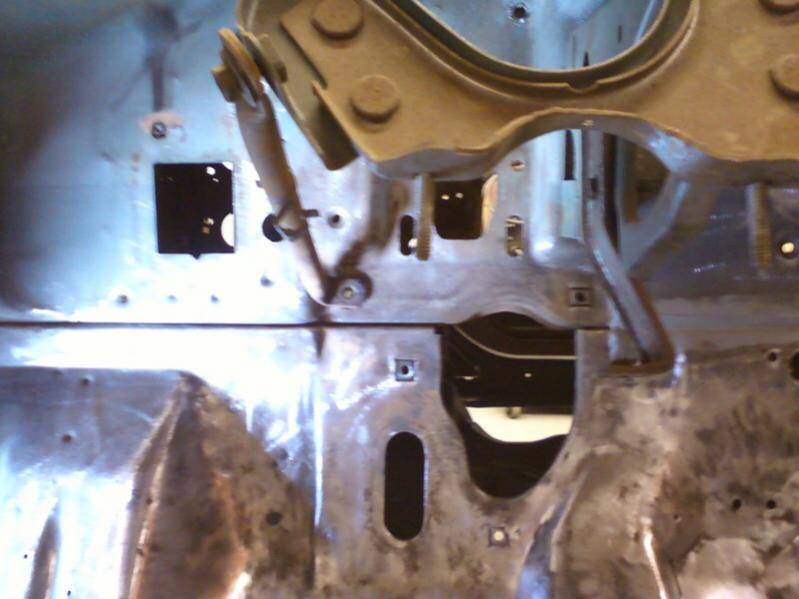

Thank you John, here are the pictures. So it is from the firewall-steering column support

Posted via Topify using iPhone/iPad



[polara71]

That is so different than three years later
