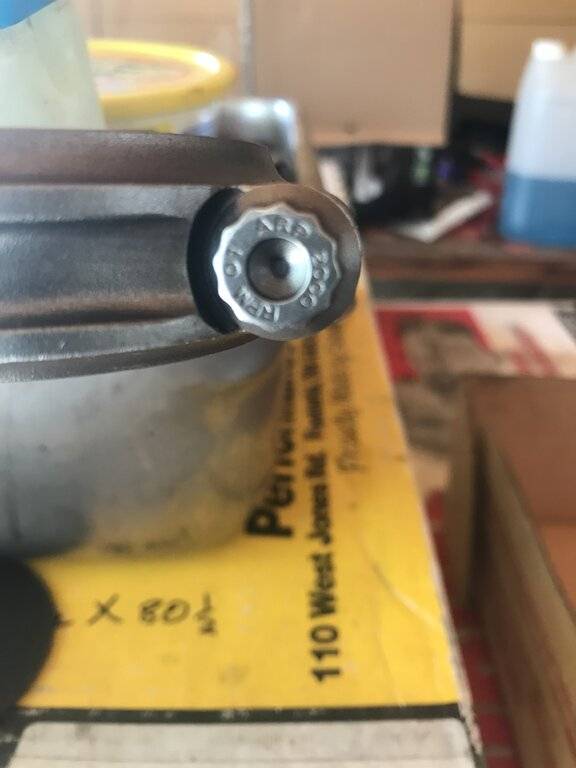

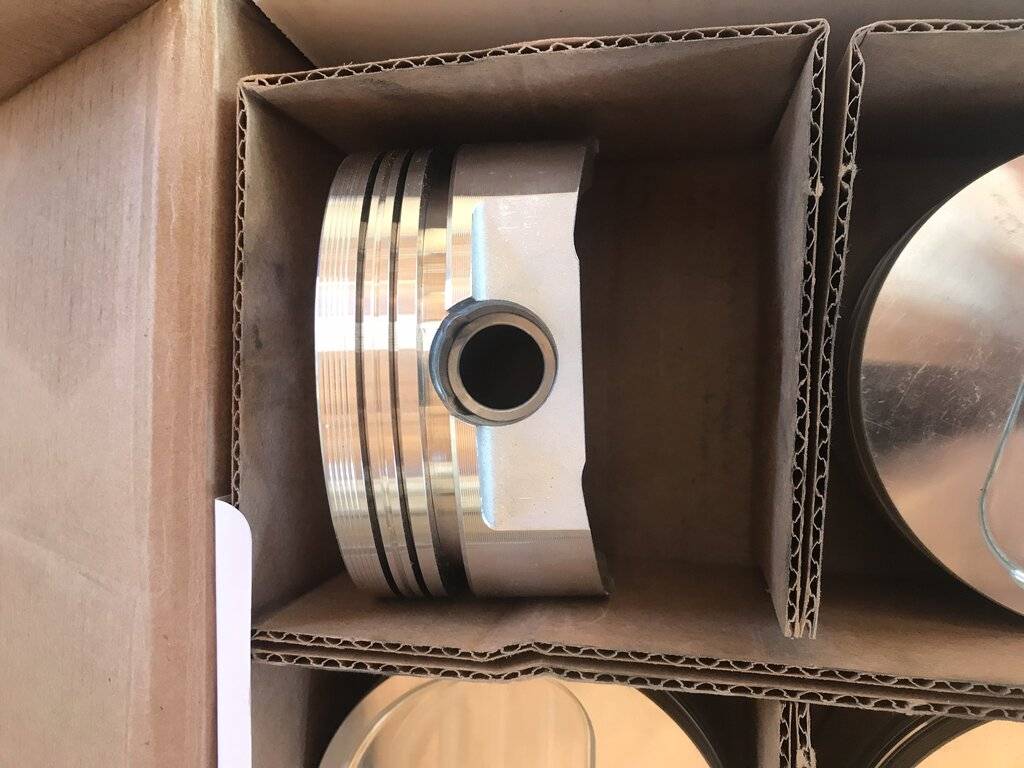

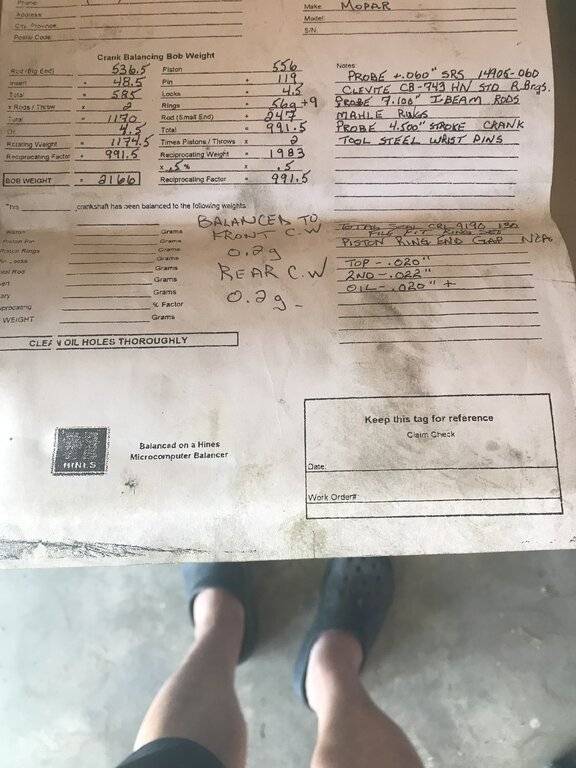

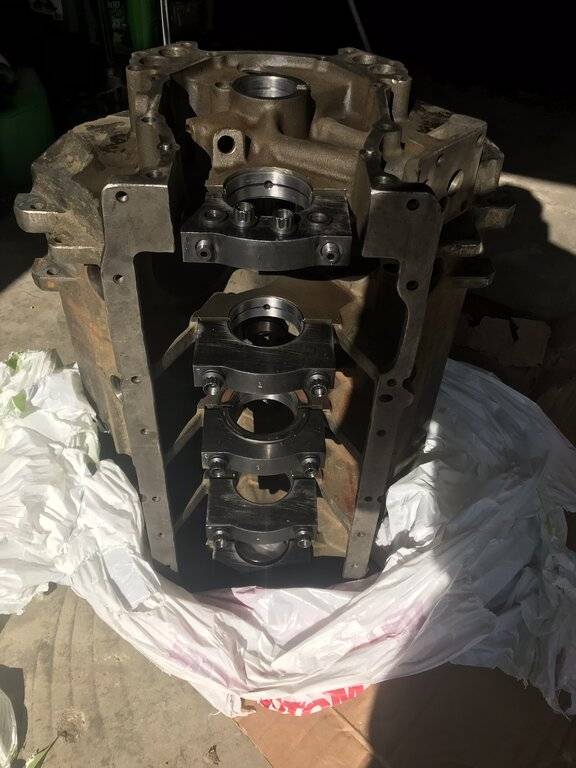

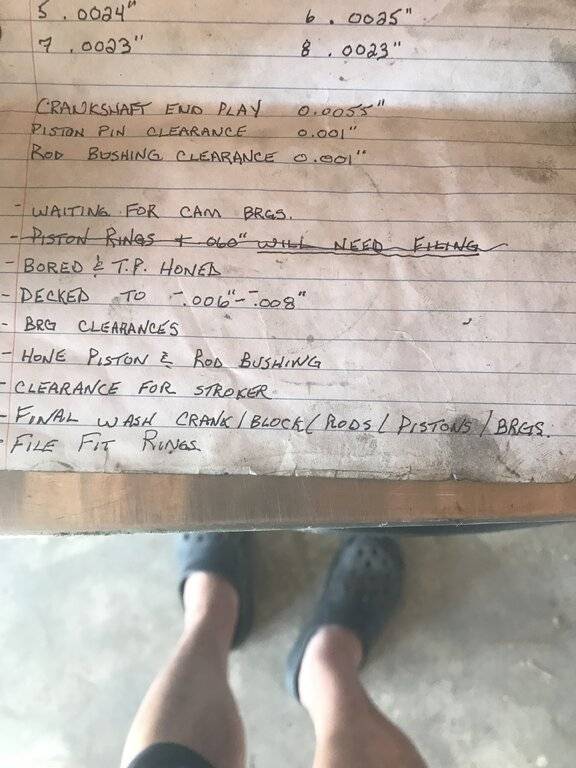

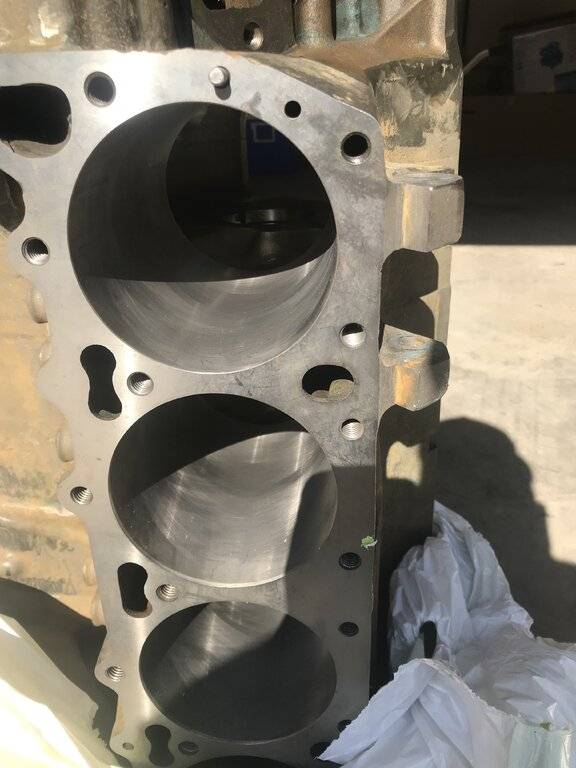

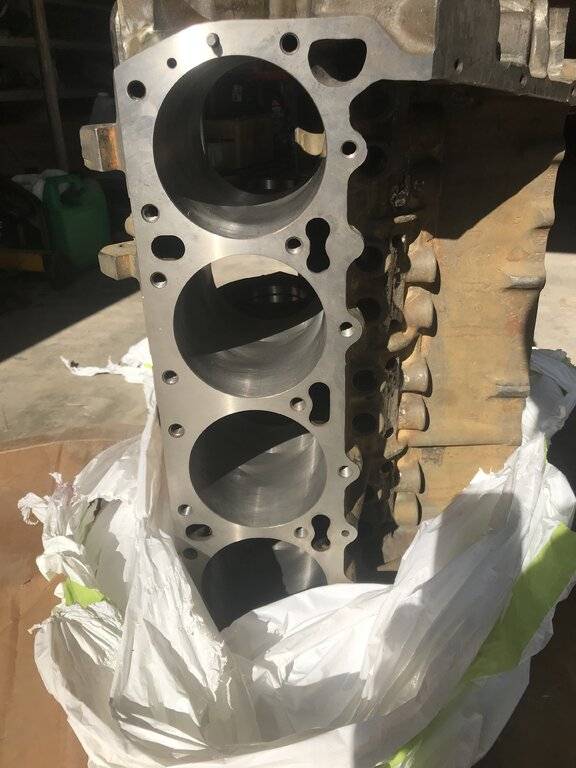

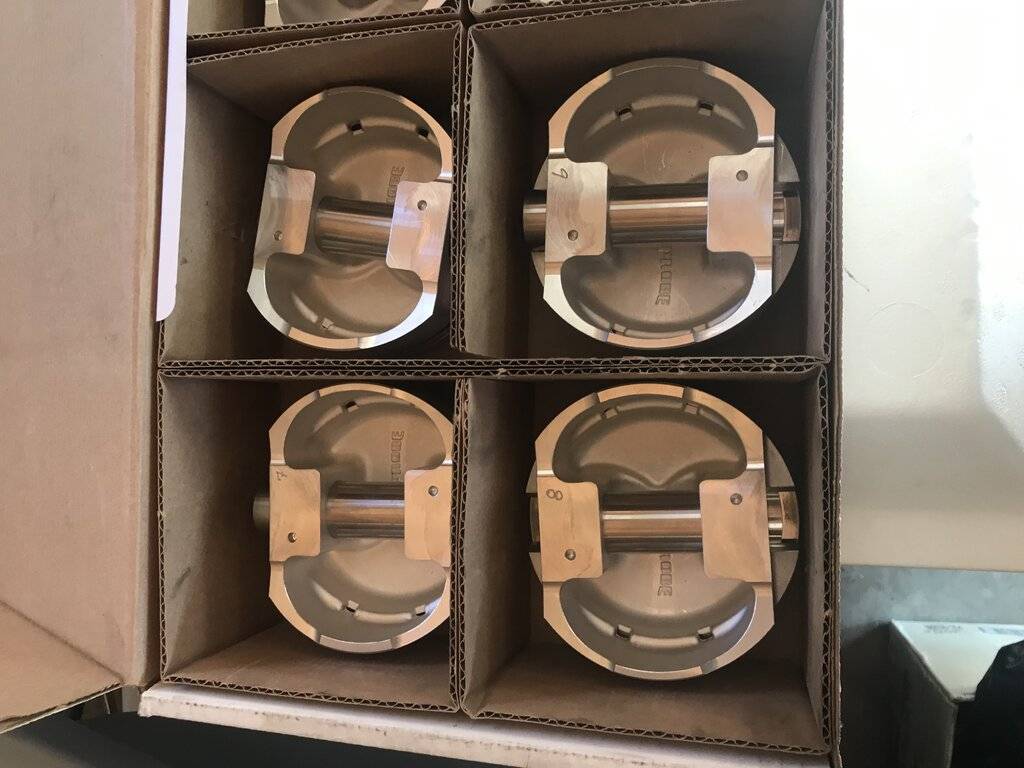

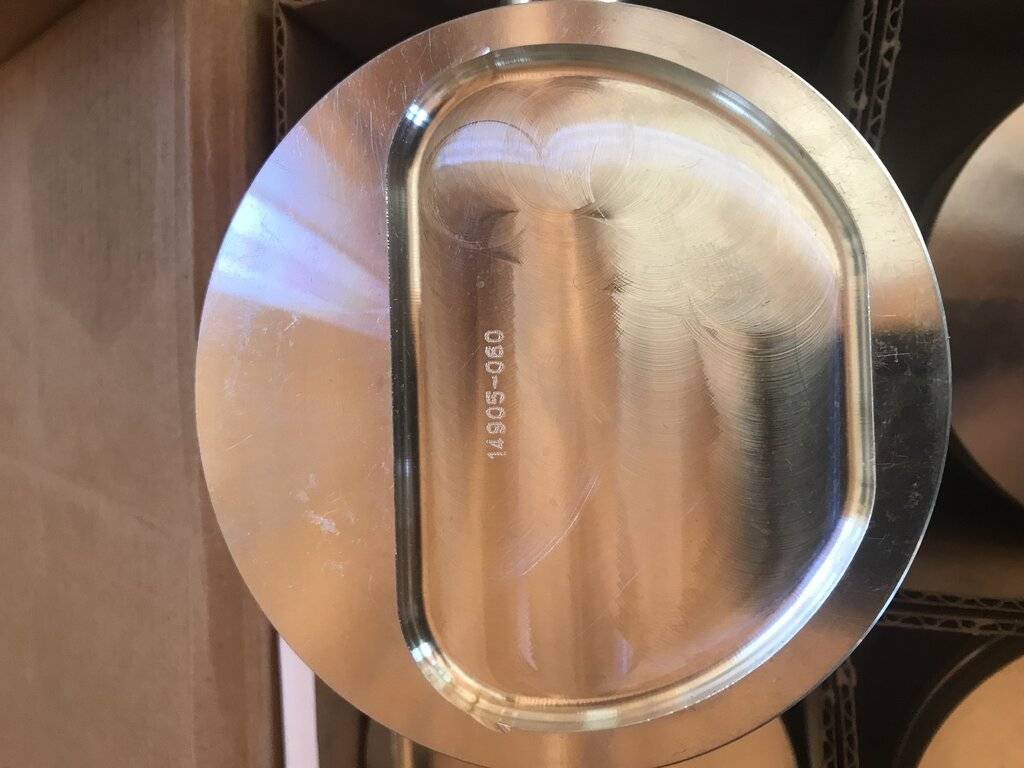

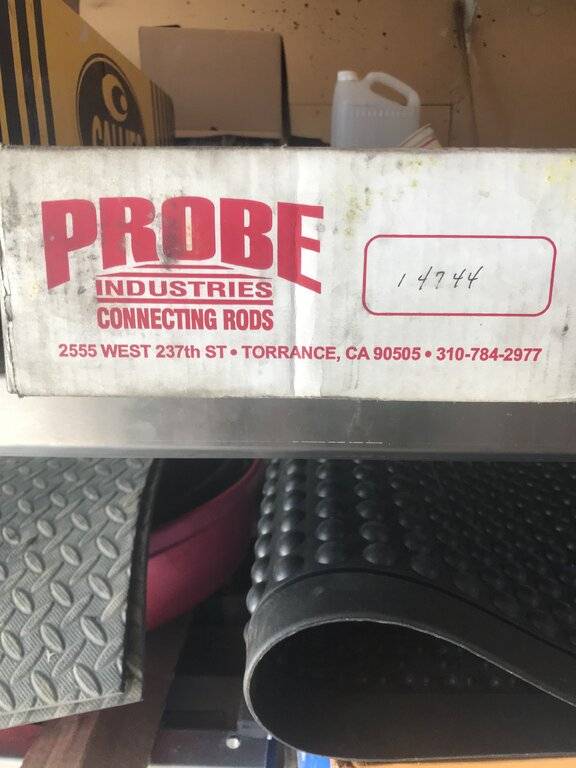

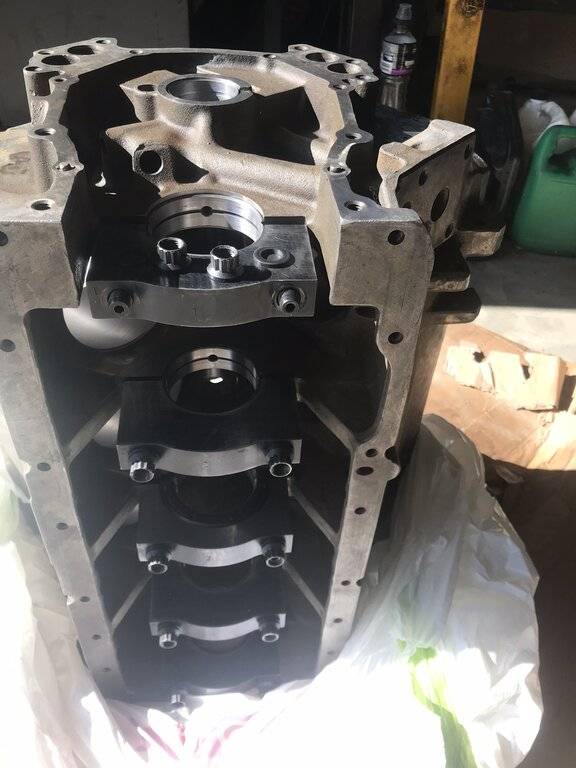

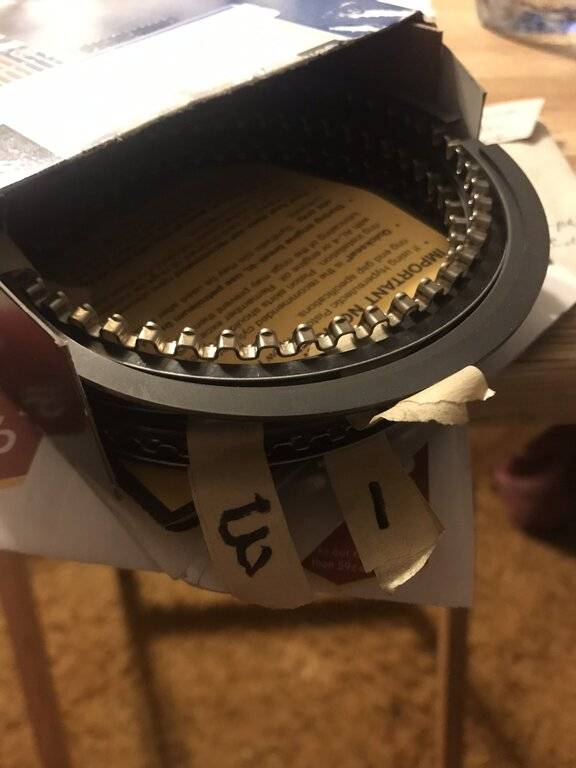

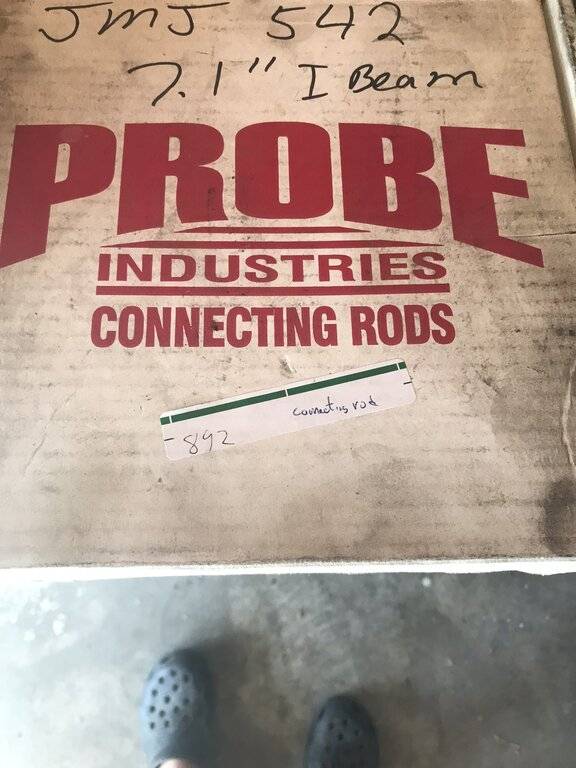

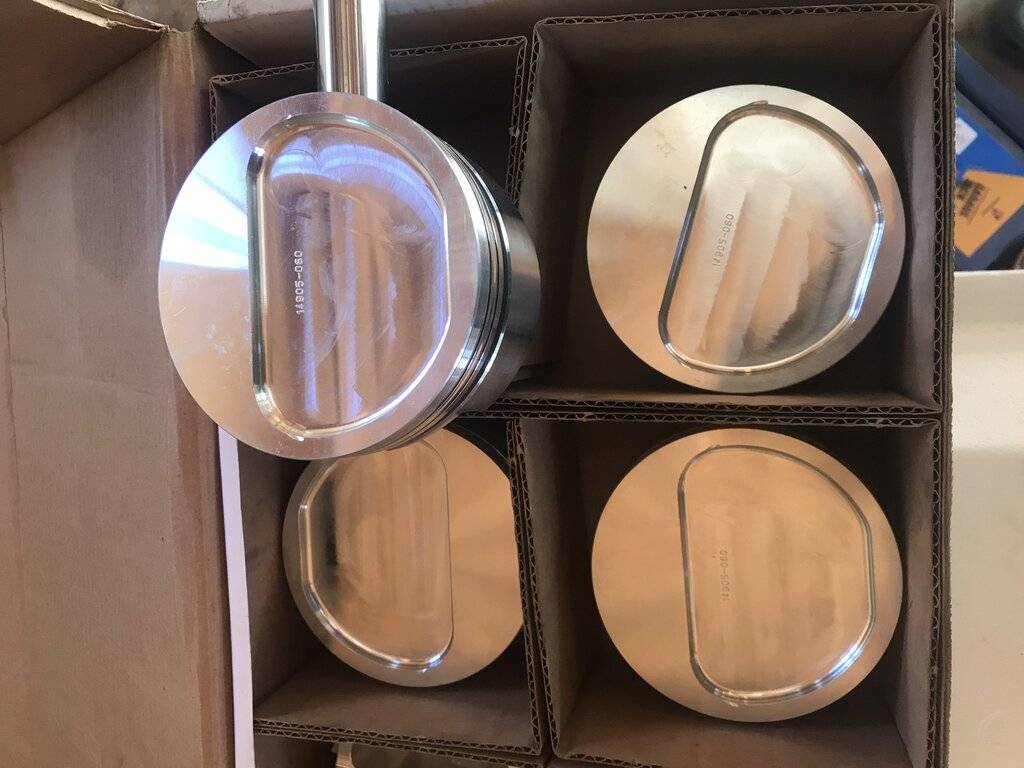

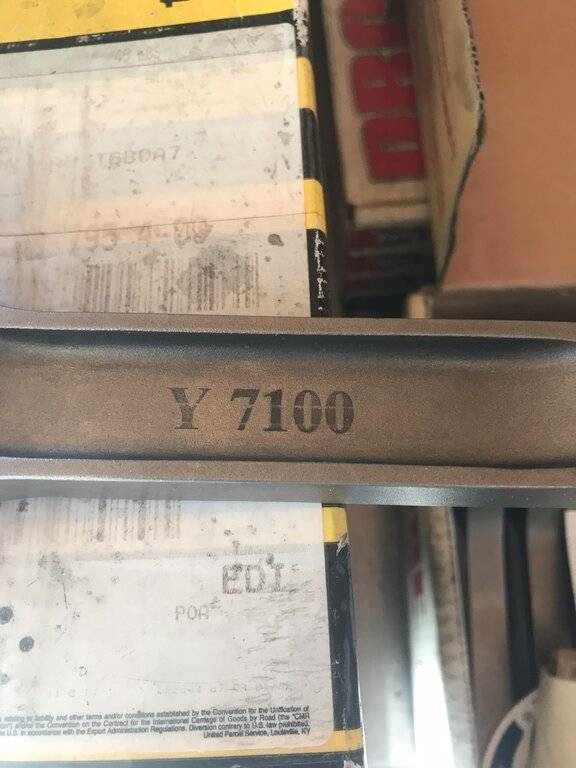

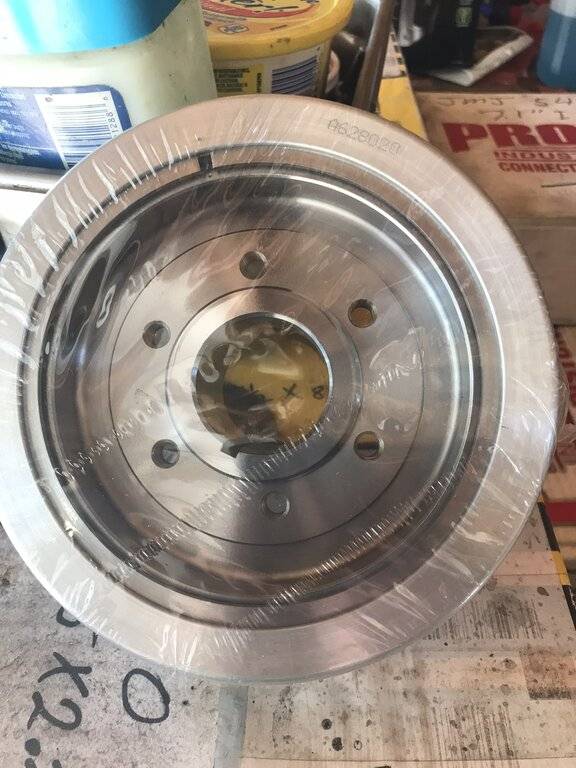

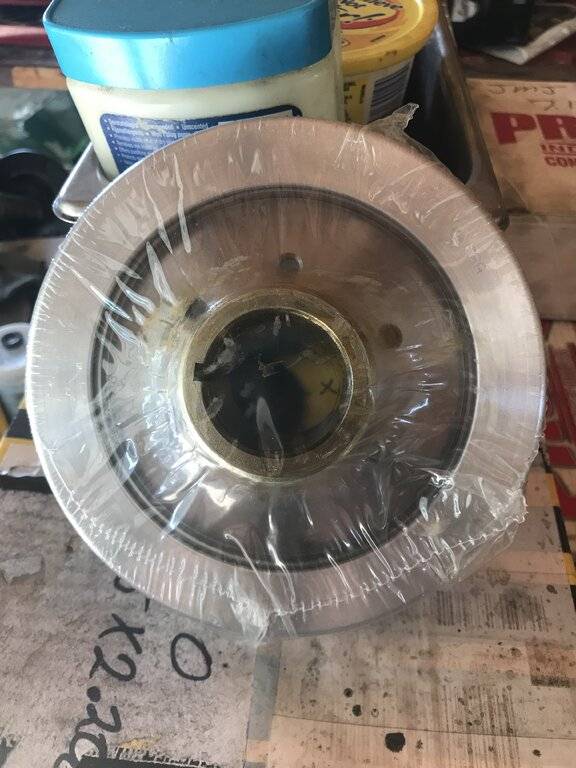

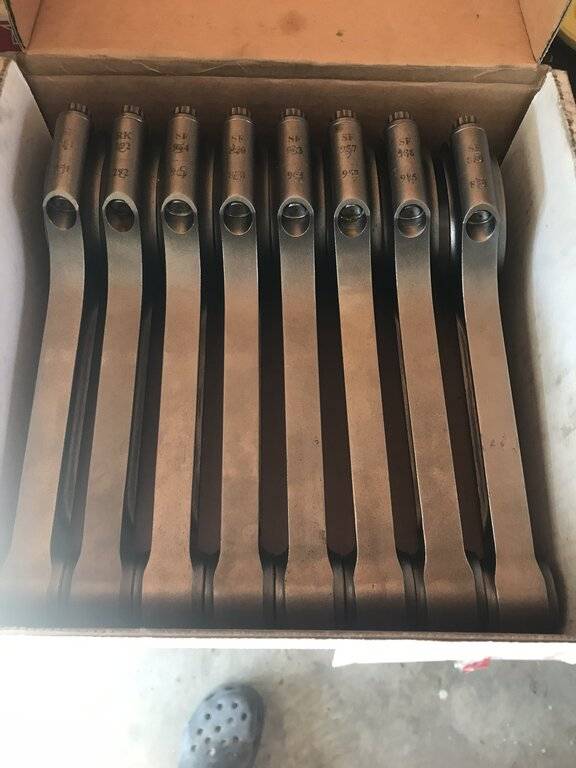

    Probe balanced rotating assambly. 11.0 to 1 with 75 cc heads and a .040 gasket. Reverse some pistons 4.380 bore. Honed with torque plates. Tool steel wrist pins. Total seal rings file fitted to each bore. 7.100 I beam rods Chevy size. 4.5 in stroke crank. Romac balancerBearings fitted to each rod and main. Line bored with billet main caps. Block clearanced for stroker. Parallel decked. $5500.00 usd plus shipping. Thanks. Kim











    Last edited: Jul 29, 2020
  2. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    More










  3. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    More











  4. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    I think I have collected enough parts to complete the build. Indy SR heads, cams, intakes, milodon single line oiling system Thanks. Kim

  5. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    Still for sale. Thanks. Kim

    • Like Like x 1
  6. livininharrow

    livininharrow Senior Member

    Rating - 100%
    1   0   0

    Messages:
    1,272
    Likes Received:
    380
    Joined:
    Jan 21, 2012
    Location:
    harrow canada

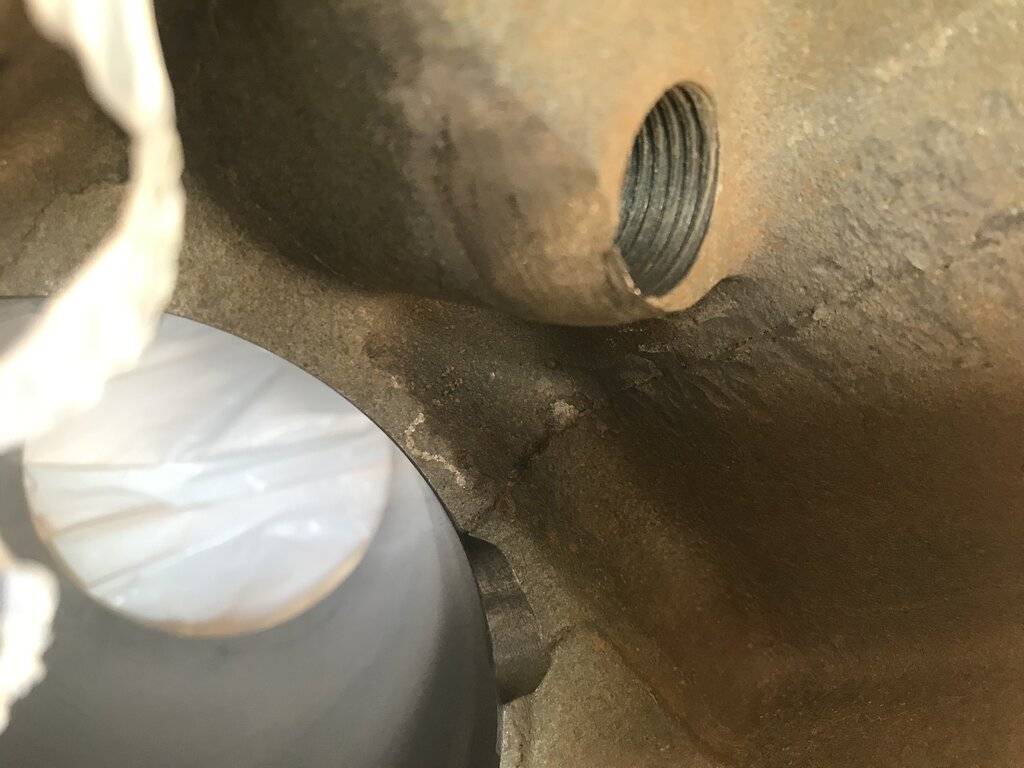

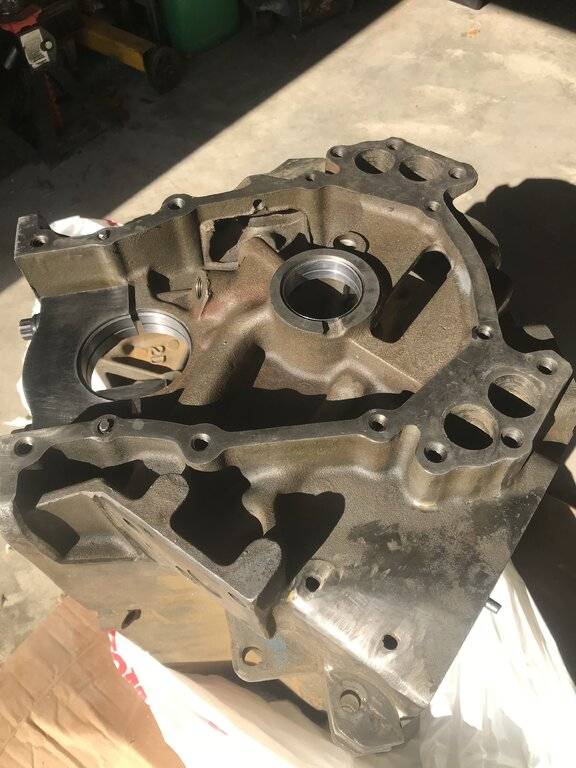

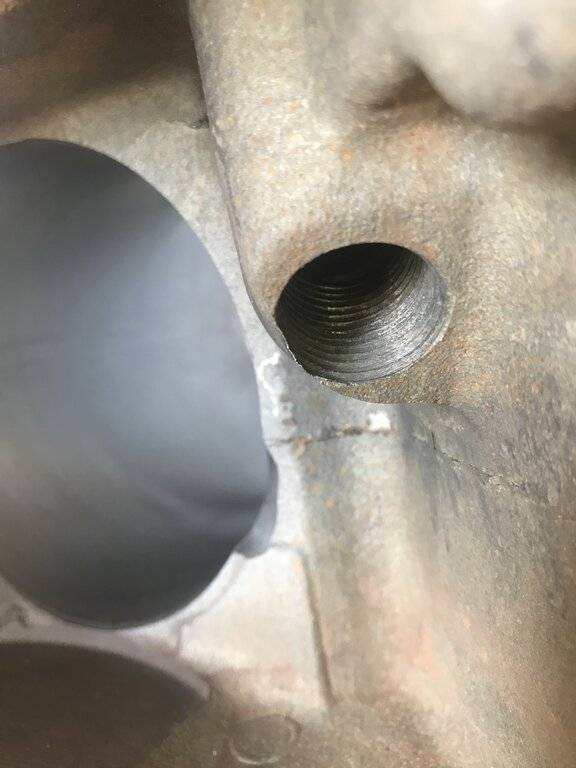

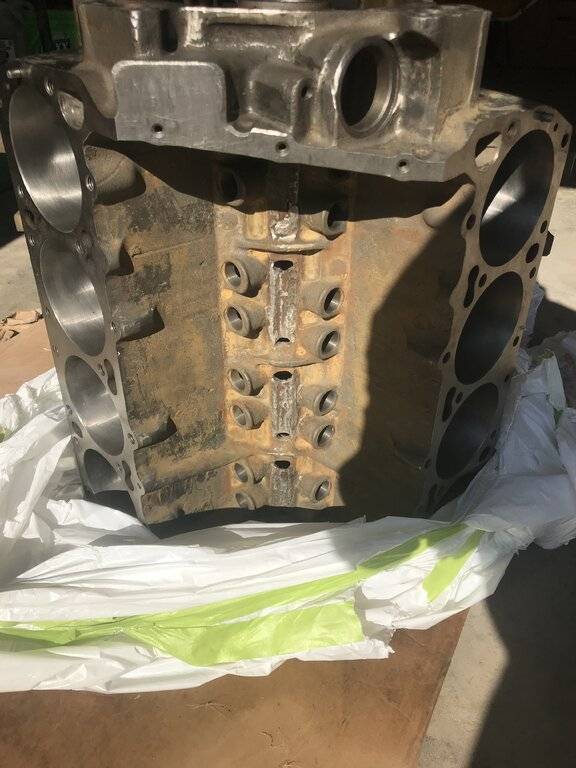

    Kim is that a major crack in the block in the last 3 photos or am i thinking of one of my exes?

  7. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    I don’t think so. The machine shop gave it a clean bill of health. I talked to them b4 I bought it. I’ll take it to my machinest and get it checked. Then we will know 4 sure. Kim

  8. livininharrow

    livininharrow Senior Member

    Rating - 100%
    1   0   0

    Messages:
    1,272
    Likes Received:
    380
    Joined:
    Jan 21, 2012
    Location:
    harrow canada
    i certainly hope it is all good. i was just a little concerned. cheers Paul

  9. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    I’ll find out in the next couple of weeks. Kim

  10. Gerald Morris

    Gerald Morris Senior Member

    Rating - 100%
    1   0   0

    Messages:
    1,203
    Likes Received:
    279
    Joined:
    Mar 9, 2016
    Location:
    Tucson
    After the effort in machining so carefully, a cracked block would be a huge buzzkill/ Good luck with this.

    • Agree Agree x 1
  11. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    Paul, I hope so too. Kim

  12. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    Gerald, hopefully all that work wasn’t a wasted effort. Kim

  13. Ripinator

    Ripinator Senior Member

    Rating - 100%
    5   0   0

    Messages:
    4,960
    Likes Received:
    2794
    Joined:
    Jul 31, 2013
    Location:
    Germantown, MD
  14. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    Ripinator, I sure were all wrong. Kim

  15. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Rating - 100%
    6   0   0

    Messages:
    13,734
    Likes Received:
    8556
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    That's not a crack.

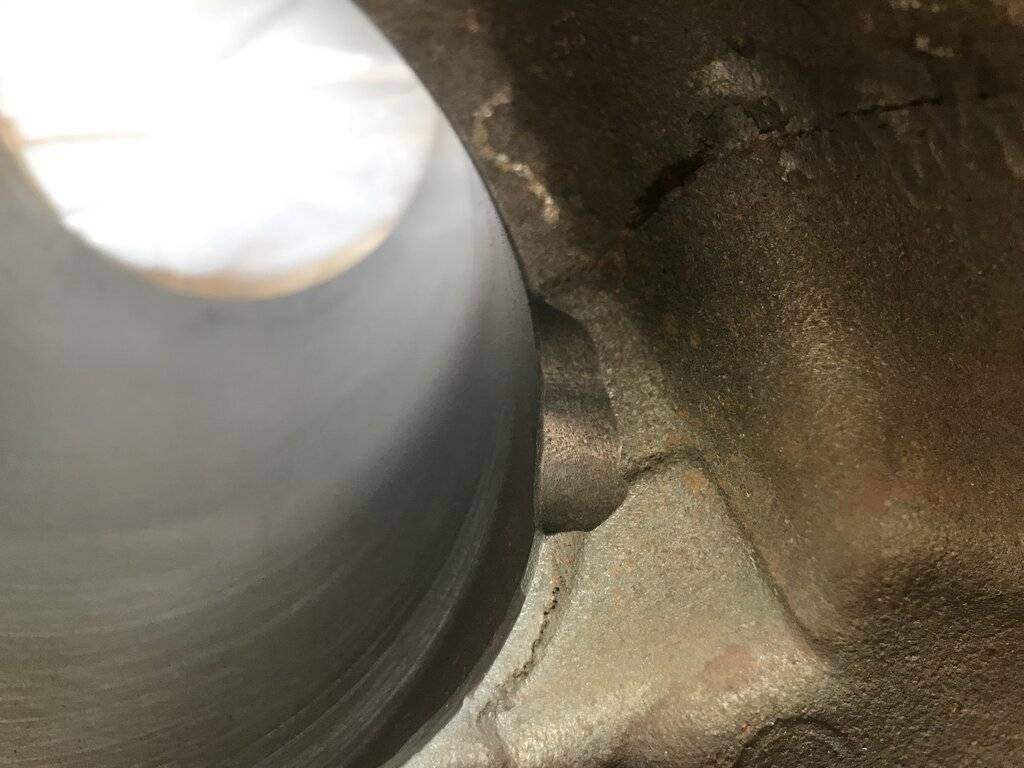

    That is a parting line from the sand casting cores meet. All of the 440 blocks that you see will have that line at that spot. Some will look better, some worse.

    If I were building it, and especially since I would have had the die grinder in my hand doing the clearances anyway, I probably would have cleaned them up a little, but some builders don't see the need to.

    If there was a crack that long in the spot it's in, the block would have self destructed a long time ago.

    • Agree Agree x 1
  16. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    Thanks Big_John. The machine shop checked it for cracks. Then sonic checked the bores. He said he would of never went any farther if it hadn’t passed those 2 checks. It is bored to 3.80 which is a .060 over bore. Kim

  17. furious70

    furious70 Well-Known Member

    Rating - 100%
    3   0   0

    Messages:
    950
    Likes Received:
    393
    Joined:
    Aug 18, 2018
    Location:
    Chitown
    If the block was sonic checked posting those numbers could help someone make a decision to buy

  18. fury fan

    fury fan Senior Member

    0   0   0

    Messages:
    2,258
    Likes Received:
    536
    Joined:
    Mar 30, 2013
    Location:
    Indianapolis
    It's not related to the sale or a criticism thereof, but FWIW:

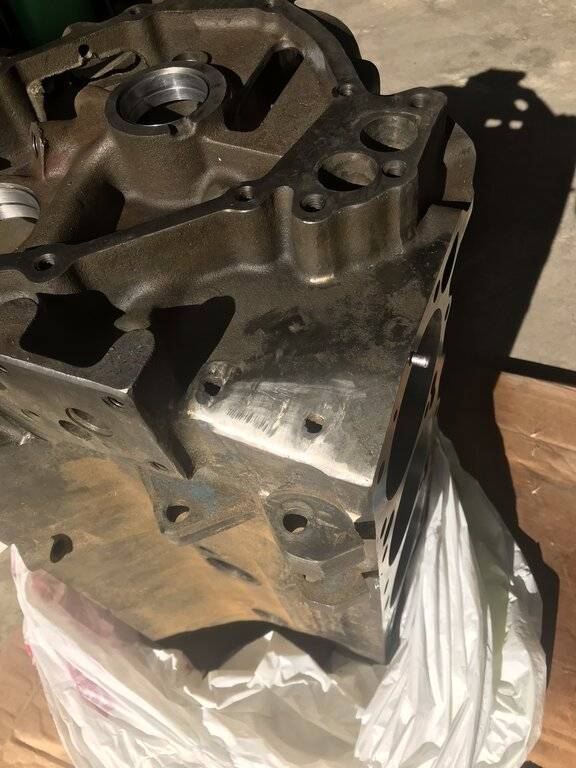

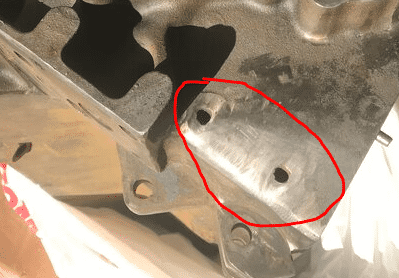

    Grinding down these 2 bosses prevents this block from installing in a 65 C-body or a late-60s A-body, or using the late 70s PS pump mounting. Would've been better to leave them.

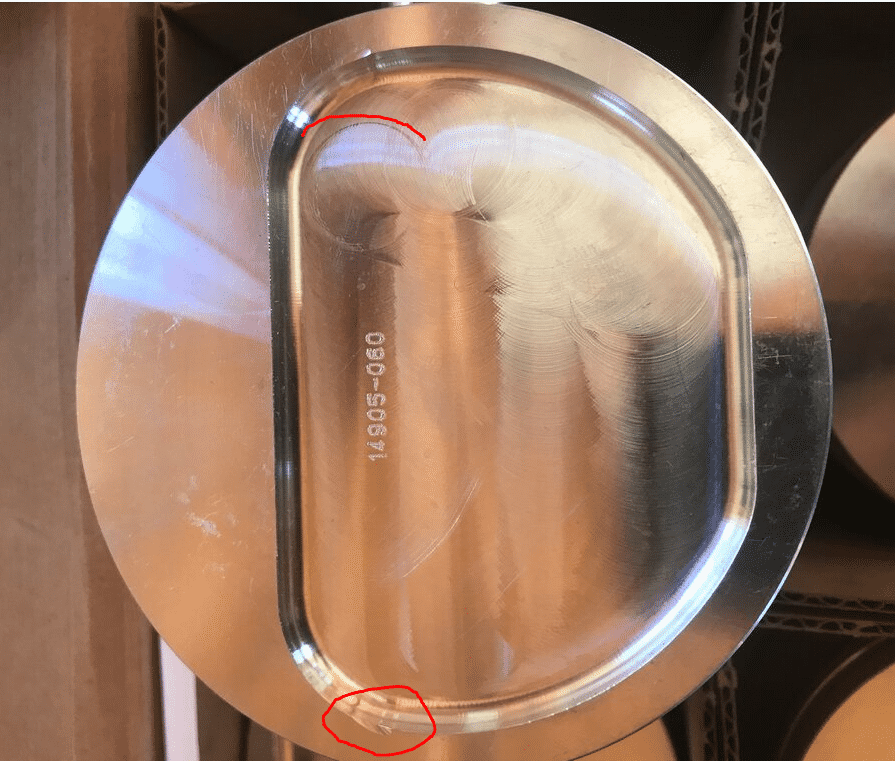

    Maybe it's just hte picture/lighting, but this machined dish looks like it has some edges that might lead to detonation hotspots.


  19. oldkimmer

    oldkimmer Member

    0   0   0

    Messages:
    162
    Likes Received:
    17
    Joined:
    Oct 30, 2019
    Location:
    Kindersley Saskatchewan Canada
    Every number was ground off the block b4 I got it. This is the story I got about the block. It is out of a 69 M code A body car that was totalled and being scrapped many years ago. B4 it got scrapped someone stole the vin and fender tag. He didn’t want it to get into a car that may be re created and passed off as original. I don’t know how true that is or have any way to prove it or disprove it. The old guy was gonna ceramic coat the piston tops b4 he passed away. Kim

  20. fury fan

    fury fan Senior Member

    0   0   0

    Messages:
    2,258
    Likes Received:
    536
    Joined:
    Mar 30, 2013
    Location:
    Indianapolis
    I've never seen a block get those 2 bosses ground like that, and leaving the threads visible was kinda odd if it was for appearances.
    That story does make sense, then.
