66 trunk divider

[darth_linux]

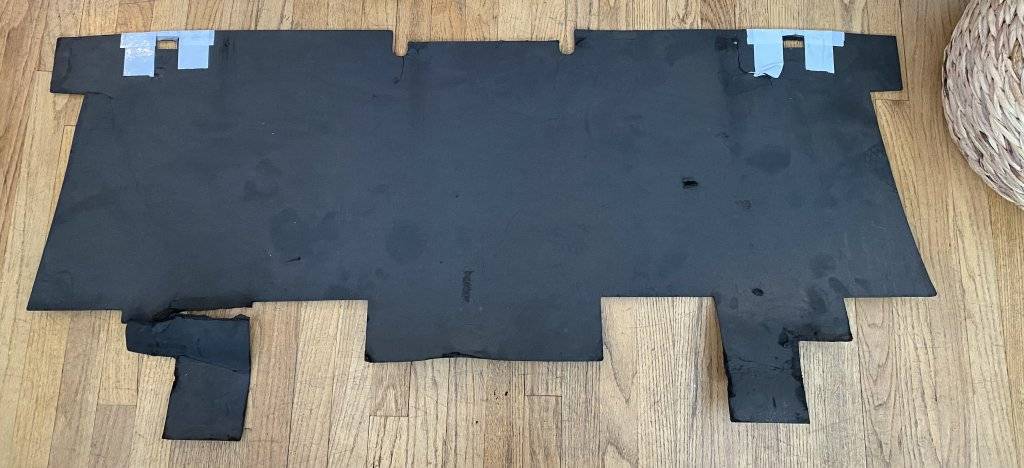

Measurements coming later today.



[darth_linux]

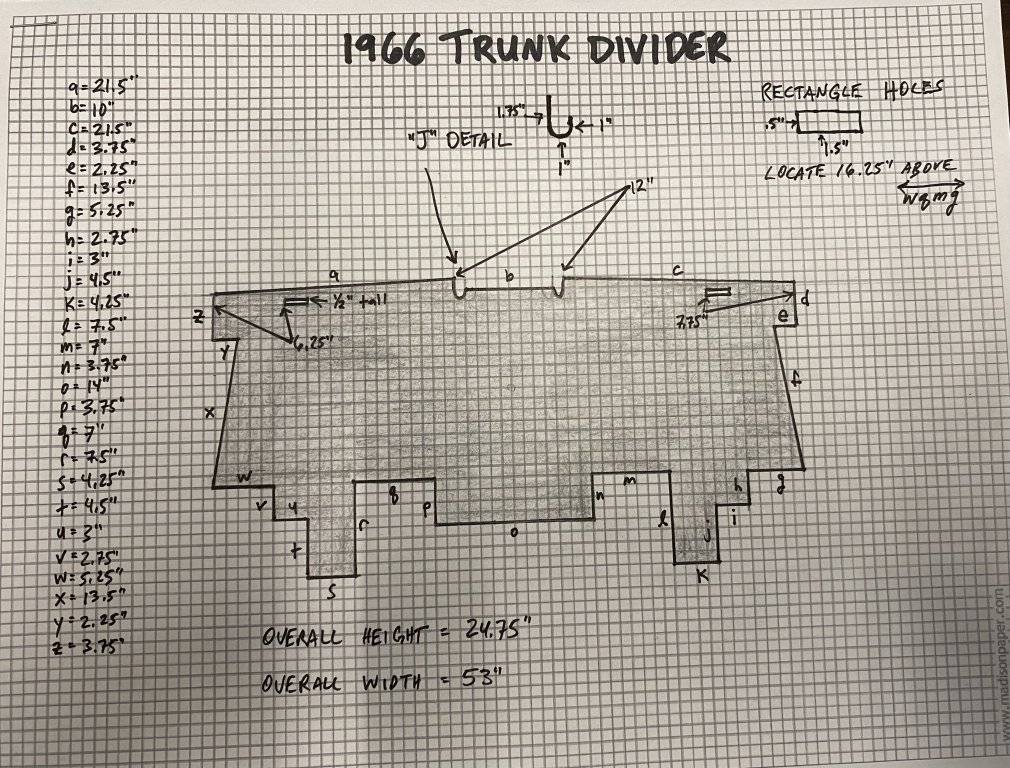

Here’s the diagram with measurements.



[69PHOENIX]

Well Done!
Not My Model But it Will Help Some One. Should Be More of It!
Another Fella Who, as My Old DA used to Say Whenever I Managed to Do Something Right.
"He's Bloods Worth Bottling, Even If It Is Only For Rat Poison!" LOL
Kind Regards Tony.M



[thethee]

Things like this will pop up in someone's internet search results. It's what led me to this forum in the first place!



[darth_linux]

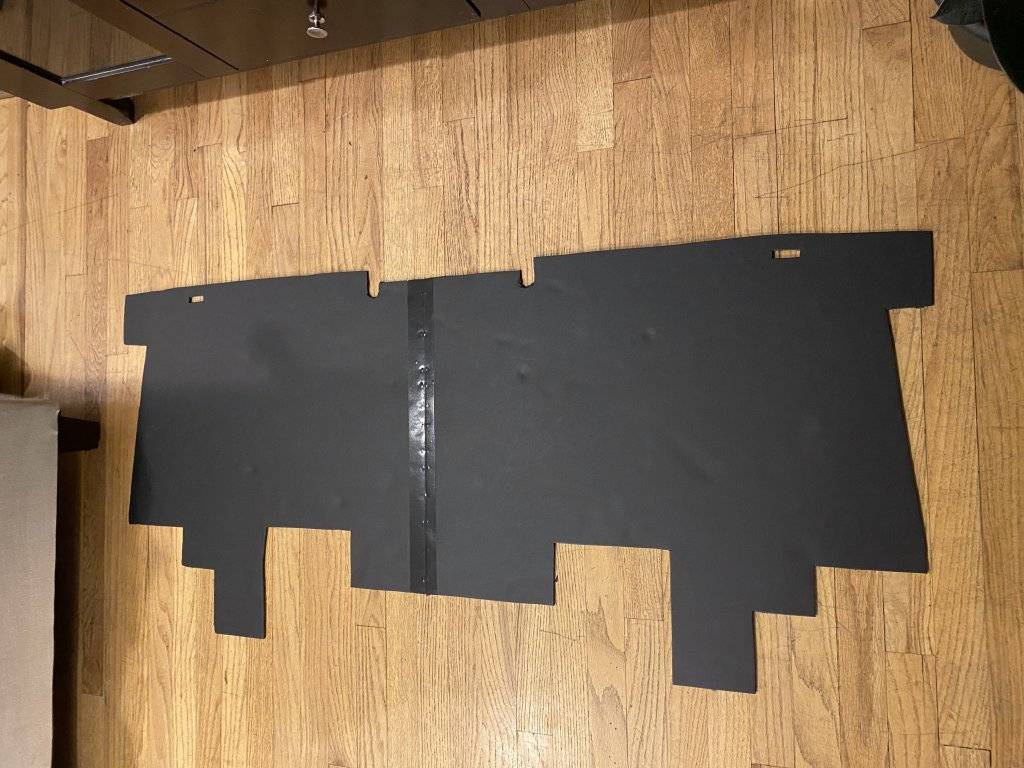

Here’s the final product;
