I started another turbo build....

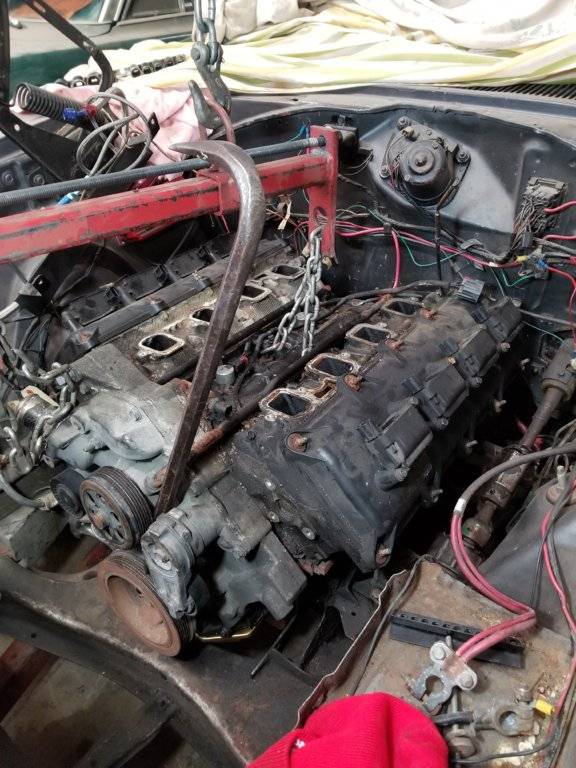

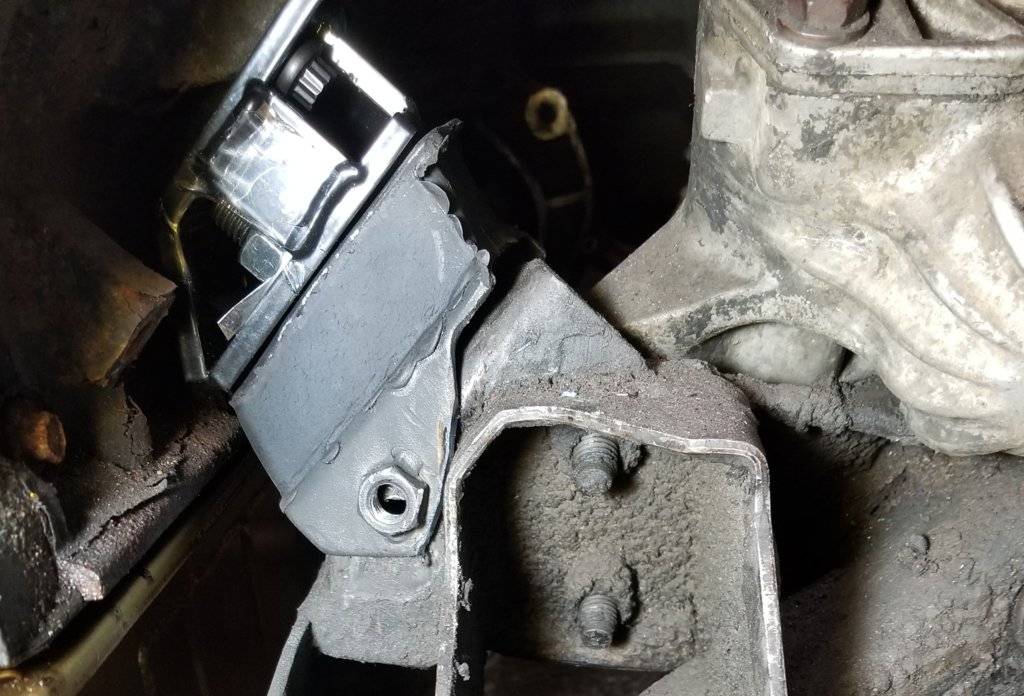

Cruddy hemi now meets high school restoration Coronet. Had to grind on the conversion mounts (need a little more yet)

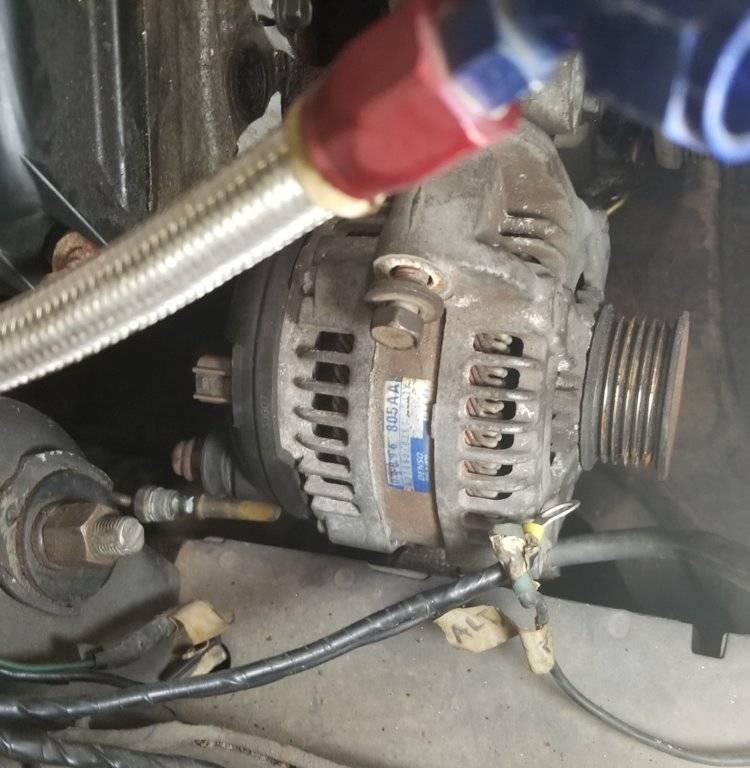

I was surprised the alt fit with the car FEAD, I didn't think they usually do, but it's going to be in the way of turbo plumbing. Figured I'd need a truck. FEAD from the start.

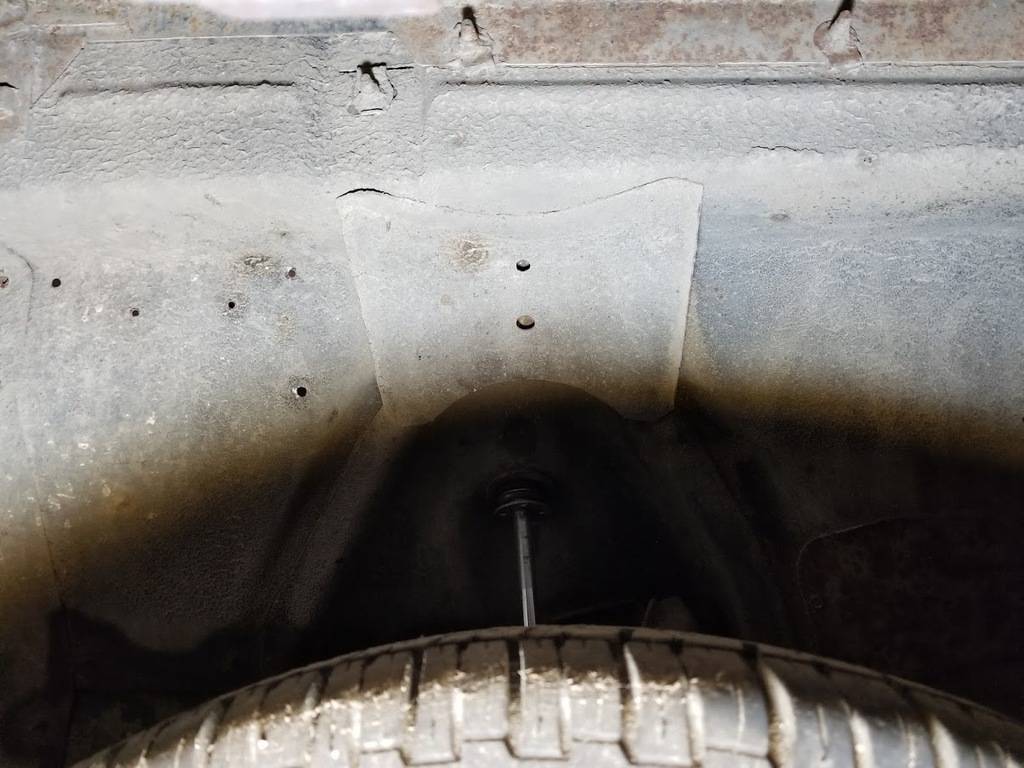

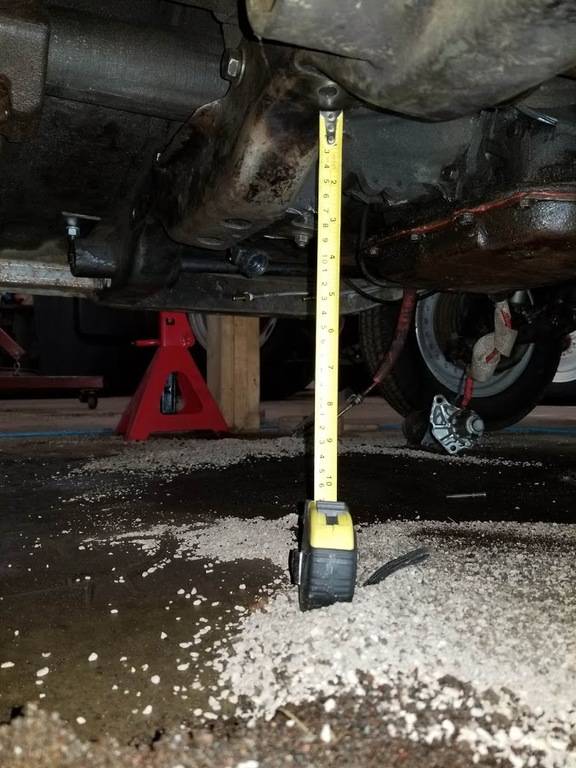

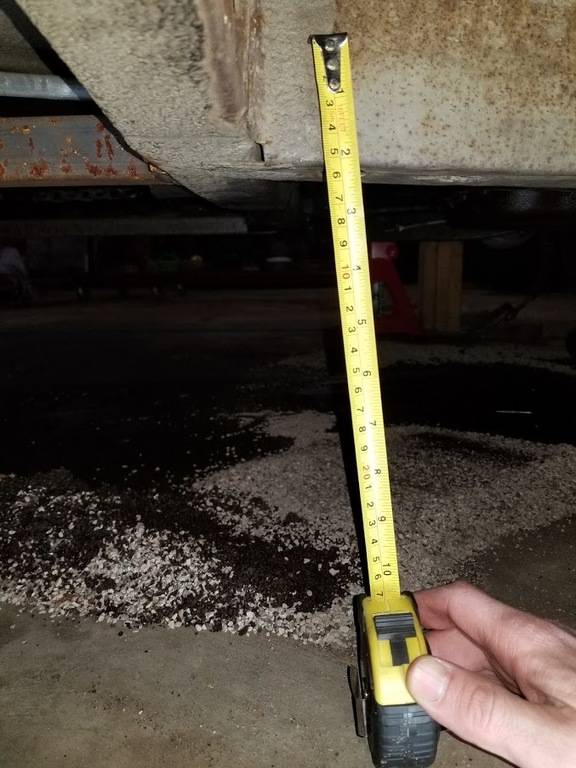

Been trying to figure out how to get a T6 framed turbo to best fit. They are big and the 5" downpipe trunk ain't no joke to snake around. I think the best bet is going to be a 45* placement, putting the turbo partway into the wheel well (~3" or so), and running the downpipe out there too. Not sure about whether to punch it back inside the well or cut and box the frame and floor to gain clearance to run it outside then in.
V97cqfnw0xCZgnaeL8aVNcQVjuoMnQRJ5GtkQl2mp3IzP94ONfgjdoigdz_hz8-W4EqFssEWOZhRPjKiqts=w678-h903-no.jpg

eA5k9pZKKwHzfq6njI2f8nhYYngIfSL4lLIga6BtHNWYzXsoNwxpQd_W0OMPxClz4YsL766VvY_dnKZVCQU=w678-h903-no.jpg

TOttBYO5erqwpBz039hMNJp9IsA-4NrWdpswBeFGxXu0E4JOw5CiqOwkoQzTxVpzYS1yM5ap3aX4hrhlKs=w1204-h903-no.jpg

Du736vQPgnNReexqm4wbE6b_EuY5uQRqkyPcAPp0iO1bKQJm9RLSkqhHGKAQYFqp20qlso6y3dw74GrbM60=w678-h903-no.jpg

ip5L9Ny0KOikZQKIqF1UJjCSc1uHOgRX8-jLBb8VN4OjPqGumc-oYDT7oay3GSKBWfzXGqvswC4Hb7nm6Vk=w678-h903-no.jpg

bvkwqW23QorI8U3WT1ZmLeLH_RYZoS0whI59lOQHE8ETyyB9incTOW1dAERWuebP1xJUZPjJomEaCTGuhFw=w678-h903-no.jpg

-dpK7GDaL3vJ0--jG6PyyxkAE3ovxnaWP9Tc5LsfeQKi-YPTcaZFY6ltJT9CfA11ti-11-9_mznTIioKmcw=w678-h903-no.jpg

6UlrOmbAnrGuOauc8p-UuUBX5VPdRgeHREl6JCgnu2N7iLMpCAQ1cSiQfhncdwHqsxR7NZGt03rfyL9tAuw=w678-h903-no.jpg

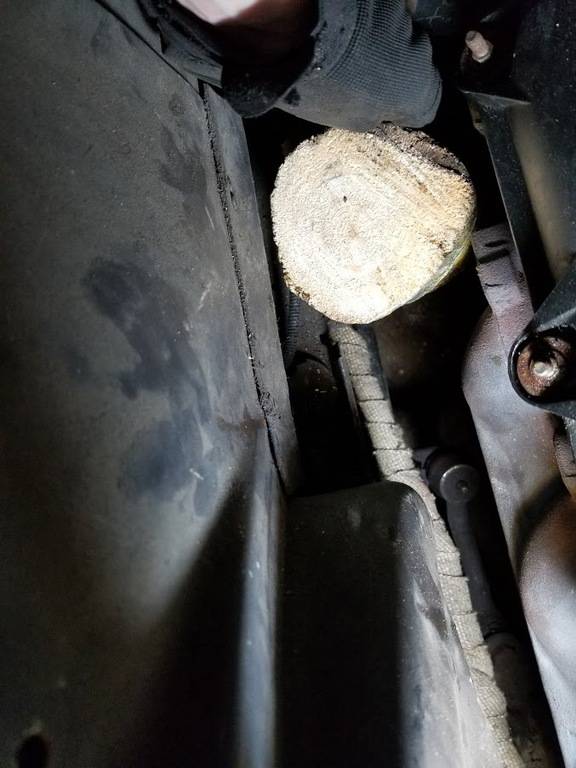

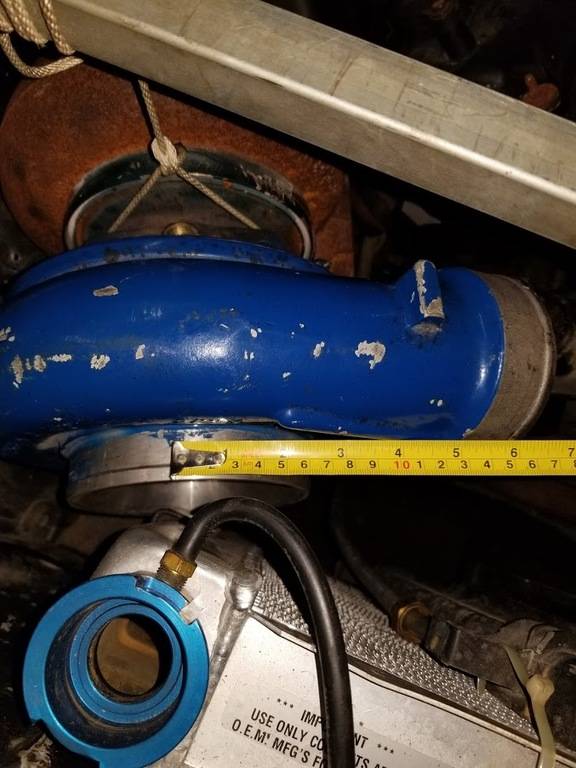

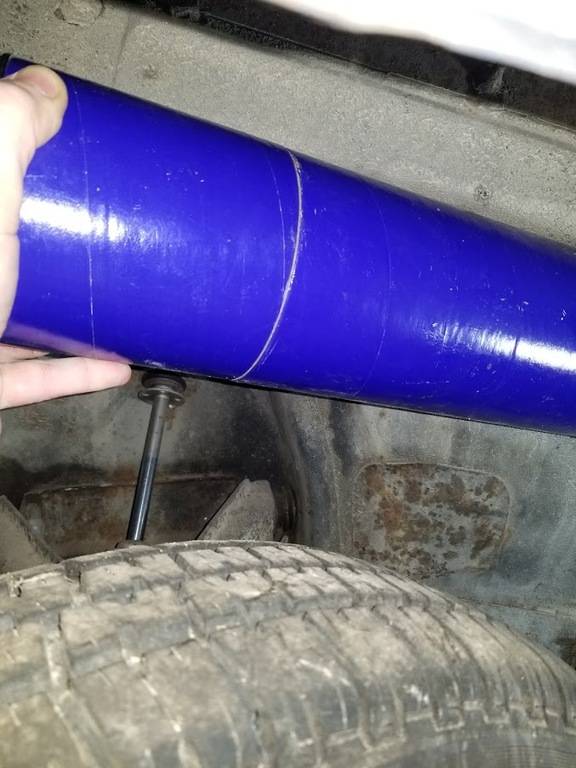

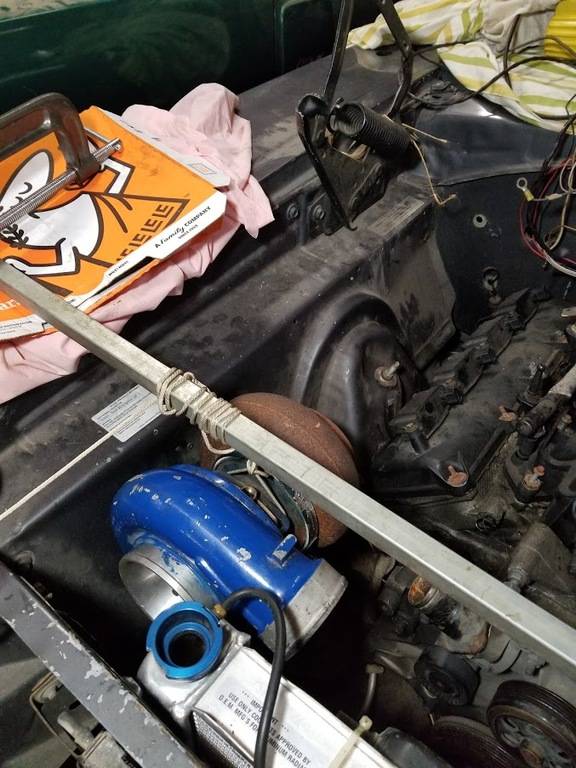

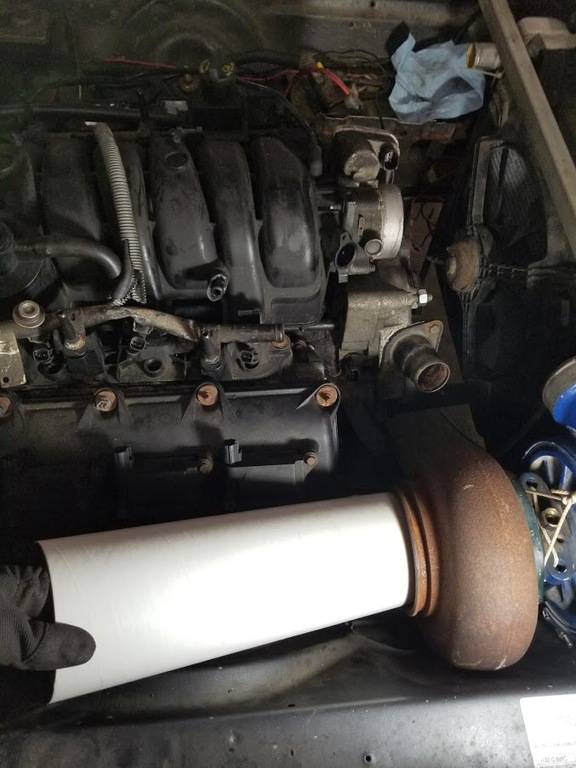

I run pizza cutters up front so that helps, quite a bit of room up there. Air 2 air intercooler routing could be a challenge but might be able to run a a water to air on the dr's side. The piece of wood was 4" pipe, the white and blue cardboard tubes are 5". Very sophisticated.

Last edited:
Been trying to figure out how to get a T6 framed turbo to best fit. They are big and the 5" downpipe trunk ain't no joke to snake around. I think the best bet is going to be a 45* placement, putting the turbo partway into the wheel well (~3" or so), and running the downpipe out there too. Not sure about whether to punch it back inside the well or cut and box the frame and floor to gain clearance to run it outside then in.
View attachment 364600
View attachment 364601
View attachment 364602
View attachment 364603
View attachment 364604
View attachment 364605
View attachment 364606
View attachment 364607

I run pizza cutters up front so that helps, quite a bit of room up there. Air 2 air intercooler routing could be a challenge but might be able to run a a water to air on the dr's side. The piece of wood was 4" pipe, the white and blue cardboard tubes are 5". Very sophisticated.


WOW! I Always admire guys like you. I'm still trying to figure out how to open this year old can of wax...:confused:

well, there's no magic for me. It's a lot of time standing there with a blank look on my face. I wish I had more loose ends around to trial fit. Though I have a wealth of that now having done the Fury, I actually had to cut up virgin pieces for the Fury to test, thereby wasting some stuff. You have to really focus on serviceability as well as fitment. It's one thing to stuff it in there, it's another to do it in such a way that you can actually R&R the parts and remove as little as possible to get to other pieces. Example here is running the downpipe out in the well, not only will that keep underhood cooler, it would make access to that whole side of the engine super easy - even so much as to be able to remove the engine without having to remove the turbo or downpipe.

When a T6 is going to require more work than you want - buy a next gen T4 that should be worth 100hp more than I plan to use.

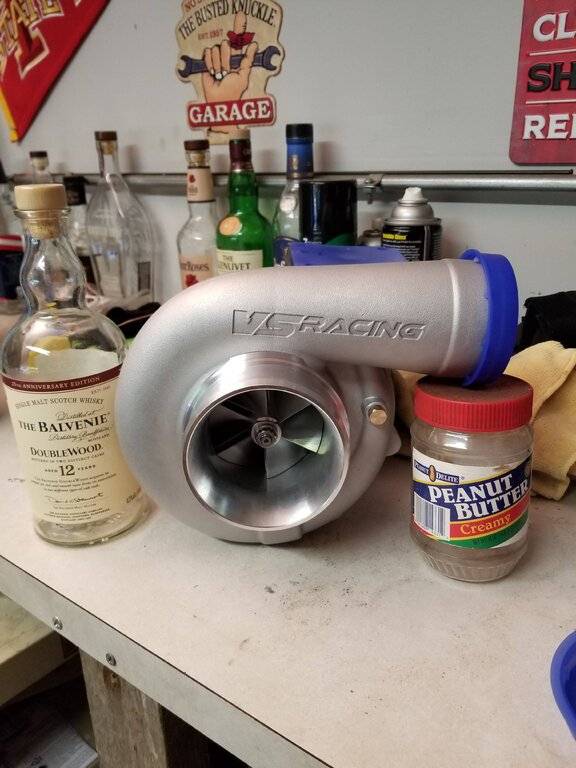

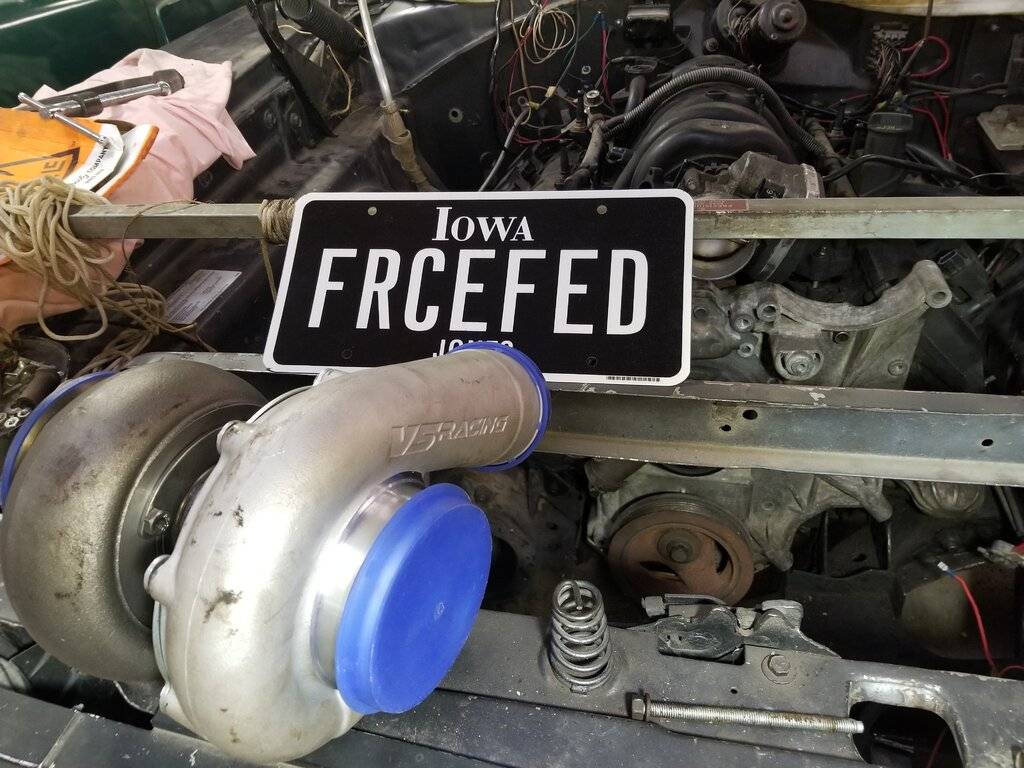

Well, I got the hard part of the project done, the vanity plates finally came! (Had to go with my second spelling choice)

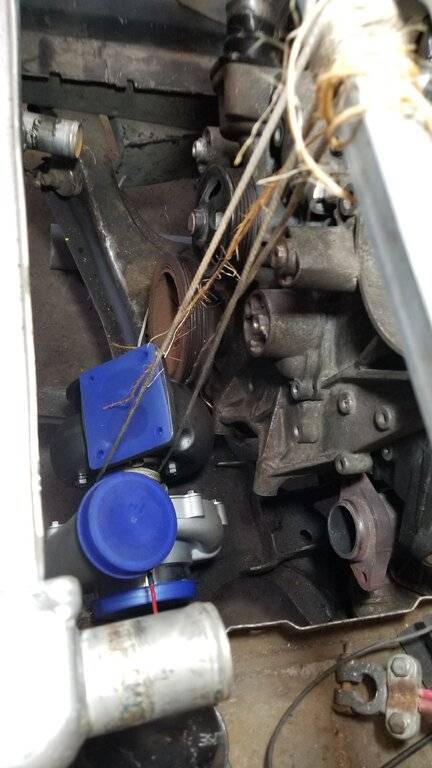

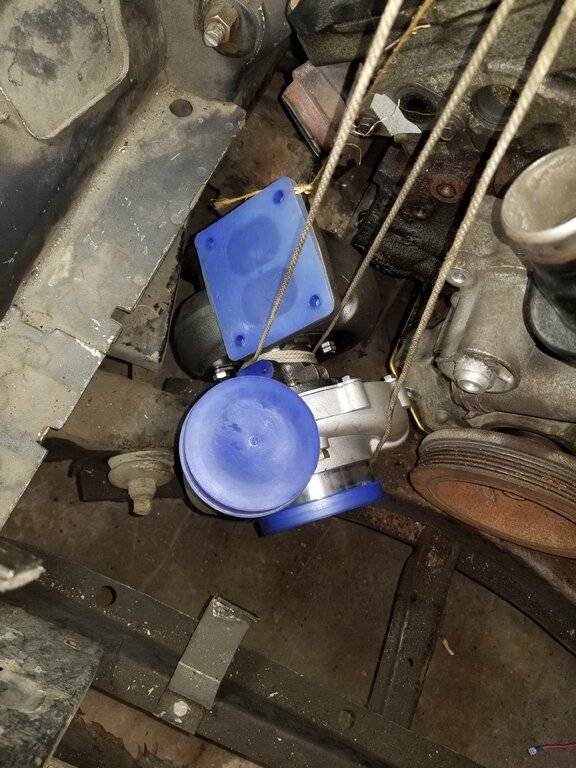

I haven't updated at all through the summer but I did a lot of trial fitting trying to find the best turbo placement to ease fabrication and maintenance. It's very easy to get started only to find out you put the BOV in a place you can't actually get a wrench on or as I did with this one, got really excited about a low mount position, forgetting I didn't have an oil filter on it...




I'm pretty sure I've got the best plan sorted out:
A wrinkle with the hemi vs BB is the exhaust isn't symmetrical, to run manifolds flipped forward you have to drill and tap for the bolts. That is ok once maybe but not if I start to go through engines over time.
I'm ok with cutting the fender wells, it's a 318 car. So the turbo will go in a conventional location, down pipe out into the well, down under the frame and back into the cross member. Manifolds go as normal, hot side goes low on pass side.

The fairly narrow, and structural inner fenders on the B body platform isn't helping on this one.

At least you don't have to be concerned with spark plug access down low like you would with a big block.

Jeff

Yes, on my Fury with the upside down van manifolds you access the plugs from underneath, it's actually not bad, certainly not worse than a B body with 1 7/8 or 2" headers. The hemi does make it easier and one of the major reasons for running the downpipe out in the well is to not run it up and over the valve cover like most of these builds do.
If I was on an adventure to cert the car to 8.50 then the inner wells would come completely out and the turbo would just hang out in space like all the NPK cars do it now.

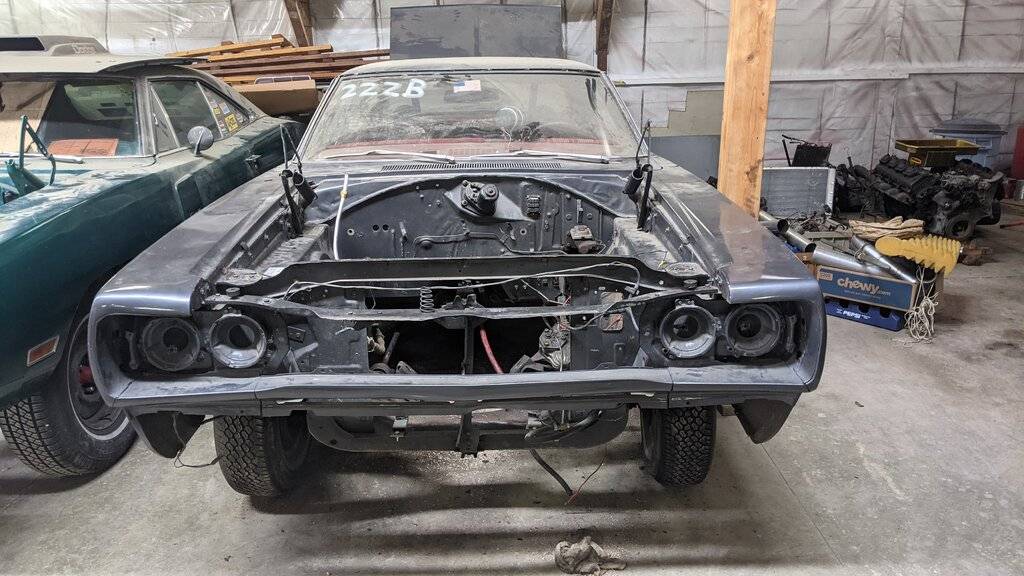

Change of the order of things, I'm able to get it into a friend's body shop this winter so I stripped it down. Will get the new to me 383 in the fury over the winter instead
