1962 Chrysler newport four door sedan

AngelCalderon

New Member
Joined
Aug 22, 2022
Messages
13
Reaction score
4
Location
hamilton
Hello my name is Angel Calderon I am 25 from new jersey , thank you for allowing me to join the group. I have a 1962 Chrysler newport four door sedan that I have been slowing restoring for the past 4 year's. This is my first classic car and I am a beginner but on the bright side I am mechanically inclined and I've worked at a couple body shops and learned a decent amount. I have to repair the floor on the driver and passanger side near the frame bolt's and I am going to repair it. I was wondering how to get the body off of the frame thank you.


AngelCalderon

New Member
Joined
Aug 22, 2022
Messages
13
Reaction score
4
Location
hamilton
Hello, do you know where I can find out how to Lift my car off of the frame? Mainly the bolt locations


413

Senior Member
Joined
Jan 28, 2019
Messages
1,402
Reaction score
1,547
Location
NW USA
Front subframe held on with 4 bolts, the rears are visible in the posted photos. The fronts are seen under hood, a large stantion is welded to the firewall and goes down to the subframe.

Not that simple to remove the subframe. Everything is mounted to it. Core support, engine, exhaust, steering box/column/pump, torsion bars trans crossmember.


Last edited:

SGT FURY

Senior Member
Joined
Nov 18, 2019
Messages
1,902
Reaction score
2,421
Location
Northern California
I’m currently swapping these sub frames on 62 Chryslers. There is much work involved.
Pulling steering columns is not easy work with motor in.
I would remove seat and carpet
Cut out affected area.
Weld in replacement piece. Done!
Big M auto in Williams California has many 60-64
Parts cars and should have the body mount metal.

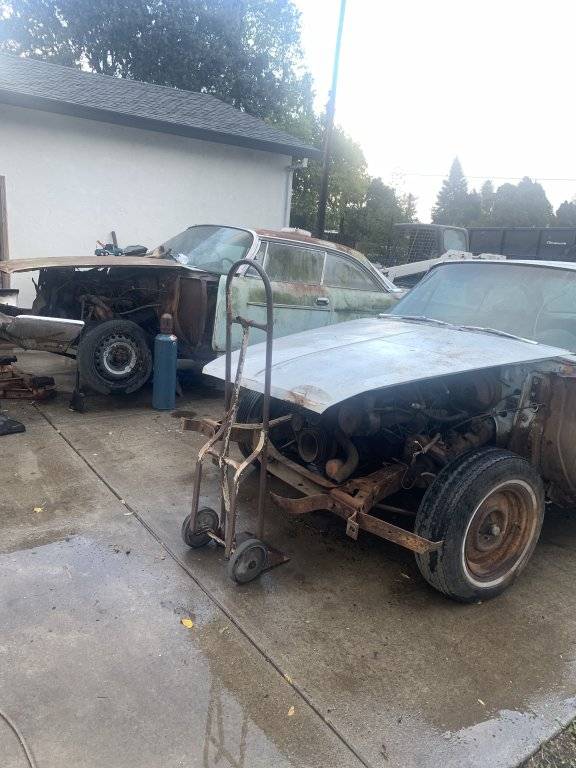

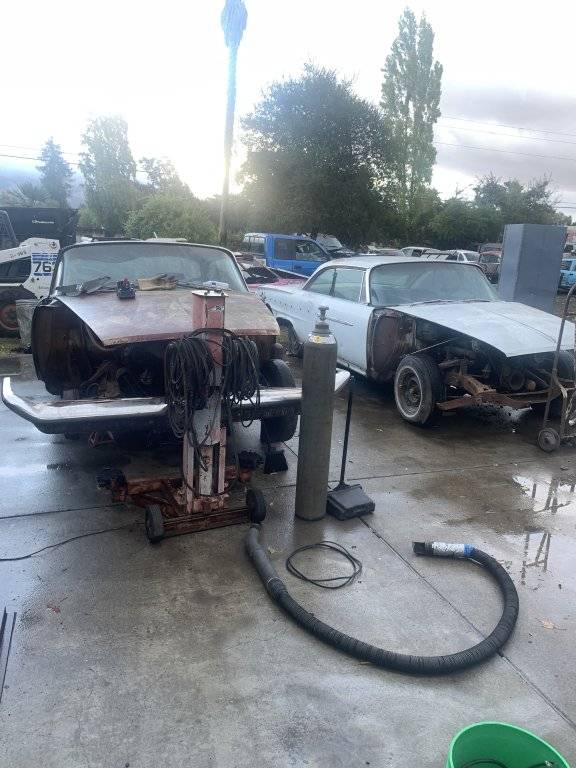

I have to replace the same area on a 61 Plymouth soon. Will post pics when I do.





AngelCalderon

New Member
Joined
Aug 22, 2022
Messages
13
Reaction score
4
Location
hamilton
I’m currently swapping these sub frames on 62 Chryslers. There is much work involved.
Pulling steering columns is not easy work with motor in.
I would remove seat and carpet
Cut out affected area.
Weld in replacement piece. Done!
Big M auto in Williams California has many 60-64
Parts cars and should have the body mount metal.
I have to replace the same area on a 61 Plymouth soon. Will post pics when I do.

View attachment 560846

View attachment 560847
Thank you so much I will be contacting them next week your the man!


AngelCalderon

New Member
Joined
Aug 22, 2022
Messages
13
Reaction score
4
Location
hamilton

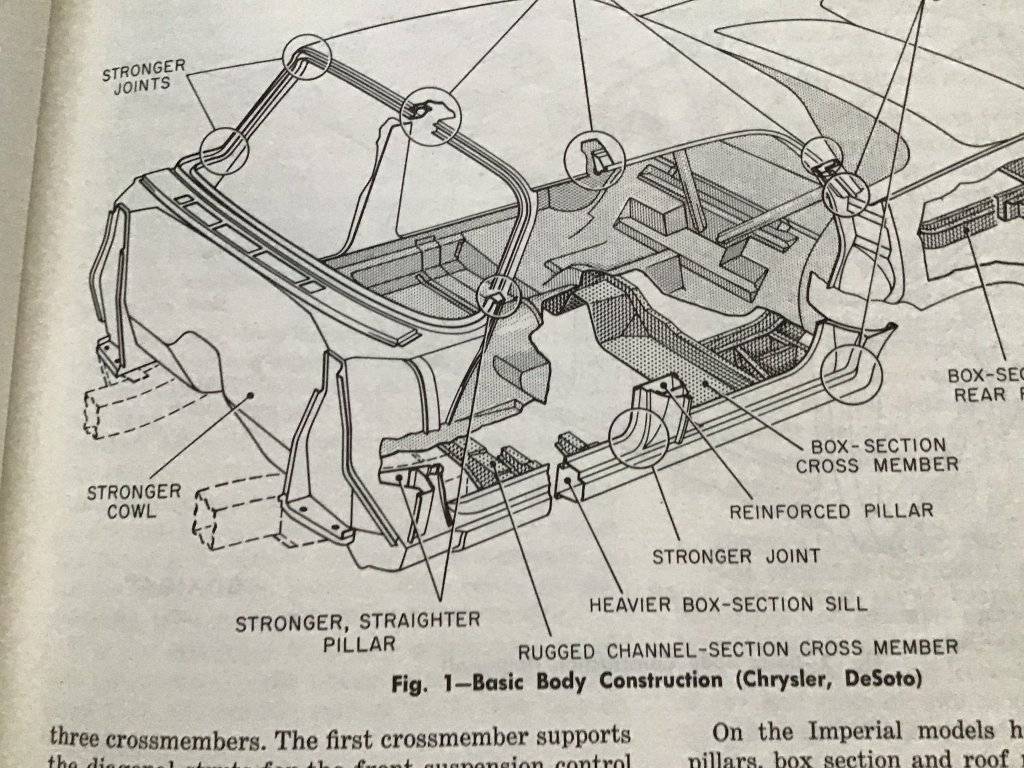

Thank you sir I love the diagram and the knowledge you were a great help.
Front subframe held on with 4 bolts, the rears are visible in the posted photos. The fronts are seen under hood, a large stantion is welded to the firewall and goes down to the subframe.

Not that simple to remove the subframe. Everything is mounted to it. Core support, engine, exhaust, steering box/column/pump, torsion bars trans crossmember.

View attachment 560821
