Advice on 66' Plymouth VIP radiator after market

Early C Bodies - The Slab Side Years

  1. rsh1966vip

    rsh1966vip New Member

    Messages:
    12
    Likes Received:
    5
    Joined:
    Jan 4, 2021
    Location:
    Jackson Tn
    I need a new radiator for my 1966 Plymouth VIP (which I guess is just like a Fury). I have bought a Champion radiator for my 66' F100 and it worked. However, the 66' Plymouth has an automatic transmission that will need to connect up, so it is a little more complicated.

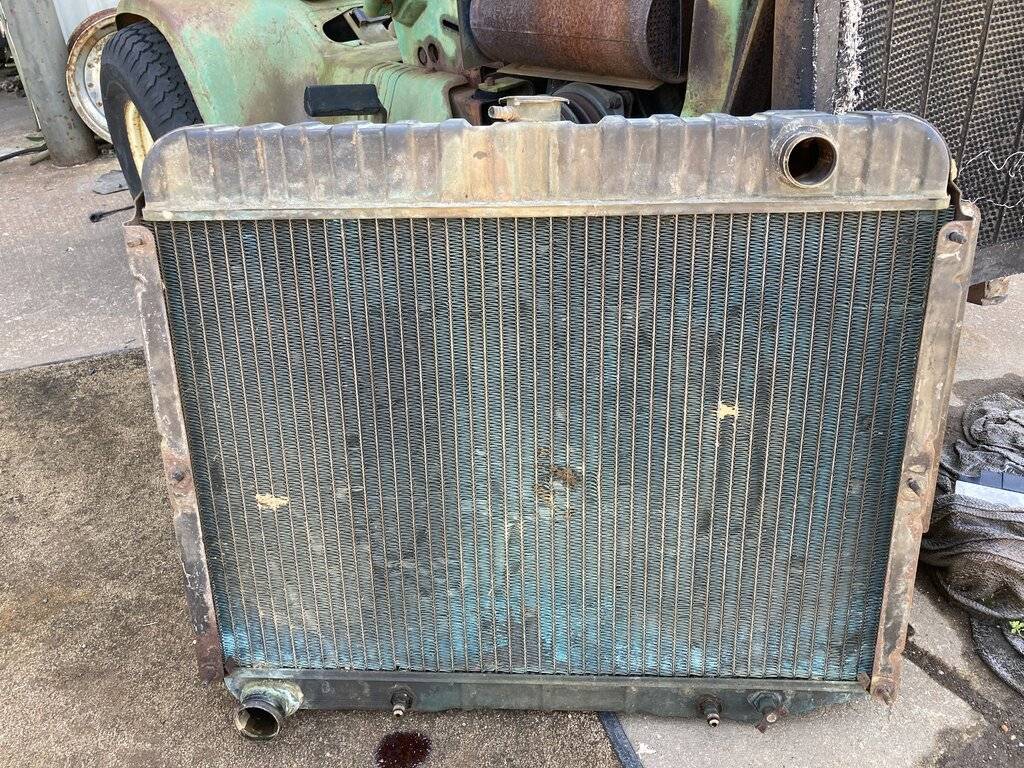

    Has anyone on the forum purchased a Champion for a 66' and if so what part number should I be looking to get? I will attach a pic of the old radiator.
    thanks
    Richard
    8A75E277-6128-4471-8F55-EBC23D3C1A4D.jpeg View attachment 451589 8A75E277-6128-4471-8F55-EBC23D3C1A4D.jpeg View attachment 451589 View attachment 451590 8A75E277-6128-4471-8F55-EBC23D3C1A4D.jpeg View attachment 451589 View attachment 451590

  2. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    5,965
    Likes Received:
    1353
    Joined:
    Mar 27, 2011
    Core width is important. Looks like it's 22"?

  3. saforwardlook

    saforwardlook Old Man with a Hat FCBO Gold Member

    Messages:
    6,407
    Likes Received:
    5463
    Joined:
    Oct 8, 2011
    Location:
    California
    In my view you should avoid aftermarket radiators since they usually never cool as well as the original ones in order to have an attractive price.

    Best bet it to have yours recored by a competent shop in your area using a high fin density high efficiency core. It will cost more than an aftermarket one but would be very much worth it in terms of cooling capability and it will be sure to mount into your car correctly the first time.

    • Agree Agree x 3
  4. rsh1966vip

    rsh1966vip New Member

    Messages:
    12
    Likes Received:
    5
    Joined:
    Jan 4, 2021
    Location:
    Jackson Tn
    Thanks for your reply. What would be a ball park cost to have it re-cored?
    Richard

  5. saforwardlook

    saforwardlook Old Man with a Hat FCBO Gold Member

    Messages:
    6,407
    Likes Received:
    5463
    Joined:
    Oct 8, 2011
    Location:
    California
    I am not sure whether it gets really hot in Tennessee and whether your car has a/c and whether you actually use it. Also, is your radiator a 26" width or 22" across (I think it looks like a 26" radiator but I am not sure).

    If you have a/c and it gets really hot in Tennessee (and humid), and you drive in congested traffic, then the cost could be as high as about $550. If you do not have a/c or do not use it, do not drive in congested traffic but rather mostly highway travel, then the cost could be in the $350 range. That is about the best I can estimate as a range for your costs. Since I live in hot Southern California and drive in traffic with a/c on, I choose the high efficiency cores with very high fin density and 3 rows of tubes for my 26" radiator with fan shroud. So mine are at the upper end of costs.

    Most aftermarket radiators have very low fin density and only 2 rows of tubes generally so you have low cost for the radiator but poor cooling performance. Many folks get new aftermarket radiators to cure their cooling problems and end up chasing after a bunch of other potential problems ending up with a lot of frustration and spending a lot of money/time in the process and in the end not saving anything with their poor choice of radiator in the first place when their old one clogs up with rust sediment or leaks and doesn't do it job well any more.

    A good radiator shop can help you make the right choice for your circumstances. Just avoid being too cheap to do it right and you should do OK.

    I also like to keep the original top tanks in the process to keep the car looking original and it helps down the road if the underhood compartment looks stock when it comes time to sell. You almost always have to modify the side brackets of the aftermarket radiators to get them to fit properly in the car too.

  6. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,639
    Likes Received:
    1152
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    That is a 26" radiator.

    • Thanks! Thanks! x 1
  7. rsh1966vip

    rsh1966vip New Member

    Messages:
    12
    Likes Received:
    5
    Joined:
    Jan 4, 2021
    Location:
    Jackson Tn

  8. rsh1966vip

    rsh1966vip New Member

    Messages:
    12
    Likes Received:
    5
    Joined:
    Jan 4, 2021
    Location:
    Jackson Tn
    Thanks again for your prompt comments concerning my radiator issues. I did not consider a re-core before, but now I will take some time to research any local shops (if I can find one) for cost. My car is
    AC, auto, ps and power brakes and you are correct my radiator is 26x17.5. It does get hot here in Tn. but I will not be driving in heavy traffic.
    thanks
    Richard

    • Like Like x 1
  9. BigblueC

    BigblueC Senior Member

    Messages:
    1,314
    Likes Received:
    631
    Joined:
    Sep 25, 2015
    Location:
    NC
    You will likely be looking at the $500-600 range. That might seem expensive, but I feel, as well as Steve and many others here, it is worth it.

    Also, I suggest you take the opportunity to flush out the cooling system while you're in there.

    • Like Like x 1
  10. rsh1966vip

    rsh1966vip New Member

    Messages:
    12
    Likes Received:
    5
    Joined:
    Jan 4, 2021
    Location:
    Jackson Tn

  11. rsh1966vip

    rsh1966vip New Member

    Messages:
    12
    Likes Received:
    5
    Joined:
    Jan 4, 2021
    Location:
    Jackson Tn
    I am heading to Somerville (near Memphis now)to meet with the radiator shop guy to get a cost and some details. I will give you more feedback later.
    thanks
    Richard

  12. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    14,063
    Likes Received:
    8766
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    FWIW, we do have a vendor on here that sells a good aluminum radiator (based on reports, not personal experience) and the capacity is slightly more and I personally think that with a little black paint on the tank, it wouldn't stick out as a replacement radiator. Cold Case Aluminum Radiators

    @Ccas may have a recommendation.

    Not knocking the recore suggestions in the least, just giving an alternative that has worked with others here.

  13. rsh1966vip

    rsh1966vip New Member

    Messages:
    12
    Likes Received:
    5
    Joined:
    Jan 4, 2021
    Location:
    Jackson Tn

  14. rsh1966vip

    rsh1966vip New Member

    Messages:
    12
    Likes Received:
    5
    Joined:
    Jan 4, 2021
    Location:
    Jackson Tn
    Good suggestion and Cold Case is my fall back, lets see what I find out today.
    thanks
    Richard
    ______________________
    The shop in Summerville look very professional. I will know more in a couple of days after they have cleaned the radiator and pressure tested it.

    rsh

    Last edited: Apr 7, 2021 at 4:00 PM
