My 1968 Plymouth Sport fury

Early C Bodies - The Slab Side Years

  1. 1968 fury3 man:-)

    1968 fury3 man:-) New Member

    Messages:
    33
    Likes Received:
    11
    Joined:
    Jun 29, 2020
    Location:
    Bellefonte PA

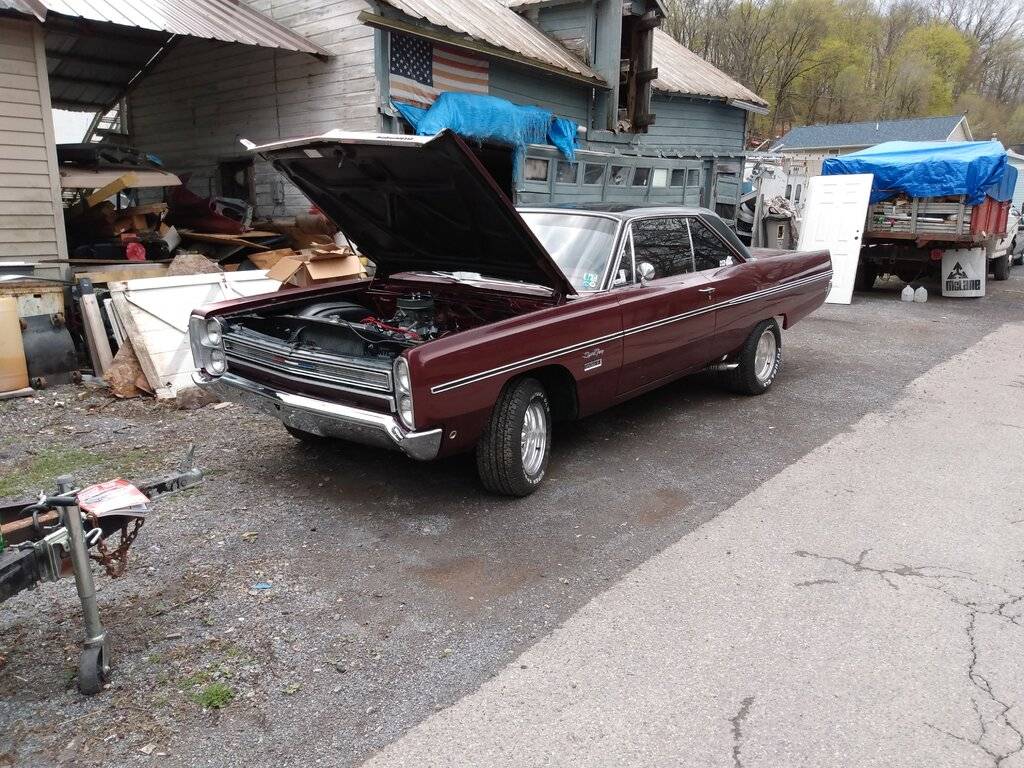

    Hi guys I have a few questions for guys that have a car like mine I have a weird shake / vibration that comes in at 70 mph is this normal I've replaced everything under the sun if you name it I've replaced it can't figure it out all the front suspension is brand new universal joints are all brand new I can't pin it down but also I'm looking for seats bucket seats and I'm looking for console and shifter linkage and rods if anybody can help me be gratefully appreciated IMG_20210413_125224509.jpg IMG_20210413_125224509.jpg

    • Like Like x 4
  2. Boydsdodge

    Boydsdodge Member

    Messages:
    58
    Likes Received:
    43
    Joined:
    May 26, 2020
    Location:
    Toronto Canada
    Pinion angle comes to mind. How is your car lifted?

    • Agree Agree x 2
  3. Pax2001

    Pax2001 New Member

    Messages:
    16
    Likes Received:
    5
    Joined:
    Tuesday
    Location:
    Texas
    agree with Boydsdodge, but have you altered or replaced the drive shaft? Is it balanced correctly?
    I'm going to skip the obvious wheel balance thing.
    Higher speeds affect different things than higher rpm's do.

  4. Boydsdodge

    Boydsdodge Member

    Messages:
    58
    Likes Received:
    43
    Joined:
    May 26, 2020
    Location:
    Toronto Canada
    What type of vibration are you feeling? Seat, steering wheel, throttle pedal, can't see out the rear view mirror?

    • Agree Agree x 1
  5. mrfury68

    mrfury68 Senior Member

    Messages:
    1,263
    Likes Received:
    460
    Joined:
    Jul 15, 2015
    Location:
    Bethel Park PA
    Transmission mount? BTW Love the color of your formal top. That was the same color as my dad's '68 Fury III sedan that I grew up in.

  6. HWYCRZR

    HWYCRZR Senior Member FCBO Gold Member

    Messages:
    3,249
    Likes Received:
    3887
    Joined:
    May 13, 2015
    Location:
    Fargo, ND
    Likely driveshaft out of balance or one of your yokes bent from an aggressive hammer. My vibration was at 80 mph.
    I had a couple of dings in it. They straightened it and balanced plus straighten the yoke. No vibration up to 110.
    I get a little carried away with perfection sometimes but here is the thread.
    Drive Line Angle will drive you crazy

  7. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    6,030
    Likes Received:
    1373
    Joined:
    Mar 27, 2011
    I'm suspecting the pinion angle for that elevated ride height. There are some shims in the aftermarket to reposition/tilt the rear axle on the leaf springs.

    • Agree Agree x 1
  8. 69PHOENIX

    69PHOENIX Member

    Messages:
    171
    Likes Received:
    96
    Joined:
    May 27, 2019
    Location:
    Mystical Land of OZ
    I think the term is Phasing.
    Look up the Term Tail Shaft Phasing, Might be Helpful.
    Also Interesting!
    Tony.M

  9. 57fury440

    57fury440 Member

    Messages:
    65
    Likes Received:
    48
    Joined:
    Mar 17, 2019
    Location:
    Long Island, New York
    Make sure the transmission bolts are all tight. Is the engine smooth when you rev it up?

  10. 1968 fury3 man:-)

    1968 fury3 man:-) New Member

    Messages:
    33
    Likes Received:
    11
    Joined:
    Jun 29, 2020
    Location:
    Bellefonte PA
    Thanks guys I just seen every one's posts and I am thinking drive shaft pinion angle also I have air shocks with extensions

  11. 1968 fury3 man:-)

    1968 fury3 man:-) New Member

    Messages:
    33
    Likes Received:
    11
    Joined:
    Jun 29, 2020
    Location:
    Bellefonte PA
    Yes engine is smooth

  12. 1968 fury3 man:-)

    1968 fury3 man:-) New Member

    Messages:
    33
    Likes Received:
    11
    Joined:
    Jun 29, 2020
    Location:
    Bellefonte PA
    It feels like a vibration that I can fill in my seat and steering wheel

  13. 1968 fury3 man:-)

    1968 fury3 man:-) New Member

    Messages:
    33
    Likes Received:
    11
    Joined:
    Jun 29, 2020
    Location:
    Bellefonte PA
    I replaced up and lower control arm bushings upper and lower ball joints front wheel bearings the drive shaft seems to be a two-piece before the rear universal joint looks to be like the drive shaft is pressed into itself with rubber Cushing dampener or something like that it couldn't be that right

  14. MarkLevi

    MarkLevi New Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    Oct 3, 2020
    Location:
    Galesville WI
    Another suggestion if you don't find it elsewhere: Check that your steering sector is "tight" to the frame - those mount bolts can loosen....

    Thanks
    Mark
