69 Chrysler Interior Panel Part #

[MJFUR]

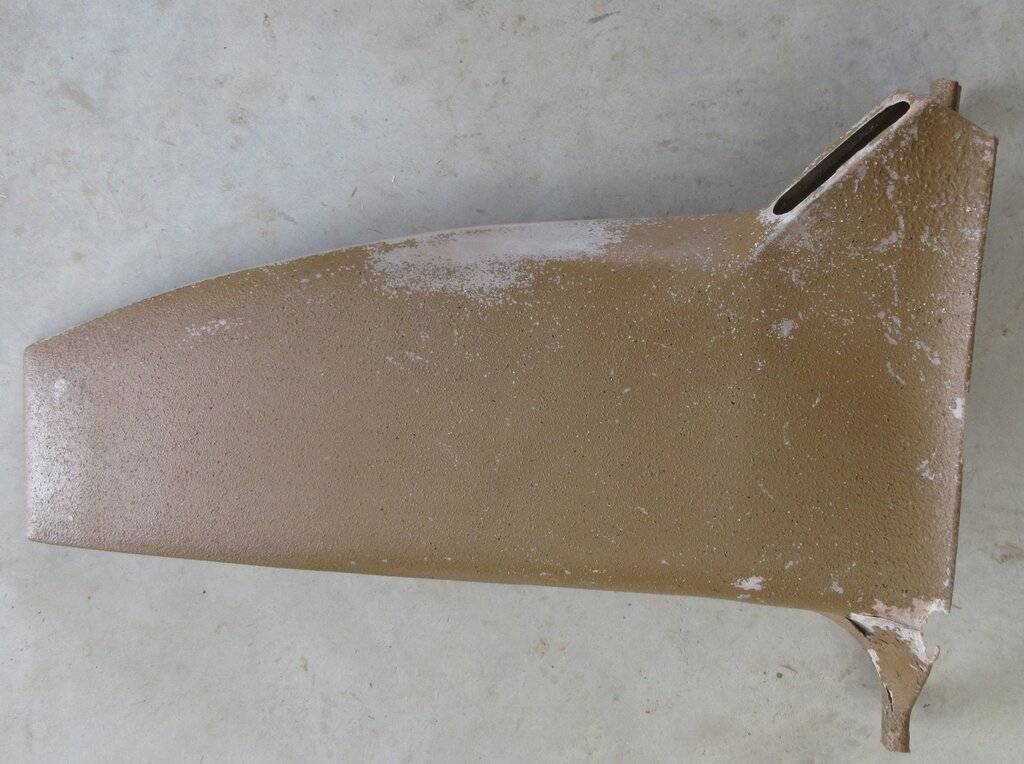

These are the vertical post panels for in between the front and rear doors on a 4 door hardtop.
The part# is a different format from the seven digits that I'm used to seeing. My various searches for these numbers haven't turned up anything.

In the 69 Parts Manual, Body Section, Page IT-99 - IT-100, 23-99-04 lists the panel part # 2824-5 EF3 (the last 3 digits being variable).

Any guidance on a Part # search? Thx



[MrMoparCHP]

Interior trim pieces can be difficult to search
2824-5 EF3
2824 EF3 right
2825 EF3 left
The EF3 is the color
If you are open to different colors and painting them either search for the other colors or just the number (would need other words)
You might have luck with the casting numbers as well.


Alan



[CBODY67]

Trying to chase number on plastic parts can be inconclusive, at best. Unlike chasing casting numbers on cyl heads, cyl blocks, exh manifolds, or intake manifolds.

The part numbers would still be in the general format for the model year used, with the color being the alpha-numeric number at the end. In the parts book, the color designation would be the only thing which might match, by observation.

Chrysler usually kept their interior trim items available during the first model year of production, unless they might cover a few years after that, by observation. After that, the trim codes could change and more numbers were generated. Probably best, when searching on the Internet, to give the model year and location of the part, then the color desired, AND a picture of what you are looking for. If you might find a different color, then consider it "painit to match". JUST that youi have to be careful when re-coloroing that pebble-grain plastic as it can get very brittle and dried-out over time. Might also have some luck with sanding the grain off of the plastic, then recovering the item with expandable vinyl in a grain similar to the seats?

Enjoy!
CBODY67



[Big_John]

That piece looks fixable to me.

Super Glue and Baking Soda



[marty mopar]

when searching list all of the color-coded part numbers in the part book

if this was listed in various colors all you have is the 2824-5 EF3

or

2824EF3 right

2824EF3 left



EF3 is green used from 1966-71

E is the year: 1969
F is the color: green
3 is how dark it is (it is a light green color)

if other colors were listed for that part then you should look for those also as you can paint them

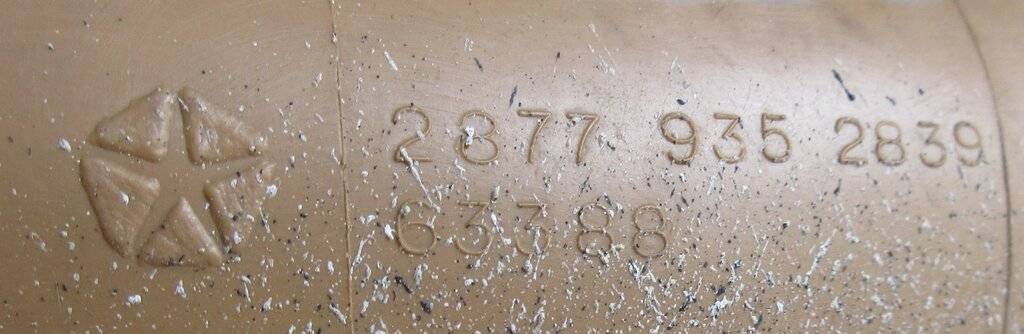

ALSO use the casting numbers in a search too (2877934 right or 2877935 left)


let's try that>>>>>>>>>>

well looky here folks:

DOOR POST TRIM COVER - CENTER 4 DOOR HARDTOP 1969-1970-1971-1972-1973 CHRYSLER | eBay

and that is how you use google
