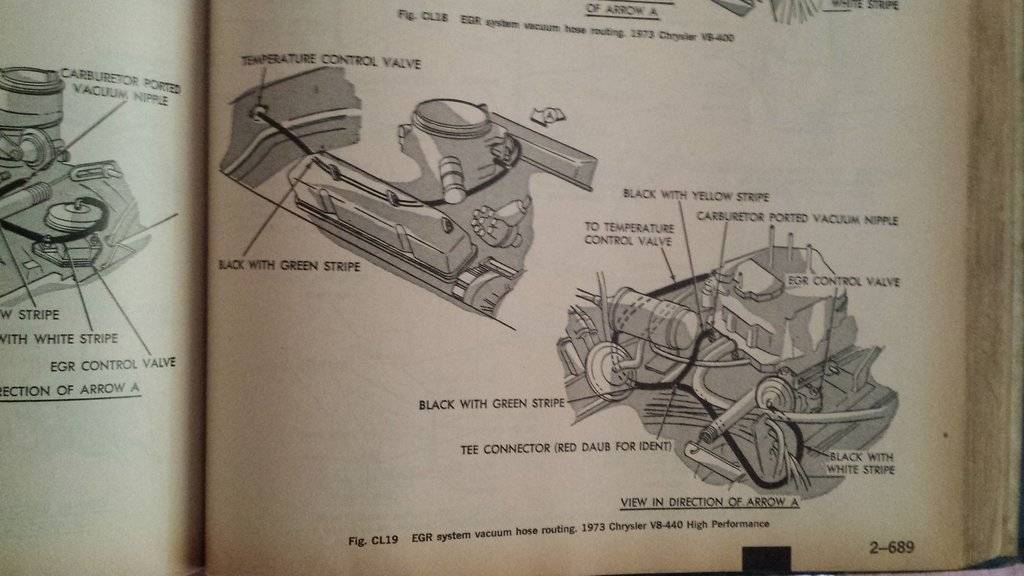

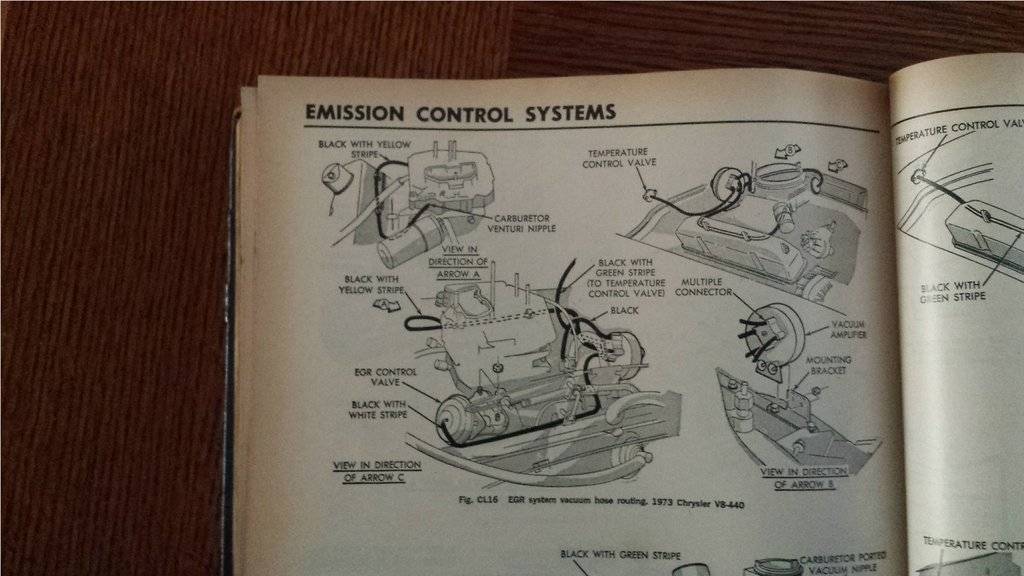

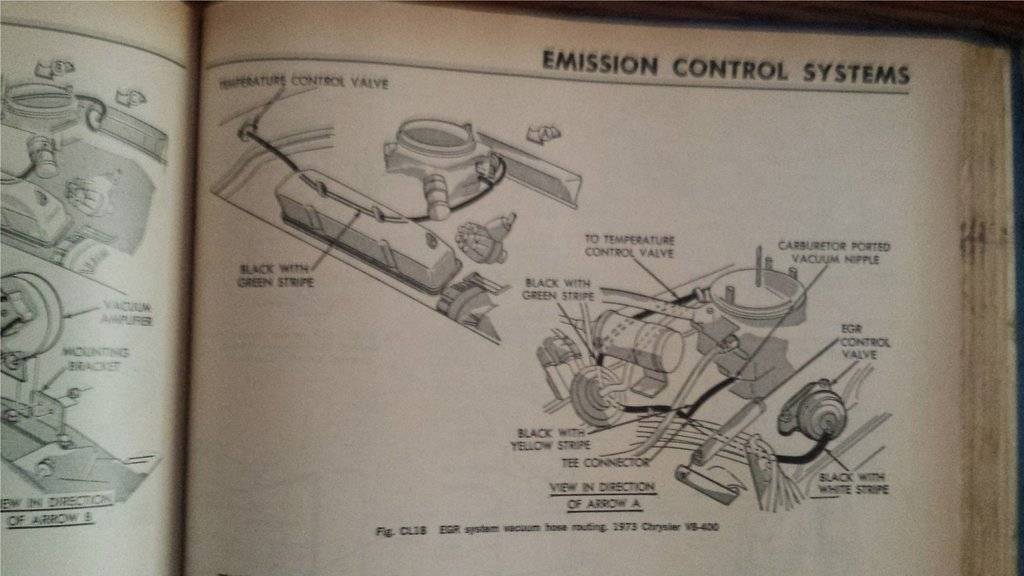

I have these photos hope this helps.hi can anyone send me a Vacuum Hose Diagram for 73 newyorker 440 7.2 thanks dave.
THANKSI have these photos hope this helps.
View attachment 139473
View attachment 139475
View attachment 139476
View attachment 139477
View attachment 139478
View attachment 139479
