Well this is giving me some good ideas. I like the option of changing bore size especially now that I will be doing a dual cylinder install. Just trying to think about bore size and it might be smaller is the trick. My thoughts are that the same force is applied to the piston regardless of size therefore if you have a larger piston it creates more psi and a smaller piston should be less. Need to think about this to make sure. Anyways I will try this option and see what happens.
I stumbled upon this effect accidentally at a young age by putting any junkyard MC that would fit and work on different cars.


Ross Wooldridge

Old Man with a Hat
FCBO Gold Member
Joined
Apr 25, 2016
Messages
5,020
Reaction score
4,446
Location
Scotland, Ontario, Canada
Smaller bore is equivalent to increasing the length of the stick in a simple lever. Longer stick, less effort but longer push on the stick to do the same work.
Larger bore is a shorter stick. More effort, shorter push to do the same work.

That's my understanding of it.


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
17,270
Reaction score
23,970
Location
Marcellus, NY
But smaller would give more travel and control, right? Although it would be even easier to push.
Smaller would give more travel, but it will increase pressure.

High school physics with a touch of night school hydraulics course...


Triple Pickle

Senior Member
Joined
Jan 29, 2019
Messages
1,294
Reaction score
2,458
Location
USA
I think the larger bore would make it less touchy if it were manual brakes. But with the power booster doing the lions share of the work I don’t think you’ll notice much difference in effort. Just my thoughts. It can get tricky.


Triple Pickle

Senior Member
Joined
Jan 29, 2019
Messages
1,294
Reaction score
2,458
Location
USA
Smaller would give more travel, but it will increase pressure.

High school physics with a touch of night school hydraulics course...
I agree but, what would achieve the desired effect? Bigger would put out more volume and with the booster doing the work it might be more touchy. Like I said it’s tricky sometimes. Not saying you’re not right but, I wouldn’t count on it.


thethee

Senior Member
Joined
Feb 13, 2021
Messages
1,050
Reaction score
1,152
Location
Netherlands
With a larger bore and the same pedal travel you would move around more brake fluid right? Would that not increase touchyness?


Triple Pickle

Senior Member
Joined
Jan 29, 2019
Messages
1,294
Reaction score
2,458
Location
USA
With a larger bore and the same pedal travel you would move around more brake fluid right? Would that not increase touchyness?
I would think so. The booster is the wild card here. It might have enough power overcome whatever work you can give it.

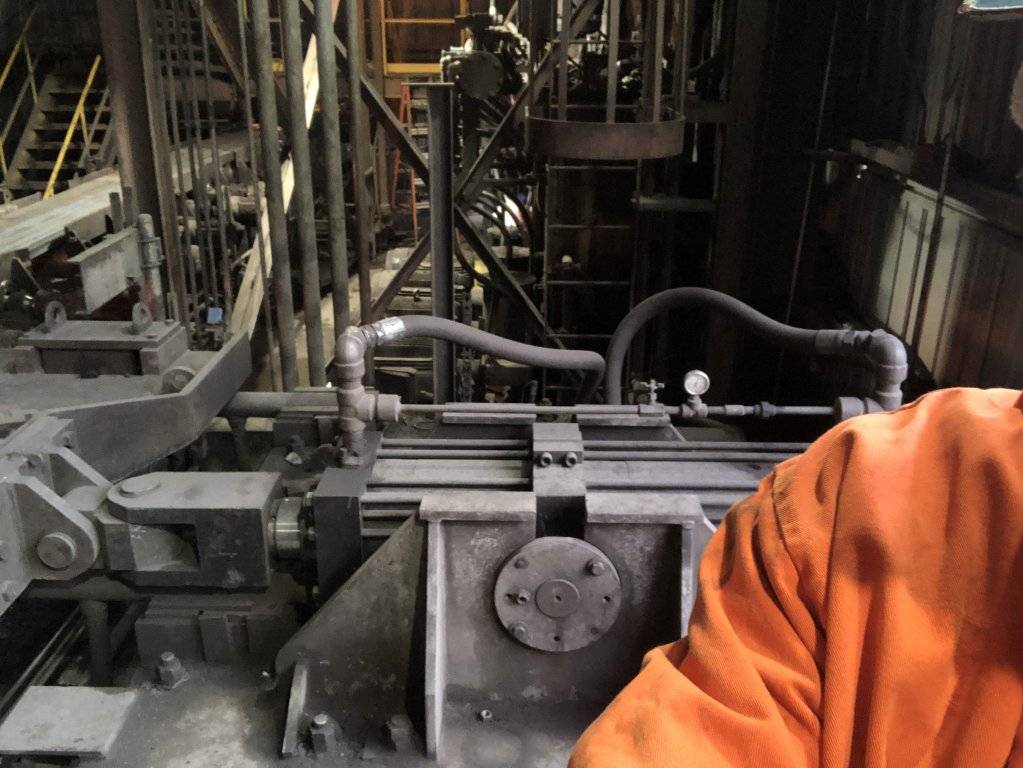

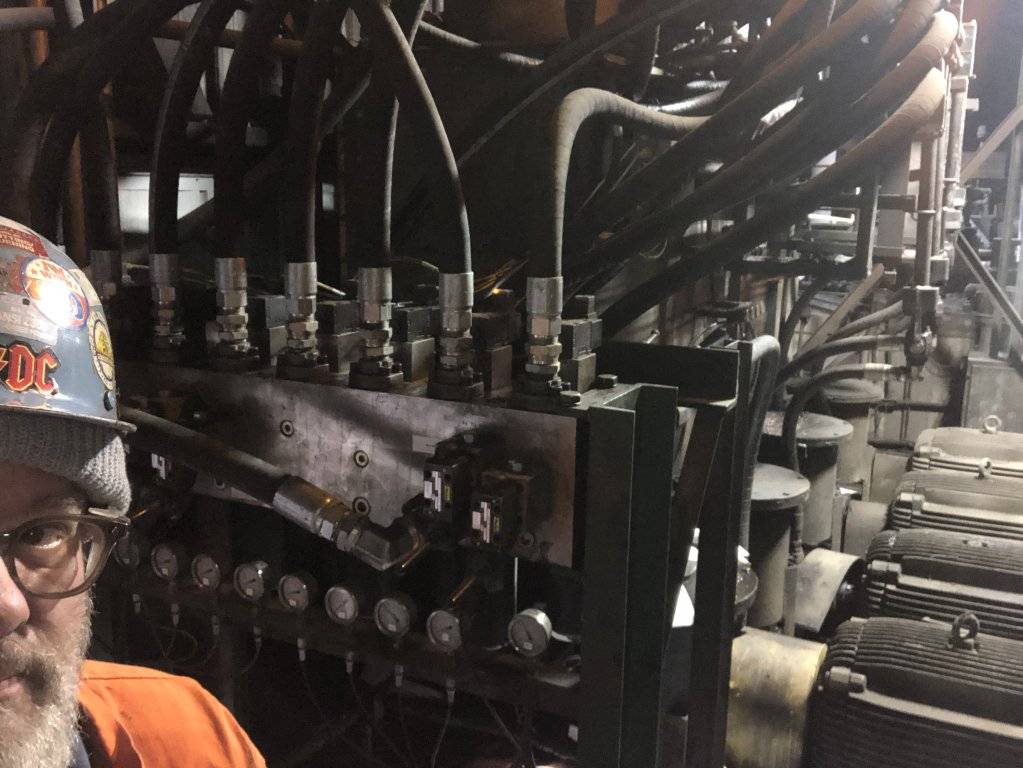

I know a little about hydraulics. Here’s some pics taken minutes ago at my industrial maintenance job! I troubleshoot this stuff all the time. Again, I’m no expert. But I have seen the so called experts get confused!







commando1

Old Man with a Hat
FCBO Gold Member
Joined
Mar 10, 2011
Messages
36,548
Reaction score
37,245
Location
Sebring, Florida
Please don't even think about this any further. Each piece was designed to work perfectly in the overall design. Try changing the master cylinder. You have conquered the near impossible, getting all four to lock up at the same time.


Ross Wooldridge

Old Man with a Hat
FCBO Gold Member
Joined
Apr 25, 2016
Messages
5,020
Reaction score
4,446
Location
Scotland, Ontario, Canada
I have to agree - we're all overthinking it.

Checking the shoes (drums) for contamination is a quick first.

Upgrade to dual circuit master as you noted you are planning is a good 2nd step.


rkrochen

Well-Known Member
Joined
Jun 29, 2015
Messages
923
Reaction score
1,198
Location
Teulon, Manitoba
Please don't even think about this any further. Each piece was designed to work perfectly in the overall design. Try changing the master cylinder. You have conquered the near impossible, getting all four to lock up at the same time.
Getting everything to work properly is not the issue it comes with years (actually decades)of experience being a mechanic. I like the idea of changing master cylinders and will do so but it raises other questions. I have been out of touch the last couple of years due to medical issues and just need to get my brain back into working condition.


rkrochen

Well-Known Member
Joined
Jun 29, 2015
Messages
923
Reaction score
1,198
Location
Teulon, Manitoba
I have to agree - we're all overthinking it.

Checking the shoes (drums) for contamination is a quick first.

Upgrade to dual circuit master as you noted you are planning is a good 2nd step.
No problems with the shoes they are like new. Adjustment is perfect and pedal stroke is good as well. It’s just the way the system was designed.


Triple Pickle

Senior Member
Joined
Jan 29, 2019
Messages
1,294
Reaction score
2,458
Location
USA
The dual circuit upgrade might change the characteristics if the booster is also replaced even if the bore is the same.


Trace 300 Hurst

Professional Tinkerer
FCBO Gold Member
Joined
May 27, 2018
Messages
2,099
Reaction score
2,575
Location
Ponte Vedra Beach, FL
Here's your answer, as per Sir Richard Ehrenberg, SAE, Mopar Action, etc. Note that this is for the wheel cylinders, which means that a larger master diameter would make for a similar hydraulic situation. I used these reduced-diameter wheel cylinders when I rebuilt my rears, but I'd be leery of experimenting with cylinder sizes otherwise. [ [I know this is for a disc/drum car, not powered drums as per this thread, but you get the idea.]]






rkrochen

Well-Known Member
Joined
Jun 29, 2015
Messages
923
Reaction score
1,198
Location
Teulon, Manitoba
Here's your answer, as per Sir Richard Ehrenberg, SAE, Mopar Action, etc. Note that this is for the wheel cylinders, which means that a larger master diameter would make for a similar hydraulic situation. I used these reduced-diameter wheel cylinders when I rebuilt my rears, but I'd be leery of experimenting with cylinder sizes otherwise. [ [I know this is for a disc/drum car, not powered drums as per this thread, but you get the idea.]]

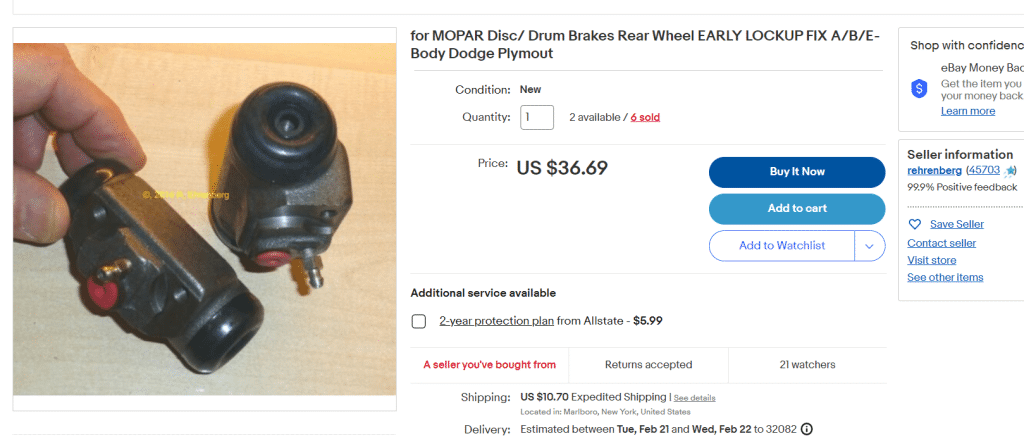

View attachment 582567

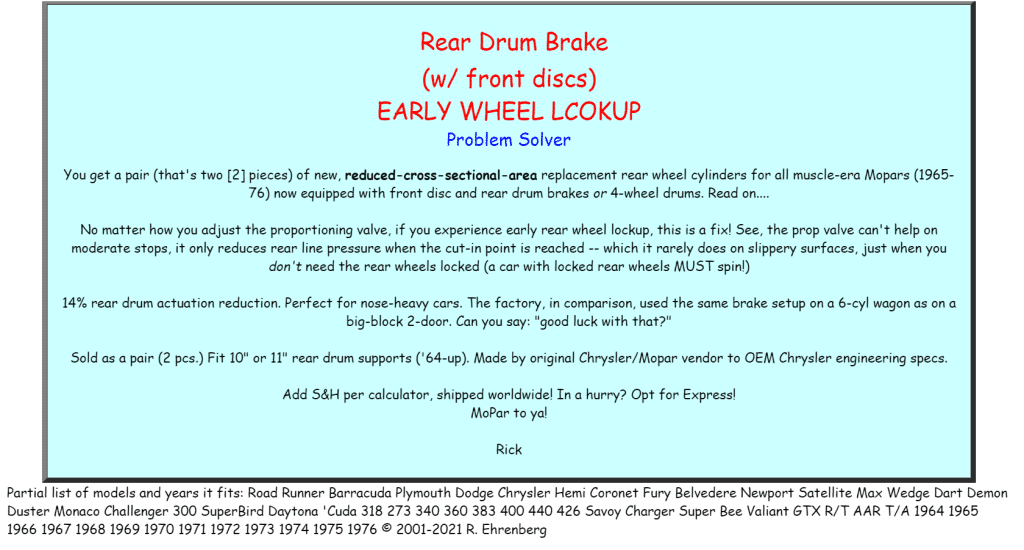

View attachment 582565
Good information. This creates the same effect as changing the master cylinder. My thoughts are to do the MC upgrade and see what happens. I can then look into these cylinders if I am still having issues.


Clover

Well-Known Member
Joined
Aug 2, 2013
Messages
667
Reaction score
470
Location
Southeast Michigan
My two cents: my primary suspect is the booster. When I got my ‘72 Imp, it had super-touchy brakes. I put new cylinders and shoes in the rear, with no change. I drove it for a few years and got used to the touchy brakes and basically forgot about it. One day, my booster outright failed to boost. Pretty scary, trying to stop that behemoth with no boost! Anyway, I put a reman booster on it (back when you could still get them) and they have worked perfectly, since. No touchiness at all. It was the booster, all along.


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
17,270
Reaction score
23,970
Location
Marcellus, NY
I'd say that if the car is locking the brakes evenly etc., that I would leave the hydraulics alone.

As @Clover and @FURYGT have mentioned, the answer may be in the booster.

I'm not really familiar with the internals of the booster, so I can't say that a new/rebuilt booster is the answer. Actually I even wonder if the replacements mentioned weren't working as well as they should and that increased the pedal effort.

I am wondering if there is a slick and easy way to reduce the amount the booster.... Ummm... Boosts... Limiting vacuum or something like that... Just thinking out loud and glad I didn't have to start drawing stick figures on teeter-totters to explain the hydraulic mechanical advantage.


Triple Pickle

Senior Member
Joined
Jan 29, 2019
Messages
1,294
Reaction score
2,458
Location
USA
It might actually have the wrong master cylinder on it too.
Like I said before, the booster is the wild card here I believe. It might have enough power to make small changes in bore sizes act differently than we might normally think. With manual brakes, if you change the size of any bore in the system you will definitely notice a big difference. With the booster doing the work it will be different but I’m not sure if it will give you the feel you’re looking for.
