WANTED Fresh air door cables

[bluefury361]

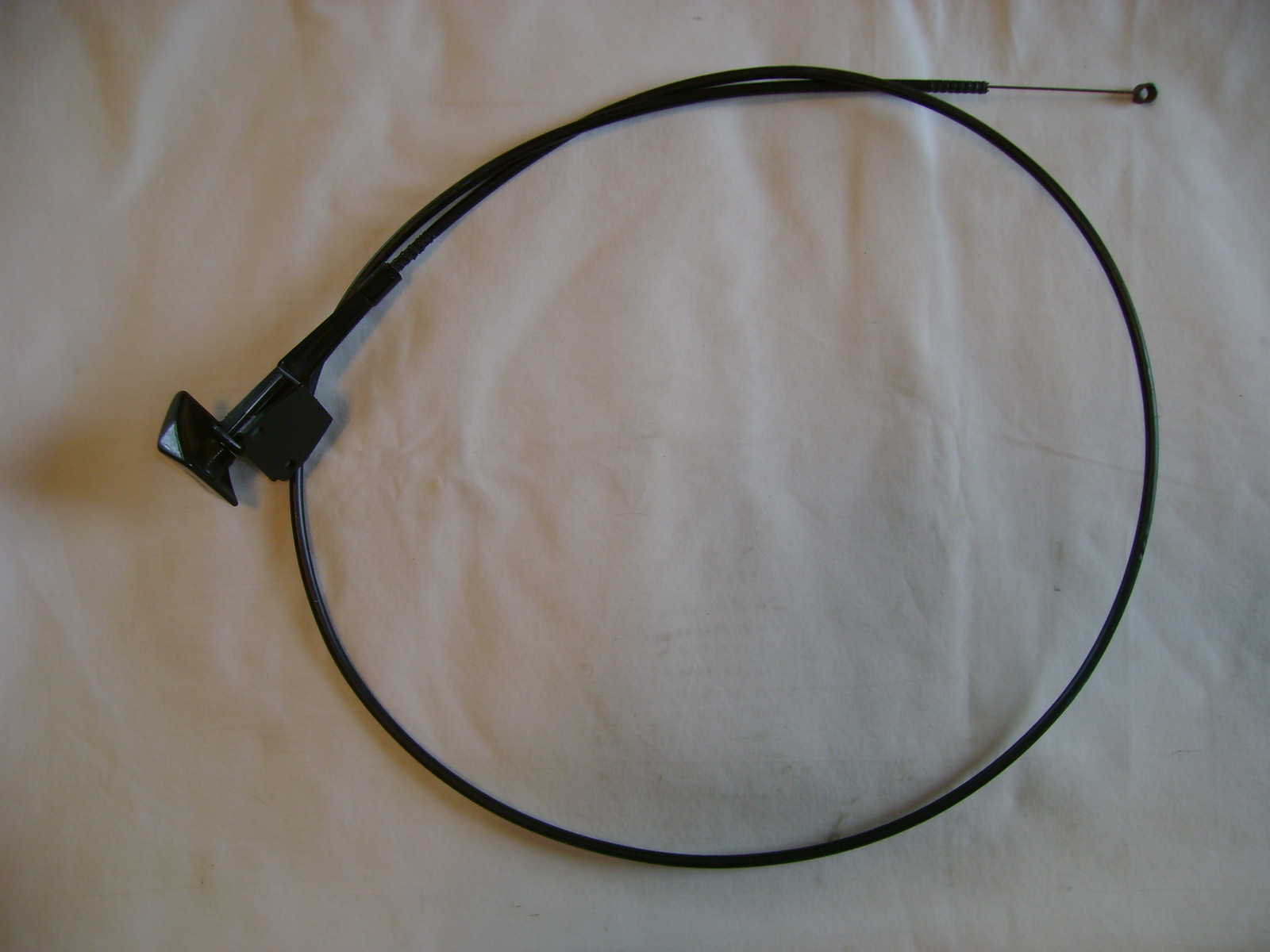

The Admiral, (69 Plymouth Fury), seems to have been releved of the cable and housing assy that controls the fresh air doors in both left and right A pillers.

I suspect that most 69-70 C bodys used them. Mine is a factory A/C car but I don't know if that matters.

Would like to find one or both.

Thanks, Will.



[polara71]

if it had air you didnt get the right side floor vent. Pull the kick panel and check, your going to need the door assembly too, I presume.

69 - 71 Fury / 71 Polara /Monaco should do it



[saylor]

I know my 68 fury has vents on both sides. I need the holder mount part under the steering wheel, it was so brittle it crumbled in my hands, and now the control cables lay on the floor until I rig something up. a no A/C car.



[MrMoparCHP]

if it had air you didnt get the right side floor vent. Pull the kick panel and check, your going to need the door assembly too, I presume.

69 - 71 Fury / 71 Polara /Monaco should do it

I parted a 69 Polara with AC that had both vents.


Alan



[polara71]

Interesting, the books say otherwise



[bluefury361]

I checked the Admiral and it has a fresh air door on the driver side, but not on the passenger side. I can see the fastener witness marks on the left lower dash where the cable bracket was mounted. The right side mount pad shows no indication there was ever a bracket mounted.

Jazabelle is a factory A/C car and has fresh air doors on both sides. The actuator handles are mounted near the map light on the IP.

I guess what I need is the left side, lower dash mounted cable and housing from a non air, or factory a/c car.



[dude69300]

My 300 is a factory a/c car with fresh air vents on driver and passenger side.
My car doesn't have window vents, I have been told that factory a/c cars didn't come with window vents in '69, can anyone else confirm this?



[bluefury361]

My 300 is a factory a/c car with fresh air vents on driver and passenger side.
My car doesn't have window vents, I have been told that factory a/c cars didn't come with window vents in '69, can anyone else confirm this?

On hardtops and four doors it depended on which A/C system was installed The H51 equipped cars came with vent glass, all others, no.
All convertibles came with the vent glass.



[1978 NYB]

Dang......I'm impressed daily with the knowledge on this forum!!!



[MrMoparCHP]

My 300 is a factory a/c car with fresh air vents on driver and passenger side.
My car doesn't have window vents, I have been told that factory a/c cars didn't come with window vents in '69, can anyone else confirm this?

I think that was a later thing, (after 69), both the parts car (a 4-door hardtop) and my CHP project (a 69 4-door sedan) are AC cars and have vent windows.


Alan



[bluefury361]

I think that was a later thing, (after 69), both the parts car (a 4-door hardtop) and my CHP project (a 69 4-door sedan) are AC cars and have vent windows.

The ventless glass started with the 1969 intro of the fuselodge cars Alan.

The 1969 Car & Equipment book states .....
H51 single unit (includes ventless front windows on 2 door hardtops).
"H53 - auto temp, single unit (includes ventless front windows on two door hardtops.)
All dual units required (9:15 x 15 tires).

It seems that all 1969 2 door hardtop Chryslers and Imperials equipped with any type of A/C were equipped with ventless door glass. And all 4 door and convertible used the vent glass.

Things may have changed as the years went on....

Will.
