New to me 78 NYB on its way but please Don't tell my wife

Later Model C Bodies - "The Formal Years"

  1. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida
    More bumper fun:

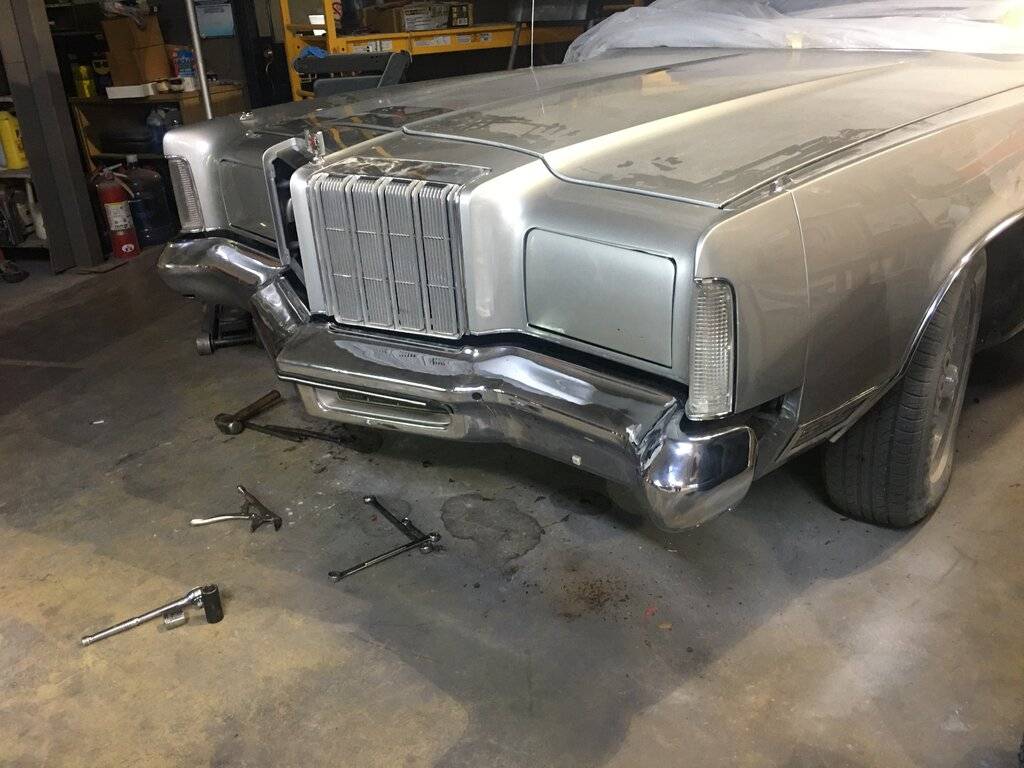

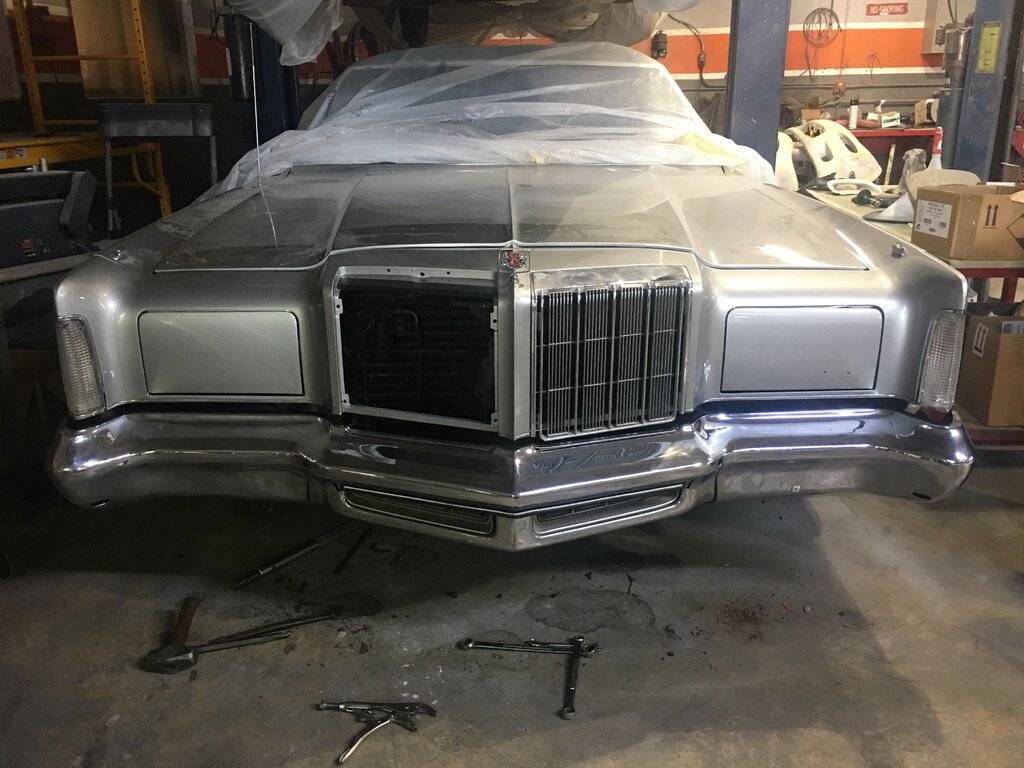

    3/4 corrected view. The filler panels between the fender and bumper will help make the end look more tucked in.

    Bumper Guard will fit perfectly and completely hide the cut and weld.

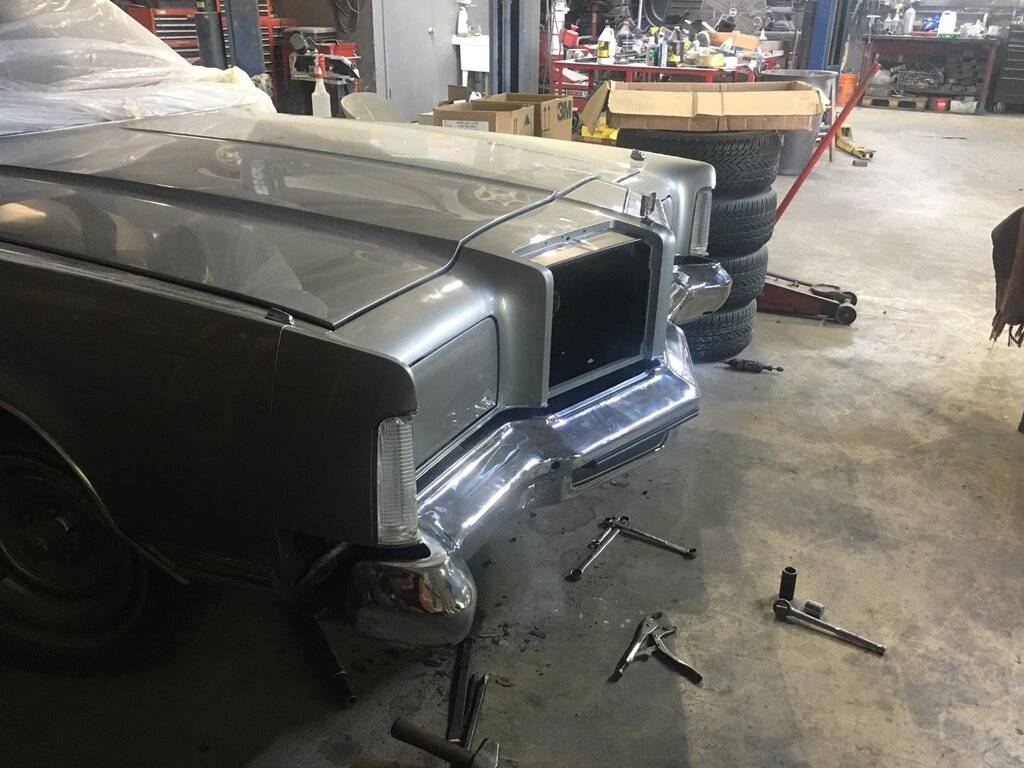

    Opposite 3/4 view of bumper.

    Work in progress. The bumper will have all the bolts tightened up when I’m completely happy. Then the bumper will come off for re-welding of all cut material. The mounting holes will be adjusted to allow for a bit of vertical movement when we replace it. And then after it is all set up and torqued where we want it to stay, we’ll be done.

    Last edited: Mar 31, 2021
    • Like Like x 5
  2. LeBaron1973

    LeBaron1973 Old Man with a Hat FCBO Gold Member

    Messages:
    6,108
    Likes Received:
    862
    Joined:
    Sep 13, 2015
    Location:
    Harewood, Christchurch, Canterbury, NZ
    Magnificent result Javier, what a difference it makes towards improving the look of the car.

    • Thanks! Thanks! x 1
  3. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida
    Designers intent:

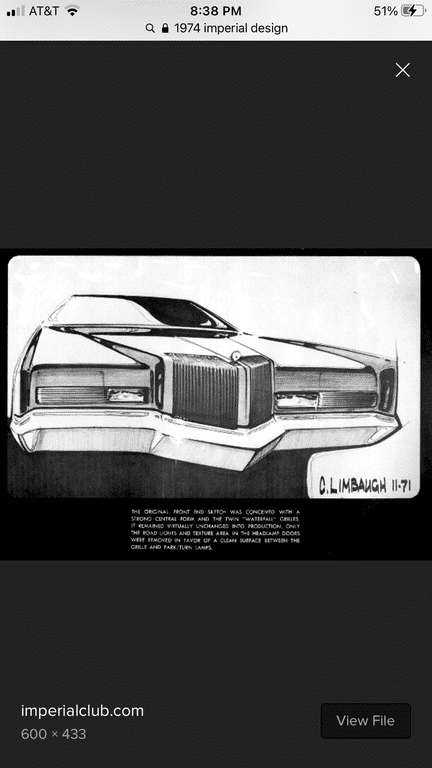

    Looking a little more Pontiac than Chrysler, this front end study did establish the prominent center peak theme of a defined and separate grille extending into the hood surface. This was a 180 departure from the ‘69-‘73’s which were loop bumpers with flat inset grilles. Here also was firmed up a lower full bumper as much about tying the design together as it was about meeting the foreseen crash bumper standards to come.

    Finally, the center peak meeting the bumper at a separate elevation from that of the grille was an idea that actually made it into production.

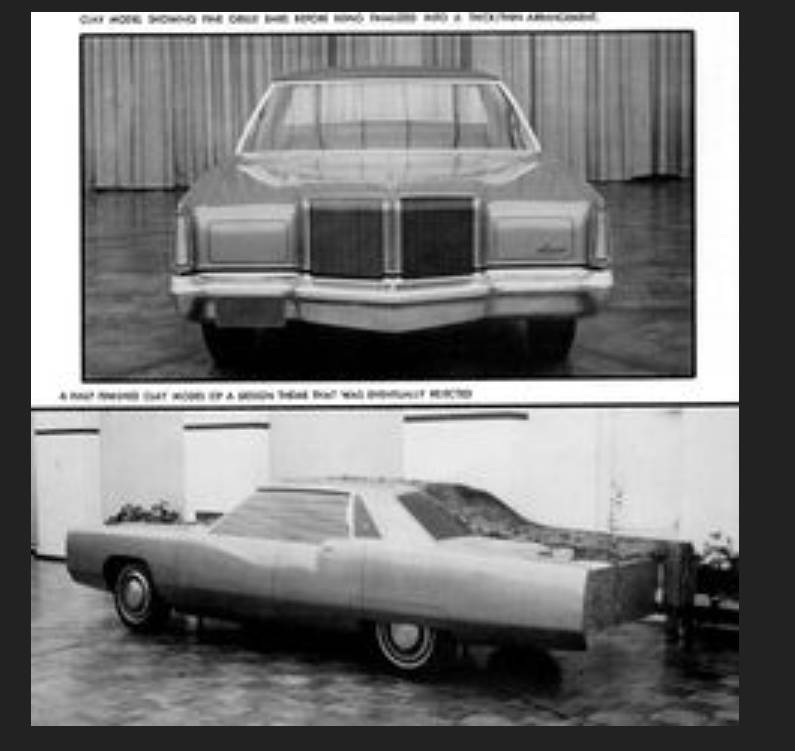

    Twin “waterfall” grilles make an appearance that, when married to the earlier study, really start to come together in the later clay studies.

    This clay study is 90 percent of the final established design. I think it was as much a preproduction engineering study as it was a design presentation model.

    Variations from production are the cornering lights and bumper projection past the end of the front cap (needed to protect the body). Likewise, this bumper has the license plate bracket on the passenger side versus final production placement on the drivers side. Finally you see that the transitions from the fender peaks to the hood plane are much more abrupt/sharp than the smoother curve adopted by production. The same thing is happening at the sides of the grille as the body comes up almost too sharply to meet the upper hood grille plane.

    I’m not completely sure, but I feel that the grille itself is also a bit larger than the final production version. The curvature changes I mentioned would have necessitated its reduction. A slightly smaller grill was needed in order to keep the final design intent (presented here) intact in translating it to actual production.


    The final and last results of actual production; the 1978 Imperial/New Yorker.... now corrected to reflect the original design intent.

    Nobody but us would ever be able to tell the difference.

    Just before this shot, I started to play with adjusting the ends up just a hair to tighten the whole thing up and give her a bit of a Mona Lisa smile. You can see it on the passenger side. It still looks dead straight but the end is up slightly..... like 1/16”. Look closely.

    Nature, architecture and industrial design abhor absolute geometric perfection.

    The Greeks invented entasis for use in columns to make them appear straight by correcting our eyes’ tendency to reverse fisheye distort what we see. Likewise, they curved the entablature of the Parthenon and leaned its outer columns in slightly so they would look straight.

    If anything is perfectly straight it actually looks odd.

    Parallel lines that don’t come together slightly (in accordance with our expected understanding of perspective) appear to be askew.

    I think she’s “happy” now and she reflects better how I feel when I see her as a designer.

    Last edited: Apr 1, 2021
    • Like Like x 6
  4. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida
    One more bumper design observation.... the punched holes under the grille that were introduced in the 1975 model are completely useless from a cooling point of view. The openings are almost completely blocked by the bumper reinforcement. In my opinion the openings were an engineering justification for a design idea to get into production.... by somebody in upper management.

  5. commando1

    commando1 Old Man With a Hat on the Porch FCBO Gold Member

    Messages:
    35,271
    Likes Received:
    19769
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    Jav, I am truly humbled. You fixed the factory flaws in the bumper stamping.
    You are a very, very, strange man. I am glad to have broken bread with you.

    • Like Like x 1
    • Agree Agree x 1
  6. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida
    Need a favor....

    Seems like we lost a bit of trim somewhere...


    it’s the script “Chrysler” emblem that goes on the driver’s side headlight door.

    Please PM me if you have one you’d like to part with.

    thanks.

    j

    Last edited: Apr 1, 2021
  7. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida
    Found It!!!!

    • Like Like x 5
  8. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida
    Progress last night. Hadn’t been to the shop at night in over a year. But the quiet time really allows me to focus. Here’s some of those results.

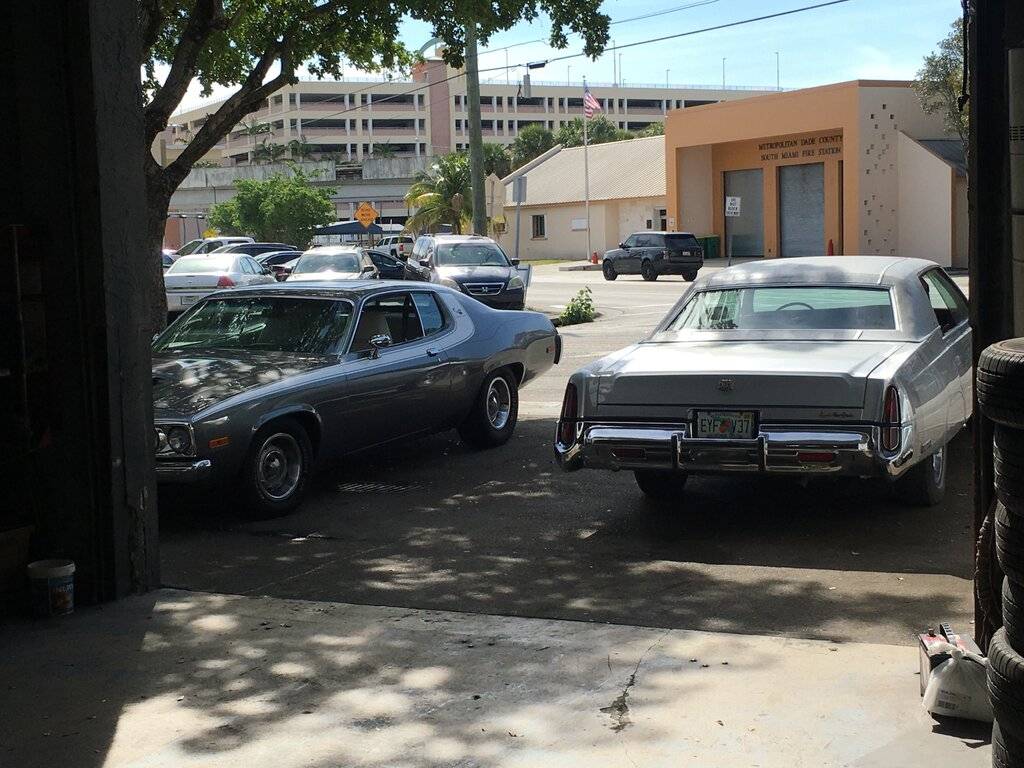

    First time out in the sun since she got her new paint. Coming together. Nice to see both mopars in the sun.

    Got the roof trim on but need to call Mr Fastener for some new clips as the ones on there are just too old.

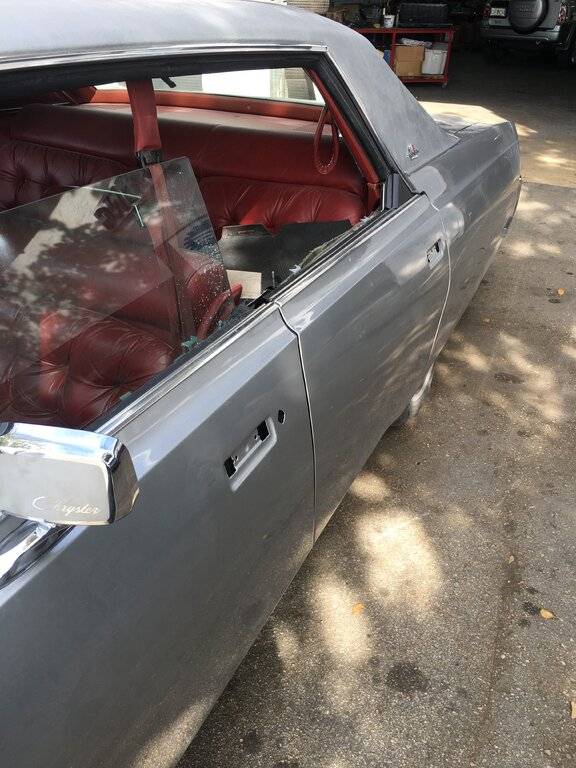

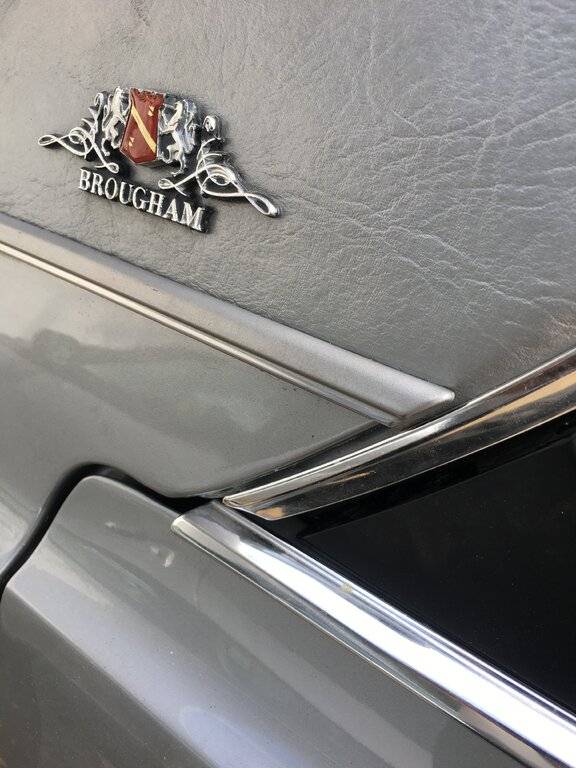

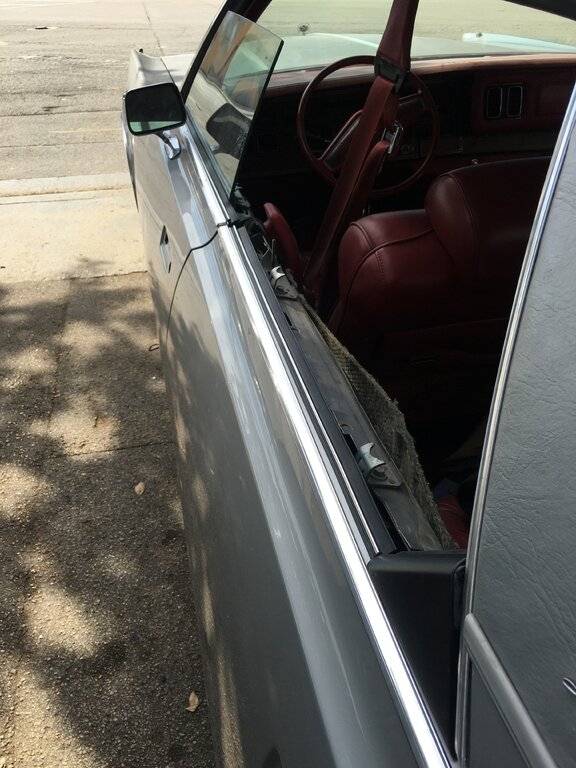

    Right rear door outer sweep in. What a PIA to get it to look good. Painted the little triangles too.

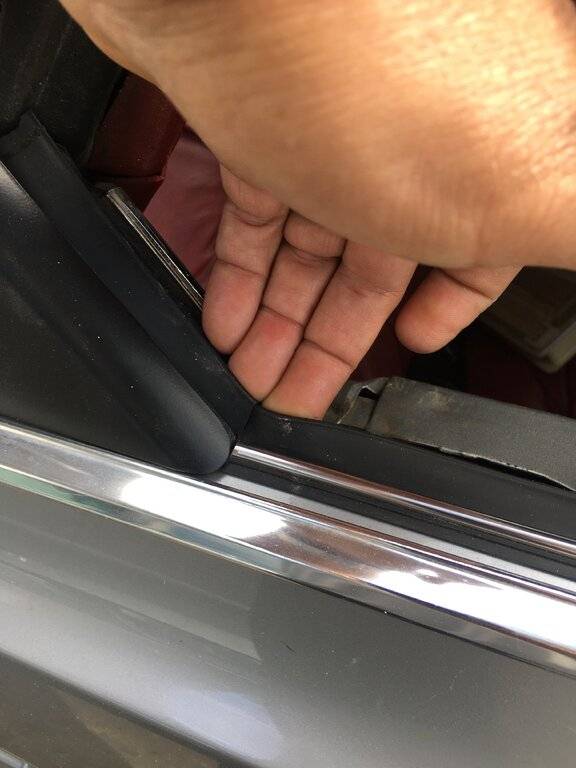

    Ran the seals a little longer on the rears to close up the gap some. I had the material so what the hell. One more custom detail on the beast.

    Put the trunk lock cover and rear name plates in.

    Right rear door. Door handles should be coming in next.

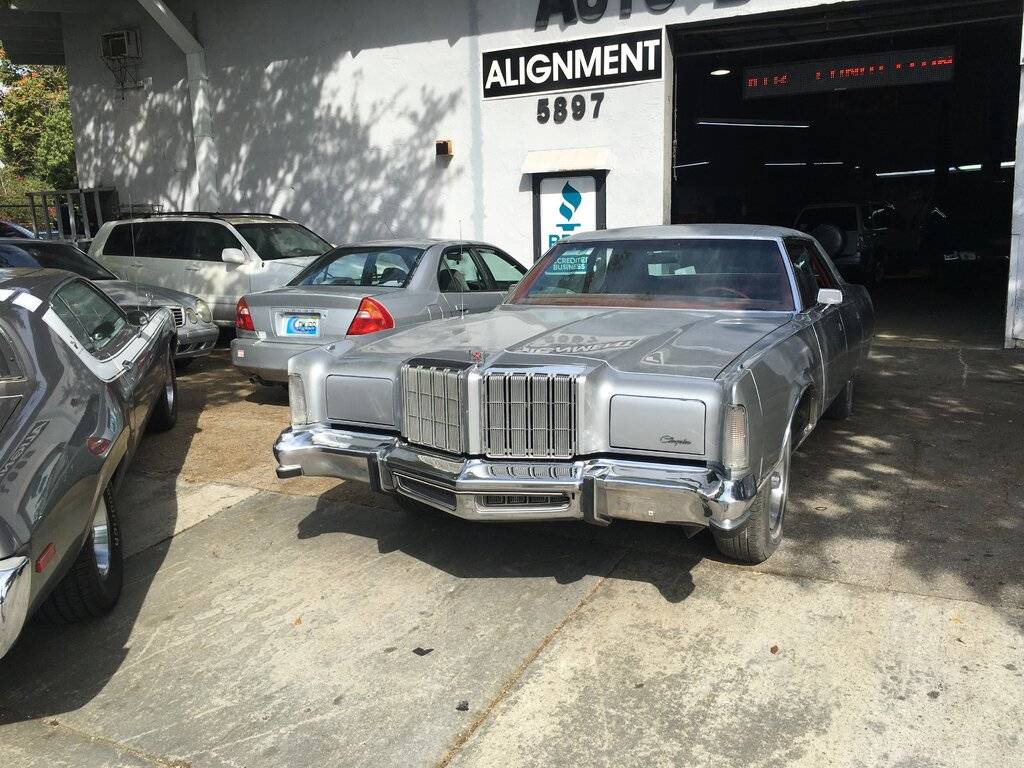

    Drivers side from the front.

    New look really working it in the sun.

    Bird’s eye view over the hood of my beeper. She looks rightfully proud.

    Last edited: Apr 7, 2021
    • Like Like x 11
  9. Ripinator

    Ripinator Old Man with a Hat

    Messages:
    5,099
    Likes Received:
    2920
    Joined:
    Jul 31, 2013
    Location:
    Germantown, MD
    • Like Like x 4
  10. commando1

    commando1 Old Man With a Hat on the Porch FCBO Gold Member

    Messages:
    35,271
    Likes Received:
    19769
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    I'm probably the only person in the world who would casually look at the front bumper and think, Hmmm... something wrong there.:lol:
    $2,900.

    • Like Like x 2
    • Agree Agree x 1
  11. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida
    More progress:

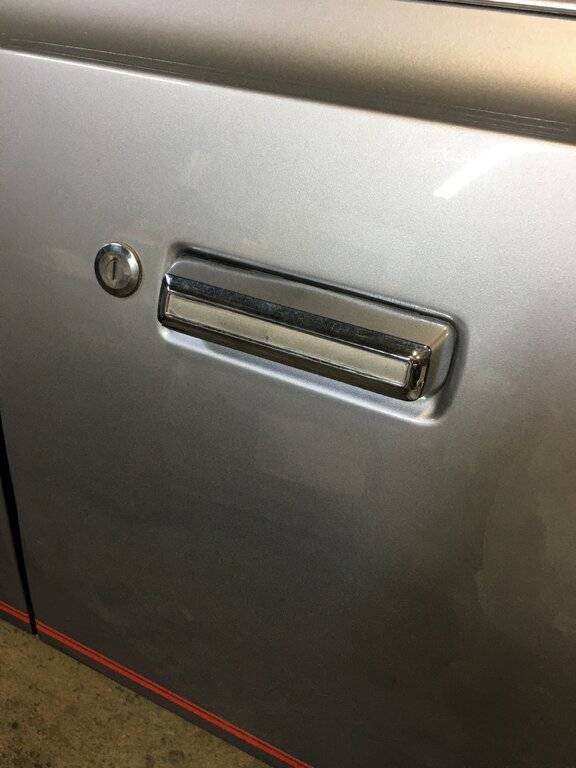

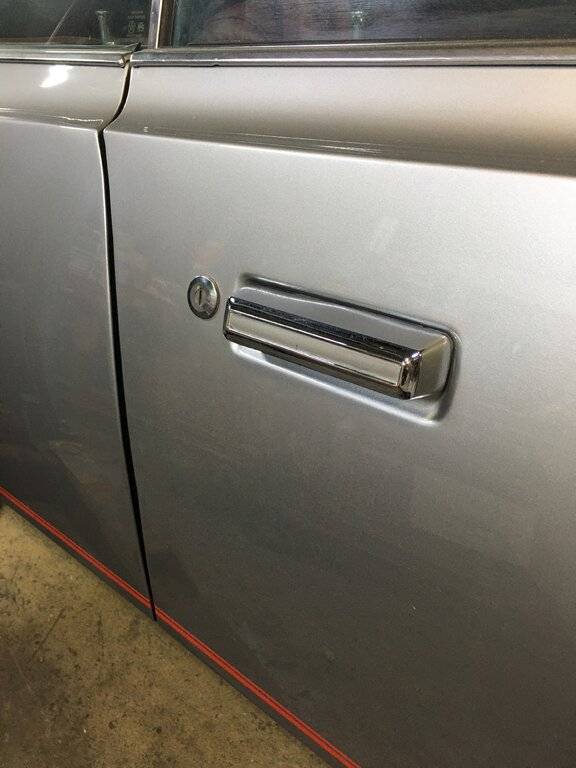

    Door handles in on both sides and inner dot panels on in the front pair

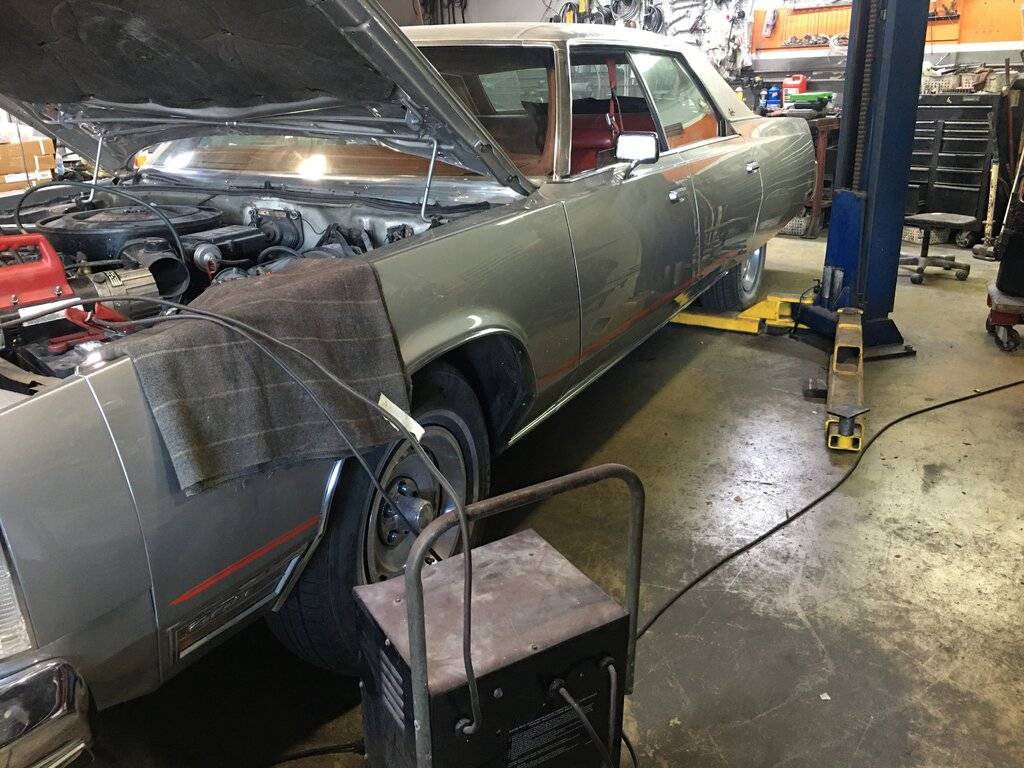

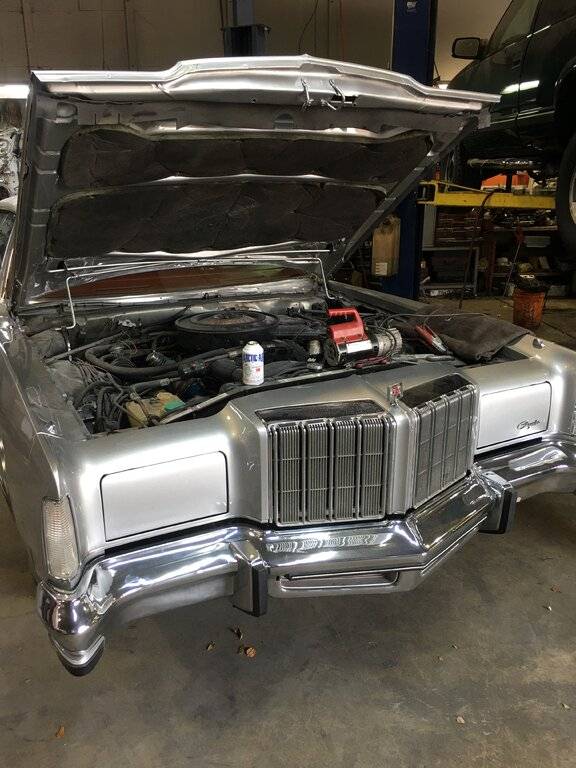

    We lost the partial charge we put in last month so I’m vacuuming out the rest and recharging to look for any leaks

    Really happy I painted the hood. Really adds to the car’s overall engine compartment look. .... once I clean it up.

    Last edited: Apr 8, 2021
    • Like Like x 6
  12. 1978 NYB

    1978 NYB Warfighter FCBO Gold Member

    Messages:
    54,215
    Likes Received:
    23785
    Joined:
    Apr 16, 2011
    Location:
    Classified
    With all of the effort in this project.....I'll up the offer to $2950.

    • Like Like x 3
  13. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida
    Come on now..... it has a sunroof.... that works!

    • Like Like x 1
  14. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida

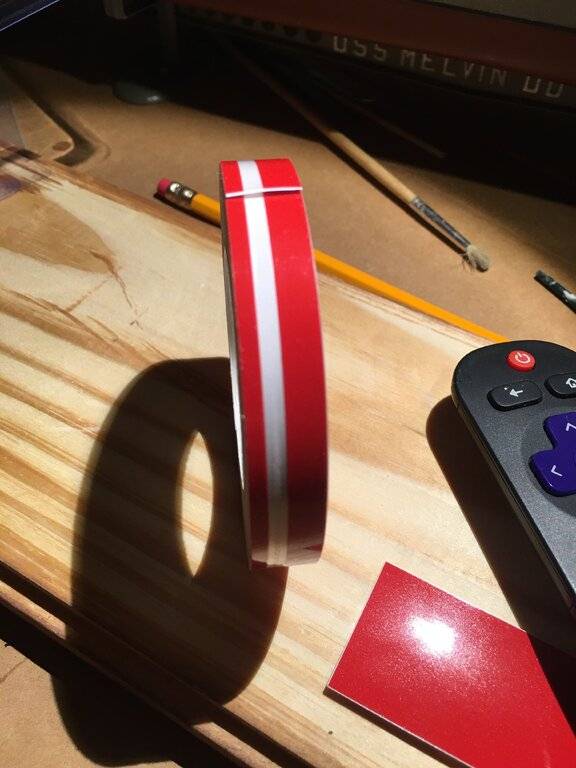

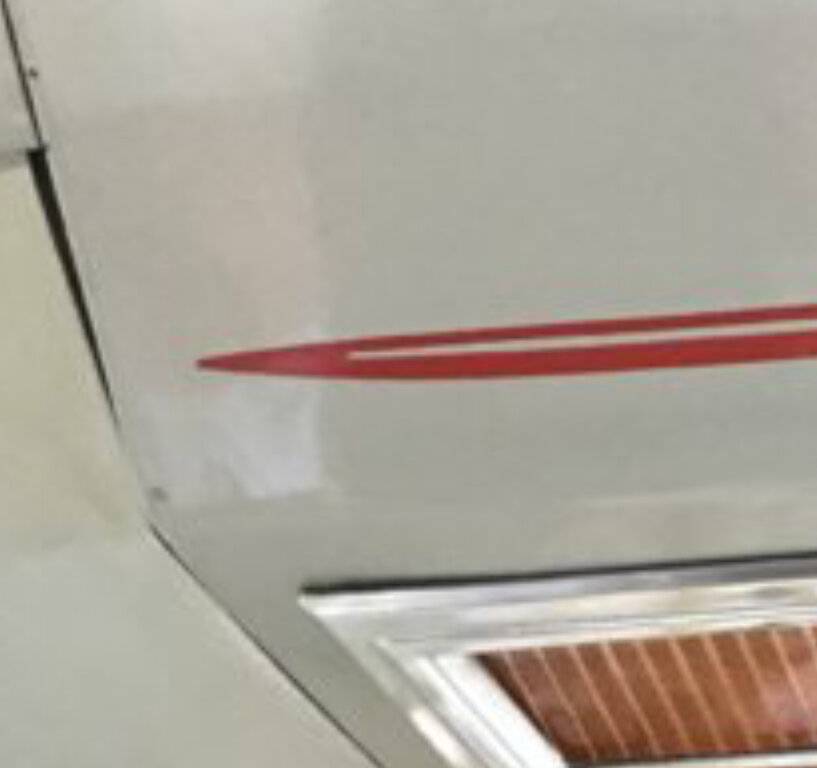

    Lucked out again. After hunting at a few paint shops, I found an almost exact match of the pinstripe decal for my NYB proto Salon edition...... at Discount Auto Parts.


    I couldn’t have found a closer match if I tried.

    Now to make the ends....

    luckily I have a good set of reference pictures from this thread.








    Last edited: Apr 8, 2021
    • Like Like x 3
  15. commando1

    commando1 Old Man With a Hat on the Porch FCBO Gold Member

    Messages:
    35,271
    Likes Received:
    19769
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    The trunk is gonna be a bitch.
    But you'll do it.

    • Agree Agree x 1
  16. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida
    Except, I’ll put it on straight.

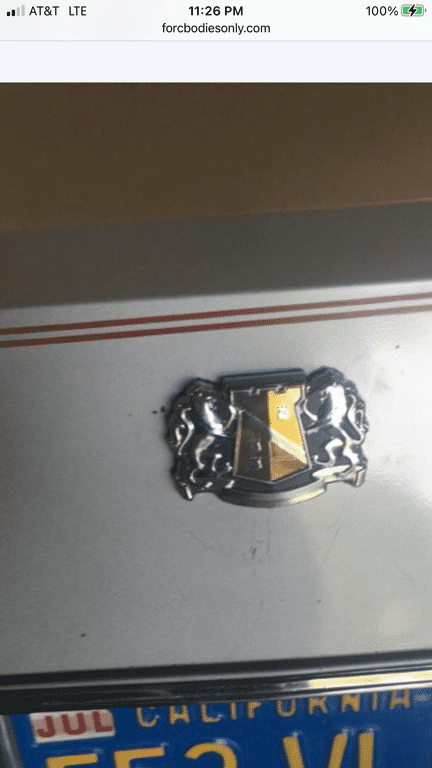

    I hadn’t noticed til now that the trunk stripes are two parallel narrow stripes. I may have to order them.

  17. 1978 NYB

    1978 NYB Warfighter FCBO Gold Member

    Messages:
    54,215
    Likes Received:
    23785
    Joined:
    Apr 16, 2011
    Location:
    Classified
    Wow, I missed that.......$3000. Lol

    • Like Like x 2
  18. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida

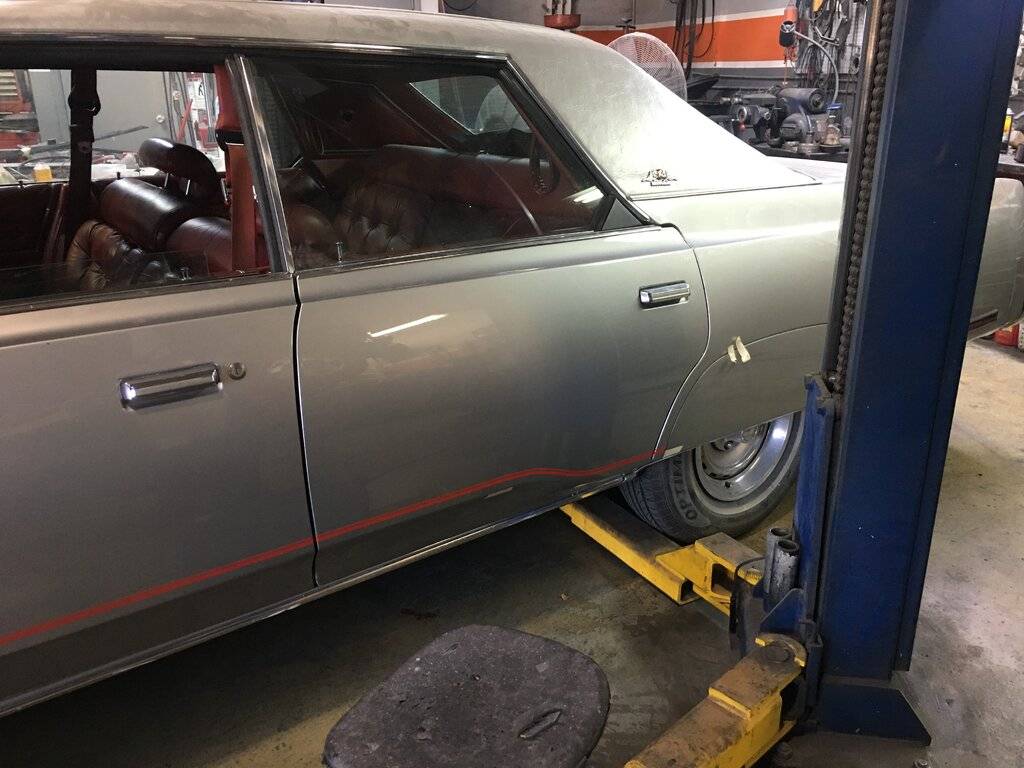

    One side.....

    Self explanatory

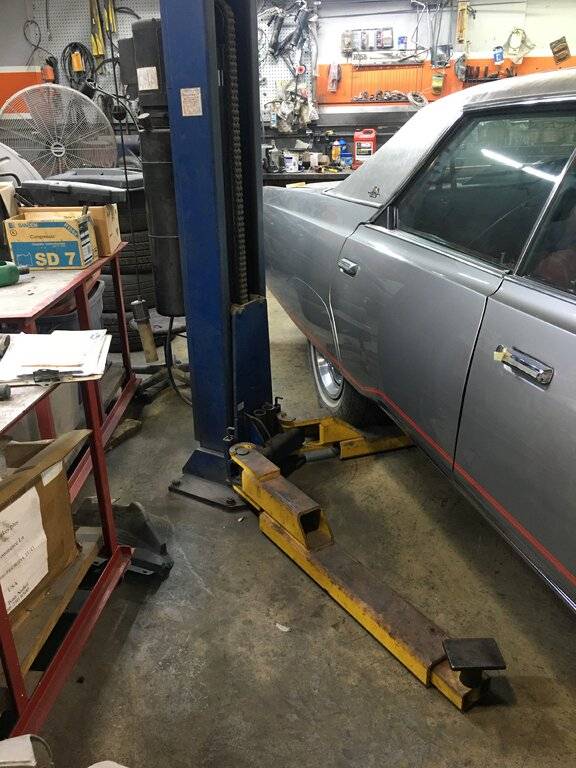

    Start. Used 3/4” masking tape to set space/offset for stripes. Not really liking it very much but it does look correct.

    More

    More..... almost there

    And.... one side done.

    Before I head home for dinner break, some observations.

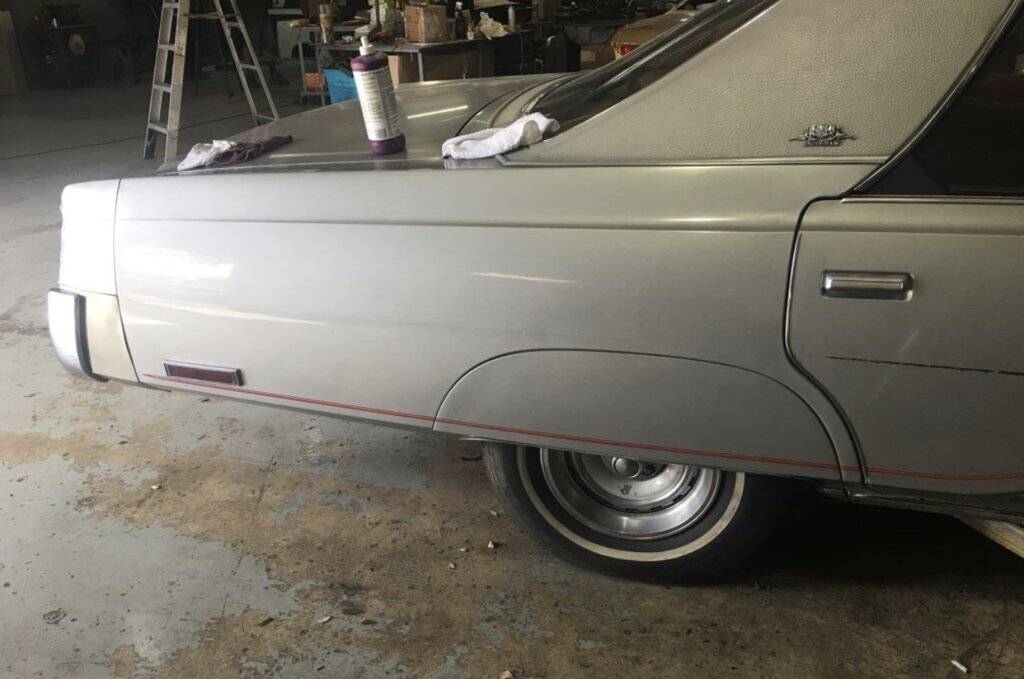

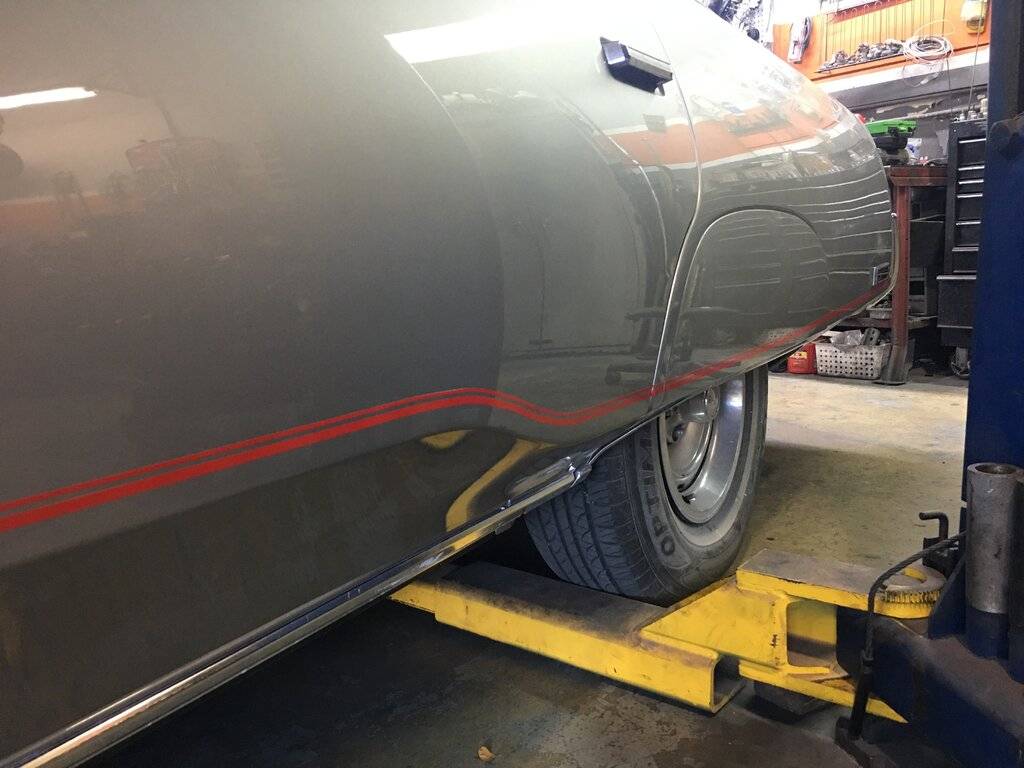

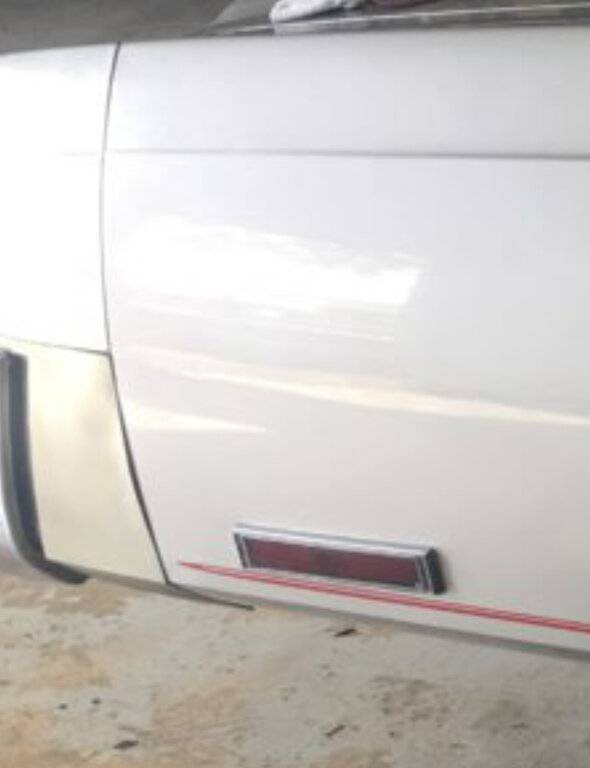

    Rear quarter actually tapers about a 1/4 inch down to duck the side marker lights.

    Bottom of fender is, of course, a subtle curve to accentuate both the skeg line and the outward bulge. Hard to hold a diminishing curve at arms length.

    Believe it or not I found that to be the hardest part. The curve at the bottom of the rear door was pretty well defined and short enough that I could hold a pretty even offset at working arms length. The rear fender ended up having to be done twice as I messed up some and had to start again.

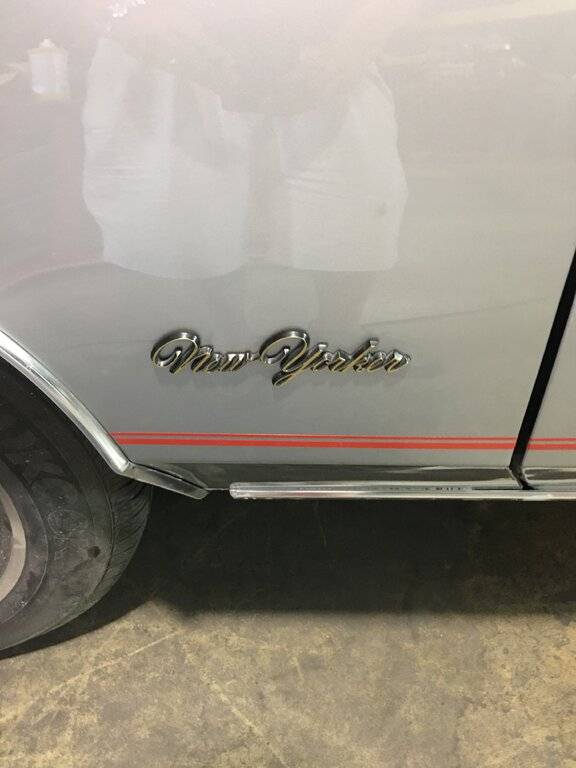

    Cleaned and re-installed the front fender “New Yorker” emblems before I left.

    More later.

    Last edited: Apr 9, 2021
    • Like Like x 9
  19. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida

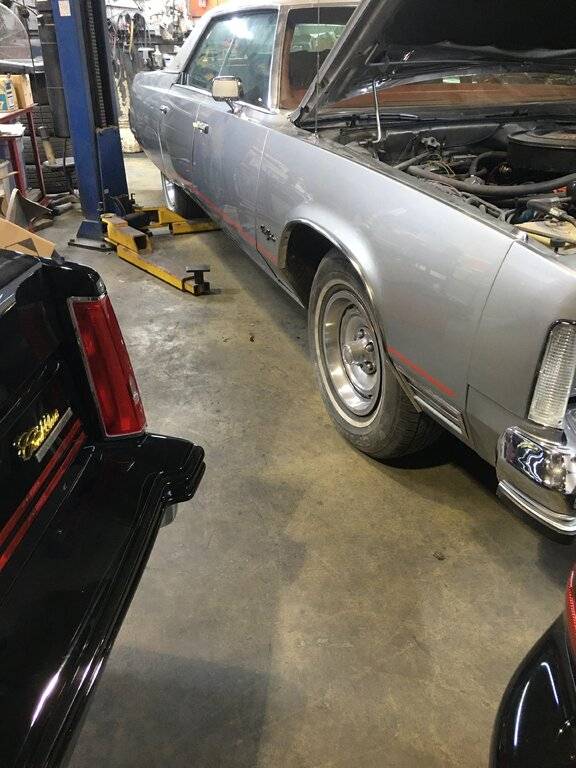

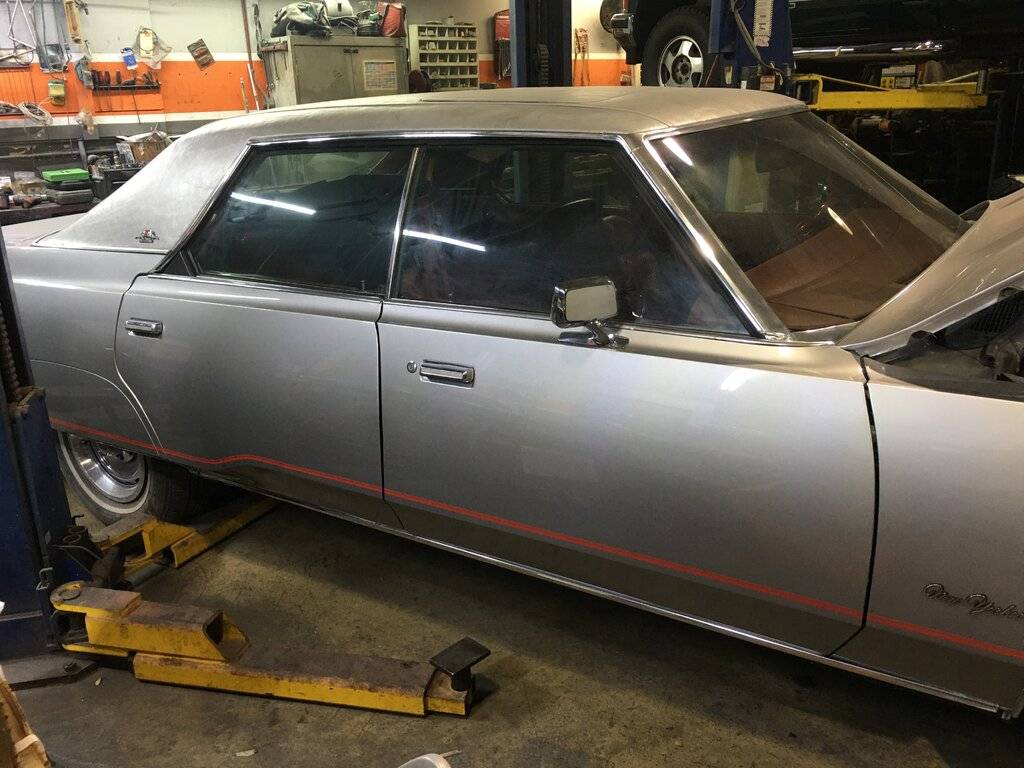

    Back from dinner and finished other side.

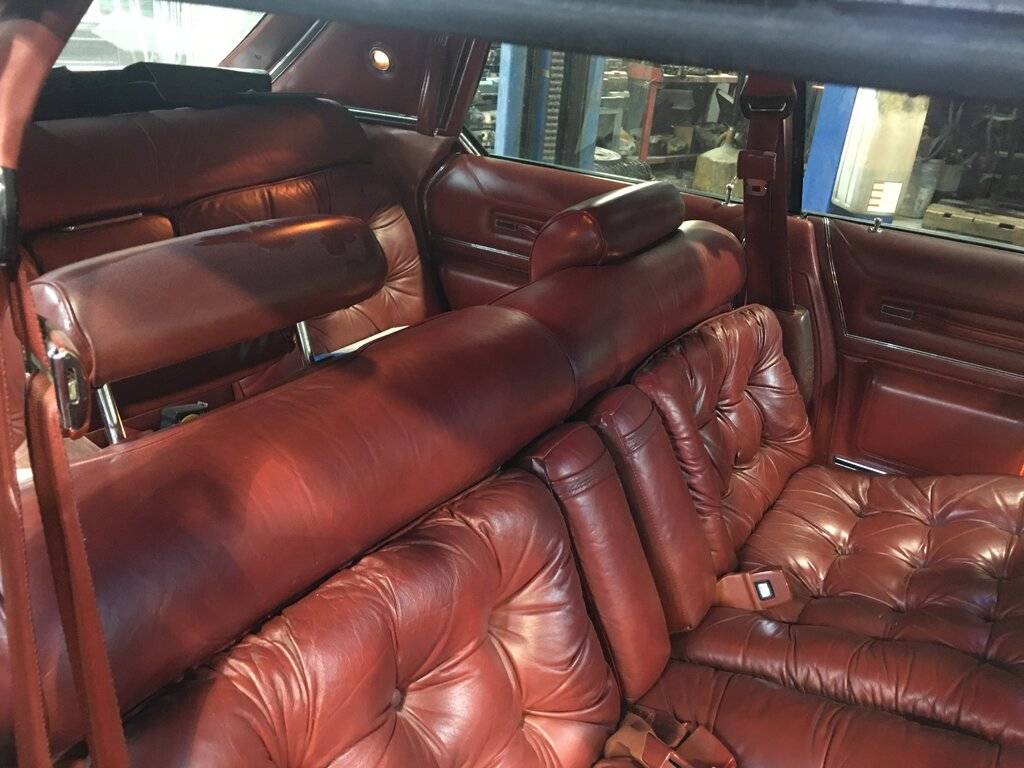

    All door panels in and windows working.

    Last edited: Apr 9, 2021
    • Like Like x 5
  20. 73 T&C

    73 T&C Senior Member FCBO Gold Member

    Messages:
    1,962
    Likes Received:
    2184
    Joined:
    Mar 19, 2013
    Location:
    Coral Gables, Florida

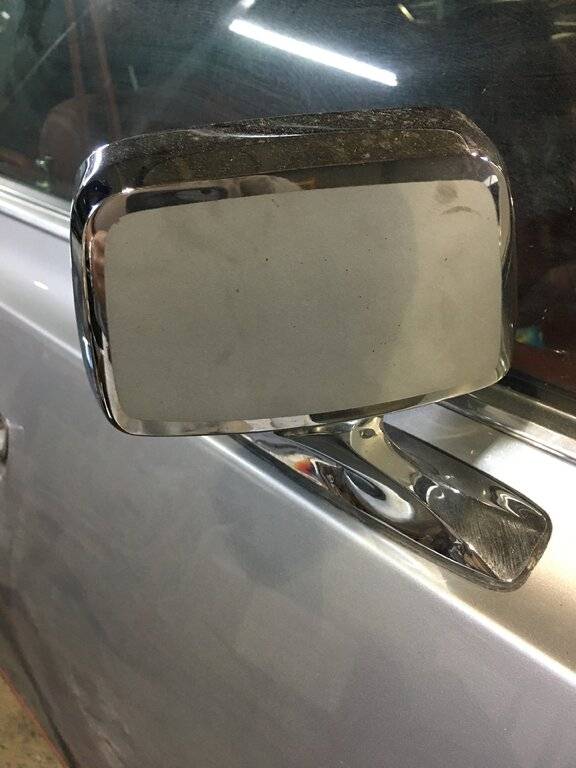

    Polished the chrome a bit.

    Before
    After
    After
    After

    After

    Before
