Sport Fury headlight doors

[70Tom]

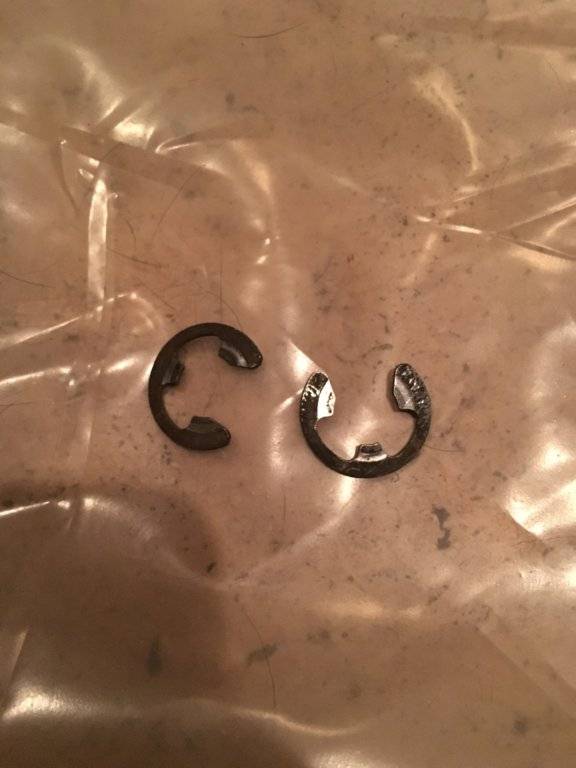

Do these C-clips go on the inner side post of the 70 SF headlight doors? Do they go before those V clips or after?

Also any tips how to get them on, if so? I can’t get them on for the life of me.

Thanks.



[Davea Lux]

Tom:

I checked both of my sportfurys and neither uses those c-clips. The V-Clip holds the square shaft section in tight and that is all that is used.

Dave



[70Tom]

Tom:

I checked both of my sportfurys and neither uses those c-clips. The V-Clip holds the square shaft section in tight and that is all that is used.

Dave

Phew. Thanks a ton Dave. Now I have to figure out where they go. Haha.



[70Tom]

I wonder. Does it go on the hinge bolt for the other side?



[70Tom]

Ok I think the C clips do go on the door rods. The V clips hold the motor rod in place.



[Fury440]

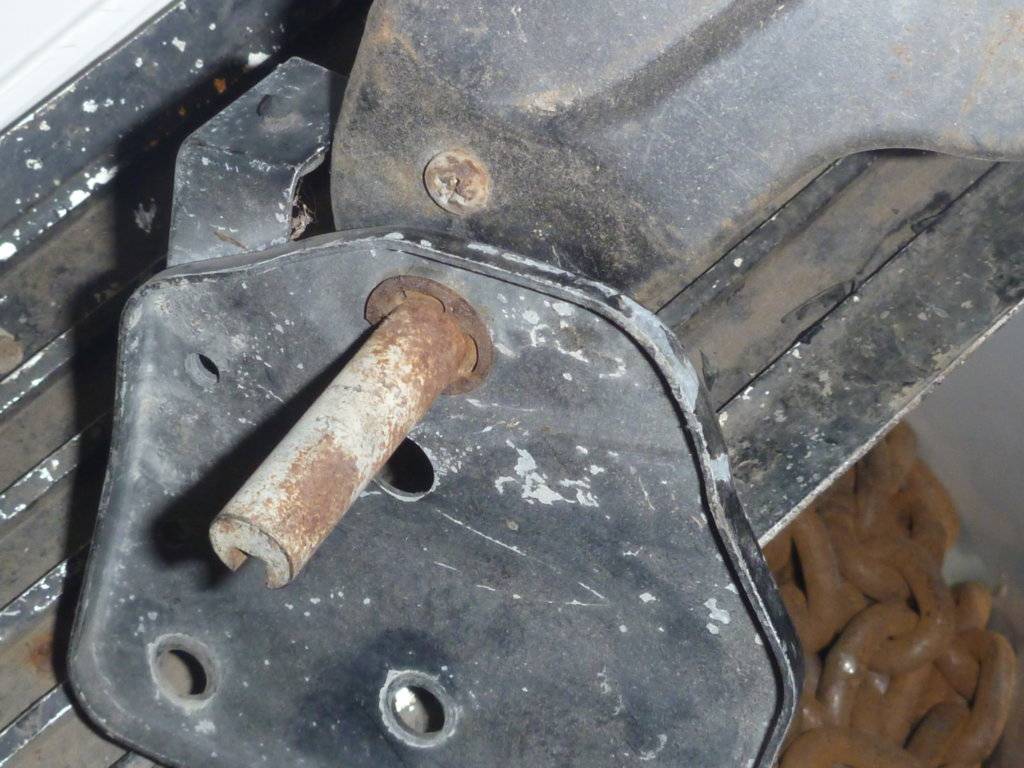

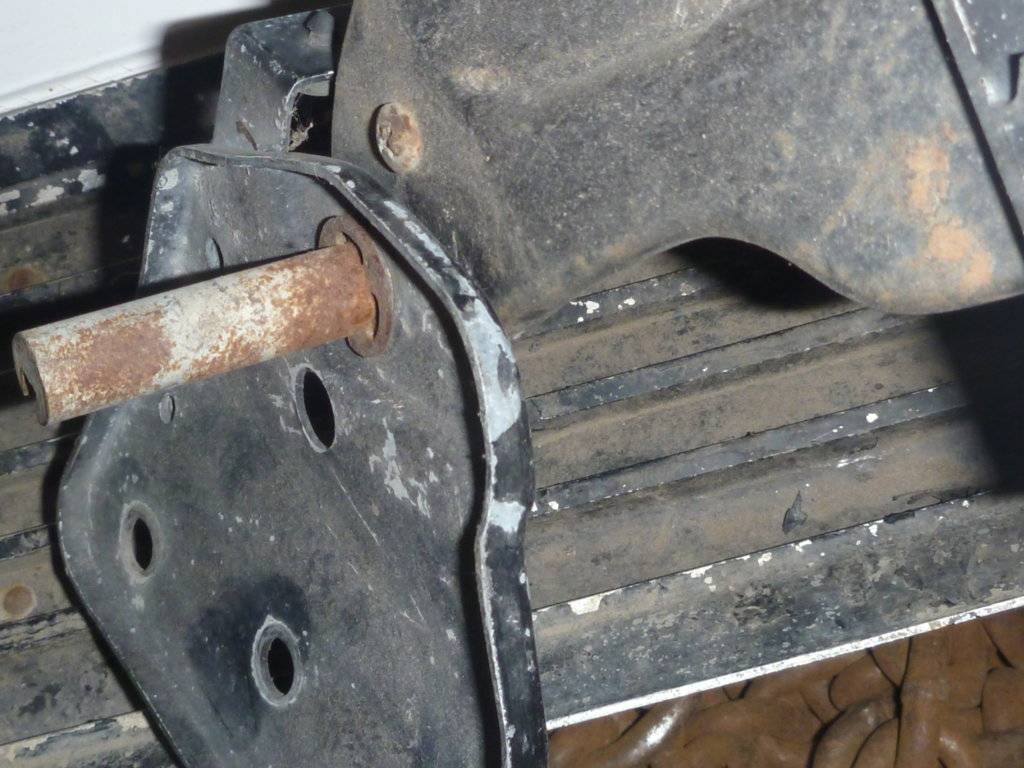

I have a collection of doors uncleaned and crappy but you'll get the idea. Give me a shout if you need better pictures.



[70Tom]

I have a collection of doors uncleaned and crappy but you'll get the idea. Give me a shout if you need better pictures.

View attachment 149227 View attachment 149228

Thank you. Yeah. I kinda figured that’s where they went. Now I just have to figure how to get them on. Such a pain. Haha

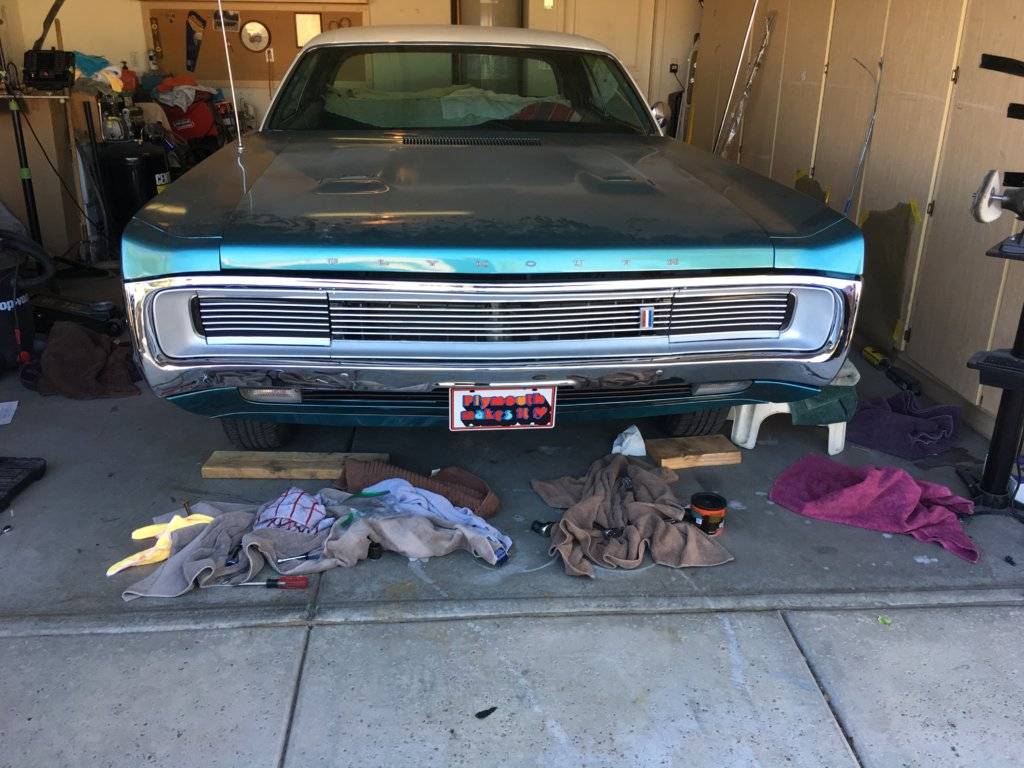

Well at least the bumper and valance is on. Needs some adjustments but I’ll get there eventually.
