Unidentified Cruise Control Lever

mopar6672

Member
Joined
Aug 18, 2015
Messages
140
Reaction score
26
Location
Milford, MI
I have collected several cruise control levers to make a clean one for my 1972 Charger. I have one oddball in my small collection and I am looking for someone to confirm the application. I suspect it is for a 1969-1972 C-Body or 1971-1972 B-Body w/tilt. The overall length of the lever is about 7".

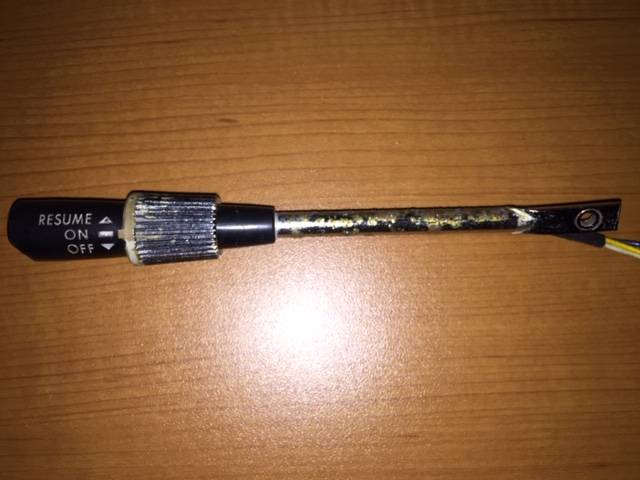

Lever 3.JPG

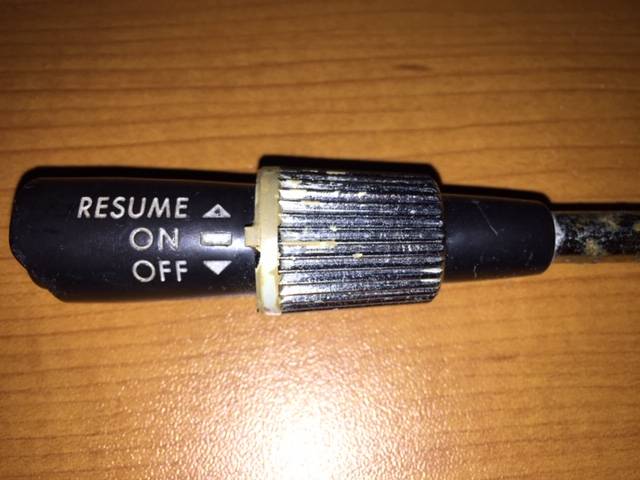

Lever 2.JPG

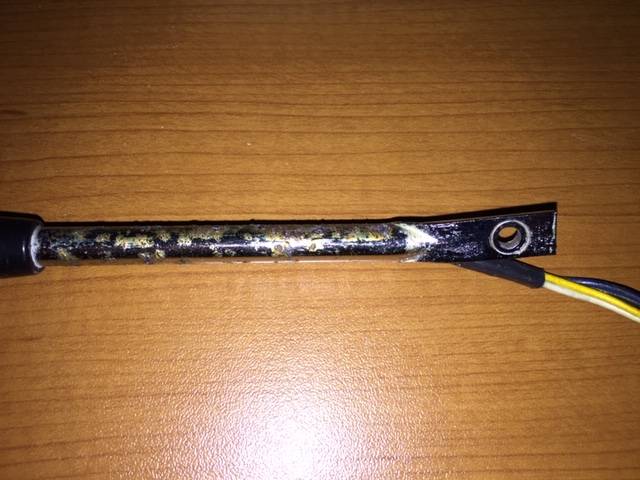

Lever 1.JPG


CBODY67

Old Man with a Hat
Joined
Mar 27, 2011
Messages
8,127
Reaction score
5,198
The "Drum" Resume levels pre-date the "Slide lever" Resume levers (which I believe came about the '74 model year. The "Drum" lever is on my '70 Monaco, so it probably goes back to the first "turn signal" lever in '68 or ''67, but seems like the '67 levers were a little different? 1966 was the "dial up to" knob on the instrument panel. The lever units came in with the Dana/Perfect Circle "modern" cruise control units.

CBODY67


Mr C

Senior Member
Joined
Nov 20, 2012
Messages
4,418
Reaction score
4,282
Location
All over
In C body context those were used on Fuseys (up to 73). As mentioned the slider version debuted in 74 (Formals) and went to 79 The next slider version was modified to incorporate the intermittent wipers first seen on R bodies.


mopar6672

Member
Joined
Aug 18, 2015
Messages
140
Reaction score
26
Location
Milford, MI
I believe this is a 1968-1969 lever simply because Chrysler went to a new style for 1970 based on many references I have seen. Not sure of the exact application.


saforwardlook

Old Man with a Hat
FCBO Gold Member
Joined
Oct 8, 2011
Messages
7,447
Reaction score
12,673
Location
California

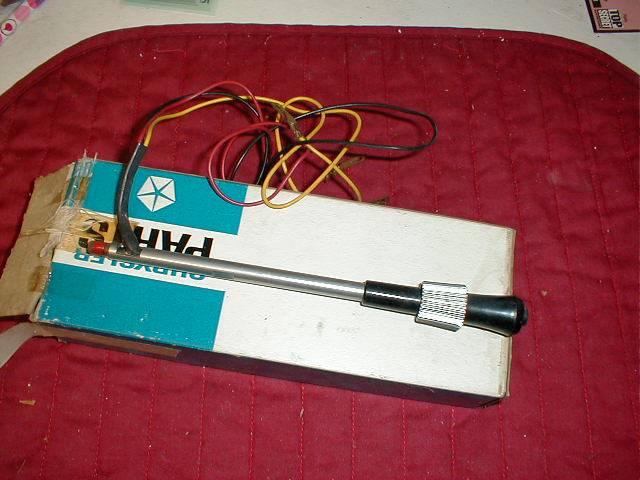

The first lever shown was used in 1970 - 73 models. The NOS one shown above was used in the 1969 cars, but it may have also been used in some of the slabside cars too.


65 500

Senior Member
Joined
Aug 12, 2013
Messages
2,222
Reaction score
2,276
Location
SW Ohio
I have collected several cruise control levers to make a clean one for my 1972 Charger. I have one oddball in my small collection and I am looking for someone to confirm the application. I suspect it is for a 1969-1972 C-Body or 1971-1972 B-Body w/tilt. The overall length of the lever is about 7".

View attachment 241544

View attachment 241545

View attachment 241546
This is a non-tilt lever, and it looks like a '70 lever. '70 and '71 have a different part number, also E-bodies have a different part # than B and C-bodies(Plymouth and Dodge)

This is a tilt column lever, '68 and/or '69. There are several different part #'s depending on if it's a Plymouth/Dodge, or Chrysler/Imperial, and if it's a '68 or '69. The difference between Ply./Dodge and Chrysler/Imperial is probably going to be the length of the lever. I think the '68 and '69 look just a little different, IIRC.


CBODY67

Old Man with a Hat
Joined
Mar 27, 2011
Messages
8,127
Reaction score
5,198
First year for a tilt wheel in a B-body car was '76, as in Cordoba. '75 b-body cars didn't have the tilt wheel option.

CBODY67


MYSINBIN

Well-Known Member
Joined
Apr 24, 2015
Messages
539
Reaction score
457
Location
New York
The "Drum" Resume levels pre-date the "Slide lever" Resume levers (which I believe came about the '74 model year. The "Drum" lever is on my '70 Monaco, so it probably goes back to the first "turn signal" lever in '68 or ''67, but seems like the '67 levers were a little different? 1966 was the "dial up to" knob on the instrument panel. The lever units came in with the Dana/Perfect Circle "modern" cruise control units.

CBODY67

'67 was still on the dash. Auto pilot went to the signal stalk in '68.


CBODY67

Old Man with a Hat
Joined
Mar 27, 2011
Messages
8,127
Reaction score
5,198
I was thinking the '67 was on the turn signal stalk as the instrument panel was changed in '67, but I just went back into the Historical website and found the '67 and '68 Chrysler Data Books.

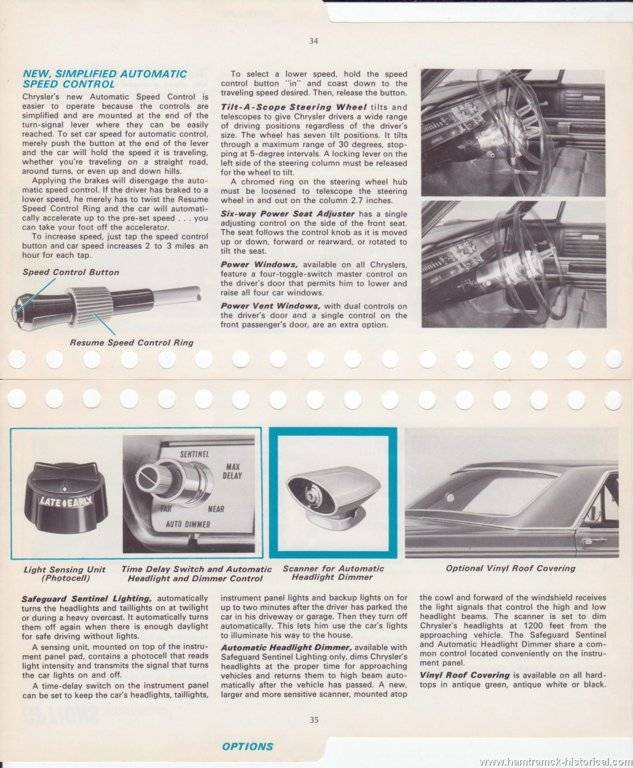

1967 was still called "Auto-Pilot" and used the dial wheel on the instrument panel to set/vary the speed, with an "Off-On" toggle switch. 1968 "Automatic Speed Control" was on the turn signal stalk, but is unique in that "the button" is on the stalk's end. Which would mean that 1969 was "the drum" style used on the 1970s? Which also identifies the OP's NOS part as a 1968 lever, I believe.

CBODY67

CHRYSLER__1968_ORDER GUIDE_SPEED CONTROL_Options%202.jpg


saforwardlook

Old Man with a Hat
FCBO Gold Member
Joined
Oct 8, 2011
Messages
7,447
Reaction score
12,673
Location
California
I was thinking the '67 was on the turn signal stalk as the instrument panel was changed in '67, but I just went back into the Historical website and found the '67 and '68 Chrysler Data Books.

1967 was still called "Auto-Pilot" and used the dial wheel on the instrument panel to set/vary the speed, with an "Off-On" toggle switch. 1968 "Automatic Speed Control" was on the turn signal stalk, but is unique in that "the button" is on the stalk's end. Which would mean that 1969 was "the drum" style used on the 1970s? Which also identifies the OP's NOS part as a 1968 lever, I believe.

CBODY67

View attachment 242077

I know for certain that the stalk with the button on the end was used on the 1969 Chrysler models at least.


65 500

Senior Member
Joined
Aug 12, 2013
Messages
2,222
Reaction score
2,276
Location
SW Ohio
These pictures are out of the Dodge data books. The '68 and '69 pictures look like they used the same picture, perhaps out of convenience.

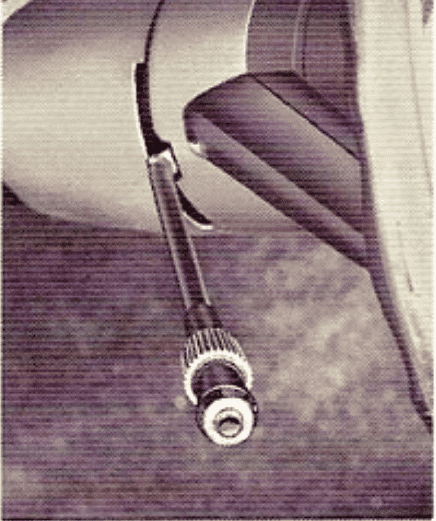

'68
68 cruise lever.PNG

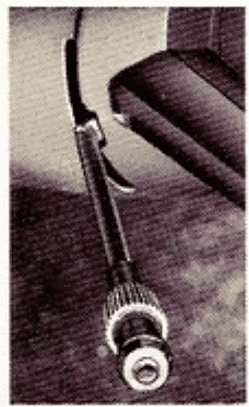

'69
69 cruise lever.PNG

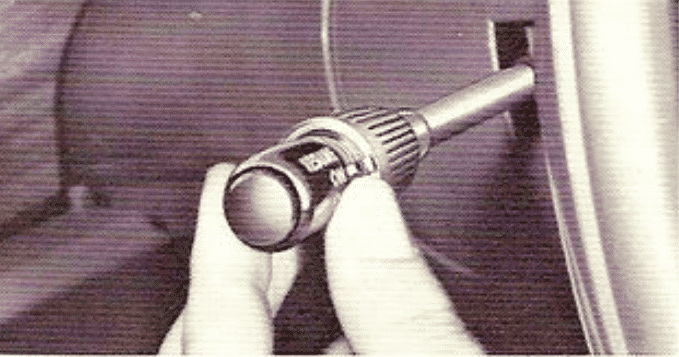

'70
70 cruise lever.PNG


'71
71 cruise lever.PNG


'72
72 cruise lever.PNG

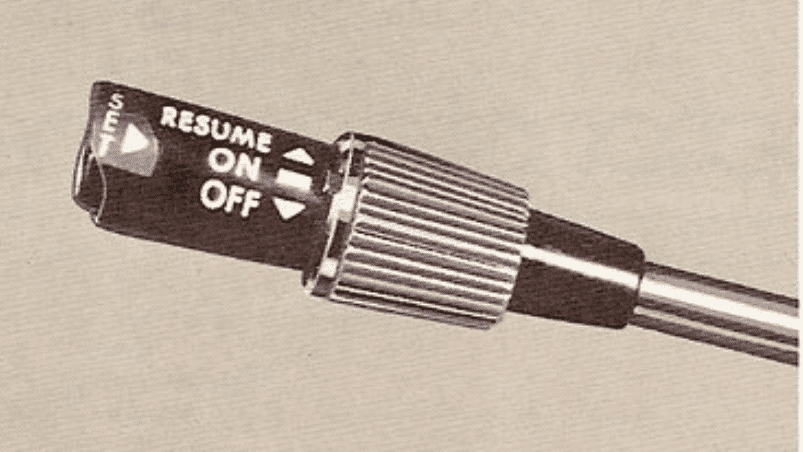

'73
73 cruise lever.PNG

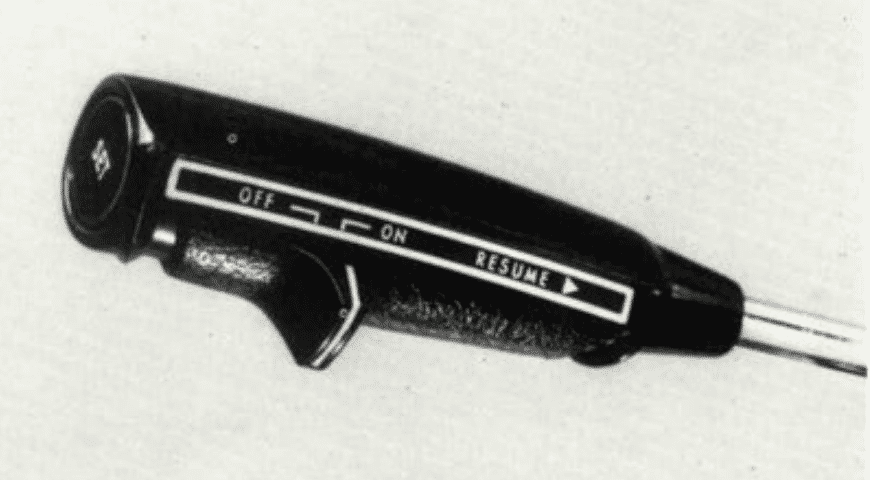

'74
74 cruise lever.PNG


david hill

Senior Member
FCBO Gold Member
Joined
Jul 17, 2017
Messages
1,174
Reaction score
2,115
Location
indianapolis 46226
That is a 68-69 cruise control lever. I can use it. Are you willing to sell and what is the condition of harness not pictured.


mopar6672

Member
Joined
Aug 18, 2015
Messages
140
Reaction score
26
Location
Milford, MI
Those photos are very helpful. It appears that I have a '70, '72 and '73 for standard columns. The photo I posted at the start of the thread appears to be a '72 for a tilt column. I did not realize there were so many subtle changes in the early '70s. Thanks for all the replies.


ed mazzola

New Member
Joined
Jan 30, 2019
Messages
10
Reaction score
6
Location
warren mi

ed mazzola

New Member
Joined
Jan 30, 2019
Messages
10
Reaction score
6
Location
warren mi
what year is it ?i have same one in my 1940 ford /dodge steering column. let me know thanks

like to talk to member 65 500 if you know how he is please tell him thanks
