What's this below the dash? 68 lebaron

Imperial

  1. coco

    coco Active Member

    Messages:
    317
    Likes Received:
    389
    Joined:
    Dec 21, 2018
    Location:
    Scotland

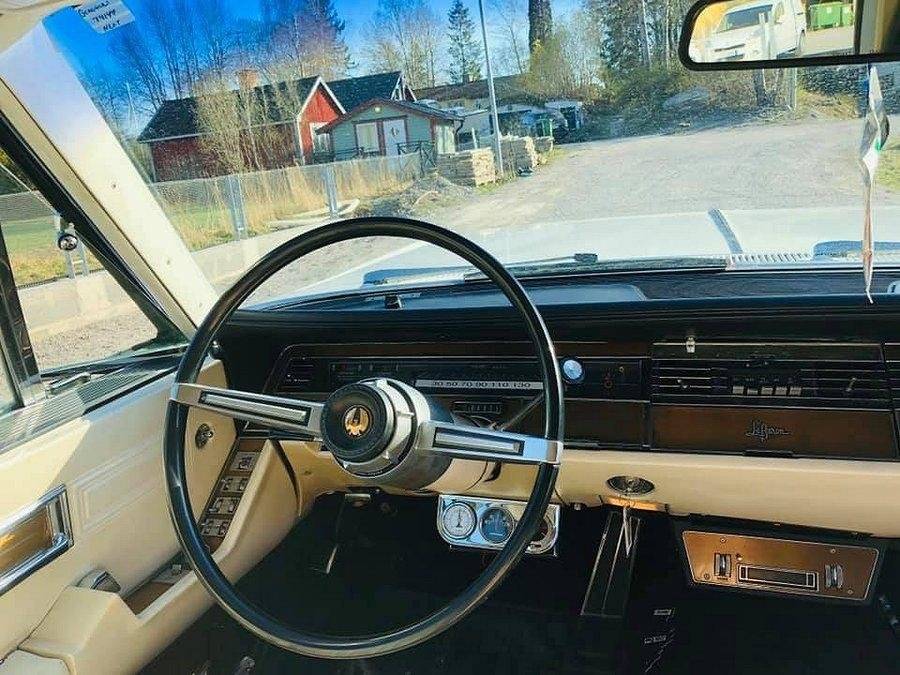

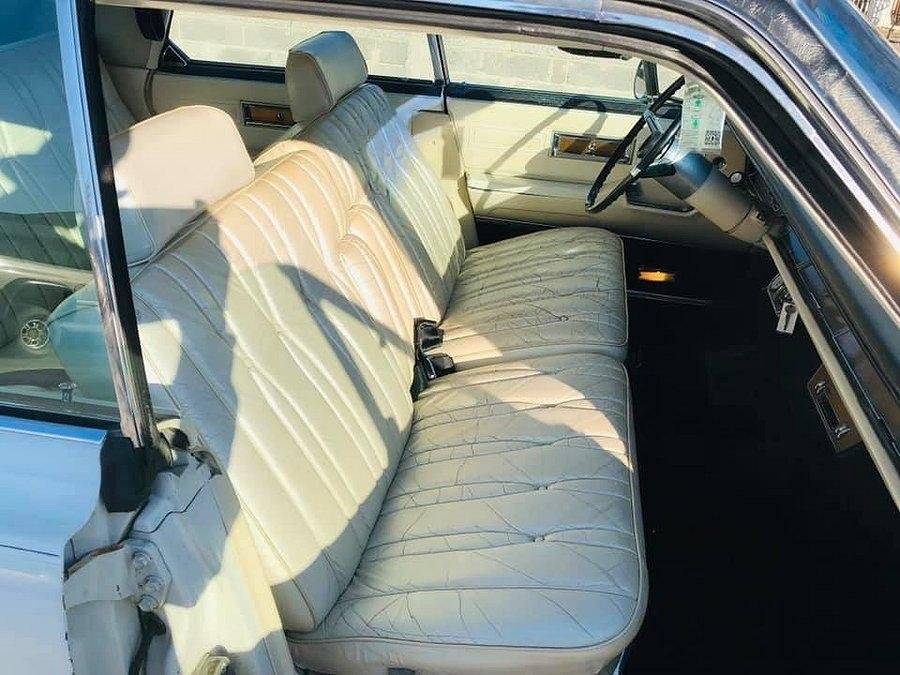

    What is this below the dash, to the right of the keys?


  2. detmatt

    detmatt Old Man with a Hat FCBO Gold Member

    Messages:
    25,254
    Likes Received:
    11248
    Joined:
    Nov 14, 2010
    Looks like it has thumbwheels like a radio but on my phone at least, the center part looks like an 8 track.

    • Agree Agree x 5
  3. coco

    coco Active Member

    Messages:
    317
    Likes Received:
    389
    Joined:
    Dec 21, 2018
    Location:
    Scotland
    I thought it might be an 8track too, but was not sure if they were about in 68. Bronze cover looks like maybe original option?

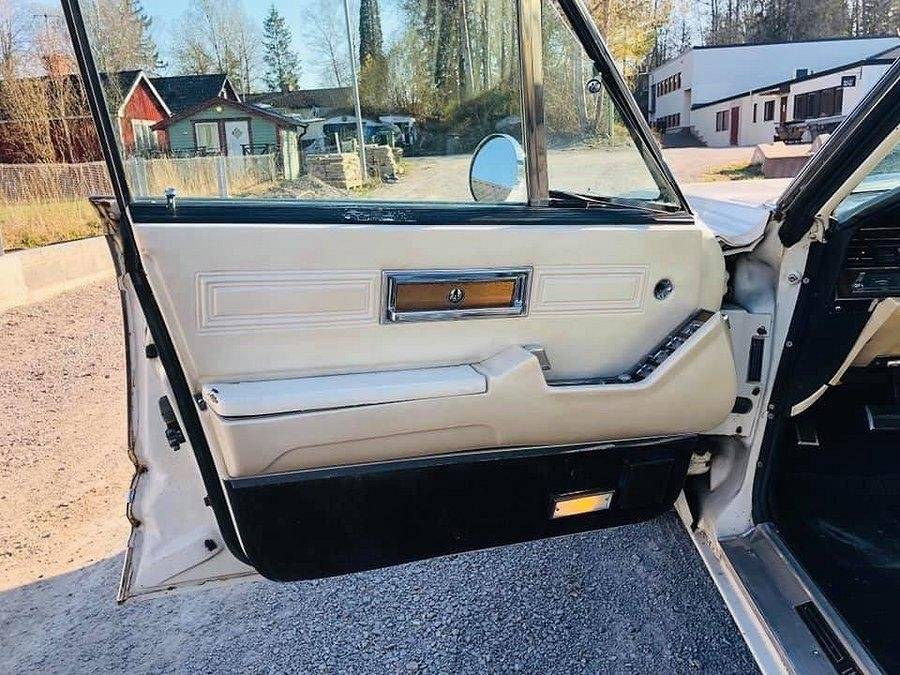

    From another Swedish car which came up for sale today, very little details only pics, white interior, missing 2 hubcaps but maybe dealer has them. Dealer not so friendly/helpful I found when contacting them previously...

    Sent you an email a few days back Matt, may have gone to junkmail...

  4. detmatt

    detmatt Old Man with a Hat FCBO Gold Member

    Messages:
    25,254
    Likes Received:
    11248
    Joined:
    Nov 14, 2010
    No I got it, just busy and I actually was going to reply last night but left my iPad at the shop last yesterday and that's my only device for that email address.

  5. 68 4spd Fury

    68 4spd Fury Well-Known Member

    Messages:
    850
    Likes Received:
    223
    Joined:
    Aug 17, 2014
    Location:
    Syracuse, NY
    Definitely an 8 track. Must be where they were installed then, or maybe dealer installed. At least in Plymouth, you had an AM, AM/FM, (both Mono), and an AM/8 Track stereo. What is the radio you have, (assuming it's still the original).

  6. rapidtrans

    rapidtrans Senior Member FCBO Gold Member

    Messages:
    3,557
    Likes Received:
    2067
    Joined:
    Jun 8, 2016
    Location:
    rochester hills, mi.
    Yep.
    The black LeBaron shown in my garage "When They Were New" had the factory 8-track under the dash just like that picture. The radio was an AM mono and may have just had a front and rear speaker for stereo.

  7. detmatt

    detmatt Old Man with a Hat FCBO Gold Member

    Messages:
    25,254
    Likes Received:
    11248
    Joined:
    Nov 14, 2010

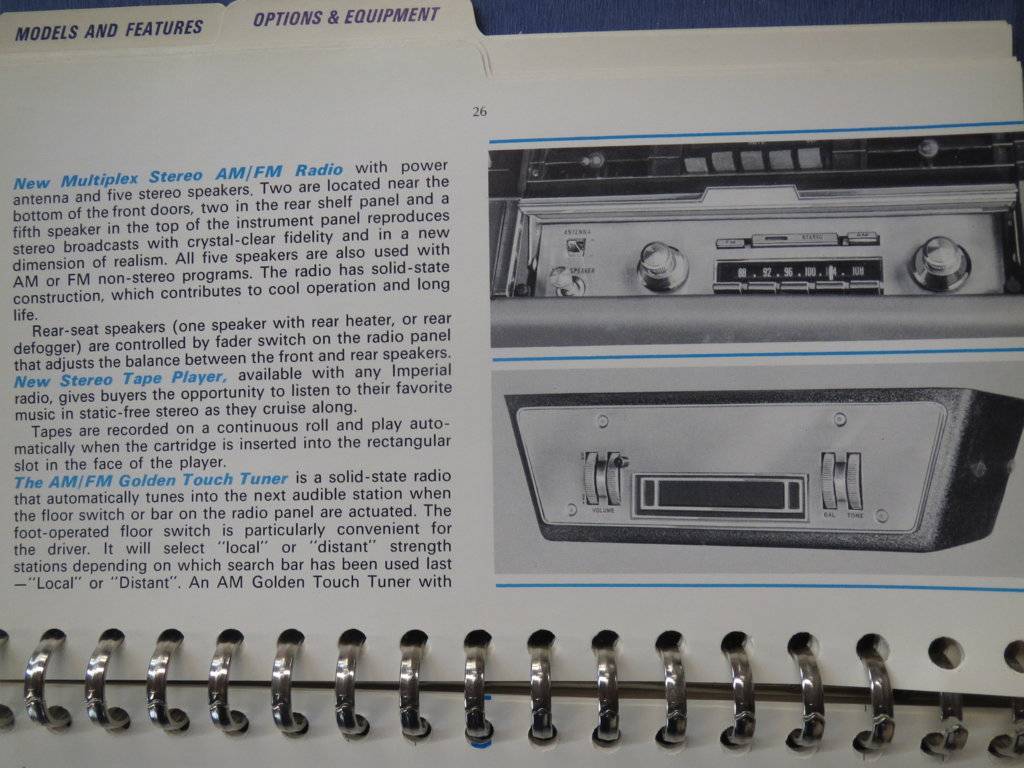

    It’s factory and probably quite rare. They’re not even calling it an 8 track.

    • Like Like x 1
    • Thanks! Thanks! x 1
    • Agree Agree x 1
  8. Mark Kevin Weaver

    Mark Kevin Weaver Member

    Messages:
    87
    Likes Received:
    31
    Joined:
    Feb 6, 2019
    Location:
    Jacksonville, FL
    I may be an original 4 track player, because it doesn't call out 8 track in the literature.
    They used the same cartridge as the 8 track, I think it will play those too.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
    • Disagree Disagree x 1
  9. Imperialist67

    Imperialist67 Senior Member FCBO Gold Member

    Messages:
    1,078
    Likes Received:
    324
    Joined:
    Jul 16, 2013
    Location:
    Washington, DC
    Dig the white interior, and your bronze panels look pretty nice, too. I THINK the tape player was a new option for '68, never seen one in person. It was a "below dash" option then, and may have even been dealer installed. You'll have to find an 8-track to see if it works........

  10. jeffsunzeri

    jeffsunzeri New Member

    Messages:
    26
    Likes Received:
    6
    Joined:
    Dec 5, 2018
    Location:
    Hollister, CA.
    Actually, if it is a 4 track unit, those cartridges are not 8 track compatible. The 4 track cartridge tape is driven by a capstan that emerges from the bottom of the unit, and inserts through a hole in the front right of the cartridge. The 8 track cartridge has no such hole, and the tape is driven by a static drive wheel which presses against a wheel which is part of the 8 track cartridge. 4 track cartridges won't play in an 8 track unit.

    • Agree Agree x 2
    • Like Like x 1
    • Thanks! Thanks! x 1
  11. coco

    coco Active Member

    Messages:
    317
    Likes Received:
    389
    Joined:
    Dec 21, 2018
    Location:
    Scotland

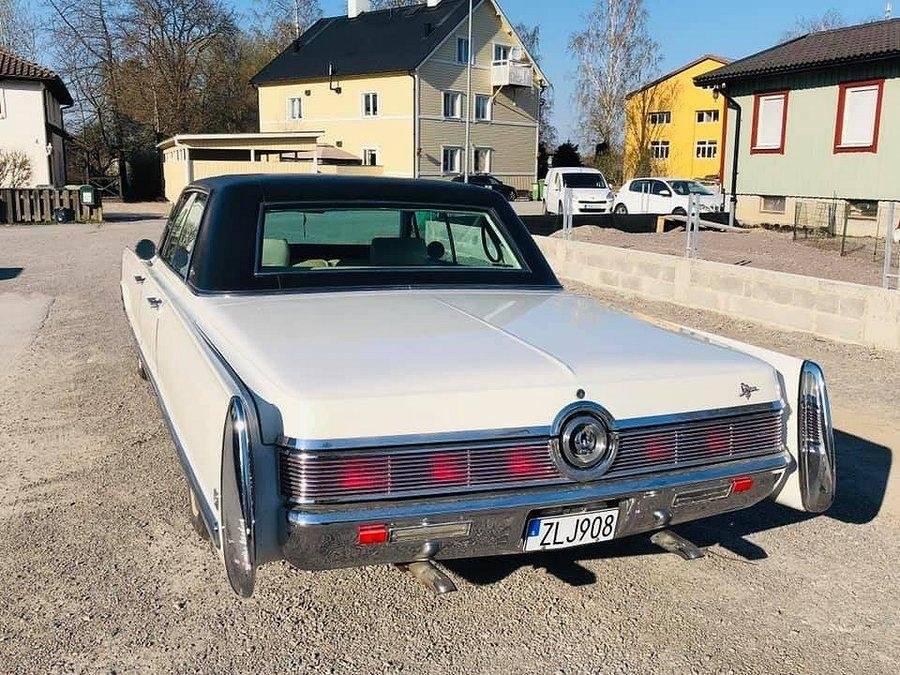

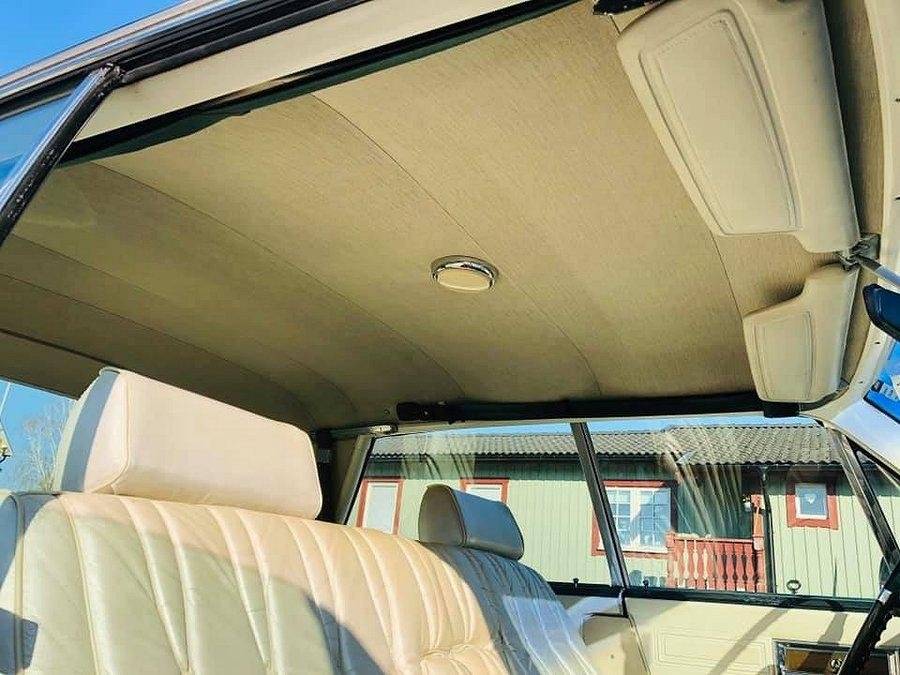

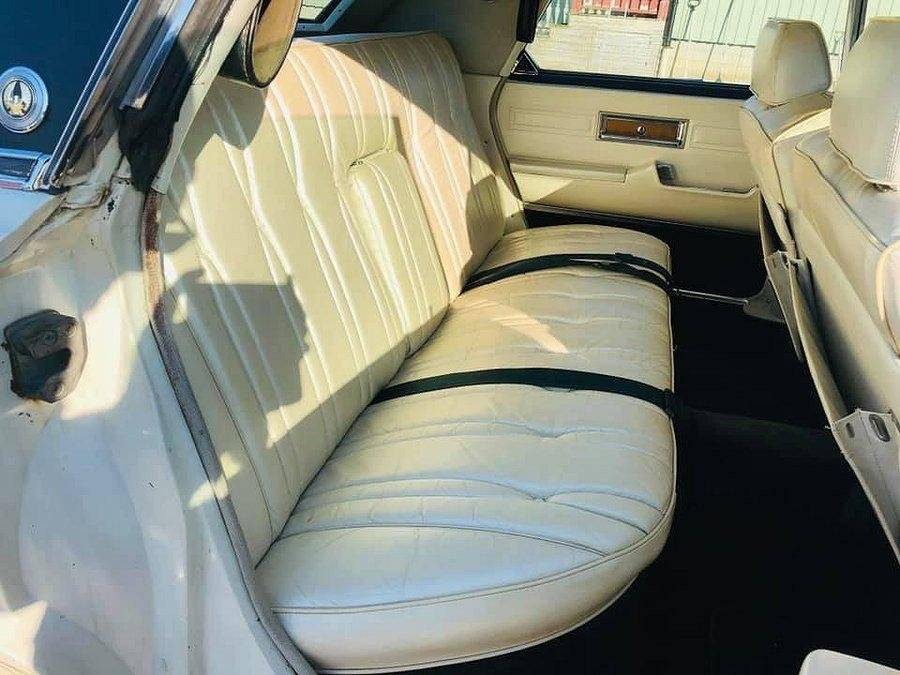

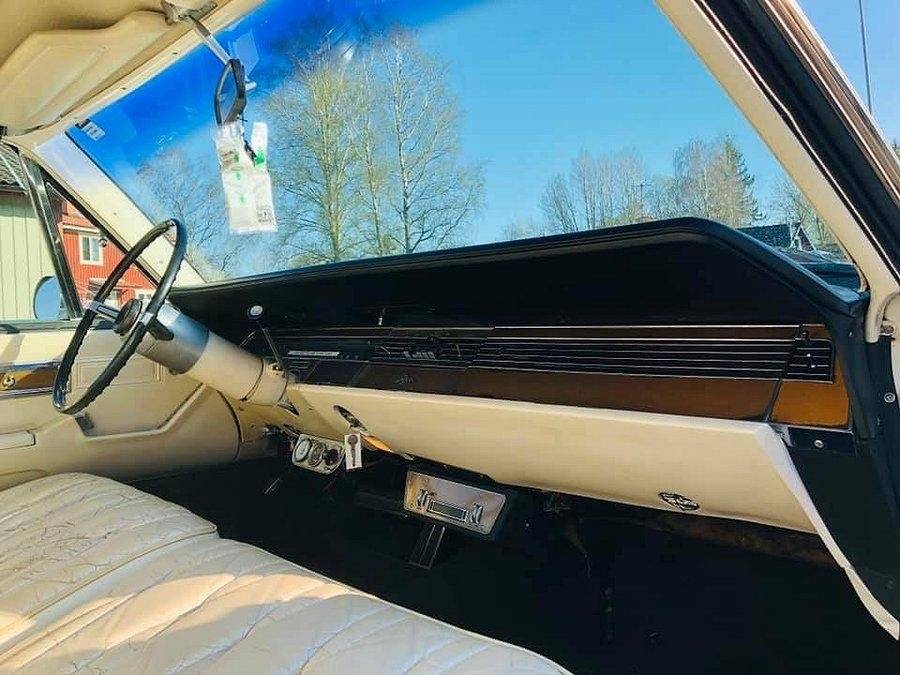

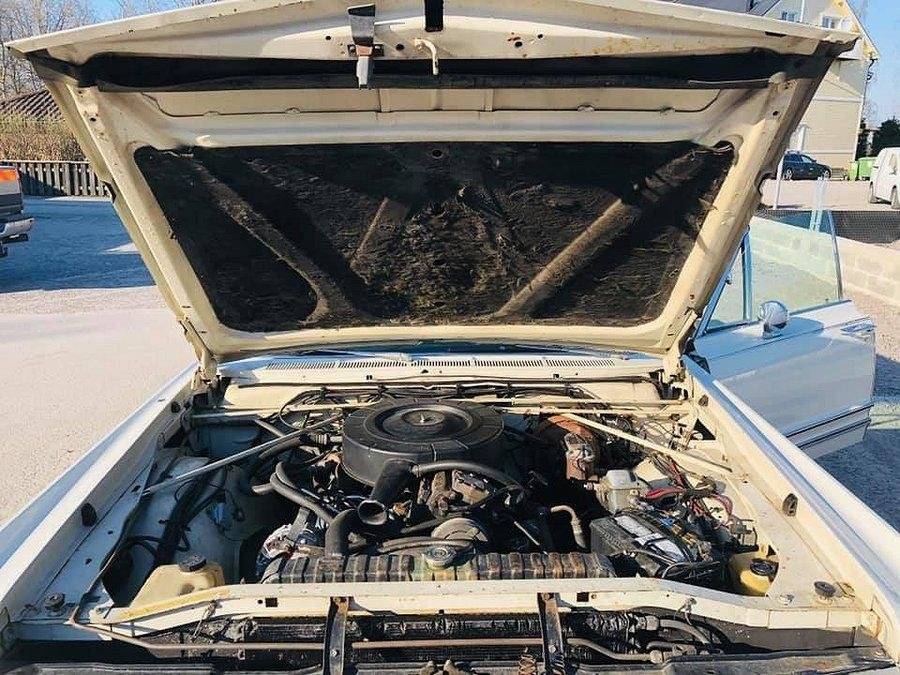

    The car is not mine guys, its just come up for sale, I'll post some pics for opinions. I think some 8 track tapes are kicking round in my parents home, if I did buy it.

    Same colour exterior but different interior from the other one I'm off to see/buy near Stockholm. It looks a bit rougher but its cheaper and with a dealer which may make buying easier. Sweden is proving to be a paperwork nightmare to export from when you have no Swedish ID, Address or have no wish to drive it home.:BangHead::realcrazy:









    • Like Like x 3
    • Thanks! Thanks! x 1
  12. JC68vert300

    JC68vert300 Well-Known Member

    Messages:
    926
    Likes Received:
    722
    Joined:
    Apr 4, 2017
    Location:
    Ocean County, NJ

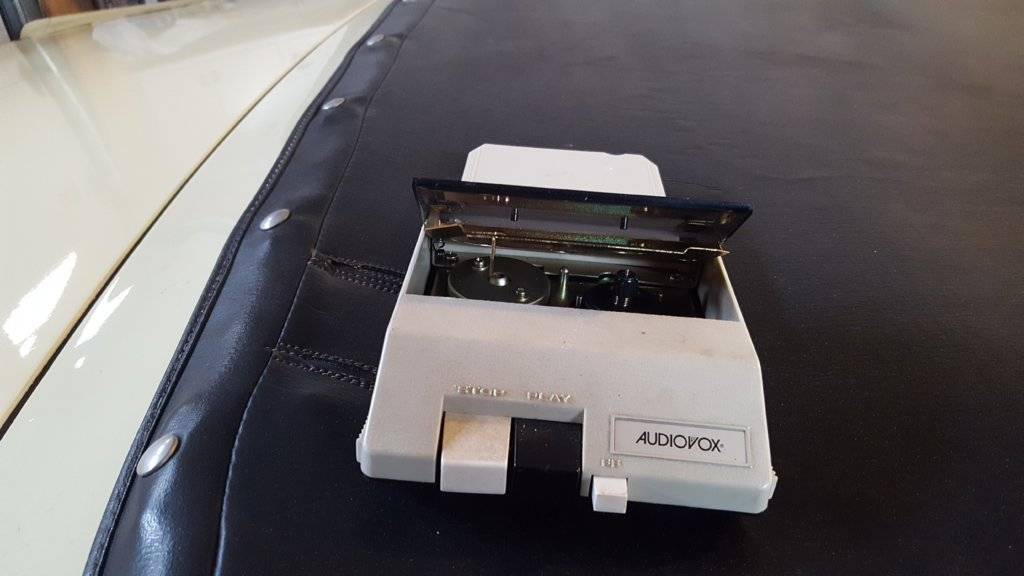

    image.jpeg View attachment 282904 I thought while I was reading this thread I have a little gizmo that some may not have seen before. From my '76. It converts the 8-track tape player to a cassette player. Some of the younger members don't seem to know about this format. It was the first format that made music portable. As detmatt showed in the literature, you could listen to your music static free, a common problem with radio reception back in the '60s. But technology then, like today evolved. 8-track gave way to cassette tape(much smaller), which then was replaced by compact discs, etc.

    • Like Like x 1
  13. JC68vert300

    JC68vert300 Well-Known Member

    Messages:
    926
    Likes Received:
    722
    Joined:
    Apr 4, 2017
    Location:
    Ocean County, NJ

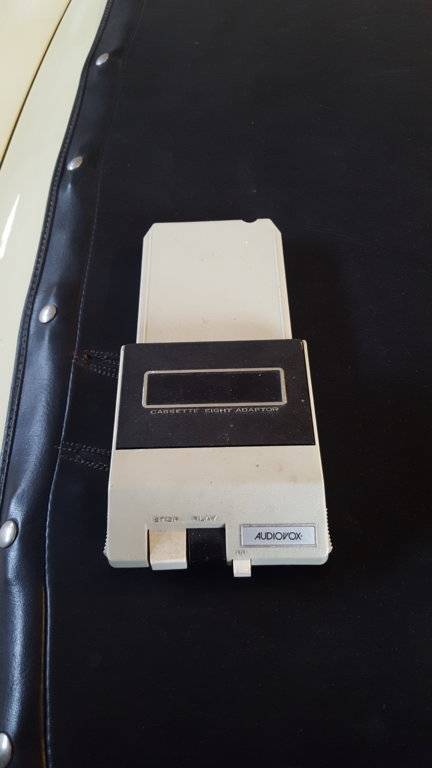

    image.jpeg View attachment 282903 I thought while I was reading this thread I have a little gizmo that some may not have seen before. From my '76. It converts the 8-track tape player to a cassette player. Some of the younger members don't seem to know about this format. It was the first format that made music portable. As detmatt showed in the literature, you could listen to your music static free, a common problem with radio reception back in the '60s. But technology then, like today evolved. 8-track gave way to cassette tape(much smaller), which then was replaced by compact discs, etc.

  14. Imperialist67

    Imperialist67 Senior Member FCBO Gold Member

    Messages:
    1,078
    Likes Received:
    324
    Joined:
    Jul 16, 2013
    Location:
    Washington, DC
    This white-on-white LeBaron sure seems nice. Good luck with your search.

  15. CBODY67

    CBODY67 Old Man with a Hat

    Messages:
    5,336
    Likes Received:
    1221
    Joined:
    Mar 27, 2011
    The 4-track came first, via Muntz. It was soon competed-with by the factory 8-track units. Many were add-ons to existing factory radios. The strangest, to me, was the mix of Mono AM and Stereo tape.

    My uncle bought a new '67 Caprice with the 8-track option with the AM radio. Front two speakers were in the kick panels. Rear two speakers were in the rear package tray, as usual. Sounded great. Could image the music to the windshield, which I thought was really neat.

    The old 4-track tape cases were partially clear, so you could see the tape work, I believe? 8-tracks had the tape continuously rubbing against itself as the part on the outside would return to the middle of the roll to go through the cycle repeatedly. Sometimes, the tape would not re-load correctly and then you'd see an 8-track with the innards sticking out of it, laying beside the side of the road.

    Cassettes came in about model year '79. Big thing was "auto reverse" as when the tape came to an end, it would go the other direction and play another track.

    The 8-tracks were at about 3 3/4 inches/second tape speed. Most normal reel-to-reel units were at 7.5 IPS. Ultimate frequency response depended upon tape speed. The 8-tracks had a good sound to them, as a result.

    Cassettes were at 1 7/8 IPS tape speed. Which necessitated huge improvements in tape technology (iron particle size) in order to have decent sound quality at the lower speed. Cassettes, being smaller, were easier to store in a box under the seat (non-power seat, of course).

    On the factory tape-equipped vehicles, the OEMs put a demo tape in the glove compartment to showcase the performance of the new tape sound system. In later years, other tapes were used to explain the operation of the main vehicular systems, so you didn't always need to read the owner's manual, at least just to know how to drive the car.

    The noted cassette tape to 8-track adapter was an interesting work-around. But due to the tape speed differences and other electronic equalizations for the cassette to work well, sound quality with those adapters might have suffered a bit from a true cassette tape player. But it still gave you options!

    I believe that in those earlier years, the 8-track units were also available in Factory Accessory Kits, from the OEMs. Until the instrument panels could be redesigned, even the factory-installed units were "add-ons". Finding one of those earlier 8-track kits, with instructions, and the demo tape might be interesting.

    That Imperial looks very nice.

    Enjoy!
    CBODY67

  16. Duncan

    Duncan Well-Known Member

    Messages:
    544
    Likes Received:
    225
    Joined:
    Nov 24, 2014
    Location:
    Woodland CA
    Yeah, I graduated in 67 and had my first car about the first time, 4 track were just fading out and 8 track were becoming the hot item. Think of it as the music version of a flash drive in its time. :)
