wipers on the 76 yorker

[66furywagon]

i have not got into it yet the wipers dont work.
i heard the arm drop when i turned them on .

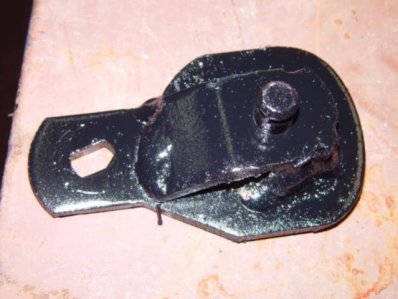

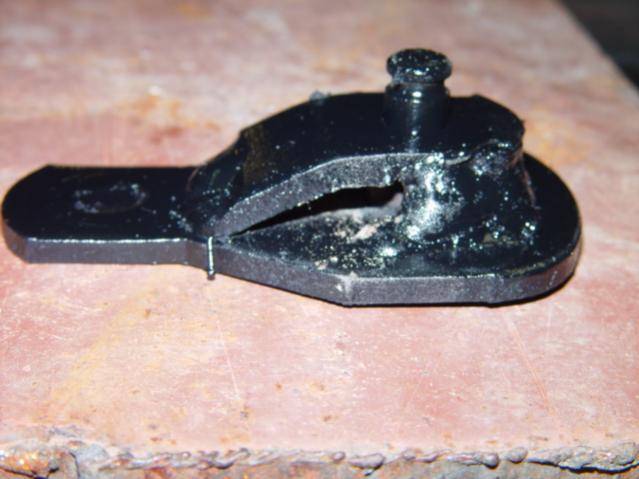

motor works fine is this the 1 plastic bushing i need
see pic



[Mr C]

Yup, those are the ones.



[66furywagon]

cool just wanted to make sure thank u



[polara66hardtop]

There should be four, I would replace them all at the same time.



[1978 NYB]

I would get the ones from a Chrysler dealer. Big, big difference in quality.



[66furywagon]

I would get the ones from a Chrysler dealer. Big, big difference in quality.

i did today heres the part #if any body wants it 03799089
$5.00 each



[polara66hardtop]

That is them, I just did my 77' Cordoba. good for another 37 years!



[1978 NYB]

Those bushings snap in place just like they did 40 years ago. The "Help" bushings will work but you can definitely tell they are made out of inferior plastic.



[monaco75]

All I hear about is how bad formal wipers are. Guess I'm real lucky (so far) lol

Good luck with the swap



[1978 NYB]

All I hear about is how bad formal wipers are. Guess I'm real lucky (so far) lol

Good luck with the swap

Zac, it's just the 1978 Formals with the disastrous big wiper cam where it mounts to the wiper motor. The 1974-1977 wiper cam don't have a problem. I converted mine to the 1974-1977 version and it works fine.The bushings that we are talking about here are for all formal wiper linkage bushings which work out fine. The Chrysler bushings are the best answer.



[ROAD/TRACK]

Anyone have a 74-77 setup for sale?



[1978 NYB]

Anyone have a 74-77 setup for sale?

You're going to have to make a mod by cutting off the 1977 piece that mounts to the wiper motor and weld it on to the 1978 piece that mounts to the wiper motor. Then the 1974-1977 linkage rod from the wiper motor to the left side transmission will work.



[ROAD/TRACK]

Do we want parts from a 2 speed or 3 speed?



[1978 NYB]

Do we want parts from a 2 speed or 3 speed?

I just posted the fix on the 78 wiper thread.



[66furywagon]

all 4 on and working fine



[1978 NYB]

That is good news.



[Fred A]

I just posted the fix on the 78 wiper thread.

What is the fix?



[Big_John]

What is the fix?

1978 NYB passed away last year. His fix is shown in post #12 above.

There is a more detailed thread that he did on this years ago, but I don't have the link. Maybe someone else has bookmarked it.
