1967 Plymouth Fury deck lid hinges and torsion bar setup

[jippek]

The FSM does not show the total setup of the deck lid hinges and torsion bars. Would someone take detailed pictures of both sides?

I couldn't figure out how they should be, I am afraid that I am missing some parts...

Thanks, JP

Posted via Topify using iPhone/iPad



[bulldogchesty]

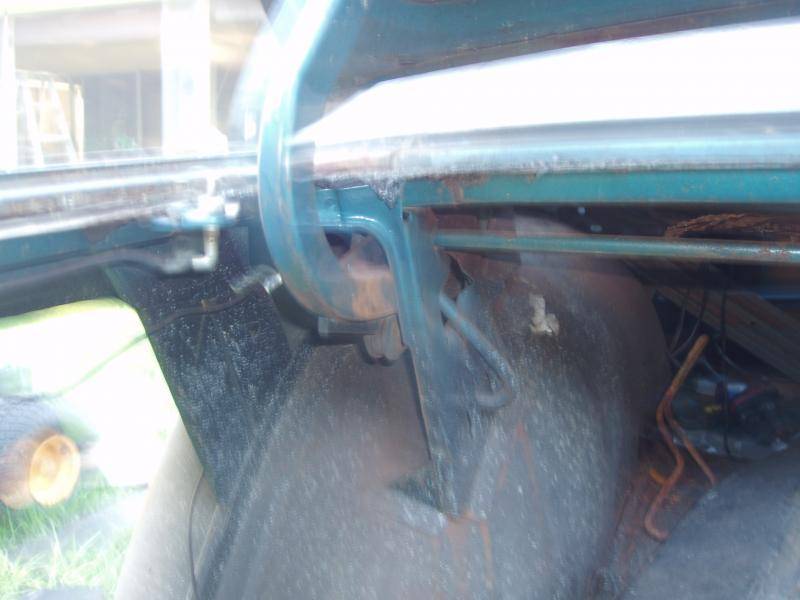

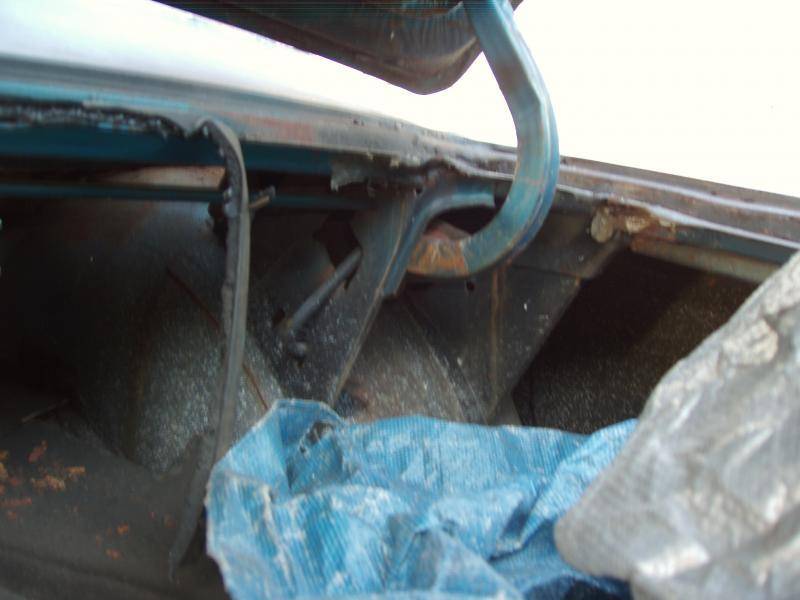

Here's the ones from my 68 Newport. I hope they help.



[jippek]

Thanks,

seems that I was going to right direction.

Where is that hinge attached to? Is there somekind of pin? How about that roll in the first picture, how and where is that attached to?



[jippek]

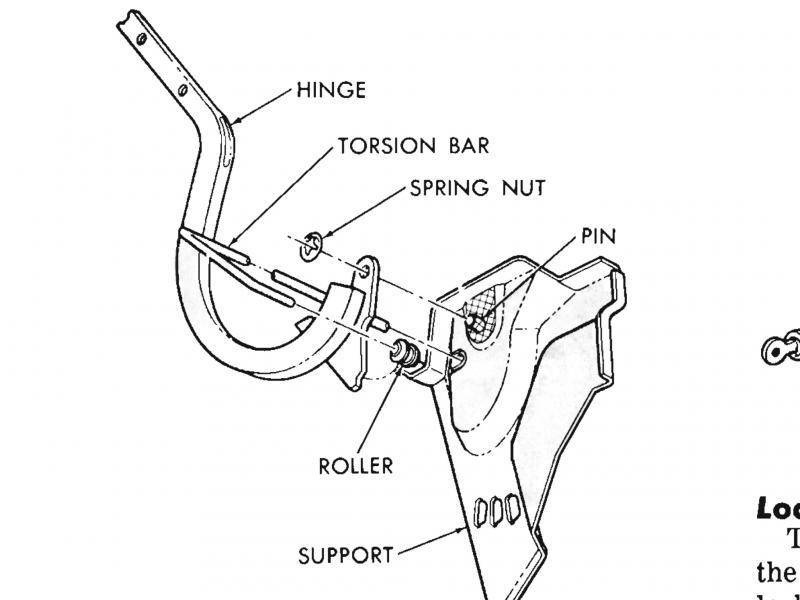

Now I got it, the roll is attached to torsion bar. The fsm looks like this:




It shows the pin, but I cannot find any part like that from my boxes. Am I missing the part or could it be attached in some other way?



[jippek]

Found the pin, it was way up there hiding Seems that I have all the parts except the spring nut, but next I will go to garage and see if I can get the bars installed.
