    Hello,

    I am reproducing the plastic connectors for Power Window switches through 3D printing, using a method known as Selective Laser Sintering. The parts are made of polyamide (PA 2200) and are very accurate, identical to the original ones. The prices are :

    Master switch : $33.00
    Single switch : $9.00

    Shipping is $8.00 worldwide (up to 2 master and 6 single switches), with tracking information provided.

    I have made some research concerning the interchangeability of those parts, using the '55-'58, '59, '60 and '61 parts catalogs. Those parts are known under references 1779276 (master) and 1779268 (single), but only for the '57-'58 cars. Most probably, they were only serviced (and therefore referenced) during those years and they were included with the wiring or the switches after that. Based on the references of the switches and the wiring, I was able to cross-reference some of their use.

    I may be missing some applications, but here's what I've been able to gather so far:

    Master switch connector
    Electric Window Lift
    1957 All - 1 per car - Plymouth, Dodge, DeSoto, Chrysler, Imperial
    1958 All - 1 per car - Plymouth, Dodge, DeSoto, Chrysler, Imperial
    1959 All - 1 per car - Plymouth, Dodge, DeSoto, Chrysler, Imperial

    Single switch connector
    Electric Window Lift
    1957 All - 3 per car - Plymouth, Dodge, DeSoto, Chrysler, Imperial
    1958 All - 3 per car - Plymouth, Dodge, DeSoto, Chrysler, Imperial
    1959 All - 3 per car - Plymouth, Dodge, DeSoto, Chrysler, Imperial

    Electric Door Lock
    1958 All - 2 per car - Imperial
    1959 All - 2 per car - Imperial

    Electric Seat Adjuster
    1957 All - 1 per car - Plymouth
    1958 All - 1 per car - Plymouth
    1959 All - 1 per car - Plymouth

    Tailgate Electric Window Lift
    1957 Sub. - 1 per car - Plymouth, Dodge, DeSoto, Chrysler
    1958 Sub. - 1 per car - Plymouth, Dodge, DeSoto, Chrysler
    1959 Sub. - 1 per car - Plymouth, Dodge, DeSoto, Chrysler


    I manufacture them by batch, so there may be some delay when ordering, if I have to launch a new one. If you are interested, please let me know in this thread, write me a PM or an e-mail at "powerwindows at orange.fr"

    Thank you.

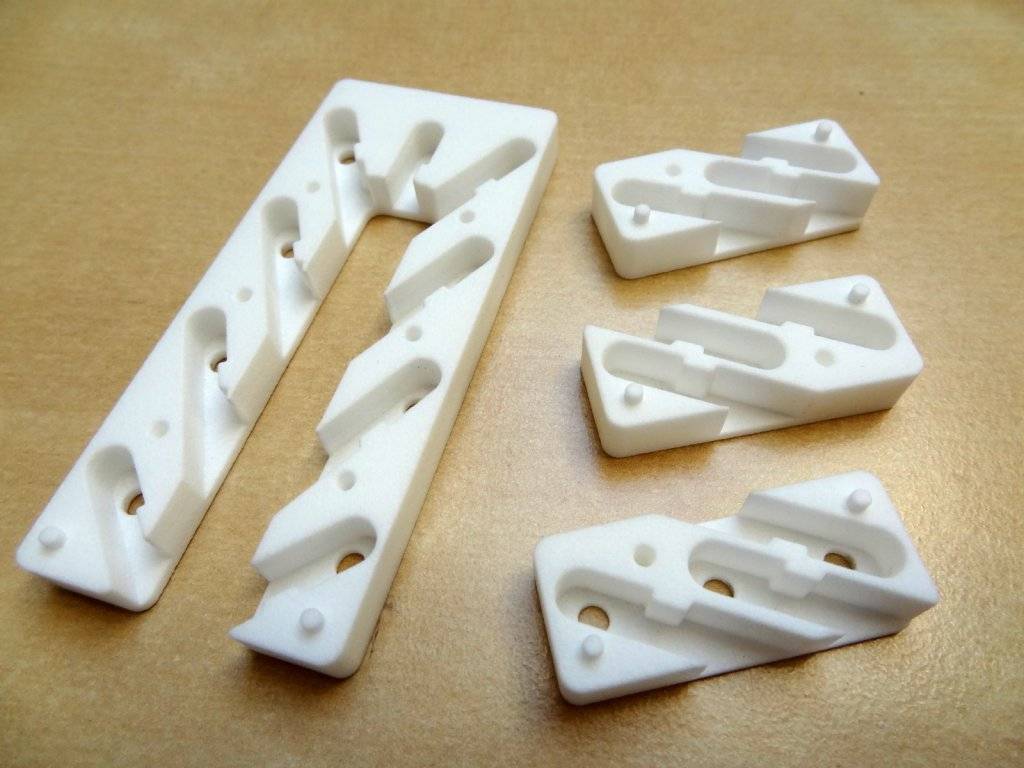

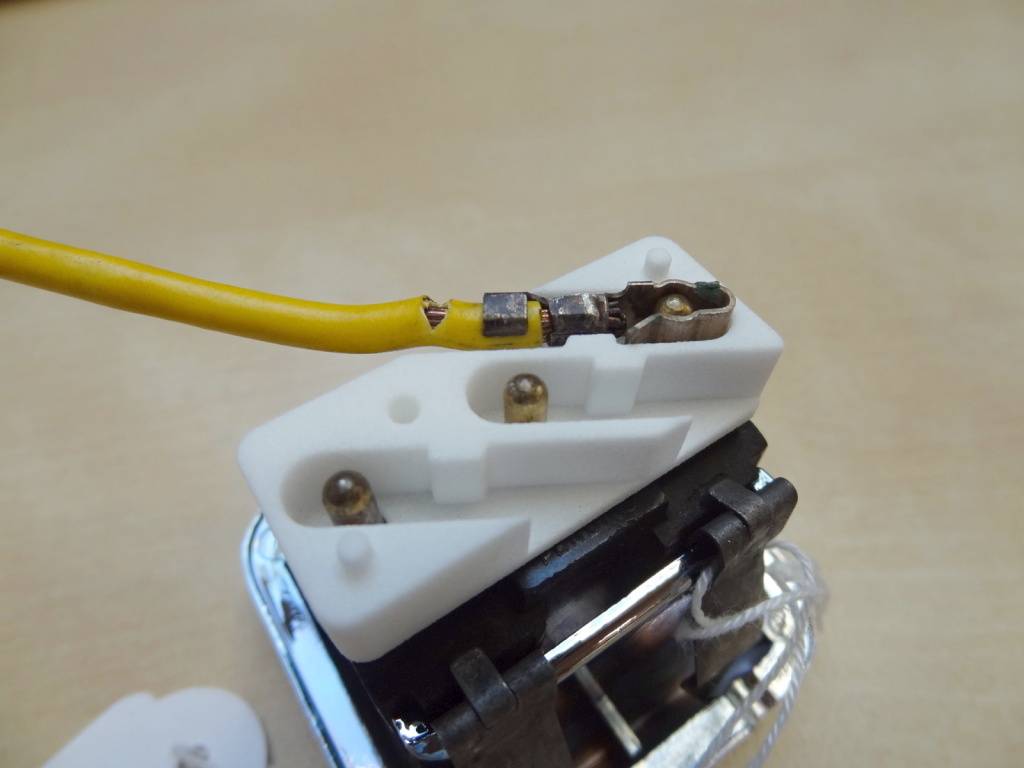

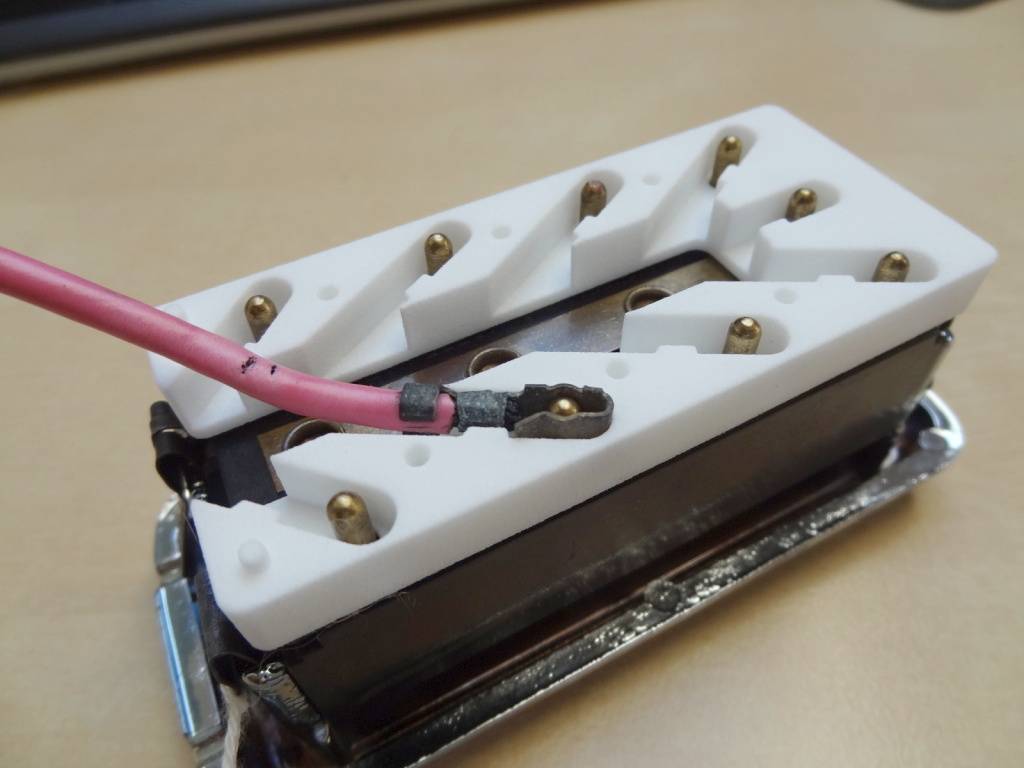

    DSC02189.JPG DSC02193.JPG DSC02191.JPG

    • Like Like x 4
    • Thanks! Thanks! x 1
  2. Chrome58

    Chrome58 Active Member

    0   0   0

    Messages:
    248
    Likes Received:
    142
    Joined:
    Oct 4, 2017
    Location:
    Belgium
    Hi everyone,

    I've got the equivalent 6 sets left in stock.
    I probably won't make a new batch before a long time.

    So if you are interested by a set, or individual connectors, please let me know.

    Thanks.

  3. AUSSIE60SOTTO

    AUSSIE60SOTTO New Member

    0   0   0

    Messages:
    3
    Likes Received:
    1
    Joined:
    May 1, 2018
    Location:
    Australia
    Wanting to purchase a connector for the master switch. AUSSIE60SOTO.

  4. Chrome58

    Chrome58 Active Member

    0   0   0

    Messages:
    248
    Likes Received:
    142
    Joined:
    Oct 4, 2017
    Location:
    Belgium
    Hello Aussie60Sotto,

    Unfortunately, I'm sold out at the moment. And as you're the only one that's been interested for the past 6 months, I'm not in the position of launching the production of a new batch. Sorry.

    I'll let you know if the situation changes.

  5. Chrome58

    Chrome58 Active Member

    0   0   0

    Messages:
    248
    Likes Received:
    142
    Joined:
    Oct 4, 2017
    Location:
    Belgium
    Hello,

    I'm launching the production of a new batch.
    If you are interested, please e-mail me at "powerwindows [at] orange [dot] fr", or PM me.

    Last edited: Oct 30, 2018
  6. Chrome58

    Chrome58 Active Member

    0   0   0

    Messages:
    248
    Likes Received:
    142
    Joined:
    Oct 4, 2017
    Location:
    Belgium
    Hello,

    If you ever need a set, or just single ones, do not wait !
    My current production batch is already 80% pre-sold, I have 4 sets left.
    And I'm not sure when I'll do the next one ...
