69 steering wheel components

[3175375]

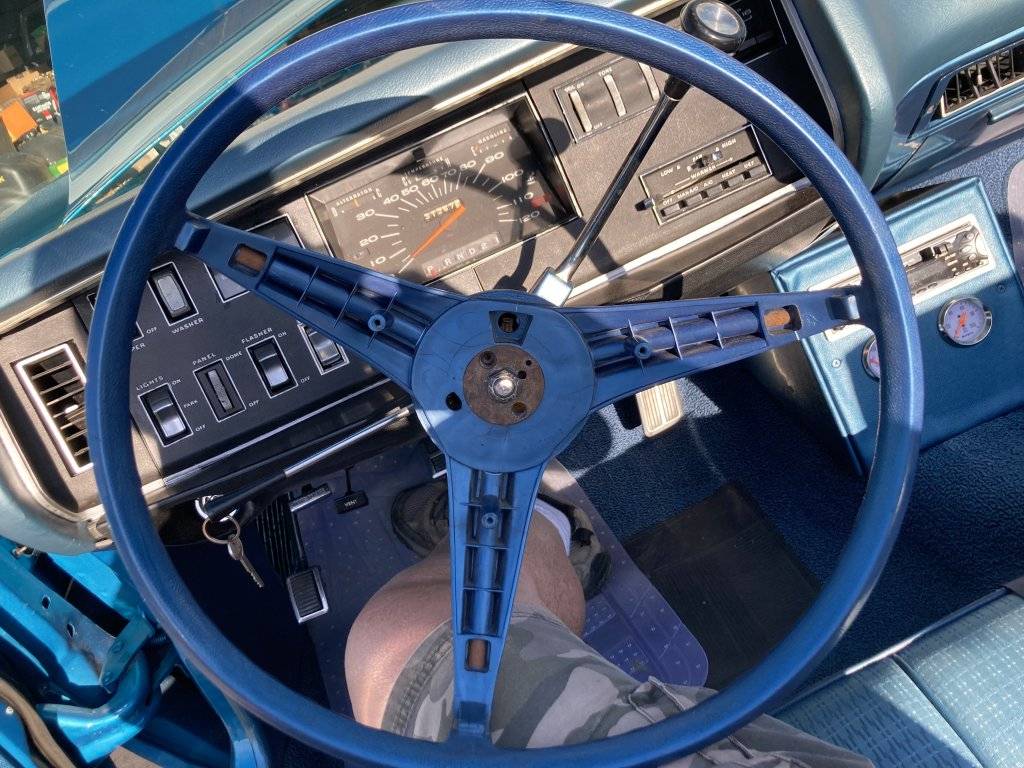

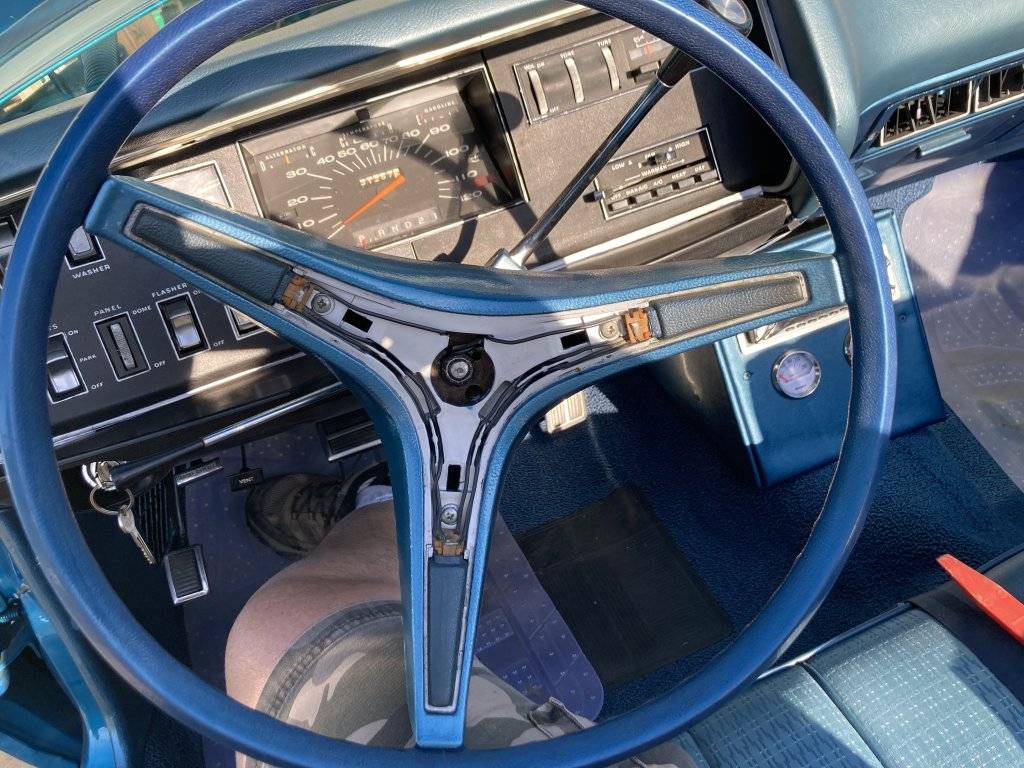

I have a 71-74 steering wheel set on Shamu.
I am seeking the correct components for the 1969 Dodge and Plymouth steering wheels.

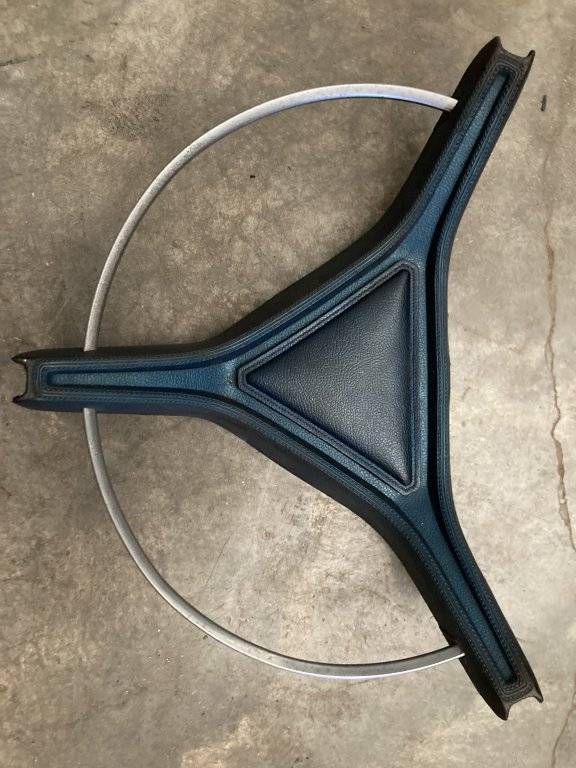

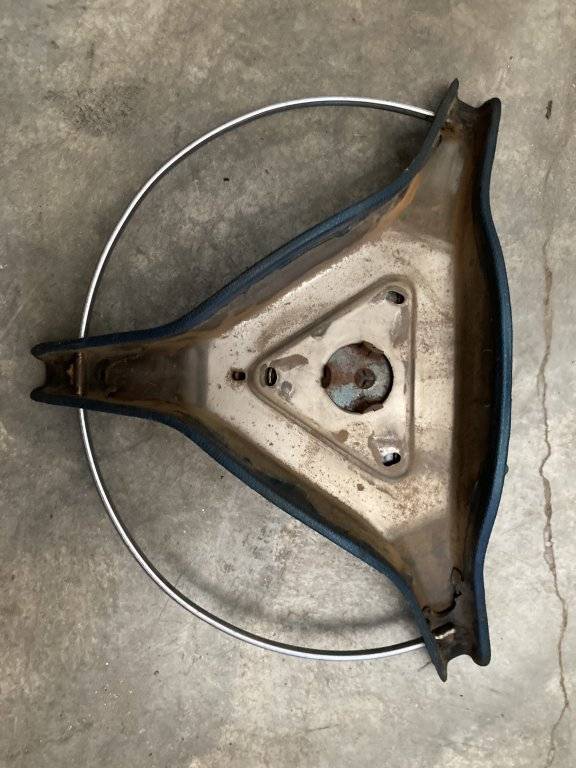

I have the horn assembly as pictured.

I looked in the parts catalog and can’t find the diagram for the parts.

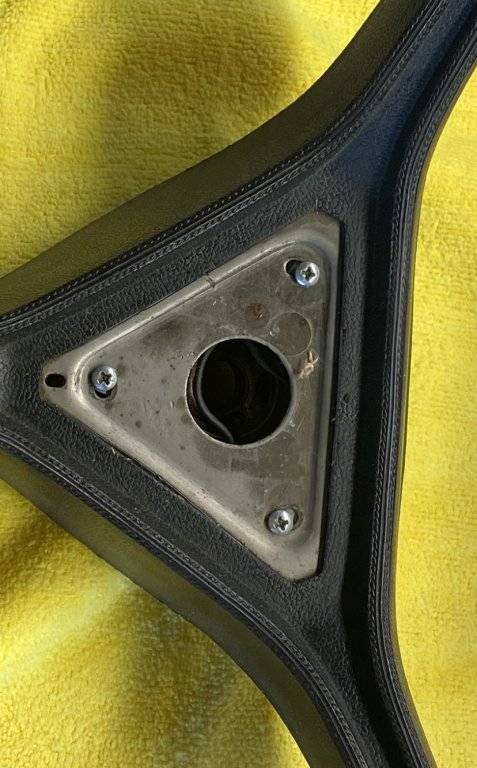

I have included pictures of the wheel and horn button set also.



[1970FuryConv]

Okay, the black horn ring assembly looks like 1969 to 1970. Everything else looks later.

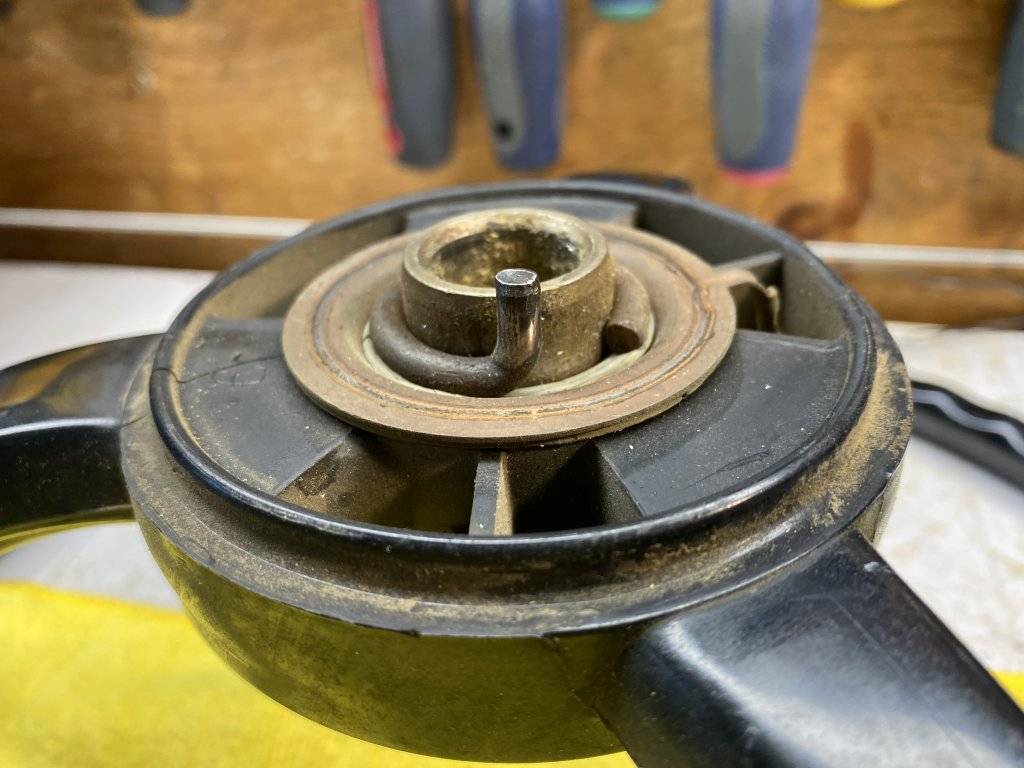

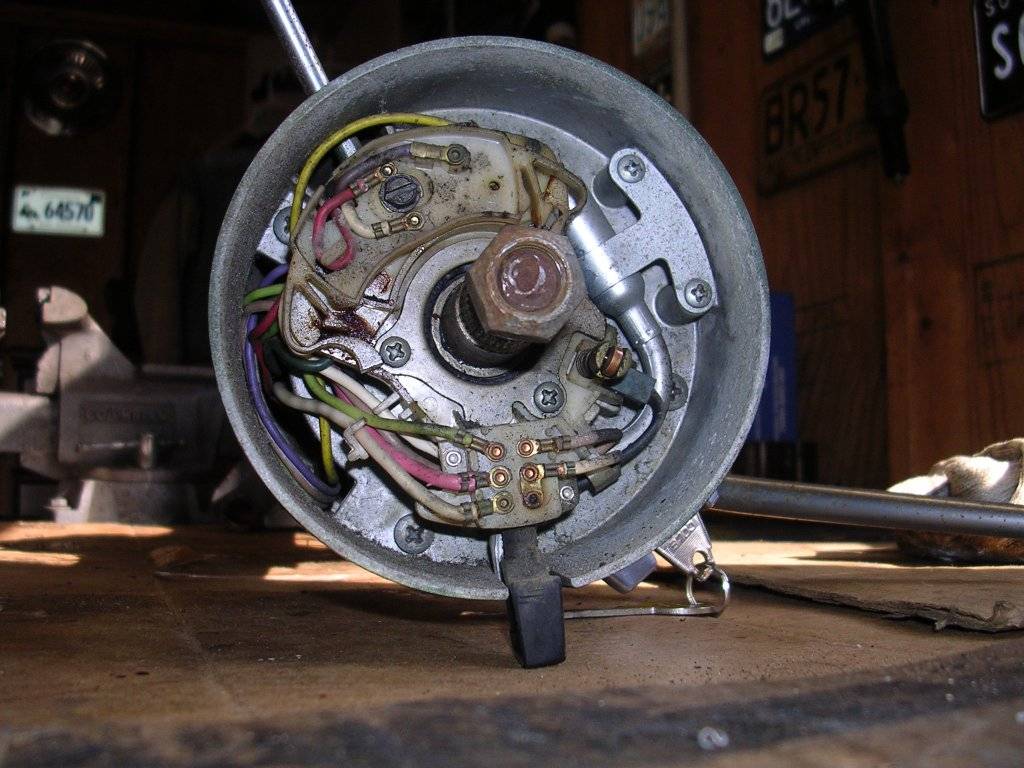

1st of all you can see a roller in this picture. The steering wheel engages this roller to give electrical connection to the horn button through the steering wheel

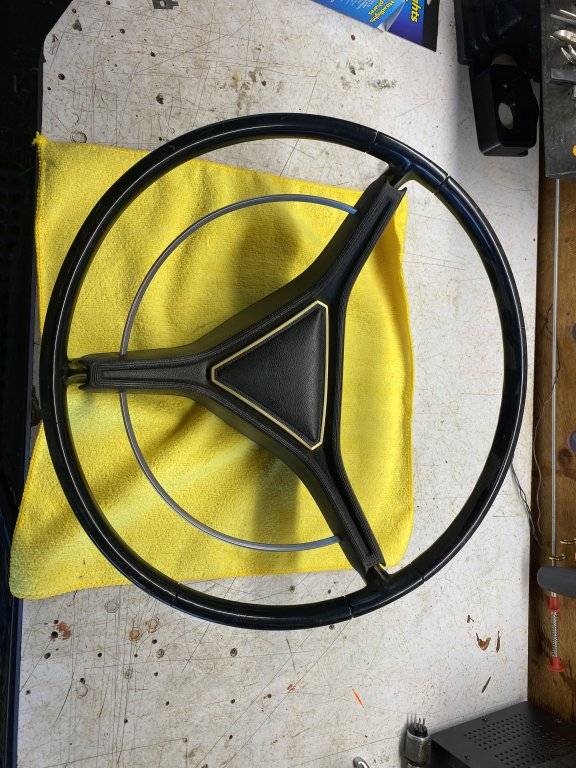

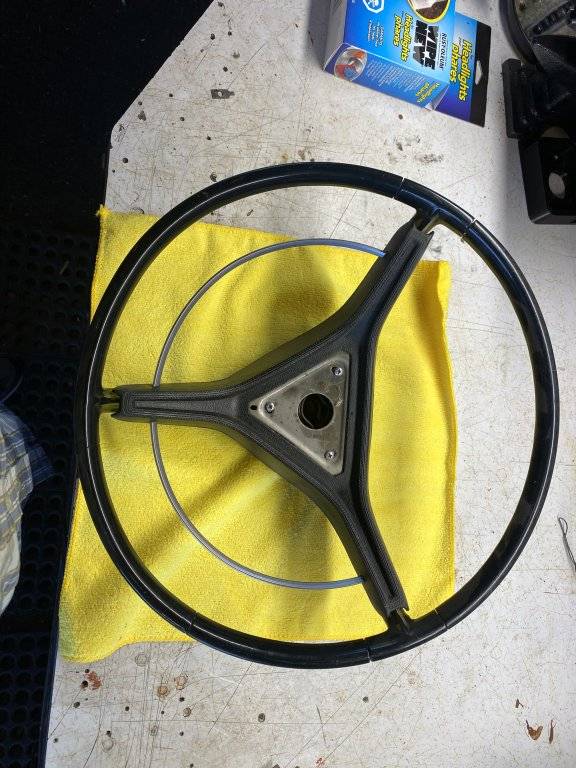

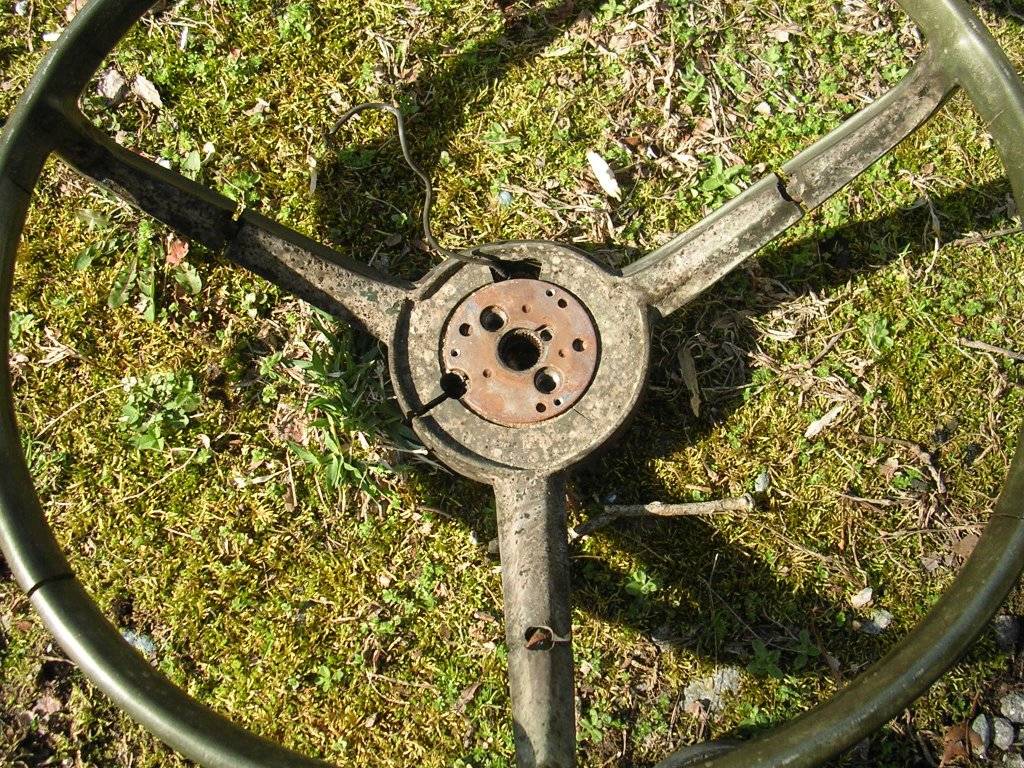

the 1969 to 1970 steering wheels should look like this. The metal at the back of the wheel engages the roller.

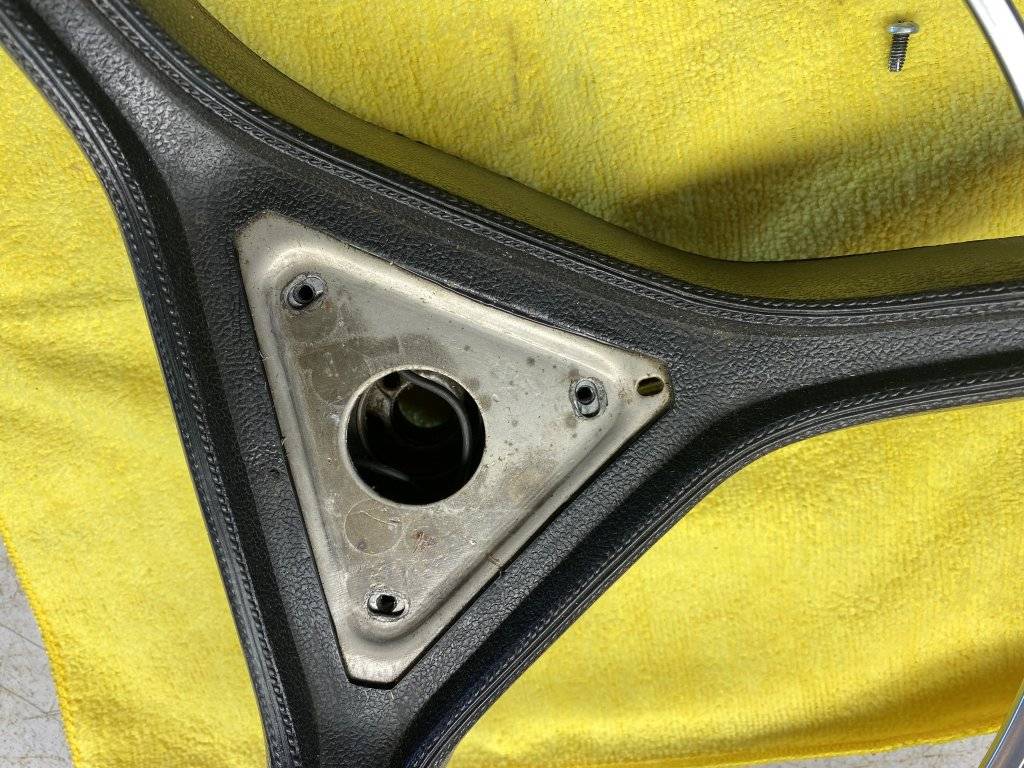

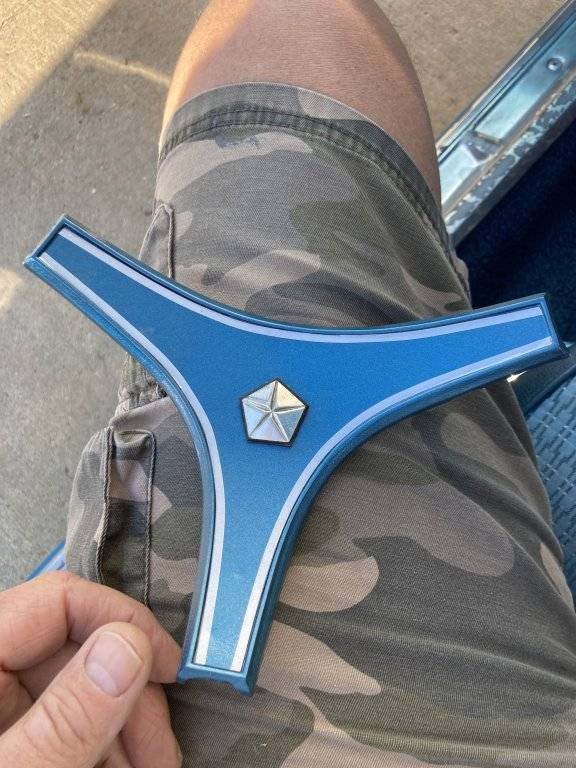

Mounted at the top center of the steering wheel should be a horn button like this. It mounts with 3 screws and the wire from the steering wheel connects to it.

Horn Switch# 2822126 - A - B - C - E - F - Body - Truck - 1967-78 - NOS - SHIPS FREE TO LOWER 48 - Blue Star Performance

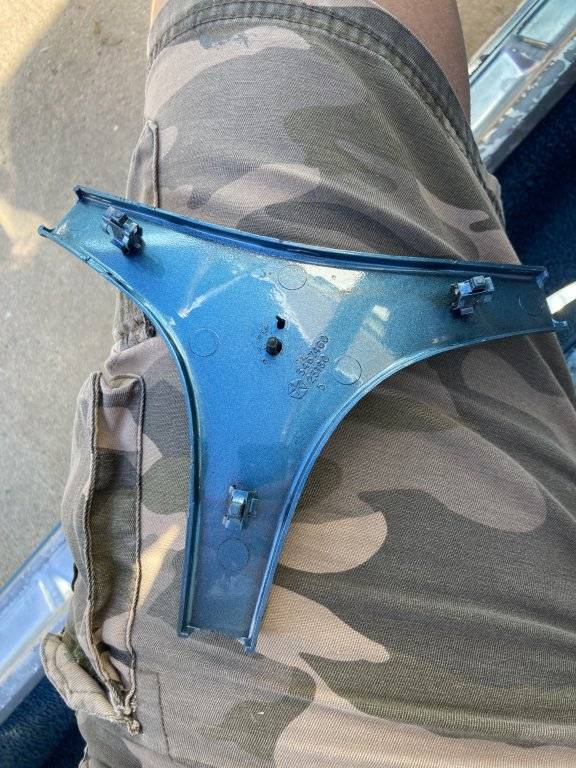

with the triangular centerpiece of your black horn ring removed, the horn ring is fastened to this horn button. Then the triangular centerpiece is reinstalled.

I hope this gives a general idea.



[Welder guy]

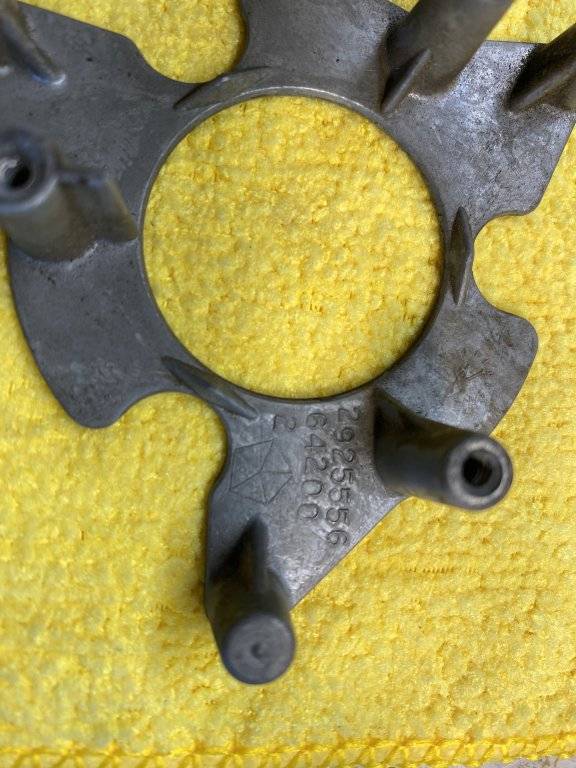

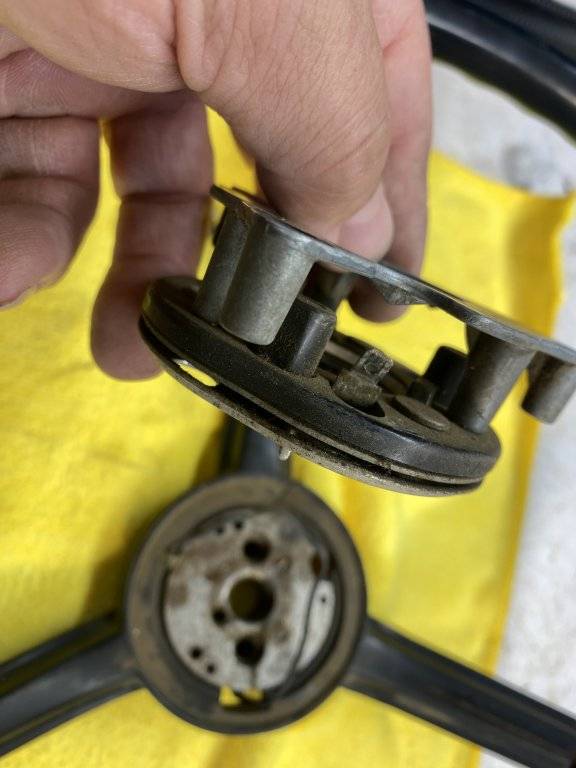

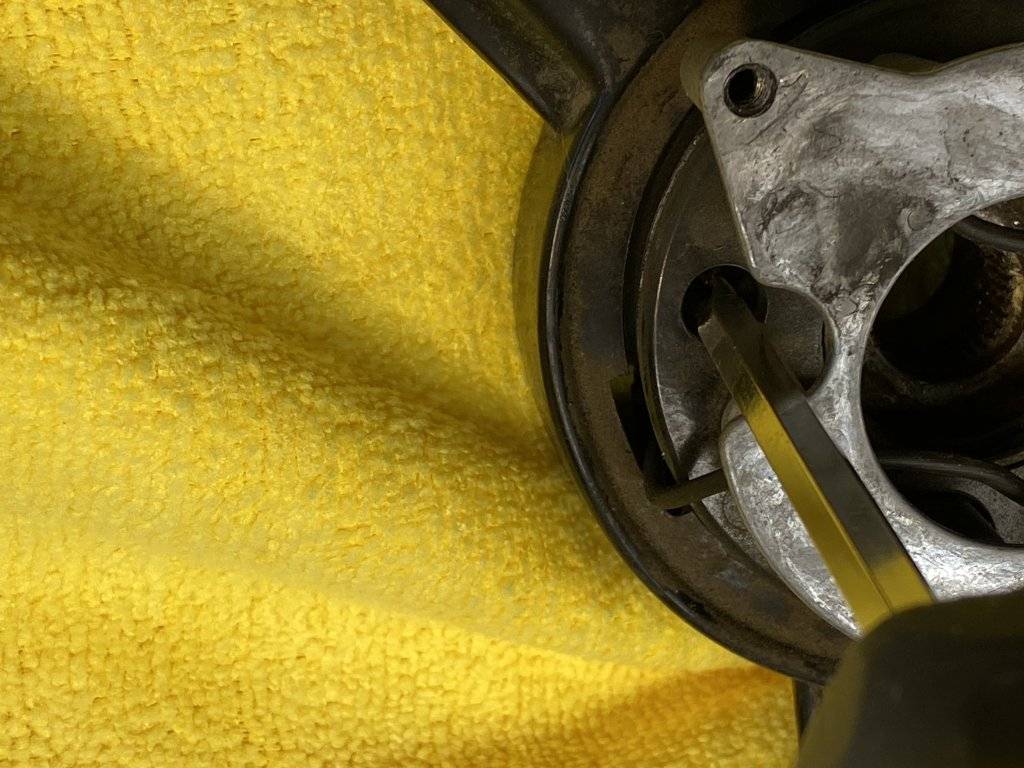

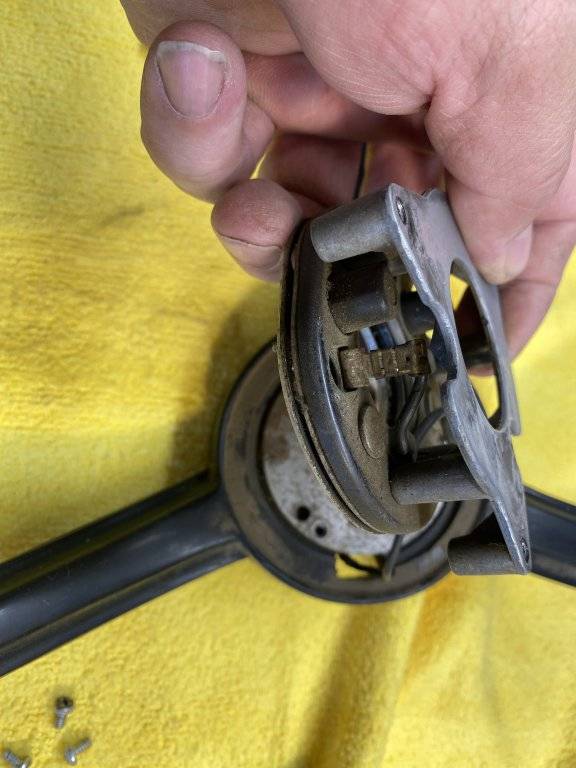

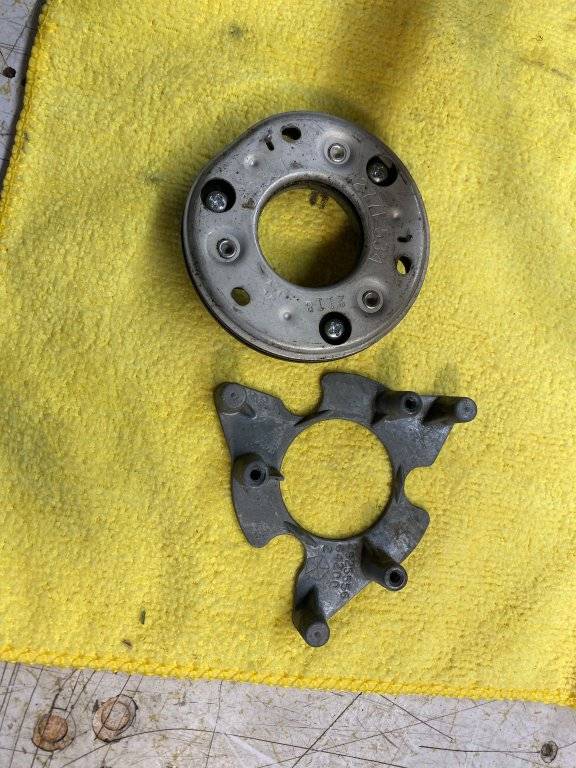

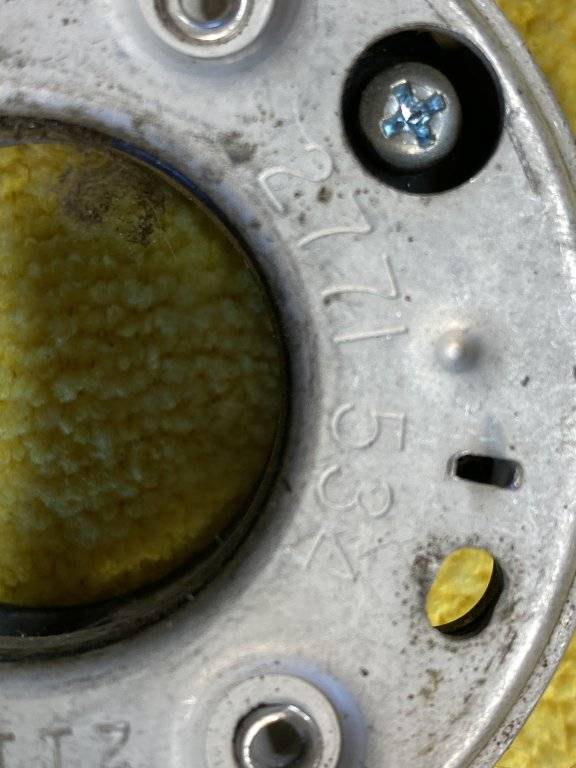

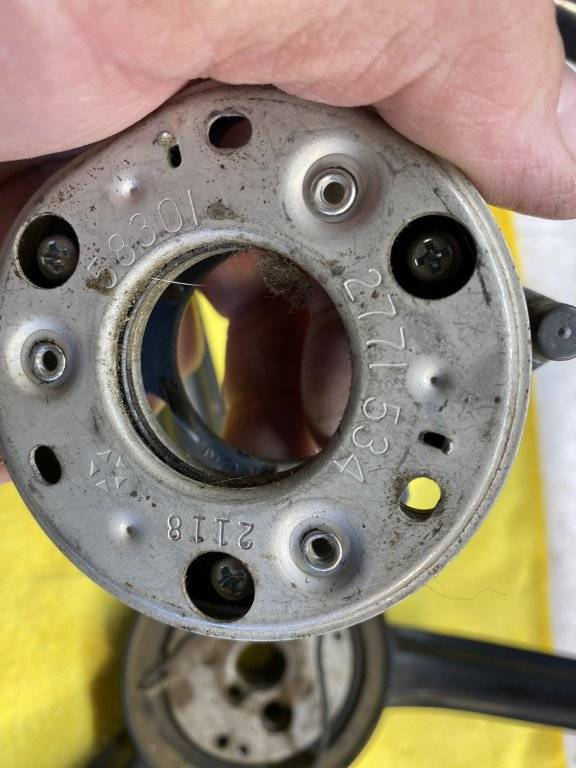

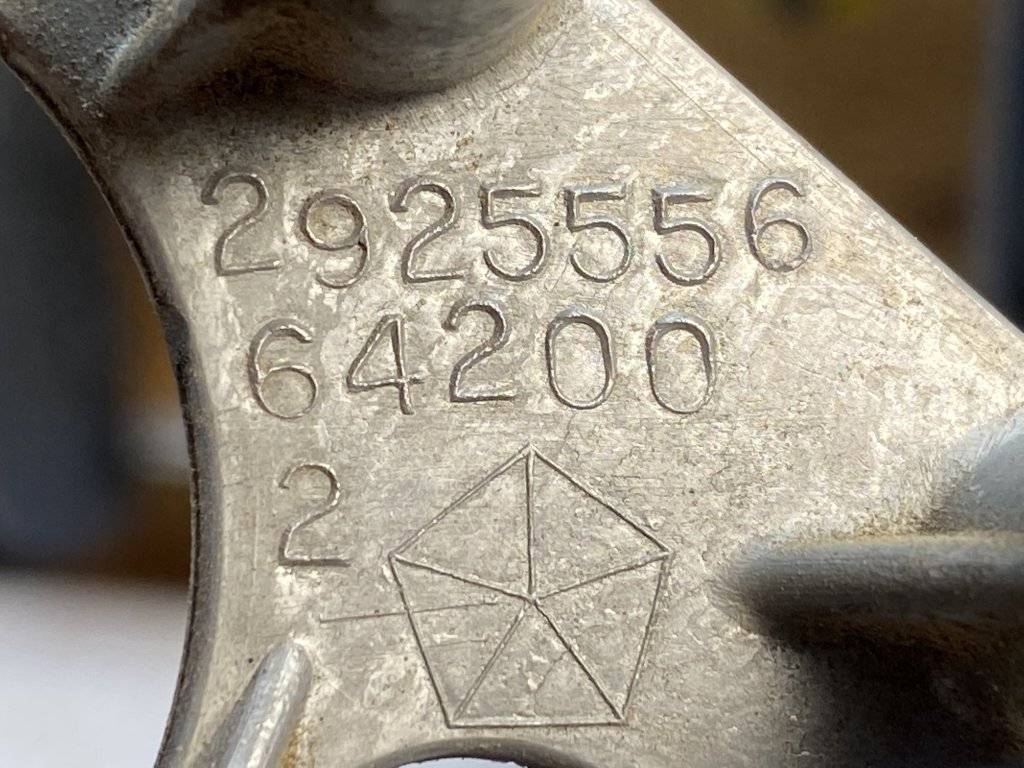

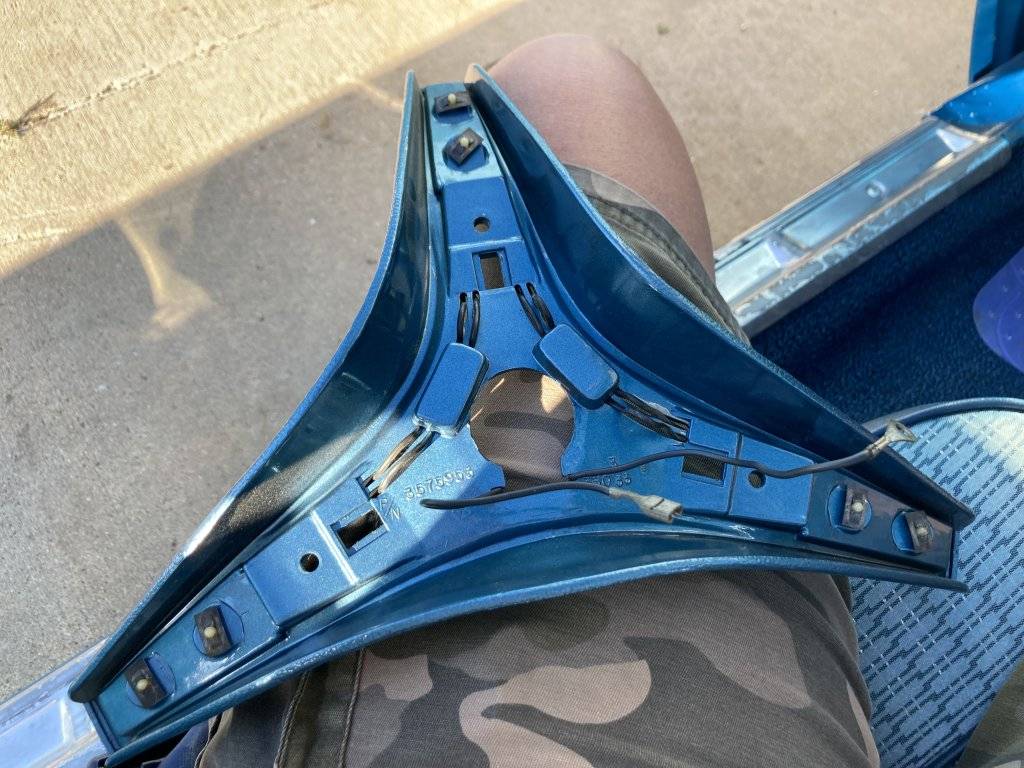

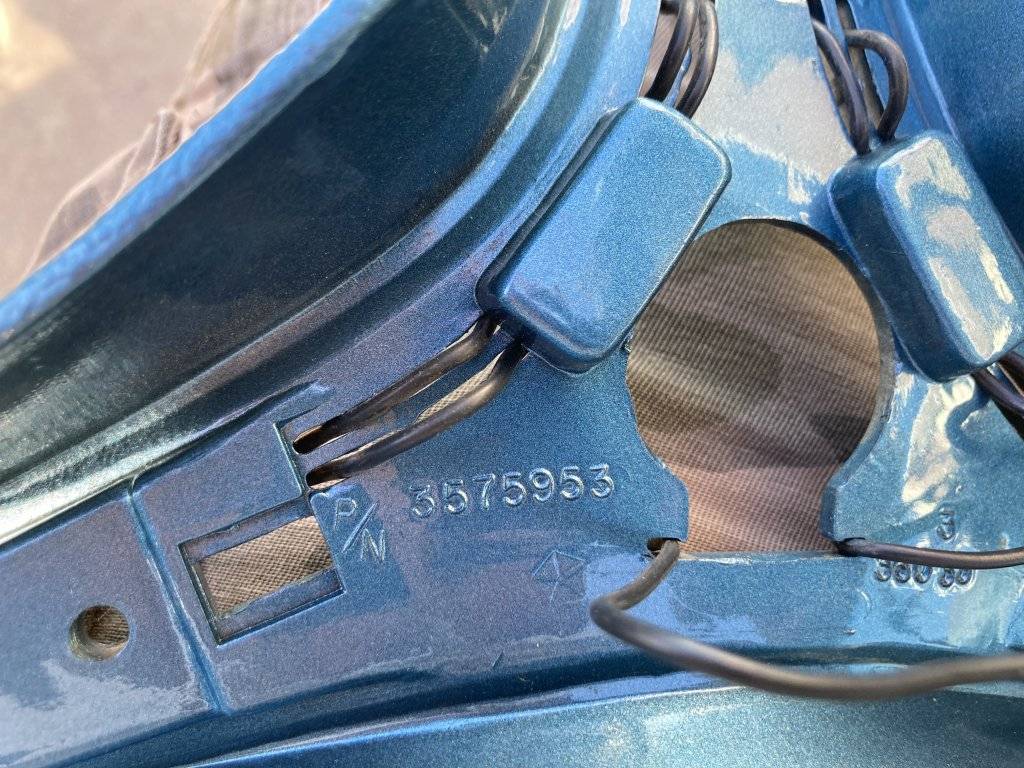

I had a complete 1969 fury steering wheel assembly hanging on my wall. The following pictures are me taking it apart step-by-step and getting you some numbers. Hope this helps



[Welder guy]



[Welder guy]

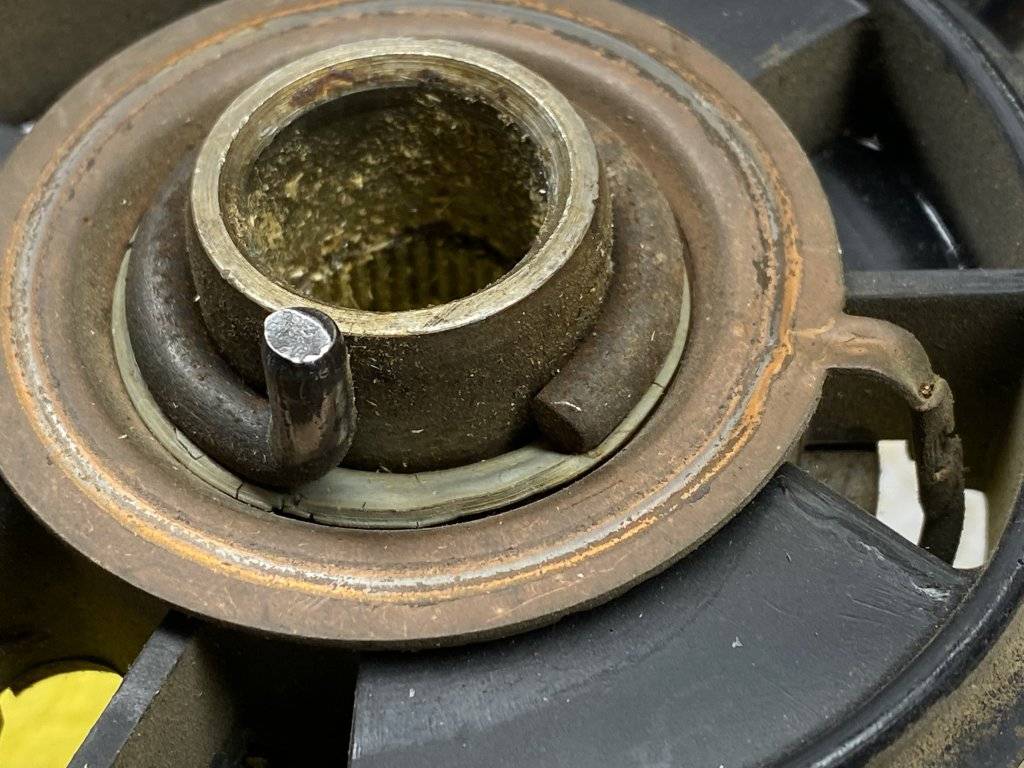

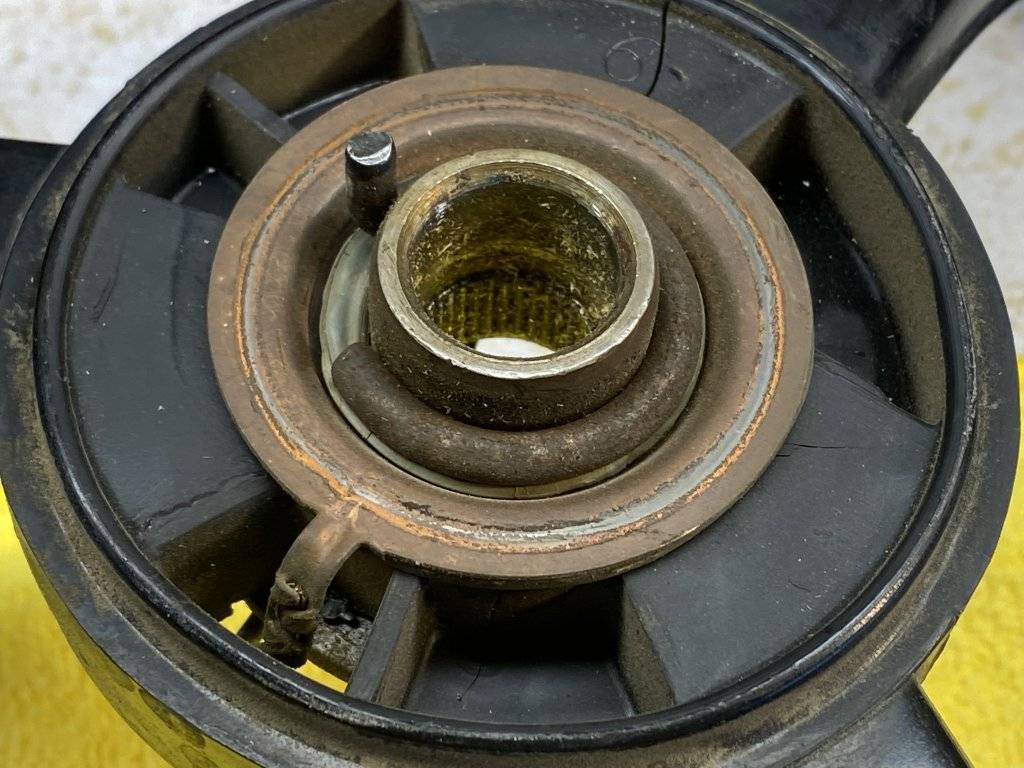

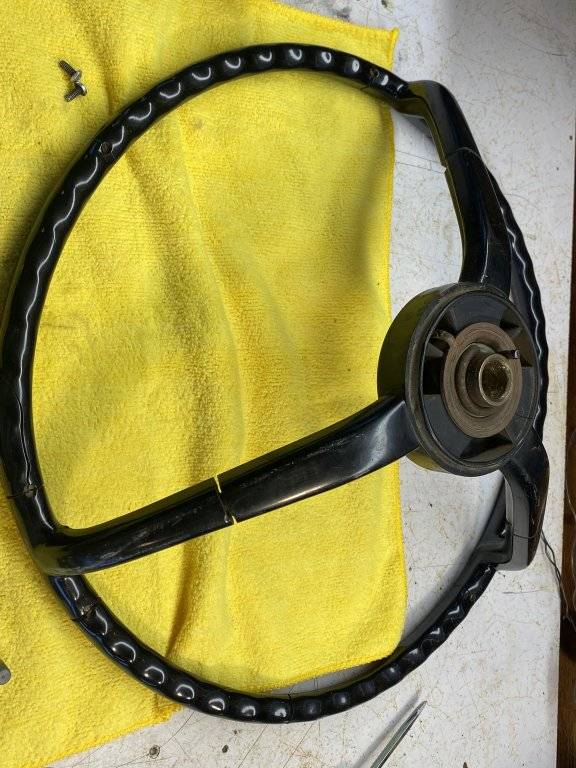

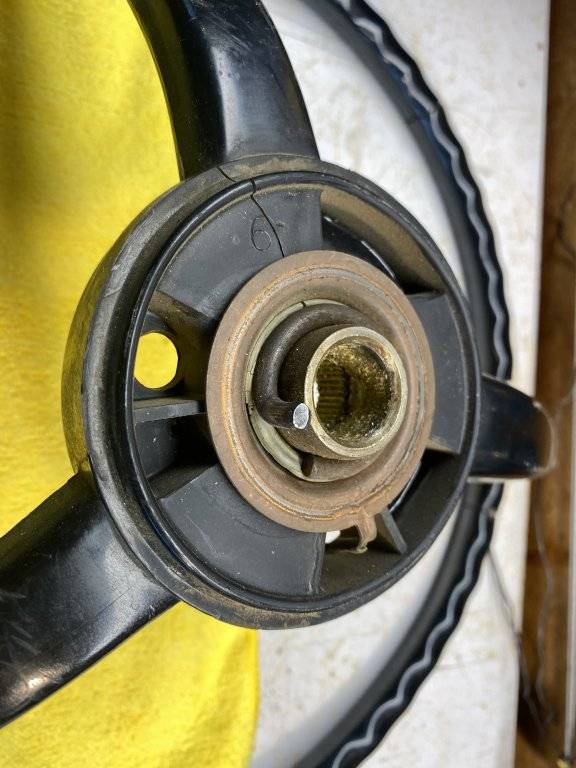

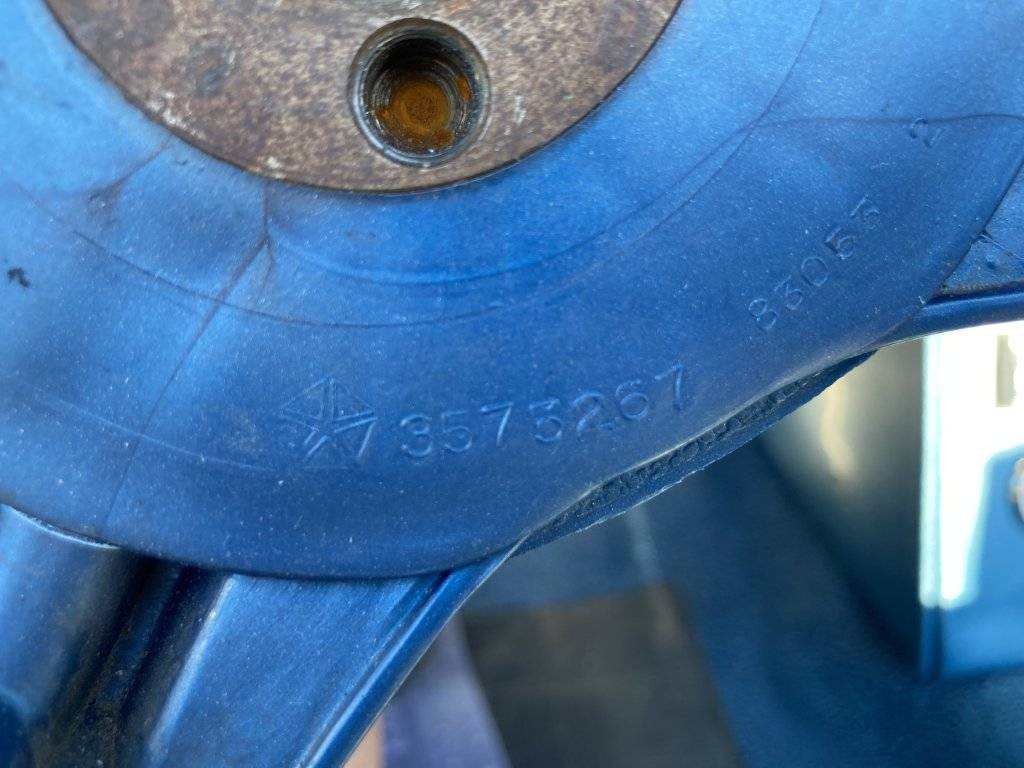

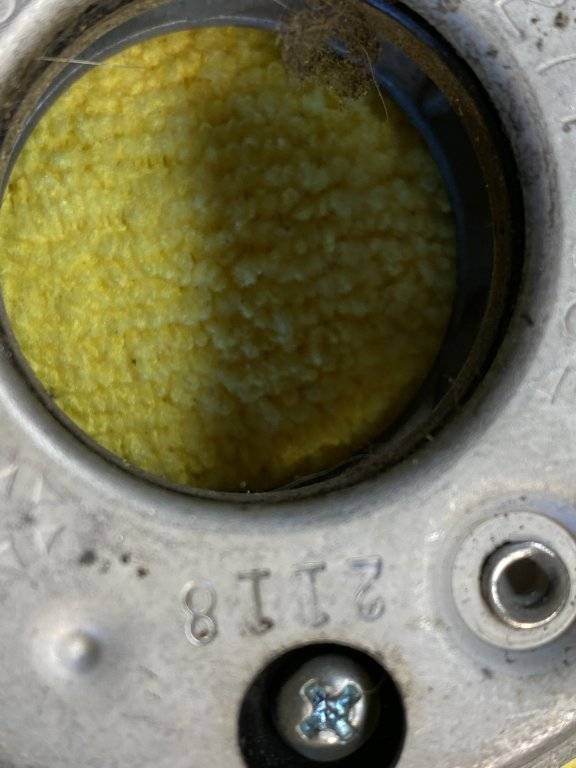

Some pictures of the back of the steering wheel



[Welder guy]

Are you looking for a complete steering wheel Assembly for your 69 Fury? I’m sure I have 3 of them . All my steering wheels are cracked in the usual places. P.m. me if you’re interested .
