Bracing for firewall replacement?

'69FuryIIIConvertible

Senior Member
FCBO Gold Member
Joined
Oct 18, 2012
Messages
4,139
Reaction score
5,159
Location
Ajax, Ontario, Canada
I'm realizing the only way to fix this properly is to remove everything and start again.

So I have it partially braced with 1/8th" wall 1"x1" square tube, but I need to add more bracing.

I'm turning to the expertise of you folks on this.

Thanks

Nick

To start bracing this project you will need six points for the car to rest on so the whole car will not move up and down at all at any point along its length. So you will need six axle stands, two at the rear on the outermost rear chassis rails then two more close to underneath the front pillar posts and the last two should be the screw type axle stands that are placed near the front bumper bracket areas. This way there is no flex or sag in the horizontal plane during work. I am assuming you will save the front pillar posts, if so, then you will need an "X" of two lengths of bar in a cross pattern between the two front pillar posts to stop any side flex. Then you need a brace in each front doorway at near the height of the front pillar posts going directly back to the middle pillar post of the car. That should be plenty to keep the dimensions of the car correct, but measure everything three times over and keep a notebook of all the measurements and check them each time you cut something out and also weld each piece in.
That should be a good starting point for you.

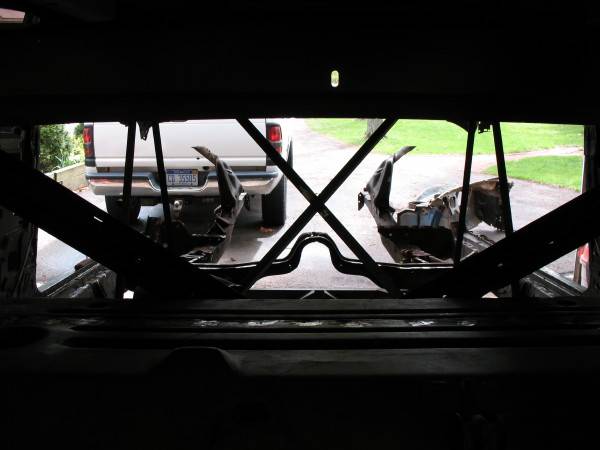

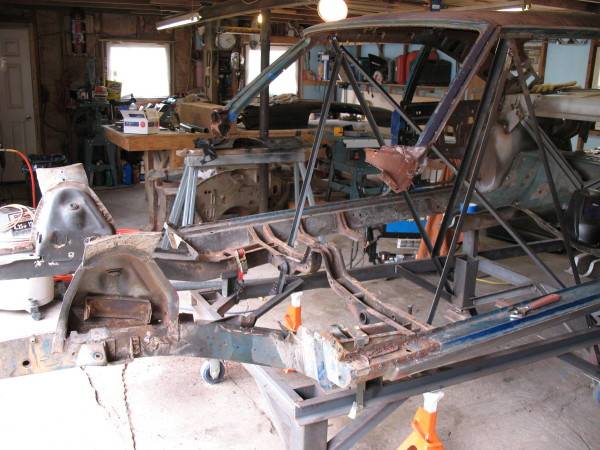

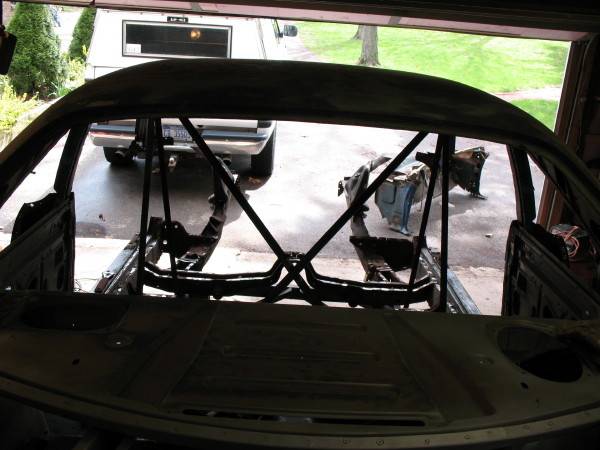

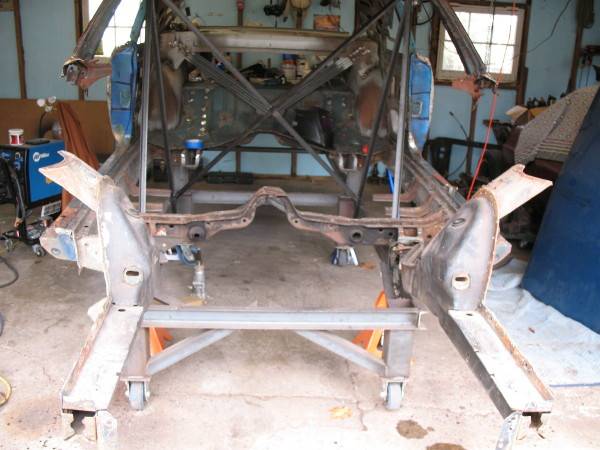

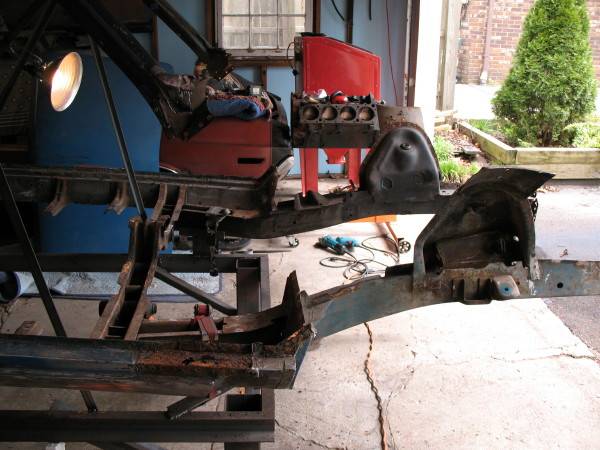

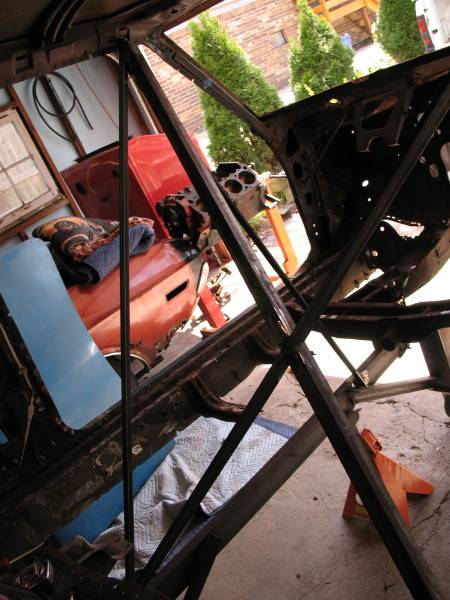

Here’s what mine looked like.
The roof section is likely going to want to spring out of position so your falsework needs to prevent that. Cross bracing inside both doors and parallel with the cowl will keep it from moving when you cut it free.

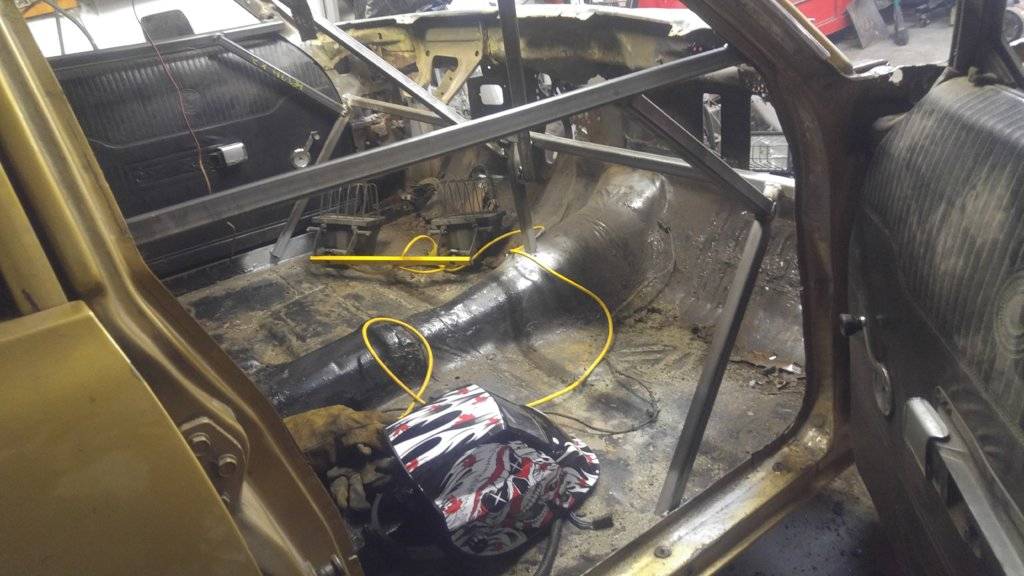

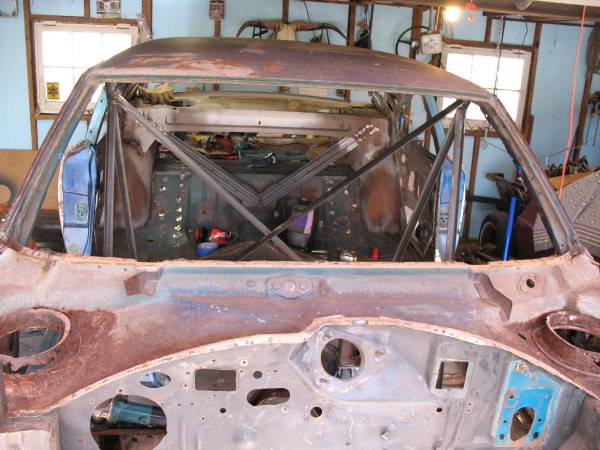

I did a slightly more mild version as I'm oonly doing the firewall. It's sitting on 6 stands right now. I will fix the one bad body mount after the firewall is 100% again.
