Dash cluster wiring

[NWPT70]

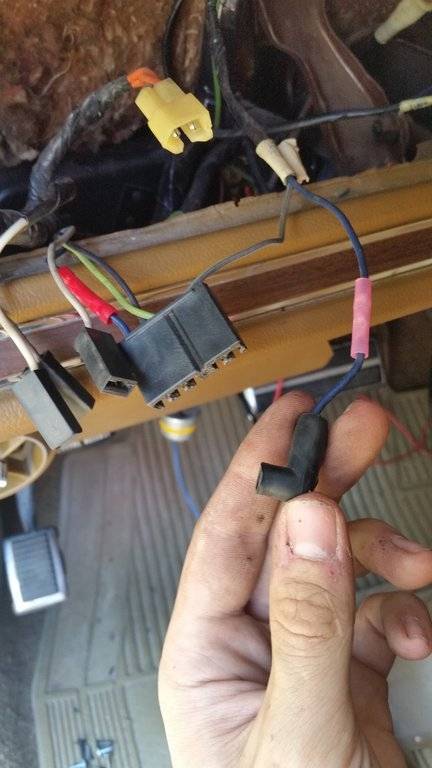

Hello, I am in the process of fixing up my 1972 Chrysler New Yorker gauge cluster and I found a wire that was not attached to anything. It's a boot type connection that would sit on a terminal. The wire is blue which I am holding in the picture attached. It's joined to a 4 pin connector that connects to the Guage gauge. My gas gauge was not working prior to my cluster removal. I've also attached a picture of the gas guage circuit board. Is it safe to assume this blue plug belongs on the right side terminal? (The left side terminal is grounded.)



[Ross Wooldridge]

Don't hook that to anything without checking with your wiring diagram first.

Do ALL "experimenting / checking" with your battery disconnected.

That is a 12V feed. The terminal it goes on would look like a small bolt, not a flat terminal. Is there a bolt terminal on your fuel guage?

If so it may be correct for your fuel guage - but it could also be there for some accessory that your car may not have.

Best to dbl check the wiring diagram.



[Ross Wooldridge]

Your second pic showing the circuit board isn't visible.



[NWPT70]

Your second pic showing the circuit board isn't visible.

Sorry here is the picture ^



[Ross Wooldridge]

Likely that's the right spot for that boot feed as it's the correct style of terminal.

If it were a 65 or a 66 I could check for you, but I don't have diagrams for your year.

They're available on line though...



[barnfind]

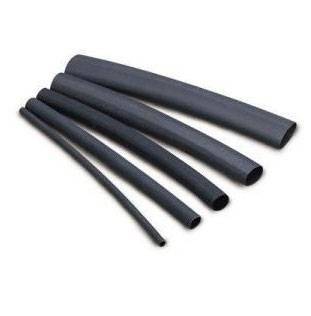

Since its all apart, why not take care of the splicing the best way you can?
