    That dampener goes all the way against the timing gear, trapping the flinger ring in between and holding everything tightly sandwiched. So if the snout does not stick out too far, the problem would have to be in around the timing gear. Either the shoulder it goes against is wrong or it's not seated or it is too wide. You need to measure everything from the #1 main bearing out. I would then assemble without the timing chain and timing cover to see why it is not seating.

    • Like Like x 1
    • Agree Agree x 1
  2. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    13,420
    Likes Received:
    8276
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    That's right.. I forgot that... The balancer bottoms out on the flinger/timing gear! So much for my theory of what was wrong with the crank.

  3. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    13,420
    Likes Received:
    8276
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Here's another thought... And I have seen this happen... The hole not being deep enough (or the bolt too long) and the balancer not being drawn onto the crank far enough.

    Just tossing out ideas that you may already have checked.

    • Like Like x 2
  4. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    12,428
    Likes Received:
    5268
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    I think the timing sprocket is not seating all the way or caught on the keys that locate the dampener.

  5. PH27L7

    PH27L7 Active Member

    Messages:
    235
    Likes Received:
    223
    Joined:
    Mar 10, 2020
    Location:
    Pittsburgh, PA
    Agree that it should be disassembled through the timing chain. If the interference with the damper were too tight not allowing it to seat you would need to measure the OD of the snout & compare with the ID of the damper. The aftermarket damper maker should give a recommendation regarding the fit. Believe they make them tight so they may be fitted if necessary, at least that's how mine was. Some pics of my last motor, shows the arrangement-

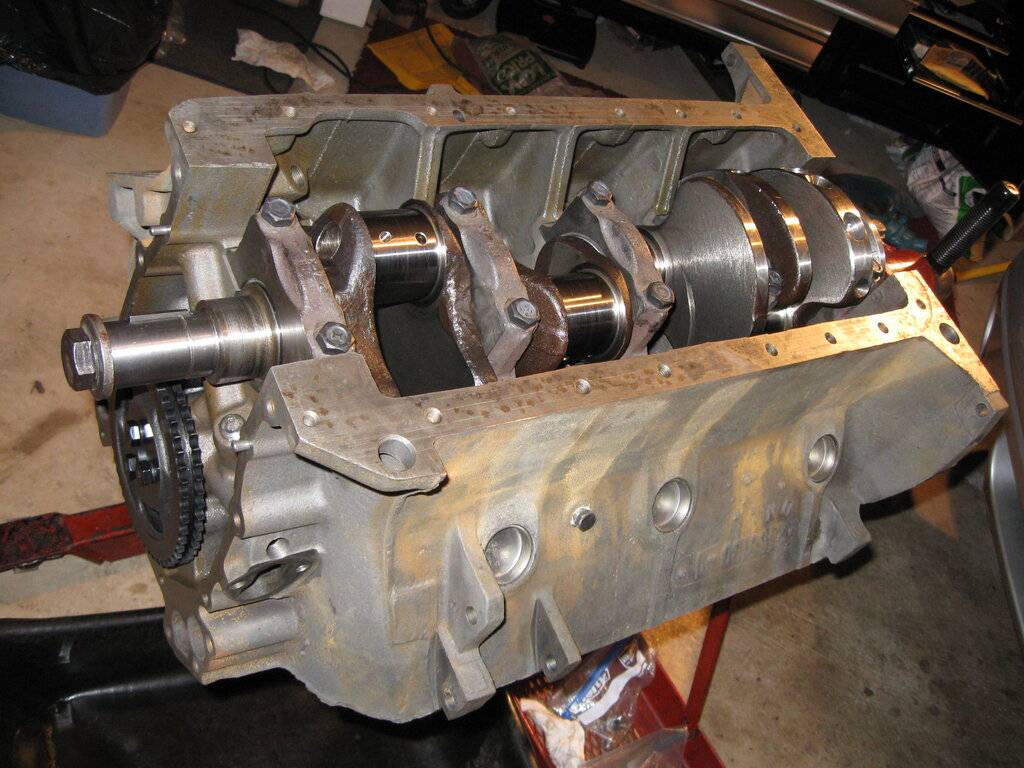

    bottom end assy 6.JPG

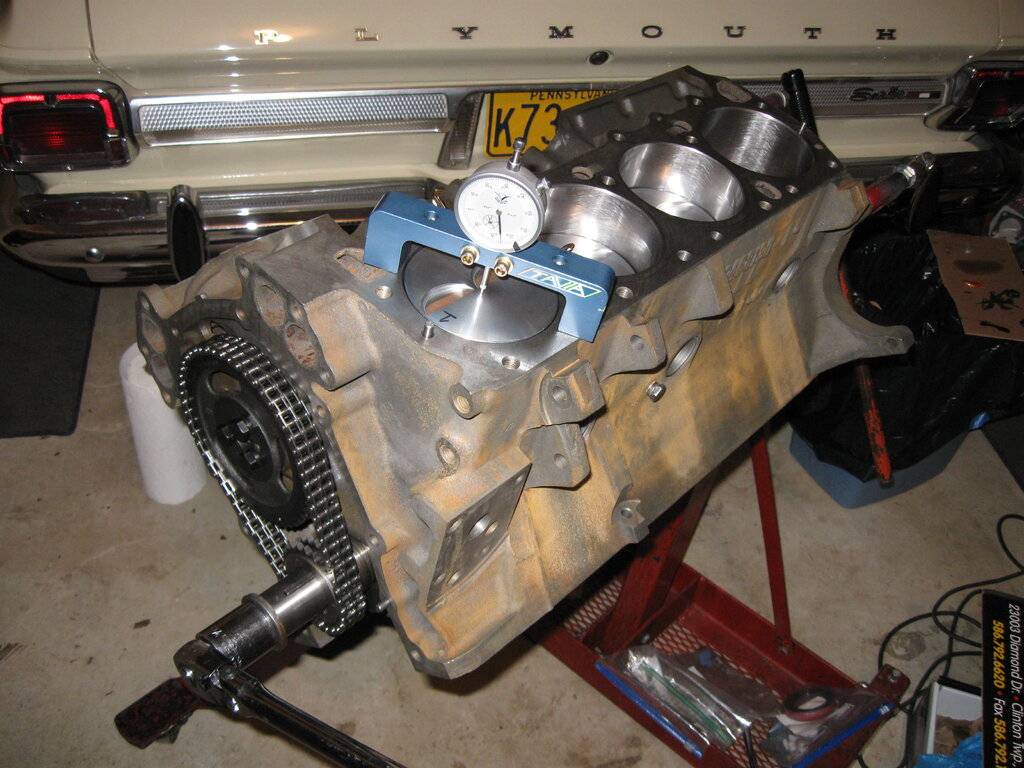

    short block 2.JPG

  6. PH27L7

    PH27L7 Active Member

    Messages:
    235
    Likes Received:
    223
    Joined:
    Mar 10, 2020
    Location:
    Pittsburgh, PA
    I would think if the lower timing sprocket were not seated 3/8" you would never be able to get the timing chain on.

  7. PH27L7

    PH27L7 Active Member

    Messages:
    235
    Likes Received:
    223
    Joined:
    Mar 10, 2020
    Location:
    Pittsburgh, PA
    Perhaps the aftermarket cranks have a shallow bolt hole? As seen with the stock crank & bolt, it bottoms without the damper. There is a special tool for installing dampers although most with mopars just use the bolt since it is so huge.

  8. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    13,420
    Likes Received:
    8276
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Yea, I use a small block Mopar bolt to get it started. It's quite a bit longer, then I finish up with the stock bolt. Some guys just tap them on and then finish up using the bolt, but I've never been a fan of that.

    I recently did a 340 for a buddy's T/A and I noticed the aftermarket bolt he had was just a little longer than the stock bolt. He had a stock crank though. I used the stock bolt.

  9. Cazman

    Cazman Active Member FCBO Gold Member

    Messages:
    259
    Likes Received:
    107
    Joined:
    Jul 14, 2018
    Location:
    Upstate NY
    It all checks out. This is crazy. My machinist had a 440 in the shop. His dimension from the spalsher out to the end of the crank snout was something like 1 /18", so was mine. Same Same. My original balancer went right on like it was supposed to - right to 1/8" from the end of balancer. You could still see the stop in the metal. Plus measuring also showed it was on all the way. I'm going over to my machinist now.

  10. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    12,428
    Likes Received:
    5268
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    I would like to know the thickness of the lower timing sprocket. Did you actually look to see without the timing cover on if it is all seating? Your measurements do me know good, like advertised duration on camshafts, measured from where?

  11. Cazman

    Cazman Active Member FCBO Gold Member

    Messages:
    259
    Likes Received:
    107
    Joined:
    Jul 14, 2018
    Location:
    Upstate NY
    The main point on the dims was that they are the same as an other motor, so nothing obvious is wrong (no offense, as I know you know your stuff). Anyway, I ordered an ATI damper and it went on and the pulleys match now. The ATI is a little bit narrower and USA made so, I have more confidence in the dims (I have sent back two parts to 440 Source for bad fit). Still don't know what the main problem was. Maybe when I start it, my screw up will be apparent.

    • Like Like x 1
  12. Cazman

    Cazman Active Member FCBO Gold Member

    Messages:
    259
    Likes Received:
    107
    Joined:
    Jul 14, 2018
    Location:
    Upstate NY

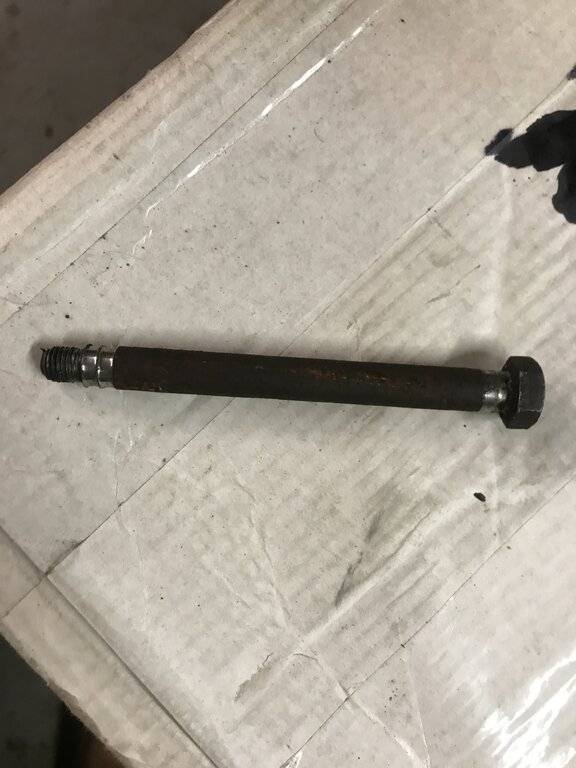

    I am almost done with this, but I have a question on the TRW Pump pivot bolt. This in the one that holds the pump to the bracket, not the one that holds the bracket to the block. From what I have read on the forum this bolt does not tighten and lets the pump self tension with load. It may even let the pump "lean in" a bit. It seems like a special bolt, as it has a shaft normal to a 3/8 bolt, but the thread is actually smaller. It also has some wear grooves (see below). So, I am not sure it I should just throw a 3/8 bolt in there or try and make a duplicate.


  13. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,254
    Likes Received:
    1016
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    Remind me - is this the V shaped belt-load-tightening P.S. bracket? These brackets are misunderstood, and the issue has been brought up a few times here. They're actually pretty decent if they're properly assembled and maintained.

    However, and at any rate, I do not think there should be a wear groove as seen on yours under the bolt's head and near the threads. Now ( and I'm going on memory here), IIRC, both the head and the threaded end should be very snug against the outside of both sides of the OUTER V -bracket (the "nut" for the bolt being integral to the V bracket) squeezing against but NOT binding the inner V-bracket.

    Alignment is helped by the rubber snubber at the bottom of the V. If it's not there the bracket can twist, and this allows for the bolt to get wear patterns as seen, and the holes in the brackets to become hogged out, all of which exacerbates the misalignment. If the holes aren't too bad, then the situation is easily repaired either a new snubber, and if the twist is set, more alignment solutions are to be found by shimming the pump to the bracket with washers. I'll post some pics later.

    Edit - apparently these V brackets are also in repro, or at least can be bought "refurbished" with new parts etc but I can't find a link to the service.

    HOWEVER, if originality is not a requirement, there is a MUCH better 2 pc bracket out there that retains original belt alignment and never moves. In the old days one had to find it on 68 and up big block cars originally so equipped, but now it's being reproduced.

    Pictures to follow.

    UPDATE: Pictures:

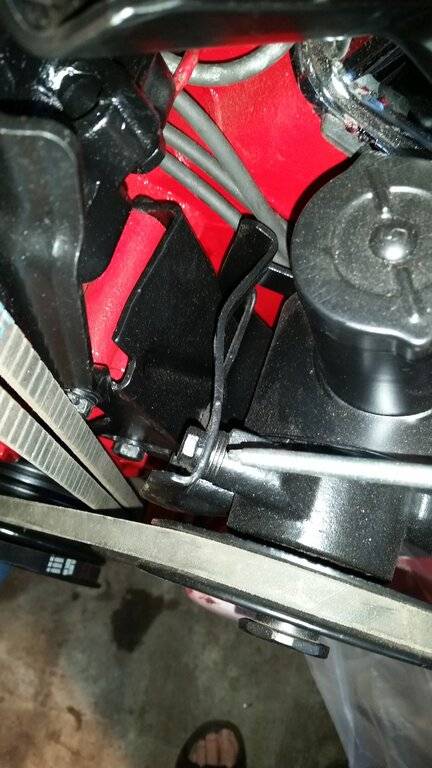

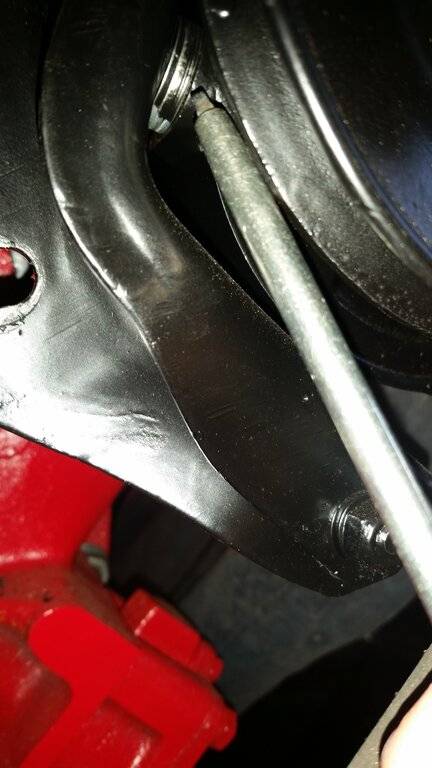

    USING WASHERS TO DEAL WITH ALIGNMENT ISSUES ON BRACKETS THAT HAVE A TWIST SET INTO THEM FROM PREVIOUS "NO SNUBBER" AND MILD BOLT HOLE WEAR

    3.JPG 20170522_145234.jpg 3.JPG

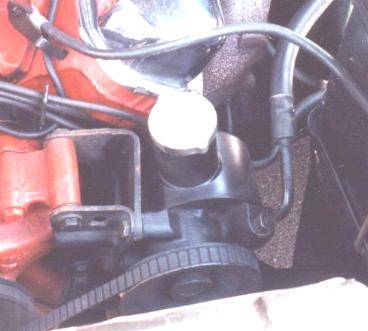

    EXTRA STRONG FACTORY IMPROVED 2 PC MOUNTING BRACKET

    Power steering pump strong bracket.jpg

    This can be bought here:

    TRW Power Steering Pump Brackets

    Last edited: May 14, 2020
    • Like Like x 1
  14. Cazman

    Cazman Active Member FCBO Gold Member

    Messages:
    259
    Likes Received:
    107
    Joined:
    Jul 14, 2018
    Location:
    Upstate NY
    My bracket holes seem fine. I think the bolt took all the wear.
    The bolt looks special though and I have not found a source for the rubber snubber. If I can I will keep the orginal brakets.

  15. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,254
    Likes Received:
    1016
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    The rubber snubber is the same as used for clutch pedal return bumper - Brewer's Performance - Mopar A833 4-Speed Transmission and Component Specialists

    You might find the right bolt here - Mega Parts USA - Reproduction, NOS and Used Mopar Muscle Car Parts

    If not, you can make a new bolt by getting a good quality grade 8 bolt in longer than required length, cutting it to length, then using a lathe, cut down the end to the right diameter for the threads, and then using a good die to cut the threads.

  16. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    13,420
    Likes Received:
    8276
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    This guy will put you to sleep, but this is the proper way to tighten the power steering bracket.

  17. Cazman

    Cazman Active Member FCBO Gold Member

    Messages:
    259
    Likes Received:
    107
    Joined:
    Jul 14, 2018
    Location:
    Upstate NY
    I watched that video before. Very informative. Not much info on the bolt. I will prob take Ross’s advice and modify a bolt.

  18. Cazman

    Cazman Active Member FCBO Gold Member

    Messages:
    259
    Likes Received:
    107
    Joined:
    Jul 14, 2018
    Location:
    Upstate NY

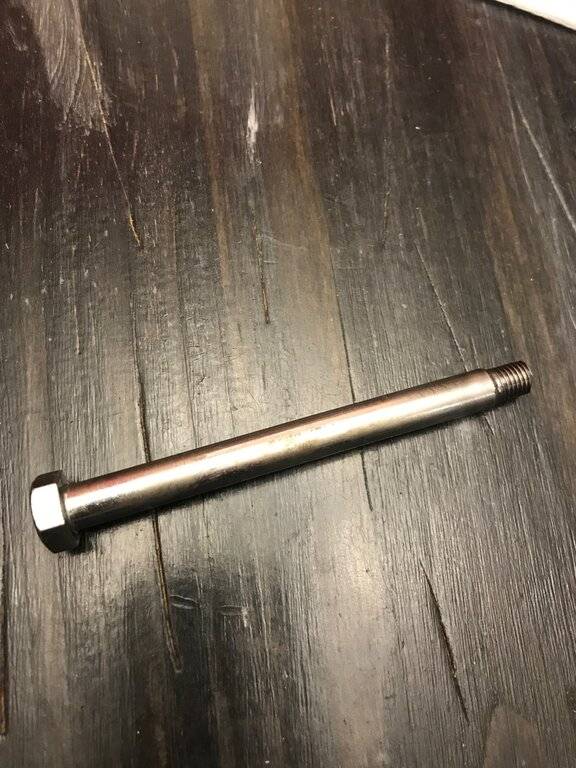

    For the knowledge base:

    As Ross said - new bolt made. Still not sure why the strange design, but the whole set up is strange anyway.


    • Like Like x 1
  19. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,254
    Likes Received:
    1016
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    Nicely done!!
