VACUUM TRUNK GROMMET SEARCH

413

Senior Member
Joined
Jan 28, 2019
Messages
1,451
Reaction score
1,615
Location
NW USA
Speedo cable is larger diameter than the vacuum line. The OD of the speedo grommet is much smaller than the vacuum line grommet. Wouldn’t fit the hole at all.

# on speedo cable grommmets are 2216552
# on trunk vacuum line grommet 2426712.

Neither of these 2 grommets are the same material as a PCV grommet either, very thin and chincy compared to PCV grommet


detmatt

Old Man with a Hat
FCBO Gold Member
Joined
Nov 14, 2010
Messages
27,316
Reaction score
25,458
The hole near the hinge on the trunklid is 1 3/16” On an Imp.


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,640
Reaction score
22,801
Location
Marcellus, NY
The round hole by the arm is actually not perfectly circular - 1 7/8" x 2 1/8

The hole near the hinge on the trunklid is 1 3/16” On an Imp.

The Monaco's is WAY larger, and slightly oval.
That is odd.

I looked at the part numbers in the 1969 and 1970/71 parts catalog (I was bored yesterday) and they are the same as the ones you listed. That says to me that they used the same grommet for a lot of years.

I can't measure my '70 right now (on the lift with another car under it) or I would do that.

So, it makes me wonder if it's a Canadian car difference... and was the vacuum trunk release optional on the Canadian cars? I'll even speculate if it got punched incorrectly when new.


MrMoparCHP

Old Man with a Hat
Joined
Aug 9, 2013
Messages
5,321
Reaction score
4,965
Location
Lompoc, CA
In looking at the 69 Assembly manual it shows the 1886101 at the firewall for the vacuum source, as I said it is a small grommet.

Looking at the eBay listing above I feel that the grommet by the latch goes in the round hole near the latch.

I'm assuming that you are adding the vacuum latch to a car that didn't have one. Was there a grommet on the harness going into the trunk lid?


Alan


Ross Wooldridge

Senior Member
FCBO Gold Member
Joined
Apr 25, 2016
Messages
4,871
Reaction score
4,251
Location
Scotland, Ontario, Canada
No grommet on the tail light harness going into the trunk lid.

FWIW, there's no listing for vacuum trunk grommet for Fury which also had tail lights in the deck lid, and I'm wondering if there simply was no grommet used on Monaco 500, Fury III & Sport Fury, and that the hole was simply larger in those instances. I've owned two '66 Monacos (and parted a 65) and the hole was the same in all three deck lids.


MrMoparCHP

Old Man with a Hat
Joined
Aug 9, 2013
Messages
5,321
Reaction score
4,965
Location
Lompoc, CA
I'm speculating that in your application there was no grommet.

I looked at the 65 and 66 parts books
1370460 65/69

1886101 65/66/69 this is a smaller grommet with multi-port options

My 69 assembly manual also has 2427866 not to mention the 2426712 installed grommet on my car.


Alan


JimmyG

Member
Joined
Jul 31, 2018
Messages
62
Reaction score
25
Location
Newmarket, Ontario Canada
Hi. The grommet shown in your first photo with the "nipple" style is often times used in other years as an antenna cable grommet. The two holer shown is incredibly similar to the two holer used on my '52 Plymouth Cranbrook for passing wiring and cables through the firewall. Just passing it on as options. Good luck!


kmccabe56

Senior Member
Joined
Nov 14, 2010
Messages
1,029
Reaction score
503
Hey everyone,

In an effort to complete the kit for my vacuum trunk setup, I am looking for the grommet that goes in the deck lid by the driver's side hinge arm for a 1966 Monaco so equipped.

The grommet by the hinge arm is round and will have TWO conduit holes - one for the vacuum line, one for the deck lid tail lights. Therefore it is likely a SPLIT grommet. This grommet will be unique to 66 Monaco ONLY, as no other 65- 68 C bodies with a vacuum trunk release system had deck lid mounted tail lights (I think).

As well I am looking for one hinge arm clip and the unique vacuum hose grommet that goes near the latch assembly - it is rectangular with rounded ends.

However, since the Monaco's setup is unique, I'm not sure that there was ever a grommet for the 1966 Dodge Monaco with vacuum deck lid latch release, nor the little rectangular grommet shown in the picture below - if anyone can confirm either way the information would be much appreciated. The parts book is somewhat cryptic...

For the rectangular grommet near the deck lid latch, the parts book lists this:

Grommet - Vac Deck Lid Lock Rel Switch, Tube, Plastic (Special) 1886 101 Dodge and Chrysler body configurations 41, 43, 23, 27.

For the deck lid grommet near the hing arm, the parts book lists this:

Grommet - Vac Deck Lid Lock Tube (Special) 1370 460 Dodge and Chrysler body configurations 41, 43, 23, 27.
I find this interesting since NONE of the Chrylser bodies have tail lights in the deck lid, and hence it doesn't jive if it's a 1-hole grommet.

No hits on the internet or PartsVoice...

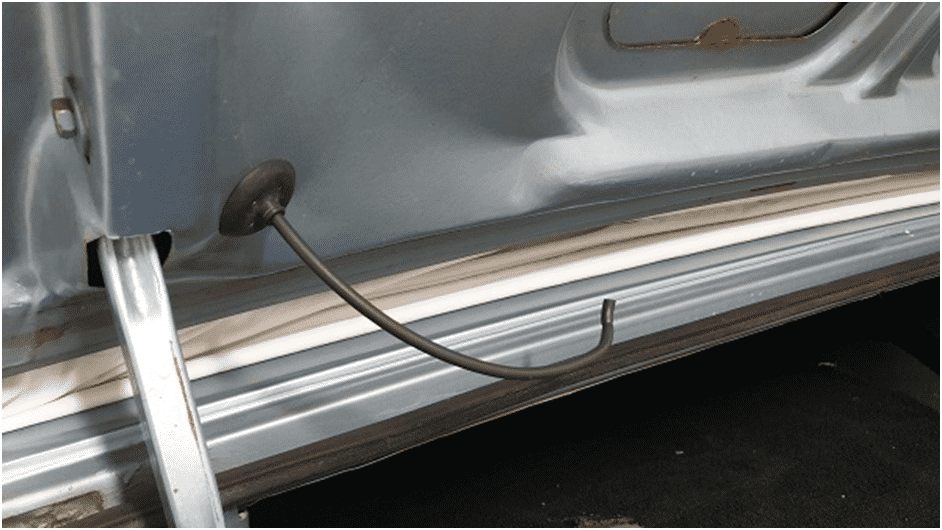

Pictures below for reference - the round grommet in this picture only has a single hole for the vacuum line as it's from a 65 New Yorker (no tail lights in the lid).

View attachment 512160

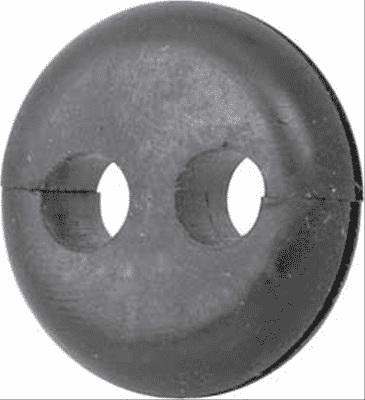

I would think the grommet for a Monaco would look something like this:
View attachment 512163

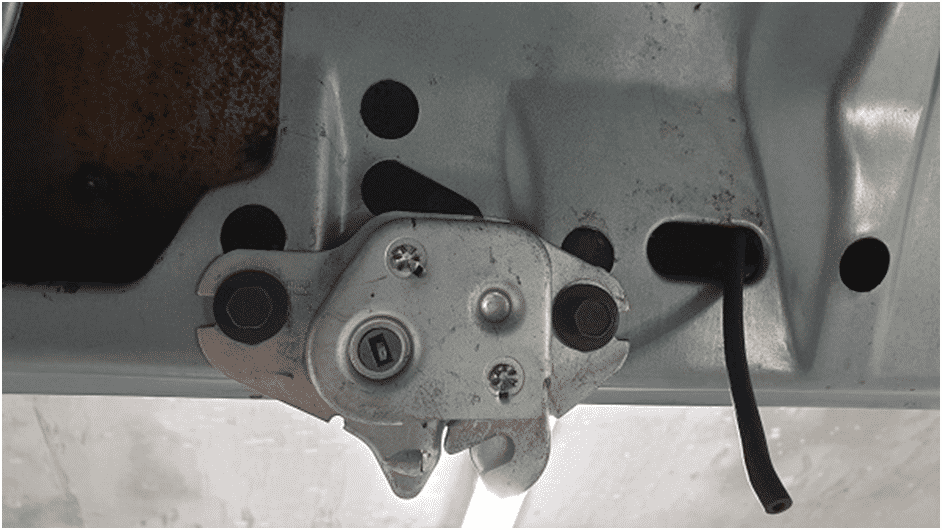

I think (but I'm not entirely sure) that there's supposed to be a grommet for the hole shown here too - if so, this would be found on all 66- 68 C bodies and possibly later.

View attachment 512162

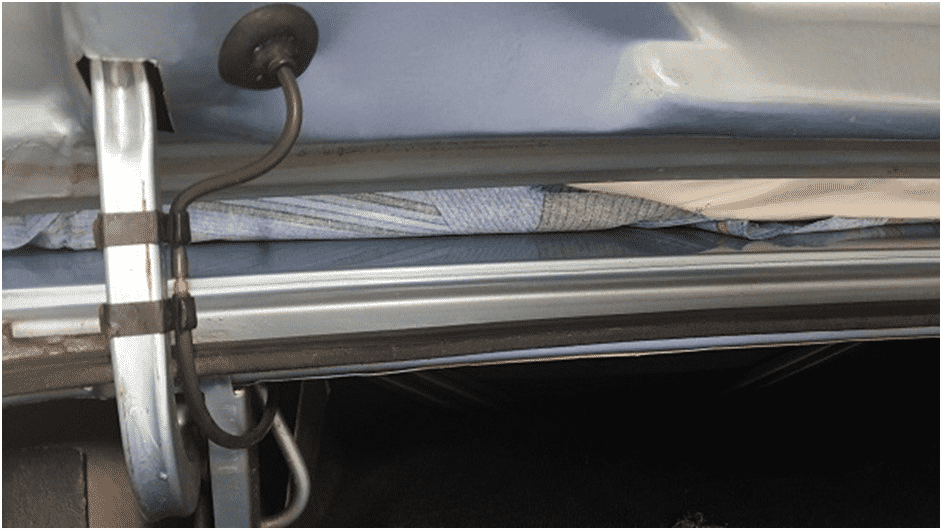

Here you can see the two clips that hold the vacuum line to the lid's arm - I have one, but need another.

View attachment 512161
Ross, Have you checked www.clipsandfasetners.com ? They have a LOT of oddball Chrysler bits and pieces. Kevin
