Another update!
Wiring this time.

I can't work on engine parts because I'm still waiting for parts.
I've decided to tackle the dashboard wiring for now.
I wanted to get piece of mind wiring wise, so I'm checking everything to make sure it doesn't burn to the ground at some point.

The reason behind this is that pins J and P on the bulkhead connector were melted. Some previous owner bypassed the AMmeter when this happened in a not very nice way. I'm not scared of wiring so I decided to replace the bulkhead connector and check all wiring since I'm busy anyways.

I've pulled most of the dash apart, and after thinking "What did I get myself into" I carried on with comparing the wiring with my FSM. And to my surprise, 95% of the wiring is original and in way better condition than I've expected. Wires are still bendable without breaking and have little to no corrosion.

The only not original parts are :
- Ammeter bypass patch (not done in a neat way)
- Dimmer switch was broken in the back (I have a replacement one) and the connector was cutoff...
- Radio wiring patches, I've cut the non original wiring out and I'm returning it to original according to the FSM.
- Unknown black wire connecting Tan blower switch wire to DBL A/C clutch wire.

The rest is fully original, in good condition and all according to the FSM :thumbsup:

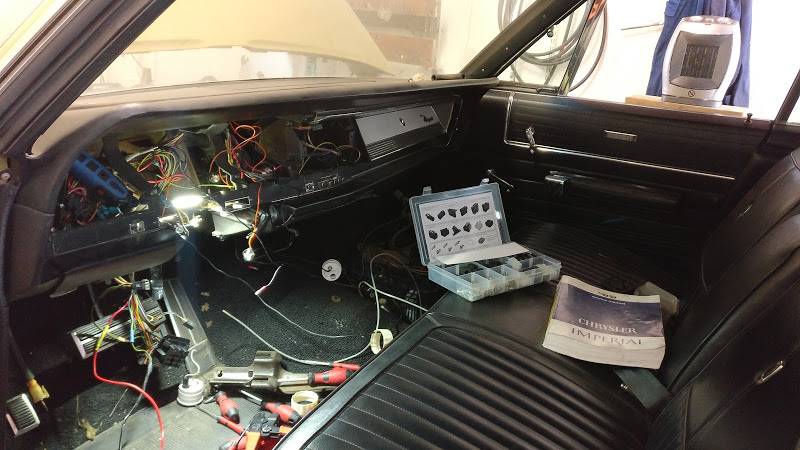

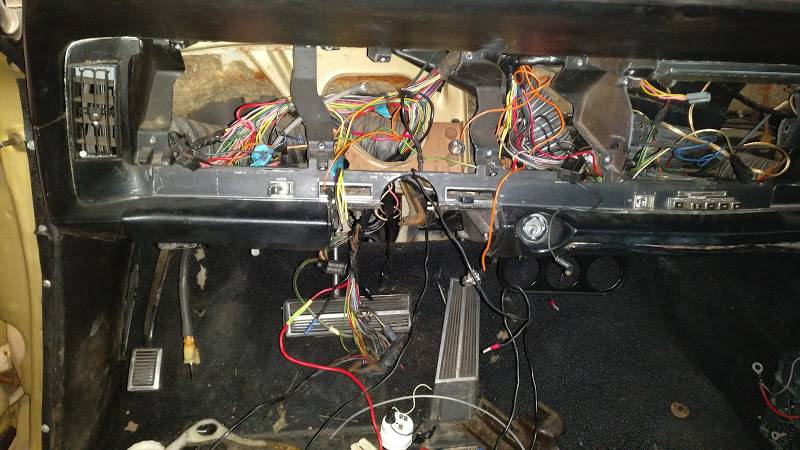

(picture looks worse than it actually is...)
View attachment 439121

View attachment 439122

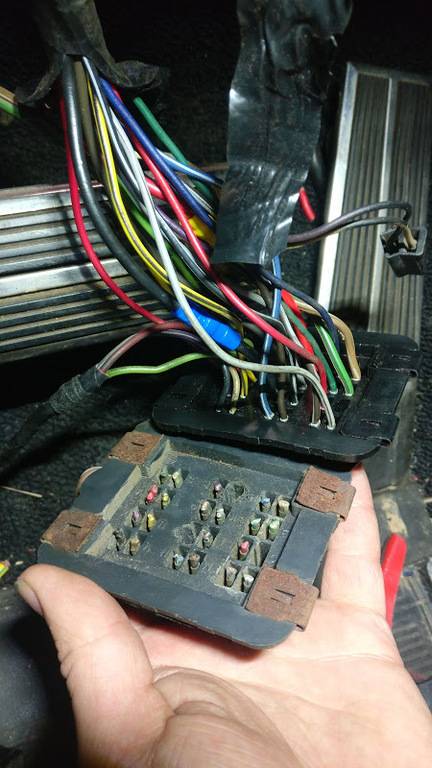

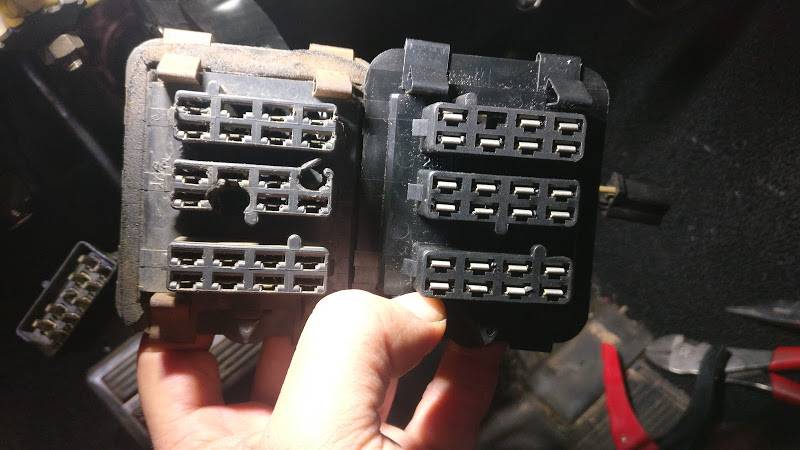

Repinned bulkhead connector with original wires and patched J and P pins (made sure the copper didn't have corrosion).
View attachment 439123

Quiet the difference.

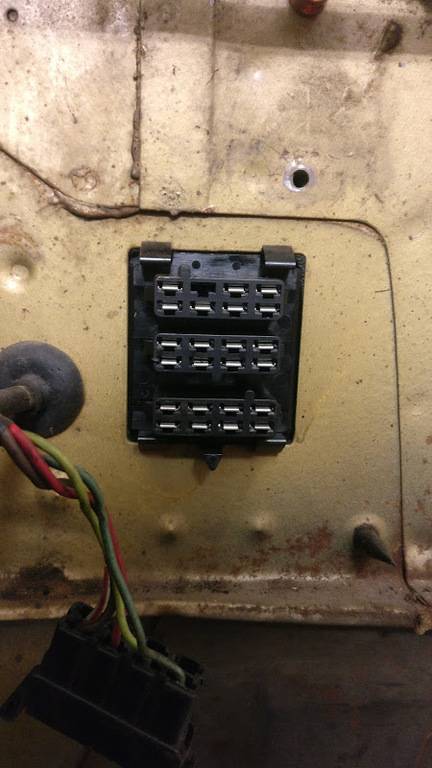

View attachment 439124
View attachment 439125


I'm also refreshing dash panels, switches etc at home.
I've got a lot of spare dash parts thanks to @detmatt and @cbarge, they already came in handy :)

My chrysler came without radio (It had one from factory, but someone pulled it out).
I got my hands on a Chrysler AM/FM!!! thumbwheel radio, with many thanks to @cbarge

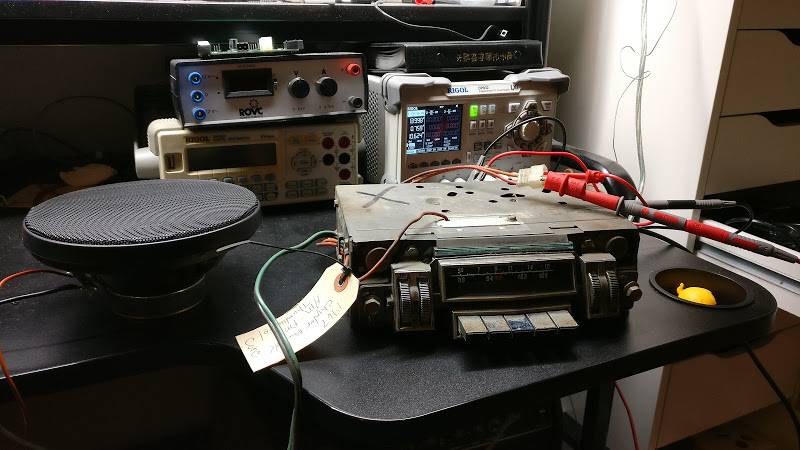

Finally got time to test the radio.
I connected ground to the chassis, first connected 12V to the orange wire (light), and yes, the light was working.
After this I connected an 8 Ohm speaker, antenna and connected 12V to the red wire (radio power)
Both AM and FM channels are working! We don't have many AM radio stations over here, but we do have a lot of FM radio.

Really happy this works. Now I have to find new speakers to install in the dash and at the rear seats (my car was optioned with rear speakers and fader switch).
View attachment 439117

Shiny.
View attachment 439118

The dimmer switch in my dash was broken, so I got my hands on a "cheap" replacement switch from another newport.
It didn't work very well so I cleaned it up and all contacts are working like a charm again (and the 0-15Ohm resistor works fine as well)
Ready to install!
View attachment 439119

I also had a spare blower motor switch (3 pins). It wasn't working at all, so I disassembled it, cleaned it and reassembled it.
It's working like a charm again with little to no resistance.
View attachment 439120

I also checked the headlight switch, wiper switch, dashboard lights and PCBs.

One thing that isn't working anymore is the clock my chrysler had from factory :(.

Wiring and dash components are going fast for a change.
I think I can finish this up by the end of the month.
And hopefully by then I will have my new parts! :)
Glad to hear you are happy with the radio. I changed the bulb and discovered that when the radio is turned off the light goes out,LOL! Turn it on and it lights up.
I had it tested a long time ago so I knew it would be good for you!
You are doing all the right stuff regarding testing all electricals.
Keep up the good work!!


Metalmarty

Member
Joined
Feb 24, 2020
Messages
147
Reaction score
138
Location
The Netherlands
You are treading into waters that many people steer clear of, but you look well equipped for them.

Electronics really is my thing and I hate it to have electrical gremlins.
And I'm motivated to do it first time right since gutting the dash is a crappy job.

Www.clocksandgauges.com sells quartz conversion kits for your clock.
I have now done 3 of them and they all were fabulous.

Forgot to thank you for the link. Thanks :).
I might use this in the future.



____________________________________________________

Long overdue update time!
I'm slowly making progress but also had a busy time.
Started writing this post multiple times and didn't finish it due to other stuff coming in the way.

FnIaRd0JVQoStpMv7qawnRIYO1pt23G8Qo_Ve9nSacH1ePtYZl2u5GrIFA94suMNHLlpG4s=w1920-h839-no?authuser=0.jpg


I got my packages!
Including
- Hedman hedders
- Doctordiff wheel and diff bearings together with 3.23 gears
- Lots of parts to reassemble the engine (mounts, gaskets, sensors, B&M external balanced flexplate, etc)
- All new brake parts for the rear axle (drums, shoes, springs, wheel cylinders etc)
- some other misc

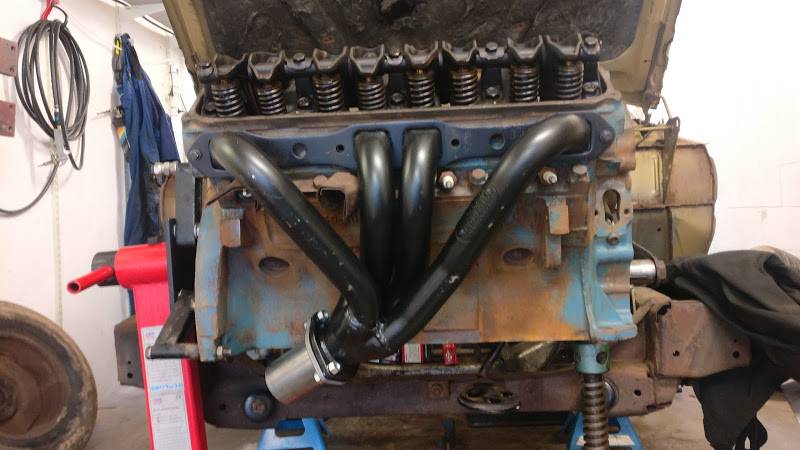

Header testfit...
1jdYVd2mUHWsEVx9Scn5B853-XYQ7BIX5jfwhGXC6jlGfq0ixvlzV3qneOaOUjVVjdFcMbic=w800-h450-no?authuser=0.jpg


Not super succesfull. The flange is hitting the non machines part on the side of the heads (452s)
i6Z991U5FGjcsOVmzwwEC41mR0XOC8y85yExfkOwHQSuXR-V35BKV_ufi7a62gIkanObtzxt=w800-h450-no?authuser=0.jpg


Flange is not sealing, and a gasket is not going to help here.
Some modification required.
Rest of the headers look good and fit the side of the block.
dWSukn2KxF1NdunzEUTkNZLYdJ2UWfbiC_5IaoD44_3m3ljzCru3h9OqATXPCMvyG7lmjqrv=w450-h800-no?authuser=0.jpg

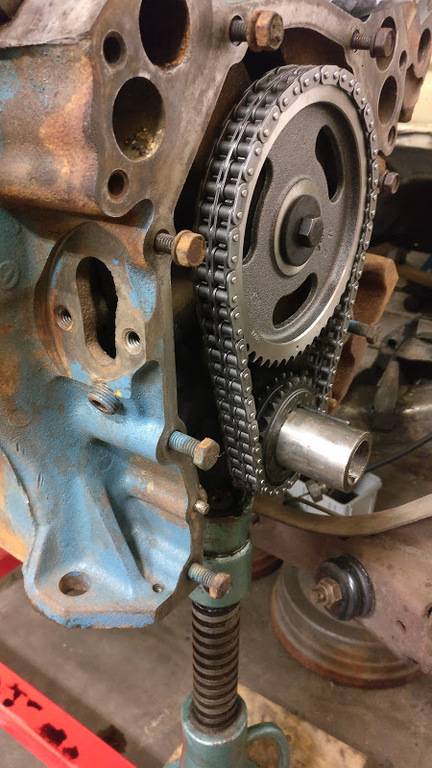

Also got a new dual roller timing chain.
_ny8B8v8xPKdCb02p4s19vZK_MBI6AwBXN2B7Zb-5IDscYYfTa4cJCbWz8r4NpL4m6v2Wpuv=w450-h800-no?authuser=0.jpg

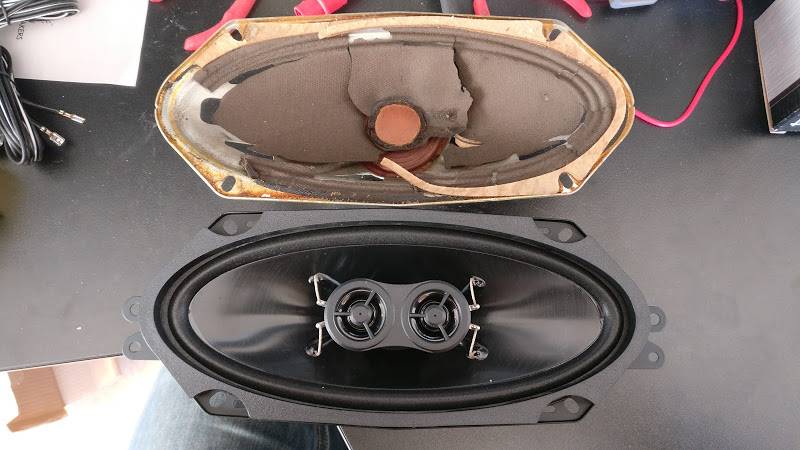

New very very good dash speaker. Blew away my expectations.
Z6b246P8rxpqbihIvr8dyHd7FPJLD5dGhl2GbqAWYfap-QdozrNdzcklJqQHl0qL13E5gEHJ=w800-h450-no?authuser=0.jpg

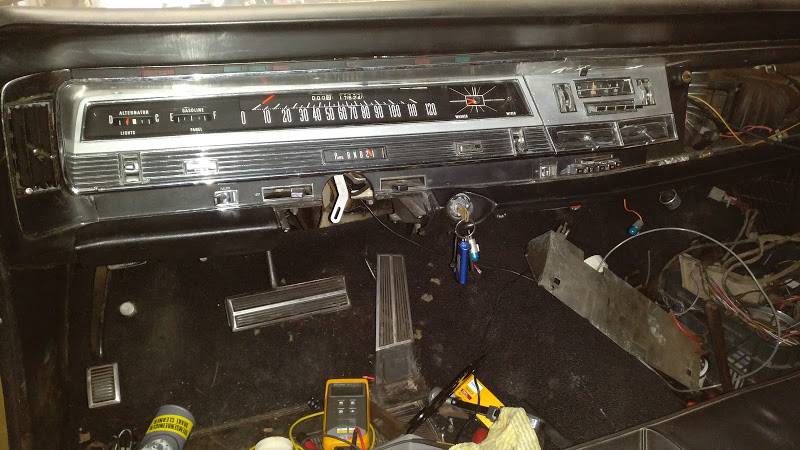

I've rebuild the dash, installed the new speaker, repaired the radio wiring, installed the radio etc.
I've tested most of the dash functionalities without loads and they seem to be fine.
Radio is also working like a charm with the new speaker!
Dash lighting works, dimmer/dome switch works, speedo works.
Everything is looking good!
UDG5PIxdflGyrUzpCPSsPdyctFITXAjib3UMR949wbknCJf3EzGLgyYviLfRWhhrkxjtP4i4=w800-h450-no?authuser=0.jpg


But as usual, I've hit a snag.

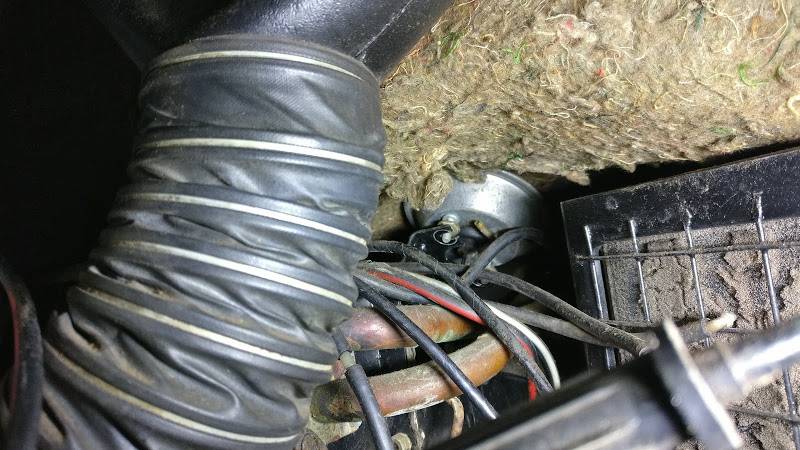

Two out of three vacuum actuators have leaky membranes...
Especially this one is almost impossible to get out without removing the dash.
But I got it out in the end.

I've got some used actuators on the way from @detmatt
lm_wtXm75uc3HJV56J4SWloWEgRocSjtTi_RgEz09qSTroImZUdm_cJ2cY2qYJRNc42S_8zs=w800-h450-no?authuser=0.jpg


Since I had to wait for parts, I've started working on other stuff.
More to come!


Metalmarty

Member
Joined
Feb 24, 2020
Messages
147
Reaction score
138
Location
The Netherlands
Update!

It's time to work on the diff. This is the original 2.76 open-center 742 8 3/4" diff.
ZgQPIFgHoosB6EX_wxjz8Soj5xoZTF2WJswr2GRHafMqGumZHBDrNLtP2ysJ9H2N3m59BqKI=w800-h450-no?authuser=0.jpg

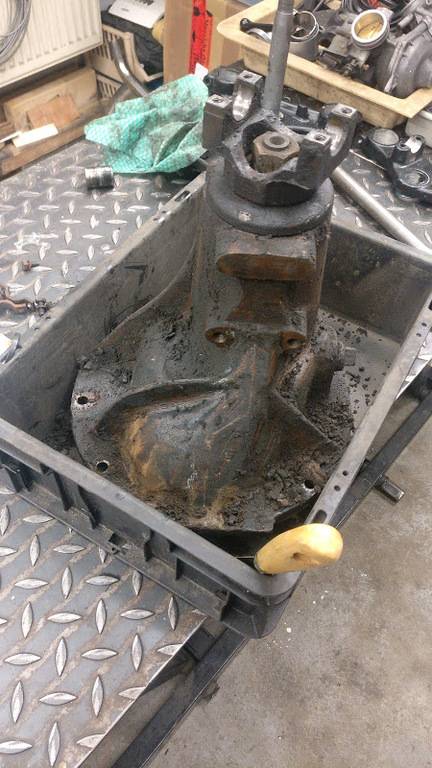

It needed a good clean after 50 years of grease and grime.
3V-imozBUOolf-w3C8qMArGNKw0D6zD_MKAxEf5nTwqZyctWWuiEgokLIiOBNyoLOwZPi1C0=w450-h800-no?authuser=0.jpg


Looks a lot better after cleaning.
Also removed the center.
dKRL45lnURo5sgc4ji5ELotnWx8-DAxs-c3MG2GYyQ00woIub4KDmg-aCu2YTSP8uk__Q1dx=w800-h450-no?authuser=0.jpg


Upgrades!
The bearings are in better shape than expected.
But I'm replacing all diff bearings with stuff from Dr.Diff.
I also have a new Dr.Diff ring and pinion! Was tempted to pick 3.55s, but 3.23s might be a bit better for this car. So I'm swapping the 2.76s for 3.23s for a bit more punch. This should go great with my Chrysler 10 3/4" HP converter (~2300rpm stall).
We have a speed limit of 60MPH and I'm mostly driving on 30-50MPH roads anyway.
YalHyTl8-AvVEGuhDY5p4Sg83IpSYFx1PI8KVxmr_Kxg1pz6F3fFeKUyvzIa1tRhLHQeKPuf=w800-h450-no?authuser=0.jpg

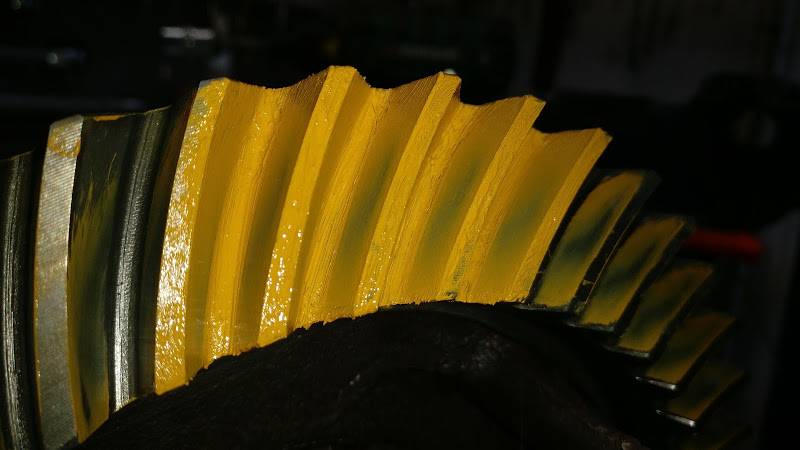

Took a couple of hours fiddling, measuring and more measuring. But the preload and diff settings are spot on now. I've honed the old pinion bearings for a slide-on fit on the new pinion. This made it a lot easier to determine the shims needed for preload. I'm right on par with the Dr.Diff prescribed preload after determining the shims and pressing the bearing on.

One side:
XtrGypdgKoeFVjBDUenKF2w5eNseHnnfBvUDbDXp-Q-l28YCHIkcDEyY3TWp8yQj6_HAypYa=w800-h450-no?authuser=0.jpg

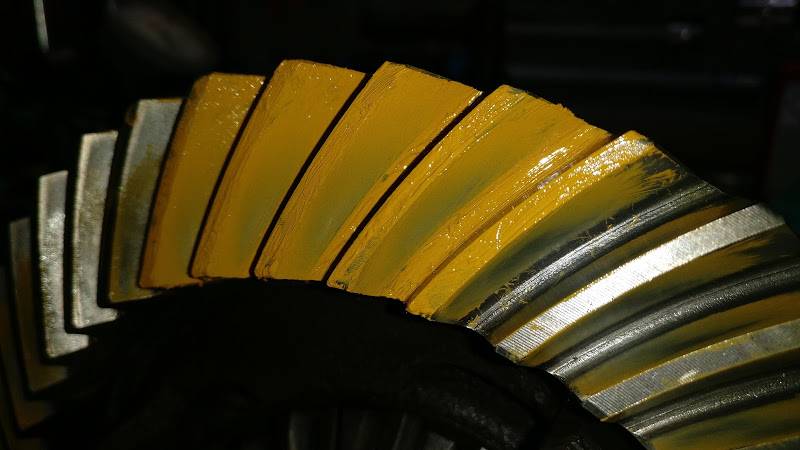

Other side. Both bang in the middle.
vK0wk9nfdyitYmSroYtYRYiH9t1g1Vrk-i_wbFbPpJbRoOCE6JPG2-XZl7c8OGUZe54tLKmZ=w800-h450-no?authuser=0.jpg

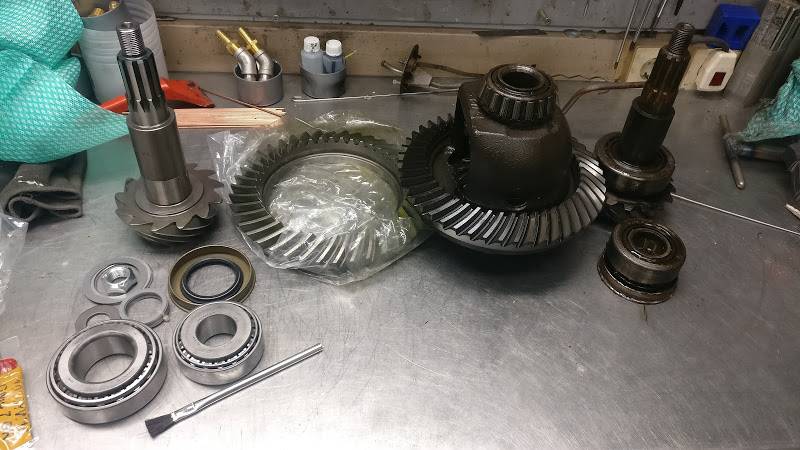

Ready for install with all new bearings, seals and 3.23 gears.
1Cn4MyjNYsHtkQVieXwO7Yra9da6CiiVVP7trV-u46YqFqdCCin8JbNbC_IfBeOuosFKItJU=w450-h800-no?authuser=0.jpg

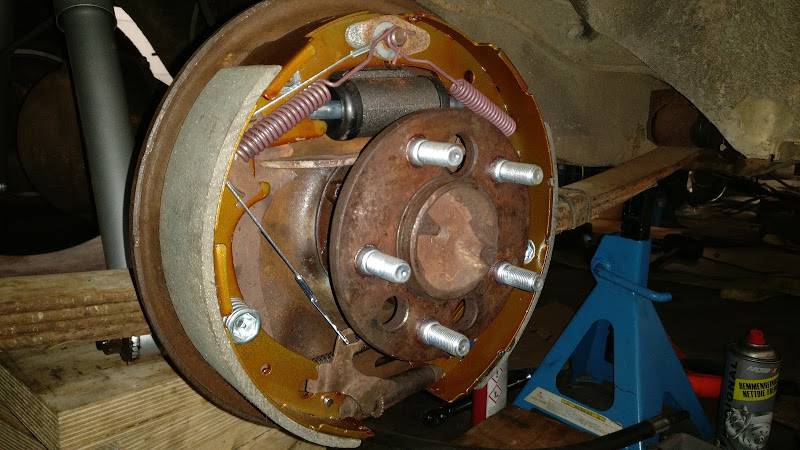

I've also replaced the tapered axle bearings and seals.
Bearings were not too bad but changing them wasn't a bad choice either.
The seals were shot on both sides anyway.
I picked tapered bearings as new bearings instead of the green bearings.
Setting the desired play when installed in the axlehousing is super easy anyways.
A LOT easier than the FSM might indicate.
A5bsuD620Z8cE9S5BwRkSttNc8m6ANEH-hzlThm7v9k9rS4kRWtLQUtI6SmyjDUgvsD0LkN1=w450-h800-no?authuser=0.jpg


I've also replaced all the studs.
The axles had their original bearings, seals and studs.
One axle had RH studs, the other LH studs.

I've converted them all to RH studs.
H49ytfDz3vNYfxMiQD2D3HZPzkM7capo77VOtbdbaSqLfoJUob7gkvjJXmKeowVtdylEQfN5=w450-h800-no?authuser=0.jpg


Lots more to come!


Unix

Member
Joined
Sep 18, 2018
Messages
179
Reaction score
620
Location
Poland
Will be really cool with the 3,23s , thinking of this myself. Would make it much nicer around town & such.


Metalmarty

Member
Joined
Feb 24, 2020
Messages
147
Reaction score
138
Location
The Netherlands
Will be really cool with the 3,23s , thinking of this myself. Would make it much nicer around town & such.

I really hope so. Do you currently have the 2.76's as well?


More updates!
Diff and axles are ready for assembly.
I also continued work on the engine in the meantime.
The valve covers were a bit rusty so I sanded and primed them.

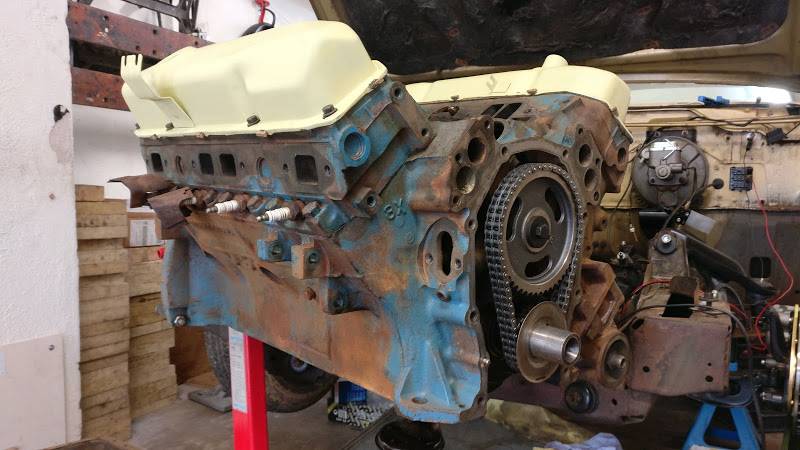

A new dual roller timing chain was installed.
2zfluBr5XV4BqdLXSzFzj2vspbX3WXp909Py2dcecnDd37ZiUuxRi98y6YivUard2h3JyAjI=w800-h450-no?authuser=0.jpg

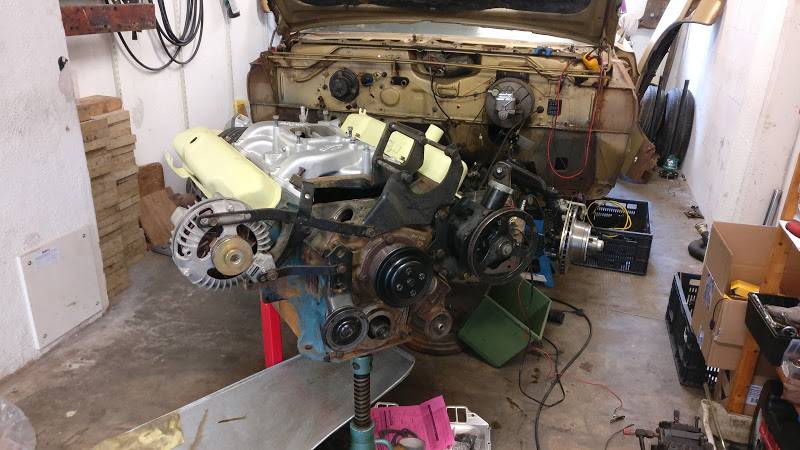

Mockup of all parts and brackets so I know which bolts are which.
a622UwKH7nRETb8ziE8gj-jbkqxUqBBC0sMPs5_vNBx_RUwHFhRwwS7tNzMQqecysnea9APE=w800-h450-no?authuser=0.jpg

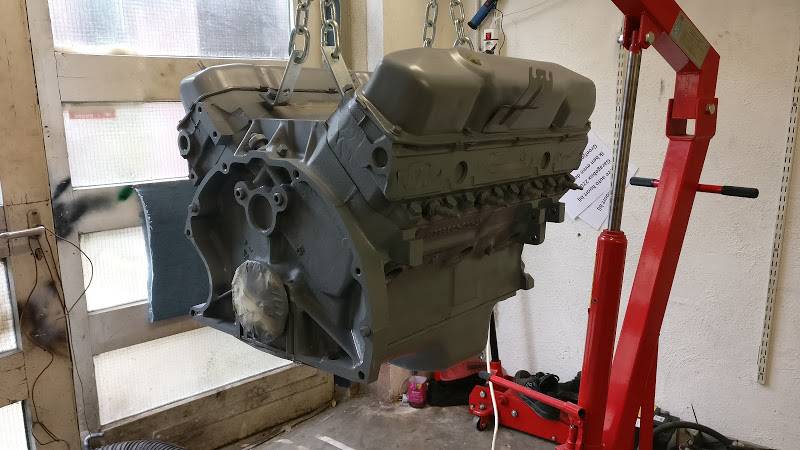

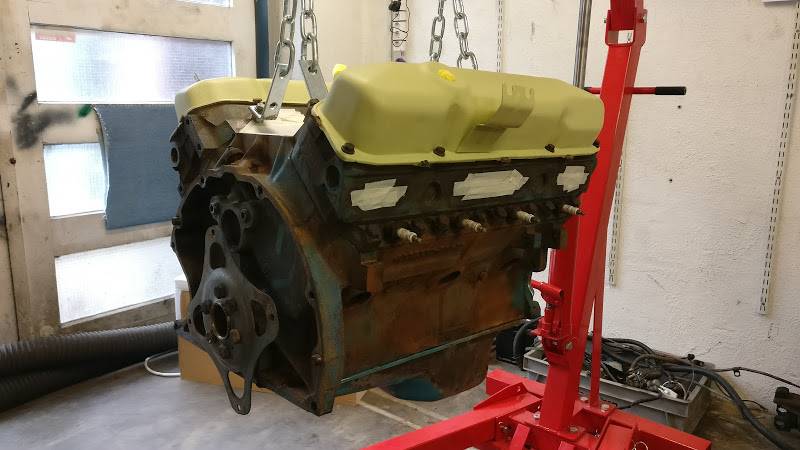

Ready for paint!
S81Uhb5VsRh6wnv0m-YwXe83aaFXHEhkbzJ5pE3Szbj_ErD3WPkDoUtmbsgMyGdxaHA_k5Lf=w800-h450-no?authuser=0.jpg


n-Hpf4RTJvRWiKyjpO-KNG1rRDnjvOMI-DSNRfLKAqnWsuMcaVa7Dl8fdEQzyWoKJdxdLen9=w800-h450-no?authuser=0.jpg

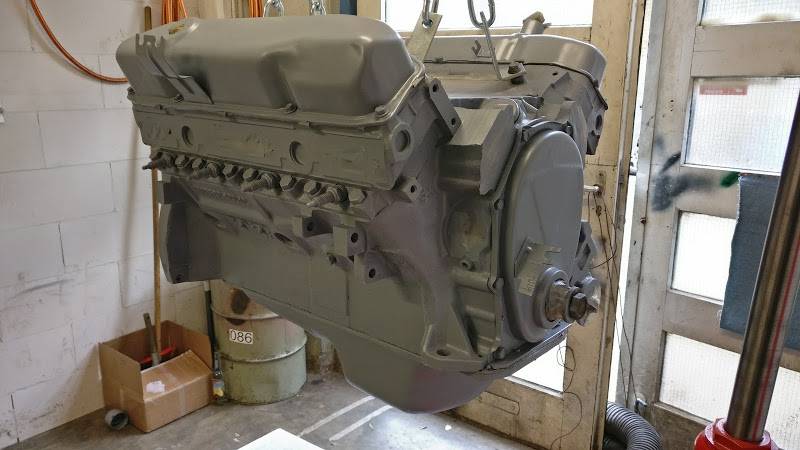

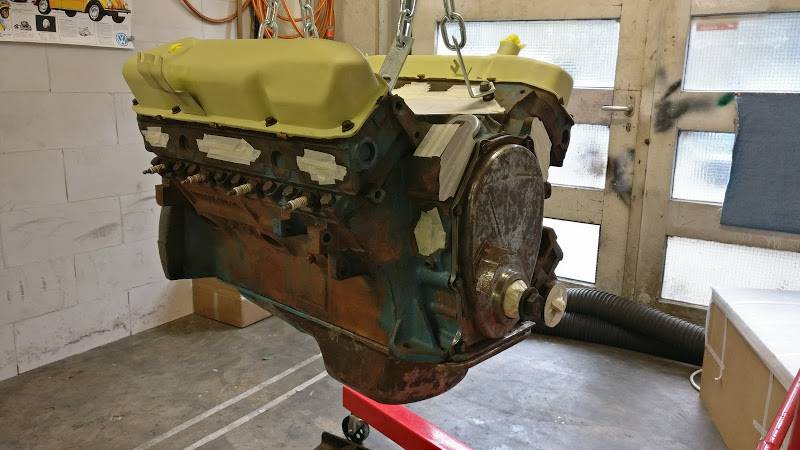

Primer first:
ouL_RV-VVFpCHP6In-ksW-NIiTKkYT1cNbXSxPVeBZqxFnxKc2rLnbm1XqdywdtB9IqT1R75=w800-h450-no?authuser=0.jpg


cv46Ffg6OSW7xvt-FiSXaQoftxBTuQS-XPGgbCpRkpdiGRJgdtS7ckc5T_Lg1J9y4nEKW0-c=w800-h450-no?authuser=0.jpg

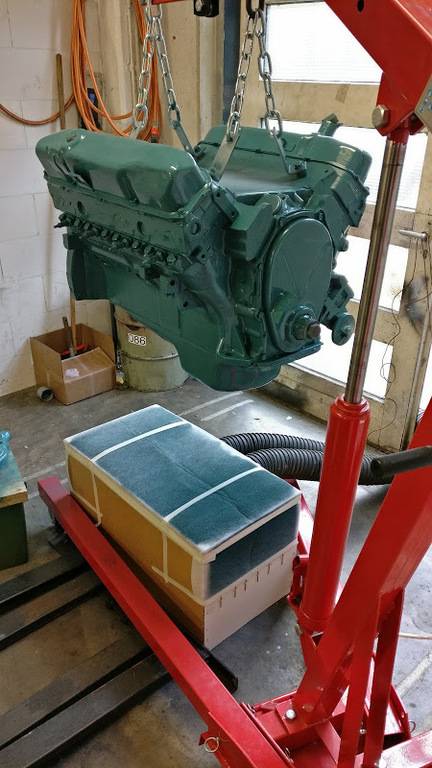

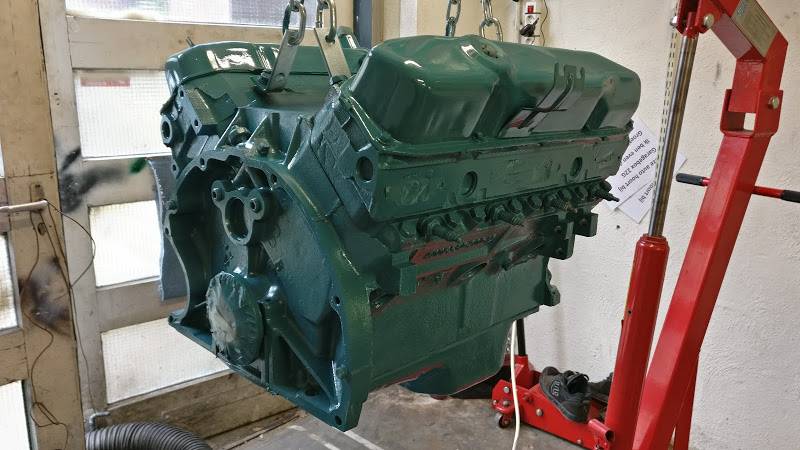

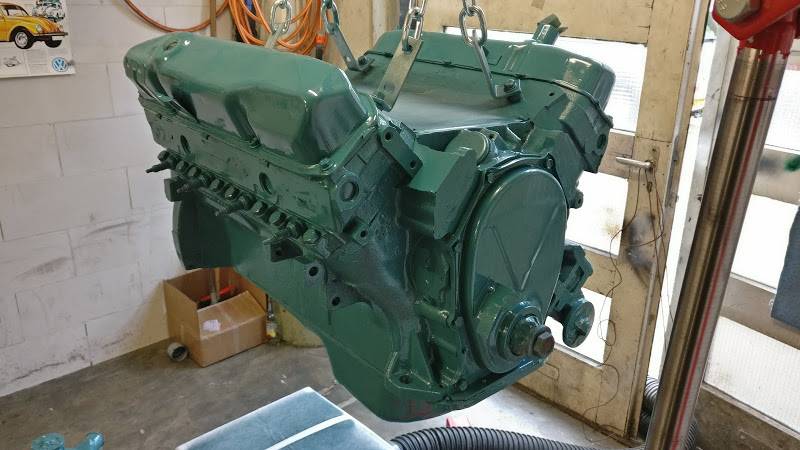

Then paint!
The paint is a little bit more blueish, but the camera has a hard time capturing the colour.
cCvaUjY_3qiIH0GlkGZBt_016hCz6BcTLiw_1Ph1M0O5LbZ1YkWSFiLVKT6pGh5RFnRsqfyI=w800-h450-no?authuser=0.jpg


7hP4xEZMh8Bwj1yJyYiskrN7Fw9M8vvG3f1z6xB01SyJrytW_SDU4IGCwnf8557KtdVLLI6N=w800-h450-no?authuser=0.jpg


Created our own air extractor with filters. This helped a LOT with painting. Not a lot of fumes and we didn't have paint everywhere we didn't want it to be.
The filter was working great, no paint in the extractor itself too.
RDS1nSeV6J0MB5NdC6rUVJ43Z26-Uurz7fgshusGCf9vONmTquXFyhkG-tQXVKUDlbymdnLH=w450-h800-no?authuser=0.jpg



Color is a bit better in this picture.
bWrYijSSmiEUGowblOCk8PMESoWoApTloFrwTi8wkUtYnugrO_1iKk9KhGj5cNl-Ds92T6xN=w800-h450-no?authuser=0.jpg

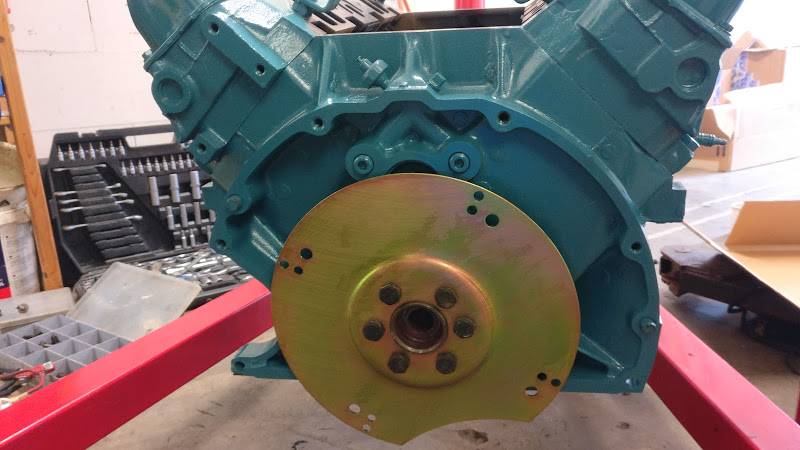

It's a externally balanced engine and I've got a zero balance torque converter, so an special flexplate was installed after couple of tips from forum members.
wt-IAVb-DbBfvh5EaaZZ138RfUZCR3RsKw0QJ1BWElGxNUaXUl4d-OPzvxzlc0lGkaCpFLT1=w800-h450-no?authuser=0.jpg


Metalmarty

Member
Joined
Feb 24, 2020
Messages
147
Reaction score
138
Location
The Netherlands
Updates!

Filled my Chrysler HP 10 3/4" torque converter with a quart of ATF and mounted it in the transmission.
I made sure that the torque converter is seated all the way into the pump.
Transmission was bolted to the engine and the converter was mounted to the flexplate.

JilTBXTvY6xj0Tef-FRvQm2mWYQwiUQKsvc0JfcuYstT7GuqPhUpRzG791Pw8Uz32ZEByRBX=w800-h450-no?authuser=0.jpg

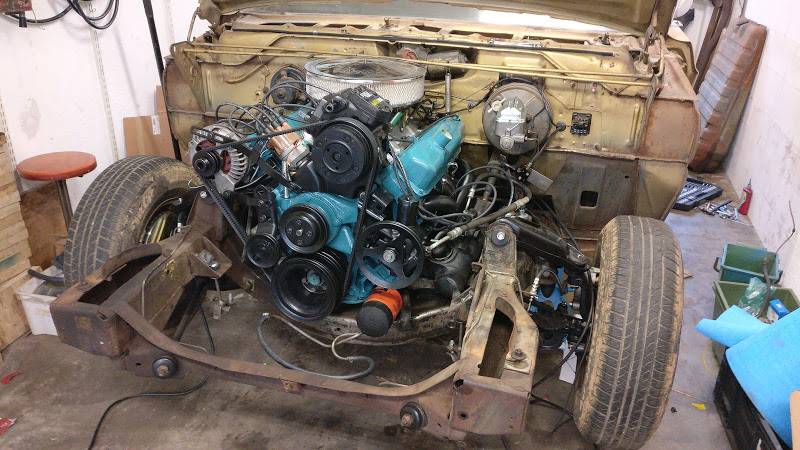

Engine almost ready to mount in the car!
Exciting!
JTKyRXI4p__13M818Lsp892isdryvRhCfrw7t_smt6O9tdWXCbbQm0TZb_8LYjH2d0EwVC68=w800-h450-no?authuser=0.jpg

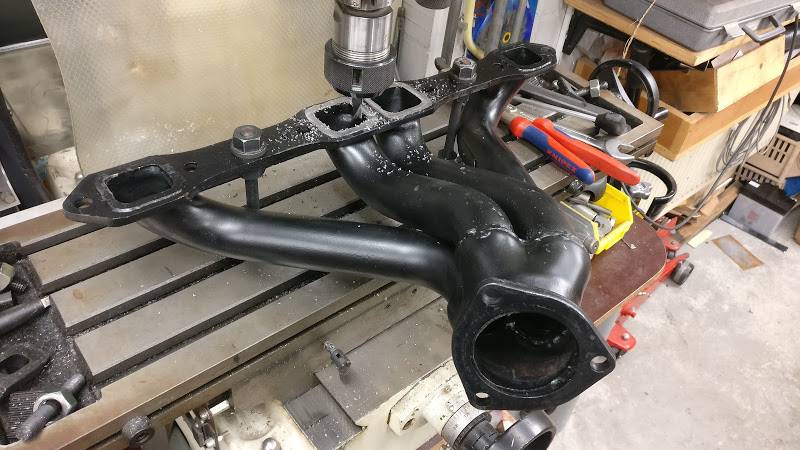

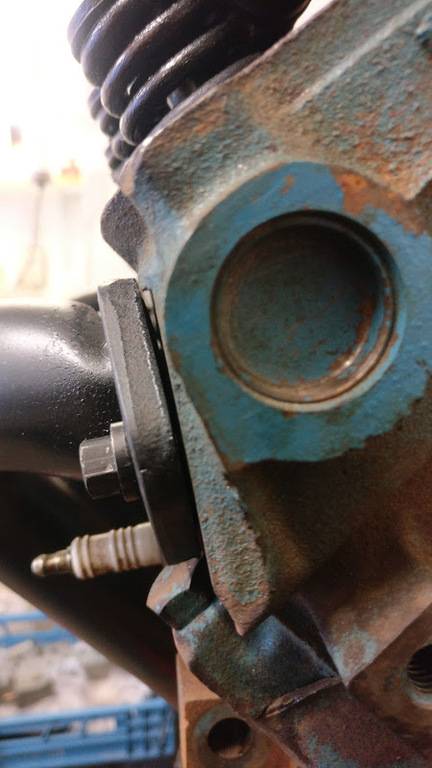

The top of the header flanges were hitting the heads.
So I've made a small recess on the top of the header flanges.
The flange surfaces were also far from flat. So I've address that too for better sealing!
xOzmX1q5G3WxxBzFWV2CSVtyfrXLJUbfHNxs18ax3WS4VbPPQZDfGyAzZ7mrOKC5BROJ3FmX=w800-h450-no?authuser=0.jpg


I've fitted the headers with a '92 Dodge Dakota mini starter, fit really well.

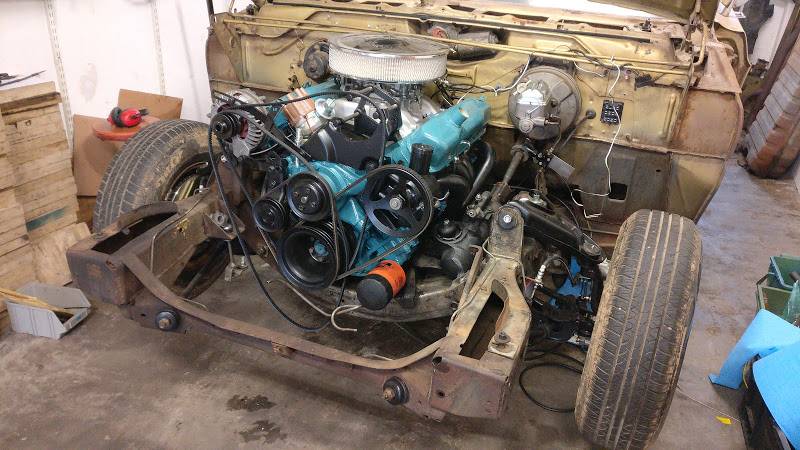

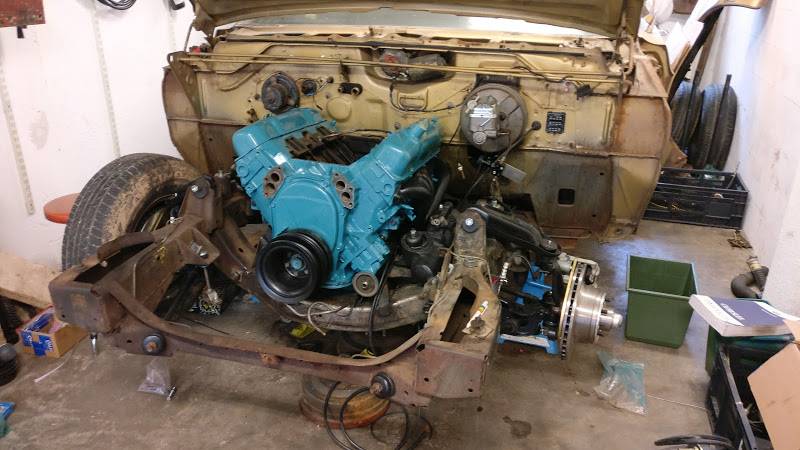

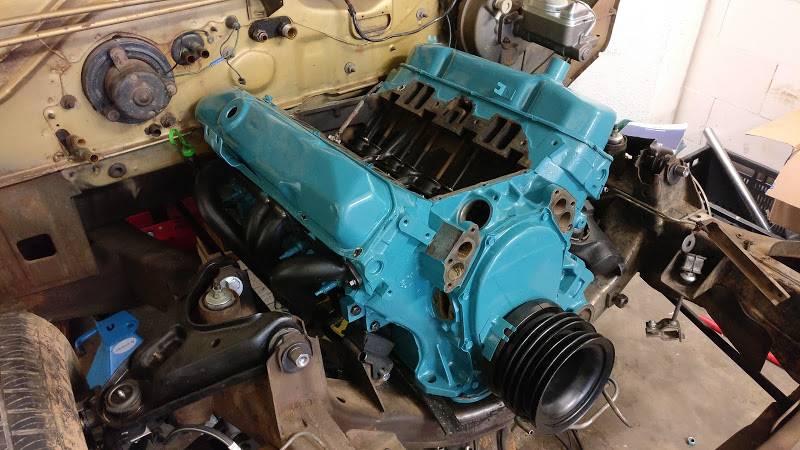

Engine and trans are finally in the car!
dqPySwavXtpcNrhFFV1_XI5hZLAVKGA7MIAzUpy9YEeQX8aM2wRJVUv3UYJrIx6MVgGq0DaE=w800-h450-no?authuser=0.jpg

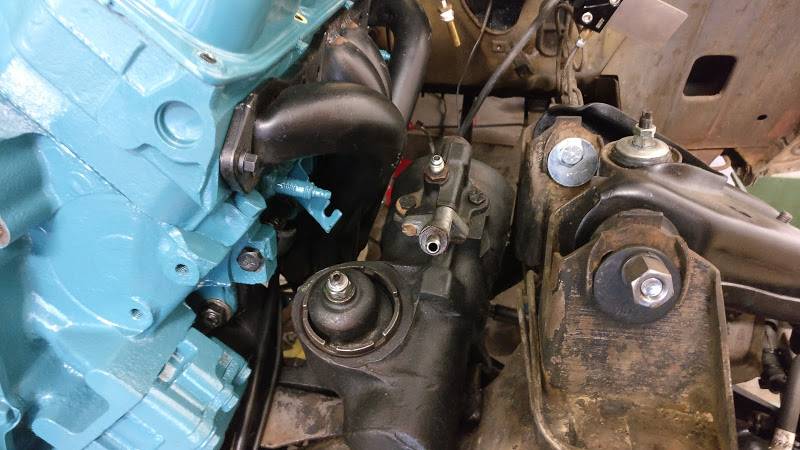

More than enough clearance from headers to power steering gear. (more clearance than the picure might indicate)
2jV_pLExfX0fET-PAqXGlpTa3DDcuS0Ni-3J44b_sOOMMohp6O-qCIPwIihQbcegOM4aOcpM=w800-h450-no?authuser=0.jpg


m_FI_ppZjfj66FH5kP6G24FcQDFaE43CUFtEEZVC6UWx62Dmkd95blm4XOrK5ORLNhAhj8RA=w800-h450-no?authuser=0.jpg


Other side cleared by a mile!
jhYt7PodG-dGd7cYnpm5VN3UuB843I7MYcVsqSURi9k9ZNSkZud0QWgELoVowevTfJkc2m3p=w800-h450-no?authuser=0.jpg

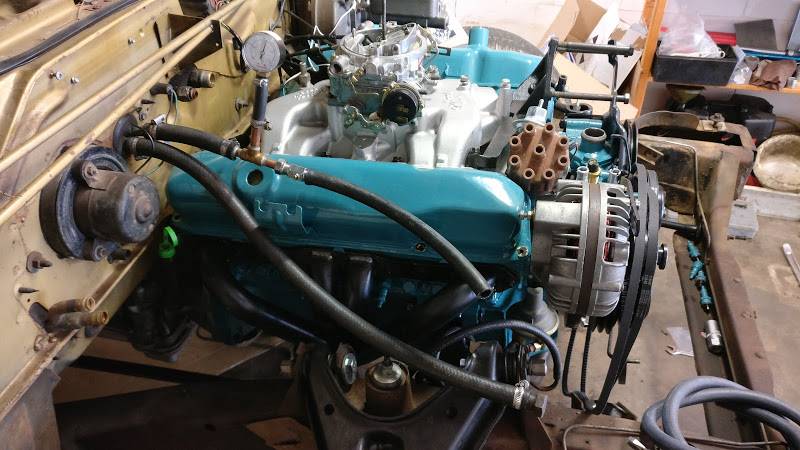

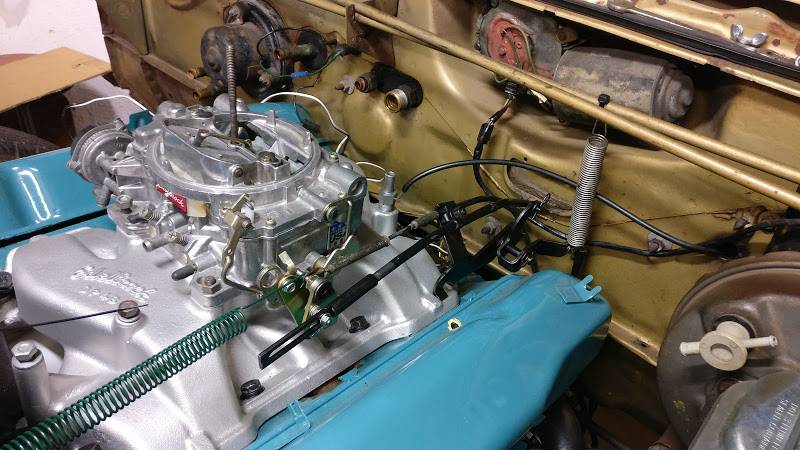

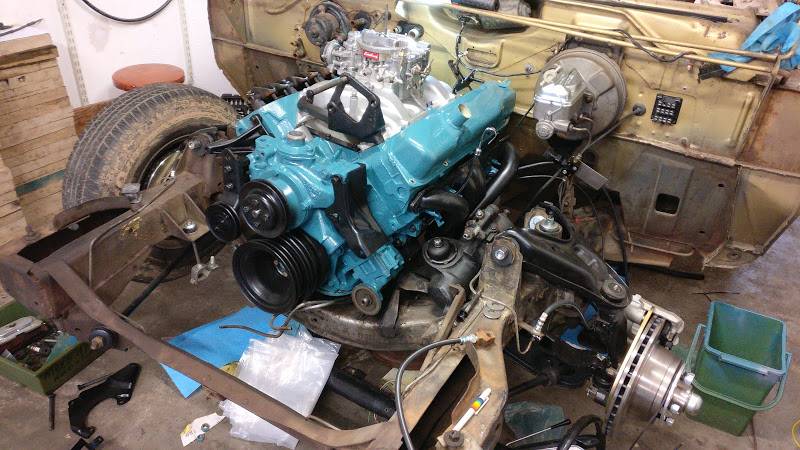

Mounted the valley gasket, DP4B intake with brackets and edelbrock 1406 carb.
b4tbsVsrKHDEi1JI7E6yk1eHhqiemGJo0n8Oj9Lqefn8XG-hTltt5L6Jp7ZTOkK3HNg5YBWk=w800-h450-no?authuser=0.jpg

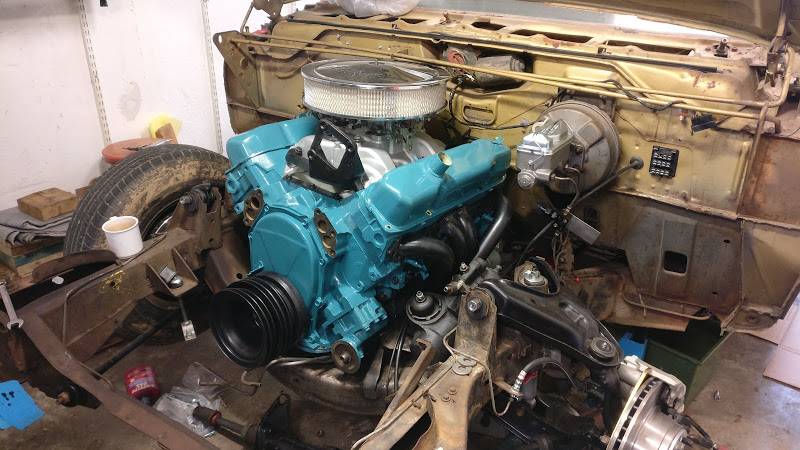

Dressed up the engine with air cleaner and valve covers.
Looks great already!
fXuhWoS7Wqt7mYgnafVnza2er8v9mWtzrPbuFnADb-H0tIWGeCbhUgG-CflVHDnfd2zLqSFf=w800-h450-no?authuser=0.jpg


thethee

Active Member
Joined
Feb 13, 2021
Messages
479
Reaction score
411
Location
Netherlands
Bit late to this thread so you might have mentioned it already, but what kind of headers are those?


Metalmarty

Member
Joined
Feb 24, 2020
Messages
147
Reaction score
138
Location
The Netherlands
Today's update!

I'm a bit behind on my updates, so here is another portion.
The 742 diff carrier with 3.23 gears are installed.

6Ewwu3rTuNAH0Le7XEyfzD70vN7F7v1p1hvPJ2QUA5wZw64JKg7pbCPoU6liGYQasFLIiZQy=w800-h450-no?authuser=0.jpg

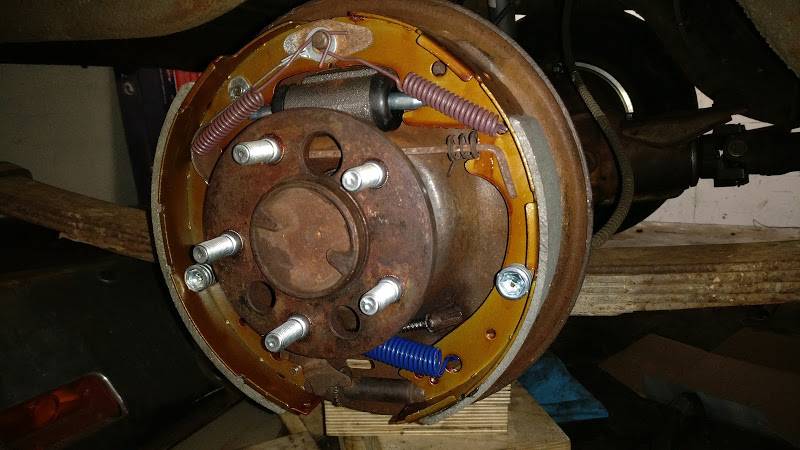

Cleaned the biggest part of the rust of the backing plates and installing new gaskets from doctordiff.
Also installed new axle seals.
cQ_gjsLdI0kZB98K6WGawDc_KEOitYeYIgtBQy5_fvJrkDUC_IzpOuZ81fMcOxmuXRA-o-ac=w800-h450-no?authuser=0.jpg


Installed the axles with new bearings.
I've also set the axles to the correct sideplay according to the FSM.
Looks really hard in the FSM, is actually really simple!
YthgkKxGRog5GlNVN4nQc3ILi4hXCauiK9jN5XF9u7-Q4RxiCBRjhSYOz4VUeEbo8D6N5SXj=w450-h800-no?authuser=0.jpg


Also installed new KYB shocks front and back!
EofLFU1LKXAqbxMK5YpUCZoJIhfejjduR8jPx2JI-jlPQHU4vKwK8kMydUkq8pcg82b1BYoS=w800-h450-no?authuser=0.jpg

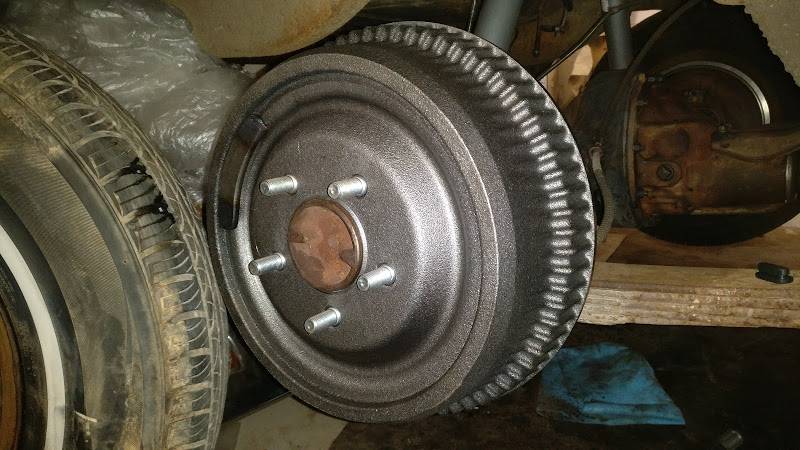

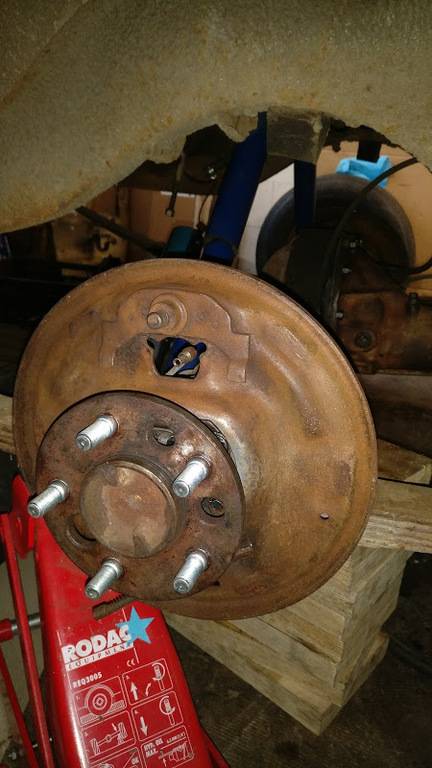

All new brake parts.
Stock 11"x2.5" drums on the back, and 11.75" discs on the front.

UOqCUopwu_FiglV803iRRzW2N8d2o4WWgP_nngG-HWZZwzkQpEjs1Rz1DSvYlOOD-x-6y5sL=w800-h450-no?authuser=0.jpg


Ixf4WuBf7hdmkSvm05TzTMBlsgrB4Nwzqg3puItfiedM5_9Oo93DqoWoYjEq0rEZ9XHmlnfq=w800-h450-no?authuser=0.jpg


Yl6-k5bnxI8p7_g9vrdb0iPcog1MxGCJJ27BrjlWLndQ-UlV5uxcxkWL1NxoA6DlLXbz8JqK=w800-h450-no?authuser=0.jpg


Metalmarty

Member
Joined
Feb 24, 2020
Messages
147
Reaction score
138
Location
The Netherlands
Update!

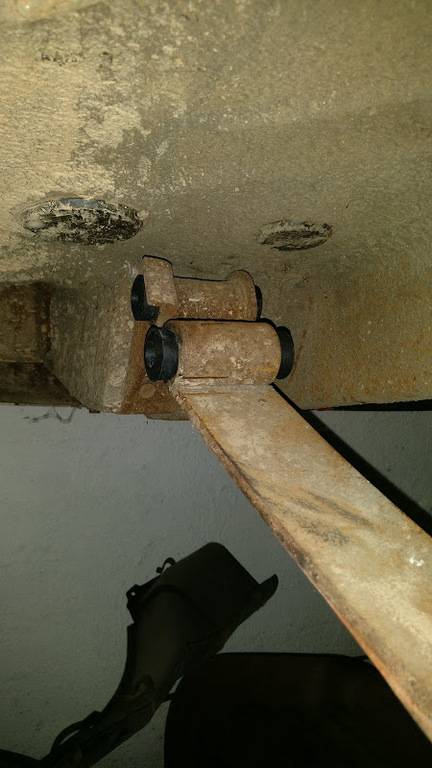

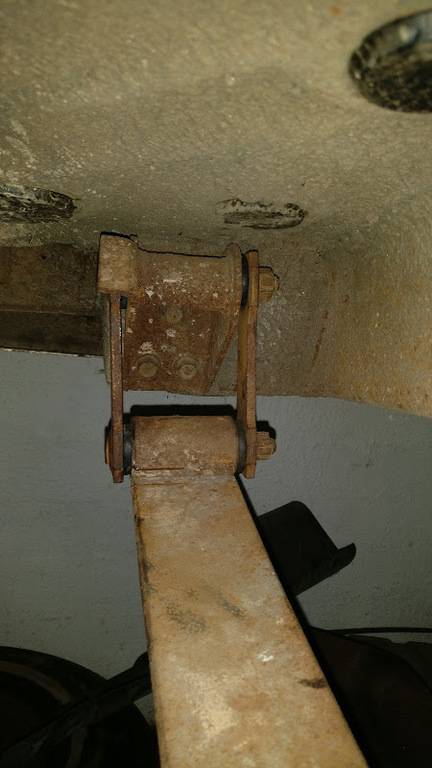

Removed the shackles and replaced the bushing
w3NPbJZnEG_sASyokbXz3AbnJ48tycFofX6CNUeBsy-4eQnY9_WdvDhbRPllZZXx9f8vtcDu=w450-h800-no?authuser=0.jpg


kNhxw9k9K3RvtuyzU5zmzCfDcs1lKed2hgBxAhAVSRJqwB0HgpSEqDqNd96MoTpPuKSsEqs3=w450-h800-no?authuser=0.jpg


7EICod8ppJe-dMRT3xRtm-2oc4ELtF3TWPibsFZDtVE19RJXrH_ORQ5XSPGYIXkBKNOYIl2u=w450-h800-no?authuser=0.jpg

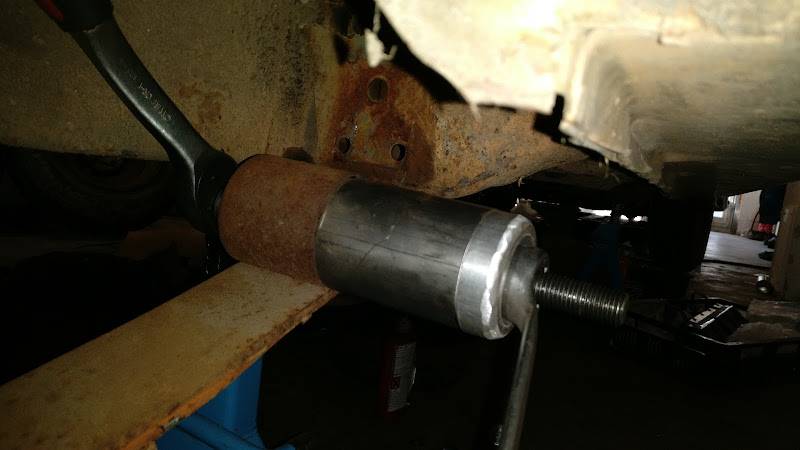

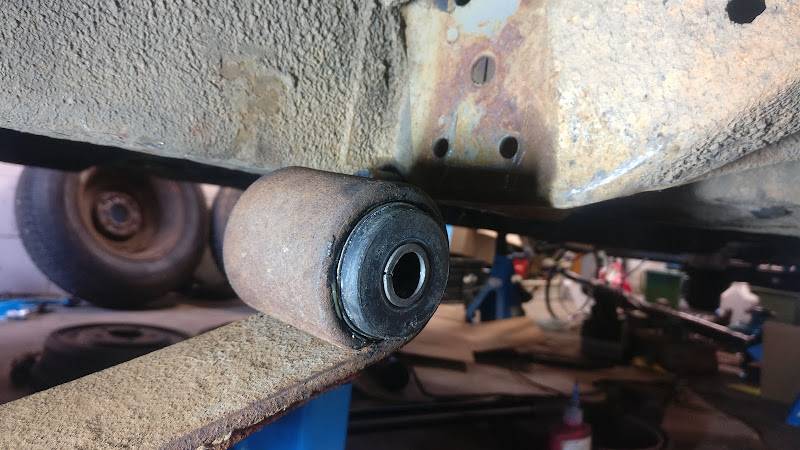

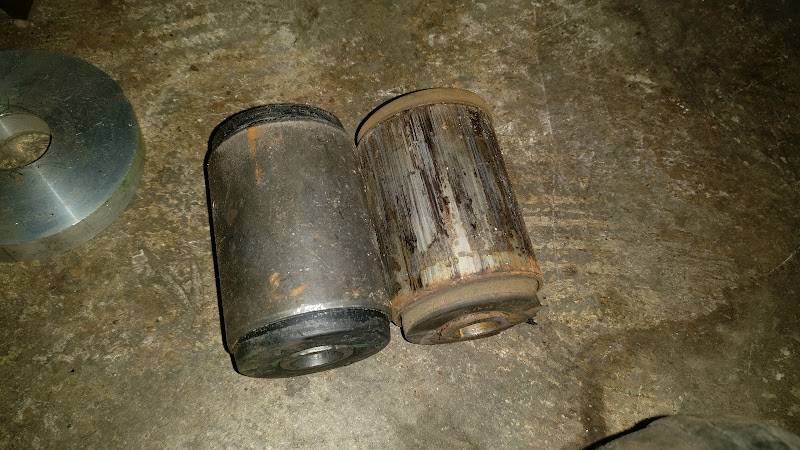

Also replaced the front leaf spring bushings...
HE37McJ-eBsy0aQUd89Cmka3m_YRRjJmIpX_-9DGUYCYMf00J3QnZq7Eu5mWNumX6GjmBqLY=w800-h450-no?authuser=0.jpg


Hh1KAN_kr-YUKGj16akcjaKHPaiPiJ82VYI6AlOEtXyd2ZWOJtSh4ch2oRN1_JLb8My-SiJa=w800-h450-no?authuser=0.jpg


C3R3iem3QOJipL9UFkmy_9s2J4wMQNI08HBIEktLpR1AMc07tn7zb2YGa1-vAgutrFrtD7yt=w800-h450-no?authuser=0.jpg

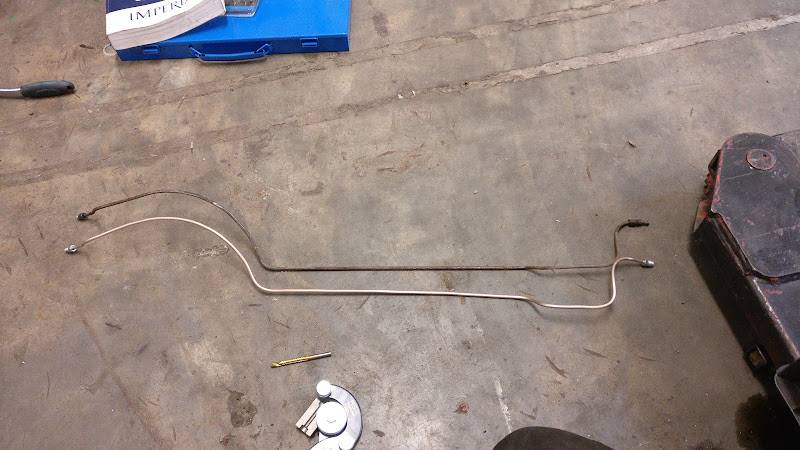

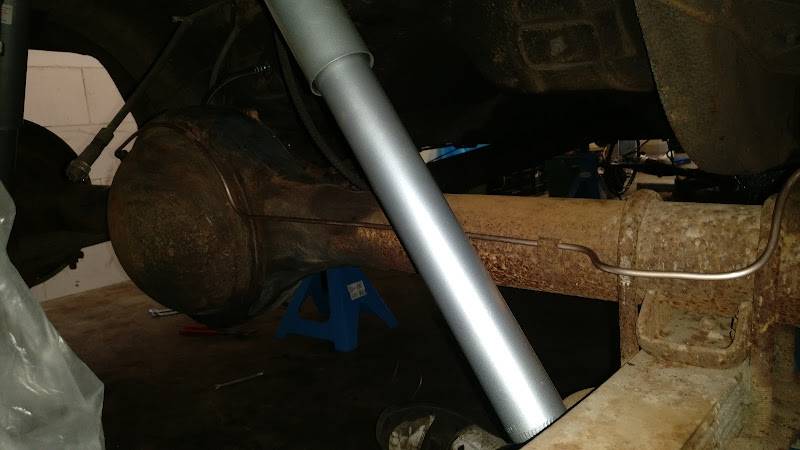

Replaced the two cunifer brake hardlines on the rear axle since they had pitting.
Ha_1xGMR90zATFm2vDv8qhiJhllfeb90BPlpa2Ze0DvhWIJ8-ZiIkaS5AQLTBgDbaamy7uyY=w800-h450-no?authuser=0.jpg


WLhXKOw6gK_2D36ByA3dvZ-V03pQGnBhMtnXSY_1dLNp-0lZFJoupOpqDMnOi1hmy_4eT7Av=w800-h450-no?authuser=0.jpg

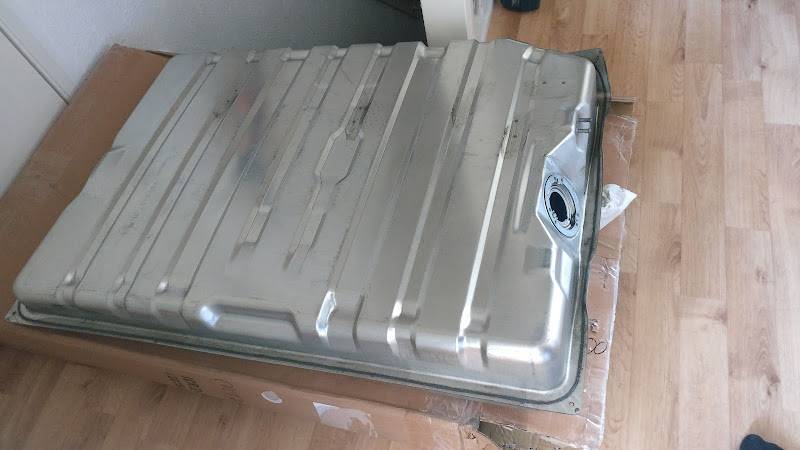

Got a new two vent gastank!
pJ9luUG3XKADQTKIJD6Mm7hsHOr6H9X2mANr5mBWGtn66RuINopkBFhSt6s5HK2HMAxumP2i=w800-h450-no?authuser=0.jpg

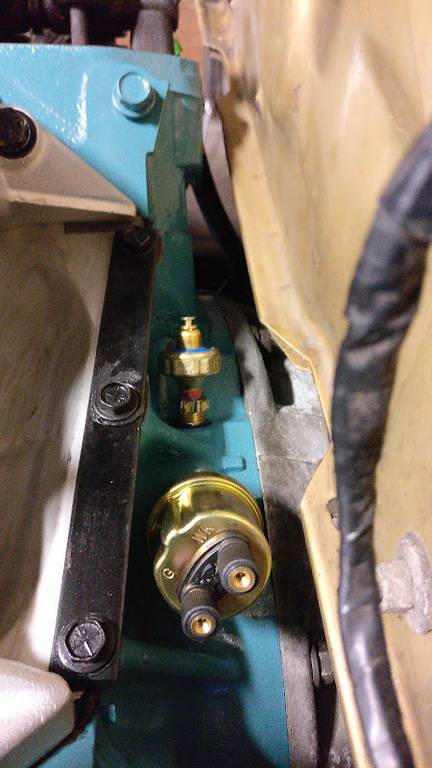

Installed the oil pressure switch and sensor
kLnjHnBdaP5qdChekaVJ8MVKr-V8WUiHkZ6Bjyxtqwq3-cMWrCDGrgjHlZYUQuNxxmxxKt4b=w450-h800-no?authuser=0.jpg


Metalmarty

Member
Joined
Feb 24, 2020
Messages
147
Reaction score
138
Location
The Netherlands
I'm behind on my updates.
Here goes one again.

Continued on the engine.
Installed waterpump and some brackets.
PudQP2-Q6JKzfxFNzxwwbc9ehBWJWBGodtR21-tEOH5JULbpUB8BFDEOHcFEK3DS6Y4222XQ=w800-h450-no?authuser=0.jpg


Qr8S5ty97dYld7bSE9SLinDQce9b1L6kJKX_HEoiqiiwqEWBpdi1yH8ONcHN2CJdN7EUg24A=w800-h450-no?authuser=0.jpg

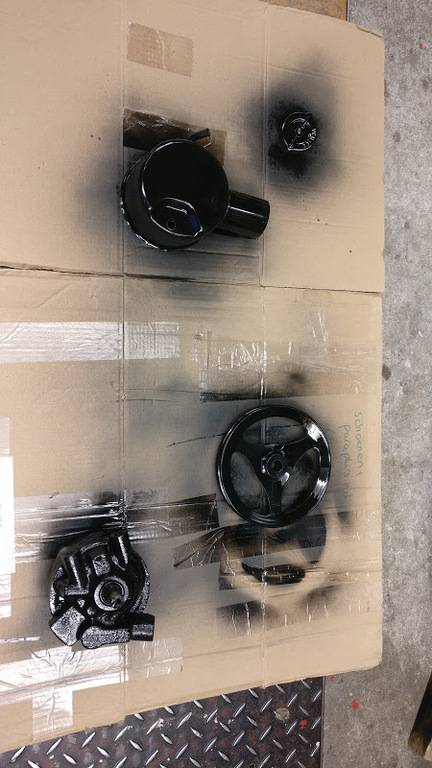

I hadn't painted the power steering pump yet. So now was the time.
dW04GlOnNtz47lOxOpfmF0AF5dNAvUwonIXg7Ktc2PBbCQPijloPcLxfbnoFhrg2Kv5O41G8=w450-h800-no?authuser=0.jpg


Installed the alternator, a Rick Ehrenberg ignition kit and power steering pump.
I ended up swapping the Power steering pump bracket since my original bracket was bend.
qSYSCyI8VytIUb3P-6p5Xh1TCvXtPFslKTsU754dxmuAnZ7ccJ-j2d7BaJjyzwbqVEq6M4NI=w800-h450-no?authuser=0.jpg



I read that a lot of people had issues with leaking heater cores.
I've pressure tested mine before connecting it, making sure my carpet doesn't smell like coolant when I fill the system.
0uL8vqi7jo8-F5aP9-deWeWTAMdcoZAuRFokuvpjhXSi1SZe_1jIaQPpN7oqd8TrCT9xOQ-8=w800-h450-no?authuser=0.jpg


It held 0.9 bar (13PSI) for half an hour no problem. So I declared it perfect.
X4GpG_CEbNd8iVpOFJvKGAzhTRLag0uSLzWGnp6hjzMKdJm30QgOvYF8tpEWJ1qg5D5mClCM=w800-h450-no?authuser=0.jpg


Installed the AC pump. (And the new PS bracket)
AC is not working at the moment, problem for next year, but this made it easier on the pulley arrangement :)
WxBD2qVYkD0Z_YL4vgIjhy869XQlz7p0p_M1rILjM0cZqCzrCZY7lT0Z4xHNzfWreulJOBPw=w800-h450-no?authuser=0.jpg


The PO installed an edelbrock 1406 but the linkage was off.
I've been fiddling with the linkage and got it just perfect.
MgTHf3uccRIhuuoIfQAlyhd9Vj-t_SiRqsfphzV34khCA5706fke5jrG1c3dfVWtihKFqJbo=w800-h450-no?authuser=0.jpg

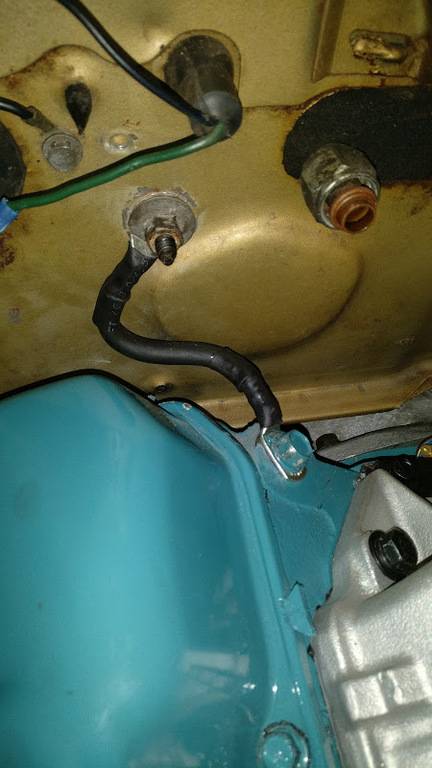

Also, you can never have too many ground connections!
But make sure you have bare metal to work with.
UmqApH-KbZO46ZEZbR3wfPBPs0YZ69r4B0UC1kinMDEQ6-VF_m4XeOxSD8odfNgFTLOAQAJs=w450-h800-no?authuser=0.jpg


Metalmarty

Member
Joined
Feb 24, 2020
Messages
147
Reaction score
138
Location
The Netherlands
Crazy Times.
I've been away from the forum for a bit since a lot of things changed.
We've found another house and it took a lot of work to get everything sorted and moved.
I did manage to get some work done on the chrysler in the meantime.
The goal was to have the Chrysler running, driving and inspected (to get a tag) before I moved. That meant a lot of work in a short time. I don't have many detailed pictures of the past couple of months unfortunately. But I have some to share.

For the people who haven't seen it.
The first start of my engine:



My A/C fan switch wasn't working properly.
I've opened it and discovered it was melted somewhere in the past.
I've cleaned it and patched it up. It's working perfectly at the moment.
Future step it to wire a relay between this switch and the fan to prevent high current in the switch.
8axV-7YoR9CbrEWcKzbZxgp9KfGY5JDBIg05orglBUy6nnoF50IvGEme6rfzx2jPydPRTmh=w1716-h965-no?authuser=0.jpg


yx2jqb95Z3X22QVpI0ZHPyv1QCliTWwC2Ri7KDqgfm9ApG5ckTR2k4Es-MagyqzsylirJ0F=w1716-h965-no?authuser=0.jpg


Got the dash back together. Everything is working, including the AM/FM radio! (Except for the ammeter, for obvious reasons)
yZ4t1A-kE4lDj8pxXFGWMjRYdVD9DEnNQTLJUEPj9ttql_ONGAUU6jIWFeRwS3KOCyrtqwO=w1716-h965-no?authuser=0.jpg

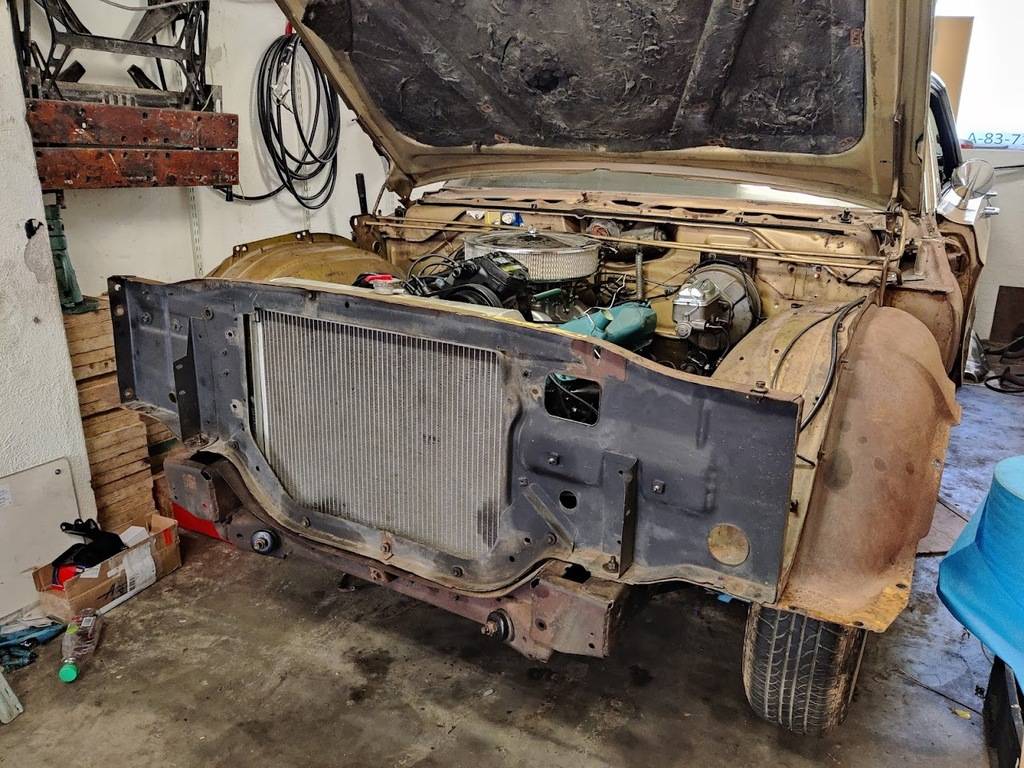

Inner guards, radiator support and radiator are reinstalled.
gPJq9bbMXkNghprkv-eT15UDP7rG_L6a4RHYInEt5qrl9aXc-l2ezChwAYzgyyJ-scAJVeo=w1287-h965-no?authuser=0.jpg

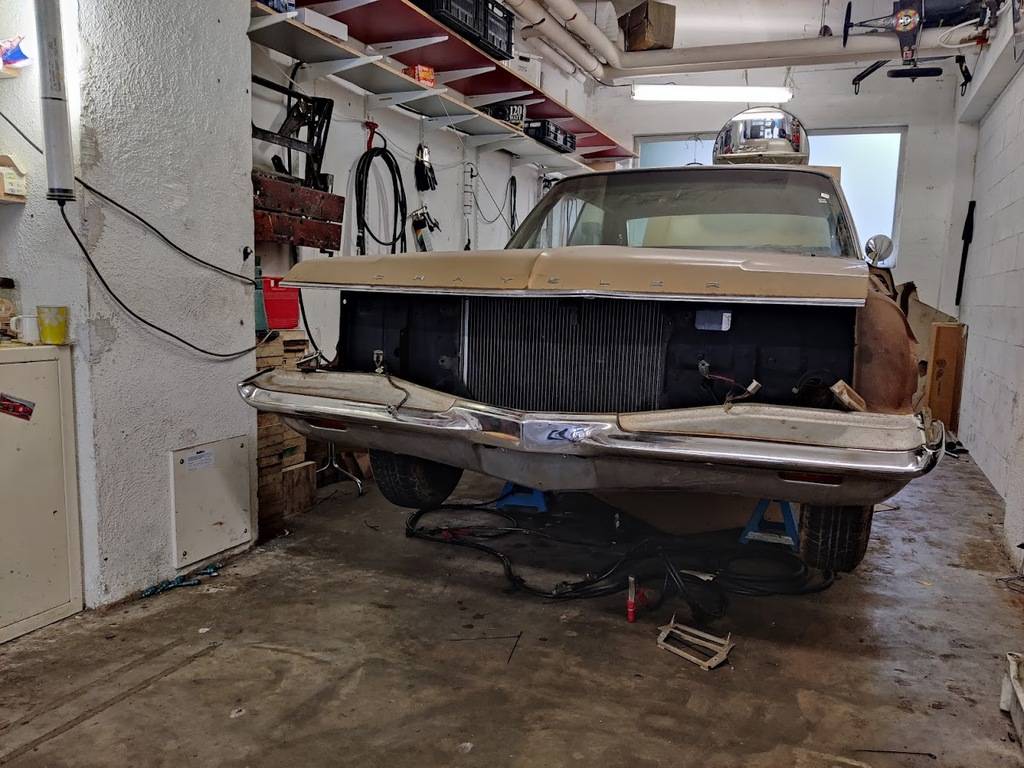

Installed the bumper
CkHsaDKWNZyxRF6fpNVzuaF_YH_qS7IcedV_ByO1Ke3UG8QwOELhS4WxMI0vLgVcC8lokT2=w1287-h965-no?authuser=0.jpg

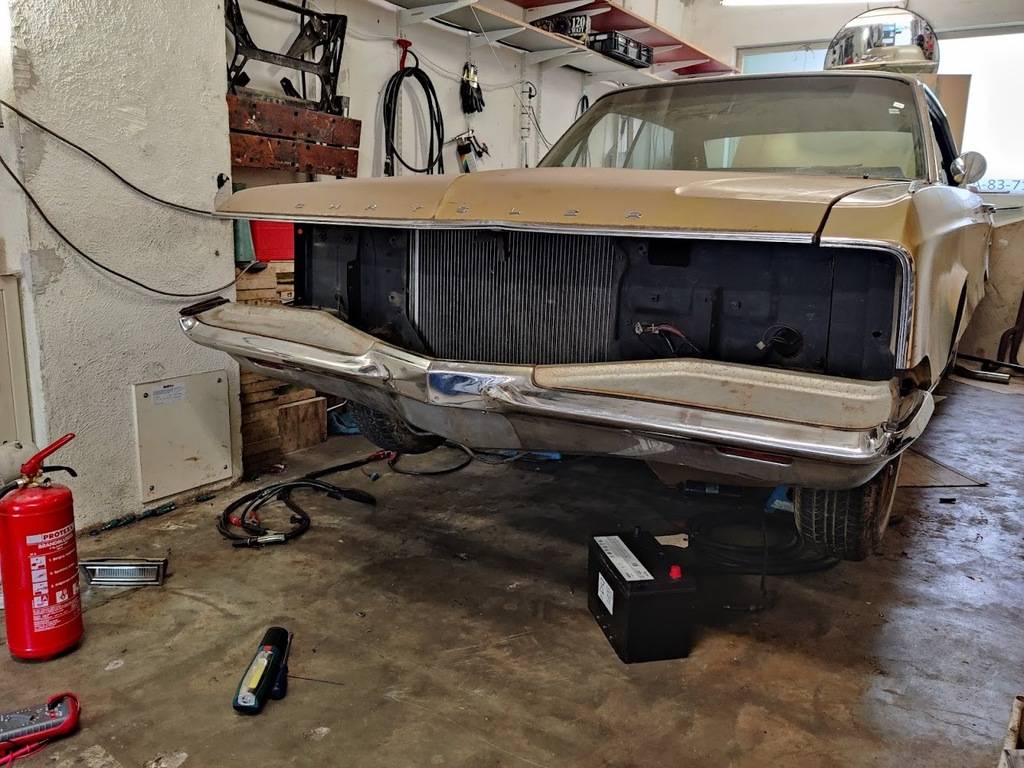

Installed the left wing.
rgVKv1M1PlgjHUO9EHnlpbOlb02meqMQKLXYqR_UQmKFsKANxvabp4pOYFkkeJAWFMXY5yo=w1287-h965-no?authuser=0.jpg


Installed the right wing, grill and lights.
ECMeScJHF13Qm0tVMcGSNi_rP2OXNJpG_RlqDfk5RKzNAFozIzFUB_nk2lB60xBRoTMSelE=w1287-h965-no?authuser=0.jpg


Looks a lot better with the front end back together.
2p6AR0sD98xsevh5R4IoKc6dCovCbgLjDBIcJlg24tmcGffUPMYtseYyzE95FRbW9uhiA9h=w1287-h965-no?authuser=0.jpg


Exhaust building time!
I'm using hedman shorty headers 78070 and I'm using dual 2.5" pipes with magnaflow mufflers on each side.
D1zPm6mR5Il_d8lOXrVOKwVPjvHqCSxIhIwGg8_h96jw_jdUI5OkspsobHggMYiGeMAK1rI=w1287-h965-no?authuser=0.jpg


Unix

Member
Joined
Sep 18, 2018
Messages
179
Reaction score
620
Location
Poland
Crazy Times.
I've been away from the forum for a bit since a lot of things changed.
We've found another house and it took a lot of work to get everything sorted and moved.
I did manage to get some work done on the chrysler in the meantime.
The goal was to have the Chrysler running, driving and inspected (to get a tag) before I moved. That meant a lot of work in a short time. I don't have many detailed pictures of the past couple of months unfortunately. But I have some to share.

For the people who haven't seen it.
The first start of my engine:



My A/C fan switch wasn't working properly.
I've opened it and discovered it was melted somewhere in the past.
I've cleaned it and patched it up. It's working perfectly at the moment.
Future step it to wire a relay between this switch and the fan to prevent high current in the switch.


i had exactly the same thing happen to the fan switch in my Newport, it melted from the inside. Had a new one installed, with a relay between the switch and fan. Now it's safe.

Top
