Would any of you guys who own a 67 or 68 be so kind as to snap a pic of where/how the Auto pilot linkage mounts? Mine is laying in the trunk and for the life of me, I can't find any diagrams in the FSM.

Thanks guys!



[Welder guy]

Service Manuals – MyMopar Download the manual for your car it should help



[MetalManiacAZ]

Service Manuals – MyMopar Download the manual for your car it should help

That's the first thing I ordered as soon as the the ink on the title was dry. Section 1-2 describes the adjustment procedure but doesn't show or describe where the linkage connects from the unit. Unfortunately for me, they go into GREAT detail about the Chrysler speed servo system with the blinker stalk type.



[Welder guy]

Well I’m very familiar with the 1969 style but not with the Earlier auto pilot I’m sure somebody else will chime in with a more knowledge.



[Welder guy]

1967 Imperial Auto Pilot help



[Welder guy]

Search auto pilot here on the forum You will get all sorts of information on it



[detmatt]

I can take a detailed pic or 2 tomorrow.



[detmatt]



[MetalManiacAZ]

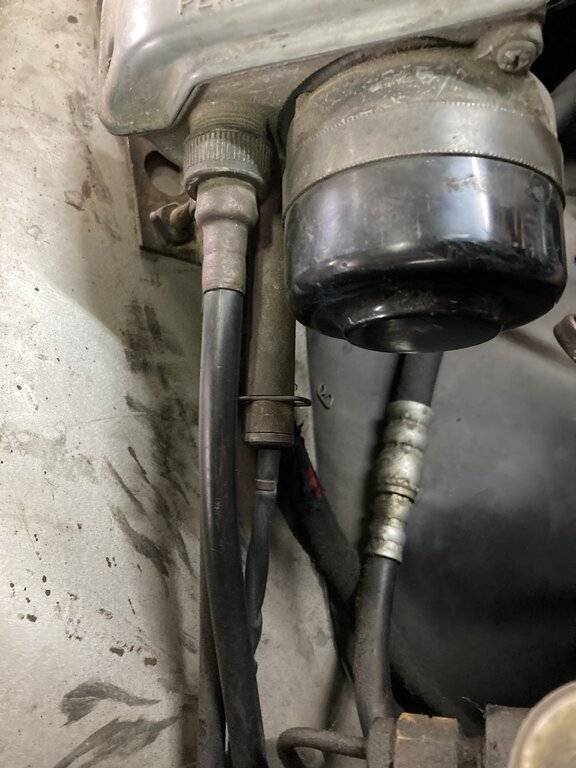

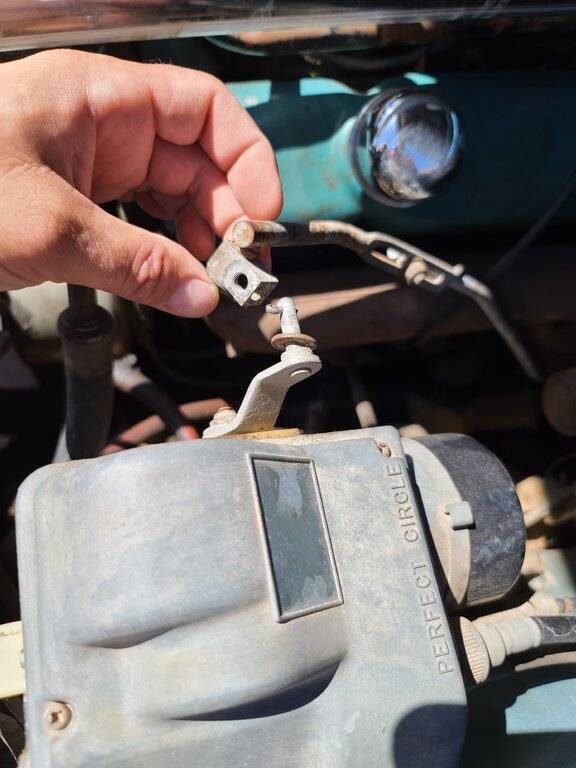

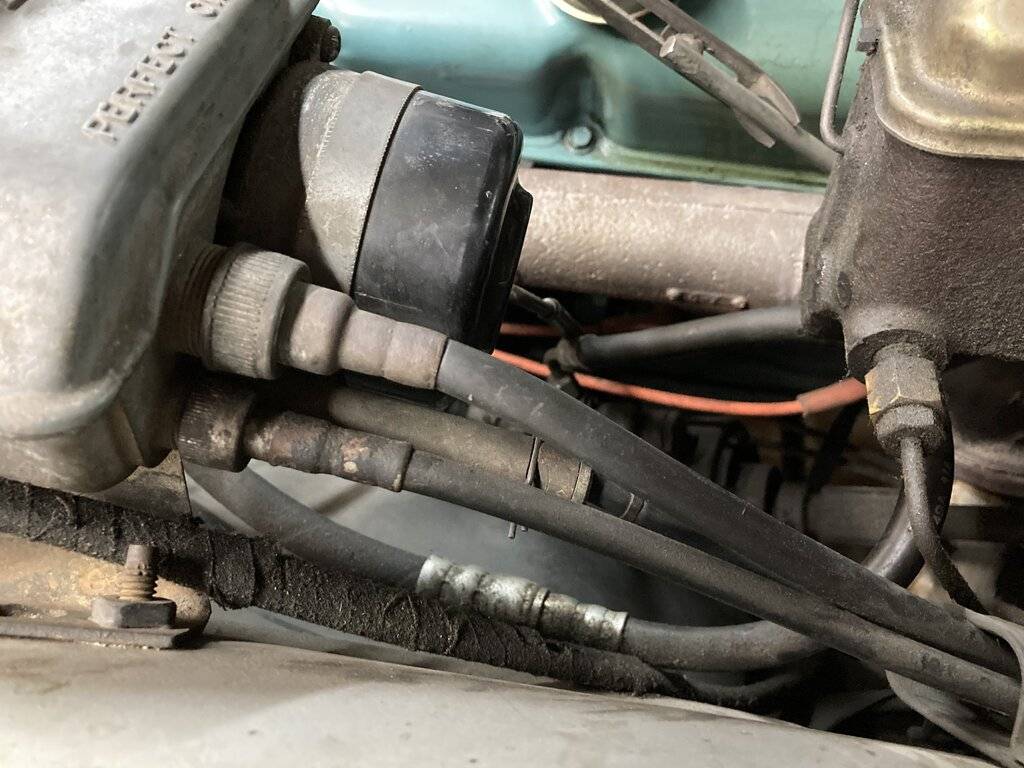

Got it. The piece to the unit is a little different on 68 but that's easy. Where does it connect at the bottom (pic 2)? Tranny kickdown linkage?



[detmatt]

Got it. The piece to the unit is a little different on 68 but that's easy. Where does it connect at the bottom (pic 2)? Tranny kickdown linkage?

View attachment 461128

View attachment 461129

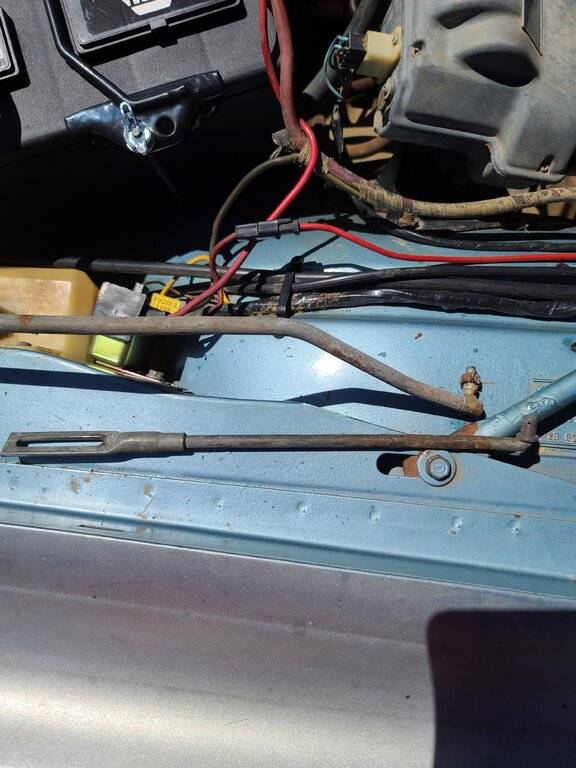

The other end attaches to the gas pedal to an assembly through the firewall.



[MetalManiacAZ]

The other end attaches to the gas pedal to an assembly through the firewall.

Right on, Matt! Thank you!
