Auto-Pilot Wiring Diagram. 1964 880?

Dan Scully

Well-Known Member
Joined
Jan 10, 2014
Messages
820
Reaction score
1,181
Location
Apple Valley Ca
Cannot seem to find it anywhere, shop manual etc. I would assume the wiring in the 60, s is all the same? Would anyone have one or point me in the right direction. Thanks

The wiring for AutoPilot systems was pretty much the same from 1958 through to 1967 when they started phasing in the vacuum controlled units.
The diagrams were typically part of the engine compartment and instrument panel wiring diagrams.

Diagram 1 - Autopilot bottom right


Diagram 2 - Autopilot in Instrument panel - top right



The wiring for AutoPilot systems was pretty much the same from 1958 through to 1967 when they started phasing in the vacuum controlled units.
The diagrams were typically part of the engine compartment and instrument panel wiring diagrams.

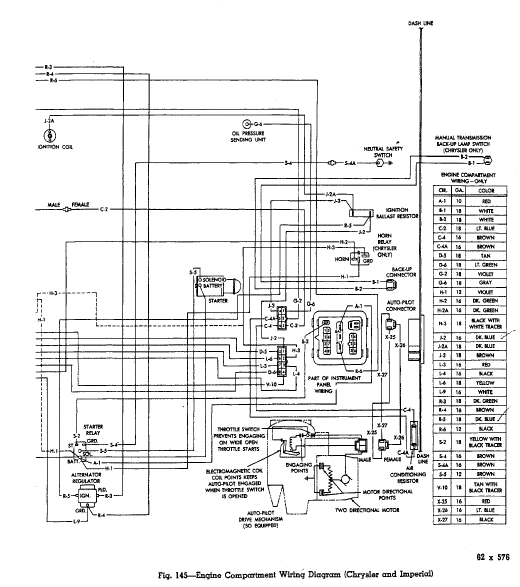

Diagram 1 - Autopilot bottom right
View attachment 661020

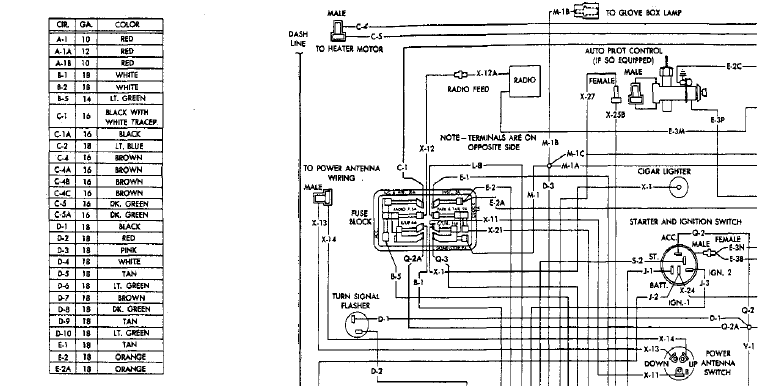

Diagram 2 - Autopilot in Instrument panel - top right


View attachment 661021
I have a shop manual guess I just need better glasses.
