Rear Shocks and Springs: One Day?

Brakes, Suspension, Rims and Tires

  1. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    11,349
    Likes Received:
    4596
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    Torch is better.

    I might add easier also.

    Last edited: Sep 23, 2017
    • Like Like x 1
    • Agree Agree x 1
  2. 65sporty

    65sporty Old Man with a Hat

    Messages:
    6,754
    Likes Received:
    1578
    Joined:
    Aug 24, 2013
    Location:
    Marlette,Mi
    If your going to use new u-bolts cut the old ones off

    • Agree Agree x 3
  3. bajajoaquin

    bajajoaquin Senior Member

    Messages:
    1,385
    Likes Received:
    391
    Joined:
    Dec 6, 2013
    Location:
    San Diego
    If I can measure the springs, I'm just gonna buy everything at once and do it. New u bolts, bushings, everything. Most of the concern for removing parts without breakage was if I had to remove a spring to measure it.

  4. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    11,914
    Likes Received:
    6941
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Does the 67 Imperial have the offset shackles?

  5. bajajoaquin

    bajajoaquin Senior Member

    Messages:
    1,385
    Likes Received:
    391
    Joined:
    Dec 6, 2013
    Location:
    San Diego
    Haven't the foggiest idea. What are offset shackles?

  6. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    11,914
    Likes Received:
    6941
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    They look like this. One side is bent.




    Compared to these.



    I have no idea what the Imperial uses and was just curious more than anything.... and was going to warn you not to break the old ones if they were offset. The offset shackle can't be bought new, although many places list an incorrect replacement.

    • Like Like x 2
  7. bajajoaquin

    bajajoaquin Senior Member

    Messages:
    1,385
    Likes Received:
    391
    Joined:
    Dec 6, 2013
    Location:
    San Diego
    Got it. I'll look when I get the car back from paint.

  8. wyrmrider

    wyrmrider New Member

    Messages:
    14
    Likes Received:
    1
    Joined:
    Aug 26, 2014
    Location:
    los angeles
    does your car uses spring on steel or the rubber isolators- if so if you remove the isolators it changes the height.
    I usually use station wagon spring cores or add a leaf and add a cordoba rear sway
    I like the plastic full length in between the leaf liners as your zinc's are most likely worn out
    you can spray the mating surfaces with moly or graphite
    after you get it together and retorque a couple of times spray the threads with spray moly
    if you are in salt area coat threads with never sieze - you can wipe off the excess after you are torqued down
    remember there are several combinations of bushings and different front and rear lengths
    If you add a leaf you can squeeze back together again with a vice or big C clamp
    oh yes- there are different curves also

    • Like Like x 1
  9. polara71

    polara71 Old Man with a Hat

    Messages:
    39,716
    Likes Received:
    7432
    Joined:
    Nov 16, 2010
    Location:
    New Jersey
    Springs & Things was looking into making those offset shackles. Ive never heard back from Laura. Someone has to reach out

    • Thanks! Thanks! x 1
  10. cantflip

    cantflip Old Jagoff with a Hat FCBO Gold Member

    Messages:
    10,407
    Likes Received:
    5538
    Joined:
    Nov 1, 2015
    Location:
    Orlando, FL
    I honestly never bought a set myself... I kept buying cars that had them installed already.:rolleyes:

    I did decide that I was genius in all things suspension and handling once I discovered how much better a good set of springs and factory shackles made the cars ride and handle.:realcrazy:

    I suppose I will admit to keep the takeoff's around for many years afterwards... not so genius after all...:BangHead:

  11. polara71

    polara71 Old Man with a Hat

    Messages:
    39,716
    Likes Received:
    7432
    Joined:
    Nov 16, 2010
    Location:
    New Jersey
    In our youth we use air shocks to raise the ass for the hot rod look, on the cheap.
    Leaf springs weren't readily available like they are today . I also think the price of a pair of leaf springs is relatively cheap and not all that difficult to install as I may have thought when I was a kid.

    • Like Like x 1
    • Agree Agree x 1
  12. cantflip

    cantflip Old Jagoff with a Hat FCBO Gold Member

    Messages:
    10,407
    Likes Received:
    5538
    Joined:
    Nov 1, 2015
    Location:
    Orlando, FL
    I was cheap then too, it was always springs if I did the work... but used ones off a different car. I had a 73 lemans 4 door I had put new/used heavy duty coils in... rears out of an impala... she sat so high I blew out the shocks by beating the top of the travel to death. :realcrazy:

    Ruined the car's potential, but I got it with springs all around that were so sagged we had to lift the wheel wells to get the lift arms under her. Front springs were incorrect application and sat a little high too, but she had rake like the 70's...

    With the tapered decklid, the side mirrors were a must when backing up.

    • Like Like x 1
    • Agree Agree x 1
  13. C Body Bob

    C Body Bob Old Man with a Hat

    Messages:
    12,668
    Likes Received:
    12584
    Joined:
    Apr 8, 2012
    Location:
    Youngsville, NC
    Long shackles where very popular too for the leaf spring cars. When I ran the parts store back in the 80's I stocked the long shackles, air shocks , the rubber spacers & twist in wedges for the coil spring vehicles. The sales of all of these products eroded as the decade went on & air shock sales largely went to pick up truck owners who where carrying loads. Yea we had the load springs too but they liked the air shocks so they could easily let the air back out when not needed.

    • Like Like x 2
  14. traintech55

    traintech55 Senior Member FCBO Gold Member

    Messages:
    3,368
    Likes Received:
    1591
    Joined:
    Jul 23, 2015
    Location:
    Hammond, IN.
    The nice thing about leaf springs is they can be rebuilt, or rearched. Anyone who owned an F/M/J/ body car knows how they loved to break at the front mount.

    • Like Like x 1
    • Agree Agree x 1
  15. detmatt

    detmatt Old Man with a Hat FCBO Gold Member

    Messages:
    23,534
    Likes Received:
    9581
    Joined:
    Nov 14, 2010
    No offset on those shackles for '67.

    IMG_20170924_145646355.jpg IMG_20170924_145718722.jpg IMG_20170924_145628024.jpg

    • Like Like x 2
  16. commando1

    commando1 Mr. Normal FCBO Gold Member

    Messages:
    32,602
    Likes Received:
    17805
    Joined:
    Mar 10, 2011
    Location:
    FUHOA Reservation, Sebring, Florida
    I think offset shackles were Fuselage cars only.

    • Thanks! Thanks! x 1
  17. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    11,914
    Likes Received:
    6941
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    I think so too, but I am trying not to assume anything.

    • Agree Agree x 2
  18. 69_topless

    69_topless Member

    Messages:
    52
    Likes Received:
    66
    Joined:
    Feb 4, 2016
    Location:
    Czech Republic, Europe
    I confirm my fuselage 69 Polara convertible made in 12/68 have no offset shackles. Perhaps it changed to offset shackles in 1970 model year, with switch to the wider rear end.

    Anyway, I will continue with this thread on the same topic, since there is already many valuable details. I consider replacement of my leaf springs for new one from ESPO and want to make sure to get all the parts needed on the first order.

    For this reason, I would like to ask you for your opinion for shape of my leaf springs? They are kind of flat without any arch any more and car sits quite low, sometimes do hear to bounce the dual exhaust against the body on bumps. I have used to have high jacker suspension struts, but was not happy with the quality as they blew out twice. KYB to the rear then, but seems to have a hard time when loaded.

    Therefore I consider to replace my 4 and half, or 5? leaves springs to the new 7 leafs springs from ESPO, perhaps with 1 inch over the standard height. 7 leafs were for HD or 440cui, but I would expect them on 383 2bbl convertible too. Or do you think 5 leafs are original springs? I plan to carry 3 kids around with the trunk full of stuff, so perhaps its time for the upgrade to 7 leafs. I have never exchanged the bushings.

    Does anyone went with the 1 inch over the stock height or do you prefer the stock height? I was told by Laura from ESPO that tired leaf springs sits 2 inch below stock height. I have 275/60R15 tires in the back and currently the height from the ground up to the body wheel opening lip is around 23 and 3/4 inches. Driver side is maybe 3/4 inch higher then passenger side (torgue effect?). At the front, with 235/70R15 tires, the ride height is around 26 inches on both sides. I know I can lower it a bit with the torsion bars, but never bug me seriously to do so.

    But what was the factory ride height, does anyone have a idea? Or whats the level with the new 7 leafs springs?

    Next, ESPO asked me to check if I have a axle pads/isolators at the center sitting top and bottom of the springs where the ubolts are. Obviously, I do not have them. Its good to add them, will they fit existing hardware?

    How about U bolts, do I need longer one to accept 7 leafs springs? Axle pads add some height too, or are they very thin? Please help me out to sort all the parts I need. I need to transport all the goods via container to the Europe to avoid 800USD air cargo bill, so its better not to save few bugs to find out some parts are missing or existing hardware got damaged during the exchange. But shackles are hard to be damaged, right?

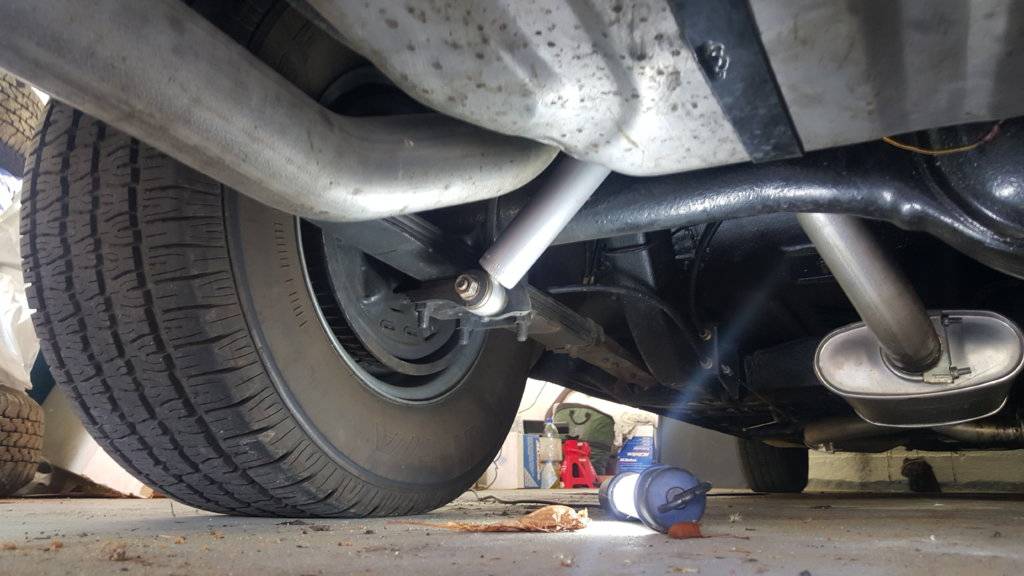

    From the pictures below, I have notice missing nut on the passenger side strut :-O (changed last year) and the brake hoses deserve better routing. Otherwise feel free to check the pictures and share your opinion. Thank you very much in advance for your help, thank you.





  19. 69_topless

    69_topless Member

    Messages:
    52
    Likes Received:
    66
    Joined:
    Feb 4, 2016
    Location:
    Czech Republic, Europe
    I add the pictures with the overall car view, with some more mopars to compare to.




    • Like Like x 2
  20. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    11,914
    Likes Received:
    6941
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    I looked up in my '69 parts book and I was surprised that the '69 used the same shackle as the B-bodies etc. That's good news... I would buy replacements as they are reasonably priced and given your are shipping everything, good insurance if you do break a shackle bolt.

    They look like they should be replaced.

    Sounds like a good idea to me. Have them press in new front eye bushings. Much easier for them to do.

    I just look at the bottom of the rocker and see if it is parallel with the ground. Some like the rear up a little. Your FSM will have how to measure the front end height, but I don't think they show a rear height.

    I think you are looking at the emergency brake cables and they appear to be routed correctly.
