Road Wheel Thread Repair with Heli-Coils

Brakes, Suspension, Rims and Tires

  1. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,070
    Likes Received:
    7099
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    A couple of my Road Wheel centers have stripped threads. You can usually give the center a turn and use some alternate holes, but some ham fisted tire changer in the car's past made sure that wasn't going to happen. So... A repair was needed.

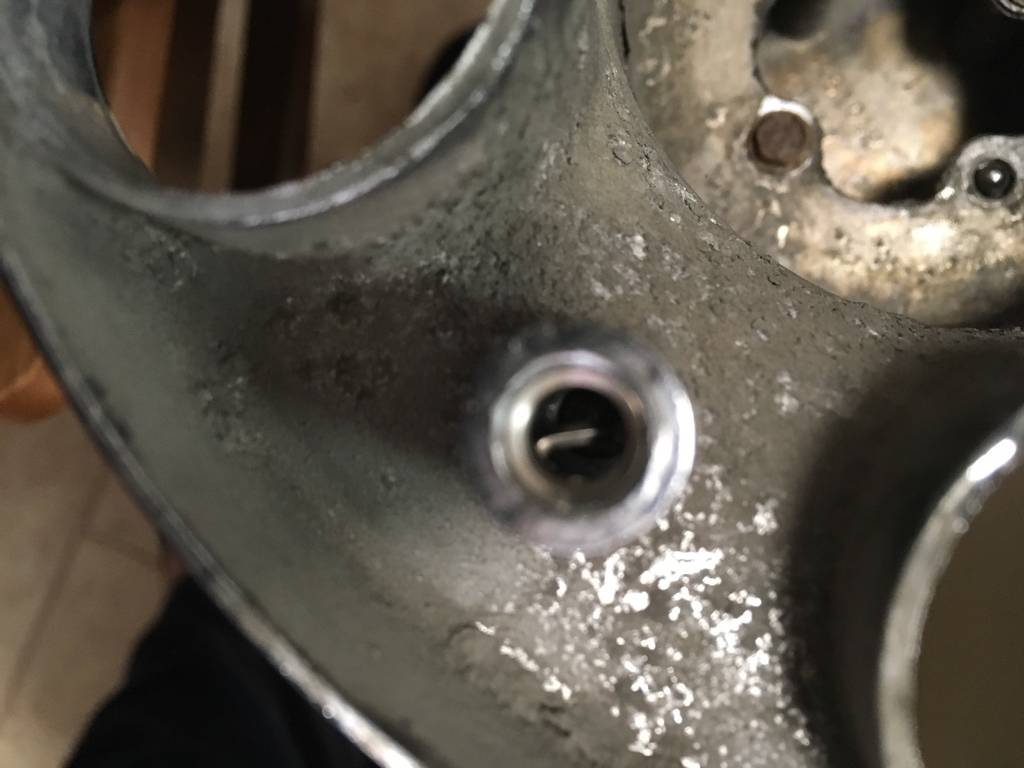

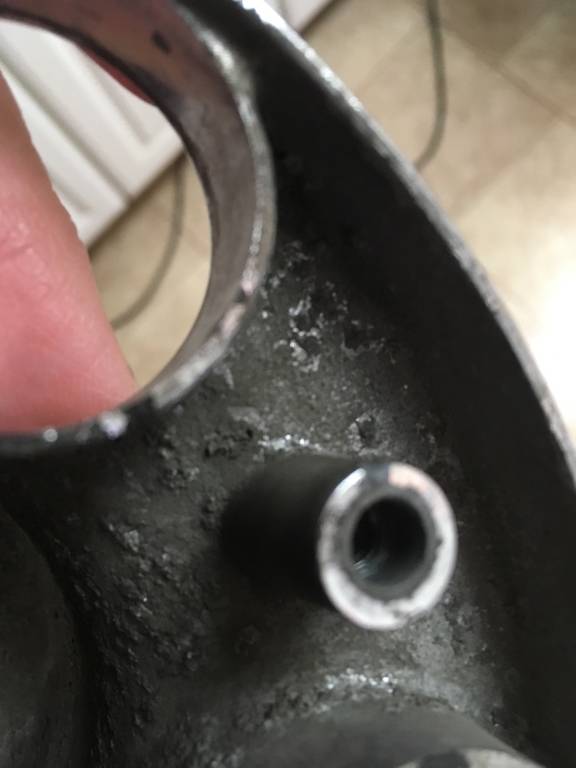

    Typical stripped hole.

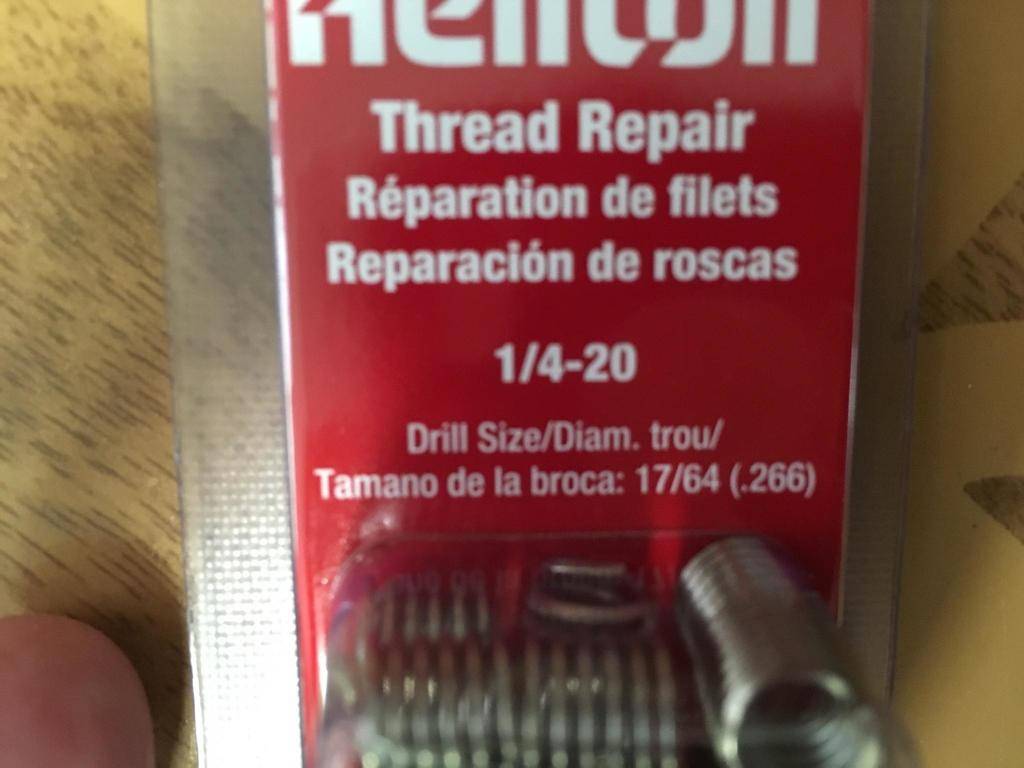

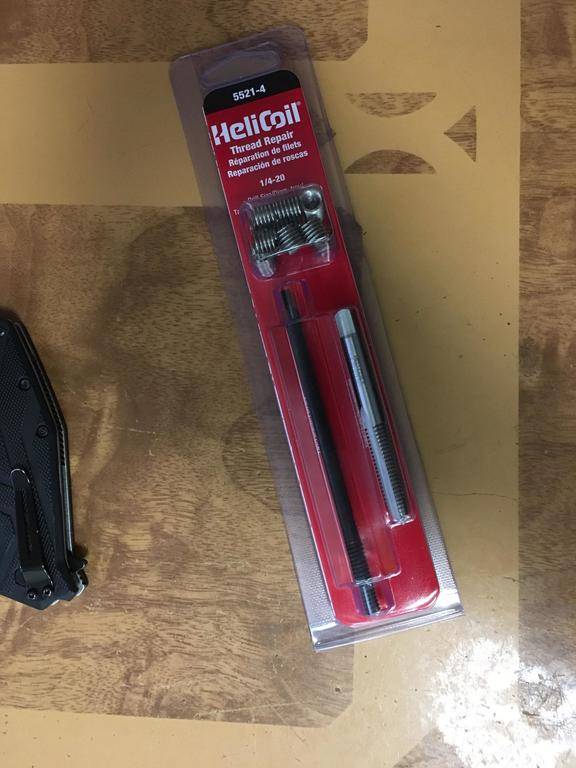

    First, you'll need a Heli-Coil kit. The threads are 1/4-20.
    https://smile.amazon.com/gp/product/B0002SRE8Q/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

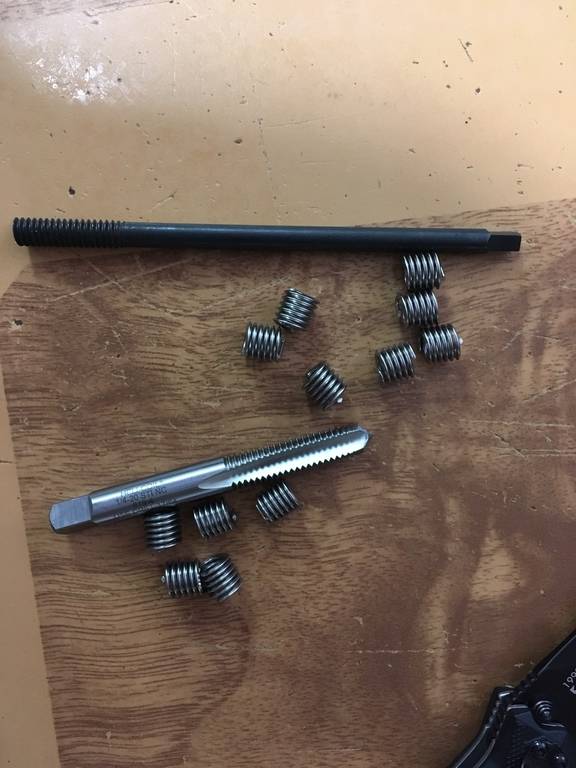

    Included in the kit is the special Heli-Coil tap, an inserting tool and 12 heli-coils.

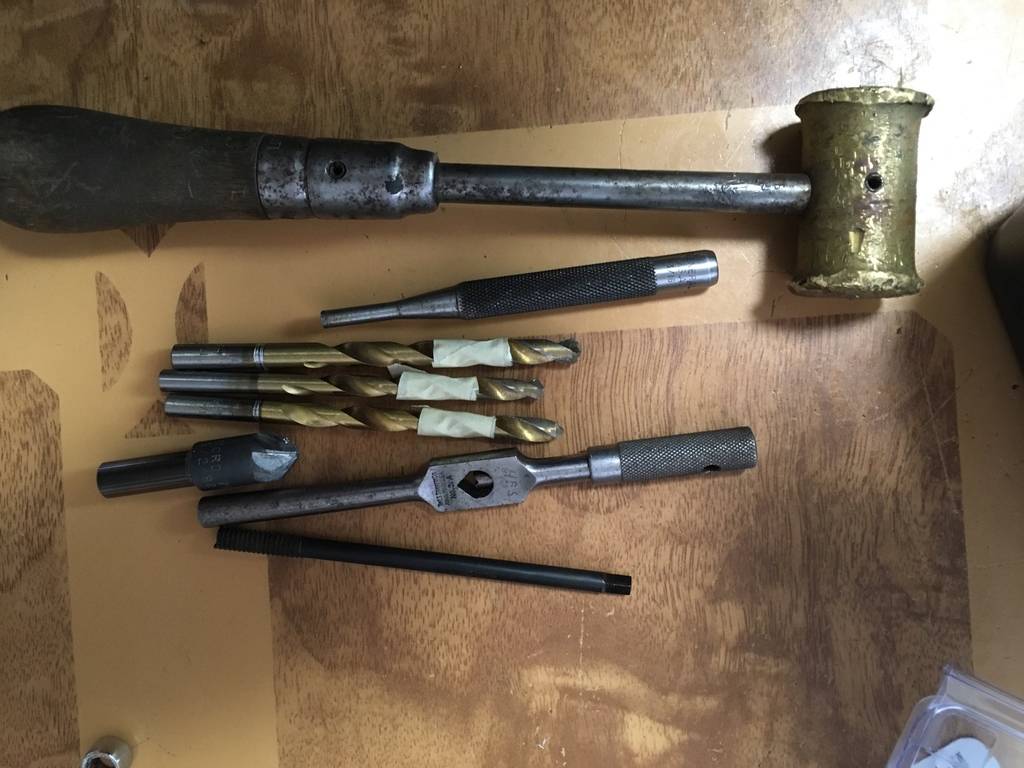

    You'll need some drills, tap wrench, small punch, small hammer, and an electric drill. A countersink bit, like shown is nice but not a must.

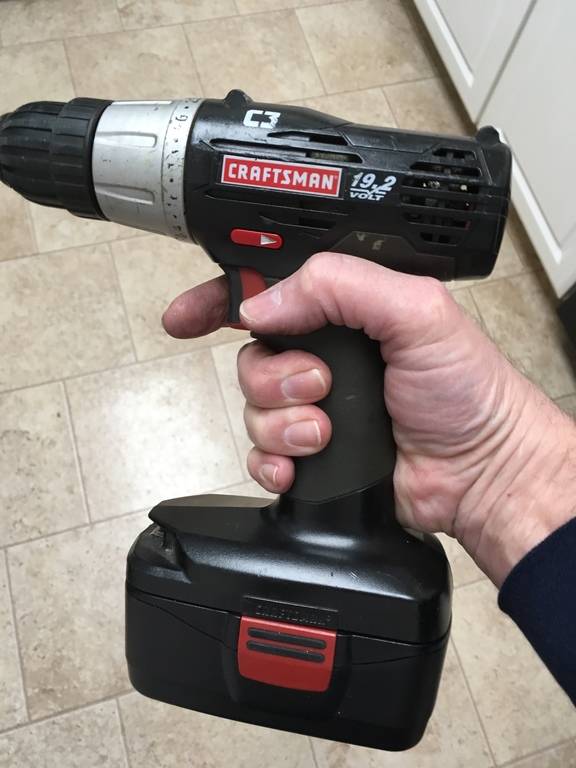

    I used my trusty Craftsman hand drill. Having a variable speed and easy reversibility is handy.


    The proper size tap drill is a 17/64".


    Because of the type of material, I first used a 15/64", then a 1/4" and then finished with the 17/64". The material that they cast the wheel centers from will tend to grab the drill so you want to "sneak up" on it to get the hole drilled to size.

    • Thanks! Thanks! x 5
    • Like Like x 3
  2. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,070
    Likes Received:
    7099
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    You'll want to mark the drill with some masking tape so you don't drill too deep.


    Finished drilled hole. A countersink bit was used to put a slight chamfer on the hole.

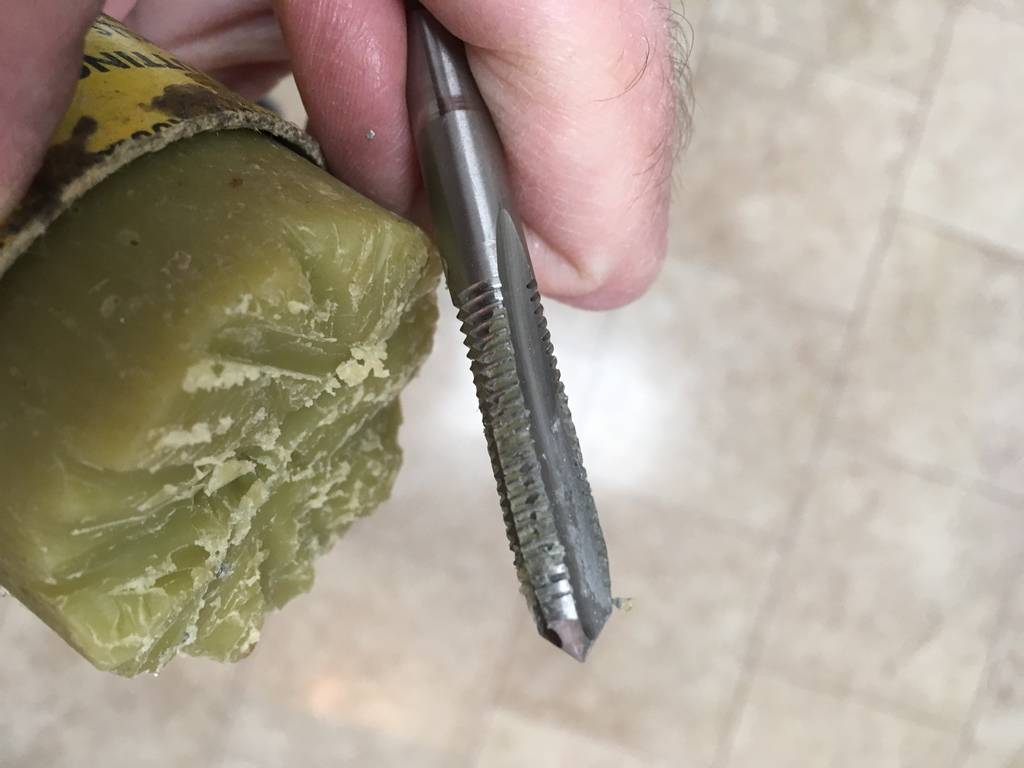

    Next comes tapping the hole. I use this Do-All brand wax meant for cutting tools, but you can use about anything as a cutting oil.

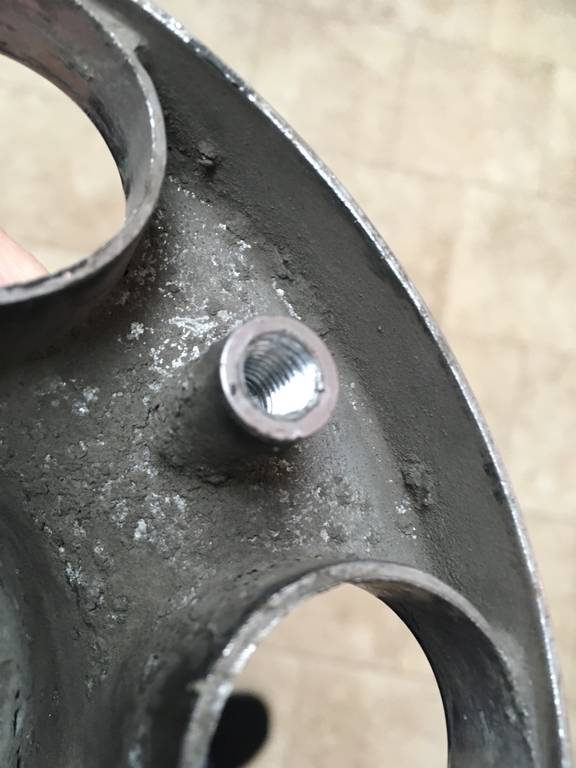

    Tapped hole. Keep the tap as straight as possible and twist it about a half turn in, then a half turn out to break the chip as you tap the hole. If you don't do that, you're taking the chance of ruining the threads or even breaking the tap.


    • Thanks! Thanks! x 7
    • Like Like x 1
  3. Big_John

    Big_John Illegitimi non carborundum FCBO Gold Member

    Messages:
    12,070
    Likes Received:
    7099
    Joined:
    May 21, 2013
    Location:
    Marcellus, NY
    Now to inserting the Heli-Coil.

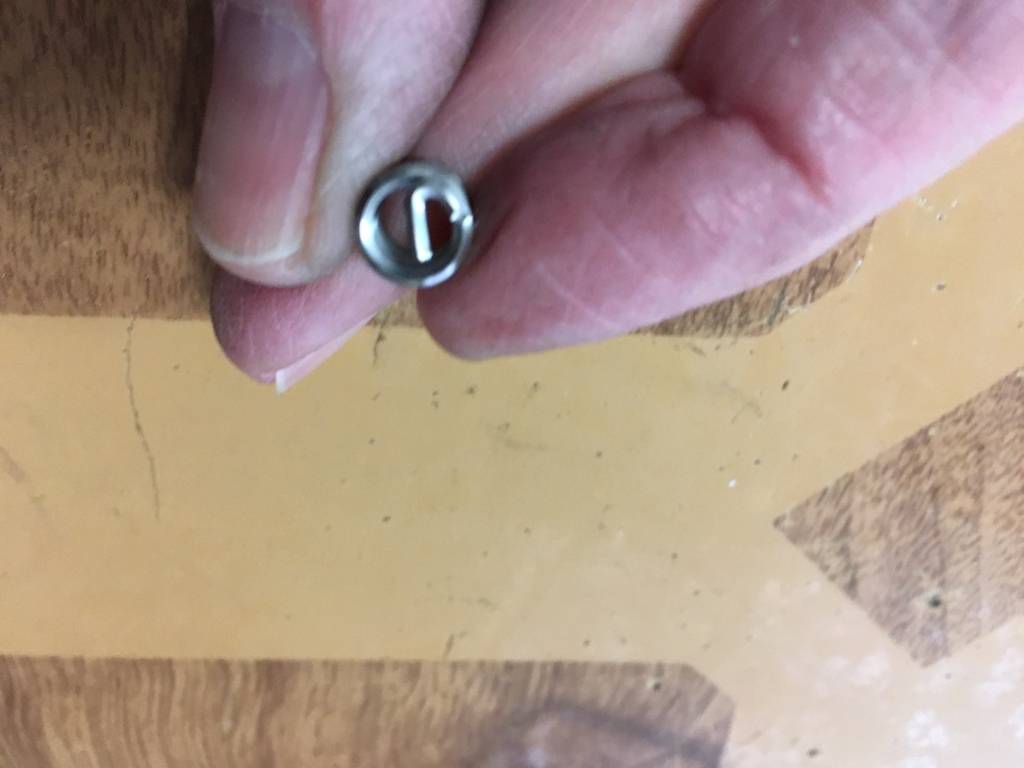

    The Heli-Coil has a little drive tang on one end.

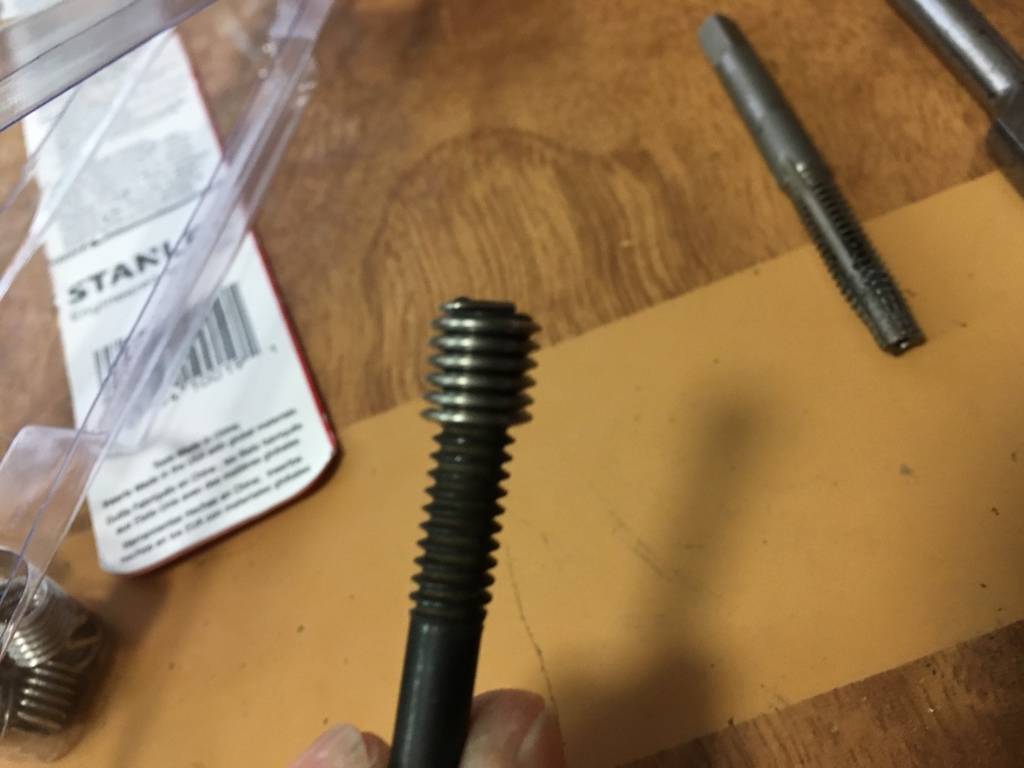

    The Heli-Coil is threaded on to the inserting tool until it engages the tang.

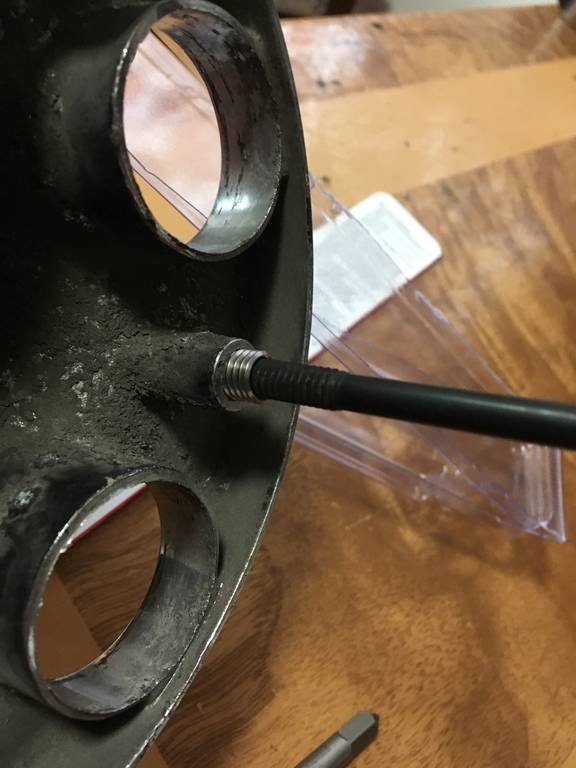

    Twisted into the tapped hole until it is just past flush and the insert tool is twisted back out.

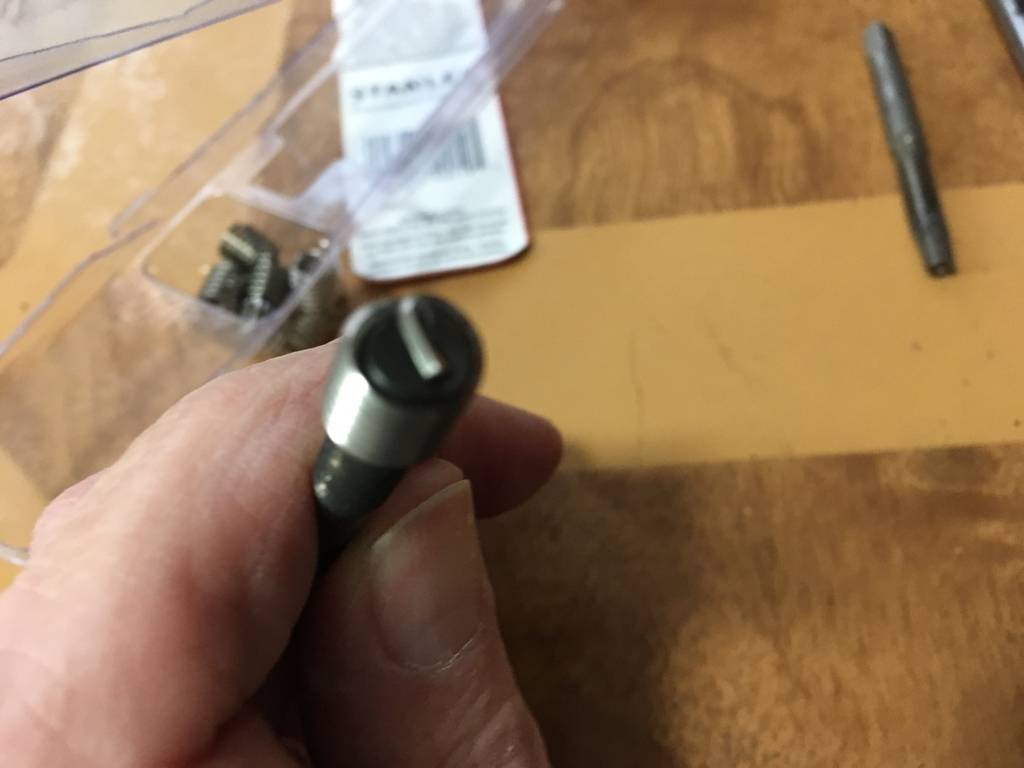

    When you look in the hole, you'll see the tab.

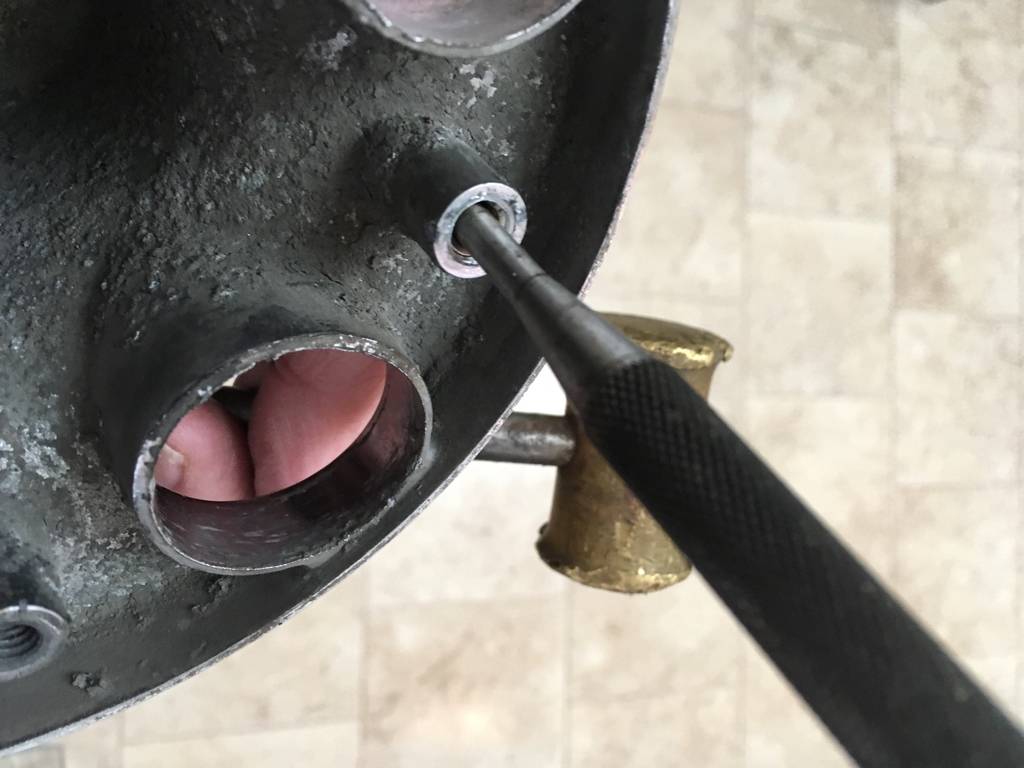

    Put the pin punch in the hole and with a quick, sharp rap with the hammer, break off the tab.

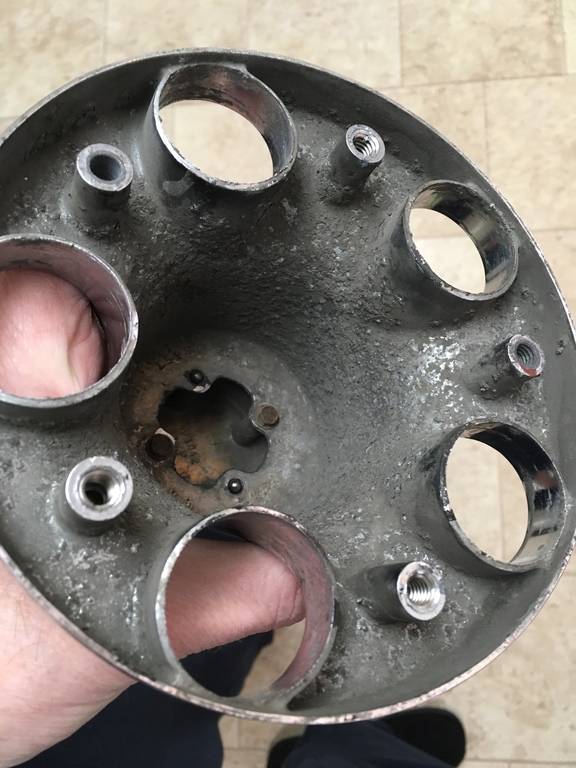

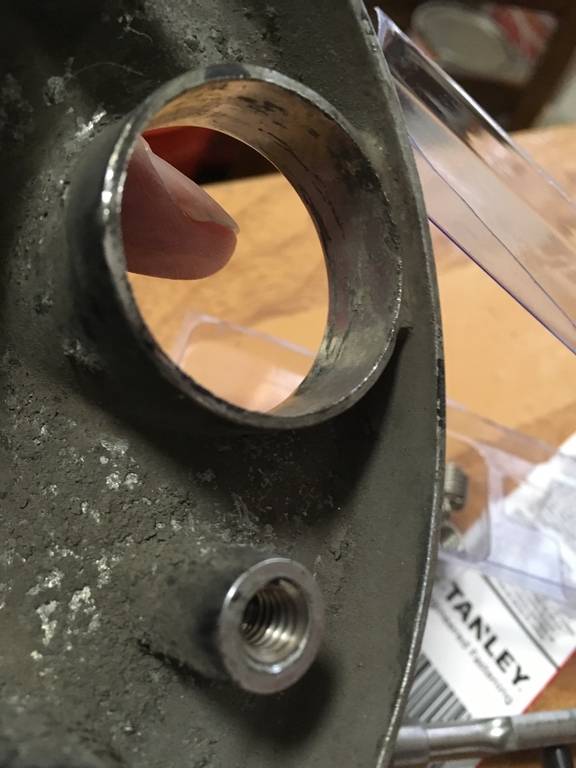

    Finished holes. When you are all done, the Heli-Coil repaired hole will be stronger than the original hole.
