Seat belt retractor covers

[jmustian]

I have a 69 300 convertible and trying to find out if the seat belt retractors had covers. I spent 3 hours in the FSM and the parts catalog but nothing was listed. While replacing the carpets, there were small pieces of a cardboard material on the belt guides but not enough to determine if they had covers or not.



[Big_John]

I can't speak 100% for the '69, but my '70 300 vert has the retractors under the carpet with a slot through the carpet that the belt passes through. There's a plastic trim piece around the slot in the carpet.

If I get a chance, I'll grab a pic later.

I saw some of the plastic trim being reproduced the other day, but can't remember where I saw it.



[sixpkrt]

The 69 300 I sold had the retractable seat belts under the carpet.

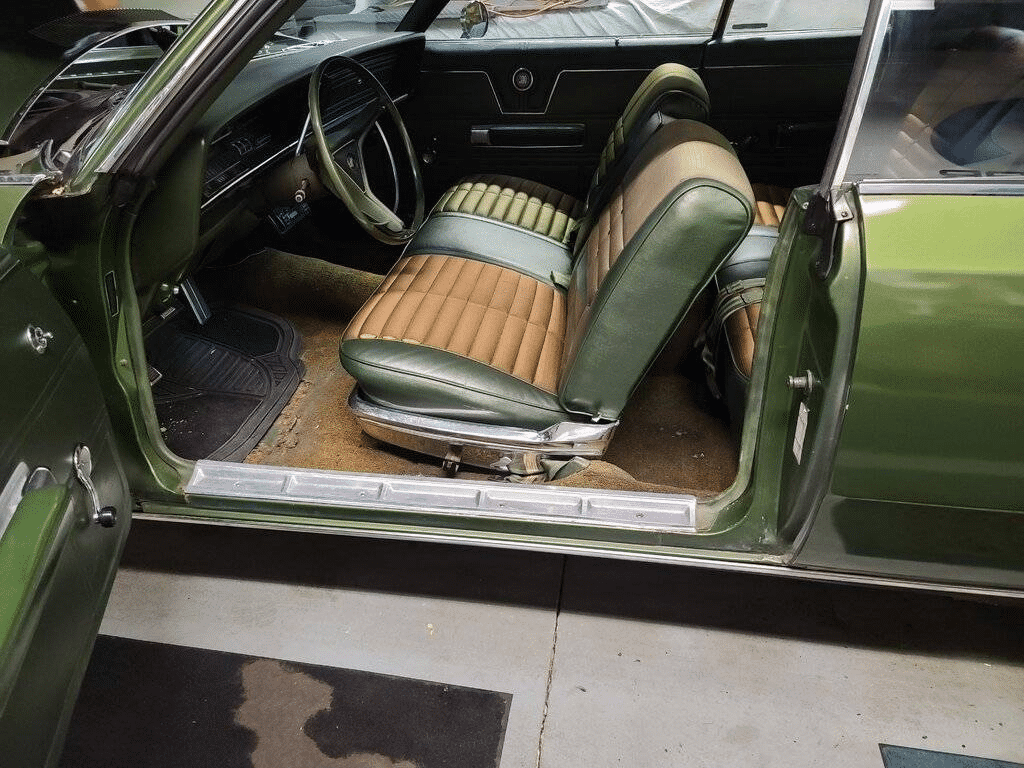

Here goes a picture that shows the slot on the 69 where the belt retracts.



[jmustian]

Thanks, both of you. I didn't have any idea so I installed the carpet the bolted the retractors on top.
Think I'll just make a carpet box to sit over them. Maybe the cardboard was to shape the carpet over them.



[jmustian]

Thanks, both of you. I didn't have any idea so I installed the carpet the bolted the retractors on top.
Think I'll just make a carpet box to sit over them. Maybe the cardboard was to shape the carpet over them.

I have the plastic guides on the retractor.



[Big_John]

the cardboard was to shape the carpet over them

That's exactly what they did.

It looked something like this... This is from an E-body and plastic, but it gives you the idea.



[jmustian]

Yes



[Welder guy]

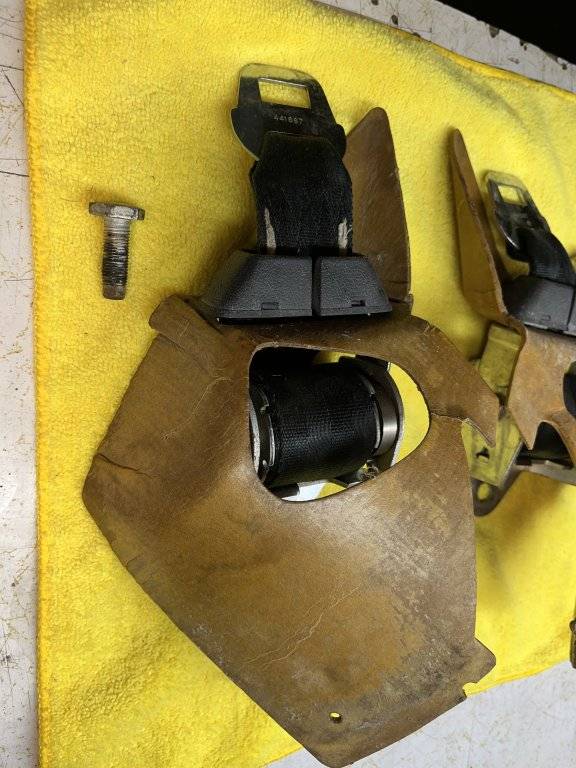

Here are a few pictures of 1969 Plymouth Sport Fury convertible seat belt assemblies including the belt retractor , belt guide, cardboard hump and mount bolts. These belt assemblies were used across the Chrysler, Dodge Plymouth c bodies in 1969 . I had this set on a shelf in my garage just in case there needed.



[jmustian]

Cool. Great pictures.
