1966 Polara 500 Ragtop

Member's Projects & Restorations

  1. Dsertdog

    Dsertdog Active Member

    Messages:
    230
    Likes Received:
    237
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    I also ran my fender tag today. I had a couple of of my Mopar buds question that the 4bbl intake and carb was original to the car. It spurned on my search for a proper decoder and I found the 66-67 Charger site.
    So my engine code is 62...383 4bbl 325 hp. 5 for Torqueflite auto.
    However the mystery continues...A Polara 500 convertible should have been a DM price code according to most sources. Yet this car is a DL code. It is an early production model... December 8th 1965. It has the correct dash emblem.

    Last edited: Feb 23, 2019
  2. Polara_500

    Polara_500 Senior Member FCBO Gold Member

    Messages:
    2,320
    Likes Received:
    953
    Joined:
    Apr 17, 2011
    Location:
    Up North, you betcha!
    Can't speak to 66, but in 65 the Polara 500 was DL.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
  3. Dsertdog

    Dsertdog Active Member

    Messages:
    230
    Likes Received:
    237
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    I had a '65 back in the day, with the 4bbl 383. I'd do 40 feet of smoky one wheel peel.
    The rest of the story is for another campfire.

  4. CBODY67

    CBODY67 Senior Member

    Messages:
    3,677
    Likes Received:
    827
    Joined:
    Mar 27, 2011
    if you look in the front of the parts book, where it lists the models and levels, the Polara, being the "entry level" full-size Dodge is "L" for "low". My '66 Newport Town Sedan is "L", but my '67 Newport "23" is "E" (economy). The Town Sedan, in '66, was like the later Newport Custom, with nicer interior trim than other Newport sedans/hardtops, which might relate to it being "L" than "E"?

    The "500" is for the bucket seat option package, which does not relate to the VIN price level designation.

    CBODY67

    • Thanks! Thanks! x 1
  5. LocuMob

    LocuMob Fluid Technician with a hat FCBO Gold Member

    Messages:
    9,180
    Likes Received:
    4964
    Joined:
    Oct 31, 2013
    Location:
    Blue Earth Mn
    Post #20, both are '66 Polar 500's.

  6. GJS

    GJS Senior Member FCBO Gold Member

    Messages:
    4,358
    Likes Received:
    2313
    Joined:
    Aug 10, 2016
    Location:
    Connecticut
    Awesome car, man. I'm rather impressed by the condition of the interior (though I only saw one shot in your garage). She looks to be a solid ride. Best of luck getting her back on the road!

    • Thanks! Thanks! x 1
  7. Dsertdog

    Dsertdog Active Member

    Messages:
    230
    Likes Received:
    237
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    Thanks, but the pictures paint an illusion. I'll posting pictures soon of the flaws I've uncovered with a bit more scrutiny. Overall the car is complete but certain things are worn out and holding together by a thread, or two. It's only money, right? :)

    • Like Like x 3
  8. GJS

    GJS Senior Member FCBO Gold Member

    Messages:
    4,358
    Likes Received:
    2313
    Joined:
    Aug 10, 2016
    Location:
    Connecticut
    Yea, I ran into a similar deal with my 67 ... but of course, it's only money ... and time .. and likely a little blood.

  9. Dsertdog

    Dsertdog Active Member

    Messages:
    230
    Likes Received:
    237
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    I've shown you the good and the bad, now let me show you some of the ugly...

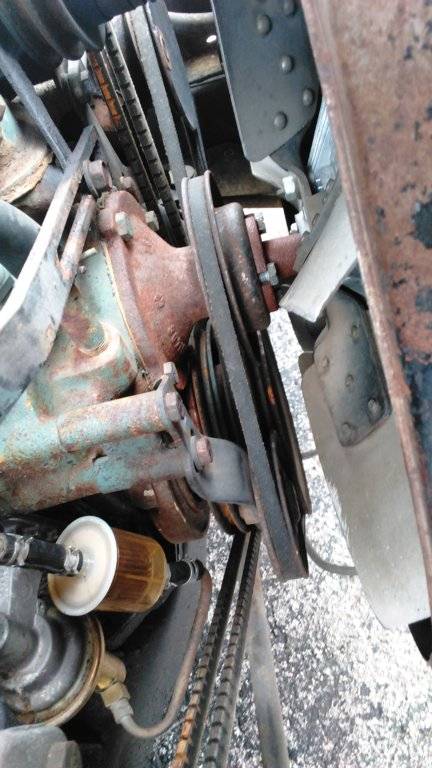

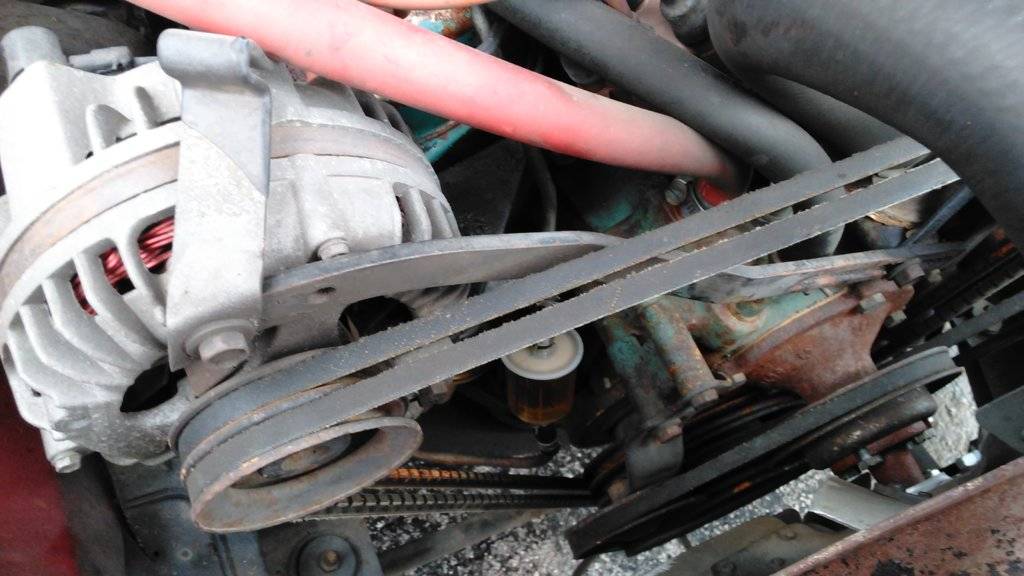

    Water pump has play, belt is loose, not sure of the idler pulley so we're replacing it all.
    Mechanic says the fuel pump got no suck, so I've got one coming.

    Belts are shot, heater hoses...one is original? Got a wire clamp on it. Cut it short instead and took it out of the alternator bracket.

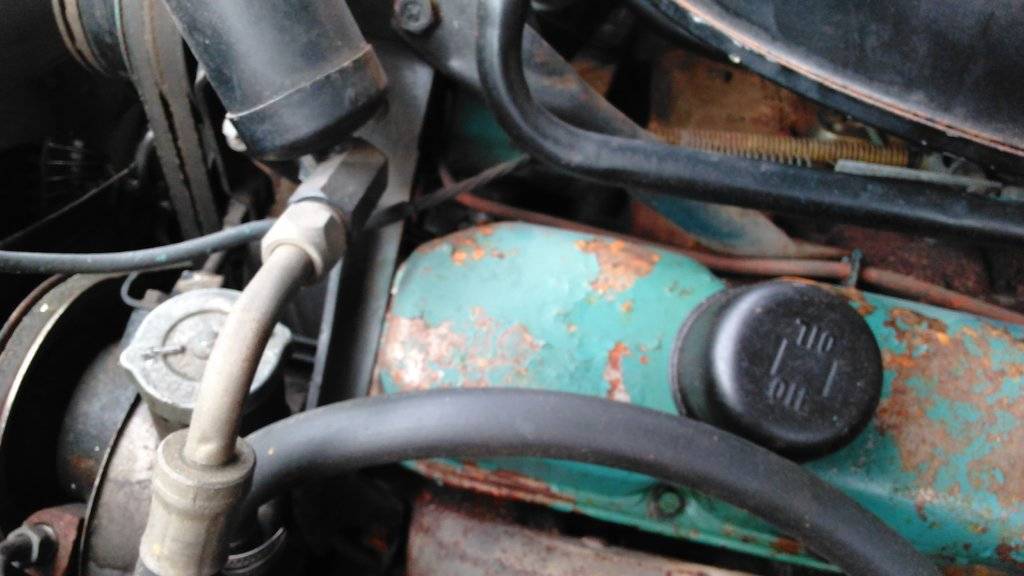

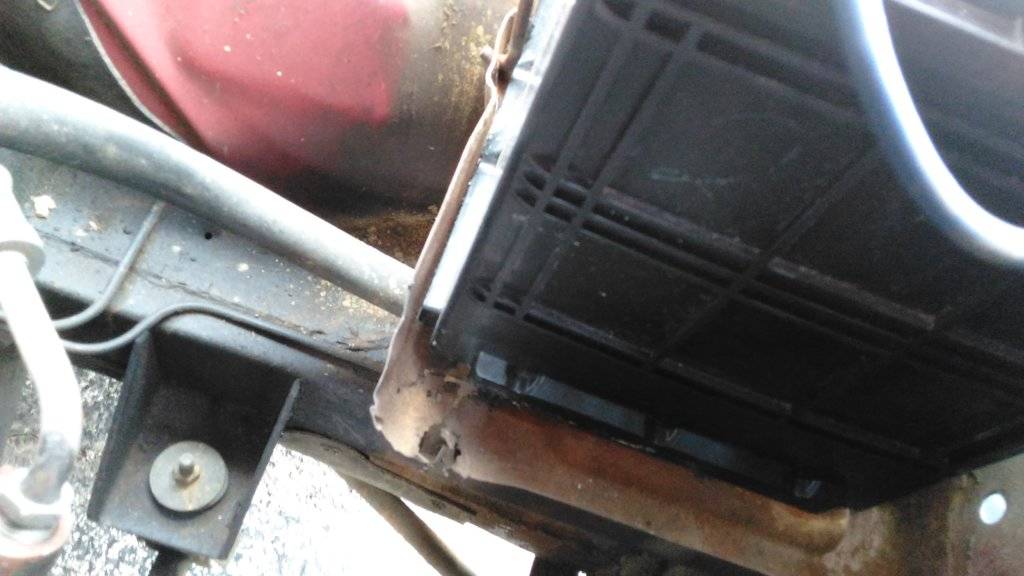

    Battery tray rot, sway bar bushings, all but gone. Mice enjoyed the negative cable insulation! IMG_20190226_135726.jpg

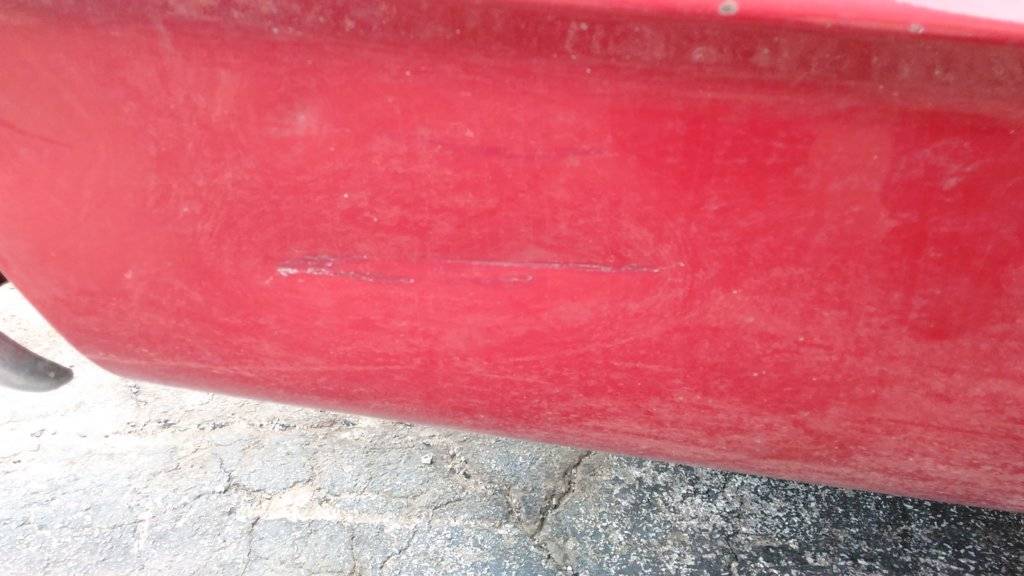

    Grille is intact but....Can IMG_20190226_140009.jpg this be repainted? Passenger quarter. Easy fix, but paint? IMG_20190226_140036.jpg

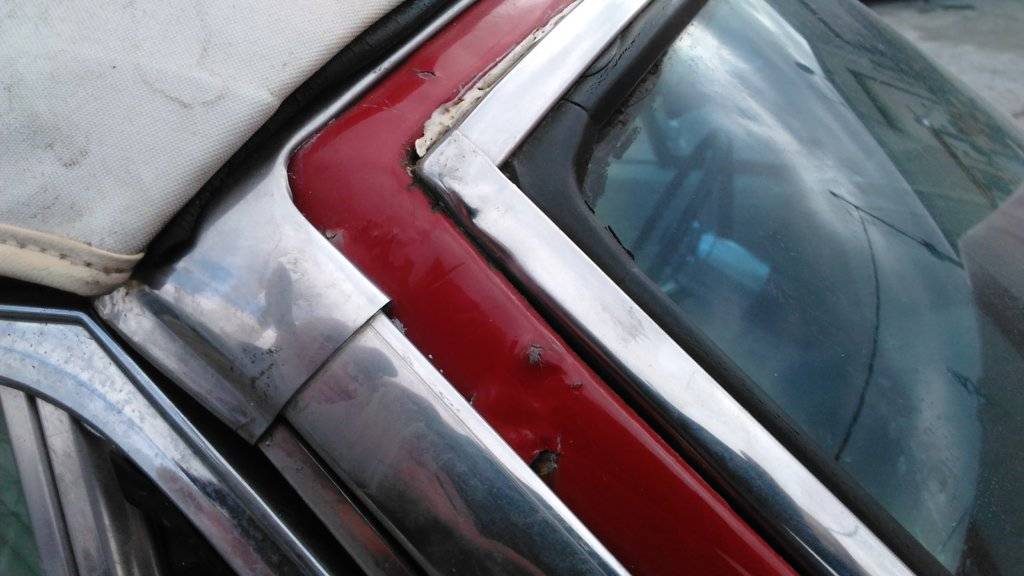

    This is the 2nd worst...passenger windshield frame. Any suggestions?

    I have one more spot but it's inside the car. I didn't unlock it but will post a photo later. Right now I'm gathering up parts, hoses, belts and the like.

    Last edited: Feb 26, 2019
    • Like Like x 1
  10. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    4,078
    Likes Received:
    1011
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    A pillar is rusted, you will need to pull the chrome trim and the windshield to see what what is left of the window channel. If the rust is no too bad, small holes can be welded shut or spliced. These convertibles were famous for rusty A Pillars. Rear quarter damage is minor and easily repaired. As long as the water pump and pulleys are apart, this would be a good time to do the timing chain as well.

    Dave

    • Agree Agree x 2
  11. LocuMob

    LocuMob Fluid Technician with a hat FCBO Gold Member

    Messages:
    9,180
    Likes Received:
    4964
    Joined:
    Oct 31, 2013
    Location:
    Blue Earth Mn
    1966 Dodge Polara convertible

    Saw this and I thought of your car. Not sure if they have anything you need or are looking for, but it might help.

    • Thanks! Thanks! x 1
  12. Dsertdog

    Dsertdog Active Member

    Messages:
    230
    Likes Received:
    237
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    Thanks, I'll check that out.
    I'd like to find a straight re chromeable front bumper and drivers parking light assembly.
    Right now, the priority is getting it to run so it can be moved under it's own power. My "guy " has been too busy to get to the car and it's been sitting out in his storage lot.
    I'm becoming a bit disappointed with that. But he's a friend and has always helped me out. He's one of the few people I trust with my Mopars.

    On a better note, we got the car registered and plated. It went rather smoothly.

    Last edited: Mar 3, 2019
    • Like Like x 1
  13. Dsertdog

    Dsertdog Active Member

    Messages:
    230
    Likes Received:
    237
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    I stopped by the shop Friday (8th) and helped push the car into the building.

    While I don't believe it was worked on, we had hail warnings for Saturday, and sure enough we got pretty good sized stuff.

    The plan is to fix the fuel issue, flush the radiator and replace the water pump. Then he'll inspect the brakes and front suspension and replace any worn out components. That will get the car driveable and I can start working on it at home.

    • Like Like x 1
  14. mr. fix it

    mr. fix it Old Man with a Hat

    Messages:
    6,269
    Likes Received:
    3695
    Joined:
    Aug 14, 2013
    Location:
    Welland, ON
    smart move:thumbsup:

    • Agree Agree x 1
  15. 1978 NYB

    1978 NYB Warfighter FCBO Gold Member

    Messages:
    41,251
    Likes Received:
    12161
    Joined:
    Apr 16, 2011
    Location:
    Classified
    I would replace the fuel filter if you haven't already replaced it.

    • Agree Agree x 1
  16. Dsertdog

    Dsertdog Active Member

    Messages:
    230
    Likes Received:
    237
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    He's got 4 of 'em, hopefully that's enough. :)

  17. xxcarguy

    xxcarguy Member

    Messages:
    78
    Likes Received:
    57
    Joined:
    Mar 4, 2019
    Location:
    Broken Arrow Oklahoma
    Glad your here
    Galen from Tiger Town Tees

    • Agree Agree x 1
  18. Dsertdog

    Dsertdog Active Member

    Messages:
    230
    Likes Received:
    237
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    Hey Galen!

  19. Dsertdog

    Dsertdog Active Member

    Messages:
    230
    Likes Received:
    237
    Joined:
    Feb 19, 2019
    Location:
    Oklahoma
    Just wanted to let everyone know that the Polara starts, runs and moves under it's own power. New fuel pump and some fresh fuel hose. Mechanic says it needs a tune-up. If I can get it home I'll have to familiarize myself with the big block.
    YAY!

    Does anyone have a "guy" they get vintage US made tune up pieces. I don't need date coded stuff. This is a driver.

    • Like Like x 2
  20. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    4,078
    Likes Received:
    1011
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    Tuning a big block like yours is not rocket science. Down load a copy of the FSM at www.mymopar.com the FSM will be found in the "Tools/Reference" section. This has all the spec's you need to properly tune your car. I have been doing my own tune ups since I was 16 and got my first car. The main critical items are setting the point gap and plug gap.

    For a good tune up, tools needed:
    Screwdriver
    Feeler Gauge
    Plug Gap Gauge
    3/8" Socket set in fractional
    Timing light
    (Optional, Compression Tester, Dwell Meter)

    If you do not feel comfortable doing the work yourself, find and old line shop with some geezer mechanics. Most modern techs are lost trying to work on anything without a computer.

    Dave

    • Agree Agree x 1
